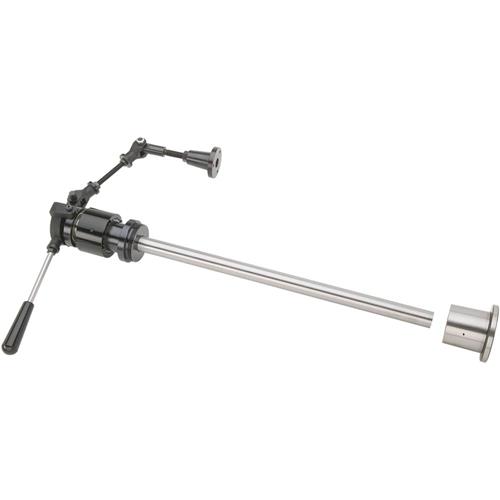

SB1272 5-C Collet Attachment for South Bend Lathes

Ease the loading and unloading workpieces to increase your productivity.

The SB1272 5-C Collet Attachment takes advantage of the South Bend factory-made collet port in the lathe gear cover.

It installs easily on the listed South Bend Lathes without having to modify the gear cover and is capable of delivering years of trouble-free service..

It is manufactured with the same high-quality workmanship, materials and tolerances South Bend machinery is known for.

For ease of use, a collet attachment lever locks the 5-C collet and workpiece in place.

To ensure accurate clamping pressure, a chuck sleeve with a thumb operated lock lever allows the length of the draw tube to be lengthened or shortened in fine increments.

For speedy installation and removal of the entire collet attachment assembly, the SB1264 is designed with a quick-release clevis and pin that has an overall slide-out design.

The SB1264 manual was written by our U.S. based Technical Documentation Department and is packed with useful information.

Like all South Bend products, it comes with a 2-year warranty which covers parts and assures the unit is free from factory defects.

The South Bend Customer Service and Technical Support Teams are U.S. based. Parts and accessories for South Bend products are available on-line and shipped from the South Bend parts warehouse in Springfield, MO.

SPECIFICATIONS:

• Collet size: 5-C Collets
• Collet Adapter: MT-7 to 5-C
• Approximate shipping weight: 32 lbs.

Fits the following South Bend lathes:

• SB1016
• SB1036
• SB1042PF
• SB1043PF
• SB1045PF
• SB1046PF
• SB1047PF
• SB1048PF
• SB1056F
• SB1057F
• SB1058F
• SB1059F
• SB1060PF
• SB1061PF
