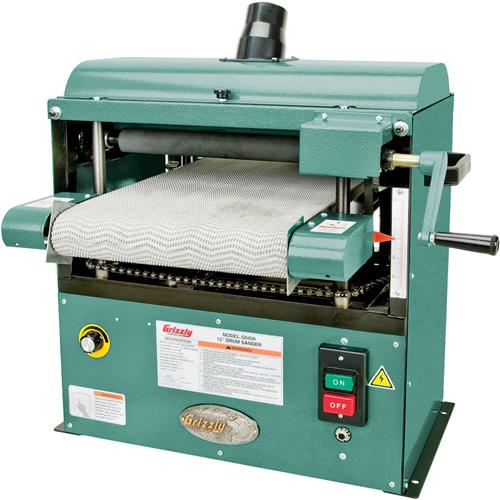

Grizzly 12" Baby Drum Sander
click to zoom
Don’t let the size fool you! This baby weighs a hefty 160 lbs. and packs a wallop when it comes to sanding wood up to 12" wide. Sized for workbenches or sturdy tool stands and comes equipped with a 1-1/2 HP sanding motor, variable speed conveyor motor, and gear drive table elevation handwheel for fine tuning your finish.
CSA certified meeting CSA C22.2 #71.2-10 and UL 987-7th standards!
- Sanding motor: 1-1/2 HP, 115V, single-phase, 13A
- Conveyor motor: 1/8 HP, 115V, single-phase, variable speed 5-55 RPM, 0.3A
- Drum surface speed: 2127 FPM
- Feed Speed: 2.47–17.3 FPM
- Maximum stock dimensions: 12" wide x 3-1/2" thick
- Minimum stock length: 8"
- Minimum stock thickness: 1/8"
- Sanding drum size: 4"
- Sanding belt size: 3" x 70" hook & loop
- Dust collection port: 2-1/2"
- Feed rate: 2.5-17.3 FPM
- Approximate shipping weight: 166 lbs.
- Steel dust hood maximizes dust collection efficiency
- Two adjustable pressure rollers
- Thickness scale
- Independent variable speed conveyor motor
- Industrial-duty conveyor belt
- Side handles for portability
Animation for G0459
