Description

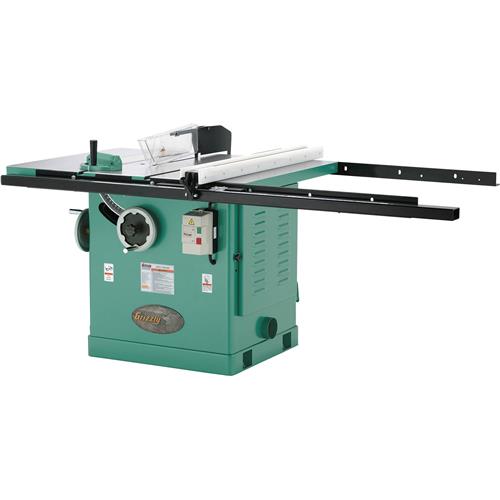

Our 14" Cabinet Saw has quickly become the workhorse of the professional shops. With features such as quadruple V-belt drive, machined collars, outboard arbor support bearing, dust pick up and a huge 48-1/2" x 38" table surface, no job is too large. From 4' x 8' sheet stock to material 5" thick, this saw will handle it and ask for more. If you're tired of trying to process large stock on a small table saw, look no further. Chances are you'll be able to afford one too since other saws with these features cost considerably more. Put a 1 HP power feeder on this saw and you'll be able to rip all day.

Features:

• Long 5/8" arbor
• Cast iron trunnions
• 1/2" x 63/64" T-slots
• Cast iron miter gauge
• Safety guard
• 4" dust port
• Power transfer: V-belt drive
• Table size with wings: 48-1/2" D x 38" W
• Precision ground cast iron table
• Sloped cabinet floor assists dust collection
• One piece steel cabinet
• TEFC capacitor start motor
• Magnetic switch with thermal overload protection
• Outboard bearing
• 1" arbor

Specifications:

• 5 HP, 220V, Single Phase motor
• 26 Amps @ 220V
• Arbor speed 3850 RPM
• Rim speed 14,110 SFPM
• Maximum depth of cut @ 90°: 5"
• Maximum depth of cut @ 45°: 3-9/16"
• Maximum rip to right of blade: 50-3/4"
• Distance from front of table to blade at maximum cut: 15-1/2"
• Distance from front of table to center of blade: 22-1/2"
• Overall dimensions: 82" W x 47" D x 42" H
• Shipping dimensions: 36-1/2" W x 43-1/2" D x 42" H
• Table height above floor: 35-1/2"
• Net weight: 825 lbs.
• Shipping weight approx: 1000 lbs.
