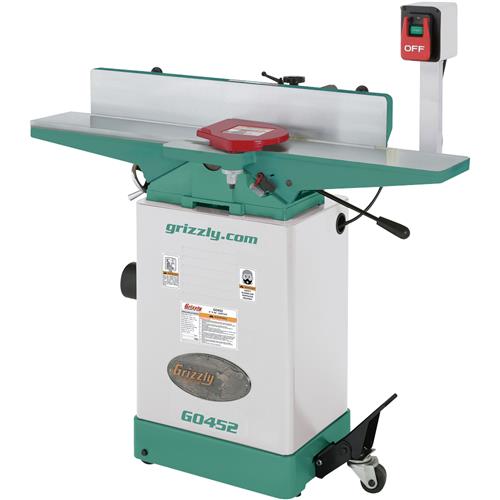

G0452 6" Jointer
CHRISTMAS SPECIAL !
Description
The latest addition to our family of jointers has some of the most remarkable features found anywhere. Starting from the ground up: built-in "kick-stand" mobile base (just push the lever down, push the machine where you want it and kick the lever back up!), built-in dust chute with 4" dust collection hood, quick adjusting lever on the infeed table, fine control handwheel on the outfeed table, positive stop at 1/8" on the infeed table, large 5" x 35" cast iron fence, rack and pinion fence adjustment, and an easy access switch with a removable safety key.
Specifications:
- Motor: 1 HP, 110V, single-phase
- Maximum stock width: 6"
- Maximum depth of cut: 1/8"
- Maximum rabbeting capacity: 1/2"
- Cutterhead diameter: 2 1/2"
- Number of knives: 3
- Cutterhead speed: 4800 RPM
- Table size: 6" x 46"
- Table height from floor: 32 1/2"
- Cuts per minute: 14, 400
- Fence size: 5"H x 35"L
- Fence adjustment: positive stops @ +/- 45º & 90º
- Overall dimensions: 46"L x 27 1/2"W x 37 1/4"H
- Approximate shipping weight: 270 lbs.
- Free pair of safety blocks
 See pages 38, 46, and 65 of our 2009 Grizzly Catalog! |
 See pages 9, and 14 of our 2009 Christmas Catalog! |
* Freight cost includes a $7.50 fuel surcharge.
**Final prices will include state sales tax for items shipped to WA, MO, or PA. Shipping charges for items not shipped via truck freight will be added according to our
shipping rates.
