Item #: T28429
Model # L630P

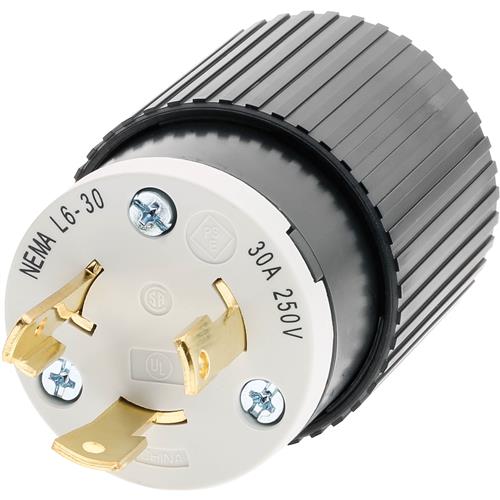

Hubbell L630P - 30 Amp 250V NEMA L6-30 Single Phase Twist Lock Plug

Specifications:

Type: Male plug

Standard: UL/CSA

Voltage rating: 250V

Connection: Terminal screw

Material: Composite

Amperage Rating: 30A

Number of Poles: 2

Number of Wires: 3

NEMA Rating: L6-30P

Size: Standard

Mounting: Cord Mounted

Environmental Conditions: Indoor dry unless protected by additional means

Appl... View More Details

$1695
+$000 Freight
+$000  Oversize
Add to Cart
Available to Ship
Add to Cart
Overview
Specifications:
  • Type: Male plug
  • Standard: UL/CSA
  • Voltage rating: 250V
  • Connection: Terminal screw
  • Material: Composite
  • Amperage Rating: 30A
  • Number of Poles: 2
  • Number of Wires: 3
  • NEMA Rating: L6-30P
  • Size: Standard
  • Mounting: Cord Mounted
  • Environmental Conditions: Indoor dry unless protected by additional means
  • Application: Power connection
  • Color: Black
Features:
  • Visible NEMA ratings
  • Captive assembly screws
  • Super tough nylon body
  • Impact modified nylon blade/contact holder
  • Brass contacts/blade
  • Withstands 3500 V per UL498 dielectric voltage
  • 600 VAC or 250 VDC maximum working voltage
  • Certified for current interrupting at full rated current
  • Maximum 30° C temperature rise at full rated current after 50 cycles overload at 150% rated current for either AC or DC applications per UL 498
  • Minimum 4.8 times rated current for 100 cycles overload
  • Terminals identified in accordance with UL 498 (Brass, White, Green)
  • 18 to 8 AWG flexible cord
  • Ratings and NEMA identification are permanently marked on device
Reviews

1 Customer Review (4 out of 5 stars) : Sign in to write a review

Dean B
As Advertised 05/28/2019 1:26:39 PM

I had to drill out the cord opening to accept the drop cords that is on my new table saw. This plug was recommended when I bought the saw but still required the modification I made.
