Item: T23864 | Model: 21V16-35

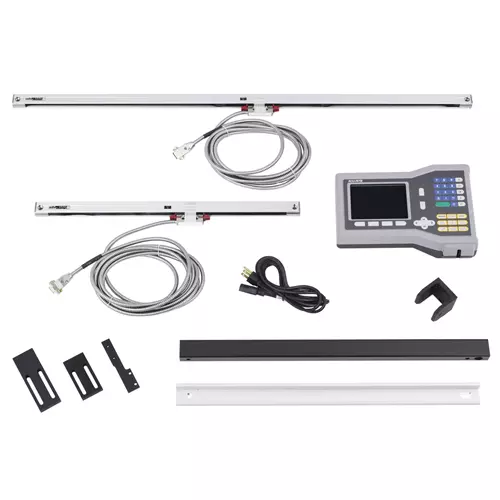

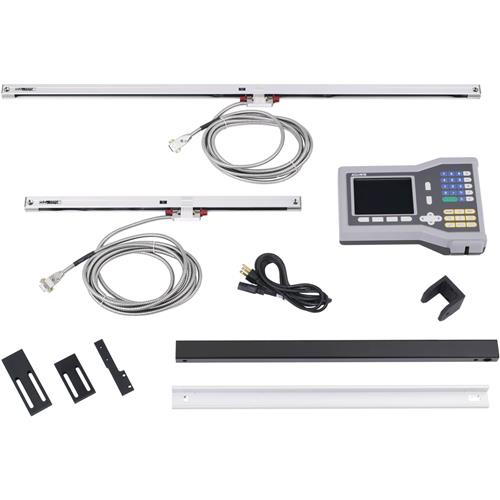

VUE LCD Digital Readout Systems The most cost effective, entry level digital readout system that incorporates LCD display technology, the VUE offers many popular features and versatile software to accommodate milling, turning and grinding applications. Designed and manufactured in the USA, ACU-RITE readouts are the first choice of machine tool builders and users alike.
VUE TECHNICAL DATA
Display:1 or 2 Axes 5.7" Transmissive LCD
Common Functions: Job Clock Feed Rate Display Multiple Language Support Absolute/Incremental Near-Zero Warning with Graphics Help Function 16 Tool Offsets/Diameter Preset and Zero Reset 4 Function Calculator/Trig Calculator Instant Inch/mm Conversion 200mm Fixed Reference Marks Linear/Non-Linear Compensation up to ±9,999 ppm
Milling Specific Functions: Bolthole Pattern Calculations with Graphics (full and partial circles/linear patterns) Centerline Calculation establish workpiece zero and midpoints
Turning Specific Functions: Lock Axis Feature establish tool offsets with the
tool under load, resulting in reduced tool deflection. Instant Radius/Diameter Conversion Taper Calculator Vectoring
Specifications: Construction: Die-Cast Metal Weight: 5.20 lbs. Data Interface: Serial Communication via USB for Software Downloads Electrical Requirements: Voltage of 100-240 VAC, Power of 25 VA max., Frequency of 50/60 Hz (+/-3Hz) Operating Temperature: 0° to 45º C (32º to 113º F) Storage Temperature: -20º to 70º C (-22º to 158º F)
Note: These are universal kits and may require fabricating additional brackets or mounts for installation on your mill.
VUE TECHNICAL DATA
Display:
Common Functions:
Milling Specific Functions:
Turning Specific Functions:
Specifications:
Note: These are universal kits and may require fabricating additional brackets or mounts for installation on your mill.
