Item: T32916 | Model: 658040
1 Product Photos

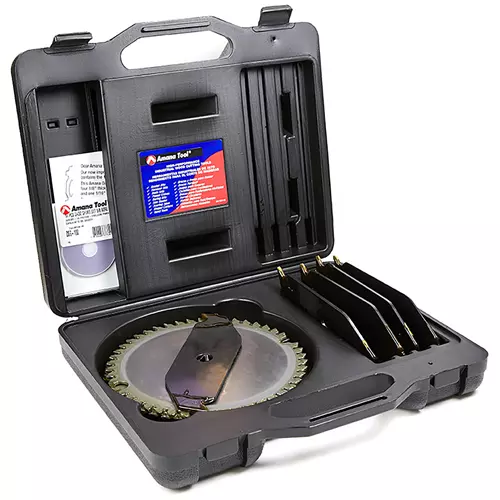

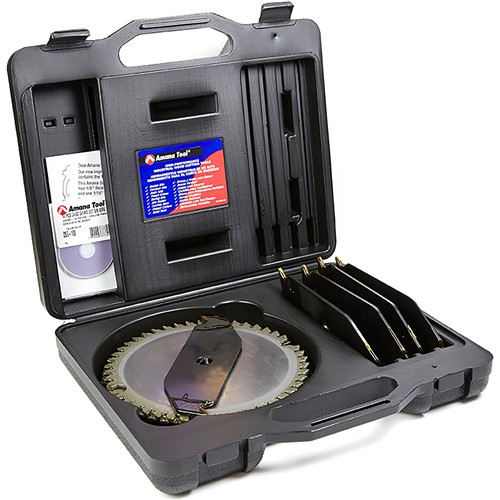

Dadoes (cross-grain cuts) and grooves (cuts with the grain) are cut efficiently on the table saw with a dado stack set. Unlike a wobbler, a stack set produces a flat-bottom cut with chip-free edges. Amana Tool° makes dado stack sets for every machine and every type of woodworking material. The standard width capacity ranges from 1/4" to 13/16". Additional chippers may be purchased separately to expand the capacity beyond 13/16". The standard set, regardless of diameter or tooth count, consists of two outside saw blades and four inside chippers. The outside blades feature hollow-ground plates for proper clearance, and alternate top bevel (ATB) grind with every sixth tooth flat ground (FT).
For plywood and melamine, the sets with 46-tooth outside blades are recommended.
Teeth refers to the number of teeth for each outside saw blade.
Specifications:Diameter: 8" (200mm) Teeth: 46 Bore: 5/8" Tooth Grind: ATB/FT Hook Angle: -5° Kerf: 1/4" - 13/16"
View More Details
For plywood and melamine, the sets with 46-tooth outside blades are recommended.
Teeth refers to the number of teeth for each outside saw blade.
Specifications:
Overview
Dadoes (cross-grain cuts) and grooves (cuts with the grain) are cut efficiently on the table saw with a dado stack set. Unlike a wobbler, a stack set produces a flat-bottom cut with chip-free edges. Amana Tool° makes dado stack sets for every machine and every type of woodworking material. The standard width capacity ranges from 1/4" to 13/16". Additional chippers may be purchased separately to expand the capacity beyond 13/16". The standard set, regardless of diameter or tooth count, consists of two outside saw blades and four inside chippers. The outside blades feature hollow-ground plates for proper clearance, and alternate top bevel (ATB) grind with every sixth tooth flat ground (FT).
For plywood and melamine, the sets with 46-tooth outside blades are recommended.
Teeth refers to the number of teeth for each outside saw blade.
Specifications:Diameter: 8" (200mm) Teeth: 46 Bore: 5/8" Tooth Grind: ATB/FT Hook Angle: -5° Kerf: 1/4" - 13/16"
For plywood and melamine, the sets with 46-tooth outside blades are recommended.
Teeth refers to the number of teeth for each outside saw blade.
Specifications:
