Parts for BE1161 - Big Fifty Rest - Cast-Iron

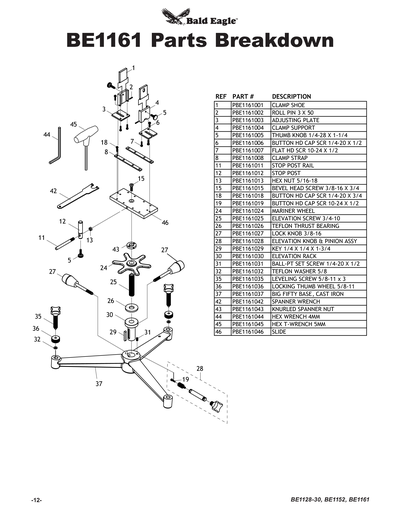

Part Diagram for BE1161
Part Diagram for BE1161

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
PBE1161001
CLAMP SHOE
Price
N/A
PBE1161002
ROLL PIN 3 X 50
Price
N/A
PBE1161003
ADJUSTING PLATE
Price
N/A
PBE1161004
CLAMP SUPPORT
Price
N/A
PBE1161005
THUMB KNOB 1/4-28 X 1-1/4
Price
N/A
PBE1161006
BUTTON HD CAP SCR 1/4-20 X 1/2
Price
N/A
PBE1161007
FLAT HD SCR 10-24 X 1/2
Price
N/A
PBE1161008
CLAMP STRAP
Price
N/A
PBE1161011
STOP POST RAIL
Price
N/A
PBE1161012
STOP POST
Price
N/A
PBE1161013
HEX NUT 5/16-18
Price
N/A
PBE1161015
BEVEL HEAD SCREW 3/8-16 X 3/4
Price
N/A
PBE1161018
BUTTON HD CAP SCR 1/4-20 X 3/4
Price
N/A
PBE1161019
BUTTON HD CAP SCR 10-24 X 1/2
Price
N/A
PBE1161024
MARINER WHEEL
Price
N/A
PBE1161025
ELEVATION SCREW 3/4-10
Price
N/A
PBE1161026
TEFLON THRUST BEARING
Price
N/A
PBE1161027
LOCK KNOB 3/8-16
Price
N/A
PBE1161028
ELEVATION KNOB & PINION ASSY
Price
N/A
PBE1161029
KEY 1/4 X 1/4 X 1-3/4
Price
N/A
PBE1161030
ELEVATION RACK
Price
N/A
PBE1161031
BALL-PT SET SCREW 1/4-20 X 1/2
Price
N/A
PBE1161032
FLAT WASHER 5/8
Price
N/A
P
LEVELING SCREW 5/8-11 x 3
Price
$6.40
P
LOCKING THUMB WHEEL 5/8-11
Price
$6.70
PBE1161037
BIG FIFTY BASE, CAST IRON
Item is no longer available
Price
N/A
PBE1161042
SPANNER WRENCH
Price
N/A
PBE1161043
KNURLED SPANNER NUT
Price
N/A
PBE1161044
HEX WRENCH 4MM
Price
N/A
PBE1161045
HEX T-WRENCH 5MM
Price
N/A
PBE1161046
SLIDE
Price
N/A
PBE1161MAN
*DISCD*MANUAL BE1128-61 MFD-10.12 V1.03.
Price
N/A
