Parts for D2260A - Mini Mobile Base

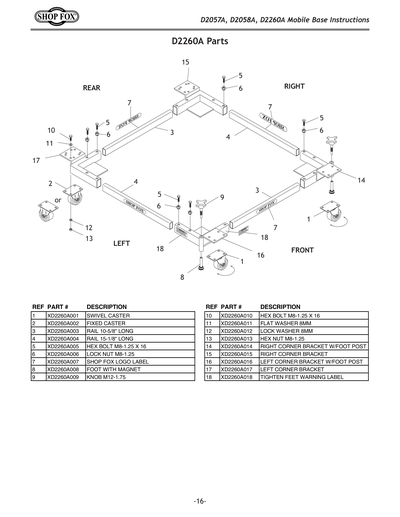

Part Diagram for D2260A
Part Diagram for D2260A

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
PXD2260A001
SWIVEL CASTER
Price
N/A
PXD2260A002
FIXED CASTER
Price
N/A
P
Price
$11.20
P
Price
$9.10
PXD2260A005
HEX BOLT M8-1.25 X 25
Price
N/A
PXD2260A006
LOCK NUT M8-1.25
Price
N/A
PXD2260A007
SHOP FOX LOGO
Price
N/A
PXD2260A008
FOOT W/MAGNET
Price
N/A
PXD2260A009
KNOB M12-1.75
Price
N/A
PXD2260A010
HEX BOLT M8-1.25 X 16
Price
N/A
PXD2260A011
FLAT WASHER 8MM
Price
N/A
PXD2260A012
LOCK WASHER 8MM
Price
N/A
PXD2260A013
HEX NUT M8-1.25
Price
N/A
P
RIGHT CORNER BRACKET W/FOOT POST
Price
$13.25
P
Price
$9.00
P
LEFT CORNER BRACKET W/FOOT POST
Price
$10.45
P
Price
$9.00
PXD2260A018
TIGHTEN FEET WARNING LABEL
Price
N/A
P
Price
$8.35
P
Price
$4.70
P
MANUAL FOR D2260A 05/09
Price
$14.85
