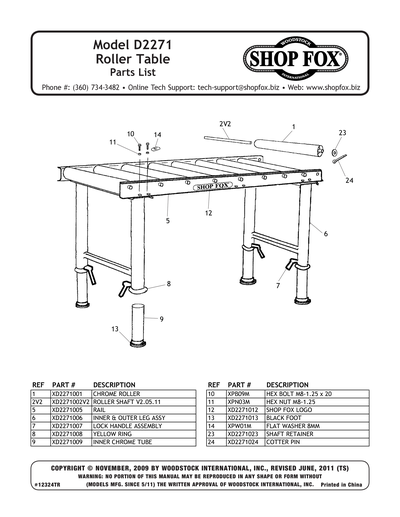

Parts for D2271 Roller Table

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

P
CHROME ROLLER
P
*DISCD*ROLLER SHAFT W/O HOLE V1
P
ROLLER SHAFT W/HOLES V2.05.11
P
*DISCD*PLASTIC CAP V1
PXD2271004
INNER & OUTER LEG ASSY
Price
N/A
P
RAIL
P
INNER & OUTER LEG ASSY
P
LOCK HANDLE ASSEMBLY
P
OUTER TUBE TOP CAP
P
*DISCD*INNER CHROME TUBE V1
PXD2271010
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
PXD2271011
Now: PN03M
HEX NUT M8-1.25
Price
N/A
P
SHOP FOX LOGO
P
BLACK FOOT
PXD2271014
Now: PW01M
FLAT WASHER 8MM
Price
N/A
P
COMPLETE BOLT BAG V1.08.03
P
COMPLETE BOLT BAG V2.03.09
PXD2271016
*DISCD*CARTON FOR D2271
Item is no longer available
Price
N/A
P
RAIL CONNECTING BRACKET
PXD2271022
*DISCD*OUTER LEG
Item is no longer available
Price
N/A
P
SHAFT RETAINER
PXD2271024
COTTER PIN 2 X 33MM STANDARD
Price
N/A
P
CARTON FOR D2271 LEGS AND ROLLERS
P
CARTON FOR D2271 RAILS
P
COMPLETE SIDE RAILS ASSEMBLY BOX 2
P
MANUAL FOR D2271 MFG 5/11 6/11
