Parts for D2274 - 5 Roller Stand

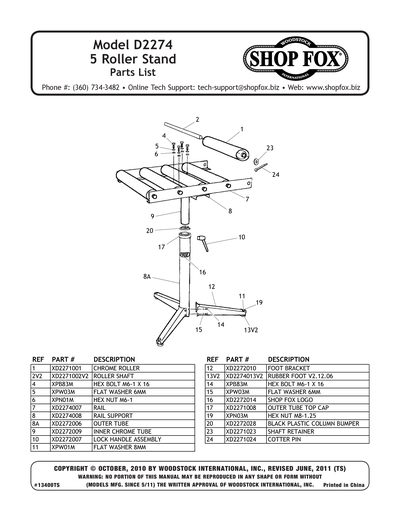

Part Diagram for D2274
Part Diagram for D2274

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
PXD2274001
CHROME ROLLER
Price
N/A
P
Price
$2.90
PXD2274002V2
ROLLER SHAFT W/HOLES V2.05.11
Price
N/A
PXD2274003
*DISCD*PLASTIC CAP V1
Price
N/A
PXD2274004
HEX BOLT M6-1 X 16
Price
N/A
PXD2274005
FLAT WASHER 6MM
Price
N/A
PXD2274006
HEX NUT M6-1
Price
N/A
P
Price
$5.75
P
Price
$8.65
PXD2274008A
OUTER TUBE
Price
N/A
PXD2274009
INNER CHROME TUBE
Price
N/A
PXD2274010
LOCK HANDLE ASSEMBLY
Price
N/A
PXD2274011
FLAT WASHER 8MM
Price
N/A
PXD2274012
FOOT BRACKET
Price
N/A
PXD2274013
RUBBER FOOT
Price
N/A
P
Price
$2.20
PXD2274014
HEX BOLT M6-1 X 16
Price
N/A
PXD2274015
FLAT WASHER 6MM
Price
N/A
PXD2274016
SHOP FOX LOGO
Price
N/A
PXD2274017
OUTER TUBE TOP CAP
Price
N/A
P
Price
$2.60
PXD2274019
HEX NUT M8-1.25
Price
N/A
PXD2274020
BLACK PLASTIC COLUMN BUMPER
Price
N/A
P
Price
$7.20
PXD2274023
SHAFT RETAINER
Price
N/A
PXD2274024
COTTER PIN 2 X 33MM STANDARD
Price
N/A
P
Price
$14.65
P
MANUAL FOR D2274 MFG 5/11 6/11
Price
$14.65
