Parts for D2730 - 3" Cross Sliding Vise

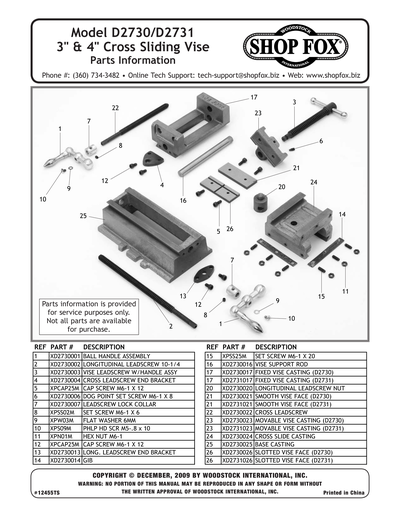

Part Diagram for D2730
Part Diagram for D2730

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
P
Price
$6.15
P
LONGITUDINAL LEADSCREW 16-4 X 160
Price
$4.35
P
VISE LEADSCREW W/HANDLE ASSY
Price
$6.15
P
CROSS LEADSCREW END BRACKET
Price
$6.15
PXD2730005
CAP SCREW M6-1 X 11
Price
N/A
P
DOG PT SET SCR M6-1 X 8
Price
$1.90
PXD2730007
LEADSCREW LOCK COLLAR
Item is no longer available
Price
N/A
PXD2730008
SET SCREW M6-1 X 6
Price
N/A
PXD2730009
FLAT WASHER 6MM
Price
N/A
PXD2730010
PHLP HD SCR M5-.8 X 10
Price
N/A
PXD2730011
HEX NUT M6-1
Price
N/A
PXD2730012
CAP SCREW M6-1 X 11
Price
N/A
P
*DISCD*LONG. LEADSCREW END BRACKET V1
Price
$1.49
P
LONG. LEADSCREW END BRACKET V2.01.13
Price
$1.75
P
Price
$1.90
PXD2730015
SET SCREW M6-1 X 20
Price
N/A
P
Price
$2.20
P
Price
$9.80
P
LONGITUDINAL LEADSCREW NUT
Price
$2.65
PXD2730021
SMOOTH VISE FACE
Item is no longer available
Price
N/A
P
Price
$3.25
P
Price
$4.60
PXD2730024
CROSS SLIDE CASTING
Item is no longer available
Price
N/A
PXD2730025
BASE CASTING
Item is no longer available
Price
N/A
PXD2730025V2
BASE CASTING V2.01.13
Item is no longer available
Price
N/A
PXD2730026
SLOTTED VISE FACE
Item is no longer available
Price
N/A
