Parts for D3605 Clamp Buddy

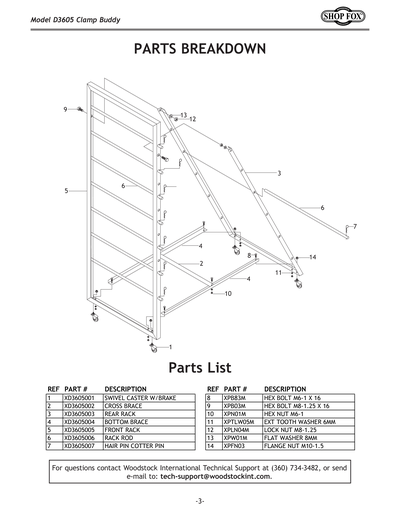

Parts Diagrams for D3605 - Clamp Buddy

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Parts List for Parts for D3605 Clamp Buddy

P
SWIVEL CASTER W/ BRAKE
$5.45
Enter quantity between 1 and 99
P
CROSS BRACE
$6.15
Enter quantity between 1 and 99
P
REAR RACK
$22.70
Enter quantity between 1 and 99
P
BOTTOM BRACE
$27.00
Enter quantity between 1 and 99
P
FRONT RACK
$30.95
Enter quantity between 1 and 99
P
RACK ROD
$1.90
Enter quantity between 1 and 99
P
HAIR PIN COTTER PIN
$1.90
Enter quantity between 1 and 99
PXD3605008
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
PXD3605009
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
PXD3605010
Now: PN01M
HEX NUT M6-1
Price
N/A
PXD3605011
EXT TOOTH WASHER 6MM
Price
N/A
PXD3605012
LOCK NUT M8-1.25
Price
N/A
PXD3605013
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PXD3605014
FLANGE NUT M10-1.5
Price
N/A
