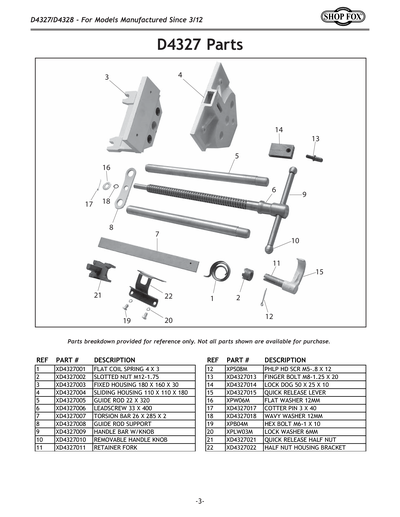

Parts for D4327 Quick Release Vise - 7" Jaw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

P
FLAT COIL SPRING 4 X 3
P
*DISCD*SLOTTED NUT M12-1.75
P
FIXED HOUSING 180 X 160 X 30
P
SLIDING HOUSING 110 X 110 X 180
P
GUIDE ROD 22 X 320
P
LEADSCREW 33 X 400
P
TORSION BAR 26 X 285 X 2
P
GUIDE ROD SUPPORT
P
HANDLE BAR
P
REMOVABLE HANDLE KNOB
PXD4327011
QUICK RELEASE LEVER W/ RETAINER FORK
Price
N/A
PXD4327012
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
P
FINGER BOLT M8-1.25 X 20
P
LOCK DOG 50 X 25 X 10
P
QUICK RELEASE LEVER W/ RETAINER FORK
PXD4327016
Now: PW06M
FLAT WASHER 12MM
Price
N/A
P
COTTER PIN 3 X 40
P
WAVY WASHER 12MM
PXD4327019
Now: PB04M
HEX BOLT M6-1 X 10
Price
N/A
PXD4327020
LOCK WASHER 6MM
Price
N/A
PXD4327021
*DISCD*QUICK RELEASE HALF NUT
Item is no longer available
Price
N/A
P
HALF NUT HOUSING BRACKET
P
BOX FOR D4327
