Parts for D4666 Industrial Mobile Base

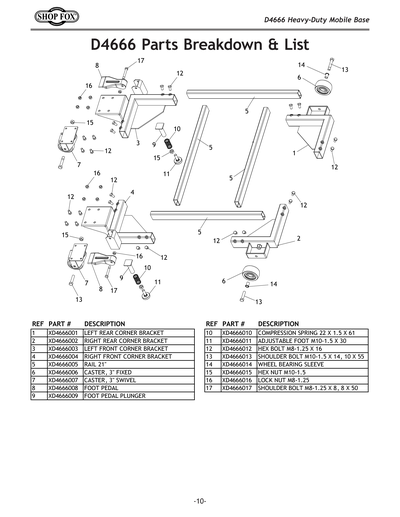

Parts Diagrams for D4666 - Industrial Mobile Base

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Parts List for Parts for D4666 Industrial Mobile Base

P
LEFT REAR CORNER BRACKET
$24.75
Enter quantity between 1 and 99
P
RIGHT REAR CORNER BRACKET
$24.75
Enter quantity between 1 and 99
P
LEFT FRONT CORNER BRACKET
$32.95
Enter quantity between 1 and 99
PXD4666004
RIGHT FRONT CORNER BRACKET
Price
N/A
P
RAIL 21"
$10.35
Enter quantity between 1 and 99
P
CASTER, 3" FIXED
$12.40
Enter quantity between 1 and 99
P
CASTER, 3" SWIVEL
$20.70
Enter quantity between 1 and 99
P
FOOT PEDAL
$8.35
Enter quantity between 1 and 99
P
FOOT PEDAL PLUNGER
$4.20
Enter quantity between 1 and 99
P
COMPRESSION SPRING 22 X 1.5 X 61
$4.20
Enter quantity between 1 and 99
P
ADJUSTABLE FOOT M10-1.5 X 30
$4.20
Enter quantity between 1 and 99
P
SHOULDER BOLT M10-1.5 X 14, 10 X 55
$4.20
Enter quantity between 1 and 99
P
WHEEL BEARING SLEEVE
$4.20
Enter quantity between 1 and 99
P
SHOULDER BOLT M8-1.25 X 8, 8 X 50
$4.20
Enter quantity between 1 and 99
P
MANUAL D4666 MFD-04.17 V1.04.17
$14.65
Enter quantity between 1 and 99
P
BOX FOR D4666
$12.40
Enter quantity between 1 and 99
