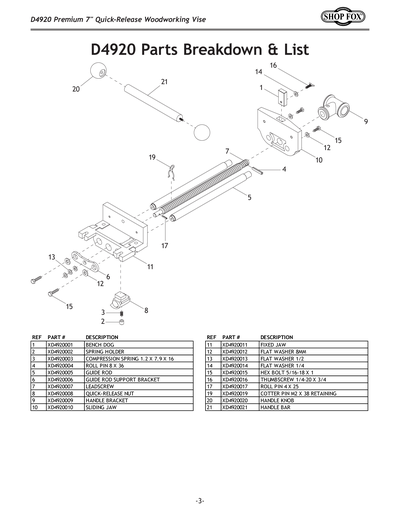

Parts for D4920 Premium 7" Quick-Release Woodworking Vise

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

P
*DISCD*BENCH DOG
P
*DISCD*SPRING HOLDER
P
*DISCD*COMPRESSION SPRING 1.2 X 7.9 X 16
PXD4920004
*DISCD*DOWEL PIN 8 X 36
Item is no longer available
Price
N/A
PXD4920005
*DISCD*GUIDE ROD
Item is no longer available
Price
N/A
PXD4920006
*DISCD*GUIDE ROD SUPPORT BRACKET
Item is no longer available
Price
N/A
PXD4920007
*DISCD*LEADSCREW
Item is no longer available
Price
N/A
PXD4920008
*DISCD*QUICK-RELEASE NUT
Item is no longer available
Price
N/A
P
*DISCD*HANDLE BRACKET
PXD4920010
*DISCD*SLIDING JAW
Item is no longer available
Price
N/A
PXD4920011
*DISCD*FIXED JAW
Item is no longer available
Price
N/A
PXD4920012
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PXD4920013
Now: PW01
FLAT WASHER 1/2
Price
N/A
PXD4920014
Now: PW06
FLAT WASHER 1/4
Price
N/A
PXD4920015
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
PXD4920016
THUMBSCREW 1/4-20 X 3/4
Price
N/A
PXD4920017
ROLL PIN 4 X 25
Price
N/A
P
*DISCD*COTTER PIN M2 X 38 RETAINING
PXD4920020
*DISCD*HANDLE BAR AND KNOB
Item is no longer available
Price
N/A
PXD4920021
*DISCD*HANDLE BAR AND KNOB
Price
N/A
P
MANUAL D4920 MFD-09.20+ V1.09.20
