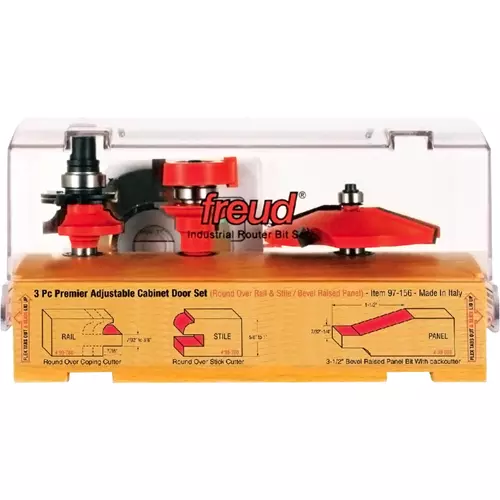

T33478 3-Piece Freud Premier Adjustable Cabinet Bit Set

The T33478 Freud Cabinet Bit Set combines one of their most popular rail and stile bit sets with their exclusive Quadra-Cut™ Raised Panel Bits.

This set is ideal for anyone who wants to make high-quality raised panel or flat panel doors.

This set features Freud's Premier Adjustable Rail & Stile Bits with Freud's exclusive long tenon technology for the strongest possible rail and stile joints.

The raised panel bit includes backcutters to rabbet the panel back: 3/4" panels sit flush with 3/4" frame.

The patented design allows these bits to produce a full 1-1/2" wide reveal for traditional raised panel doors

All bits have 1/2" shanks and are suitable for use with table-mounted routers to mill hardwood or softwood door parts.

SPECIFICATIONS:

• Shank diameter: 1/2" (all)

3-1/2" Raised panel bit with Backcutters

• Minor height: 5/32"
• Small radius: 3/16"
• Number of cutters: 4
• Cutter Diameter: 3-1/2"
• Carbide height: 1"
• Overall Length: 3"
• Maximum RPM: 12,000

1-11/16" Premier adjustable rail & stile bits

• Large radius: 7/32"
• Cutter Diameter: 1-11/16"
• Overall Length: 3-3/4"
• Maximum RPM: 16,000

FEATURES:

• Includes Freud's wooden shadowbox case
• Includes Freud's Quadra-Cut and Premier Adjustable Rail & Stile technology
• Freud Perma-SHIELD® coating
