Parts for G0440HEP - 2 HP Dual-Filtration HEPA Cyclone Dust Collector

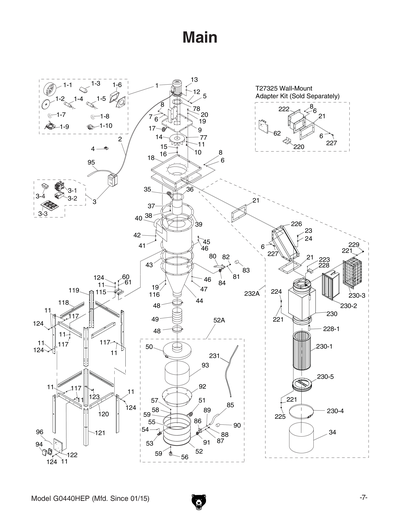

Part Diagram for G0440HEP
Part Diagram for G0440HEP
Part Diagram for G0440HEP
Part Diagram for G0440HEP
Part Diagram for G0440HEP
Part Diagram for G0440HEP

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

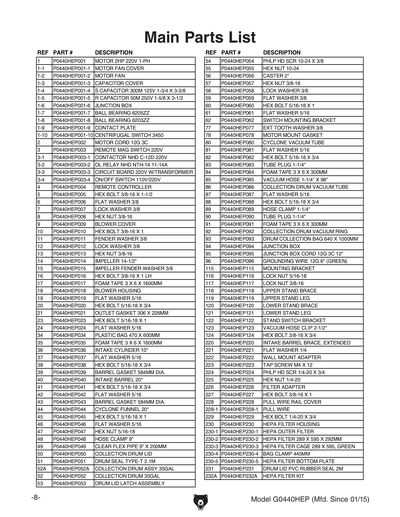

Ref #
Part #
Description
1
MOTOR 2HP 220V 1-PH
Price
N/A
1-1
MOTOR FAN COVER
Price
N/A
1-10
CENTRIFUGAL SWITCH 3450
Price
N/A
1-2
MOTOR FAN
Price
N/A
1-3
CAPACITOR COVER
Price
N/A
1-4
S CAPACITOR 300M 125V 1-3/4 X 3-3/8
Price
N/A
1-5
R CAPACITOR 50M 250V 1-3/4 X 2-3/4
Price
N/A
1-6
JUNCTION BOX
Price
N/A
1-7
BALL BEARING 6205ZZ
Price
N/A
1-8
BALL BEARING 6203ZZ
Price
N/A
1-9
CONTACT PLATE
Price
N/A
2
MOTOR CORD 10G 3W
Price
N/A
3
REMOTE MAG SWITCH 220V V3.01.12
Price
N/A
3-1
CONTACTOR NHD C-12D 220V
Price
N/A
3-2
OL RELAY NHD NTH-14 11-14A
Price
N/A
3-3
CIRCUIT BOARD 220V W/TRANSFORMER
Price
N/A
3-4
ON/OFF SWITCH 110V/220V
Price
N/A
4
REMOTE CONTROLLER
Price
N/A
5
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
6
FLAT WASHER 3/8
Price
N/A
7
LOCK WASHER 3/8
Price
N/A
8
HEX NUT 3/8-16
Price
N/A
9
BLOWER COVER
Price
N/A
9V2
BLOWER COVER V2.09.20
Price
N/A
10
HEX BOLT 3/8-16 X 1
Price
N/A
11
FENDER WASHER 3/8
Price
N/A
12
LOCK WASHER 3/8
Price
N/A
13
HEX NUT 3/8-16
Price
N/A
14
IMPELLER 14-1/2" V2.02.06
Price
N/A
15
FENDER WASHER 8MM
Price
N/A
16
HEX BOLT 3/8-16 X 1 LH
Price
N/A
17
FOAM TAPE 3 X 6 X 1600MM
Price
N/A
18
BLOWER HOUSING 14.5" IMP V2.02.06
Price
N/A
19
FLAT WASHER 5/16
Price
N/A
20
HEX BOLT 5/16-18 X 3/4
Price
N/A
21
OUTLET GASKET 306 X 226MM
Price
N/A
23
HEX BOLT 5/16-18 X 1
Price
N/A
24
FLAT WASHER 5/16
Price
N/A
25
RIVET
Price
N/A
26
COLLECTION DRUM HANDLE PLASTIC
Price
N/A
27
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
28
ACORN NUT 5/16-18
Price
N/A
29
CARRIAGE BOLT 5/16-18 X 3/4
Price
N/A
30
HANDLE HOOK BASE
Price
N/A
31
AIR HOSE 1145MM
Price
N/A
32
STRAIN RELIEF TYPE-3 M16-2
Price
N/A
34
PLASTIC BAG 470 X 600MM V2.11.09
Price
N/A
35
FOAM TAPE 3 X 6 X 1600MM
Price
N/A
36
INTAKE CYLINDER 10"
Price
N/A
37
FLAT WASHER 5/16
Price
N/A
38
HEX BOLT 5/16-18 X 3/4
Price
N/A
39
BARREL GASKET 584MM DIA.
Price
N/A
40
INTAKE BARREL 20"
Price
N/A
40V2
INTAKE BARREL 20" V2.12.20
Price
$717.30
41
HEX BOLT 5/16-18 X 3/4
Price
N/A
42
FLAT WASHER 5/16
Price
N/A
43
BARREL GASKET 584MM DIA.
Price
N/A
44
CYCLONE FUNNEL 20" V2.08.10
Price
N/A
44V2
CYCLONE FUNNEL 20" V3.09.20
Price
N/A
45
HEX BOLT 5/16-18 X 1
Price
N/A
46
FLAT WASHER 5/16
Price
N/A
47
HEX NUT 5/16-18
Price
N/A
48
HOSE CLAMP 9"
Price
N/A
49
CLEAR FLEX PIPE 9" X 200MM
Price
N/A
50
COLLECTION DRUM LID V2.08.06
Price
N/A
50V2
COLLECTION DRUM LID V2.09.20
Price
N/A
51
DRUM SEAL TYPE-T 2.1M V2.11.09
Price
N/A
52
COLLECTION DRUM 35GAL V2.08.10
Price
N/A
52A
COLLECTION DRUM ASSY 35GAL V2.08.10
Price
N/A
52AV2
COLLECTION DRUM ASSY 35GAL V2.12.20
Price
$670.20
52V2
COLLECTION DRUM 35GAL V2.12.20
Price
$373.15
53
DRUM LID LATCH ASSEMBLY
Price
N/A
54
PHLP HD SCR 10-24 X 3/8
Price
N/A
55
HEX NUT 10-24
Price
N/A
56
CASTER 2"
Price
N/A
57
HEX NUT 3/8-16
Price
N/A
58
LOCK WASHER 3/8
Price
N/A
59
FLAT WASHER 3/8
Price
N/A
60
HEX BOLT 5/16-18 X 1
Price
N/A
61
FLAT WASHER 5/16
Price
N/A
62
SWITCH MOUNTING BRACKET V2.01.12
Price
N/A
63
FENDER WASHER 5/16
Price
N/A
64
HANDLE HOOK
Price
N/A
65
PRESSURE GAUGE W/MOUNTING BRACKET
Price
N/A
66
CYCLONE FUNNEL ADAPTER
Price
N/A
67
FLAT WASHER 3/8 THIN
Price
N/A
68
HEX BOLT 3/8-16 X 11
Price
N/A
69
HEX NUT M3-.5
Price
N/A
70
DRUM LID SPRING
Price
N/A
77
EXT TOOTH WASHER 3/8
Price
N/A
78
MOTOR MOUNT GASKET
Price
N/A
80
CYCLONE VACUUM TUBE
Price
N/A
81
FLAT WASHER 5/16
Price
N/A
82
HEX BOLT 5/16-18 X 3/4
Price
N/A
83
TUBE PLUG 1-1/4"
Price
N/A
84
FOAM TAPE 3 X 6 X 300MM
Price
N/A
85
VACUUM HOSE 1-1/4" X 98"
Price
N/A
86
COLLECTION DRUM VACUUM TUBE
Price
N/A
87
FLAT WASHER 5/16
Price
N/A
88
HEX BOLT 5/16-18 X 3/4
Price
N/A
89
HOSE CLAMP 1-1/4"
Price
N/A
90
TUBE PLUG 1-1/4"
Price
N/A
91
FOAM TAPE 3 X 6 X 300MM
Price
N/A
92
COLLECTION DRUM VACUUM RING
Price
N/A
93
DRUM COLLECTION BAG 640 X 1000MM
Price
N/A
94
JUNCTION BOX
Price
N/A
95
JUNCTION BOX CORD 12G 3C 12"
Price
N/A
96
GROUNDING WIRE 12G 6" (GREEN)
Price
N/A
97
COLLECTION LID HANDLE
Price
N/A
98
DRUM LID CONNECTING PLATE
Price
N/A
99
DRUM WINDOW
Price
N/A
115
MOUNTING BRACKET V1
Price
$18.15
115V2
MOUNTING BRACKET V2.12.20
Price
N/A
116
LOCK NUT 5/16-18
Price
N/A
117
LOCK NUT 3/8-16
Price
N/A
118
UPPER STAND BRACE
Price
N/A
118V2
UPPER STAND BRACE V2.12.20
Price
N/A
119
UPPER STAND LEG V2.07.10
Price
N/A
119V2
UPPER STAND LEG V2.12.20
Price
N/A
120
LOWER BRACKET BRACE V2.03.12
Price
N/A
120V2
LOWER BRACKET BRACE V2.12.20
Price
N/A
121
LOWER STAND LEG V2.07.10
Price
N/A
121V2
LOWER STAND LEG V2.12.20
Price
N/A
122
STAND SWITCH BRACKET V2.03.12
Price
N/A
122V2
STAND SWITCH BRACKET V2.12.20
Price
N/A
123
VACUUM HOSE CLIP 2-1/2"
Price
N/A
124
HEX BOLT 3/8-16 X 3/4
Price
N/A
220
INTAKE BARREL BRACE, EXTENDED
Price
N/A
221
FLAT WASHER 1/4
Price
N/A
222
WALL MOUNT ADAPTER
Price
N/A
223
TAP SCREW M4 X 12
Price
N/A
224
PHLP HD SCR 1/4-20 X 3/4
Price
N/A
225
HEX NUT 1/4-20
Price
N/A
226
FILTER ADAPTER V1
Price
$264.45
226V2
FILTER ADAPTER V2.12.20
Price
$478.20
227
HEX BOLT 3/8-16 X 1
Price
N/A
228
PULL WIRE RAIL COVER
Price
$94.20
228-1
PULL WIRE
Price
$57.65
228-2
BRUSH UPGRADE KIT V1.06.05
Price
N/A
229
HEX BOLT 1/4-20 X 3/4
Price
N/A
230
HEPA FILTER HOUSING
Price
$561.50
230-1
HEPA OUTER FILTER
Price
$432.55
230-2
HEPA Filter for G0703/P, G0443, G0440
Price
N/A
230-3
HEPA FILTER CAGE 289 X 595, GREEN
Price
N/A
230-4
BAG CLAMP 445MM V2.11.09
Price
N/A
230-5
HEPA FILTER BOTTOM PLATE
Price
$76.10
231
DRUM LID PVC RUBBER SEAL 2M
Price
N/A
232A
HEPA Filter Kit for G0440 Dust Collector
Price
N/A
232AV2
HEPA FILTER KIT V2.12.20
Price
$2,861.80

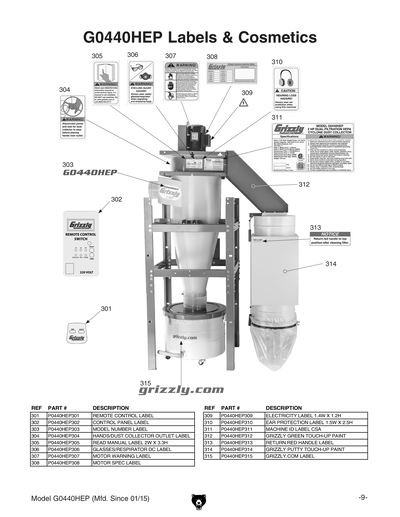

301
REMOTE CONTROL LABEL
Price
N/A
302
CONTROL PANEL LABEL
Price
N/A
303
MODEL NUMBER LABEL
Price
$6.85
304
HANDS/DUST COLLECTOR OUTLET 2W X 3.3H
Price
N/A
305
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
306
GLASSES/RESPIRATOR DC 2W X 3.3H
Price
N/A
307
MOTOR WARNING LABEL
Price
$1.05
308
MOTOR SPEC LABEL
Price
$1.05
309
ELECTRICITY 1.4W X 1.2H
Price
N/A
310
EAR PROTECTION 1.5W X 2.5H
Price
N/A
311
MACHINE ID LABEL CSA
Price
$16.40
312
N/S GRIZZLY GREEN G1023S
Price
N/A
313
RETURN RED HANDLE LABEL
Price
N/A
314
GREY PUTTY REF G0504
Price
N/A
315
GRIZZLY.COM LABEL
Price
$5.55
