Parts for G0441 - 3 HP Cyclone Dust Collector

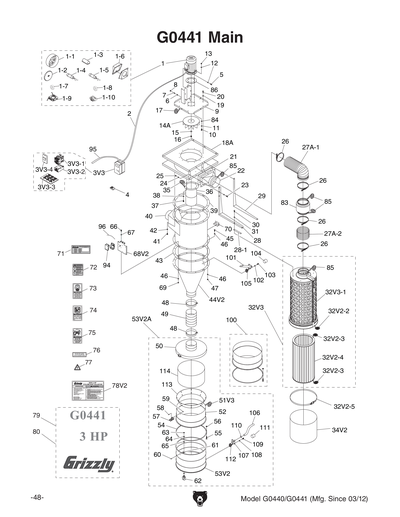

Part Diagram for G0441
Part Diagram for G0441
Part Diagram for G0441
Part Diagram for G0441
Part Diagram for G0441
Part Diagram for G0441
Part Diagram for G0441
Part Diagram for G0441

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

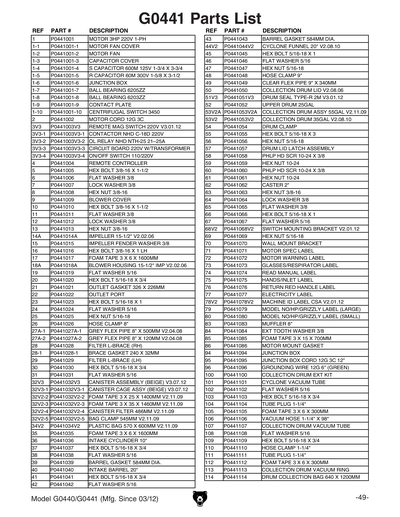

Ref #
Part #
Description
1
MOTOR 3HP 220V 1-PH
Price
$786.10
1-1
MOTOR FAN COVER
Price
$18.15
1-10
CENT SWITCH 3450
Price
$16.35
1-11
MOTOR MOUNT PLATE
Price
$19.35
1-2
MOTOR FAN
Price
$32.65
1-3
CAPACITOR COVER
Price
$8.20
1-4
S CAPACITOR 600M 125V 1-3/4 X 3-1/2
Price
N/A
1-5
R CAPACITOR 60M 300V 1-5/8 X 3-1/2
Price
$65.25
1-6
JUNCTION BOX
Price
$14.50
1-7
BALL BEARING 6205ZZ
Price
N/A
1-8
BALL BEARING 6203ZZ
Price
N/A
1-9
CONTACT PLATE
Price
$18.15
2
MOTOR CORD 10G 3W
Price
N/A
3
*DISCD*REMOTE SWITCH 220V V1
Item is no longer available
Price
N/A
3A
REMOTE MAG SWITCH 220V V2.02.06
Price
$275.35
3V3
REMOTE MAG SWITCH 220V V3.01.12
Price
$268.45
3V3-1
CONTACTOR NHD C-18D 220V
Price
$92.80
3V3-2
OL RELAY NHD NTH-25 21-25A
Price
$72.45
3V3-3
CIRCUIT BOARD 220V W/TRANSFORMER
Price
$101.45
3V3-4
ON/OFF SWITCH 220V
Price
$19.65
4
REMOTE CONTROLLER
Price
N/A
5
P0441005
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
6
P0441006
Now: PW02
FLAT WASHER 3/8
Price
N/A
7
LOCK WASHER 3/8
Price
N/A
8
P0441008
Now: PN08
HEX NUT 3/8-16
Price
N/A
9
BLOWER COVER V1
Price
$216.05
9V2
BLOWER COVER V2.09.20
Price
$90.60
10
P0441010
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
11
P0441011
Now: PW02
FLAT WASHER 3/8
Price
N/A
12
LOCK WASHER 3/8
Price
N/A
13
P0441013
Now: PN08
HEX NUT 3/8-16
Price
N/A
14
*DISCD*IMPELLER 15" V1
Item is no longer available
Price
N/A
14A
IMPELLER 15-1/2" V2.02.06
Price
$217.35
15
FENDER WASHER 8MM
Price
N/A
16
HEX BOLT 3/8-16 X 1 LH
Price
N/A
17
FOAM TAPE 3 X 6 X 1600MM
Price
N/A
18
BLOWER HOUSING 15" IMP V1.02.05
Price
$689.50
18A
BLOWER HOUSING 15-1/2" IMP V2.02.06
Price
$681.05
19
P0441019
Now: PW07
FLAT WASHER 5/16
Price
N/A
20
P0441020
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
21
OUTLET GASKET 326 X 226MM
Price
$6.40
22
OUTLET PORT
Price
$213.75
23
P0441023
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
24
P0441024
Now: PW07
FLAT WASHER 5/16
Price
N/A
25
P0441025
Now: PN02
HEX NUT 5/16-18
Price
N/A
26
HOSE CLAMP 8"
Price
$21.40
27
GRAY FLEX PIPE 8" X 870MM V1.02.05
Price
$79.05
27A
GREY FLEX ASSY V2.04.08
Price
$58.00
27A-1
GREY FLEX PIPE 8" X 500MM V2.04.08
Price
$61.60
27A-2
GREY FLEX PIPE 8" X 120MM V2.04.08
Price
$23.60
28
FILTER L-BRACE (RH)
Price
$76.10
28-1
BRACE GASKET 240 X 32MM
Price
N/A
29
FILTER L-BRACE (LH)
Price
$65.25
30
P0441030
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
31
P0441031
Now: PW07
FLAT WASHER 5/16
Price
N/A
32
Filter for G0638 (486mm X 1195mm) with Foam Tape
Price
N/A
32-1
FOAM TAPE 3 X 25MM X 1.6M
Price
N/A
32-15
PULLEY ASSEMBLY
Price
$76.10
32-17
GUIDE PLATE
Price
$21.10
32-2
BRUSH UPGRADE KIT V1.06.05
Price
$235.50
32-3
METAL HANDLE SUPPORT
Price
N/A
32A
Detachable Cartridge Filter for G0442 & G0601
Price
N/A
32V2
Canister Assembly for G0441
Price
N/A
32V2-1
GREEN CANISTER CAGE ASSY V2.11.09
Price
$659.30
32V2-2
FOAM TAPE 3 X 25 X 1400MM V2.11.09
Price
$15.45
32V2-3
FOAM TAPE 3 X 35 X 1255MM V2.11.09
Price
N/A
32V2-4
486mm Canister Filter with Foam Tape
Price
N/A
32V2-5
BAG CLAMP 545MM V2.11.09
Price
$31.60
32V3
CANISTER ASSEMBLY (BEIGE) V3.07.12
Price
$1,205.65
32V3-1
CANISTER CAGE ASSY (BEIGE) V3.07.12
Price
$695.55
33
BAG CLAMP 510MM V1.06.05
Price
$32.25
34
Collection Bag for G0441, 510mm x 600mm
Price
N/A
34V2
Collection Bag 570 x 600mm
Price
N/A
35
FOAM TAPE 3 X 6 X 1600MM
Price
N/A
36
INTAKE CYCLINDER 10"
Price
$181.15
37
P0441037
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
38
P0441038
Now: PW07
FLAT WASHER 5/16
Price
N/A
39
BARREL GASKET 584MM DIA.
Price
N/A
40
INTAKE BARREL 20" V1
Price
$460.10
40V2
INTAKE BARREL 20" V2.09.20
Price
$489.05
41
P0441041
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
42
P0441042
Now: PW07
FLAT WASHER 5/16
Price
N/A
43
BARREL GASKET 584MM DIA.
Price
N/A
44
CYCLONE FUNNEL 20" V1.02.05
Price
$706.40
44V2
CYCLONE FUNNEL 20" V2.08.10
Price
N/A
44V3
CYCLONE FUNNEL 20" V3.09.20
Price
$525.30
45
P0441045
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
46
P0441046
Now: PW07
FLAT WASHER 5/16
Price
N/A
47
P0441047
Now: PN02
HEX NUT 5/16-18
Price
N/A
48
HOSE CLAMP 9"
Price
$18.15
49
CLEAR FLEX PIPE 9" X 340MM
Price
$68.85
50
COLLECTION DRUM LID V2.08.06
Price
N/A
50V2
COLLECTION DRUM LID V2.09.20
Price
$144.90
51
*DISCD*FOAM TAPE 5 X 50MM V1.02.05
Item is no longer available
Price
N/A
51A
FOAM TAPE 10 X 50MM X 2M V2.06.05
Price
N/A
51V2
*DISCD*DRUM SEAL TYPE-T 2M V2.11.09
Item is no longer available
Price
N/A
51V3
DRUM SEAL TYPE-R 2M V3.01.12
Price
$25.40
52
UPPER DRUM 25GAL V1
Price
$155.80
52V2
UPPER DRUM 25GAL V2.09.20
Price
$184.75
53
COLLECTION DRUM 35GAL V1.02.05
Price
N/A
53A
COLLCTON DRUM ASSY 55GAL V2.11.09
Price
N/A
53V2
COLLECTION DRUM 35GAL V2.08.10
Price
N/A
53V2A
COLLCTON DRUM ASSY 55GAL V2.11.09
Price
$728.15
53V3
COLLECTION DRUM 35GAL V3.09.20
Price
$289.80
53V3A
COLLECTION DRUM ASSY 55GAL V3.09.20
Price
$525.30
54
DRUM CLAMP
Price
$26.60
55
P0441055
Now: PB04
HEX BOLT 5/16-18 X 3
Price
N/A
56
P0441056
Now: PN02
HEX NUT 5/16-18
Price
N/A
57
DRUM LID LATCH ASSEMBLY
Price
N/A
58
P0441058
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
59
P0441059
Now: PN07
HEX NUT 10-24
Price
N/A
60
P0441060
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
61
P0441061
Now: PN07
HEX NUT 10-24
Price
N/A
62
CASTER 2"
Price
N/A
63
P0441063
Now: PN08
HEX NUT 3/8-16
Price
N/A
64
LOCK WASHER 3/8
Price
N/A
65
P0441065
Now: PW02
FLAT WASHER 3/8
Price
N/A
66
P0441066
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
67
P0441067
Now: PW07
FLAT WASHER 5/16
Price
N/A
68
SWITCH MOUNTING BRACKET
Price
N/A
68V2
SWITCH MOUNTING BRACKET V2.01.12
Price
N/A
69
P0441069
Now: PN02
HEX NUT 5/16-18
Price
N/A
70
WALL MOUNT BRACKET V1
Price
$36.25
70V2
WALL MOUNT BRACKET V2.09.20
Price
$21.15
71
MOTOR SPEC LABEL
Price
$2.40
72
MOTOR WARNING LABEL
Price
$2.40
73
GLASSES/RESPIRATOR DC 2W X 3.3H
Price
N/A
74
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
75
HANDS/DUST COLLECTOR OUTLET 2W X 3.3H
Price
N/A
76
RETURN RED HANDLE LABEL
Price
N/A
77
ELECTRICITY 1.4W X 1.2H
Price
N/A
78
MACHINE ID LABEL V1
Price
$16.40
78V2
MACHINE ID LABEL CSA V2.01.12
Price
$16.40
79
MODEL NO/HP/GRIZZLY LABEL (LARGE)
Price
$18.15
80
MODEL NO/HP/GRIZZLY LABEL (SMALL)
Price
$1.05
81
POWER CORD 12AWG X 3C X 10'
Price
$20.85
82
GRIZZLY.COM LABEL 10-3/4 X 2-3/8"
Price
$23.10
83
Noise Reducer Kit for G0441 Cyclone Dust Collector
Price
N/A
84
EXT TOOTH WASHER 3/8
Price
N/A
85
FOAM TAPE 3 X 15 X 700MM
Price
$16.35
86
MOTOR MOUNT GASKET
Price
$14.05
87
HEX BOLT 3/8-16 X 11
Price
N/A
88
LOCK NUT 3/8-16
Price
N/A
89
DRUM LID SPRING
Price
$21.10
90
CYCLONE FUNNEL ADAPTER
Price
$76.10
91
P0441091
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
92
FLAT WASHER 3/8 THIN
Price
N/A
94
JUNCTION BOX
Price
N/A
95
JUNCTION BOX CORD 12G 3C 12"
Price
N/A
96
GROUNDING WIRE 12G 6" (GREEN)
Price
N/A
97
COLLECTION LID HANDLE
Price
$61.60
98
DRUM LID CONNECTING PLATE
Price
$13.25
99
DRUM WINDOW
Price
$6.60
100
Collection Drum Extension Kit for G0440/G0443
Price
N/A
101
CYCLONE VACUUM TUBE
Price
N/A
102
P0441102
Now: PW07
FLAT WASHER 5/16
Price
N/A
103
P0441103
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
104
TUBE PLUG 1-1/4"
Price
N/A
105
FOAM TAPE 3 X 6 X 300MM
Price
N/A
106
VACUUM HOSE 1-1/4" X 98"
Price
N/A
107
COLLECTION DRUM VACUUM TUBE
Price
N/A
108
P0441108
Now: PW07
FLAT WASHER 5/16
Price
N/A
109
P0441109
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
110
HOSE CLAMP 1-1/4"
Price
N/A
111
TUBE PLUG 1-1/4"
Price
N/A
112
FOAM TAPE 3 X 6 X 300MM
Price
N/A
113
COLLECTION DRUM VACUUM RING
Price
N/A
114
DRUM COLLECTION BAG 640 X 1200MM
Price
$16.35
115
RIVET
Price
$1.60
116
COLLECTION DRUM HANDLE PLASTIC
Price
$4.85
117
P0441117
Now: PS35
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
118
P0441118
Now: PN40
ACORN NUT 5/16-18
Price
N/A
119
WALL MOUNTING BRACKET
Price
$62.25
120
P0441120
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
400
FILTER UPGRADE KIT
Price
$259.95
MANUAL
MANUAL FOR G0440/G0441/G0443 08/10
Price
N/A
MANV6
MANUAL G0440/G0441 MFD-03/12+ V6.10.13
Price
N/A
