Parts for G0444Z - 10" Table Saw 2 HP Single-Phase 220V w/ Cast Wings

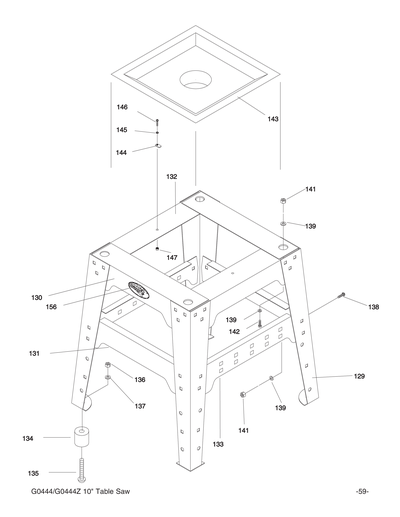

Part Diagram for G0444Z
Part Diagram for G0444Z
Part Diagram for G0444Z
Part Diagram for G0444Z
Part Diagram for G0444Z
Part Diagram for G0444Z
Part Diagram for G0444Z
Part Diagram for G0444Z
Part Diagram for G0444Z
Part Diagram for G0444Z

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

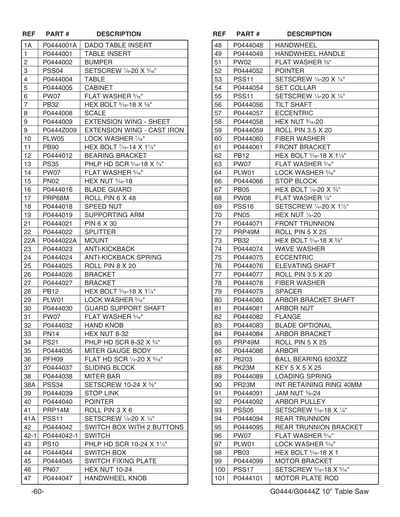

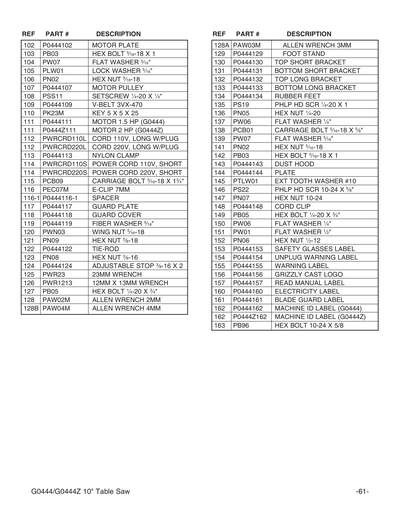

Ref #
Part #
Description
1
*DISCD*TABLE INSERT
Price
N/A
1A
*DISCD*DADO TABLE INSERT
Price
N/A
2
BUMPER
Price
N/A
3
SET SCREW 1/4-20 X 5/16
Price
N/A
4
TABLE
Price
N/A
5
CABINET
Item is no longer available
Price
N/A
6
FLAT WASHER 5/16
Price
N/A
7
HEX BOLT 5/16-18 X 5/8
Price
N/A
8
SCALE
Price
N/A
9
EXT WING CAST IRON
Price
N/A
10
LOCK WASHER 7/16
Price
N/A
11
HEX BOLT 7/16-14 X 1-1/4
Price
N/A
12
BEARING BRACKET
Price
N/A
13
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
14
FLAT WASHER 5/16
Price
N/A
15
HEX NUT 5/16-18
Price
N/A
16
*DISCD*BLADE GUARD
Price
N/A
17
STEEL PIN
Price
N/A
18
LOCK NUT M6-1
Price
N/A
19
SUPPORTING ARM
Price
N/A
21
STEEL PIN
Price
$1.60
22
*DISCD*SPLITTER
Price
N/A
22A
*DISCD*MOUNT
Price
N/A
23
*DISCD*ANTI KICKBACK
Price
N/A
24
ANTI KICKBACK SPRING C-SHAPE
Price
N/A
26
*DISCD*LOWER BRACKET V1
Price
N/A
27
*DISCD*UPPER BRACKET V1
Price
N/A
28
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
29
LOCK WASHER 5/16
Price
N/A
30
GUARD SUPPORT SHAFT
Price
N/A
31
FLAT WASHER 5/16
Price
N/A
32
HAND KNOB
Price
N/A
33
HEX NUT 8-32
Price
N/A
34
PHLP HD SCR 8-32 X 3/4
Price
N/A
35
*DISCD*MITER GAUGE BODY
Price
N/A
36
FLAT HD SCR 1/4-20 X 5/16
Price
N/A
37
SLIDING BLOCK
Price
N/A
38
MITER BAR
Price
N/A
38A
SET SCREW 10-24 X 1/2
Price
N/A
39
STOP LINK
Price
N/A
40
POINTER
Price
N/A
41
ROLL PIN 3 X 6
Price
N/A
41A
SET SCREW 1/4-20 X 1/4
Price
N/A
42
*DISCD*SWITCH BOX W/2 BUTTONS
Price
N/A
42-1
*DISCD*SWITCH
Price
N/A
43
PHLP HD SCR 10-24 X 1-1/2
Price
N/A
44
SWITCH BOX
Price
N/A
45
*DISCD*SWITCH FIXING PLATE
Price
N/A
46
HEX NUT 10-24
Price
N/A
47
HANDWHEEL KNOB
Price
N/A
48
HANDWHEEL
Price
N/A
49
HANDWHEEL HANDLE
Price
N/A
51
FLAT WASHER 3/8
Price
N/A
52
POINTER
Price
N/A
53
SET SCREW 1/4-20 X 1/4
Price
N/A
54
SET COLLAR
Price
N/A
55
SET SCREW 1/4-20 X 1/4
Price
N/A
56
*DISCD*TILT SHAFT
Price
N/A
57
ECCENTRIC
Price
N/A
58
HEX NUT 9/16-20
Price
N/A
59
ROLL PIN 3.5 X 20
Price
N/A
60
FIBER WASHER 3/8
Price
N/A
61
*DISCD*BRACKET FRONT
Price
N/A
62
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
63
FLAT WASHER 5/16
Price
N/A
64
LOCK WASHER 5/16
Price
N/A
66
STOP BLOCK
Price
N/A
67
HEX BOLT 1/4-20 X 3/4
Price
N/A
68
FLAT WASHER 1/4
Price
N/A
69
SET SCREW 1/4-20 X 1-1/2
Price
N/A
70
HEX NUT 1/4-20
Price
N/A
71
*DISCD*TRUNNION FRONT
Price
N/A
72
ROLL PIN 5 X 25
Price
N/A
73
HEX BOLT 5/16-18 X 5/8
Price
N/A
74
*DISCD*WAVE WASHER 18 X 30 X .5
Price
N/A
75
ECCENTRIC
Price
N/A
76
ELEVATING SHAFT
Price
N/A
77
ROLL PIN 3.5 X 20
Price
N/A
78
FIBER WASHER 3/8
Price
N/A
79
SPACER
Price
$1.49
80
ARBOR BRACKET SHAFT
Price
N/A
81
ARBOR NUT 5/8"-18
Price
N/A
82
FLANGE
Price
N/A
83
BLADE OPTIONAL
Price
N/A
84
*DISCD*ARBOR BRACKET
Price
N/A
85
ROLL PIN 5 X 25
Price
N/A
86
*DISCD*ARBOR
Price
N/A
87
BALL BEARING 6203ZZ
Price
N/A
88
KEY 5 X 5 X 25
Price
N/A
89
LOADING SPRING 30 X 38 X .3
Price
N/A
90
INT RETAINING RING 40MM
Price
N/A
91
HEX NUT 5/8"-24
Price
N/A
92
ARBOR PULLEY
Price
N/A
93
SET SCREW 5/16-18 X 1/4
Price
N/A
94
*DISCD*TRUNNION REAR
Price
N/A
95
TRUNNION BRACKET REAR
Price
N/A
96
FLAT WASHER 5/16
Price
N/A
97
LOCK WASHER 5/16
Price
N/A
98
HEX BOLT 5/16-18 X 1
Price
N/A
99
*DISCD*MOTOR BRACKET
Price
N/A
100
SET SCREW 5/16-18 X 5/16
Price
N/A
101
MOTOR PLATE ROD
Price
N/A
102
MOTOR PLATE
Price
N/A
103
HEX BOLT 5/16-18 X 1
Price
N/A
104
FLAT WASHER 5/16
Price
N/A
105
LOCK WASHER 5/16
Price
N/A
106
HEX NUT 5/16-18
Price
N/A
107
*DISCD*MOTOR PULLEY
Price
N/A
108
SET SCREW 1/4-20 X 1/4
Price
N/A
109
V-BELT 3VX-470
Price
N/A
110
KEY 5 X 5 X 25
Price
N/A
111
*DISCD*MOTOR 2HP 110V/220V 1-PH
Item is no longer available
Price
N/A
111-1
MOTOR FAN
Item is no longer available
Price
N/A
111-2
MOTOR FAN COVER
Price
$10.30
112
POWER CORD 12G X 3W 86"L
Price
N/A
113
NYLON CLAMP
Price
N/A
114
POWER CORD 12G X 3W 36"L
Price
N/A
115
CARRIAGE BOLT 5/16-18 X 1-3/4
Price
N/A
116
E-CLIP 7MM
Price
N/A
116-1
SPACER
Price
N/A
117
*DISCD*GUARD PLATE
Price
N/A
118
*DISCD*GUARD COVER
Price
N/A
119
FIBER WASHER 5/16
Price
N/A
120
WING NUT 5/16-18
Price
N/A
121
HEX NUT 5/8-18
Price
N/A
122
TIE ROD
Price
N/A
123
HEX NUT 3/8-16
Price
N/A
124
ADJUSTABLE STOP 3/8-16 X 2
Price
N/A
125
WRENCH 23MM COMBO
Price
N/A
126
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
127
HEX BOLT 1/4-20 X 3/4
Price
N/A
128
HEX WRENCH 2MM
Price
N/A
128A
HEX WRENCH 3MM
Price
N/A
128B
HEX WRENCH 4MM
Price
N/A
129
*DISCD*FOOT STAND
Price
N/A
130
BRACKET TOP SHORT
Price
N/A
131
BOTTOM SHORT BRACKET
Price
N/A
132
BRACKET TOP LONG
Price
N/A
133
BOTTOM LONG BRACKET
Price
N/A
134
RUBBER FEET
Price
N/A
135
PHLP HD SCR 1/4-20 X 1
Price
N/A
136
HEX NUT 1/4-20
Price
N/A
137
FLAT WASHER 1/4
Price
N/A
138
CARRIAGE BOLT 5/16-18 X 5/8
Price
N/A
139
FLAT WASHER 5/16
Price
N/A
141
HEX NUT 5/16-18
Price
N/A
142
HEX BOLT 5/16-18 X 1
Price
N/A
143
*DISCD*DUST HOOD
Price
N/A
144
PLATE
Price
$2.50
145
EXT TOOTH WASHER #10
Price
N/A
146
PHLP HD SCR 10-24 X 5/8
Price
N/A
147
HEX NUT 10-24
Price
N/A
148
SAFETY PADLOCK
Price
N/A
149
HEX BOLT 1/4-20 X 3/4
Price
N/A
150
FLAT WASHER 1/4
Price
N/A
151
FLAT WASHER 1/2
Price
N/A
152
HEX NUT 1/2-12
Price
N/A
153
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
154
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
155
WARNING LABEL
Price
N/A
156
GRIZZLY CAST LOGO
Price
N/A
157
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
160
ELECTRICITY 1.4W X 1.2H
Price
N/A
161
BLADE GUARD LABEL
Price
N/A
162
MACHINE ID LABEL
Item is no longer available
Price
N/A
200
FENCE TUBE
Price
N/A
201
FENCE TUBE
Price
N/A
201-1
COMPLETE FENCE KIT W/0 RAILS
Item is no longer available
Price
N/A
203
FENCE SIDEBOARD
Price
N/A
204
FENCE PLUG
Price
N/A
205
FENCE SIDEBOARD CAP
Price
N/A
206
ADJUSTMENT BOLT 5/16-18
Price
N/A
207
CLAMP
Price
N/A
208
HANDLE
Price
N/A
209
*** USE P0651326***
Price
N/A
212
CLEAR INDICATOR
Price
N/A
214
SLIDER 19 X 50 X 2T
Price
N/A
215
SET SCREW 5/16-18 X 1/4
Price
N/A
216
FLAT WASHER #10
Price
N/A
217
PHLP HD SCR 10-24 X 3/8
Price
N/A
218
HEX BOLT 3/8-16 X 1-3/4
Price
N/A
219
HEX BOLT 1/4-20 X 1-3/4
Price
N/A
220
LOCK NUT 1/4-20
Price
N/A
221
LOCK NUT 3/8-16
Price
N/A
222
PHLP HD SCR 8-32 X 3/8
Price
N/A
223
HEX NUT 5/16-18
Price
N/A
224
ALUMA CLASSIC TM LABEL
Price
N/A
225
WARNING LABEL SHORT
Price
N/A
226
SLIDER 19 X 50 X 1.2T
Price
N/A
229
FLAT WASHER 5/16
Price
N/A
230
REAR RAIL
Price
N/A
232
FRONT RAIL
Price
N/A
233
FLAT HD SCR 5/16-18 X 1
Price
N/A
234
FRONT RAIL BRACKET
Price
N/A
235
HEX BOLT 1/4-20 X 3/4
Price
N/A
236
SCALE 30"
Price
N/A
237
SET SCREW 5/16-18 X 1/4
Price
N/A
238
CAP SCREW 5/16-18 X 1
Price
N/A
239
CLAMP PLUG
Price
N/A
240
BOLT & SCREW BAG
Price
N/A
300
CARTON FOR G0444
Price
N/A
301
STYROFOAM FOR G0444/G0444Z
Price
N/A
BAG1
HAND TOOL HARDWARE BAG
Item is no longer available
Price
N/A
BAG2
RUBBER FEET HARDWARE BAG
Price
$4.35
BAG3
STAND HARDWARE BAG
Price
$31.35
BAG4
MOTOR MOUNTING HARDWARE BAG
Item is no longer available
Price
N/A
BAG5
BLADE GUARD HARDWARE BAG
Price
$42.00
BAG6
EXTENSION WING HARDWARE BAG
Item is no longer available
Price
N/A
BAG7
DUST HOOD HARDWARE BAG
Item is no longer available
Price
N/A
BOX2
COMPLETE FENCE ASSY BOX 2
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G0444/G0444Z 10/05
Price
N/A
