Parts for G0447 37" 20 HP 3-Phase Double-Head Wide-Belt Sander

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

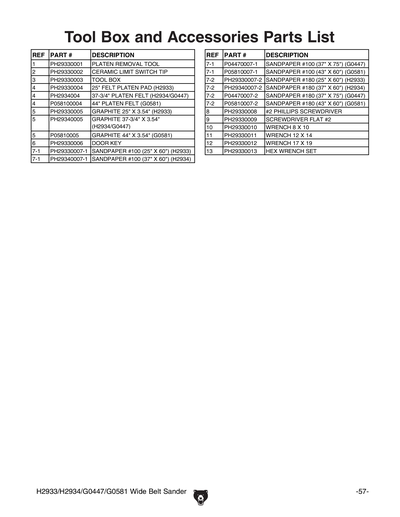

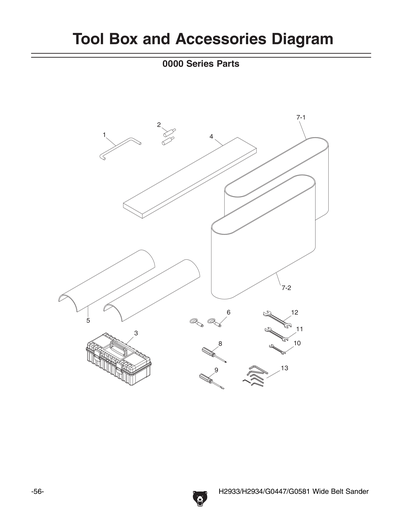

1
*DISCD*FELT PLATEN REMOVAL TOOL
Price
N/A
2
LIMIT SWITCH CERAMIC TIP
Price
N/A
3
TOOL BOX
Price
N/A
4
FELT PLATEN PAD 1/2 X 1-13/16 X 39"
Price
N/A
5
GRAPHITE PAD 37" X 3-5/8"
Price
N/A
6
DOOR HANDLE
Price
N/A
7-1
SANDING BELT #100 37 X 75"
7-2
SANDING BELT #180 37 X 75"
8
Now: PSDP2
SCREWDRIVER PHILLIPS #2
Price
N/A
9
Now: PSDF2
SCREWDRIVER FLAT #2
Price
N/A
10
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
11
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
12
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
13
HEX WRENCH SET
Price
N/A

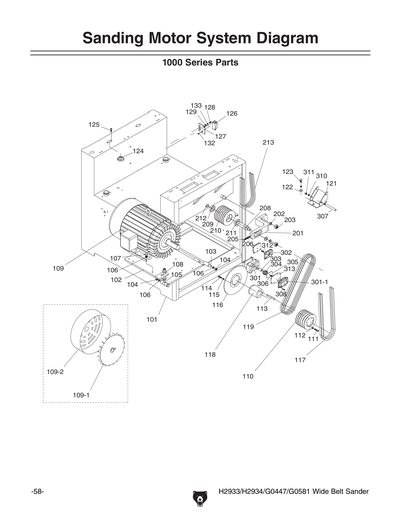

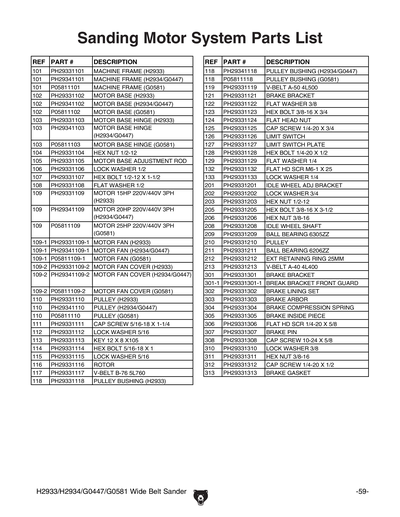

1101
MACHINE FRAME
1102
MOTOR BASE
1103
MOTOR BASE HINGE
1104
Now: PN06
HEX NUT 1/2-12
Price
N/A
1105
MOTOR BASE ADJUSTMENT ROD
Price
N/A
1106
Now: PLW07
LOCK WASHER 1/2
Price
N/A
1107
Now: PB41
HEX BOLT 1/2-12 X 1-1/2
Price
N/A
1108
Now: PW01
FLAT WASHER 1/2
Price
N/A
1109
MOTOR 20HP 220V/440V 3-PH
Price
N/A
1109-1
MOTOR FAN
Price
N/A
1109-2
MOTOR FAN COVER
Price
N/A
1110
PULLEY
Price
N/A
1111
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
1112
Now: PLW01
LOCK WASHER 5/16
Price
N/A
1113
KEY 8 X 12 X 105
Price
N/A
1114
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
1115
Now: PLW01
LOCK WASHER 5/16
Price
N/A
1116
DISC BRAKE
Price
N/A
1117
Now: PVB76
V-BELT B76
Price
N/A
1118
PULLEY BUSHING
Price
N/A
1119
Now: PVA50
V-BELT A50
Price
N/A
1121
BRAKE BRACKET
Price
N/A
1122
Now: PW02
FLAT WASHER 3/8
Price
N/A
1123
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
1124
FLAT HEAD NUT 5/8 X 11
Price
N/A
1125
CAP SCREW 1/4-20 X 3/4
Price
N/A
1126
LIMIT SWITCH
Price
N/A
1127
LIMIT SWITCH PLATE
Price
N/A
1128
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
1129
Now: PW06
FLAT WASHER 1/4
Price
N/A
1201
IDLE WHEEL ADJ BRACKET
Price
N/A
1202
Now: PLW10
LOCK WASHER 3/4
Price
N/A
1203
Now: PN06
HEX NUT 1/2-12
Price
N/A
1205
Now: PB84
HEX BOLT 3/8-16 X 3-1/2
Price
N/A
1206
Now: PN08
HEX NUT 3/8-16
Price
N/A
1208
IDLE WHEEL SHAFT
Price
N/A
1209
BALL BEARING 6305ZZ
Price
N/A
1210
PULLEY
1211
BALL BEARING 6206ZZ
Price
N/A
1212
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
1213
Now: PVA40
V-BELT A40
Price
N/A
1301
BRAKE BRACKET
Price
N/A
1301-1
BREAK BRACKET FRONT GUARD
Price
N/A
1302
BRAKE LINING SET
Price
N/A
1303
BRAKE ARBOR
Price
N/A
1304
BRAKE COMPRESSION SPRING
Price
N/A
1305
BRAKE INSIDE PIECE
Price
N/A
1306
Now: PFH04
FLAT HD SCR 1/4-20 X 5/8
Price
N/A
1307
BRAKE PIN
Price
N/A
1308
CAP SCREW 10-24 X 5/8
Price
N/A
1310
Now: PLW04
LOCK WASHER 3/8
Price
N/A
1311
Now: PN08
HEX NUT 3/8-16
Price
N/A
1312
CAP SCREW 1/4-20 X 1/2
Price
N/A
1313
BRAKE GASKET
Price
N/A

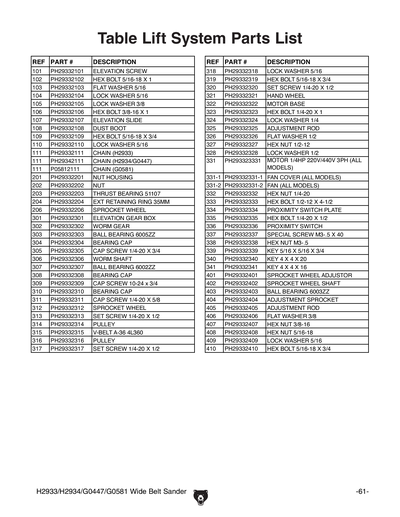

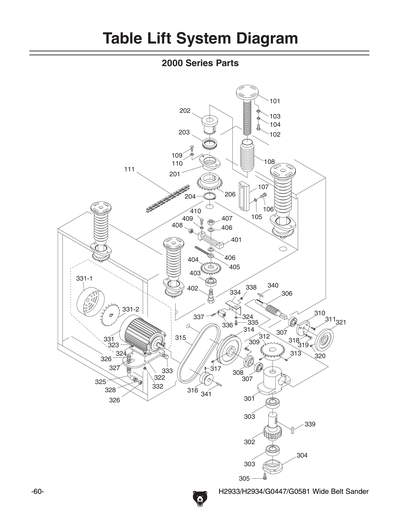

2101
ELEVATION SCREW 1 X 5 X 280
Price
N/A
2102
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
2103
Now: PW07
FLAT WASHER 5/16
Price
N/A
2104
Now: PLW01
LOCK WASHER 5/16
Price
N/A
2105
Now: PLW04
LOCK WASHER 3/8
Price
N/A
2106
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
2107
ELEVATION SLIDE
Price
N/A
2108
DUST BOOT
Price
N/A
2109
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
2110
Now: PLW01
LOCK WASHER 5/16
Price
N/A
2111
CHAIN
Price
N/A
2201
NUT HOUSING
Price
N/A
2202
***USE P08190402***
Price
N/A
2203
THRUST BEARING 51107
Price
N/A
2204
Now: PR12M
EXT RETAINING RING 35MM
Price
N/A
2206
SPROCKET WHEEL
Price
N/A
2301
ELEVATION GEAR BOX
Price
N/A
2302
WORM GEAR
Price
N/A
2303
BALL BEARING 6005ZZ
Price
N/A
2304
BEARING CAP
Price
N/A
2305
CAP SCREW 1/4-20 X 3/4
Price
N/A
2306
WORM SHAFT
Price
N/A
2307
BALL BEARING 6002ZZ
Price
N/A
2308
BEARING CAP
Price
N/A
2309
CAP SCREW 10-24 X 3/4
Price
N/A
2310
BEARING CAP
Price
N/A
2311
CAP SCREW 1/4-20 X 5/8
Price
N/A
2312
SPROCKET WHEEL
Price
N/A
2313
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
2314
PULLEY
Price
N/A
2315
Now: PVA36
V-BELT A36
Price
N/A
2316
PULLEY
Price
N/A
2317
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
2318
Now: PLW01
LOCK WASHER 5/16
Price
N/A
2319
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
2320
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
2321
HAND WHEEL
Price
N/A
2322
MOTOR BASE
Price
N/A
2323
Now: PB31
HEX BOLT 1/4-20 X 1
Price
N/A
2324
Now: PLW02
LOCK WASHER 1/4
Price
N/A
2325
MOTOR BASE ADJUSTMENT ROD
Price
N/A
2326
Now: PW01
FLAT WASHER 1/2
Price
N/A
2327
Now: PN06
HEX NUT 1/2-12
Price
N/A
2328
Now: PLW07
LOCK WASHER 1/2
Price
N/A
2331
MOTOR 1/4HP 220V/440V 3-PH
Price
N/A
2331-1
MOTOR FAN COVER
Price
N/A
2331-2
MOTOR FAN
Price
N/A
2332
Now: PN05
HEX NUT 1/4-20
Price
N/A
2333
Now: PB89
HEX BOLT 1/2-12 X 4-1/2
Price
N/A
2334
PROXIMITY SWITCH FIXING PLATE
Price
N/A
2335
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
2336
PROXIMITY SWITCH
Price
N/A
2337
PROXIMITY SWITCH SCREW 5/32"
2338
Now: PN07M
HEX NUT M3-.5
Price
N/A
2339
Now: PK14
KEY 5/16 X 5/16 X 3/4
Price
N/A
2340
Now: PK48M
KEY 4 X 4 X 20
Price
N/A
2341
Now: PK37M
KEY 4 X 4 X 16
Price
N/A
2401
SPROCKET WHEEL ADJUSTOR
Price
N/A
2402
SPROCKET SHAFT
Price
N/A
2403
Now: G3850
Bearing - 35mm x 17mm
Price
N/A
2404
ADJUSTMENT SPROCKET WHEEL
Price
N/A
2405
SPROCKET WHEEL ADJUSTMENT ROD
Price
N/A
2406
Now: PW02
FLAT WASHER 3/8
Price
N/A
2407
Now: PN08
HEX NUT 3/8-16
Price
N/A
2408
Now: PN02
HEX NUT 5/16-18
Price
N/A
2409
Now: PLW01
LOCK WASHER 5/16
Price
N/A
2410
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
3101

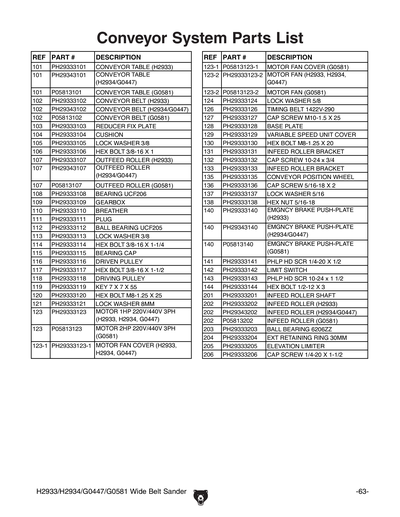

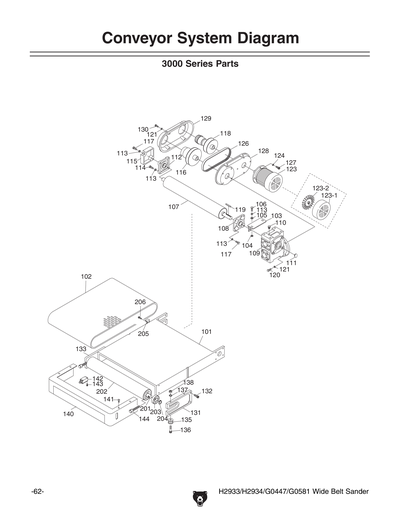

CONVEYOR TABLE
Price
N/A
3102
CONVEYOR BELT
Price
N/A
3103
REDUCER FIX PLATE
Price
N/A
3104
CUSHION
Price
N/A
3105
Now: PLW04
LOCK WASHER 3/8
Price
N/A
3106
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
3107
OUTFEED ROLLER
Price
N/A
3108
BEARING UCF206
Price
N/A
3109
GEARBOX
Price
N/A
3110
BREATHER
Price
N/A
3111
PLUG
Price
N/A
3112
MOUNTED BEARING UCF205
Price
N/A
3113
Now: PLW04
LOCK WASHER 3/8
Price
N/A
3114
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
3115
BEARING CAP
Price
N/A
3116
DRIVEN PULLEY
Price
N/A
3117
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
3118
DRIVING PULLEY
Price
N/A
3119
Now: PK66M
KEY 7 X 7 X 55
Price
N/A
3120
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
3121
LOCK WASHER 8MM
Price
N/A
3123
FEED MOTOR 1HP 220V/440V 3-PH
Price
N/A
3123-1
MOTOR FAN COVER
Price
N/A
3123-2
MOTOR FAN
Price
N/A
3124
Now: PLW06
LOCK WASHER 5/8
Price
N/A
3126
TIMING BELT
Price
N/A
3127
CAP SCREW M10-1.5 X 25
Price
N/A
3128
BASE PLATE
Price
N/A
3129
VARIABLE SPEED UNIT COVER
Price
N/A
3130
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
3131
INFEED ROLLER BRACKET
Price
N/A
3132
CAP SCREW 10-24 X 3/4
Price
N/A
3133
INFEED ROLLER BRACKET
Price
N/A
3135
CONVEYOR BELT POSITIONING WHEEL
Price
N/A
3136
CAP SCREW 5/16-18 X 2
Price
N/A
3137
Now: PLW01
LOCK WASHER 5/16
Price
N/A
3138
Now: PN02
HEX NUT 5/16-18
Price
N/A
3140
EMERGENCY BRAKE PUSH-PLATE
Price
N/A
3141
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
3142
***USE P0539306***
Price
N/A
3143
Now: PS10
PHLP HD SCR 10-24 X 1-1/2
Price
N/A
3144
Now: PB95
HEX BOLT 1/2-12 X 3
Price
N/A
3201
INFEED ROLLER SHAFT
Price
N/A
3202
INFEED ROLLER
Price
N/A
3203
BALL BEARING 6206-2RS
Price
N/A
3204
Now: PR15M
EXT RETAINING RING 30MM
Price
N/A
3205
ELEVATION ALUMINUM LIMITER
Price
N/A
3206
CAP SCREW 1/4-20 X 1-1/2
Price
N/A
4101

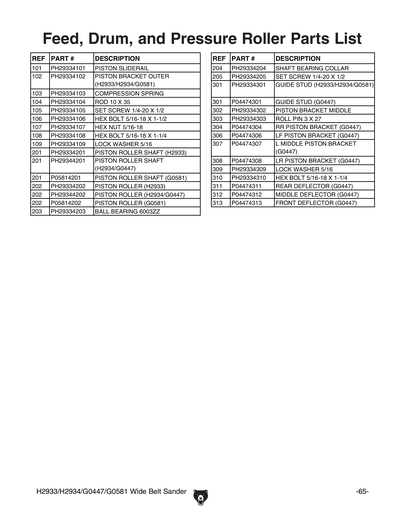

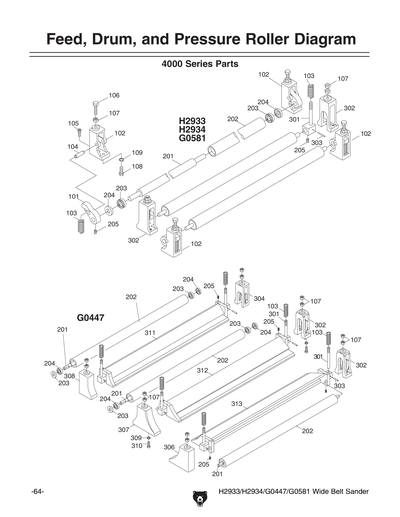

PISTON SLIDE RAIL
Price
N/A
4103
SPRING 2 X 16 X 60
Price
N/A
4104
PIN 10 X 35MM
Price
N/A
4105
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
4106
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
4107
Now: PN02
HEX NUT 5/16-18
Price
N/A
4108
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
4109
Now: PLW01
LOCK WASHER 5/16
Price
N/A
4201
PISTON ROLLER ASSEMBLY
4202
*DISCD*PISTON ROLLER
Price
N/A
4203
Now: G3850
Bearing - 35mm x 17mm
Price
N/A
4204
SHAFT BEARING COLLER
Price
N/A
4205
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
4301
GUIDE STUD-SE 3/8-16 X 4-5/16 1-3/8
Price
N/A
4302
PISTON BRACKET MIDDLE
Price
N/A
4303
ROLL PIN 3 X 27
Price
N/A
4304
REAR RIGHT PISTON BRACKET
4305
RIGHT FRONT PISTON BRACKET
4306
LEFT PISTON BRACKET
4307
LEFT MIDDLE PISTON BRACKET
4308
LEFT REAR PISTON BRACKET
4309
Now: PLW01
LOCK WASHER 5/16
Price
N/A
4310
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
4311
REAR DEFLEACTOR
4312
MIDDLE DEFLECTOR
4313
FRONT DEFLECTOR

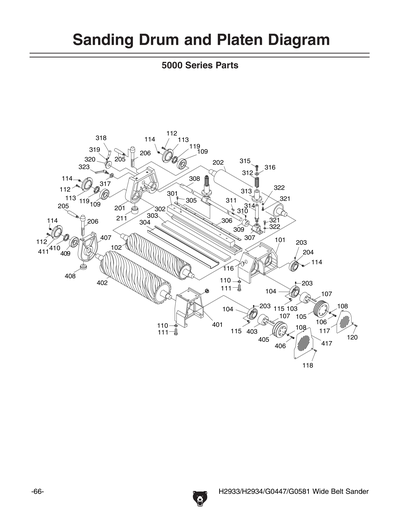

5101
BEARING HOUSING
5102
RUBBER ROLLER
Price
N/A
5103
KEYED PULLEY TUBE
Price
N/A
5104
CARTRIDGE BEARING UCC206
Price
N/A
5105
PULLEY
Price
N/A
5106
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
5107
Now: PK11
KEY 5/16 X 5/16 X 1-3/16
Price
N/A
5108
Now: PLW01
LOCK WASHER 5/16
Price
N/A
5109
BALL BEARING 6205ZZ
Price
N/A
5110
Now: PLW07
LOCK WASHER 1/2
Price
N/A
5111
CAP SCREW 1/2-12 X 1-1/2
Price
N/A
5112
CAP SCREW 1/4-20 X 1/2
Price
N/A
5113
BEARING CAP
Price
N/A
5114
STRAIGHT GREASE FITTING W/CAP
Price
N/A
5115
GREASE FITTING 90 DEG W/CAP
Price
N/A
5116
PLUG
Price
N/A
5117
PULLEY COVER
Price
N/A
5118
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
5119
SPANNER NUT M25-2
Price
N/A
5120
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
5201
BEARING HOUSING
Price
N/A
5202
STEEL ROLLER
Price
N/A
5203
HEX SOC HD CAP SCR M6
5204
CARTRIDGE BEARING UCC205
Price
N/A
5205
HANDLE
Price
N/A
5206
FLAT HD SCR 5/8 X 11
Price
N/A
5211
BEARING BRACKET PAD
Price
N/A
5301
GRAPHITE BRACKET 37-1/2" MALE
Price
N/A
5302
GRAPHITE BRACKET 37-1/2" FEMALE
Price
N/A
5303
FELT PLATEN PAD 1/2 X 1-13/16 X 39"
Price
N/A
5304
GRAPHITE PAD 37" X 3-5/8"
Price
N/A
5305
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
5306
***USE P0539648***
Price
N/A
5307
FIXING BASE OF GRAPHITE BRACKET
5308
GRAPHITE BRACKET SHAFT
Price
N/A
5309
Now: PLW01
LOCK WASHER 5/16
Price
N/A
5310
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
5311
KEY 1/4 X 1/4 X 25MM
5312
SPRING
5313
HOUSING
Price
N/A
5314
GRAPHITE BRACKET SHAFT
Price
N/A
5315
CAP SCREW 3/8-16 X 3/4
Price
N/A
5316
Now: PW02
FLAT WASHER 3/8
Price
N/A
5317
Now: PW02
FLAT WASHER 3/8
Price
N/A
5318
HANDLE
Price
N/A
5319
Now: PSS08
SET SCREW 5/16-18 X 1/2
Price
N/A
5320
ADJUSTMENT RING
Price
N/A
5321
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
5322
Now: PW07
FLAT WASHER 5/16
Price
N/A
5323
HANDLE
Price
N/A
5401
BEARING HOUSING
Price
N/A
5402
RUBBER ROLLER
Price
N/A
5403
FASTENING TUBE
Price
N/A
5404
CARTRIDGE BEARING UCC206
Price
N/A
6101
SQUARE FRAME
6103
SQUARE FRAME SEAL RIGHT
6103-1
SQUARE FRAME SEAL FRONT RIGHT
6104
SQUARE FRAME SEAL LEFT
6104-1
SQUARE FRAME SEAL FRONT LEFT
6105
Now: PFH03
FLAT HD SCR 1/4-20 X 1/2
Price
N/A
6106
Now: PLW04
LOCK WASHER 3/8
Price
N/A
6107
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
6108
Now: PLW07
LOCK WASHER 1/2
Price
N/A
6109
Now: PB53
HEX BOLT 1/2-12 X 1
Price
N/A
6110
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
6111
CAP SCREW 5/16-18 X 3/4
Price
N/A
6112
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
6113
AIR CYLINDER
Price
N/A
6114
LIMIT SWITCH HOLDER L-TYPE
Price
N/A
6115
LIMIT SWITCH CERAMIC ASSY
Price
N/A
6115-1
LIMIT SWITCH CERAMIC TIP
Price
N/A
6116
LIMIT SWITCH MOUJEN ME-8166
Price
N/A
6116-2
LIMIT SWITCH CERAMIC ASSY
Price
N/A
6117
LIMIT SWITCH HOLDER
Price
N/A
6118
AIR NOZZLE FEMALE
Price
N/A
6119
AIR FORK
Price
N/A
6120
AIR SENSOR NOZZLE MALE
Price
N/A
6121
THROTTLE VALVE
Price
N/A
6122
THROTTLE VALVE BASE
Price
N/A
6123
PLATE
6124
ALUMINUM DISC
6125
OIL CAP
Price
N/A
6126
ALUMINUM PLATE
Price
N/A
6127
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
6128
SANDING BELT POWER OFF PLATE
Price
N/A
6129
Now: PN11
HEX NUT 3/8-24
Price
N/A
6130
Now: PW07
FLAT WASHER 5/16
Price
N/A
6131
Now: PLW01
LOCK WASHER 5/16
Price
N/A
6132
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
6133
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
6134
Now: PN07
HEX NUT 10-24
Price
N/A
6135
CONNECTOR OF OIL CAP
Price
N/A
6136
SHAFT OF OIL CAP
Price
N/A
6201
UPPER ROLLER BRACKET
Price
N/A
6202
ROLLER UPPER
Price
N/A
6203
ROLLER BRACKET UPPER
Price
N/A
6204
CARTRIDGE BEARING UCC205
Price
N/A
6205
SET SCREW M6-1 X 6
Price
N/A
6206
CAP SCREW 10-24 X 3/4
Price
N/A
6207
Now: PLW04
LOCK WASHER 3/8
Price
N/A
6208
GREASE FITTING W/CAP 1/16" STRAIGHT
Price
N/A
6301
TRIMMING KNOB
Price
N/A
6302
ECCENTRIC ROD
Price
N/A
6303
CAP SCREW 1/2-12 X 3-1/2
Price
N/A
6304
Now: PW01
FLAT WASHER 1/2
Price
N/A
6305
ECCENTRIC
Price
N/A
6306
CLEVIS ASSEMBLY
Price
N/A
6307
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
6308
Now: PN27M
HEX NUT M10-1.5 LH
Price
N/A
6309
SHAFT OF AIR CYLINDER
Price
N/A
6310
Now: PN06
HEX NUT 1/2-12
Price
N/A
6311
OSCILLATION AIR CYLINDER 30 X 4 V2.01.14
Price
N/A
6312
SPRING 3.3 X 24.5 X 24
Price
N/A
6321
Now: PN02
HEX NUT 5/16-18
Price
N/A
6322
***USE P0539518***
Price
N/A
6323
OSCILLATION AIR CYLINDER 30 X 4 V2.01.14
Price
N/A
6324
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
6405
PULLEY
6406
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
6407
BEARING HOUSING
6408
BEARING BRACKET PAD
6409
BALL BEARING 6206ZZ
Price
N/A
6410
SPANNER CAP
Price
N/A
6411
BEARING CAP
Price
N/A
6417
COVER OF PULLEY
Price
N/A

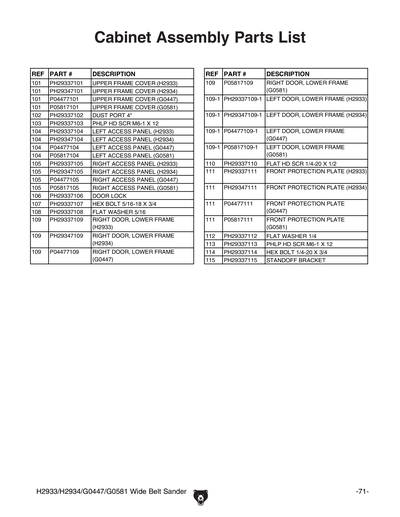

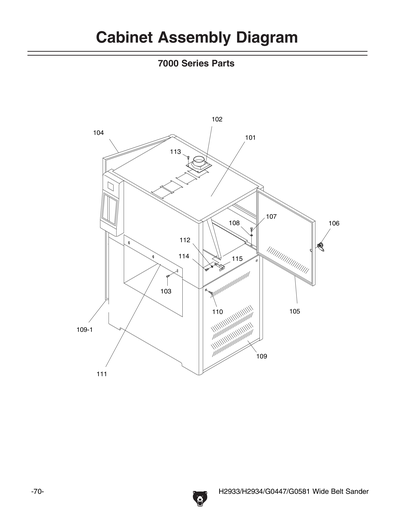

7101
UPPER FRAME COVER V1
7101V2
UPPER FRAME COVER V2.01.22
7102
DUST PORT 4"
Price
N/A
7103
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
7104
ACCESS PANEL LEFT
7105
ACCESS PANEL RIGHT
7106
DOOR LOCK
Price
N/A
7313
OSCILLATION AIR CYLINDER 30 X 4 V2.01.14
Price
N/A
7314
FLAT HD SCR M6-1 X 12
Price
N/A
7315
PLATE
7316
COVER TOP
7317
Now: PN07
HEX NUT 10-24
Price
N/A
7318
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
7319
AIR CYLINDER BASE
7320
ECCENTRIC SHAFT FRAME
Price
N/A

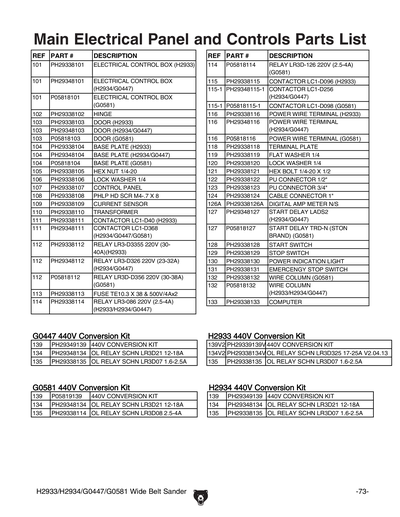

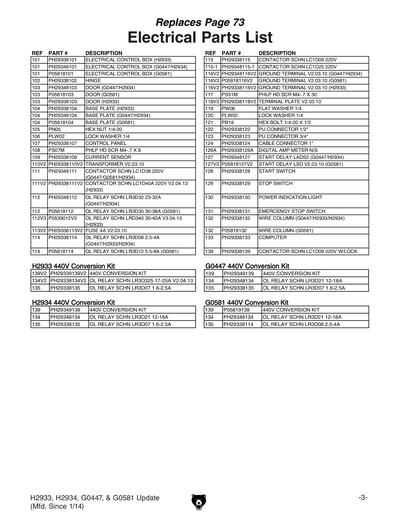

8101
ELECTRICAL CONTROL BOX
Price
N/A
8102
HINGE
Price
N/A
8103
DOOR
Price
N/A
8104
BASE PLATE
Price
N/A
8105
Now: PN05
HEX NUT 1/4-20
Price
N/A
8106
Now: PLW02
LOCK WASHER 1/4
Price
N/A
8107
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
8108
Now: PW07
FLAT WASHER 5/16
Price
N/A
8109
DOOR RIGHT LOWER FRAME
Price
N/A
8109-1
DOOR LEFT LOWER FRAME
8110
TRANSFORMER V1.04.05
Price
N/A
811032
TRANSFORMER 250VA 440V-200/220V
Price
N/A
8110V2
TRANSFORMER 250VA 440V-200/220V
Price
N/A
8111
CONTACTOR SCHN LC1D38 220V
Price
N/A
8112
OL RELAY SCHN LR3D32 23-32A
Price
N/A
8113
FUSE 4A GL CT 2PC V1.07.05
Price
N/A
8113V2
FUSE 4A V2.03.10
Price
N/A
8114
OL RELAY SCHN LR3D08 2.5-4A
Price
N/A
8115
CONTACTOR SCHN LC1D09 220V
Price
N/A
8115-1
CONTACTOR SCHN LC1D25 220V
Price
N/A
8116
*DISCD*GROUND TERMINAL V1.04.05
Price
N/A
8116V2
GROUND TERMINAL V2.03.10
Price
N/A
8118
TERMINAL PLATE V1.05.02
Price
N/A
8119
Now: PW06
FLAT WASHER 1/4
Price
N/A
8120
Now: PLW02
LOCK WASHER 1/4
Price
N/A
8121
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
8123
PU CONNECTOR 3/4"
Price
N/A
8124
CABLE CONNECTOR 1"
Price
N/A
8128
STAR/DELTA TIMER SCHNEIDER LADS2
Price
N/A
8135
***USE P0539014-1***
Price
N/A
8136
FLEXIBLE HOSE 6MM
Price
N/A
8137
FLEXIBLE HOSE 6MM
Price
N/A
8138
FLEXIBLE HOSE 6MM
Price
N/A
8139
CONTACTOR SCHN LC1D09 220V W/LOCK
Price
N/A

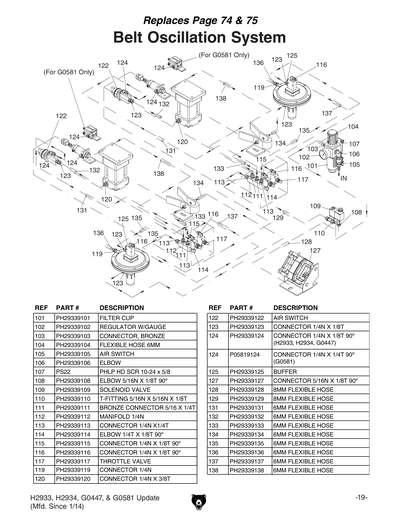

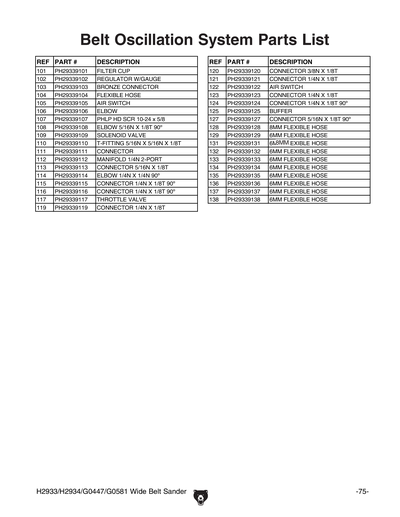

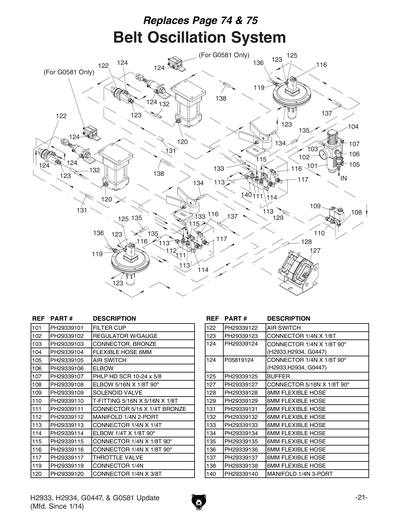

9101
FILTER CUP AND REGULATOR W/ GAUGE
Price
N/A
9102
FILTER CUP AND REGULATOR W/ GAUGE
Price
N/A
9103
CONNECTOR, BRONZE
Price
N/A
9104
FLEXIBLE HOSE 8MM
Price
N/A
9105
AIR SWITCH
Price
N/A
9106
ELBOW
Price
N/A
9107
Now: PS22
PHLP HD SCR 10-24 X 5/8
Price
N/A
9108
ELBOW 5/16N X 1/8T 90DEG
Price
N/A
9109
SOLENOID VALVE
Price
N/A
9110
T-FITTING 5/16N X 5/16N X 1/8T
Price
N/A
9111
CONNECTOR 5/16 X 1/4T BRONZE
Price
N/A
9112
MANIFOLD 1/4N 2-PORT
Price
N/A
9113
CONNECTOR 1/4N X1/4T
Price
N/A
9114
ELBOW 1/4T X 1/8T 90º
Price
N/A
9115
CONNECTOR 1/4N X 1/8T 90DEG
Price
N/A
9116
CONNECTOR 1/4N X 1/8T 90DEG
Price
N/A
9117
THROTTLE VALVE
Price
N/A
9119
CONNECTOR 1/4N
Price
N/A
9120
CONNECTOR 1/4N X 3/8T
Price
N/A
9121
CONNECTOR 1/4N X1/8T
Price
N/A
9122
***USE P99799122***
Price
N/A
9123
***USE P0539518***
Price
N/A
9124
CONNECTOR 1/4N X 1/8T 90DEG
Price
N/A
9125
BUFFER
Price
N/A
9127
CONNECTOR 5/16N X 1/8T 90DEG
Price
N/A
9128
FLEXIBLE HOSE 8MM
Price
N/A
9129
STOP SWITCH
9130
POWER INDICATOR LIGHT 220V 22MM WHT
Price
N/A
9131
E-STOP BUTTON 250V 10A
Price
N/A
9132
FLEXIBLE HOSE 6MM
Price
N/A
9133
FLEXIBLE HOSE 6MM
Price
N/A
9134
OL RELAY SCHN LR3D21 12-18A
Price
N/A
9135
FLEXIBLE HOSE 6MM
Price
N/A
9136
FLEXIBLE HOSE 6MM
Price
N/A
9137
FLEXIBLE HOSE 6MM
Price
N/A
9138
FLEXIBLE HOSE 6MM
Price
N/A
9139
440V CONVERSION KIT
Price
N/A
9140
MANIFOLD 1/4N 3-PORT
Price
N/A

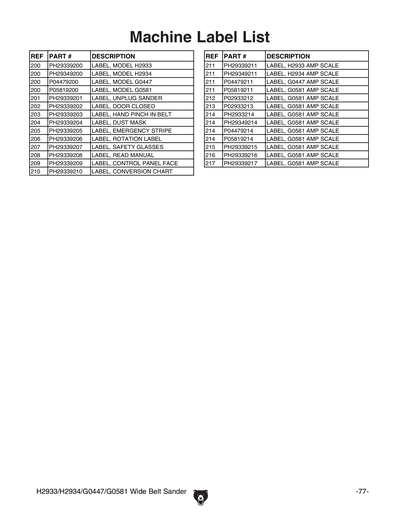

9200
MODEL NUMBER LABEL

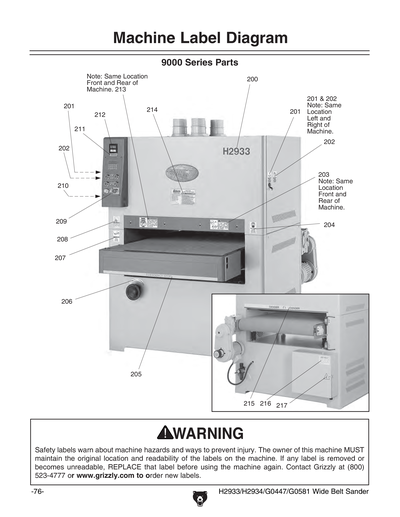

9201
DISCONNECT SANDER 220V 2W X 3.3H
Price
N/A
9202
DONT OPEN 2W X 3.3H
Price
N/A
9203
SANDER BELT PINCH 4W X 2.1H
Price
N/A
9204
DUST MASK 2W X 3.3H V1
Price
N/A
9205
EMERGENCY STRIPE LABEL
Price
N/A
9207
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
9208
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
9209
CONTROL PANEL FACE LABEL
Price
N/A
9210
MM CONVERSION CHART 3.6W X 5.5H
Price
N/A
9211
AMP SCALE LABEL
9212
LOAD METER FACE LABEL
Price
N/A
9213
FEED ONLY ONE 5.3W X 2.8H V2.04.08
Price
N/A
9214
MACHINE ID LABEL
9215
DANGER STRIPE LABEL
Price
N/A
9216
PREWIRED FOR 220V LABEL
Price
N/A
9217
ELECTRICITY 1.4W X 1.2H
Price
N/A
MANUAL
MANUAL FOR G0447 09/05
