Parts for G0453 - 15" 3 HP Planer

1/17

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

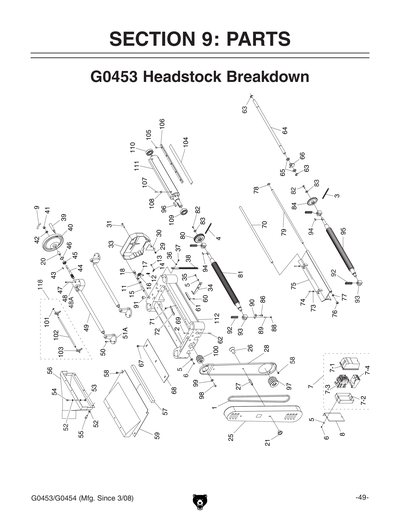

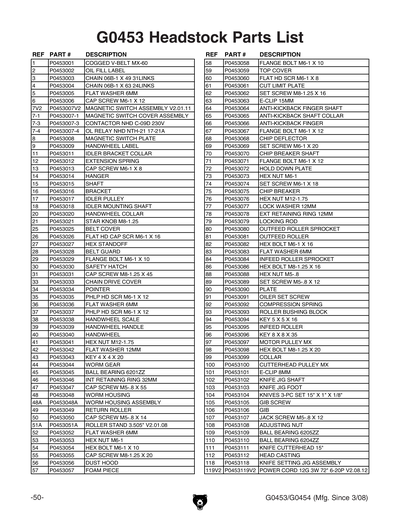

1
V-BELT MX60
Price
N/A
2
OIL FILL LABEL
Price
$1.00
3
CHAIN 06B-1 X 63 31 LINKS
Price
$5.75
4
CHAIN 06B-1 X 49 24 LINKS
Price
$5.75
5
FLAT WASHER 6MM
Price
N/A
6
CAP SCREW M6-1 X 12
Price
N/A
7
*DISCD*MAGNETIC SWITCH ASSEMBLY V1
Item is no longer available
Price
N/A
7-1
MAGNETIC SWITCH COVER ASSEMBLY
Price
$15.50
7-2
*DISCD*MAG SWITCH BACK
Price
$94.25
7-3
CONTACTOR NHD 09D 230V
Price
$29.50
7-4
OL RELAY NHD NTH-21 17-21A
Price
$24.50
7V2
MAGNETIC SWITCH ASSEMBLY V2.01.11
Price
$78.50
8
MAGNETIC SWITCH PLATE
Price
$4.75
9
HANDWHEEL LABEL
Price
$1.00
10
SPEED CHANGE LABEL
Price
$1.00
11
IDLER BRACKET COLLAR
Price
$1.00
12
EXTENSION SPRING
Price
$1.00
13
CAP SCREW M6-1 X 8
Price
N/A
14
HANGER
Price
$1.00
15
SHAFT
Price
$1.00
16
BRACKET
Price
$1.00
17
IDLER PULLEY
Price
$1.75
18
IDLER MOUNTING SHAFT
Price
$1.00
19
BELT COVER LABEL
Price
$1.25
20
HANDWHEEL COLLAR
Price
$1.00
21
STAR KNOB M8-1.25
Price
$1.50
22
SPEED CHANGE LABEL
Price
N/A
23
*DISCD*RIVET 2 X 4
Item is no longer available
Price
N/A
25
BELT COVER
Price
$16.50
26
FLAT HD CAP SCR M6-1 X 12
Price
N/A
27
HEX STANDOFF STUD
Price
$1.00
28
BELT GUARD
Price
$13.00
29
FLANGE BOLT M6-1 X 10
Price
N/A
30
SAFETY HATCH
Price
$1.00
31
CAP SCREW M8-1.25 X 45
Price
N/A
32
ROLL PIN 6 X 20
Price
N/A
33
CHAIN DRIVE COVER
Price
$40.75
34
POINTER
Price
$1.00
35
PHLP HD SCR M6-1 X 12
Price
N/A
36
FLAT WASHER 6MM
Price
N/A
37
PHLP HD SCR M6-1 X 12
Price
N/A
38
HANDWHEEL SCALE
Price
$4.75
39
HANDWHEEL HANDLE
Price
$8.25
40
HANDWHEEL
Price
$16.25
41
HEX NUT M12-1.75
Price
N/A
42
FLAT WASHER 12MM
Price
N/A
43
KEY 4 X 4 X 20
Price
N/A
44
WORM GEAR
Price
$14.25
45
BALL BEARING 6201ZZ
Price
N/A
46
INT RETAINING RING 32MM
Price
N/A
47
CAP SCREW M5-.8 X 55
Price
N/A
48
WORM HOUSING
Price
$15.50
48A
WORM HOUSING ASSEMBLY
Price
$40.50
49
RETURN ROLLER
Price
$16.00
50
CAP SCREW M5-.8 X 14
Price
N/A
51
*DISCD*ROLLER STAND 3.175" V1.03.05
Item is no longer available
Price
N/A
51A
ROLLER STAND 3.505" V2.01.08
Price
$6.00
52
FLAT WASHER 6MM
Price
N/A
53
HEX NUT M6-1
Price
N/A
54
HEX BOLT M6-1 X 10
Price
N/A
55
CAP SCREW M8-1.25 X 20
Price
N/A
56
DUST HOOD
Price
$16.25
57
FOAM PIECE
Price
$1.00
58
FLANGE BOLT M6-1 X 10
Price
N/A
59
TOP COVER
Price
$24.00
60
FLAT HD SCR M6-1 X 8
Price
N/A
61
CUT LIMIT PLATE
Price
$1.00
62
CAP SCREW M8-1.25 X 16
Price
N/A
63
E-CLIP 15MM
Price
N/A
64
ANTI-KICKBACK FINGER SHAFT
Price
$11.75
65
ANTI-KICKBACK SHAFT COLLAR
Price
$1.00
66
ANTI-KICKBACK FINGER
Price
$1.00
67
FLANGE BOLT M6-1 X 12
Price
N/A
68
CHIP DEFLECTOR
Price
$3.00
69
CAP SCREW M6-1 X 20
Price
N/A
70
CHIP BREAKER SHAFT
Price
$5.00
71
FLANGE BOLT M6-1 X 12
Price
N/A
72
HOLD DOWN PLATE
Price
$1.00
73
HEX NUT M6-1
Price
N/A
74
CAP SCREW M6-1 X 18
Price
N/A
75
CHIP BREAKER
Price
$19.00
76
HEX NUT M12-1.75
Price
N/A
77
LOCK WASHER 12MM
Price
N/A
78
EXT RETAINING RING 12MM
Price
N/A
79
LOCKING ROD
Price
$3.00
80
OUTFEED ROLLER SPROCKET
Price
$16.00
81
OUTFEED ROLLER (SERRATED STEEL) V1
Price
$74.00
81V2
15" Rubber Outfeed Roller for G0453 Series Planers
Price
N/A
82
HEX BOLT M6-1 X 16
Price
N/A
83
FLAT WASHER 6MM
Price
N/A
84
INFEED ROLLER SPROCKET
Price
$7.50
85
ROLL PIN 5 X 20
Price
N/A
86
HEX BOLT M8-1.25 X 16
Price
N/A
87
ROLL PIN 4 X 16
Price
N/A
88
HEX NUT M6-1
Price
N/A
89
SET SCREW M6-1 X 20
Price
N/A
90
PLATE
Price
$1.00
91
OILER SET SCREW
Price
$1.00
92
COMPRESSION SPRING
Price
$1.00
93
ROLLER BUSHING BLOCK
Price
$5.50
94
KEY 5 X 5 X 16
Price
N/A
95
INFEED ROLLER
Price
$74.00
96
KEY 8 X 8 X 35
Price
N/A
97
MOTOR PULLEY MX
Price
$23.25
98
HEX BOLT M8-1.25 X 20
Price
N/A
99
COLLAR
Price
$1.00
100
CUTTERHEAD PULLEY MX
Price
$12.75
101
E-CLIP 8MM
Price
N/A
102
KNIFE JIG SHAFT
Price
$4.00
103
KNIFE JIG FOOT
Price
$2.50
104
15" x 1" x 1/8" HSS Planer Knives, Set of 3
Price
N/A
105
GIB SCREW
Price
$1.00
106
GIB
Price
$6.50
107
SET SCREW M5-.8 X 16 CONE-PT
Price
N/A
108
ADJUSTING NUT
Price
$2.00
109
BALL BEARING 6205ZZ
Price
N/A
110
BALL BEARING 6204ZZ
Price
N/A
111
KNIFE CUTTERHEAD 15"
Price
$97.75
112
HEAD CASTING
Price
$247.00
113

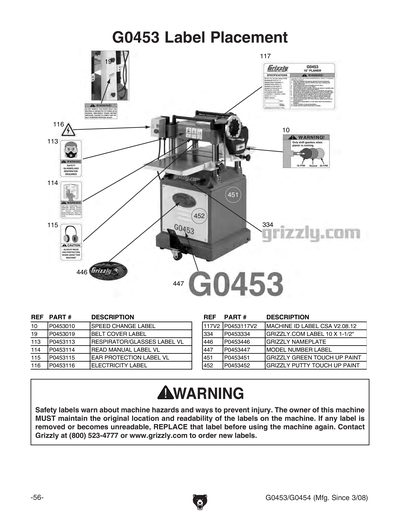

RESPIRATOR/GLASSES 2W X 3.3H
Price
N/A
114
***USE PLABEL-12A***
Price
N/A
115
EAR PROTECTION 2W X 3.3H V1
Price
N/A
116
ELECTRICITY 1.4W X 1.2H
Price
N/A
117
MACHINE ID LABEL V1
Price
$9.50
117V2
MACHINE ID LABEL CSA V2.08.12
Price
$9.50
118
KNIFE SETTING JIG ASSEMBLY
Price
$6.00
119
POWER CORD 12G 3W 30" V1
Price
$21.00
119V2
POWER CORD 12G 3W 72" 6-20P V2.08.12
Price
$27.50
201
HEX NUT M10-1.5
Price
N/A
202
HEX BOLT M10-1.5 X 60
Price
N/A
203
CAP SCREW M8-1.25 X 20
Price
N/A
204
HEX BOLT M8-1.25 X 30
Price
N/A
205
FLAT WASHER 8MM
Price
N/A
206
LOCK WASHER 8MM
Price
N/A
207
TABLE EXTENSION WING
Price
$86.50
208
STAR KNOB M12-1.75
Price
$3.00
209
LOCK BOLT
Price
$4.00
210
GIB
Price
$1.75
211
WEDGE DOG
Price
$2.50
212
CAP SCREW M6-1 X 16
Price
N/A
213
ECCENTRIC SHAFT
Price
$1.00
214
Bearing - 22mm x 8mm
Price
N/A
215
BED ROLLER
Price
$14.00
216
MAIN TABLE
Price
$250.50
301
*DISCD*RIVET 2 X 4
Price
N/A

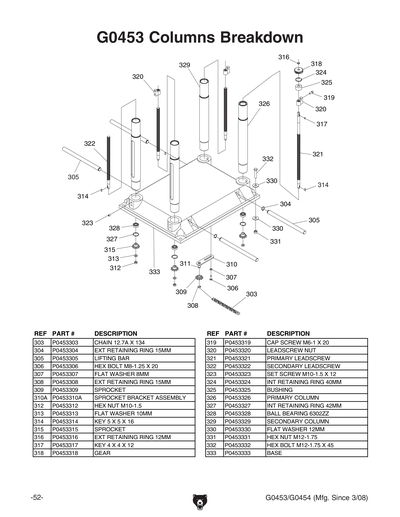

303
CHAIN 12.7A X 134
Price
$4.50
304
EXT RETAINING RING 15MM
Price
N/A
305
LIFTING BAR
Price
$10.75
306
HEX BOLT M8-1.25 X 20
Price
N/A
307
FLAT WASHER 8MM
Price
N/A
308
EXT RETAINING RING 15MM
Price
N/A
309
SPROCKET
Price
$3.75
310
*DISCD*BRACKET
Price
$2.00
310A
SPROCKET BRACKET ASSEMBLY
Price
$6.75
311
SPROCKET BRACKET ASSEMBLY
Price
N/A
312
HEX NUT M10-1.5
Price
N/A
313
FLAT WASHER 10MM
Price
N/A
314
KEY 5 X 5 X 16
Price
N/A
315
SPROCKET
Price
$3.75
316
EXT RETAINING RING 12MM
Price
N/A
317
KEY 4 X 4 X 12
Price
N/A
318
GEAR
Price
$9.25
319
CAP SCREW M6-1 X 20
Price
N/A
320
LEADSCREW NUT
Price
$2.50
321
PRIMARY LEADSCREW
Price
$17.25
322
SECONDARY LEADSCREW
Price
$11.25
323
SET SCREW M10-1.5 X 12
Price
N/A
324
INT RETAINING RING 40MM
Price
N/A
325
BUSHING
Price
$1.25
326
PRIMARY COLUMN
Price
$46.00
327
INT RETAINING RING 42MM
Price
N/A
328
BALL BEARING 6302ZZ
Price
N/A
329
SECONDARY COLUMN
Price
$44.00
330
FLAT WASHER 12MM
Price
N/A
331
HEX NUT M12-1.75
Price
N/A
332
HEX BOLT M12-1.75 X 45
Price
N/A
333
BASE
Price
$152.75
334
GRIZZLY.COM LABEL 10 X 1-1/2"
Price
$2.25
401

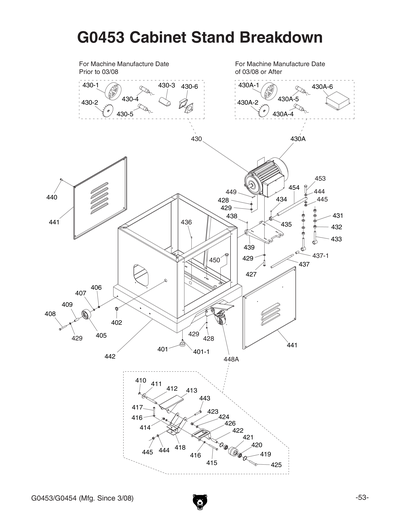

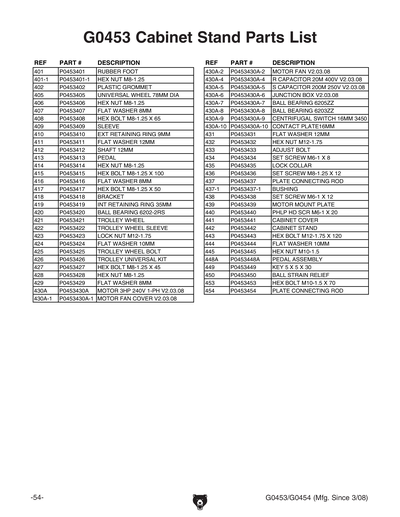

RUBBER FOOT
Price
$2.25
401-1
HEX NUT M8-1.25
Price
N/A
402
STRAIN RELIEF M20 TYPE-6 ST
Price
$1.50
405
UNIVERSAL WHEEL 78MM DIA
Price
$6.25
406
HEX NUT M8-1.25
Price
N/A
407
FLAT WASHER 8MM
Price
N/A
408
HEX BOLT M8-1.25 X 65
Price
N/A
409
*DISCD*SLEEVE
Item is no longer available
Price
N/A
410
EXT RETAINING RING 9MM
Price
N/A
411
FLAT WASHER 12MM
Price
N/A
412
SHAFT 12MM
Price
N/A
413
PEDAL
Price
N/A
414
HEX NUT M8-1.25
Price
N/A
415
HEX BOLT M8-1.25 X 100
Price
N/A
416
FLAT WASHER 8MM
Price
N/A
417
HEX BOLT M8-1.25 X 50
Price
N/A
418
BRACKET
Price
N/A
419
INT RETAINING RING 35MM
Price
N/A
420
BALL BEARING 6202-2RS
Price
N/A
421
TROLLEY WHEEL
Price
$15.00
422
TROLLEY WHEEL SLEEVE
Price
N/A
423
LOCK NUT M12-1.75
Price
N/A
424
FLAT WASHER 10MM
Price
N/A
425
TROLLEY WHEEL BOLT
Price
N/A
426
TROLLEY UNIVERSAL KIT
Price
$19.00
427
HEX BOLT M8-1.25 X 45
Price
N/A
428
HEX NUT M8-1.25
Price
N/A
429
FLAT WASHER 8MM
Price
N/A
430
MOTOR 3HP 240V 1-PH V2.03.08
Price
N/A
430-1
MOTOR FAN COVER V1.02.06
Price
$5.50
430-2
MOTOR FAN V1.02.06
Price
$2.50
430-3
*DISCD*CAPACITOR COVER
Item is no longer available
Price
N/A
430-4
R CAPACITOR 20M 250V 2 X 2-1/2
Price
$6.25
430-5
S CAPACITOR 500M 125V 1-3/4 X 3-3/8
Price
N/A
430-6
JUNCTION BOX V1.02.06
Price
$2.00
430A
MOTOR 3HP 240V 1-PH V2.03.08
Price
$303.00
430A-1
MOTOR FAN COVER V2.03.08
Price
$5.50
430A-10
CONTACT PLT-TUNGSTEN 5HP OR LESS
Price
N/A
430A-2
MOTOR FAN V2.03.08
Price
$2.50
430A-4
R CAPACITOR 20M 400V V2.03.08
Price
$6.75
430A-5
S CAPACITOR 200M 250V 1-9/16 X 3-9/16
Price
N/A
430A-6
JUNCTION BOX V2.03.08
Price
$2.25
430A-7
BALL BEARING 6205ZZ
Price
N/A
430A-8
BALL BEARING 6203ZZ
Price
N/A
430A-9
CENT SWITCH 5/8-3450
Price
N/A
431
FLAT WASHER 12MM
Price
N/A
432
HEX NUT M12-1.75
Price
N/A
433
ADJUST BOLT
Price
$1.25
434
CAP SCREW M6-1 X 8
Price
N/A
435
LOCK COLLAR
Price
$1.00
436
CAP SCREW M8-1.25 X 12
Price
N/A
437
PLATE CONNECTING ROD
Price
$5.25
437-1
BUSHING
Price
$1.00
438
CAP SCREW M6-1 X 12
Price
N/A
439
MOTOR MOUNT PLATE
Price
$17.75
440
PHLP HD SCR M6-1 X 20
Price
N/A
441
CABINET COVER 2PC
Price
$23.00
441F
FRONT CABINET COVER 3 VENTS
Price
$11.00
441R
REAR CABINET COVER 5 VENTS
Price
$11.00
442
CABINET STAND
Price
$163.00
443
HEX BOLT M12-1.75 X 120
Price
N/A
444
FLAT WASHER 10MM
Price
N/A
445
HEX NUT M10-1.5
Price
N/A
446
Name Plates - Small
Price
N/A
447
MODEL NUMBER LABEL
Price
$2.50
448
PHLP HD SCR M3-.5 X 12
Price
N/A
448A
PEDAL ASSEMBLY
Price
N/A
449
KEY 5 X 5 X 30
Price
N/A
450
BALL STRAIN RELIEF
Price
$1.00
451
N/S GRIZZLY GREEN G1023S
Price
N/A
452
GREY PUTTY REF G0504
Price
N/A
453
HEX BOLT M10-1.5 X 70
Price
N/A
454
PLATE CONNECTING ROD
Price
N/A

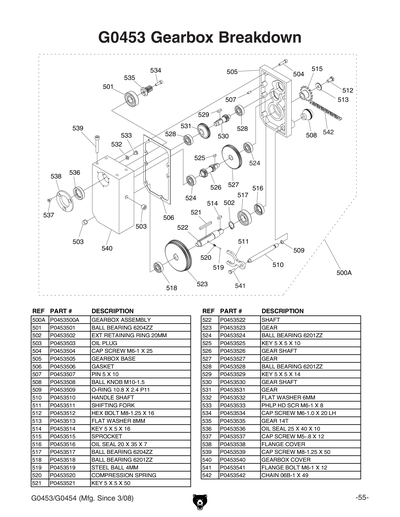

500A
GEARBOX ASSEMBLY
Price
N/A
501
BALL BEARING 6204ZZ
Price
N/A
502
EXT RETAINING RING 20MM
Price
N/A
503
OIL PLUG
Price
$1.00
504
CAP SCREW M6-1 X 25
Price
N/A
505
GEARBOX BASE
Price
$42.00
506
GASKET
Price
$1.00
507
PIN 5 X 10
Price
$1.00
508
BALL KNOB M10-1.5
Price
$1.00
509
O-RING 10.8 X 2.4 P11
Price
N/A
510
HANDLE SHAFT
Price
$2.25
511
SHIFTING FORK
Price
$1.25
512
HEX BOLT M8-1.25 X 16
Price
N/A
513
FLAT WASHER 8MM
Price
N/A
514
KEY 5 X 5 X 16
Price
N/A
515
SPROCKET
Price
$3.50
516
OIL SEAL 20 X 35 X 7
Price
$1.50
517
BALL BEARING 6204ZZ
Price
N/A
518
BALL BEARING 6201ZZ
Price
N/A
519
STEEL BALL 4MM
Price
N/A
520
COMPRESSION SPRING
Price
$1.00
521
KEY 5 X 5 X 50
Price
N/A
522
SHAFT C
Price
N/A
523
COMBO GEAR C 71T/79T
Price
$23.75
524
BALL BEARING 6201ZZ
Price
N/A
525
KEY 5 X 5 X 10
Price
N/A
526
GEAR SHAFT B 14T/22T
Price
$11.00
527
GEAR
Price
$9.75
528
BALL BEARING 6201ZZ
Price
N/A
529
KEY 5 X 5 X 14
Price
N/A
530
GEAR SHAFT
Price
$9.50
531
GEAR
Price
$9.50
532
FLAT WASHER 6MM
Price
N/A
533
PHLP HD SCR M6-1 X 8
Price
N/A
534
CAP SCREW M6-1 X 20 LH
Price
N/A
535
GEAR 14T
Price
$10.25
536
OIL SEAL 25 X 40 X 10
Price
$1.25
537
FLAT HD SCR M5-.8 X 12
Price
N/A
538
FLANGE COVER
Price
$4.00
539
CAP SCREW M8-1.25 X 50
Price
N/A
540
GEARBOX COVER
Price
$26.00
541
FLANGE BOLT M6-1 X 12
Price
N/A
542
CHAIN 06B-1 X 49
Price
$5.25
BAG
HARDWARE BAG
Price
$18.25
MANUAL
MANUAL FOR G0453/G0454 10/06
Price
$13.50
MANV2
MANUAL G0453-54 MFG 8/12 V2.07.12
Price
$14.00
