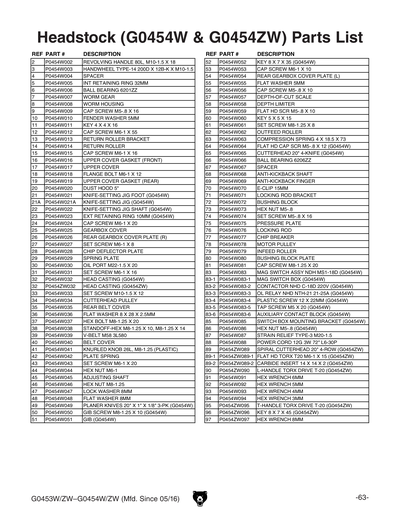

Parts for G0454W 20" Planer

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

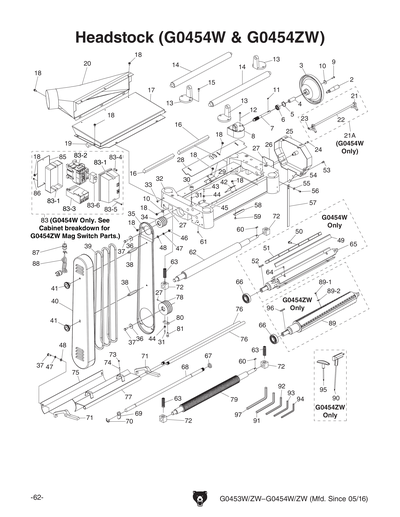

2
*DISCD*REVLVING HANDLE 80L, M10-1.5 X 18
Price
N/A
3
*DISCD*HDWHEL TYPE-14 200DX12B-KXM10-1.5
Price
N/A
4
*DISCD*SPACER
5
Now: PR29M
INT RETAINING RING 32MM
Price
N/A
6
BALL BEARING 6201ZZ
Price
N/A
7
*DISCD*WORM GEAR
Item is no longer available
Price
N/A
8
*DISCD*WORM HOUSING
9
CAP SCREW M5-.8 X 16
Price
N/A
10
FENDER WASHER 5MM
Price
N/A
11
Now: PK37M
KEY 4 X 4 X 16
Price
N/A
12
CAP SCREW M6-1 X 55
Price
N/A
13
*DISCD*RETURN ROLLER BRACKET
14
*DISCD*RETURN ROLLER
15
CAP SCREW M6-1 X 16
Price
N/A
16
*DISCD*UPPER COVER GASKET (FRONT)
Item is no longer available
Price
N/A
17
*DISCD*UPPER COVER
Item is no longer available
Price
N/A
18
FLANGE BOLT M6-1 X 12
Price
N/A
19
*DISCD*UPPER COVER GASKET (REAR)
Item is no longer available
Price
N/A
20
*DISCD*DUST HOOD 5"
Item is no longer available
Price
N/A
21
*DISCD*KNIFE-SETTING JIG FOOT
21A
*DISCD*KNIFE-SETTING JIG
22
*DISCD*KNIFE-SETTING JIG SHAFT
Item is no longer available
Price
N/A
23
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
24
CAP SCREW M6-1 X 20
Price
N/A
25
*DISCD*GEARBOX COVER
Item is no longer available
Price
N/A
26
*DISCD*REAR GEARBOX COVER PLATE (R)
Item is no longer available
Price
N/A
27
SET SCREW M6-1 X 8
Price
N/A
28
*DISCD*CHIP DEFLECTOR PLATE
Item is no longer available
Price
N/A
29
*DISCD*SPRING PLATE
Item is no longer available
Price
N/A
30
*DISCD*OIL PORT M22-1.5 X 20
Item is no longer available
Price
N/A
31
SET SCREW M6-1 X 16
Price
N/A
32
*DISCD*HEAD CASTING
Item is no longer available
Price
N/A
33
SET SCREW M10-1.5 X 12
Price
N/A
34
*DISCD*CUTTERHEAD PULLEY
Price
N/A
35
*DISCD*REAR BELT COVER
Item is no longer available
Price
N/A
36
*DISCD*FLAT WASHER 8 X 28 X 2.5MM
Price
N/A
37
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
38
*DISCD*SDOFF-HEX M8-1.25X10, M8-1.25 X14
Price
N/A
39
Now: PVM58
V-BELT M58 3L580
Price
N/A
40
*DISCD*BELT COVER
Item is no longer available
Price
N/A
41
*DISCD*KNURLED KNOB 26L, M8-1.25 (PLSTC)
Price
N/A
42
*DISCD*PLATE SPRING
Item is no longer available
Price
N/A
43
SET SCREW M6-1 X 20
Price
N/A
44
Now: PN01M
HEX NUT M6-1
Price
N/A
45
*DISCD*ADJUSTING SHAFT
Item is no longer available
Price
N/A
46
Now: PN03M
HEX NUT M8-1.25
Price
N/A
47
LOCK WASHER 8MM
Price
N/A
48
Now: PW01M
FLAT WASHER 8MM
Price
N/A
49
Now: G6702
20" x 1" x 1/8" HSS Planer Knives, Set of 4
Price
N/A
50
*DISCD*GIB SCREW M8-1.25 X 10
Price
N/A
51
*DISCD*GIB
Item is no longer available
Price
N/A
52
Now: PK09M
KEY 8 X 8 X 35
Price
N/A
53
CAP SCREW M6-1 X 10
Price
N/A
54
*DISCD*REAR GEARBOX COVER PLATE (L)
Item is no longer available
Price
N/A
55
Now: PW02M
FLAT WASHER 5MM
Price
N/A
56
CAP SCREW M5-.8 X 10
Price
N/A
57
*DISCD*DEPTH-OF-CUT SCALE
Price
N/A
58
*DISCD*DEPTH LIMITER
Item is no longer available
Price
N/A
59
FLAT HD SCR M5-.8 X 10
Price
N/A
60
Now: PK20M
KEY 5 X 5 X 15
Price
N/A
61
SET SCREW M8-1.25 X 8
Price
N/A
62
*DISCD*OUTFEED ROLLER
63
*DISCD*COMPRESSION SPRING 4 X 18.5 X 73
64
FLAT HD CAP SCR M5-.8 X 12
Price
N/A
65
*DISCD*CUTTERHEAD 20" 4-KNIFE
Item is no longer available
Price
N/A
66
BALL BEARING 6206ZZ
Price
N/A
67
*DISCD*SPACER
Item is no longer available
Price
N/A
68
*DISCD*ANTI-KICKBACK SHAFT
Item is no longer available
Price
N/A
69
*DISCD*ANTI-KICKBACK FINGER
Item is no longer available
Price
N/A
70
E-CLIP 15MM
Price
N/A
71
*DISCD*LOCKING ROD BRACKET
72
*DISCD*BUSHING BLOCK
73
Now: PN06M
HEX NUT M5-.8
Price
N/A
74
SET SCREW M5-.8 X 16
Price
N/A
75
*DISCD*PRESSURE PLATE
Item is no longer available
Price
N/A
76
*DISCD*LOCKING ROD
77
*DISCD*CHIP BREAKER
78
MOTOR PULLEY
79
*DISCD*INFEED ROLLER
80
*DISCD*BUSHING BLOCK PLATE
Item is no longer available
Price
N/A
81
CAP SCREW M8-1.25 X 20
Price
N/A
83
*DISCD*MAG SWITCH ASSY NHD MS1-18D
Item is no longer available
Price
N/A
83-1
*DISCD*MAG SWITCH BOX
Item is no longer available
Price
N/A
83-2
*DISCD*CONTACTOR NHD C-18D 220V
Item is no longer available
Price
N/A
83-3
*DISCD*OL RELAY NHD NTH-21 21-25A
Item is no longer available
Price
N/A
83-4
*DISCD*PLASTIC SCREW 12 X 22MM
Price
N/A
83-5
*DISCD*TAP SCREW M4 X 40
Price
N/A
83-6
*DISCD*AUXILIARY CONTACT BLOCK
Item is no longer available
Price
N/A
85
*DISCD*SWITCH BOX MOUNTING BRACKET
Price
N/A
86
Now: PN04M
HEX NUT M4-.7
Price
N/A
87
*DISCD*STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
88
*DISCD*POWER CORD 12G 3W 72" L6-30P
Item is no longer available
Price
N/A
91
HEX WRENCH 6MM
Price
N/A
92
HEX WRENCH 5MM
Price
N/A
93
HEX WRENCH 4MM
Price
N/A
94
HEX WRENCH 3MM
Price
N/A
97
HEX WRENCH 8MM
Price
N/A
101

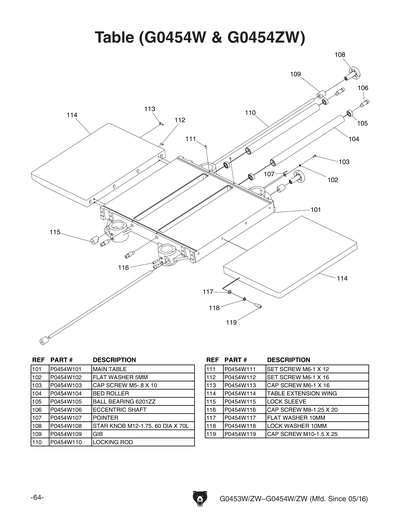

*DISCD*MAIN TABLE
Item is no longer available
Price
N/A
102
Now: PW02M
FLAT WASHER 5MM
Price
N/A
103
CAP SCREW M5-.8 X 10
Price
N/A
104
*DISCD*BED ROLLER
Item is no longer available
Price
N/A
105
BALL BEARING 6201ZZ
Price
N/A
106
*DISCD*ECCENTRIC SHAFT
107
*DISCD*POINTER
Item is no longer available
Price
N/A
108
*DISCD*STAR KNOB M12-1.75, 60 DIA X 70L
Item is no longer available
Price
N/A
109
*DISCD*GIB
Item is no longer available
Price
N/A
110
*DISCD*LOCKING ROD
111
SET SCREW M6-1 X 12
Price
N/A
112
SET SCREW M6-1 X 16
Price
N/A
113
CAP SCREW M6-1 X 16
Price
N/A
114
*DISCD*TABLE EXTENSION WING
Item is no longer available
Price
N/A
115
*DISCD*LOCK SLEEVE
Item is no longer available
Price
N/A
116
CAP SCREW M8-1.25 X 20
Price
N/A
117
Now: PW04M
FLAT WASHER 10MM
Price
N/A
118
LOCK WASHER 10MM
Price
N/A
119
CAP SCREW M10-1.5 X 25
Price
N/A
201

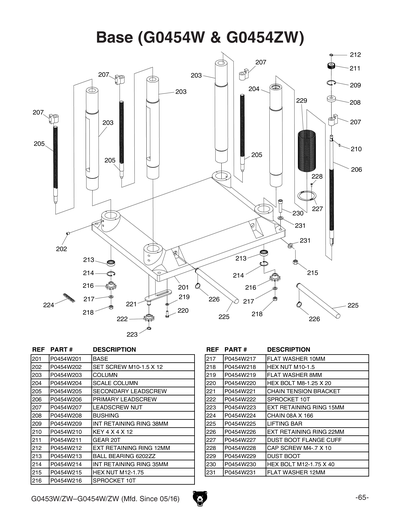

*DISCD*BASE
Item is no longer available
Price
N/A
202
SET SCREW M10-1.5 X 12
Price
N/A
203
*DISCD*COLUMN
204
*DISCD*SCALE COLUMN
205
*DISCD*SECONDARY LEADSCREW
Item is no longer available
Price
N/A
206
*DISCD*PRIMARY LEADSCREW
207
*DISCD*LEADSCREW NUT
208
*DISCD*BUSHING
209
Now: PR22M
INT RETAINING RING 38MM
Price
N/A
210
Now: PK69M
KEY 4 X 4 X 12
Price
N/A
211
*DISCD*GEAR 20T
212
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
213
BALL BEARING 6202ZZ
Price
N/A
214
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
215
Now: PN09M
HEX NUT M12-1.75
Price
N/A
216
*DISCD*SPROCKET 10T
217
Now: PW04M
FLAT WASHER 10MM
Price
N/A
218
Now: PN02M
HEX NUT M10-1.5
Price
N/A
219
Now: PW01M
FLAT WASHER 8MM
Price
N/A
220
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
221
*DISCD*CHAIN TENSION BRACKET
222
*DISCD*SPROCKET 10T
223
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
224
*DISCD*CHAIN 08A X 166
Item is no longer available
Price
N/A
225
*DISCD*LIFTING BAR
Item is no longer available
Price
N/A
226
Now: PR10M
EXT RETAINING RING 22MM
Price
N/A
227
*DISCD*DUST BOOT FLANGE CUFF
228
CAP SCREW M4-.7 X 10
Price
N/A
229
*DISCD*DUST BOOT
Item is no longer available
Price
N/A
230
Now: PB35M
HEX BOLT M12-1.75 X 40
Price
N/A
231
Now: PW06M
FLAT WASHER 12MM
Price
N/A
301

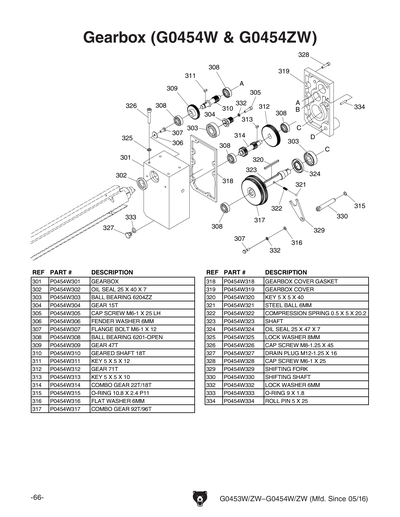

*DISCD*GEARBOX
Price
N/A
302
OIL SEAL 25 X 40 X 10
Price
N/A
303
BALL BEARING 6204ZZ
Price
N/A
304
*DISCD*GEAR 15T
Price
N/A
305
*DISCD*CAP SCREW M6-1 X 25 LH
Price
N/A
306
FENDER WASHER 6MM
Price
N/A
307
FLANGE BOLT M6-1 X 12
Price
N/A
308
BALL BEARING 6201-OPEN
Price
N/A
309
*DISCD*GEAR 47T
Price
N/A
310
*DISCD*GEARED SHAFT 18T
Price
N/A
311
Now: PK10M
KEY 5 X 5 X 12
Price
N/A
312
*DISCD*GEAR 71T
Price
N/A
313
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
314
*DISCD*COMBO GEAR 22T/18T
Price
N/A
315
O-RING 10.8 X 2.4 P11
Price
N/A
316
Now: PW03M
FLAT WASHER 6MM
Price
N/A
317
*DISCD*COMBO GEAR 92T/96T
Price
N/A
318
*DISCD*GEARBOX COVER GASKET
Price
N/A
319
*DISCD*GEARBOX COVER
Price
N/A
320
Now: PK02M
KEY 5 X 5 X 40
Price
N/A
321
STEEL BALL 6MM
Price
N/A
322
*DISCD*COMPRESSION SPRING 0.5 X 5 X 20.2
Price
N/A
323
*DISCD*SHAFT
Price
N/A
324
*DISCD*OIL SEAL 25 X 47 X 7
Price
N/A
325
LOCK WASHER 8MM
Price
N/A
326
CAP SCREW M8-1.25 X 45
Price
N/A
327
*DISCD*DRAIN PLUG M12-1.25 X 16
Price
N/A
328
CAP SCREW M6-1 X 25
Price
N/A
329
*DISCD*SHIFTING FORK
Price
N/A
330
*DISCD*SHIFTING SHAFT
Price
N/A
332
LOCK WASHER 6MM
Price
N/A
333
*DISCD*O-RING 9 X 1.8
Price
N/A
334
ROLL PIN 5 X 25
Price
N/A
401

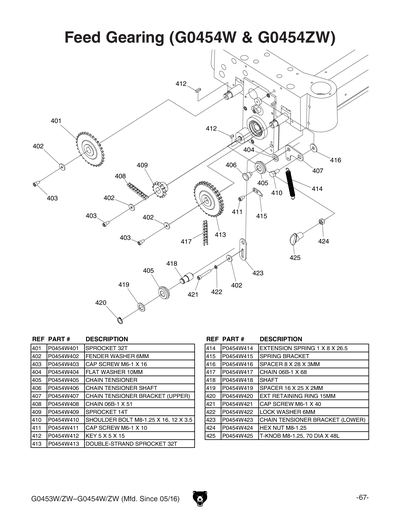

*DISCD*SPROCKET 32T
Price
N/A
402
FENDER WASHER 6MM
Price
N/A
403
CAP SCREW M6-1 X 16
Price
N/A
404
Now: PW04M
FLAT WASHER 10MM
Price
N/A
405
*DISCD*CHAIN TENSIONER
Price
N/A
406
*DISCD*CHAIN TENSIONER SHAFT
Price
N/A
407
*DISCD*CHAIN TENSIONER BRACKET (UPPER)
Price
N/A
408
*DISCD*CHAIN 06B-1 X 51
Item is no longer available
Price
N/A
409
*DISCD*SPROCKET 14T
Item is no longer available
Price
N/A
410
*DISCD*SHOULDER BOLT M8-1.25 X 16, 12 X
Price
N/A
411
CAP SCREW M6-1 X 10
Price
N/A
412
Now: PK20M
KEY 5 X 5 X 15
Price
N/A
413
*DISCD*DOUBLE-STRAND SPROCKET 32T
Price
N/A
414
*DISCD*EXTENSION SPRING 1 X 8 X 26.5
Price
N/A
415
*DISCD*SPRING BRACKET
Price
N/A
416
*DISCD*SPACER 8 X 28 X 3MM
Price
N/A
417
*DISCD*CHAIN 06B-1 X 68
Item is no longer available
Price
N/A
418
*DISCD*SHAFT
Price
N/A
419
*DISCD*SPACER 16 X 25 X 2MM
Price
N/A
420
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
421
CAP SCREW M6-1 X 40
Price
N/A
422
LOCK WASHER 6MM
Price
N/A
423
*DISCD*CHAIN TENSIONER BRACKET (LOWER)
Price
N/A
424
Now: PN03M
HEX NUT M8-1.25
Price
N/A
425
*DISCD*T-KNOB M8-1.25, 70 DIA X 48L
Price
N/A

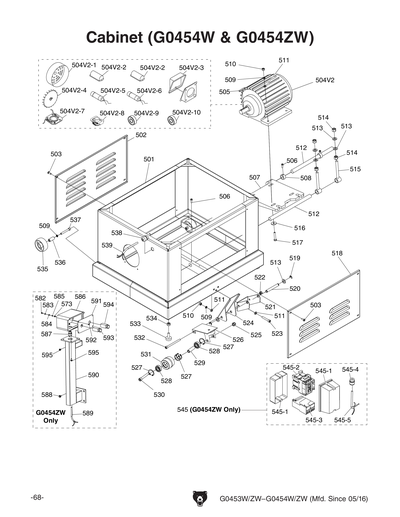

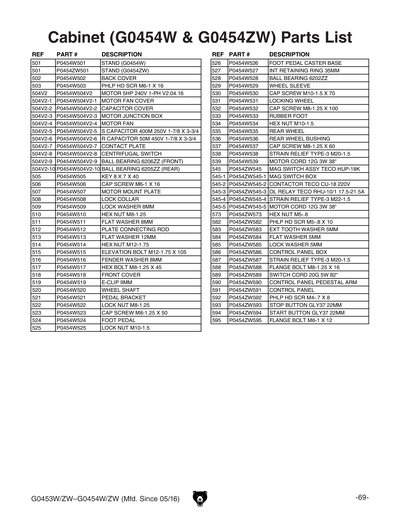

501
*DISCD*STAND
Item is no longer available
Price
N/A
502
*DISCD*BACK COVER
Item is no longer available
Price
N/A
503
Now: PS11M
PHLP HD SCR M6-1 X 16
Price
N/A
504
*DISCD*MOTOR 5HP 240V 1-PH V1
Item is no longer available
Price
N/A
504-1
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
504-2
*DISCD*CAPACITOR COVER
Item is no longer available
Price
N/A
504-3
*DISCD*MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
504-4
*DISCD*MOTOR FAN
504-5
*DISCD*S CAPACITOR 400M 250V 1-7/8 X 3-3
Item is no longer available
Price
N/A
504-6
*DISCD*R CAPACITOR 50M 450V 1-7/8 X3-3/4
504-7
*DISCD*CONTACT PLATE
Item is no longer available
Price
N/A
504-8
*DISCD*CENTRIFUGAL SWITCH
504-9
BALL BEARING 6206ZZ
Price
N/A
504V2
*DISCD*MOTOR 5HP 240V 1-PH V2.04.16
Item is no longer available
Price
N/A
504V2-1
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
504V2-10
BALL BEARING 6205ZZ
Price
N/A
504V2-2
*DISCD*CAPACITOR COVER
Item is no longer available
Price
N/A
504V2-3
*DISCD*MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
504V2-4
*DISCD*MOTOR FAN
504V2-5
*DISCD*S CAPACITOR 400M 250V 1-7/8 X 3-3
Item is no longer available
Price
N/A
504V2-6
*DISCD*R CAPACITOR 50M 450V 1-7/8 X3-3/4
504V2-8
*DISCD*CENTRIFUGAL SWITCH
Item is no longer available
Price
N/A
504V2-9
BALL BEARING 6206ZZ
Price
N/A
505
Now: PK41M
KEY 8 X 8 X 40
Price
N/A
506
CAP SCREW M6-1 X 16
Price
N/A
507
*DISCD*MOTOR MOUNT PLATE
Item is no longer available
Price
N/A
508
*DISCD*LOCK COLLAR
Item is no longer available
Price
N/A
509
LOCK WASHER 8MM
Price
N/A
510
Now: PN03M
HEX NUT M8-1.25
Price
N/A
511
Now: PW01M
FLAT WASHER 8MM
Price
N/A
512
*DISCD*PLATE CONNECTING ROD
Item is no longer available
Price
N/A
513
Now: PW06M
FLAT WASHER 12MM
Price
N/A
514
Now: PN09M
HEX NUT M12-1.75
Price
N/A
515
*DISCD*ELEVATION BOLT M12-1.75 X 105
Price
N/A
516
FENDER WASHER 8MM
Price
N/A
517
HEX BOLT M8-1.25 X 45
Price
N/A
518
*DISCD*FRONT COVER
Item is no longer available
Price
N/A
519
E-CLIP 9MM
Price
N/A
520
*DISCD*WHEEL SHAFT
Price
N/A
521
*DISCD*PEDAL BRACKET V2.06.16
Price
N/A
522
LOCK NUT M8-1.25
Price
N/A
523
CAP SCREW M8-1.25 X 50
Price
N/A
524
*DISCD*FOOT PEDAL
Price
N/A
525
LOCK NUT M10-1.5
Price
N/A
526
*DISCD*FOOT PEDAL CASTER BASE
Price
N/A
527
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
528
BALL BEARING 6202ZZ
Price
N/A
529
*DISCD*WHEEL SLEEVE
Price
N/A
530
CAP SCREW M10-1.5 X 70
Price
N/A
531
*DISCD*LOCKING WHEEL
Price
N/A
532
CAP SCREW M8-1.25 X 100
Price
N/A
533
*DISCD*RUBBER FOOT
Price
N/A
534
Now: PN02M
HEX NUT M10-1.5
Price
N/A
535
*DISCD*REAR WHEEL
Price
N/A
536
*DISCD*REAR WHEEL BUSHING
Price
N/A
537
CAP SCREW M8-1.25 X 60
Price
N/A
538
*DISCD*STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
539
*DISCD*MOTOR CORD 12G 3W 48"
Item is no longer available
Price
N/A

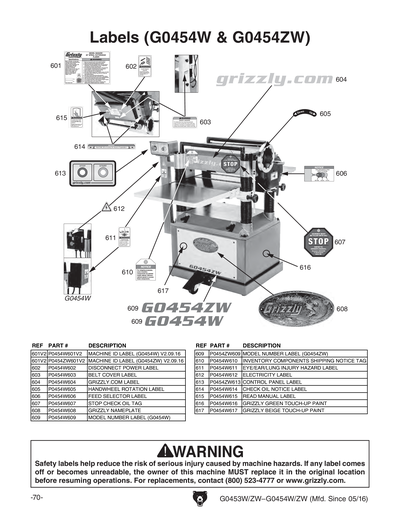

601
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
602
DISCONNECT 110V 2W X 3.3H
Price
N/A
603
*DISCD*BELT COVER LABEL
Item is no longer available
Price
N/A
604
*DISCD*GRIZZLY.COM LABEL
Item is no longer available
Price
N/A
605
*DISCD*HANDWHEEL ROTATION LABEL
Price
N/A
606
*DISCD*FEED SELECTOR LABEL
Price
N/A
607
*DISCD*STOP CHECK OIL TAG
Price
N/A
608
Now: G8588
Nameplate - Small
Price
N/A
609
*DISCD*MODEL NUMBER LABEL
Item is no longer available
Price
N/A
610
*DISCD*INVENTORY COMPONENTS SHIPPING NOT
Item is no longer available
Price
N/A
611
EYE/EAR/LUNG 2W X 3.3H
Price
N/A
612
ELECTRICITY 1.4W X 1.2H
Price
N/A
614
*DISCD*CHECK OIL NOTICE LABEL
Item is no longer available
Price
N/A
615
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
616
N/S GRIZZLY GREEN G1023S
Price
N/A
617
BEIGE REF G0555
Price
N/A
MAN
MAN FOR G0453W, G0453ZW, G0454W, G0454ZW
Price
N/A
