Parts for G0454ZW 20" Planer with Spiral Cutterhead

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

2

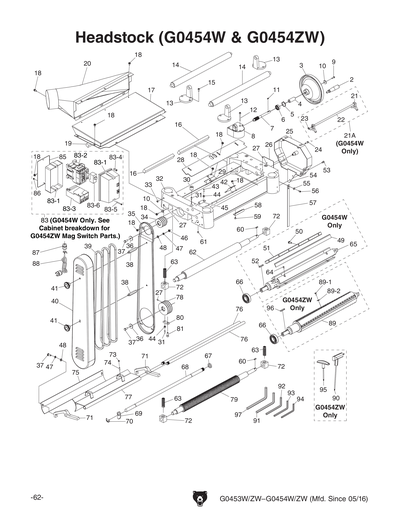

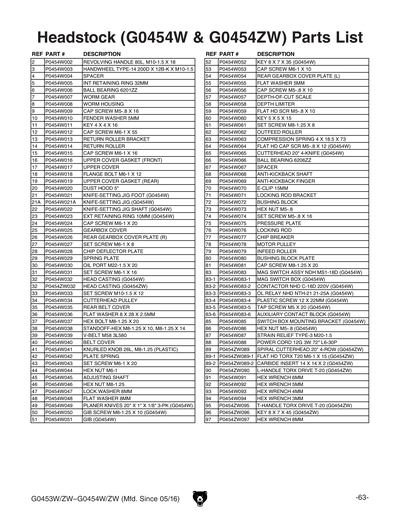

*DISCD*REVLVING HANDLE 80L, M10-1.5 X 18
Price
N/A
3
*DISCD*HDWHEL TYPE-14 200DX12B-KXM10-1.5
Price
N/A
4
*DISCD*SPACER
Price
N/A
5
Now: PR29M
INT RETAINING RING 32MM
Price
N/A
6
BALL BEARING 6201ZZ
Price
N/A
7
*DISCD*WORM GEAR
Price
N/A
8
*DISCD*WORM HOUSING
Price
N/A
9
CAP SCREW M5-.8 X 16
Price
N/A
10
FENDER WASHER 5MM
Price
N/A
11
Now: PK37M
KEY 4 X 4 X 16
Price
N/A
12
CAP SCREW M6-1 X 55
Price
N/A
13
*DISCD*RETURN ROLLER BRACKET
Price
N/A
14
*DISCD*RETURN ROLLER
Price
N/A
15
CAP SCREW M6-1 X 16
Price
N/A
16
*DISCD*UPPER COVER GASKET (FRONT)
Price
N/A
17
*DISCD*UPPER COVER
Price
N/A
18
FLANGE BOLT M6-1 X 12
Price
N/A
19
*DISCD*UPPER COVER GASKET (REAR)
Price
N/A
20
*DISCD*DUST HOOD 5"
Price
N/A
24
CAP SCREW M6-1 X 20
Price
N/A
25
*DISCD*GEARBOX COVER
Price
N/A
26
*DISCD*REAR GEARBOX COVER PLATE (R)
Price
N/A
27
SET SCREW M6-1 X 8
Price
N/A
28
*DISCD*CHIP DEFLECTOR PLATE
Price
N/A
29
*DISCD*SPRING PLATE
Price
N/A
30
*DISCD*OIL PORT M22-1.5 X 20
Price
N/A
31
SET SCREW M6-1 X 16
Price
N/A
32
*DISCD*HEAD CASTING
Item is no longer available
Price
N/A
33
SET SCREW M10-1.5 X 12
Price
N/A
34
*DISCD*CUTTERHEAD PULLEY
Price
N/A
35
*DISCD*REAR BELT COVER
Price
N/A
36
*DISCD*FLAT WASHER 8 X 28 X 2.5MM
Price
N/A
37
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
38
*DISCD*SDOFF-HEX M8-1.25X10, M8-1.25 X14
Price
N/A
39
Now: PVM58
V-BELT M58 3L580
Price
N/A
40
*DISCD*BELT COVER
Price
N/A
41
*DISCD*KNURLED KNOB 26L, M8-1.25 (PLSTC)
Price
N/A
42
*DISCD*PLATE SPRING
Price
N/A
43
SET SCREW M6-1 X 20
Price
N/A
44
Now: PN01M
HEX NUT M6-1
Price
N/A
45
*DISCD*ADJUSTING SHAFT
Price
N/A
46
Now: PN03M
HEX NUT M8-1.25
Price
N/A
47
LOCK WASHER 8MM
Price
N/A
48
Now: PW01M
FLAT WASHER 8MM
Price
N/A
53
CAP SCREW M6-1 X 10
Price
N/A
54
*DISCD*REAR GEARBOX COVER PLATE (L)
Price
N/A
55
Now: PW02M
FLAT WASHER 5MM
Price
N/A
56
CAP SCREW M5-.8 X 10
Price
N/A
57
*DISCD*DEPTH-OF-CUT SCALE
Price
N/A
58
*DISCD*DEPTH LIMITER
Price
N/A
59
FLAT HD SCR M5-.8 X 10
Price
N/A
60
Now: PK20M
KEY 5 X 5 X 15
Price
N/A
61
SET SCREW M8-1.25 X 8
Price
N/A
62
*DISCD*OUTFEED ROLLER
Price
N/A
63
*DISCD*COMPRESSION SPRING 4 X 18.5 X 73
Price
N/A
66
BALL BEARING 6206ZZ
Price
N/A
67
*DISCD*SPACER
Price
N/A
68
*DISCD*ANTI-KICKBACK SHAFT
Price
N/A
69
*DISCD*ANTI-KICKBACK FINGER
Price
N/A
70
E-CLIP 15MM
Price
N/A
71
*DISCD*LOCKING ROD BRACKET
Price
N/A
72
*DISCD*BUSHING BLOCK
Price
N/A
73
Now: PN06M
HEX NUT M5-.8
Price
N/A
74
SET SCREW M5-.8 X 16
Price
N/A
75
*DISCD*PRESSURE PLATE
Price
N/A
76
*DISCD*LOCKING ROD
Price
N/A
77
*DISCD*CHIP BREAKER
Price
N/A
78
MOTOR PULLEY
Price
N/A
79
*DISCD*INFEED ROLLER
Price
N/A
80
*DISCD*BUSHING BLOCK PLATE
Price
N/A
81
CAP SCREW M8-1.25 X 20
Price
N/A
87
*DISCD*STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
88
*DISCD*POWER CORD 12G 3W 72" L6-30P
Price
N/A
89
*DISCD*SPIRAL CUTTERHEAD 20" 4-ROW
89-1
*DISCD*FLAT HD TORX T20 M6-1 X 15
Item is no longer available
Price
N/A
89-2
Now: H7319
Indexable Carbide Inserts - 14 x 14 x 2mm, 10-Pk.
Price
N/A
90
*DISCD*L-HANDLE TORX DRIVE T-20
Price
N/A
91
HEX WRENCH 6MM
Price
N/A
92
HEX WRENCH 5MM
Price
N/A
93
HEX WRENCH 4MM
Price
N/A
94
HEX WRENCH 3MM
Price
N/A
95
T-HANDLE TORX DRIVE T-20
Price
N/A
96
KEY 8 X 7 X 45
Price
N/A
97
HEX WRENCH 8MM
Price
N/A
101

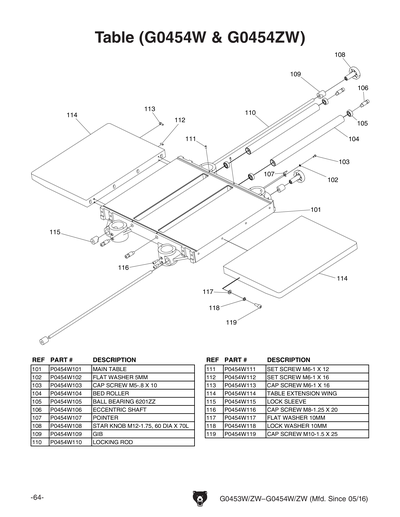

*DISCD*MAIN TABLE
Price
N/A
102
Now: PW02M
FLAT WASHER 5MM
Price
N/A
103
CAP SCREW M5-.8 X 10
Price
N/A
104
*DISCD*BED ROLLER
Price
N/A
105
BALL BEARING 6201ZZ
Price
N/A
106
*DISCD*ECCENTRIC SHAFT
Price
N/A
107
*DISCD*POINTER
Price
N/A
108
*DISCD*STAR KNOB M12-1.75, 60 DIA X 103L
Price
N/A
109
*DISCD*GIB
Price
N/A
110
*DISCD*LOCKING ROD
Price
N/A
111
SET SCREW M6-1 X 12
Price
N/A
112
SET SCREW M6-1 X 16
Price
N/A
113
CAP SCREW M6-1 X 16
Price
N/A
114
*DISCD*TABLE EXTENSION WING
Price
N/A
115
*DISCD*LOCK SLEEVE
Price
N/A
116
CAP SCREW M8-1.25 X 20
Price
N/A
117
Now: PW04M
FLAT WASHER 10MM
Price
N/A
118
LOCK WASHER 10MM
Price
N/A
119
CAP SCREW M10-1.5 X 25
Price
N/A
201

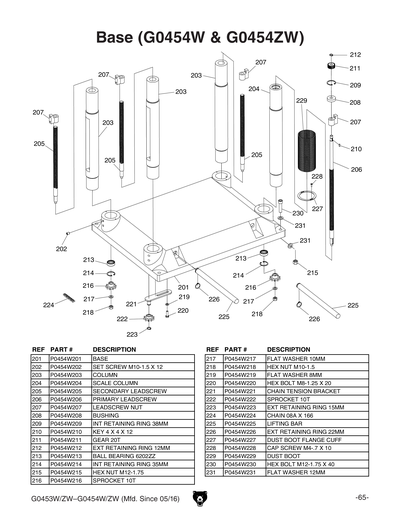

*DISCD*BASE
Price
N/A
202
SET SCREW M10-1.5 X 12
Price
N/A
203
*DISCD*COLUMN
Price
N/A
204
*DISCD*SCALE COLUMN
Price
N/A
205
*DISCD*SECONDARY LEADSCREW
Price
N/A
206
*DISCD*PRIMARY LEADSCREW
Price
N/A
207
*DISCD*LEADSCREW NUT
Price
N/A
208
*DISCD*BUSHING
Price
N/A
209
Now: PR22M
INT RETAINING RING 38MM
Price
N/A
210
Now: PK69M
KEY 4 X 4 X 12
Price
N/A
211
*DISCD*GEAR 20T
Price
N/A
212
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
213
BALL BEARING 6202ZZ
Price
N/A
214
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
215
Now: PN09M
HEX NUT M12-1.75
Price
N/A
216
*DISCD*SPROCKET 10T
Price
N/A
217
Now: PW04M
FLAT WASHER 10MM
Price
N/A
218
Now: PN02M
HEX NUT M10-1.5
Price
N/A
219
Now: PW01M
FLAT WASHER 8MM
Price
N/A
220
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
221
*DISCD*CHAIN TENSION BRACKET
Price
N/A
222
*DISCD*SPROCKET 10T
Price
N/A
223
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
224
*DISCD*CHAIN 08A X 166
Price
N/A
225
*DISCD*LIFTING BAR
Price
N/A
226
Now: PR10M
EXT RETAINING RING 22MM
Price
N/A
227
*DISCD*DUST BOOT FLANGE CUFF
Price
N/A
228
CAP SCREW M4-.7 X 10
Price
N/A
229
*DISCD*DUST BOOT
Price
N/A
230
Now: PB35M
HEX BOLT M12-1.75 X 40
Price
N/A
231
Now: PW06M
FLAT WASHER 12MM
Price
N/A
300

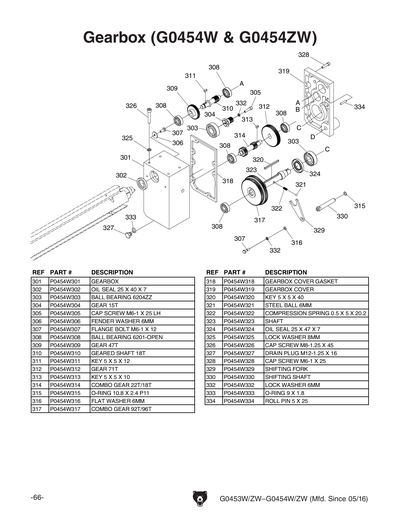

*DISCD*COMPLETE GEAR BOX ASSY
Price
N/A
301
*DISCD*GEARBOX
Price
N/A
302
*DISCD*OIL SEAL 25 X 40 X 7
Price
N/A
303
BALL BEARING 6204ZZ
Price
N/A
304
*DISCD*GEAR 15T
Price
N/A
305
*DISCD*CAP SCREW M6-1 X 25 LH
Price
N/A
306
FENDER WASHER 6MM
Price
N/A
307
FLANGE BOLT M6-1 X 12
Price
N/A
308
BALL BEARING 6201-OPEN
Price
N/A
309
*DISCD*GEAR 47T
Price
N/A
310
*DISCD*GEARED SHAFT 18T
Price
N/A
311
Now: PK10M
KEY 5 X 5 X 12
Price
N/A
312
*DISCD*GEAR 71T
Price
N/A
313
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
314
*DISCD*COMBO GEAR 22T/18T
Price
N/A
315
*DISCD*O-RING 11.8 X 2.65
Price
N/A
316
Now: PW03M
FLAT WASHER 6MM
Price
N/A
317
*DISCD*COMBO GEAR 92T/96T
Price
N/A
318
*DISCD*GEARBOX COVER GASKET
Price
N/A
319
*DISCD*GEARBOX COVER
Price
N/A
320
Now: PK02M
KEY 5 X 5 X 40
Price
N/A
321
STEEL BALL 6MM
Price
N/A
322
*DISCD*COMPRESSION SPRING 0.5 X 5 X 20.2
Price
N/A
323
*DISCD*SHAFT
Price
N/A
324
*DISCD*OIL SEAL 25 X 47 X 7
Price
N/A
325
LOCK WASHER 8MM
Price
N/A
326
CAP SCREW M8-1.25 X 45
Price
N/A
327
*DISCD*DRAIN PLUG M12-1.25 X 16
Price
N/A
328
CAP SCREW M6-1 X 25
Price
N/A
329
*DISCD*SHIFTING FORK
Price
N/A
330
*DISCD*SHIFTING SHAFT
Price
N/A
332
LOCK WASHER 6MM
Price
N/A
333
*DISCD*O-RING 9 X 1.8
Price
N/A
334
ROLL PIN 5 X 25
Price
N/A
401

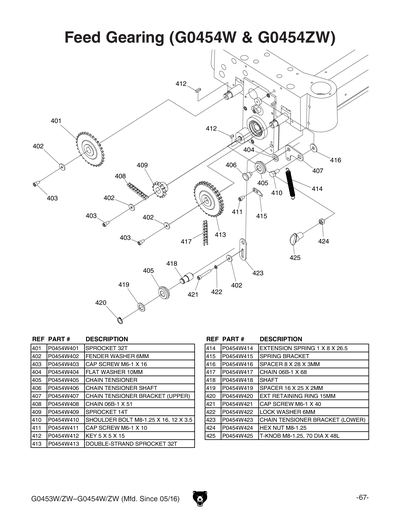

*DISCD*SPROCKET 32T
Price
N/A
402
FENDER WASHER 6MM
Price
N/A
403
CAP SCREW M6-1 X 16
Price
N/A
404
Now: PW04M
FLAT WASHER 10MM
Price
N/A
405
*DISCD*CHAIN TENSIONER
Price
N/A
406
*DISCD*CHAIN TENSIONER SHAFT
Price
N/A
407
*DISCD*CHAIN TENSIONER BRACKET (UPPER)
Price
N/A
408
*DISCD*CHAIN 06B-1 X 51
Price
N/A
409
*DISCD*SPROCKET 14T
Price
N/A
410
*DISCD*SHOULDER BOLT M8-1.25 X 16, 12 X
Price
N/A
411
CAP SCREW M6-1 X 10
Price
N/A
412
Now: PK20M
KEY 5 X 5 X 15
Price
N/A
413
*DISCD*DOUBLE-STRAND SPROCKET 32T
Price
N/A
414
*DISCD*EXTENSION SPRING 1 X 8 X 26.5
Price
N/A
415
*DISCD*SPRING BRACKET
Price
N/A
416
*DISCD*SPACER 8 X 28 X 3MM
Price
N/A
417
*DISCD*CHAIN 06B-1 X 68
Price
N/A
418
*DISCD*SHAFT
Price
N/A
419
*DISCD*SPACER 16 X 25 X 2MM
Price
N/A
420
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
421
CAP SCREW M6-1 X 40
Price
N/A
422
LOCK WASHER 6MM
Price
N/A
423
*DISCD*CHAIN TENSIONER BRACKET (LOWER)
Price
N/A
424
Now: PN03M
HEX NUT M8-1.25
Price
N/A
425
*DISCD*T-KNOB M8-1.25, 70 DIA X 48L
Price
N/A

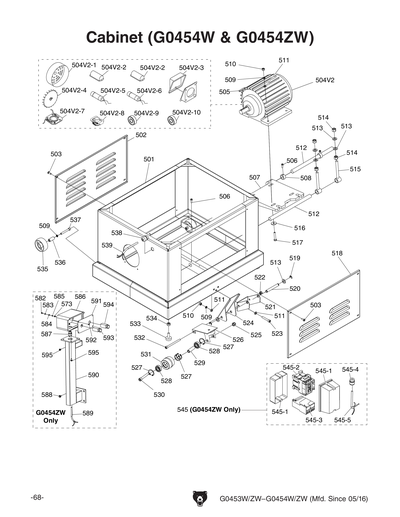

501

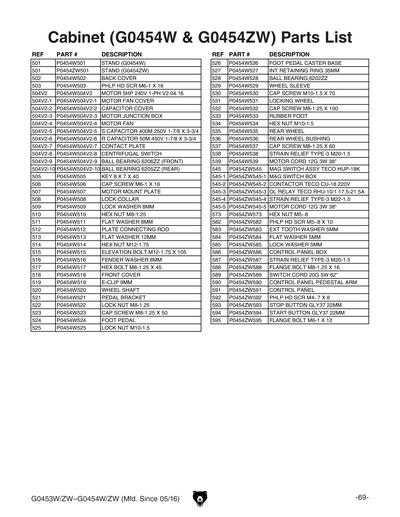

*DISCD*STAND
Item is no longer available
Price
N/A
502
*DISCD*BACK COVER
Price
N/A
503
Now: PS11M
PHLP HD SCR M6-1 X 16
Price
N/A
504
*DISCD*MOTOR 5HP 240V 1-PH V1
Price
N/A
504-1
*DISCD*MOTOR FAN COVER
Price
N/A
504-2
*DISCD*CAPACITOR COVER
Price
N/A
504-3
*DISCD*MOTOR JUNCTION BOX
Price
N/A
504-4
*DISCD*MOTOR FAN
Price
N/A
504-5
*DISCD*S CAPACITOR 400M 250V 1-7/8 X 3-3
Price
N/A
504-6
*DISCD*R CAPACITOR 50M 450V 1-7/8 X3-3/4
Price
N/A
504-7
*DISCD*CONTACT PLATE
Price
N/A
504-8
*DISCD*CENTRIFUGAL SWITCH
Price
N/A
504-9
BALL BEARING 6206ZZ
Price
N/A
504V2
*DISCD*MOTOR 5HP 240V 1-PH V2.04.16
Price
N/A
504V2-1
*DISCD*MOTOR FAN COVER
Price
N/A
504V2-10
BALL BEARING 6205ZZ
Price
N/A
504V2-2
*DISCD*CAPACITOR COVER
Price
N/A
504V2-3
*DISCD*MOTOR JUNCTION BOX
Price
N/A
504V2-4
*DISCD*MOTOR FAN
Price
N/A
504V2-5
*DISCD*S CAPACITOR 400M 250V 1-7/8 X 3-3
Price
N/A
504V2-6
*DISCD*R CAPACITOR 50M 450V 1-7/8 X3-3/4
Price
N/A
504V2-7
*DISCD*CONTACT PLATE
Price
N/A
504V2-8
*DISCD*CENTRIFUGAL SWITCH
Price
N/A
504V2-9
BALL BEARING 6206ZZ
Price
N/A
505
Now: PK41M
KEY 8 X 8 X 40
Price
N/A
506
CAP SCREW M6-1 X 16
Price
N/A
507
*DISCD*MOTOR MOUNT PLATE
Price
N/A
508
*DISCD*LOCK COLLAR
Price
N/A
509
LOCK WASHER 8MM
Price
N/A
510
Now: PN03M
HEX NUT M8-1.25
Price
N/A
511
Now: PW01M
FLAT WASHER 8MM
Price
N/A
512
*DISCD*PLATE CONNECTING ROD
Price
N/A
513
Now: PW06M
FLAT WASHER 12MM
Price
N/A
514
Now: PN09M
HEX NUT M12-1.75
Price
N/A
515
*DISCD*ELEVATION BOLT M12-1.75 X 105
Price
N/A
516
FENDER WASHER 8MM
Price
N/A
517
HEX BOLT M8-1.25 X 45
Price
N/A
518
*DISCD*FRONT COVER
Price
N/A
519
E-CLIP 9MM
Price
N/A
520
*DISCD*WHEEL SHAFT
Price
N/A
521
*DISCD*PEDAL BRACKET V2.06.16
Price
N/A
522
LOCK NUT M8-1.25
Price
N/A
523
CAP SCREW M8-1.25 X 50
Price
N/A
524
*DISCD*FOOT PEDAL
Price
N/A
525
LOCK NUT M10-1.5
Price
N/A
526
*DISCD*FOOT PEDAL CASTER BASE
Price
N/A
527
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
528
BALL BEARING 6202ZZ
Price
N/A
529
*DISCD*WHEEL SLEEVE
Price
N/A
530
CAP SCREW M10-1.5 X 70
Price
N/A
531
*DISCD*LOCKING WHEEL
Price
N/A
532
CAP SCREW M8-1.25 X 100
Price
N/A
533
*DISCD*RUBBER FOOT
Price
N/A
534
Now: PN02M
HEX NUT M10-1.5
Price
N/A
535
*DISCD*REAR WHEEL
Price
N/A
536
*DISCD*REAR WHEEL BUSHING
Price
N/A
537
CAP SCREW M8-1.25 X 60
Price
N/A
538
*DISCD*STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
539
*DISCD*MOTOR CORD 12G 3W 48"
Price
N/A
545
*DISCD*MAG SWITCH ASSY TECO HUP-18K
Item is no longer available
Price
N/A
545-1
*DISCD*MAG SWITCH BOX
Item is no longer available
Price
N/A
545-2
*DISCD*CONTACTOR TECO CU-18 220V
Item is no longer available
Price
N/A
545-3
*DISCD*OL RELAY TECO RHU-10/1 17.5-21.5A
Item is no longer available
Price
N/A
545-4
*DISCD*STRAIN RELIEF TYPE-3 M22-1.5
Price
N/A
545-5
*DISCD*MOTOR CORD 12G 3W 48"
Price
N/A
573
Now: PN06M
HEX NUT M5-.8
Price
N/A
582
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
583
EXT TOOTH WASHER 5MM
Price
N/A
584
Now: PW02M
FLAT WASHER 5MM
Price
N/A
585
LOCK WASHER 5MM
Price
N/A
586
*DISCD*CONTROL PANEL BOX
Price
N/A
587
*DISCD*STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
588
FLANGE BOLT M8-1.25 X 16
Price
N/A
589
*DISCD*SWITCH CORD 20G 5W 82"
Item is no longer available
Price
N/A
590
*DISCD*CONTROL PANEL PEDESTAL ARM
Price
N/A
591
*DISCD*CONTROL PANEL
Price
N/A
592
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
593
*DISCD*STOP BUTTON GLY37 22MM
Price
N/A
594
*DISCD*START BUTTON GLY37 22MM
Price
N/A
595
FLANGE BOLT M6-1 X 12
Price
N/A

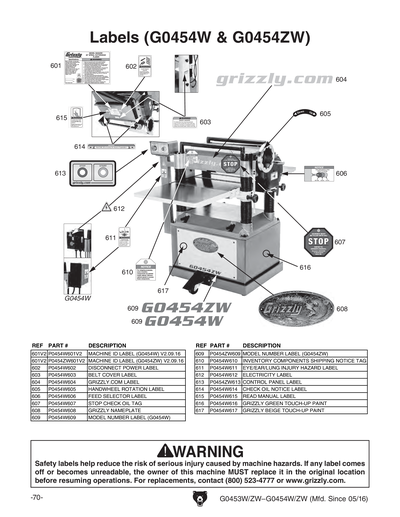

601
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
602
DISCONNECT 110V 2W X 3.3H
Price
N/A
603
*DISCD*BELT COVER LABEL
Price
N/A
604
*DISCD*GRIZZLY.COM LABEL
Price
N/A
605
*DISCD*HANDWHEEL ROTATION LABEL
Price
N/A
606
*DISCD*FEED SELECTOR LABEL
Price
N/A
607
*DISCD*STOP CHECK OIL TAG
Price
N/A
608
Now: G8588
Nameplate - Small
Price
N/A
609
*DISCD*MODEL NUMBER LABEL
610
*DISCD*INVENTORY COMPONENTS SHIPPING NOT
Price
N/A
611
EYE/EAR/LUNG 2W X 3.3H
Price
N/A
612
ELECTRICITY 1.4W X 1.2H
Price
N/A
613
*DISCD*CONTROL PANEL LABEL
Item is no longer available
Price
N/A
614
*DISCD*CHECK OIL NOTICE LABEL
Price
N/A
615
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
616
N/S GRIZZLY GREEN G1023S
Price
N/A
617
BEIGE REF G0555
Price
N/A
MAN
MAN FOR G0453W, G0453ZW, G0454W, G0454ZW
Price
N/A
