Parts for G0462 - 16" x 46" Wood Lathe with DRO

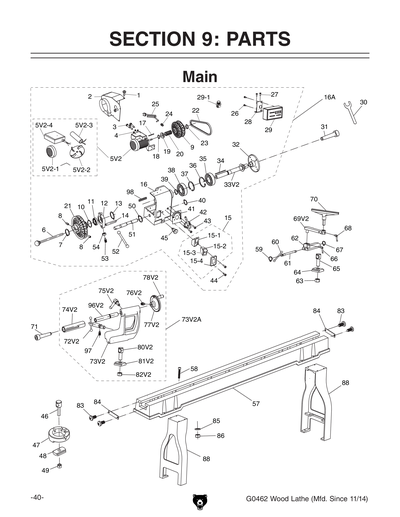

Part Diagram for G0462
Part Diagram for G0462
Part Diagram for G0462
Part Diagram for G0462
Part Diagram for G0462
Part Diagram for G0462

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
PHLP HD SCR M5-.8 X 8
Price
N/A
2
MOTOR COVER
Price
$58.95
3
HEX BOLT M8-1.25 X 30
Price
N/A
4
LOCK WASHER 8MM
Price
N/A
5
*DISCD*MOTOR 2HP 1PH 110V V1.12.05
Item is no longer available
Price
N/A
5-1
*DISCD*FAN COVER 156 X 63MM V1.12.05
Price
$4.90
5-1V2
FAN COVER 156 X 68MM V2.01.09
Price
N/A
5-2
FAN 120MM V1.12.05
Price
$4.70
5-2V2
FAN 150 X 30MM V2.01.09
Price
N/A
5-3
*DISCD*CAPACITOR COVER 54 X 108MM V1.12.05
Item is no longer available
Price
N/A
5-3V2
MOTOR JUNCTION BOX V2.01.09
Price
N/A
5-4
*DISCD*S CAPACITOR 300M 300V 1-1/2 X 3 V
Item is no longer available
Price
N/A
5-4V2
S. CAP 100UF 250V 1-3/8X2-3/4" V2.01.09
Price
$26.65
5-5
R CAPACITOR 80M 300V 2 X 3-3/4
Price
$28.45
5-6
R CAPACITOR COVER 125 X 59MM V1.12.05
Price
$8.65
5-7V2
MOTOR JUNCTION BOX V2.01.09
Price
N/A
5-8V2
MOTOR JUNCTION BOX TOP
Price
$5.10
5V2
MOTOR 2HP 110V 1-PH V2.01.09
Price
$508.60
5V2-1
FAN COVER 156 X 68MM V2.01.09
Price
$17.65
5V2-2
FAN 150 X 30MM V2.01.09
Price
$12.65
5V2-3
R CAPACITOR 100M 250V 2 X 3-3/4 V2.01.09
Price
$28.75
5V2-4
MOTOR JUNCTION BOX V2.01.09
Price
$16.60
6
PUSH-OUT ROD
Price
N/A
7
EXT RETAINING RING 24MM
Price
N/A
8
HOLLOW KNURL SET SCR M6 X 10
Price
N/A
9
MOTOR PULLEY SET
Price
$50.20
10
INT RETAINING RING 62MM
Price
N/A
11
BALL BEARING 6007ZZ
Price
N/A
12
SHIFTING LEVER BRACKET
Price
N/A
13
EXT RETAINING RING 35MM
Price
N/A
14
RACK
Price
$7.95
15
SWITCH ASSEMBLY
Price
$12.25
15-1
SWITCH BOX
Price
N/A
15-2
Safety Paddle Switch
Price
N/A
15-3
PADDLE SWITCH KEY
Price
N/A
15-4
SWITCH BOX PLATE
Price
N/A
16
HEADSTOCK CASTING
Price
$261.70
16A
HEADSTOCK ASSEMBLY
Price
$1,130.25
17
KEY 4 X 4 X 80
Price
N/A
18
EXT RETAINING RING 16MM
Price
N/A
19
SLEEVE
Price
N/A
20
COMPRESSION SPRING
Price
N/A
21
SPINDLE PULLEY SET
Price
$65.85
22
V-BELT MX24.5, COGGED
Price
$12.35
23
EXT RETAINING RING 16MM
Price
N/A
24
STRAIN RELIEF M20 TYPE-6 ST
Price
$1.90
25
POWER CORD 16G X 3W 73"L
Price
N/A
26
PHLP HD SCR M6-1 X 10
Price
N/A
27
PHLP HD SCR M6-1 X 10
Price
N/A
28
DIGITAL READOUT BRACKET
Price
$4.50
29
DIGITAL READOUT ASSEMBLY
Price
$80.00
29-1
RPM SENSOR
Price
$37.25
30
FLAT WRENCH 32MM
Price
N/A
31
SPUR CENTER MT#2
Price
N/A
32
FACEPLATE 6" (STEEL) V2.02.23
Price
N/A
32V2
FACEPLATE 6" (STEEL) V2.02.23
Price
$53.50
33
SPINDLE 1 X 8" V2.10.17
Price
N/A
33-1
SPINDLE MAGNET 1-6/16 X 1-1/2" DIA
Price
$10.85
33V2
SPINDLE 1 X 8" V2.10.17
Price
$69.75
34
KEY 4 X 4 X 80
Price
N/A
35
BALL BEARING 6205ZZ
Price
N/A
36
INT RETAINING RING 52MM
Price
N/A
37
INT RETAINING RING 52MM
Price
N/A
38
BALL BEARING 6205ZZ
Price
N/A
39
EXT RETAINING RING 25MM
Price
N/A
40
EXT RETAINING RING 24MM
Price
N/A
41
SPEED CHANGE LABEL
Price
$1.90
42
GEAR ASSEMBLY
Price
N/A
43
PHLP HD SCR M5-.8 X 12
Price
N/A
44
PHLP HD SCR M4-.7 X 12
Price
N/A
45
SWIVEL PIN ASSEMBLY
Price
N/A
46
HEADSTOCK PIVOT BOLT
Price
$5.10
47
TURNING BASE
Price
N/A
48
BED CLAMP A
Price
N/A
49
HEX NUT M18-2.5
Price
N/A
50
EXT RETAINING RING 24MM
Price
N/A
51
HEADSTOCK ECCENTRIC SHAFT
Price
$20.60
52
HEAD LOCK LEVER
Price
$5.10
53
SET SCREW M8-1.25 X 25
Price
N/A
54
HEX NUT M8-1.25
Price
N/A
55
PHLP HD SCR M5-.8 X 12
Price
N/A
56
BAFFLE
Price
N/A
57
BED
Price
$880.15
58
CAP SCREW M8-1.25 X 40
Price
N/A
59
EXT RETAINING RING 19MM
Price
N/A
60
*DISCD*BALL LEVER
Item is no longer available
Price
N/A
61
***SEE EXT. DESCRIPTION***
Price
N/A
62
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
62V2
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
63
HEX NUT M18-2.5
Price
N/A
64
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
65
***SEE EXT. DESCRIPITON***
Item is no longer available
Price
N/A
66
HANDLE ASSY M10-1.5 X 15
Price
N/A
67
EXT RETAINING RING 19MM
Price
N/A
68
HANDLE ASSY M10-1.5 X 15
Price
N/A
69
*DISCD* EXTENSION TOOL REST
Price
N/A
69V2
*DISCD* TOL REST PIVOT ARM (1")V2.10.17
Item is no longer available
Price
N/A
70
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
70V2
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
70V3
TOOL REST V3.02.23
Price
$53.35
71
TAILSTOCK LIVE CENTER MT#2
Price
N/A
72
TAILSTOCK LOCK LEVER V1.12.05
Price
$8.40
72V2
TAILSTOCK LOCK LEVER V2.04.10
Price
$20.60
73
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
73AV2
TAILSTOCK ASSEMBLY V2.11.09
Price
$237.95
73V2
TAILSTOCK CASTING V2.04.10
Price
$111.00
73V2A
TAILSTOCK ASSEMBLY V2.11.09
Price
N/A
74
TAILSTOCK QUILL V1.12.05
Price
$11.20
74V2
TAILSTOCK QUILL V2.04.10
Price
$26.75
75
QUILL LOCKING SCREW V1.12.05
Price
$1.90
75V2
QUILL LOCK HANDLE ASSY V2.04.10
Price
$6.90
76
CONE SET SCREW V1.12.05
Price
$1.90
76V2
HANDWHEEL SET SCREW V2.04.10
Price
$1.90
77
TAILSTOCK HANDWHEEL CAST IRON V1.12.05
Price
$14.10
77V2
TAILSTOCK HANDWHEEL W/HANDLE ASSY V2
Price
N/A
77V2A
TAILSTOCK HANDWHEEL W/HANDLE ASSY V2
Price
$30.95
78
HANDWHEEL HANDLE V1.12.05
Price
$2.90
78V2
***USE P0462077V2A***
Item is no longer available
Price
N/A
79
EXT RETAINING RING 10MM
Price
N/A
80
TAILSTOCK PIVOT BOLT M10-1.5 V1.12.05
Price
$5.45
80V2
TAILSTOCK PIVOT BOLT V2.04.10
Price
$8.65
81
TAILSTOCK CLAMP PLATE V1.12.05
Price
$6.60
81V2
TAILSTOCK CLAMP PLATE V2.04.10
Price
$5.60
82
HEX NUT M10-1.5
Price
N/A
82V2
HEX NUT M18-2.5
Price
N/A
83
PHLP HD SCR M5-.8 X 12
Price
N/A
84
BED END PLATE
Price
$2.20
85
LOCK WASHER 8MM
Price
N/A
86
HEX NUT M8-1.25
Price
N/A
87
STAND LEG LEFT/RIGHT
Price
N/A
87A
COMPLETE LEG ASSY BOX 2
Price
N/A
88
STAND LEG LEFT/RIGHT
Price
$376.35
88A
COMPLETE LEG ASSY BOX 2
Price
$368.75

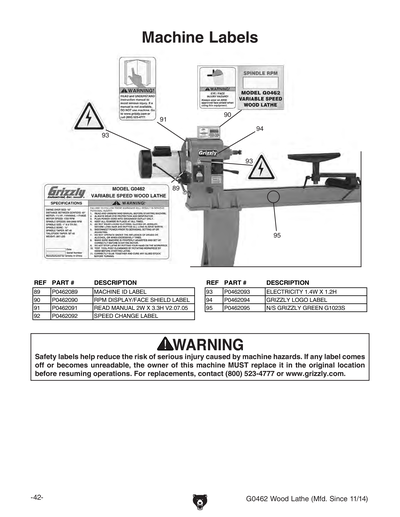

89
MACHINE ID LABEL
Price
$16.40
90
RPM DISPLAY/FACE SHIELD LABEL
Price
$1.90
91
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
92
SPEED CHANGE LABEL
Price
N/A
93
ELECTRICITY 1.4W X 1.2H
Price
N/A
94
GRIZZLY LOGO LABEL
Price
N/A
95
N/S GRIZZLY GREEN G1023S
Price
N/A
96
TAILSTOCK LEADSCREW V2.11.09
Price
N/A
96V2
TAILSTOCK LEADSCREW V2.11.09
Price
$15.50
97
SET SCREW M6-1 X 12
Price
N/A
98
COMPRESSION SPRING 2.5 X 22.5 X 107
Price
N/A
99
ECCENTRIC BUSHING
Price
N/A
100
SLIDE BUSHING
Price
N/A
101
LOCK WASHER 5MM
Price
N/A
102
TOOL REST BASE PLATE
Price
N/A
KIT
UPGRADE TOOL REST KIT FOR G0462/W1758
Price
$223.20
MANUAL
MANUAL FOR G0462 04/10
Price
$14.65
