Parts for G0463 - 6" x 22" 3/4 HP Mill/Drill

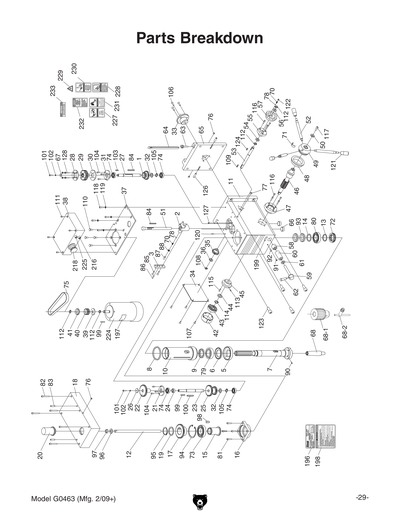

Part Diagram for G0463

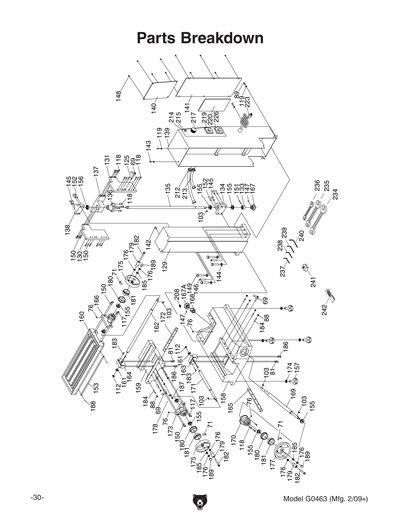

Part Diagram for G0463
Part Diagram for G0463
Part Diagram for G0463
Part Diagram for G0463
Part Diagram for G0463
Part Diagram for G0463
Part Diagram for G0463
Part Diagram for G0463
Part Diagram for G0463

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

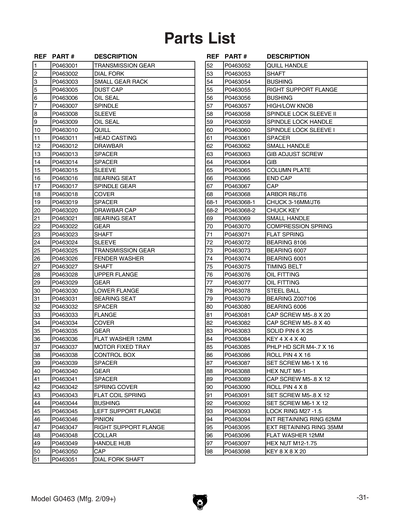

Ref #
Part #
Description
1
TRANSMISSION GEAR
Price
$14.75
2
DIAL FORK
Price
$16.95
3
GEAR RACK SMALL
Item is no longer available
Price
N/A
4
SPINDLE NUT
Price
$2.60
5
DUST CAP
Price
$12.25
6
OIL SEAL
Price
$9.40
7
SPINDLE
Price
$103.90
8
SLEEVE
Price
$14.75
9
OIL SEAL
Price
$7.60
10
QUILL
Price
$60.75
11
HEAD CASTING
Item is no longer available
Price
N/A
11-A
COMPLETE HEADSTOCK ASSY
Price
$1,476.05
12
DRAWBAR
Price
$4.70
13
SPACER
Price
$1.90
14
SPACER
Price
$1.90
15
SLEEVE
Price
$26.25
16
BEARING SEAT
Price
$21.60
17
SPINDLE GEAR
Item is no longer available
Price
N/A
18
COVER
Price
$36.25
19
SPACER
Item is no longer available
Price
N/A
20
DRAWBAR CAP
Price
$10.45
21
BEARING SEAT
Price
$4.35
22
GEAR
Price
$14.75
23
SHAFT
Item is no longer available
Price
N/A
24
SLEEVE
Item is no longer available
Price
N/A
25
TRANSMISSION GEAR
Price
$18.70
26
FENDER WASHER 4MM
Price
N/A
27
SHAFT
Price
$5.45
28
FLANGE UPPER
Item is no longer available
Price
N/A
29
GEAR
Price
$16.95
30
FLANGE LOWER
Item is no longer available
Price
N/A
31
BEARING SEAT
Item is no longer available
Price
N/A
32
SPACER
Item is no longer available
Price
N/A
33
FLANGE
Price
$6.35
34
COVER
Item is no longer available
Price
N/A
35
GEAR
Item is no longer available
Price
N/A
36
FLAT WASHER 12MM
Price
N/A
37
MOTOR FIXED TRAY
Price
$16.95
38
CONTROL BOX
Price
$2.60
39
SPACER
Price
$3.15
40
GEAR
Price
$9.00
41
SPACER
Price
$3.75
42
SPRING COVER
Price
$6.50
43
TORSION SPRING
Price
N/A
44
BUSHING
Price
$1.90
45
SUPPORT FLANGE LEFT
Price
$11.90
46
PINION
Price
$17.95
47
SUPPORT FLANGE RIGHT
Item is no longer available
Price
N/A
48
COLLAR
Item is no longer available
Price
N/A
49
HANDLE HUB
Price
$11.90
50
CAP
Price
$1.49
51
DIAL FORK SHAFT
Price
$9.40
52
QUILL HANDLE
Price
$5.45
53
SHAFT
Price
$5.20
54
BUSHING
Item is no longer available
Price
N/A
55
SUPPORT FLANGE RIGHT
Item is no longer available
Price
N/A
56
BUSHING
Item is no longer available
Price
N/A
57
HIGH/LOW KNOB
Item is no longer available
Price
N/A
58
SPINDLE LOCK SLEEVE II
Price
$3.45
59
SPINDLE LOCK HANDLE
Price
$14.95
60
SPINDLE LOCK SLEEVE I
Price
$3.45
61
SPACER
Price
$1.49
62
HANDLE SMALL
Price
$4.35
63
GIB ADJUSTING SCR
Price
$1.90
64
GIB
Price
$9.00
65
COLUMN PLATE
Price
$51.45
66
END CAP
Item is no longer available
Price
N/A
67
CAP
Item is no longer available
Price
N/A
68
DRILL CHUCK ARBOR R8 X JT6
Price
$5.75
68-1
CHUCK 1-16MM JT6
Price
$20.50
68-2
DRL CHK KEY 7.92MM TH 11T SD-16.2MM
Price
N/A
69
HANDLE SMALL
Price
$4.70
70
COMPRESSION SPRING
Price
$1.90
71
FLAT SPRING
Price
$1.90
72
BEARING 8106
Price
$7.60
73
BALL BEARING 6007ZZ
Price
N/A
74
BALL BEARING 6001ZZ
Price
N/A
75
TIMING BELT
Price
$6.70
76
OIL FITTING
Price
$1.90
77
OIL FITTING
Price
$1.90
78
STEEL BALL 5MM
Price
N/A
79
BEARING Z007106
Price
$43.90
80
BALL BEARING 6006ZZ
Price
N/A
81
CAP SCREW M5-.8 X 20
Price
N/A
82
CAP SCREW M5-.8 X 40
Price
N/A
83
SOLID PIN 6 X 25
Item is no longer available
Price
N/A
84
KEY 4 X 4 X 40
Price
N/A
85
PHLP HD SCR M4-.7 X 16
Price
N/A
86
ROLL PIN 4 X 16
Price
N/A
87
SET SCREW M6-1 X 16
Price
N/A
88
HEX NUT M6-1
Price
N/A
89
CAP SCREW M5-.8 X 12
Price
N/A
90
ROLL PIN 4 X 8
Price
N/A
91
SET SCREW M5-.8 X 12
Price
N/A
92
SET SCREW M6-1 X 12
Price
N/A
93
LOCK RING M27 -1.5
Price
$2.20
94
INT RETAINING RING 62MM
Price
N/A
95
EXT RETAINING RING 35MM
Price
N/A
96
FLAT WASHER 12MM
Price
N/A
97
HEX NUT M12-1.75
Price
N/A
98
KEY 8 X 8 X 20
Price
N/A
99
KEY 4 X 4 X 25
Price
N/A
100
KEY 5 X 5 X 20
Price
N/A

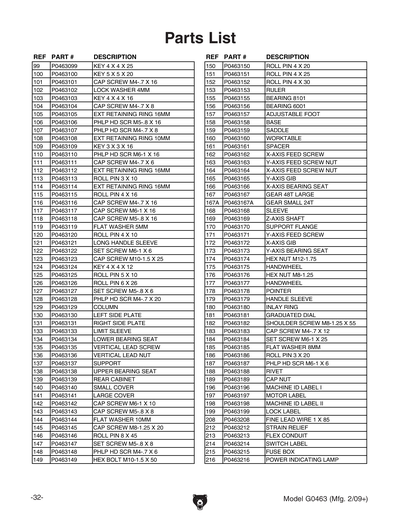

101
CAP SCREW M4-.7 X 16
Price
N/A
102
LOCK WASHER 4MM
Price
N/A
103
KEY 4 X 4 X 16
Price
N/A
104
CAP SCREW M4-.7 X 8
Price
N/A
105
EXT RETAINING RING 16MM
Price
N/A
106
PHLP HD SCR M5-.8 X 16
Price
N/A
107
PHLP HD SCR M4-.7 X 8
Price
N/A
108
EXT RETAINING RING 10MM
Price
N/A
109
KEY 3 X 3 X 16
Price
N/A
110
PHLP HD SCR M6-1 X 16
Price
N/A
111
CAP SCREW M4-.7 X 6
Price
N/A
112
EXT RETAINING RING 16MM
Price
N/A
113
ROLL PIN 3 X 10
Price
N/A
114
EXT RETAINING RING 16MM
Price
N/A
115
ROLL PIN 4 X 16
Price
N/A
116
CAP SCREW M4-.7 X 16
Price
N/A
117
CAP SCREW M6-1 X 16
Price
N/A
118
CAP SCREW M5-.8 X 16
Price
N/A
119
FLAT WASHER 5MM
Price
N/A
120
ROLL PIN 4 X 10
Price
N/A
121
HANDLE LONG SLEEVE
Price
$1.90
122
SET SCREW M6-1 X 6
Price
N/A
123
CAP SCREW M10-1.5 X 25
Price
N/A
124
KEY 4 X 4 X 12
Price
N/A
125
ROLL PIN 5 X 10
Price
N/A
126
ROLL PIN 6 X 25
Price
N/A
127
SET SCREW M5-.8 X 6
Price
N/A
128
PHLP HD SCR M4-.7 X 20
Price
N/A
129
COLUMN
Price
$207.75
130
PLATE LEFT
Price
$47.75
131
PLATE RIGHT
Price
$47.75
133
LIMIT SLEEVE
Item is no longer available
Price
N/A
134
BEARING SEAT LOWER
Price
$16.95
135
VERTICAL LEADSCREW
Price
$16.60
136
VERTICAL LEAD NUT
Price
$58.65
137
SUPPORT
Price
$34.90
138
UPPER BEARING SEAT
Item is no longer available
Price
N/A
139
CABINET REAR
Item is no longer available
Price
N/A
140
COVER SMALL
Price
$9.50
141
COVER LARGE
Price
$18.40
142
CAP SCREW M6-1 X 10
Price
N/A
143
CAP SCREW M5-.8 X 8
Price
N/A
144
FLAT WASHER 10MM
Price
N/A
145
CAP SCREW M8-1.25 X 20
Price
N/A
146
ROLL PIN 8 X 50
Price
N/A
147
SET SCREW M5-.8 X 8
Price
N/A
148
PHLP HD SCR M4-.7 X 6
Price
N/A
149
HEX BOLT M10-1.5 X 50
Price
N/A
150
ROLL PIN 4 X 20
Price
N/A
151
ROLL PIN 4 X 25
Price
N/A
152
ROLL PIN 4 X 30
Price
N/A
153
RULER
Item is no longer available
Price
N/A
155
THRUST BEARING 8101
Price
N/A
156
BALL BEARING 6001ZZ
Price
N/A
157
ADJUSTABLE FOOT
Price
$4.70
158
*DISCD*BASE
Item is no longer available
Price
N/A
159
SADDLE
Item is no longer available
Price
N/A
160
WORKTABLE
Price
$224.65
161
SPACER
Price
$1.90
162
X-AXIS FEED SCREW
Price
$27.70
163
Y-AXIS FEED SCREW NUT
Price
$25.00
164
X-AXIS FEED SCREW NUT
Price
$35.95
165
Y-AXIS GIB
Price
$10.25
166
X-AXIS BEARING SEAT
Price
$32.40
167
GEAR 48T LARGE
Price
$20.15
167A
GEAR SMALL 24T
Item is no longer available
Price
N/A
168
SLEEVE
Item is no longer available
Price
N/A
169
Z-AXIS SHAFT
Price
$14.95
170
SUPPORT FLANGE
Price
$20.15
171
Y-AXIS FEED SCREW
Price
$11.50
172
X-AXIS GIB
Price
$8.95
173
Y-AXIS BEARING SEAT
Item is no longer available
Price
N/A
174
HEX NUT M12-1.75
Price
N/A
175
HANDWHEEL
Price
N/A
176
HEX NUT M8-1.25
Price
N/A
177
HANDWHEEL
Price
$8.65
178
POINTER
Price
$1.90
179
HANDLE SLEEVE
Price
$1.90
180
INLAY RING
Price
$9.40
181
GRADUATED DIAL
Price
$14.75
182
SHOULDER SCREW M8-1.25 X 55
Price
$1.90
183
CAP SCREW M4-.7 X 12
Price
N/A
184
SET SCREW M6-1 X 25
Price
N/A
185
FLAT WASHER 8MM
Price
N/A
186
ROLL PIN 3 X 20
Price
N/A
187
PHLP HD SCR M6-1 X 6
Price
N/A
188
RIVET 2 X 4MM NAMEPLATE, ALUMINUM
Price
N/A
189
CAP NUT
Price
$1.90
196
MACHINE ID LABEL I
Price
$16.40
197
MOTOR LABEL
Price
$1.00
198
MACHINE ID LABEL II
Item is no longer available
Price
N/A
199
LOCK LABEL
Item is no longer available
Price
N/A
208
FINE LEAD WIRE 1 X 85
Item is no longer available
Price
N/A
212
STRAIN RELIEF M16 TYPE-6 ST
Price
$1.90
213
FLEX CONDUIT
Price
$1.90
214
SWITCH LABEL
Price
$5.00
215
FUSE BOX
Price
$1.90
215-1
FUSE
Price
$1.90
216
POWER INDICATOR LIGHT ZD-10 GRN
Price
$1.90
217

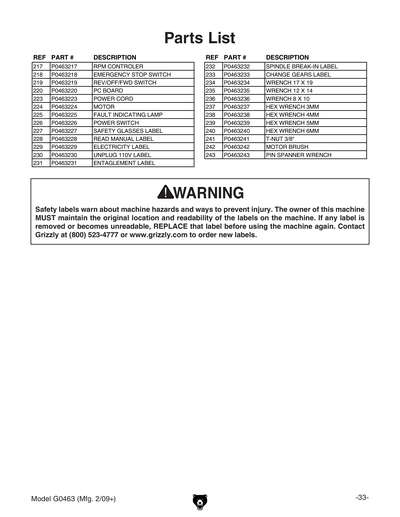

RPM CONTROLLER
Price
$1.90
218
E-STOP BUTTON ONPOW LAS1-A
Price
$26.90
219
REV/OFF/FWD SWITCH
Price
$16.95
220
PC BOARD
Price
$225.00
223
POWER CORD
Item is no longer available
Price
N/A
224
MOTOR 3/4HP 110V 1-PH
Price
$275.70
225
FAULT INDICATING LAMP
Price
$1.90
226
POWER SWITCH
Price
$15.15
227
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
228
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
229
ELECTRICITY 1.4W X 1.2H
Price
N/A
230
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
231
ENTANGLEMENT HAZARD 2W X 3.3H
Price
N/A
232
SPINDLE BREAK IN LABEL
Price
$1.00
233
CHANGE GEARS LABEL
Price
$1.00
234
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
235
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
236
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
237
HEX WRENCH 3MM
Price
N/A
238
HEX WRENCH 4MM
Price
N/A
239
HEX WRENCH 5MM
Price
N/A
240
HEX WRENCH 6MM
Price
N/A
241
T-NUT 3/8"
Price
N/A
242
MOTOR BRUSH 2PC
Price
$7.95
242-1
MOTOR BRUSH CAP
Price
$1.90
243
DRIFT KEY
Price
$3.20
244
WRENCH PIN SPANNER
Price
$18.70
MANUAL
MANUAL FOR G0463 11/05
Price
$14.65
