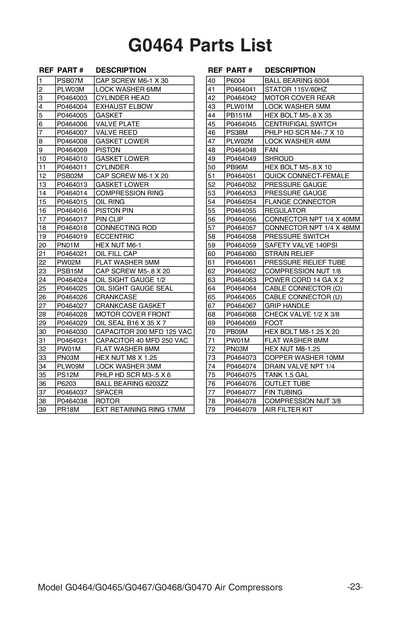

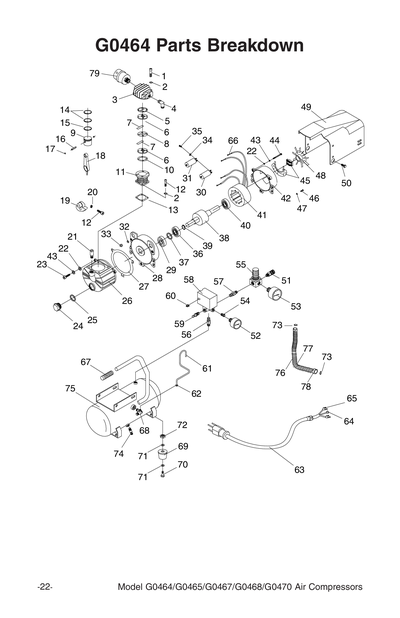

Parts for G0464 1.5-Gallon 1.5 HP Air Compressor

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
CAP SCREW M6-1 X 30
Price
N/A
2
LOCK WASHER 6MM
Price
N/A
3
*DISCD*CYLINDER HEAD
Item is no longer available
Price
N/A
4
*DISCD*EXHAUST ELBOW
Item is no longer available
Price
N/A
5
*DISCD*GASKET
Item is no longer available
Price
N/A
6
*DISCD*VALVE PLATE
Item is no longer available
Price
N/A
7
*DISCD*VALVE REED
Item is no longer available
Price
N/A
8
*DISCD*GASKET LOWER
Item is no longer available
Price
N/A
9
*DISCD*PISTON
Item is no longer available
Price
N/A
10
*DISCD*GASKET LOWER
Item is no longer available
Price
N/A
11
*DISCD*CYLINDER
Item is no longer available
Price
N/A
12
CAP SCREW M6-1 X 20
Price
N/A
13
*DISCD*GASKET LOWER
Item is no longer available
Price
N/A
14
*DISCD*COMPRESSION RING
Item is no longer available
Price
N/A
15
*DISCD*PISTON OIL RING
Item is no longer available
Price
N/A
16
*DISCD*PISTON PIN
Item is no longer available
Price
N/A
17
*DISCD*PIN CLIP
Item is no longer available
Price
N/A
18
*DISCD*CONNECTING ROD
19
*DISCD*ECCENTRIC
20
Now: PN01M
HEX NUT M6-1
Price
N/A
21
*DISCD*OIL FILL CAP
Item is no longer available
Price
N/A
22
Now: PW02M
FLAT WASHER 5MM
Price
N/A
23
CAP SCREW M5-.8 X 20
Price
N/A
24
*DISCD*OIL SIGHT GAUGE 1/2
Item is no longer available
Price
N/A
25
*DISCD*OIL SIGHT GAUGE SEAL
Item is no longer available
Price
N/A
26
*DISCD*CRANKCASE
Item is no longer available
Price
N/A
27
*DISCD*CRANKCASE GASKET
28
*DISCD*MOTOR COVER FRONT
Item is no longer available
Price
N/A
29
*DISCD*OIL SEAL B16 X 35 X 7
Item is no longer available
Price
N/A
30
*DISCD*START CAPACITOR 200M 125V
31
*DISCD*R CAP 40M 250V 1-5/8 X 4-1/4"
Price
N/A
32
Now: PW01M
FLAT WASHER 8MM
Price
N/A
33
Now: PN03M
HEX NUT M8-1.25
Price
N/A
34
LOCK WASHER 3MM
Price
N/A
35
Now: PS12M
PHLP HD SCR M3-.5 X 6
Price
N/A
36
BALL BEARING 6203ZZ
Price
N/A
37
*DISCD*SPACER
Item is no longer available
Price
N/A
38
*DISCD*ROTOR
Item is no longer available
Price
N/A
39
Now: PR18M
EXT RETAINING RING 17MM
Price
N/A
40
BALL BEARING 6004ZZ
Price
N/A
41
*DISCD*STATOR 115V/60HZ
42
*DISCD*MOTOR COVER REAR
Item is no longer available
Price
N/A
43
LOCK WASHER 5MM
Price
N/A
44
HEX BOLT M5-.8 X 35
Price
N/A
45
*DISCD*CENTRIFIGAL SWITCH
Item is no longer available
Price
N/A
46
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
47
LOCK WASHER 4MM
Price
N/A
48
*DISCD*FAN
49
*DISCD*SHROUD
Item is no longer available
Price
N/A
50
Now: PB96M
HEX BOLT M5-.8 X 10
Price
N/A
51
*DISCD*QUICK CONNECT FEMALE
Item is no longer available
Price
N/A
52
*DISCD*PRESSURE GAUGE
53
*DISCD*PRESSURE GAUGE
Price
N/A
54
*DISCD*FLANGE CONNECT 1/4 NPT 1/8
Item is no longer available
Price
N/A
55
Now: H7274
Compact Pressure Regulator
Price
N/A
56
*DISCD*CONNECTOR NPT 1/4 X 40MM
Item is no longer available
Price
N/A
57
*DISCD*CONNECTOR NPT 1/4 X 48MM
58
*DISCD*PRESSURE SWITCH
Item is no longer available
Price
N/A
59
*DISCD*SAFETY VALVE 140PSI
60
*DISCD*STRAIN RELIEF
Item is no longer available
Price
N/A
61
*DISCD*PRESSURE RELIEF TUBE 6 X 470
Item is no longer available
Price
N/A
62
*DISCD*COMPRESSION NUT 1/8
Item is no longer available
Price
N/A
63
*DISCD*POWER CORD 14AWG 2C
Item is no longer available
Price
N/A
64
*DISCD*CABLE CONNECTOR O
Item is no longer available
Price
N/A
65
*DISCD*CABLE CONNECTOR U
Item is no longer available
Price
N/A
67
*DISCD*GRIP HANDLE
Item is no longer available
Price
N/A
68
*DISCD*CHECK VALVE 1/2 X 3/8
Item is no longer available
Price
N/A
69
*DISCD*FOOT
70
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
71
Now: PW01M
FLAT WASHER 8MM
Price
N/A
72
Now: PN03M
HEX NUT M8-1.25
Price
N/A
73
*DISCD*WASHER 10MM COPPER
Item is no longer available
Price
N/A
74
*DISCD*DRAIN VALVE NPT 1/4
75
*DISCD*TANK 1.5 GAL
Item is no longer available
Price
N/A
76
*DISCD*OUTLET TUBE
Item is no longer available
Price
N/A
77
*DISCD*FIN TUBING
Item is no longer available
Price
N/A
78
*DISCD*COMPRESSION NUT 3/8
Price
N/A
79
*DISCD*AIR FILTER KIT
Item is no longer available
Price
N/A
MAN
MANUAL FOR G0464 07/05
Item is no longer available
Price
N/A
