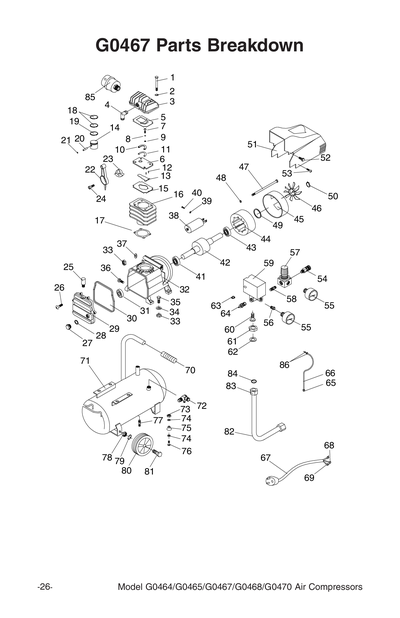

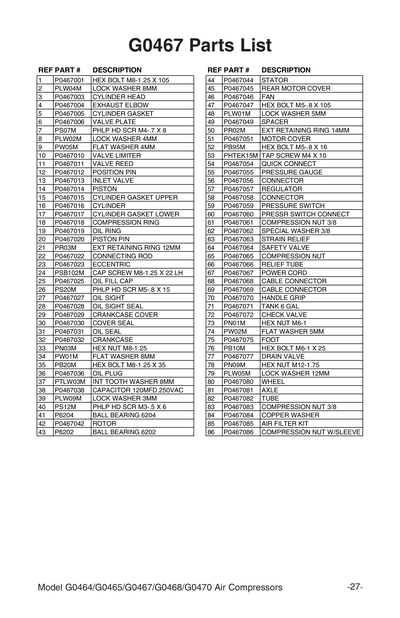

Parts for G0467 6.3 Gallon 2.5 HP Air Compressor

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*HEX BOLT M8-1.25 X 105
2
LOCK WASHER 8MM
Price
N/A
3
*DISCD*CYLINDER HEAD
4
*DISCD*EXHAUST ELBOW
Item is no longer available
Price
N/A
5
*DISCD*CYLINDER GASKET
Item is no longer available
Price
N/A
6
*DISCD*VALVE PLATE W/REED
7
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
8
LOCK WASHER 4MM
Price
N/A
9
Now: PW05M
FLAT WASHER 4MM
Price
N/A
10
*DISCD*VALVE LIMITER
Item is no longer available
Price
N/A
11
*DISCD*VALVE REED
Item is no longer available
Price
N/A
12
*DISCD*POSITION PIN
Item is no longer available
Price
N/A
13
*DISCD*INLET VALVE
14
*DISCD*PISTON
15
*DISCD*CYLINDER GASKET UPPER
16
*DISCD*CYLINDER
Item is no longer available
Price
N/A
17
*DISCD*CYLINDER GASKET LOWER
Item is no longer available
Price
N/A
18
*DISCD*COMPRESSION RING
Item is no longer available
Price
N/A
19
*DISCD*O-RING
Item is no longer available
Price
N/A
20
*DISCD*PISTON PIN
Item is no longer available
Price
N/A
21
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
22
*DISCD*CONNECTING ROD
Item is no longer available
Price
N/A
23
*DISCD*ECCENTRIC
Item is no longer available
Price
N/A
24
CAP SCREW M8-1.25 X 22 LH
Price
N/A
25
*DISCD*OIL FILL CAP
Item is no longer available
Price
N/A
26
Now: PS20M
PHLP HD SCR M5-.8 X 15
Price
N/A
27
*DISCD*OIL SIGHT GLASS & SEAL
28
*DISCD*OIL SIGHT GLASS & SEAL
Price
N/A
29
*DISCD*CRANKCASE COVER
Item is no longer available
Price
N/A
30
*DISCD*COVER SEAL
31
*DISCD*OIL SEAL
Item is no longer available
Price
N/A
32
*DISCD*CRANKCASE
Item is no longer available
Price
N/A
33
Now: PN03M
HEX NUT M8-1.25
Price
N/A
34
Now: PW01M
FLAT WASHER 8MM
Price
N/A
35
Now: PB20M
HEX BOLT M8-1.25 X 35
Price
N/A
36
*DISCD*OIL PLUG
Item is no longer available
Price
N/A
37
INT TOOTH WASHER 8MM
Price
N/A
38
*DISCD*S CAPACITOR 120M 250V
Item is no longer available
Price
N/A
39
LOCK WASHER 3MM
Price
N/A
40
Now: PS12M
PHLP HD SCR M3-.5 X 6
Price
N/A
41
BALL BEARING 6204ZZ
Price
N/A
42
*DISCD*ROTOR
Item is no longer available
Price
N/A
43
BALL BEARING 6202ZZ
Price
N/A
44
*DISCD*STATOR
45
*DISCD*MOTOR COVER REAR
46
*DISCD*FAN
Item is no longer available
Price
N/A
47
*DISCD*HEX BOLT M5-.8 X 105
Item is no longer available
Price
N/A
48
LOCK WASHER 5MM
Price
N/A
49
*DISCD*SPACER
Item is no longer available
Price
N/A
50
Now: PR02M
EXT RETAINING RING 14MM
Price
N/A
51
*DISCD*SHROUD
Item is no longer available
Price
N/A
52
Now: PB95M
HEX BOLT M5-.8 X 16
Price
N/A
53
TAP SCREW M4 X 10
Price
N/A
54
*DISCD*QUICK CONNECT
55
*DISCD*PRESSURE GAUGE
Price
N/A
56
*DISCD*CONNECTOR
57
*DISCD*PRESSURE REGULATOR
Item is no longer available
Price
N/A
58
*DISCD*CONNECTOR
59
*DISCD*COMPLETE SWITCH ASSY
Price
N/A
59A
*DISCD*COMPLETE SWITCH ASSY
Item is no longer available
Price
N/A
60
*DISCD*PRESSURE SWITCH CONNECTOR
61
*DISCD*COMPRESSION NUT 3/8
Item is no longer available
Price
N/A
62
*DISCD*SPECIAL WASHER 3/8
Item is no longer available
Price
N/A
63
*DISCD*SPECIAL WASHER 3/8
Price
N/A
64
*DISCD*SAFETY VALVE 140PSI
Price
N/A
65
*DISCD*COMPRESSION NUT
66
*DISCD*RELIEF TUBE
67
*DISCD*POWER CORD
Item is no longer available
Price
N/A
68
*DISCD*CABLE CONNECTOR
Item is no longer available
Price
N/A
69
*DISCD*CABLE CONNECTOR
Item is no longer available
Price
N/A
70
*DISCD*HANDLE GRIP
Item is no longer available
Price
N/A
71
*DISCD*TANK 6 GAL
Item is no longer available
Price
N/A
72
*DISCD*CHECK VALVE
Item is no longer available
Price
N/A
73
Now: PN01M
HEX NUT M6-1
Price
N/A
74
Now: PW02M
FLAT WASHER 5MM
Price
N/A
75
*DISCD*FOOT
76
Now: PB10M
HEX BOLT M6-1 X 25
Price
N/A
77
*DISCD*DRAIN VALVE NPT 1/4
Price
N/A
78
Now: PN09M
HEX NUT M12-1.75
Price
N/A
79
LOCK WASHER 12MM
Price
N/A
80
*DISCD*WHEEL
Item is no longer available
Price
N/A
81
*DISCD*AXLE
82
*DISCD*TUBE
Item is no longer available
Price
N/A
83
*DISCD*COMPRESSION NUT 3/8
Price
N/A
84
*DISCD*WASHER COPPER
Item is no longer available
Price
N/A
85
*DISCD*AIR FILTER KIT
Item is no longer available
Price
N/A
86
*DISCD*PRESSURE SWITCH
Price
N/A
MAN
*DISCD*MANUAL FOR G0467 07/05
Item is no longer available
Price
N/A
