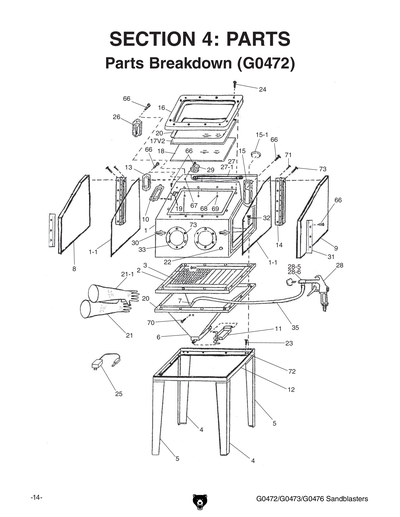

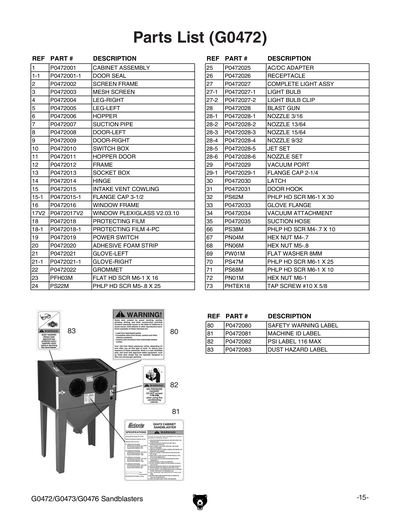

Parts for G0472 Cabinet Sandblaster, Double Door

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
CABINET ASSY
Item is no longer available
Price
N/A
1-1
*DISCD*DOOR SEAL
2
*DISCD*SCREEN FRAME
Item is no longer available
Price
N/A
3
*DISCD*MESH SCREEN
4
LEG RIGHT
Item is no longer available
Price
N/A
5
LEG LEFT
Item is no longer available
Price
N/A
6
*DISCD*HOPPER
Item is no longer available
Price
N/A
7
*DISCD*SUCTION PIPE
Item is no longer available
Price
N/A
8
*DISCD*DOOR LEFT
Item is no longer available
Price
N/A
9
*DISCD*DOOR RIGHT
10
SWITCH BOX
Item is no longer available
Price
N/A
11
*DISCD*HOPPER DOOR
Item is no longer available
Price
N/A
12
*DISCD*FRAME
Item is no longer available
Price
N/A
13
SOCKET BOX
Item is no longer available
Price
N/A
14
*DISCD*HINGE
15
INTAKE VENT COWLING
Item is no longer available
Price
N/A
15-1
*DISCD*FLANGE CAP 3-1/2
16
*DISCD*WINDOW FRAME
17
*DISCD*WINDOW PLEXIGLASS V1.12.05
Item is no longer available
Price
N/A
17V2
*DISCD*WINDOW GLASS V2.03.10
Item is no longer available
Price
N/A
18
*DISCD*PROTECTING FILM
Item is no longer available
Price
N/A
18-1
Replacement Films for G0472, 4 pk.
Price
N/A
19
*DISCD*POWER SWITCH
20
*DISCD*ADHESIVE FOAM STRIP
Item is no longer available
Price
N/A
21
*DISCD*GLOVE SET LEFT AND RIGHT
Price
N/A
21-1
*DISCD*GLOVE SET LEFT AND RIGHT
Price
N/A
21A
*DISCD*GLOVE SET LEFT AND RIGHT
Item is no longer available
Price
N/A
22
*DISCD*GROMMET
Item is no longer available
Price
N/A
23
FLAT HD SCR M6-1 X 40
Price
N/A
24
Now: PS22M
PHLP HD SCR M5-.8 X 25
Price
N/A
25
*DISCD*AC/DC ADAPTER
Item is no longer available
Price
N/A
26
*DISCD*RECEPTACLE
27
*DISCD*COMPLETE LIGHT ASSY
Item is no longer available
Price
N/A
27-1
*DISCD*LIGHT BULB
Item is no longer available
Price
N/A
27-2
*DISCD*LIGHT BULB CLIP
28
*DISCD*BLAST GUN
Item is no longer available
Price
N/A
28-1
*DISCD*NOZZLE 3/16"
Item is no longer available
Price
N/A
28-2
*DISCD*NOZZLE 13/64"
Item is no longer available
Price
N/A
28-3
*DISCD*NOZZLE 15/64"
Item is no longer available
Price
N/A
28-4
*DISCD*NOZZLE 9/32"
Item is no longer available
Price
N/A
28-5
*DISCD*JET SET OF 4
Price
N/A
28-6
***USE T23067***
Item is no longer available
Price
N/A
29
*DISCD*VACUUM PORT
Item is no longer available
Price
N/A
29-1
FLANGE CAP 2-1/4
Item is no longer available
Price
N/A
30
*DISCD*LATCH
Item is no longer available
Price
N/A
31
*DISCD*DOOR HOOK
32
Now: PS62M
PHLP HD SCR M6-1 X 30
Price
N/A
33
*DISCD*GLOVE FLANGE
Item is no longer available
Price
N/A
35
*DISCD*SUCTION HOSE
Item is no longer available
Price
N/A
66
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
67
Now: PN04M
HEX NUT M4-.7
Price
N/A
68
Now: PN06M
HEX NUT M5-.8
Price
N/A
69
Now: PW01M
FLAT WASHER 8MM
Price
N/A
70
Now: PS47M
PHLP HD SCR M6-1 X 25
Price
N/A
71
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
72
Now: PN01M
HEX NUT M6-1
Price
N/A
73
TAP SCREW #10 X 5/8
Price
N/A
80
*DISCD*SAFETY WARNING LABEL
81
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
82
*DISCD*PSI LABEL 116 MAX
Item is no longer available
Price
N/A
83
*DISCD*DUST HAZARD LABEL
MAN
MANUAL FOR G0472 10/05
