Parts for G0481 - 42" 16-Gauge Pan and Box Brake

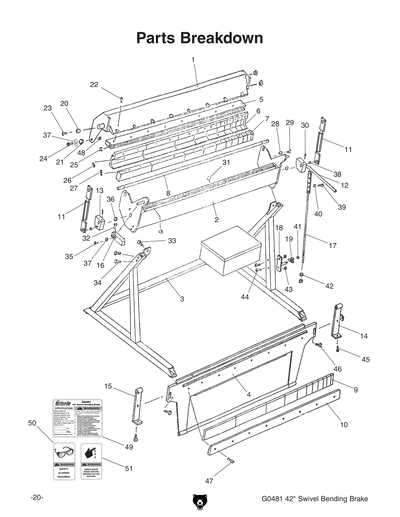

Part Diagram for G0481

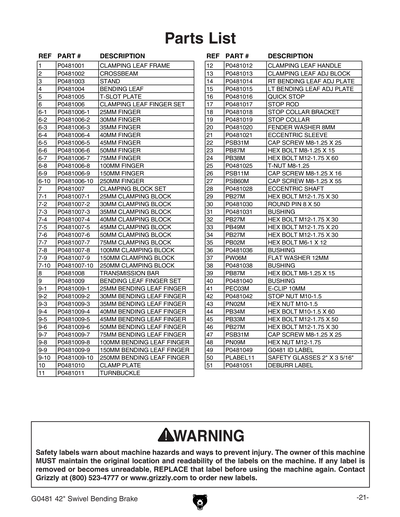

Part Diagram for G0481
Part Diagram for G0481
Part Diagram for G0481

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
CLAMPING LEAF FRAME
Price
$174.35
2
CROSSBEAM
Price
$233.25
3
STAND
Price
$35.25
4
BENDING LEAF
Price
$87.40
5
T-SLOT PLATE
Price
$227.50
6
CLAMPING LEAF FINGER SET
Price
$934.40
6-1
FINGER 1-1/2" 25MM
Price
$27.90
6-10
FINGER 2" 250MM
Price
$222.85
6-2
FINGER 3" 30MM
Price
$27.00
6-3
FINGER 4" 35MM
Price
$31.35
6-4
FINGER 40MM
Price
$35.65
6-5
FINGER 45MM
Price
$40.65
6-6
FINGER 50MM
Price
$44.60
6-7
FINGER 75MM
Price
$66.90
6-8
FINGER 100MM
Price
$89.15
6-9
FINGER 150MM
Price
$134.10
7
CLAMPING BLOCK SET
Price
$577.90
7-1
CLAMPING BLOCK 1-1/2" 25MM
Price
$14.10
7-10
CLAMPING BLOCK 250MM
Price
$138.00
7-2
CLAMPING BLOCK 2" 30MM
Price
$16.20
7-3
CLAMPING BLOCK 35MM
Price
$19.45
7-4
CLAMPING BLOCK 3" 40MM
Price
$22.35
7-5
CLAMPING BLOCK 45MM
Price
$24.85
7-6
CLAMPING BLOCK 50MM
Price
$27.70
7-7
CLAMPING BLOCK 75MM
Price
$41.40
7-8
CLAMPING BLOCK 100MM
Price
$55.40
7-9
CLAMPING BLOCK 4" 150MM
Price
$82.70
8
TRANSMISSION BAR
Price
$17.65
9
BENDING LEAF FINGER SET
Price
$393.60
9-1
BENDING LEAF FINGER SET
Price
N/A
9-10
BENDING LEAF FINGER SET
Price
N/A
9-2
BENDING LEAF FINGER SET
Price
N/A
9-3
BENDING LEAF FINGER SET
Price
N/A
9-4
BENDING LEAF FINGER SET
Price
N/A
9-5
BENDING LEAF FINGER SET
Price
N/A
9-6
BENDING LEAF FINGER SET
Price
N/A
9-7
BENDING LEAF FINGER SET
Price
N/A
9-8
BENDING LEAF FINGER SET
Price
N/A
9-9
BENDING LEAF FINGER SET
Price
N/A
10
CLAMP PLATE
Price
$38.85
11
TURNBUCKLE
Price
$13.70
12
CLAMPING LEAF HANDLE
Price
$35.25
13
CLAMPING LEAF ADJUSTABLE BLOCK
Price
$29.50
14
BEADING LEAF ADJ PLATE RT
Price
$101.40
15
BENDING LEAD ADJUSTMENT PLATE LT
Price
$101.40
16
QUICK STOP
Price
$13.70
17
STOP ROD
Price
$21.95
18
STOP COLLAR BRACKET
Price
$23.75
19
STOP COLLAR
Price
$6.15
20
FENDER WASHER 8MM
Price
N/A
21
ECCENTRIC SLEEVE
Price
$17.65
22
CAP SCREW M8-1.25 X 25
Price
N/A
23
HEX BOLT M8-1.25 X 15
Price
N/A
24
HEX BOLT M12-1.75 X 60
Price
N/A
25
T-NUT M8-1.25
Price
$6.15
26
CAP SCREW M8-1.25 X 16
Price
N/A
27
CAP SCREW M8-1.25 X 55
Price
N/A
28
ECCENTRIC SHAFT
Price
$6.15
29
HEX BOLT M12-1.75 X 30
Price
N/A
30
ROUND PIN 8 X 50
Price
$7.20
31
BUSHING
Price
$9.40
32
HEX BOLT M12-1.75 X 30
Price
N/A
33
HEX BOLT M12-1.75 X 20
Price
N/A
34
HEX BOLT M12-1.75 X 30
Price
N/A
35
HEX BOLT M6-1 X 12
Price
N/A
36
BUSHING
Price
$10.85
37
FLAT WASHER 12MM
Price
N/A
38
BUSHING
Price
$10.85
39
HEX BOLT M8-1.25 X 15
Price
N/A
40
BUSHING
Price
$1.90
41
E-CLIP 10MM
Price
N/A
42
STOP NUT M10-1.5
Price
$1.90
43
HEX NUT M10-1.5
Price
N/A
44
HEX BOLT M10-1.5 X 60
Price
N/A
45
HEX BOLT M12-1.75 X 50
Price
N/A
46
HEX BOLT M12-1.75 X 30
Price
N/A
47
CAP SCREW M8-1.25 X 25
Price
N/A
48
HEX NUT M12-1.75
Price
N/A
49
MACHINE ID LABEL
Price
$16.40
50
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
51
DEBURR LABEL
Price
$1.25
MAN
MANUAL FOR G0481 09/05
Price
$21.95
P
HEX BOLT M8-1.25 X 15
Price
$1.90
