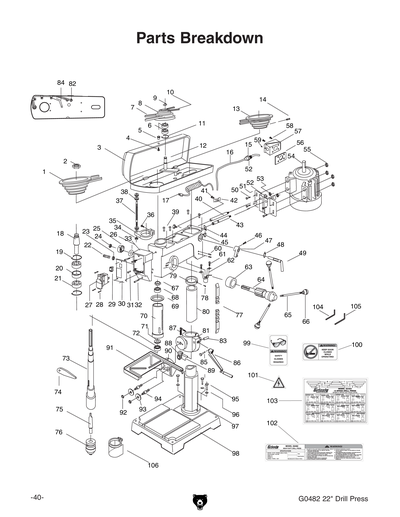

Parts for G0482 22" Floor Model Heavy-Duty Drill Press

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*SPINDLE PULLEY
Item is no longer available
Price
N/A
2
*DISCD*HEX NUT M33-1.5 LH
3
*DISCD*PULLEY COVER
4
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
5
*DISCD*COVER KNOB M6-1
Item is no longer available
Price
N/A
6
BALL BEARING 6203ZZ
Price
N/A
7
Now: PVA25
V-BELT A25
Price
N/A
8
*DISCD*PULLEY MIDDLE
9
Now: PR54M
INT RETAINING RING 15MM
Price
N/A
10
Now: PVA40
V-BELT A40
Price
N/A
11
Now: PR74M
INT RETAINING RING 45MM
Price
N/A
12
*DISCD*SHAFT ASSEMBLY
Item is no longer available
Price
N/A
13
*DISCD*MOTOR PULLEY
Item is no longer available
Price
N/A
14
SET SCREW M6-1 X 10
Price
N/A
15
*DISCD*STRAIN RELIEF
Item is no longer available
Price
N/A
16
*DISCD*MOTOR CORD
Item is no longer available
Price
N/A
17
*DISCD*CORD W/PLUG
Item is no longer available
Price
N/A
18
*DISCD*PULLEY INSERT
19
Now: PR75M
INT RETAINING RING 66MM
Price
N/A
20
*DISCD*BEARING SPACER
Item is no longer available
Price
N/A
21
BALL BEARING 6007ZZ
Price
N/A
22
SET SCREW M8-1.25 X 28
Price
N/A
23
Now: PN03M
HEX NUT M8-1.25
Price
N/A
24
LOCK NUT M12-1.75
Price
N/A
25
*DISCD*COIL SPRING & CAP
Item is no longer available
Price
N/A
27
Now: G8988
Safety Paddle Switch
Price
N/A
28
Now: PS74M
PHLP HD SCR M4-.7 X 14
Price
N/A
29
*DISCD*LIGHT SWITCH
Item is no longer available
Price
N/A
30
*DISCD*SWITCH PLATE
Item is no longer available
Price
N/A
31
Now: PS74M
PHLP HD SCR M4-.7 X 14
Price
N/A
32
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
33
*DISCD*SWITCH BOX
34
Now: PN03M
HEX NUT M8-1.25
Price
N/A
35
*DISCD*DEPTH STOP BRACKET
Item is no longer available
Price
N/A
36
Now: PS04M
PHLP HD SCR M8-1.25 X 20
Price
N/A
37
*DISCD*POST DEPTH STOP
Item is no longer available
Price
N/A
38
*DISCD*DEPTH STOP NUT M12-1.75
Item is no longer available
Price
N/A
39
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
40
*DISCD*MOTOR BRACKET SUPPORT
Item is no longer available
Price
N/A
41
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
42
*DISCD*CORD CLAMP
Item is no longer available
Price
N/A
43
*DISCD*MOTOR BRACKET SUPPORT
Item is no longer available
Price
N/A
44
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
45
*DISCD*WING SCREW M10-1.5 X 32
Item is no longer available
Price
N/A
46
Now: PS39M
PHLP HD SCR M8-1.25 X 10
Price
N/A
47
*DISCD*ADJUSTING LEVER
Item is no longer available
Price
N/A
48
Now: PR02M
EXT RETAINING RING 14MM
Price
N/A
49
*DISCD*LEVER SHAFT
Item is no longer available
Price
N/A
50
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
51
*DISCD*MOTOR PLATE
Item is no longer available
Price
N/A
52
LOCK WASHER 12MM
Price
N/A
53
Now: PN09M
HEX NUT M12-1.75
Price
N/A
54
*DISCD*MOTOR 1-1/2HP 110/220V
55
Now: PN03M
HEX NUT M8-1.25
Price
N/A
56
*DISCD*RUBBER SEAL
Item is no longer available
Price
N/A
57
*DISCD*JUNCTION BOX
58
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
59
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
60
SET SCREW M10-1.5 X 12
Price
N/A
61
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
62
*DISCD*LAMP BRACKET
Item is no longer available
Price
N/A
63
*DISCD*SPACER
Item is no longer available
Price
N/A
64
*DISCD*PINION SHAFT
65
*DISCD*DOWNFEED HANDLE M10-1.75
Item is no longer available
Price
N/A
66
*DISCD*DOWNFEED KNOB M10-1.75
Item is no longer available
Price
N/A
67
Now: PN41M
HEX NUT M25-2 LH
Price
N/A
68
BALL BEARING 6005ZZ
Price
N/A
69
*DISCD*QUILL BASKET
Item is no longer available
Price
N/A
70
*DISCD*QUILL
Item is no longer available
Price
N/A
71
THRUST BEARING 51107
Price
N/A
72
BALL BEARING 6007ZZ
Price
N/A
73
*DISCD*SPINDLE
74
*DISCD*DRIFT KEY
Item is no longer available
Price
N/A
75
*DISCD*ARBOR MT4/JT3
Item is no longer available
Price
N/A
76
Now: G8583
1/32"-5/8" x JT3 Keyless Drill Chuck
Price
N/A
77
*DISCD*RACK
78
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
79
*DISCD*RACK COLLAR
80
*DISCD*COLUMN
Item is no longer available
Price
N/A
80-1
*DISCD*COLUMN AND FLANGE
Item is no longer available
Price
N/A
81
*DISCD*TABLE BRACKET
Item is no longer available
Price
N/A
82
*DISCD*CORD PROTECTOR
Item is no longer available
Price
N/A
83
*DISCD*GEAR SHAFT
84
*DISCD*CORD FOR LAMP
Item is no longer available
Price
N/A
85
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
86
*DISCD*ADJUSTMENT HANDLE
Item is no longer available
Price
N/A
87
*DISCD*COLUMN LOCK HANDLE
88
*DISCD*ELEVATING WORM
Item is no longer available
Price
N/A
89
*DISCD*HELICAL GEAR
Item is no longer available
Price
N/A
90
*DISCD*ZERO SCALE
Item is no longer available
Price
N/A
91
*DISCD*TABLE
Item is no longer available
Price
N/A
92
Now: PN32M
HEX NUT M14-2
Price
N/A
93
Now: PW10M
FLAT WASHER 14MM
Price
N/A
94
*DISCD*ARM STUD M14-2 X 63
Item is no longer available
Price
N/A
95
Now: PB33M
HEX BOLT M12-1.75 X 50
Price
N/A
96
LOCK WASHER 12MM
Price
N/A
97
*DISCD*BASE FLANGE
98
*DISCD*BASE
Item is no longer available
Price
N/A
99
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
100
*DISCD*DOOR CLOSED HORIZONTAL
101
ELECTRICITY 1.4W X 1.2H
Price
N/A
102
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
103
*DISCD*SPEED CHART
104
HEX WRENCH 3MM
Price
N/A
105
HEX WRENCH 5MM
Price
N/A
106
*DISCD*CHUCK GUARD ASSEMBLY
Item is no longer available
Price
N/A
MANUAL
*DISCD*MANUAL FOR G0482 01/06
Item is no longer available
Price
N/A
