Parts for G0484 - 9" x 32" Gear-Head Mill / Drill with Stand

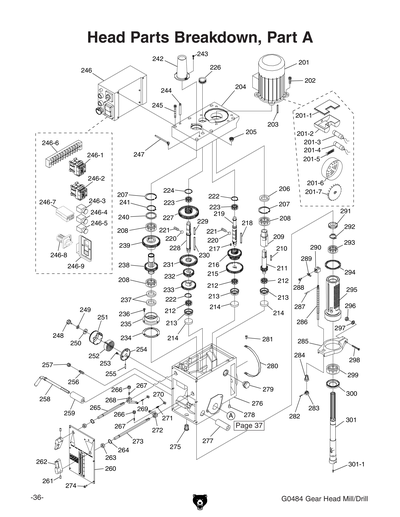

Part Diagram for G0484
Part Diagram for G0484
Part Diagram for G0484
Part Diagram for G0484
Part Diagram for G0484
Part Diagram for G0484
Part Diagram for G0484
Part Diagram for G0484
Part Diagram for G0484
Part Diagram for G0484
Part Diagram for G0484
Part Diagram for G0484
Part Diagram for G0484
Part Diagram for G0484
Part Diagram for G0484
Part Diagram for G0484
Part Diagram for G0484
Part Diagram for G0484

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

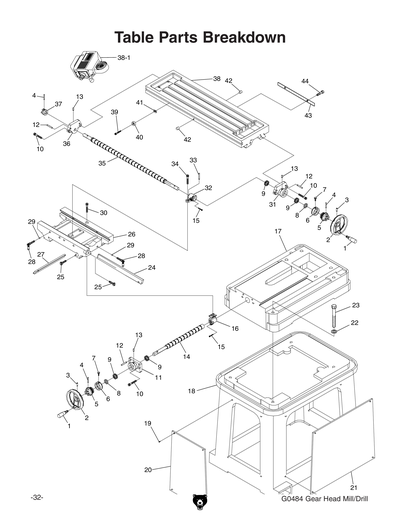

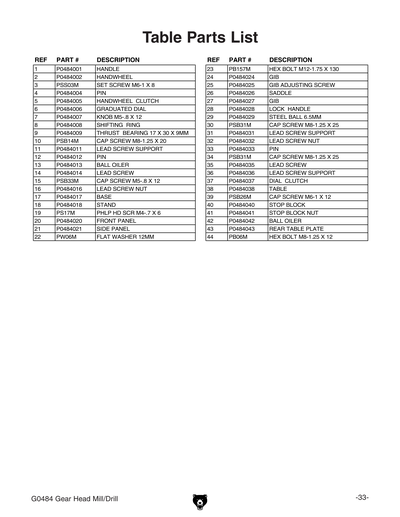

Ref #
Part #
Description
1
*DISCD*HANDLE
Item is no longer available
Price
N/A
2
*DISCD*HANDWHEEL
Item is no longer available
Price
N/A
3
SET SCREW M6-1 X 8
Price
N/A
4
*DISCD*PIN 5 X 50
Item is no longer available
Price
N/A
5
*DISCD*HANDWHEEL CLUTCH
Price
$57.50
6
*DISCD*GRADUATED DIAL
Price
$56.65
7
*DISCD*KNOB M5-.8 X 12
Price
$1.49
8
*DISCD*SHIFTING RING 17 X 28
Item is no longer available
Price
N/A
9
*DISCD*THRUST BEARING 17 X 30 X 9MM
Price
$16.10
10
CAP SCREW M8-1.25 X 20
Price
N/A
11
*DISCD*LEADSCREW SUPPORT
Item is no longer available
Price
N/A
12
*DISCD*PIN 8 X 25
Item is no longer available
Price
N/A
13
*DISCD*BALL OILER
Item is no longer available
Price
N/A
14
*DISCD*LEADSCREW
Price
$140.90
15
CAP SCREW M5-.8 X 12
Price
N/A
16
*DISCD*LEADSCREW NUT
Item is no longer available
Price
N/A
17
*DISCD*BASE
Item is no longer available
Price
N/A
18
*DISCD*STAND
Item is no longer available
Price
N/A
19
PHLP HD SCR M4-.7 X 6
Price
N/A
20
*DISCD*PANEL FRONT
Item is no longer available
Price
N/A
21
*DISCD*SIDE PANEL
Item is no longer available
Price
N/A
22
FLAT WASHER 12MM
Price
N/A
23
HEX BOLT M12-1.75 X 130
Price
N/A
24
*DISCD*GIB
Item is no longer available
Price
N/A
25
*DISCD*GIB ADJUSTING SCR M8 X 35
Item is no longer available
Price
N/A
26
*DISCD*SADDLE
Price
$311.40
27
*DISCD*GIB
Price
$23.90
28
*DISCD*LOCK HANDLE
Item is no longer available
Price
N/A
29
STEEL BALL 6MM
Price
N/A
30
CAP SCREW M8-1.25 X 25
Price
N/A
31
*DISCD*LEADSCREW SUPPORT
Price
$63.00
32
*DISCD*LEADSCREW NUT
Item is no longer available
Price
N/A
33
*DISCD*PIN
Item is no longer available
Price
N/A
34
CAP SCREW M8-1.25 X 25
Price
N/A
35
*DISCD*LEADSCREW
Price
$211.60
36
*DISCD*LEADSCREW SUPPORT
Price
$63.00
37
*DISCD*DIAL CLUTCH
Price
$57.50
38
*DISCD*TABLE
Item is no longer available
Price
N/A
38-1
*DISCD*POWERFEEDER AS-235 220V 60HZ 1PH
Item is no longer available
Price
N/A
38-1A
*DISCD*POWERFEEDER CASTING
Item is no longer available
Price
N/A
39
CAP SCREW M6-1 X 12
Price
N/A
40
*DISCD*STOP BLOCK
Item is no longer available
Price
N/A
41
*DISCD*STOP BLOCK NUT M6
Item is no longer available
Price
N/A
42
*DISCD*BALL OILER 6MM
Item is no longer available
Price
N/A
43
*DISCD*TABLE PLATE REAR
Item is no longer available
Price
N/A
44
HEX BOLT M8-1.25 X 12
Price
N/A

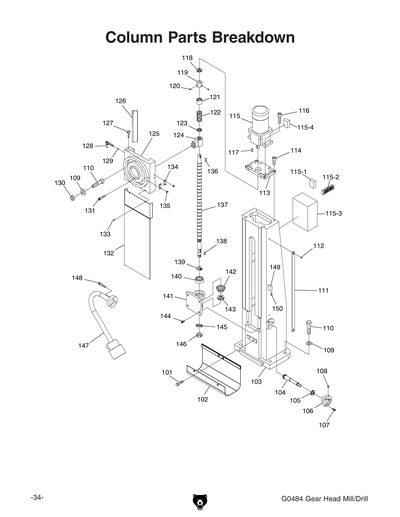

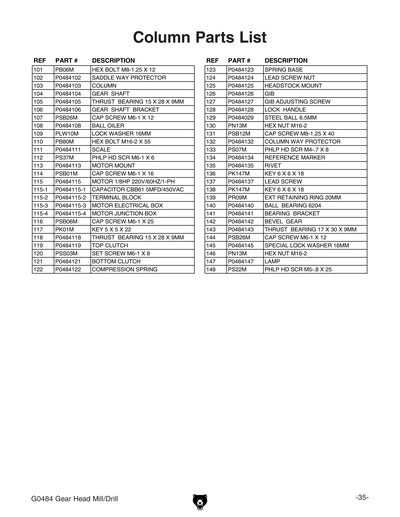

101
HEX BOLT M8-1.25 X 12
Price
N/A
102
*DISCD*SADDLE WAY PROTECTOR
Item is no longer available
Price
N/A
103
*DISCD*COLUMN
Item is no longer available
Price
N/A
104
*DISCD*GEAR SHAFT
Price
$23.90
105
*DISCD*THRUST BEARING 15 X 28 X 9MM
Item is no longer available
Price
N/A
106
*DISCD*GEAR SHAFT BRACKET
Item is no longer available
Price
N/A
107
CAP SCREW M6-1 X 12
Price
N/A
108
*DISCD*BALL OILER 6MM
Item is no longer available
Price
N/A
109
LOCK WASHER 16MM
Price
N/A
110
HEX BOLT M16-2 X 55
Price
N/A
111
*DISCD*SCALE
Item is no longer available
Price
N/A
112
PHLP HD SCR M6-1 X 6
Price
N/A
113
*DISCD*MOTOR MOUNT
Item is no longer available
Price
N/A
114
CAP SCREW M6-1 X 16
Price
N/A
115
*DISCD*MOTOR 1/8HP 1PH 220V 60HZ
Price
$485.90
115-1
*DISCD*R CAPACITOR 5M 450V CBB61
Item is no longer available
Price
N/A
115-2
*DISCD*TERMINAL BLOCK
Item is no longer available
Price
N/A
115-3
*DISCD*MOTOR ELECTRICAL BOX
Price
$31.95
115-4
*DISCD*MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
115-5
*DISCD*MOTOR BASE MOUNT
Item is no longer available
Price
N/A
115-6
PHLP HD SCR M6-1 X 30
Price
N/A
115-7
HEX NUT M6-1
Price
N/A
115-8
LOCK WASHER 6MM
Price
N/A
115-9
FLAT WASHER 6MM
Price
N/A
116
CAP SCREW M6-1 X 25
Price
N/A
117
KEY 5 X 5 X 22
Price
N/A
118
*DISCD*THRUST BEARING 15 X 28 X 9MM
Price
N/A
119
*DISCD*CLUTCH TOP
Item is no longer available
Price
N/A
120
SET SCREW M6-1 X 8
Price
N/A
121
*DISCD*BOTTOM CLUTCH
Item is no longer available
Price
N/A
122
*DISCD*COMPRESSION SPRING 3.5 X 24.5 X 3
Item is no longer available
Price
N/A
123
*DISCD*SPRING BASE
Item is no longer available
Price
N/A
124
*DISCD*LEADSCREW NUT
Item is no longer available
Price
N/A
125
*DISCD*HEADSTOCK MOUNT
Item is no longer available
Price
N/A
126
*DISCD*GIB
Item is no longer available
Price
N/A
127
*DISCD*GIB ADJUSTING SCR
Item is no longer available
Price
N/A
128
*DISCD*LOCK HANDLE
Price
$1.49
129
STEEL BALL 6MM
Price
N/A
130
HEX NUT M16-2
Price
N/A
131
CAP SCREW M8-1.25 X 40
Price
N/A
132
*DISCD*COLUMN WAY PROTECTOR
Price
$54.95
133
PHLP HD SCR M4-.7 X 8
Price
N/A
134
*DISCD*REFERENCE MARKER
Item is no longer available
Price
N/A
135
*DISCD*RIVET 2 X 5
Item is no longer available
Price
N/A
136
KEY 6 X 6 X 18
Price
N/A
137
*DISCD*LEADSCREW
Price
$188.05
138
KEY 6 X 6 X 18
Price
N/A
139
EXT RETAINING RING 20MM
Price
N/A
140
BALL BEARING 6204ZZ
Price
N/A
141
*DISCD*BEARING BRACKET
Price
$39.40
142
*DISCD*BEVEL GEAR
Item is no longer available
Price
N/A
143
*DISCD*THRUST BEARING 17 X 30 X 9MM
Price
N/A
144
CAP SCREW M6-1 X 12
Price
N/A
145
*DISCD*BEARING BRACKET WASHER 16MM
Price
$1.49
146
HEX NUT M16-2
Price
N/A
147
*DISCD*LAMP JC-35A 24V/35W
Item is no longer available
Price
N/A
148
PHLP HD SCR M5-.8 X 25
Price
N/A
149
*DISCD*LIMIT SWITCH D4MC-5020
Price
$70.75
150
*DISCD*LIMIT SWITCH STOP
Item is no longer available
Price
N/A
201
*DISCD*MOTOR 1-1/2HP 1PH 220V 60HZ
Price
$469.50
201-1
*DISCD*MOTOR JUNCTION BOX COVER
Price
$8.05
201-2
*DISCD*MOTOR JUNCTION BOX
Price
$23.90
201-3
*DISCD*S CAPACITOR 150M 250V CD60
Item is no longer available
Price
N/A
201-4
*DISCD*R CAPACITOR 20M 450V CBB60
Item is no longer available
Price
N/A
201-5
*DISCD*TERMINAL BLOCK
Item is no longer available
Price
N/A
201-6
*DISCD*MOTOR FAN COVER
Price
$23.90
201-7
*DISCD*MOTOR FAN
Price
$8.05
202
CAP SCREW M10-1.5 X 25
Price
N/A
203
KEY 6 X 6 X 35
Price
N/A
204
*DISCD*HEAD BODY COVER
Item is no longer available
Price
N/A
205
*DISCD*OIL CAP
Item is no longer available
Price
N/A
206
*DISCD*OIL SEAL
Item is no longer available
Price
N/A
207
INT RETAINING RING 62MM
Price
N/A
208
BALL BEARING 6007ZZ
Price
N/A
209
*DISCD*MOTOR SHAFT
Item is no longer available
Price
N/A
210
KEY 6 X 6 X 30
Price
N/A
211
*DISCD*GEAR
Item is no longer available
Price
N/A
212
Bearing - 35mm x 17mm
Price
N/A
213
*DISCD*BEARING BRACKET
Item is no longer available
Price
N/A
214
*DISCD*STOPPLE
Item is no longer available
Price
N/A
215
*DISCD*GEAR
Item is no longer available
Price
N/A
216
*DISCD*GEAR
Price
$134.30
217
KEY 6 X 6 X 14
Price
N/A
218
*DISCD*KEY 5 X 5 X 60
Item is no longer available
Price
N/A
219
*DISCD*SHAFT
Item is no longer available
Price
N/A
220
STEEL BALL 8MM
Price
N/A
221
*DISCD*COMPRESSION SPRING 0.8 X 6 X 16
Item is no longer available
Price
N/A
222
EXT RETAINING RING 18MM
Price
N/A
223
BALL BEARING 6202ZZ
Price
N/A
224
INT RETAINING RING 35MM
Price
N/A
225
*DISCD*OIL SEAL RING
Item is no longer available
Price
N/A
226
*DISCD*CAP
Item is no longer available
Price
N/A
227
*DISCD*GEAR
Price
$166.75
228
*DISCD*SHAFT
Item is no longer available
Price
N/A
229
KEY 5 X 5 X 50
Price
N/A
230
*DISCD*KEY 6 X 6 X 75
Item is no longer available
Price
N/A
231
*DISCD*GEAR
Price
$170.20
232
*DISCD*GEAR
Price
$167.90
233
*DISCD*GEAR
Price
$173.95
234
*DISCD*AIRTIGHT RING
Price
$4.90
235
*DISCD*AIRTIGHT BASE
Item is no longer available
Price
N/A
236
PHLP HD SCR M5-.8 X 8
Price
N/A
237
*DISCD*OIL SEAL
Price
$16.10
238
*DISCD*GEAR
Item is no longer available
Price
N/A
239
*DISCD*GEAR
Item is no longer available
Price
N/A
240
*DISCD*SEPARATING RING
Item is no longer available
Price
N/A
241
EXT RETAINING RING 35MM
Price
N/A
242
*DISCD*ARBOR BOLT COVER
Item is no longer available
Price
N/A
243
CAP SCREW M5-.8 X 12
Price
N/A
244
*DISCD*PIN 10 X 50
Item is no longer available
Price
N/A
245
CAP SCREW M8-1.25 X 50
Price
N/A
246
*DISCD*ELECTRIC BOX
Item is no longer available
Price
N/A
246-1
*DISCD*LIFT MOTOR CONTACTOR KM2 CJX2-090
Price
$185.45
246-10
*DISCD*FUSE HOLDER WITH CAP
Item is no longer available
Price
N/A
246-11
*DISCD*FUSE 2AMP 250V R054
Item is no longer available
Price
N/A
246-2
*DISCD*LIFT MOTOR CONTACTOR KM1
Item is no longer available
Price
N/A
246-3
*DISCD*LIFT MOTOR UP BUTTON
Item is no longer available
Price
N/A
246-4
*DISCD*LIFT MOTOR DOWN BUTTON
Item is no longer available
Price
N/A
246-5
*DISCD*EMERGENCY STOP BUTTON
Item is no longer available
Price
N/A
246-6
*DISCD*MASTER JUNCTION TERMINAL BLOCK
Item is no longer available
Price
N/A
246-7
*DISCD*TRANSFORMER
Item is no longer available
Price
N/A
246-8
*DISCD*SPINDLE MOTOR ROTARY SWITCH
Item is no longer available
Price
N/A
246-9

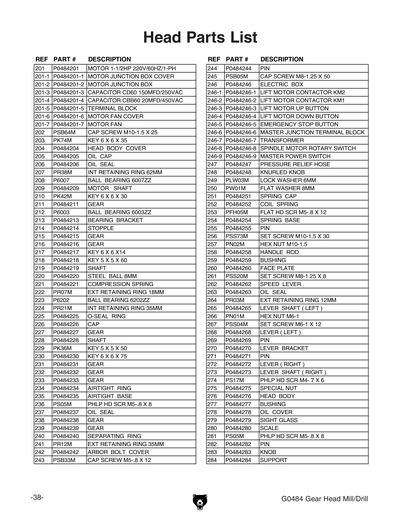

*DISCD*MASTER POWER SWITCH
Item is no longer available
Price
N/A
247
*DISCD*PRESSURE RELIEF HOSE
Item is no longer available
Price
N/A
248
*DISCD*KNURLED KNOB
Item is no longer available
Price
N/A
249
LOCK WASHER 6MM
Price
N/A
250
FLAT WASHER 8MM
Price
N/A
251
*DISCD*SPRING CAP
Item is no longer available
Price
N/A
252
*DISCD*COIL SPRING 1 X 19 X 110
Item is no longer available
Price
N/A
253
FLAT HD SCR M5-.8 X 12
Price
N/A
254
*DISCD*SPRING BASE
Item is no longer available
Price
N/A
255
*DISCD*PIN 3 X 10
Item is no longer available
Price
N/A
256
SET SCREW M10-1.5 X 30
Price
N/A
257
HEX NUT M10-1.5
Price
N/A
258
*DISCD*HANDLE ROD
Item is no longer available
Price
N/A
259
*DISCD*BUSHING 14 X 32 X 89
Item is no longer available
Price
N/A
260
*DISCD*FACEPLATE
Price
$53.50
261
SET SCREW M8-1.25 X 8
Price
N/A
262
*DISCD*SPEED LEVER
Item is no longer available
Price
N/A
263
*DISCD*OIL SEAL
Price
$3.20
264
EXT RETAINING RING 12MM
Price
N/A
265
*DISCD*LEVER SHAFT LEFT
Item is no longer available
Price
N/A
266
HEX NUT M6-1
Price
N/A
267
SET SCREW M6-1 X 12
Price
N/A
268
*DISCD*LEVER LEFT
Item is no longer available
Price
N/A
269
*DISCD*PIN M5 X 4.2 X 27
Item is no longer available
Price
N/A
270
*DISCD*LEVER BRACKET
Price
$6.35
271
*DISCD*PIN M5 X 4.2 X 27
Item is no longer available
Price
N/A
272
*DISCD*LEVER RIGHT
Item is no longer available
Price
N/A
273
*DISCD*LEVER SHAFT RIGHT
Item is no longer available
Price
N/A
274
PHLP HD SCR M4-.7 X 6
Price
N/A
275
*DISCD*SPECIAL NUT M20-1.5 X 23
Item is no longer available
Price
N/A
276
*DISCD*HEAD BODY
Item is no longer available
Price
N/A
276A
*DISCD*COMPLETE HEAD ASSY
Item is no longer available
Price
N/A
277
*DISCD*BUSHING
Item is no longer available
Price
N/A
278
*DISCD*OIL COVER
Item is no longer available
Price
N/A
279
*DISCD*SIGHT GLASS
Price
$4.90
280
*DISCD*SCALE
Item is no longer available
Price
N/A
281
PHLP HD SCR M5-.8 X 8
Price
N/A
282
*DISCD*PIN 3 X 18
Price
$1.49
283
*DISCD*KNOB
Price
$5.75
284
*DISCD*SUPPORT
Price
$8.05

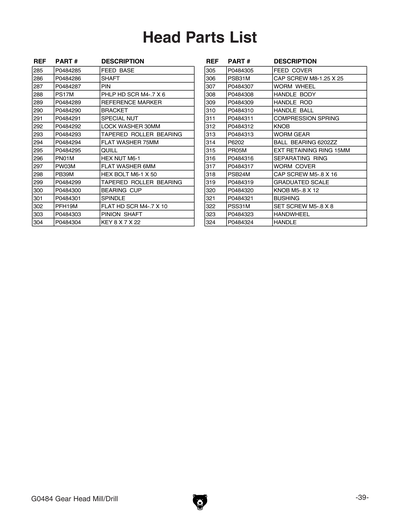

285
*DISCD*FEED BASE
Item is no longer available
Price
N/A
286
*DISCD*SHAFT
Price
$11.25
287
*DISCD*PIN
Price
$1.49
288
PHLP HD SCR M4-.7 X 6
Price
N/A
289
*DISCD*REFERENCE MARKER
Price
$1.49
290
*DISCD*BRACKET
Item is no longer available
Price
N/A
291
*DISCD*SPECIAL NUT M30 X 1.5
Item is no longer available
Price
N/A
292
LOCK WASHER 30MM
Price
N/A
293
TAPERED ROLLER BEARING 30206
Price
N/A
294
*DISCD*FLAT WASHER 75MM
Item is no longer available
Price
N/A
295
*DISCD*QUILL
Item is no longer available
Price
N/A
296
HEX NUT M6-1
Price
N/A
297
FLAT WASHER 6MM
Price
N/A
298
HEX BOLT M6-1 X 50
Price
N/A
299
*DISCD*TAPERED ROLLER BEARING 32008
Item is no longer available
Price
N/A
300
*DISCD*BEARING CUP
Item is no longer available
Price
N/A
301
*DISCD*SPINDLE
Item is no longer available
Price
N/A
301-1
*DISCD*SPINDLE ADJUSTMENT PIN M5X7
Item is no longer available
Price
N/A

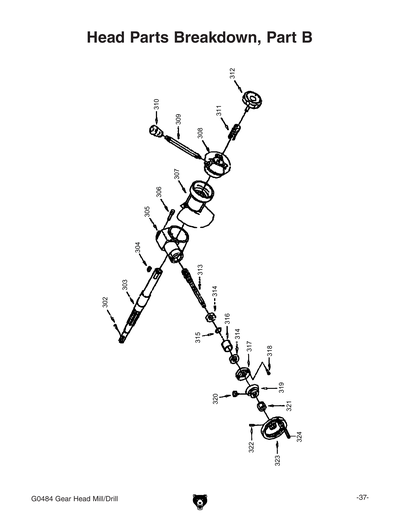

302
FLAT HD SCR M4-.7 X 10
Price
N/A
303
*DISCD*PINION SHAFT
Item is no longer available
Price
N/A
304
*DISCD*KEY 8 X 7 X 22
Price
N/A
305
*DISCD*FEED COVER
Item is no longer available
Price
N/A
306
CAP SCREW M8-1.25 X 25
Price
N/A
307
*DISCD*WORM WHEEL
Item is no longer available
Price
N/A
308
*DISCD*HANDLE BODY
Item is no longer available
Price
N/A
309
*DISCD*HANDLE ROD
Price
$10.35
310
*DISCD*HANDLE BALL M12 X 60
Price
$2.60
311
*DISCD*COMPRESSION SPRING 2 X 16 X 25
Price
$3.20
312
*DISCD*KNOB
Item is no longer available
Price
N/A
313
*DISCD*WORM GEAR
Item is no longer available
Price
N/A
314
BALL BEARING 6202ZZ
Price
N/A
315
EXT RETAINING RING 15MM
Price
N/A
316
*DISCD*SEPARATING RING
Item is no longer available
Price
N/A
317
*DISCD*WORM COVER
Item is no longer available
Price
N/A
318
CAP SCREW M5-.8 X 16
Price
N/A
319
*DISCD*GRADUATED SCALE
Item is no longer available
Price
N/A
320
*DISCD*KNOB M5-.8 X 12
Item is no longer available
Price
N/A
321
*DISCD*BUSHING 15 X 28 X 20
Price
$8.05
322
SET SCREW M5-.8 X 8
Price
N/A
323
*DISCD*HANDWHEEL
Price
$23.90
324
*DISCD*HANDLE
Price
$8.05
325

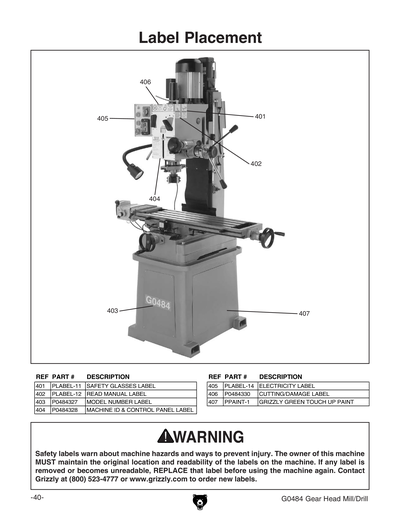

SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
326
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
327
*DISCD*MODEL # LABEL
Item is no longer available
Price
N/A
328
*DISCD*MACHINE ID & CONTROL PANEL LABEL
Item is no longer available
Price
N/A
329
ELECTRICITY 1.4W X 1.2H
Price
N/A
330
*DISCD*CUTTING/DAMAGE LABEL
Item is no longer available
Price
N/A
331
N/S GRIZZLY GREEN G1023S
Price
N/A
332
*DISCD*DRAWBAR 7/16-20 X 16-7/8"
Item is no longer available
Price
N/A
MAN
*DISCD*MANUAL FOR G0484 04/07
Item is no longer available
Price
N/A
