Parts for G0487 - 51" 30 HP 3-Phase Double Head Wide-Belt Sander

Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487
Part Diagram for G0487

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

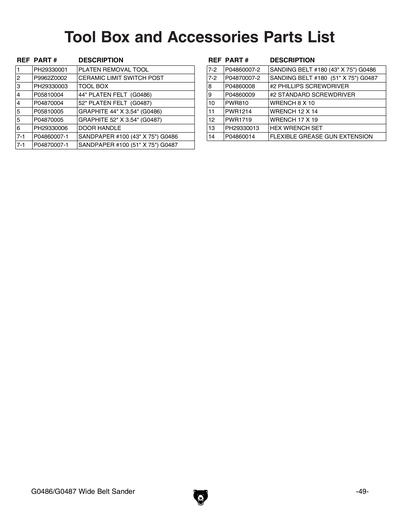

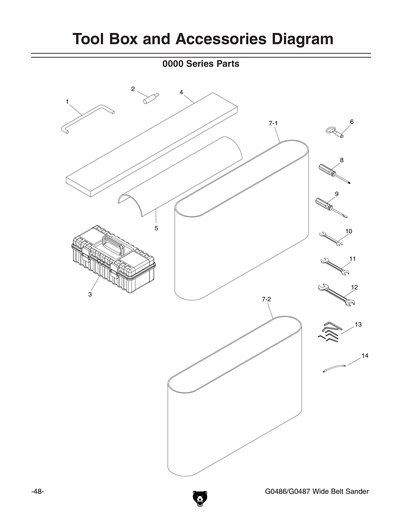

1
*DISCD*FELT PLATEN REMOVAL TOOL
Price
N/A
2
LIMIT SWITCH CERAMIC TIP
Price
N/A
3
TOOL BOX
Price
N/A
4
FELT PLATEN PAD 52"
Price
N/A
5
GRAPHITE 52 X 3.54"
Price
N/A
6
DOOR HANDLE
Price
N/A
7-1
SANDPAPER #100 51 X 75"
Price
$127.45
7-2
SANDING BELT #180 51 X 75"
Price
$127.45
8
SCREWDRIVER PHILLIPS #2
Price
N/A
9
SCREWDRIVER FLAT #2
Price
N/A
10
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
11
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
12
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
13
HEX WRENCH SET
Price
N/A
14
FLEXIBLE GREASE GUN EXTENSION
Price
N/A

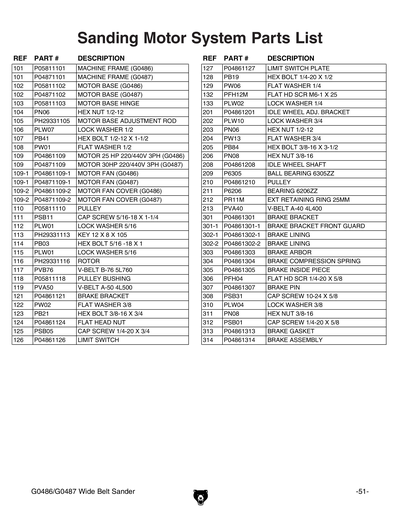

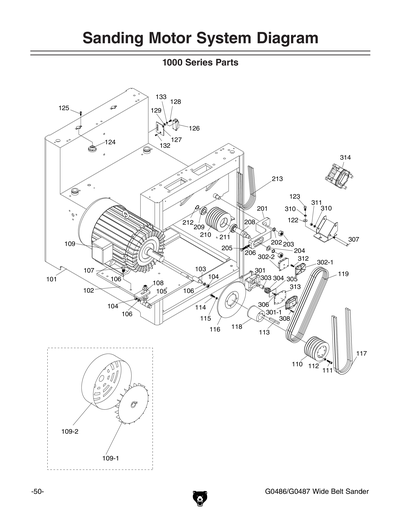

1101
MACHINE FRAME
Price
$3,244.00
1102
MOTOR BASE
Price
$332.70
1103
MOTOR BASE HINGE
Price
N/A
1104
HEX NUT 1/2-12
Price
N/A
1105
MOTOR BASE ADJUSTMENT ROD
Price
N/A
1106
LOCK WASHER 1/2
Price
N/A
1107
HEX BOLT 1/2-12 X 1-1/2
Price
N/A
1108
FLAT WASHER 1/2
Price
N/A
1109
MOTOR 30HP 220V/440V 3-PH
Price
N/A
1109-1
FAN
Price
N/A
1109-2
FAN COVER
Price
N/A
1110
PULLEY 5" X 5
Price
N/A
1111
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
1112
LOCK WASHER 5/16
Price
N/A
1113
KEY 8 X 12 X 105
Price
N/A
1114
HEX BOLT 5/16-18 X 1
Price
N/A
1115
LOCK WASHER 5/16
Price
N/A
1116
DISC BRAKE
Price
N/A
1117
V-BELT B76
Price
N/A
1118
PULLEY BUSHING
Price
$90.60
1119
V-BELT A50
Price
N/A
1121
BRAKE BRACKET
Price
N/A
1122
FLAT WASHER 3/8
Price
N/A
1123
HEX BOLT 3/8-16 X 3/4
Price
N/A
1124
FLAT HEAD NUT
Price
N/A
1125
CAP SCREW 1/4-20 X 3/4
Price
N/A
1126
LIMIT SWITCH
Price
N/A
1127
LIMIT SWITCH PLATE
Price
N/A
1128
HEX BOLT 1/4-20 X 1/2
Price
N/A
1129
FLAT WASHER 1/4
Price
N/A
1132
FLAT HD SCR M6-1 X 25
Price
N/A
1133
LOCK WASHER 1/4
Price
N/A
1201
IDLE WHEEL ADJ BRACKET
Price
N/A
1202
LOCK WASHER 3/4
Price
N/A
1203
HEX NUT 1/2-12
Price
N/A
1204
FLAT WASHER 3/4
Price
N/A
1205
HEX BOLT 3/8-16 X 3-1/2
Price
N/A
1206
HEX NUT 3/8-16
Price
N/A
1208
IDLE WHEEL SHAFT
Price
N/A
1209
BALL BEARING 6305ZZ
Price
N/A
1210
PULLEY
Price
N/A
1211
BALL BEARING 6206ZZ
Price
N/A
1212
EXT RETAINING RING 25MM
Price
N/A
1213
V-BELT A40
Price
N/A
1301
BRAKE BRACKET
Price
N/A
1301-1
BRAKE BRACKET FRONT GUARD
Price
N/A
1302-1
BRAKE LINING
Price
N/A
1302-2
BRAKE LINING
Price
N/A
1303
BRAKE ARBOR
Price
N/A
1304
BRAKE COMPRESSION SPRING
Price
N/A
1305
BRAKE INSIDE PIECE
Price
N/A
1306
FLAT HD SCR 1/4-20 X 5/8
Price
N/A
1307
BRAKE PIN
Price
N/A
1308
CAP SCREW 10-24 X 5/8
Price
N/A
1310
LOCK WASHER 3/8
Price
N/A
1311
HEX NUT 3/8-16
Price
N/A
1312
CAP SCREW 1/4-20 X 5/8
Price
N/A
1313
BRAKE GASKET
Price
N/A
1314
BRAKE ASSEMBLY
Price
N/A

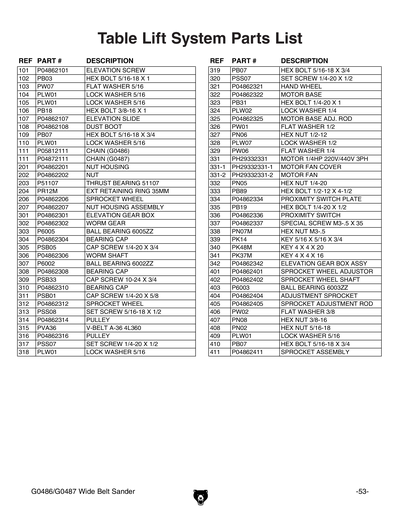

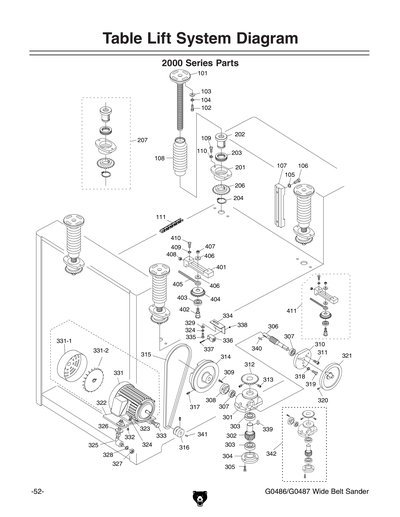

2101
ELEVATION SCREW
Price
N/A
2102
HEX BOLT 5/16-18 X 1
Price
N/A
2103
FLAT WASHER 5/16
Price
N/A
2104
LOCK WASHER 5/16
Price
N/A
2105
LOCK WASHER 5/16
Price
N/A
2106
HEX BOLT 3/8-16 X 1
Price
N/A
2107
ELEVATION SLIDE
Price
N/A
2108
DUST BOOT
Price
N/A
2109
HEX BOLT 5/16-18 X 3/4
Price
N/A
2110
LOCK WASHER 5/16
Price
N/A
2111
CHAIN
Price
$109.35
2201
NUT HOUSING
Price
N/A
2202
NUT
Price
N/A
2203
THRUST BEARING 51107
Price
N/A
2204
EXT RETAINING RING 35MM
Price
N/A
2206
SPROCKET WHEEL
Price
N/A
2207
NUT HOUSING ASSEMBLY
Price
N/A
2301
ELEVATION GEAR BOX
Price
N/A
2302
WORM GEAR
Price
N/A
2303
BALL BEARING 6005ZZ
Price
N/A
2304
BEARING CAP
Price
N/A
2305
CAP SCREW 1/4-20 X 3/4
Price
N/A
2306
WORM SHAFT
Price
N/A
2307
BALL BEARING 6002ZZ
Price
N/A
2308
BEARING CAP
Price
N/A
2309
CAP SCREW 10-24 X 3/4
Price
N/A
2310
BEARING CAP
Price
N/A
2311
CAP SCREW 1/4-20 X 5/8
Price
N/A
2312
SPROCKET WHEEL
Price
N/A
2313
SET SCREW 5/16-18 X 1/2
Price
N/A
2314
PULLEY
Price
N/A
2315
V-BELT A36
Price
N/A
2316
PULLEY
Price
N/A
2317
SET SCREW 1/4-20 X 1/2
Price
N/A
2318
LOCK WASHER 5/16
Price
N/A
2319
HEX BOLT 5/16-18 X 3/4
Price
N/A
2320
SET SCREW 1/4-20 X 1/2
Price
N/A
2321
HAND WHEEL
Price
N/A
2322
MOTOR BASE
Price
N/A
2323
HEX BOLT 1/4-20 X 1
Price
N/A
2324
LOCK WASHER 1/4
Price
N/A
2325
MOTOR BASE ADJUSTMENT ROD
Price
N/A
2326
FLAT WASHER 1/2
Price
N/A
2327
HEX NUT 1/2-12
Price
N/A
2328
LOCK WASHER 1/2
Price
N/A
2329
FLAT WASHER 1/4
Price
N/A
2331
MOTOR 1/4HP 220V/440V 3-PH
Price
N/A
2331-1
MOTOR FAN COVER
Price
N/A
2331-2
MOTOR FAN
Price
N/A
2332
HEX NUT 1/4-20
Price
N/A
2333
HEX BOLT 1/2-12 X 4-1/2
Price
N/A
2334
PROXIMITY SWITCH PLATE
Price
N/A
2335
HEX BOLT 1/4-20 X 1/2
Price
N/A
2336
PROXIMITY SWITCH
Price
N/A
2337
PROXIMITY SWITCH SCREW M3-.5 X 35
Price
N/A
2338
HEX NUT M3-.5
Price
N/A
2339
KEY 5/16 X 5/16 X 3/4
Price
N/A
2340
KEY 4 X 4 X 20
Price
N/A
2341
KEY 4 X 4 X 16
Price
N/A
2342
ELEVATION GEAR BOX ASSEMBLY
Price
N/A
2401
SPROCKET WHEEL ADJUSTOR
Price
N/A
2402
SPROCKET WHEEL SHAFT
Price
N/A
2403
Bearing - 35mm x 17mm
Price
N/A
2404
ADJUSTMENT SPROCKET
Price
N/A
2405
SPROCKET ADJUSTMENT ROD
Price
N/A
2406
FLAT WASHER 3/8
Price
N/A
2407
HEX NUT 3/8-16
Price
N/A
2408
HEX NUT 5/16-18
Price
N/A
2409
LOCK WASHER 5/16
Price
N/A
2410
HEX BOLT 5/16-18 X 3/4
Price
N/A
2411
SPROCKET ASSEMBLY
Price
N/A

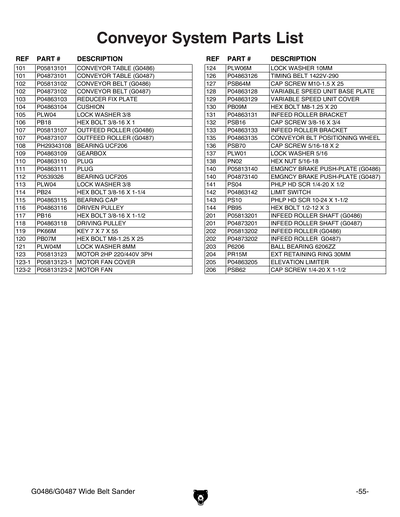

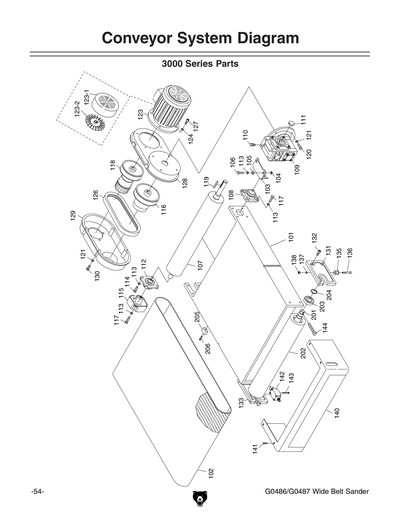

3101
CONVEYOR TABLE
Price
$2,549.05
3102
CONVEYOR BELT
Price
$1,977.00
3103
REDUCER FIX PLATE
Price
N/A
3104
CUSHION
Price
N/A
3105
LOCK WASHER 3/8
Price
N/A
3106
HEX BOLT 3/8-16 X 1
Price
N/A
3107
OUTFEED ROLLER
Price
$1,316.85
3108
BEARING UCF206
Price
N/A
3109
GEARBOX
Price
N/A
3110
PLUG
Price
N/A
3111
PLUG
Price
N/A
3112
BEARING UCF205
Price
N/A
3113
LOCK WASHER 3/8
Price
N/A
3114
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
3115
BEARING CAP
Price
N/A
3116
DRIVEN PULLEY
Price
N/A
3117
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
3118
DRIVING PULLEY
Price
N/A
3119
KEY 7 X 7 X 55
Price
N/A
3120
HEX BOLT M8-1.25 X 25
Price
N/A
3121
LOCK WASHER 8MM
Price
N/A
3123
MOTOR 2HP 220V/440V 3-PH
Price
N/A
3123-1
FAN COVER
Price
N/A
3123-2
FAN
Price
N/A
3124
LOCK WASHER 10MM
Price
N/A
3126
TIMING BELT 1422V-290
Price
N/A
3127
CAP SCREW M10-1.5 X 25
Price
N/A
3128
VARIABLE SPEED UNIT BASE PLATE
Price
N/A
3129
VARIABLE SPEED UNIT COVER
Price
N/A
3130
HEX BOLT M8-1.25 X 20
Price
N/A
3131
INFEED ROLLER BRACKET
Price
N/A
3132
CAP SCREW 3/8-16 X 3/4
Price
N/A
3133
INFEED ROLLER BRACKET
Price
N/A
3135
CONVEYOR BELT POSITIONING WHEEL
Price
N/A
3136
CAP SCREW 5/16-18 X 2
Price
N/A
3137
LOCK WASHER 5/16
Price
N/A
3138
HEX NUT 5/16-18
Price
N/A
3140
EMERGENCY BRAKE PUSH-PLATE
Price
$607.40
3141
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
3142
LIMIT SWITCH
Price
N/A
3143
PHLP HD SCR 10-24 X 1-1/2
Price
N/A
3144
HEX BOLT 1/2-12 X 3
Price
N/A
3201
INFEED ROLLER SHAFT
Price
$1,056.60
3202
INFEED ROLLER
Price
$1,215.40
3203
BALL BEARING 6206ZZ
Price
N/A
3204
EXT RETAINING RING 30MM
Price
N/A
3205
ELEVATION LIMITER
Price
N/A
3206
CAP SCREW 1/4-20 X 1-1/2
Price
N/A

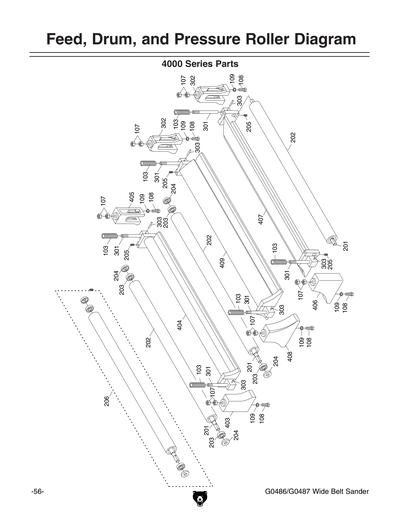

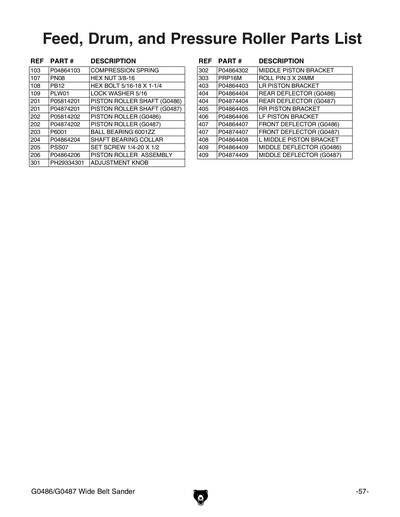

4103
COMPRESSION SPRING
Price
N/A
4107
HEX NUT 3/8-16
Price
N/A
4108
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
4109
LOCK WASHER 5/16
Price
N/A
4201
PISTON ROLLER SHAFT
Price
$138.90
4202
PISTON ROLLER
Price
$372.25
4203
BALL BEARING 6001ZZ
Price
N/A
4204
SHAFT BEARING COLLAR
Price
N/A
4205
SET SCREW 1/4-20 X 1/2
Price
N/A
4206
PISTON ROLLER ASSY
Price
N/A
4301
GUIDE STUD-SE 3/8-16 X 4-5/16 1-3/8
Price
N/A
4302
PISTON BRACKET MIDDLE
Price
N/A
4303
ROLL PIN 3 X 25
Price
N/A
4403
PISTON BRACKET LR
Price
N/A
4404
DEFLECTOR REAR
Price
$899.05
4405
PISTON BRACKET RR
Price
N/A
4406
PISTON BRACKET LEFT
Price
N/A
4407
DEFLECTOR FRONT
Price
$899.05
4408
PISTON BRACKET L MIDDLE
Price
N/A
4409
DEFLECTOR MIDDLE
Price
$1,004.10

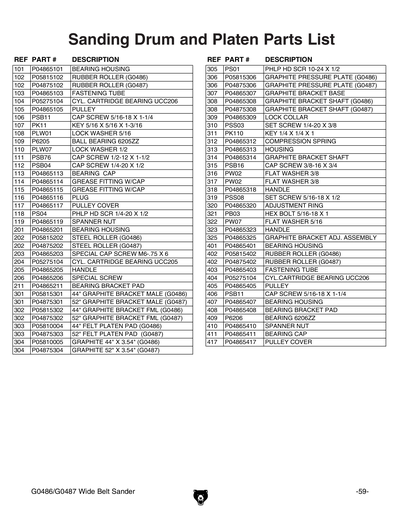

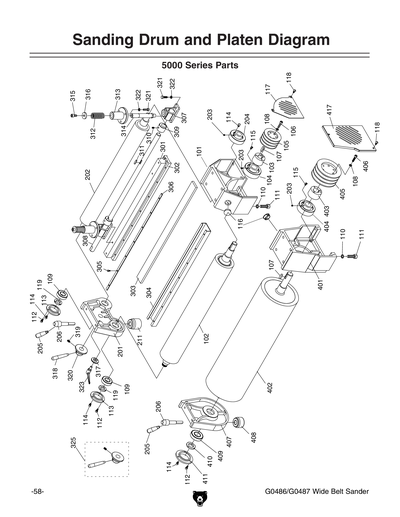

5101
BEARING HOUSING
Price
N/A
5102
RUBBER ROLLER
Price
$2,223.35
5103
FASTENING TUBE
Price
N/A
5104
CARTRIDGE BEARING UCC206
Price
N/A
5105
PULLEY 3.5" X 3
Price
N/A
5106
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
5107
KEY 5/16 X 5/16 X 1-3/16
Price
N/A
5108
LOCK WASHER 5/16
Price
N/A
5109
BALL BEARING 6205ZZ
Price
N/A
5110
LOCK WASHER 1/2
Price
N/A
5111
CAP SCREW 1/2-12 X 1-1/2
Price
N/A
5112
CAP SCREW 1/4-20 X 1/2
Price
N/A
5113
BEARING CAP
Price
N/A
5114
GREASE FITTING W/CAP 1/16 STRAIGHT
Price
N/A
5115
GREASE FITTING W/CAP 1/16 90-DEG
Price
N/A
5116
PLUG
Price
N/A
5117
PULLEY COVER
Price
N/A
5118
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
5119
SPANNER NUT
Price
N/A
5201
BEARING HOUSING
Price
N/A
5202
STEEL ROLLER
Price
N/A
5203
BEARING CAP SCREW M6-.75 X 6
Price
N/A
5204
CARTRIDGE BEARING UCC205
Price
N/A
5205
HANDLE
Price
N/A
5206
HANDLE SHAFT
Price
N/A
5211
BEARING BRACKET PAD
Price
N/A
5301
GRAPHITE BRACKET MALE 52"
Price
$451.05
5302
GRAPHITE BRACKET FEMALE 52"
Price
$346.60
5303
FELT PLATEN PAD 52"
Price
$112.30
5304
GRAPHITE 52 X 3.54"
Price
$62.85
5305
PHLP HD SCR 10-24 X 1/2
Price
N/A
5306
GRAPHITE PRESSURE PLATE
Price
$109.35
5307
GRAPHITE BRACKET BASE
Price
N/A
5308
GRAPHITE BRACKET SHAFT
Price
$79.15
5309
LOCK COLLAR
Price
N/A
5310
SET SCREW 1/4-20 X 3/8
Price
N/A
5311
KEY 1/4 X 1/4 X 1
Price
N/A
5312
COMPRESSION SPRING 5/18" X 2-1/2"
Price
N/A
5313
HOUSING
Price
N/A
5314
GRAPHITE BRACKET SHAFT
Price
N/A
5315
CAP SCREW 3/8-16 X 3/4
Price
N/A
5316
FLAT WASHER 3/8
Price
N/A
5317
FLAT WASHER 3/8
Price
N/A
5318
HANDLE
Price
N/A
5319
SET SCREW 5/16-18 X 1/2
Price
N/A
5320
ADJUSTMENT RING
Price
N/A
5321
HEX BOLT 5/16-18 X 1
Price
N/A
5322
FLAT WASHER 5/16
Price
N/A
5323
HANDLE
Price
N/A
5325
GRAPHITE BRACKET ADJUST ASSY
Price
N/A
5401
BEARING HOUSING
Price
N/A
5402
RUBBER ROLLER
Price
$5,543.65
5403
FASTENING TUBE
Price
N/A
5404
CARTRIDGE BEARING UCC206
Price
N/A
5405
PULLEY
Price
N/A
5406
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
5407
BEARING HOUSING
Price
N/A
5408
BEARING BRACKET PAD
Price
N/A
5409
BALL BEARING 6206ZZ
Price
N/A
5410
SPANNER NUT
Price
N/A
5411
BEARING CAP
Price
N/A
5417
PULLEY COVER
Price
N/A

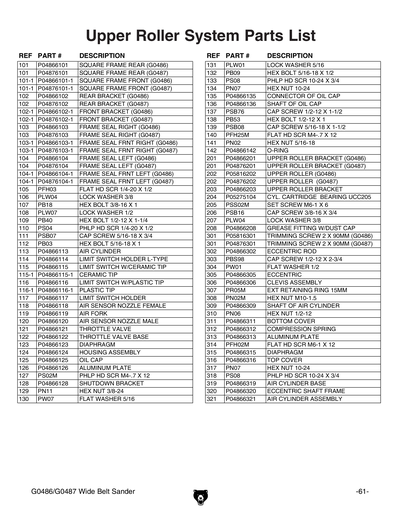

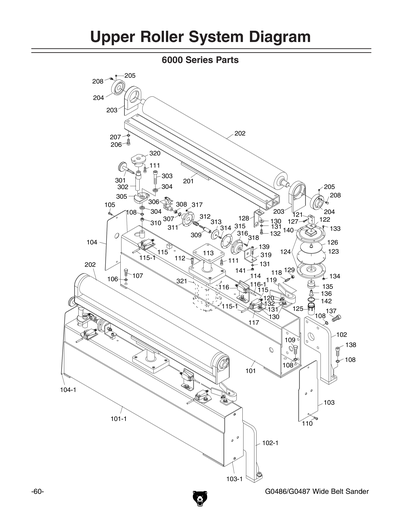

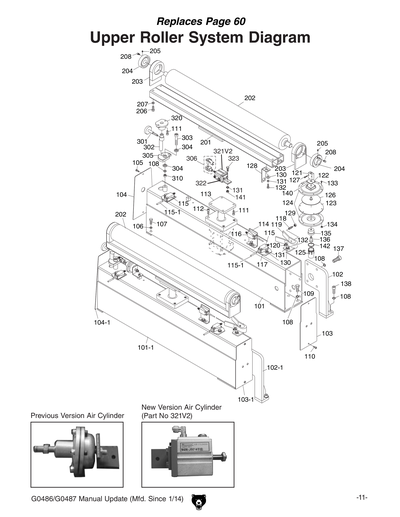

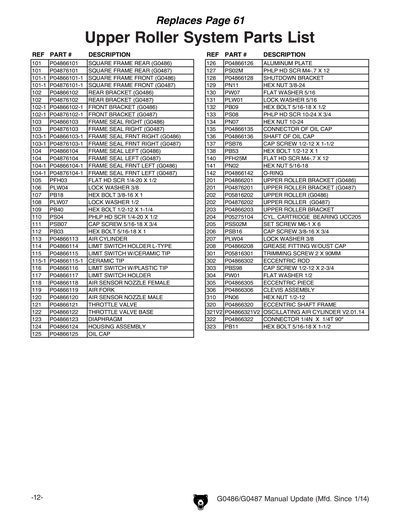

6101
SQUARE FRAME REAR
Price
$400.90
6101-1
SQUARE FRAME FRONT
Price
$400.90
6102
BRACKET REAR
Price
$114.75
6102-1
BRACKET FRONT
Price
$114.75
6103
FRAME SEAL RIGHT
Price
$90.60
6103-1
FRAME SEAL FRONT RIGHT
Price
$90.60
6104
FRAME SEAL LEFT
Price
$90.60
6104-1
FRAME SEAL FRONT LEFT
Price
$90.60
6105
FLAT HD SCR 1/4-20 X 1/2
Price
N/A
6106
LOCK WASHER 3/8
Price
N/A
6107
HEX BOLT 3/8-16 X 1
Price
N/A
6108
LOCK WASHER 1/2
Price
N/A
6109
HEX BOLT 1/2-12 X 1-1/4
Price
N/A
6110
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
6111
CAP SCREW 5/16-18 X 3/4
Price
N/A
6112
HEX BOLT 5/16-18 X 1
Price
N/A
6113
AIR CYLINDER
Price
N/A
6114
LIMIT SWITCH HOLDER L-TYPE
Price
N/A
6115
LIMIT SWITCH CERAMIC ASSY
Price
N/A
6115-1
LIMIT SWITCH CERAMIC TIP
Price
N/A
6116
LIMIT SWITCH W/PLASTIC TIP
Price
N/A
6116-1
LIMIT SWITCH W/PLASTIC TIP
Price
N/A
6117
LIMIT SWITCH HOLDER
Price
N/A
6118
AIR SENSOR NOZZLE FEMALE
Price
N/A
6119
AIR FORK
Price
N/A
6120
AIR SENSOR NOZZLE MALE
Price
N/A
6121
***USE PH29336121***
Price
N/A
6122
***USE PH29336122***
Price
N/A
6123
DIAPHRAM
Price
N/A
6124
HOUSING ASSY
Price
N/A
6125
OIL CAP
Price
N/A
6126
ALUMINUM PLATE
Price
N/A
6127
PHLP HD SCR M4-.7 X 12
Price
N/A
6128
POWER OFF PLATE
Price
N/A
6129
HEX NUT 3/8-24
Price
N/A
6130
FLAT WASHER 5/16
Price
N/A
6131
LOCK WASHER 5/16
Price
N/A
6132
HEX BOLT 5/16-18 X 1/2
Price
N/A
6133
PHLP HD SCR 10-24 X 3/4
Price
N/A
6134
HEX NUT 10-24
Price
N/A
6135
CONNECTOR OF OIL CAP
Price
N/A
6136
SHAFT OF OIL CAP
Price
N/A
6137
CAP SCREW 1/2-12 X 1-1/2
Price
N/A
6138
HEX BOLT 1/2-12 X 1
Price
N/A
6139
CAP SCREW 5/16-18 X 1-1/2
Price
N/A
6140
FLAT HD SCR M4-.7 X 12
Price
N/A
6141
HEX NUT 5/16-18
Price
N/A
6142
O-RING 26.7 X 1.78
Price
N/A
6201
ROLLER BRACKET UPPER
Price
$306.15
6202
UPPER ROLLER
Price
N/A
6203
ROLLER BRACKET UPPER
Price
N/A
6204
CARTRIDGE BEARING UCC205
Price
N/A
6205
SET SCREW M6-1 X 6
Price
N/A
6206
CAP SCREW 3/8-16 X 3/4
Price
N/A
6207
LOCK WASHER 3/8
Price
N/A
6208
GREASE FITTING W/CAP 1/16" STRAIGHT
Price
N/A
6301
TRIMMING SCREW 2 X 90MM
Price
$35.05
6302
ECCENTRIC ROD
Price
N/A
6303
CAP SCREW 1/2-12 X 2-3/4
Price
N/A
6304
FLAT WASHER 1/2
Price
N/A
6305
ECCENTRIC PIECE
Price
N/A
6306
CLEVIS ASSEMBLY
Price
N/A
6307
EXT RETAINING RING 15MM
Price
N/A
6308
HEX NUT M10-1.5
Price
N/A
6309
SHAFT OF AIR CYLINDER
Price
N/A
6310
HEX NUT 1/2-12
Price
N/A
6311
OSCILLATING AIR CYLINDER 50 X 4
Price
N/A
6312
COMPRESSION SPRING 1" X 1/4"
Price
N/A
6313
ALUMINUM PLATE
Price
N/A
6314
FLAT HD SCR M6-1 X 12
Price
N/A
6315
DIAPHRAM
Price
N/A
6316
COVER TOP
Price
N/A
6317
HEX NUT 10-24
Price
N/A
6318
PHLP HD SCR 10-24 X 3/4
Price
N/A
6319
AIR CYLINDER BASE
Price
N/A
6320
ECCENTRIC SHAFT FRAME
Price
N/A
6321
OSCILLATING AIR CYLINDER 50 X 4
Price
N/A
6321V2
OSCILLATING AIR CYLINDER 50 X 4
Price
N/A
6322
CONNECTOR 1/4N X 1/4T 90 DEGREE
Price
N/A
6323
HEX BOLT 5/16-18 X 1-1/2
Price
N/A

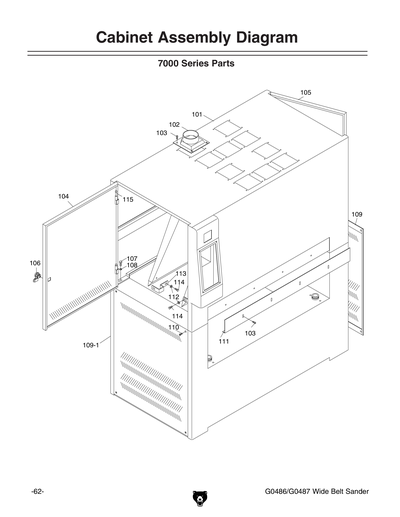

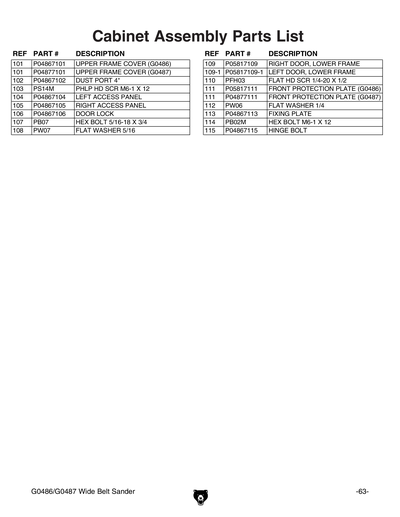

7101
FRAME COVER UPPER V1
Price
$3,707.70
7101V2
FRAME COVER UPPER V2.04.22
Price
$4,321.65
7102
DUST PORT 4"
Price
N/A
7103
PHLP HD SCR M6-1 X 12
Price
N/A
7104
ACCESS PANEL LEFT
Price
N/A
7105
ACCESS PANEL RIGHT
Price
N/A
7106
DOOR LOCK
Price
N/A
7107
HEX BOLT 5/16-18 X 3/4
Price
N/A
7108
FLAT WASHER 5/16
Price
N/A
7109
DOOR RIGHT LOWER FRAME
Price
N/A
7109-1
DOOR LEFT LOWER FRAME
Price
N/A
7110
FLAT HD SCR 1/4-20 X 1/2
Price
N/A
7111
PROTECTION PLATE FRONT
Price
$162.45
7112
FLAT WASHER 1/4
Price
N/A
7113
FIXING PLATE
Price
N/A
7114
HEX BOLT M6-1 X 12
Price
N/A
7115
HINGE BOLT
Price
N/A

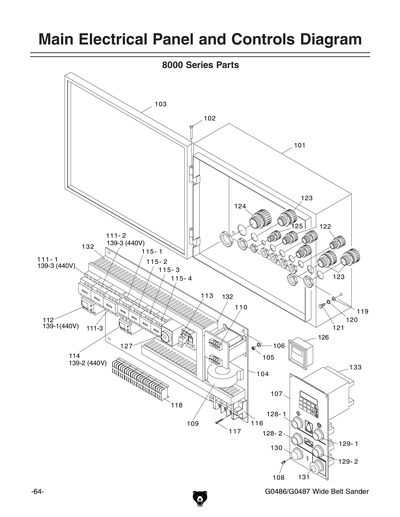

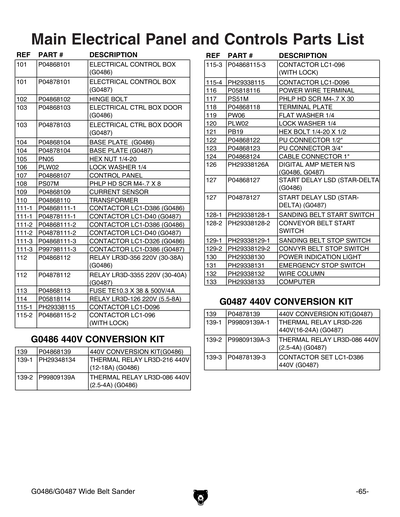

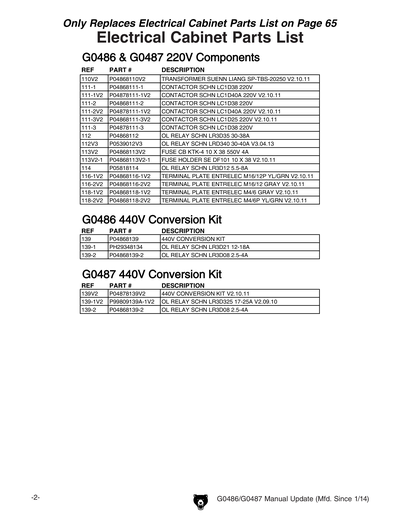

8101
ELECTRICAL CONTROL BOX
Price
$278.40
8102
HINGE BOLT
Price
$12.75
8103
ELECTRICAL CONTROL BOX DOOR
Price
$120.75
8104
BASE PLATE
Price
$144.90
8105
HEX NUT 1/4-20
Price
N/A
8106
LOCK WASHER 1/4
Price
N/A
8107
CONTROL PANEL
Price
N/A
8108
PHLP HD SCR M4-.7 X 8
Price
N/A
8109
CURRENT SENSOR
Price
N/A
8110
TRANSFORMER 250VA 440V-200/220V
Price
N/A
8110V2
TRANSFORMER 250VA 440V-200/220V
Price
N/A
8111-1
CONTACTOR TE LC1D40 220V V1
Price
$111.10
8111-1V2
CONTACTOR SCHN LC1D40A 220V V2.10.11
Price
$179.70
8111-2
CONTACTOR TE LC1D40 220V V1
Price
$111.10
8111-2V2
CONTACTOR SCHN LC1D40A 220V V2.10.11
Price
N/A
8111-3
CONTACTOR SCHN LC1D38 220V
Price
N/A
8112
OL RELAY TE LR3D3355 30-40A V1
Price
$97.25
8112V2
OL RELAY SCHN LRD340 30-40A V3.04.13
Price
N/A
8112V3
OL RELAY SCHN LRD340 30-40A V3.04.13
Price
N/A
8113
FUSE TE 550V 4A 10.3 X 38 V1
Price
N/A
8113V2
FUSE CB KTK-4 10 X 38 500V 4A V2.10.11
Price
N/A
8113V2-1
FUSE HOLDER SE DF101 10 X 38 V2.10.11
Price
N/A
8114
OL RELAY SCHN LR3D12 5.5-8A
Price
N/A
8115-1
CONTACTOR SCHN LC1D09 220V
Price
N/A
8115-2
CONTACTOR TE LC1-096 W/LOCK 220V
Price
N/A
8115-3
CONTACTOR TE LC1-096 W/LOCK 220V
Price
N/A
8115-4
CONTACTOR SCHN LC1D09 220V
Price
N/A
8116
GROUND TERMINAL V1.04.05
Price
N/A
8116-1V2
TERMINAL PLATE ENT M16/12P YL/GRN V2.10.
Price
N/A
8116-2V2
TERMINAL PLATE ENT M16/12P GRAY V2.10.11
Price
N/A
8117
PHLP HD SCR M4-.7 X 30
Price
N/A
8118
TERMINAL PLATE V1
Price
N/A
8118-1V2
TERMINAL PLATE ENT M4/6 GRAY V2.10.11
Price
N/A
8118-2V2
TERMINAL PLATE ENT M4/6P YL/GRN V2.10.11
Price
N/A
8118-3V2
TERMINAL PLATE ENT M16/12P GRAY V2.10.11
Price
N/A
8119
FLAT WASHER 1/4
Price
N/A
8120
LOCK WASHER 1/4
Price
N/A
8121
HEX BOLT 1/4-20 X 1/2
Price
N/A
8122
PU CONNECTOR 1/2"
Price
N/A
8123
PU CONNECTOR 3/4"
Price
N/A
8124
CABLE CONNECTOR 1"
Price
N/A
8126
DIGITAL AMP METER V2.02.06
Price
N/A
8127
STAR/DELTA TIMER ORDER LSD 220V V1
Price
N/A
8128-1
***USE P05398128-1***
Price
N/A
8128-2
START SWITCH
Price
N/A
8129-1
E-STOP BUTTON 250V 10A
Price
N/A
8129-2
BUTTON SWITCH, YK 10A 250V RED
Price
N/A
8130
POWER INDICATOR LIGHT 220V 22MM WHT
Price
N/A
8131
E-STOP BUTTON 250V 10A
Price
N/A
8132
WIRE COLUMN
Price
N/A
8133
COMPUTER W/CONTROL PANEL
Price
N/A

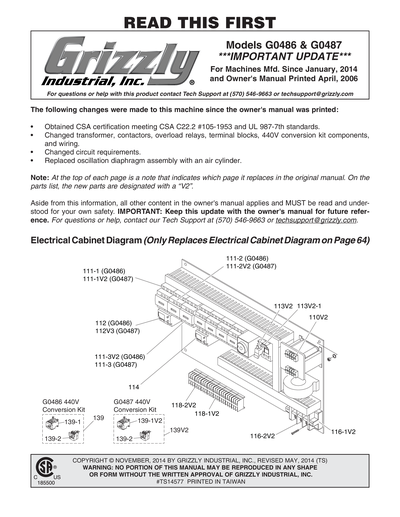

8139
CONVERSION KIT 440V TE V1
Price
$352.60
8139-1
OL RELAY TELE LR3-D226 16-24A V1
Price
N/A
8139-1V2
OL RELAY SCHN LR3D325 17-25A V2.09.10
Price
N/A
8139-2
OL RELAY SCHN LR3D08 2.5-4A
Price
N/A
8139-3
CONTACTOR SET TE LC1-D386 440V
Price
$114.75
8139V2
440V CONVERSION KIT V2.10.11
Price
$262.70

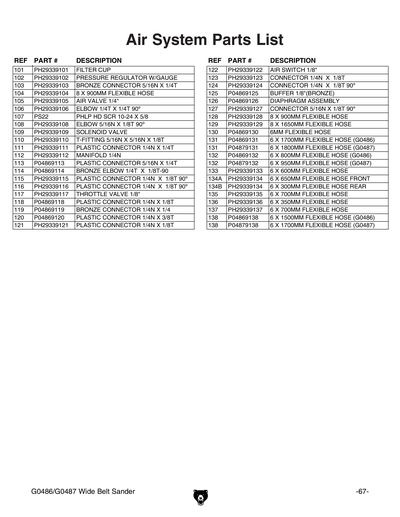

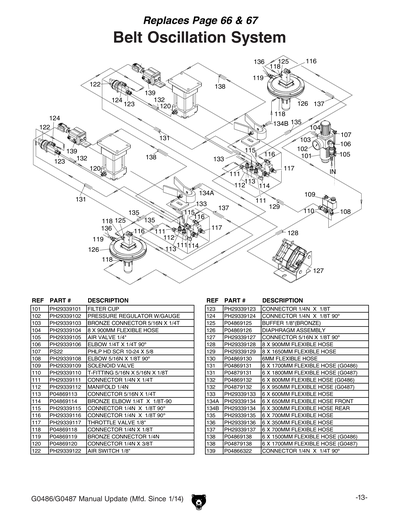

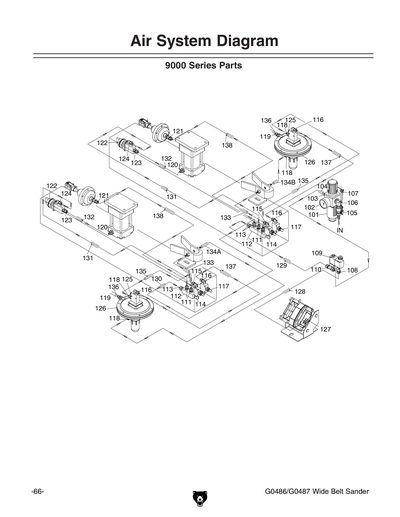

9101
FILTER CUP AND REGULATOR W/ GAUGE
Price
N/A
9102
FILTER CUP AND REGULATOR W/ GAUGE
Price
N/A
9103
CONNECTOR, BRONZE
Price
N/A
9104
FLEXIBLE HOSE 8MM
Price
N/A
9105
AIR SWITCH
Price
N/A
9106
ELBOW
Price
N/A
9107
PHLP HD SCR 10-24 X 5/8
Price
N/A
9108
ELBOW 5/16N X 1/8T 90DEG
Price
N/A
9109
SOLENOID VALVE
Price
N/A
9110
T-FITTING 5/16N X 5/16N X 1/8T
Price
N/A
9111
CONNECTOR 5/16 X 1/4T BRONZE
Price
N/A
9112
MANIFOLD 1/4N 2-PORT
Price
N/A
9113
CONNECTOR 5/16N X 1/4T
Price
N/A
9114
ELBOW 1/4 X 1/8" 90DEG BRONZE
Price
N/A
9115
CONNECTOR 1/4N X 1/8T 90DEG
Price
N/A
9116
CONNECTOR 1/4N X 1/8T 90DEG
Price
N/A
9117
THROTTLE VALVE
Price
N/A
9118
CONNECTOR 1/4N X 1/8T
Price
N/A
9119
BRONZE CONNECTOR 1/4N
Price
N/A
9120
CONNECTOR 1/4N X 3/8T
Price
N/A
9121
CONNECTOR 1/4N X1/8T
Price
N/A
9122
***USE P99799122***
Price
N/A
9123
***USE P0539518***
Price
N/A
9124
CONNECTOR 1/4N X 1/8T 90DEG
Price
N/A
9125
BUFFER 1/8" BRONZE
Price
N/A
9126
DIAPHRAM ASSY
Price
N/A
9127
CONNECTOR 5/16N X 1/8T 90DEG
Price
N/A
9128
FLEXIBLE HOSE 8MM
Price
N/A
9129
FLEXIBLE HOSE 8MM
Price
N/A
9131
FLEXIBLE HOSE 6 X 1800MM
Price
$6.70
9132
FLEXIBLE HOSE 6 X 950MM
Price
$6.70
9133
FLEXIBLE HOSE 6MM
Price
N/A
9134A
FLEXIBLE HOSE 6MM
Price
N/A
9134B
FLEXIBLE HOSE 6MM
Price
N/A
9135
FLEXIBLE HOSE 6MM
Price
N/A
9136
FLEXIBLE HOSE 6MM
Price
N/A
9137
FLEXIBLE HOSE 6MM
Price
N/A
9138
FLEXIBLE HOSE 6 X 1700MM
Price
$4.85

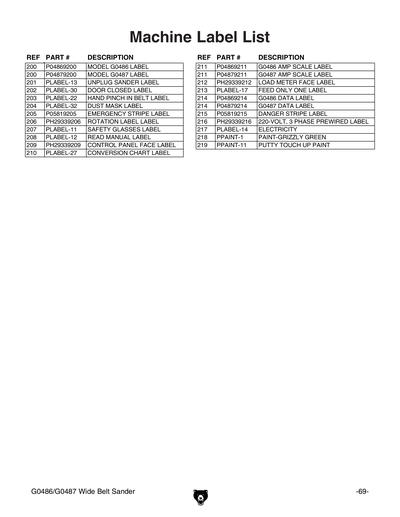

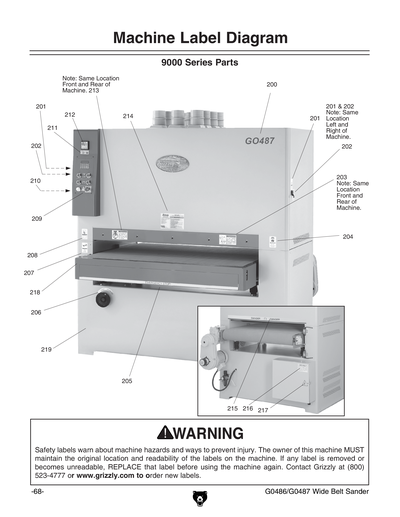

9200
MODEL NUMBER LABEL
Price
$1.60
9201
DISCONNECT SANDER 220V 2W X 3.3H
Price
N/A
9202
DONT OPEN 2W X 3.3H
Price
N/A
9203
SANDER BELT PINCH 4W X 2.1H
Price
N/A
9204
DUST MASK 2W X 3.3H V1
Price
N/A
9205
EMERGENCY STRIPE LABEL
Price
N/A
9206
*DISCD*LABEL, ROTATION LABEL
Price
N/A
9207
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
9208
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
9209
CONTROL PANEL FACE LABEL
Price
N/A
9210
MM CONVERSION CHART 3.6W X 5.5H
Price
N/A
9211
AMP SCALE LABEL
Price
$4.20
9212
LOAD METER FACE LABEL
Price
N/A
9213
FEED ONLY ONE 5.3W X 2.8H V2.04.08
Price
N/A
9214
DATA LABEL
Price
$2.65
9215
DANGER STRIPE LABEL
Price
N/A
9216
PREWIRED FOR 220V LABEL
Price
N/A
9217
ELECTRICITY 1.4W X 1.2H
Price
N/A
9218
N/S GRIZZLY GREEN G1023S
Price
N/A
9219
GREY PUTTY REF G0504
Price
N/A
MANUAL
MANUAL FOR G0487 04/06
Price
$14.65
P
CAP SCREW 1/2-12 X 2-3/4
Price
$2.45
