Parts for G0490XW - 8" Jointer with Spiral Cutterhead

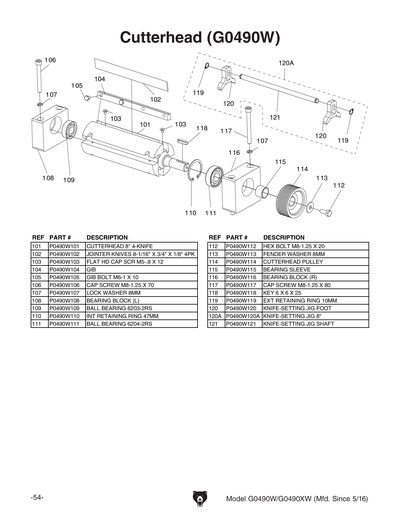

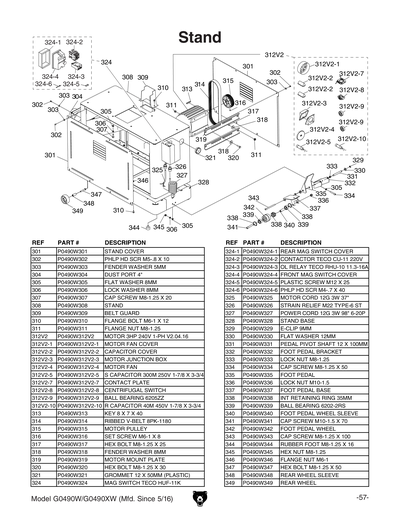

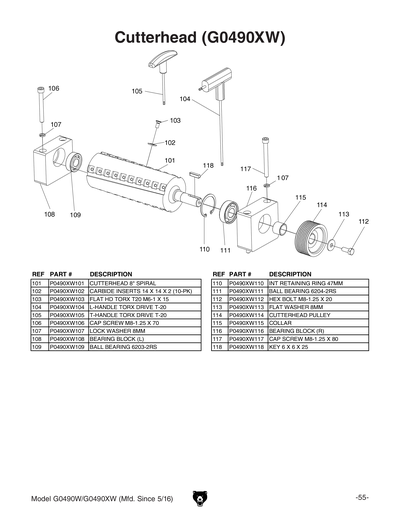

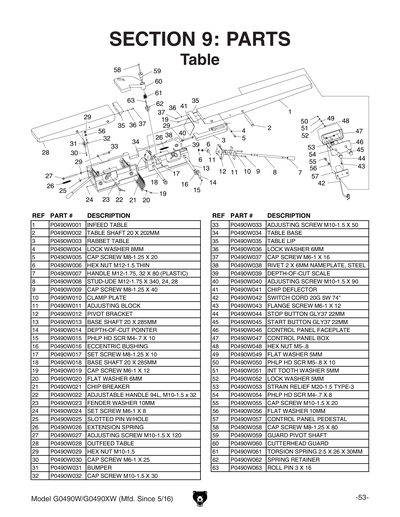

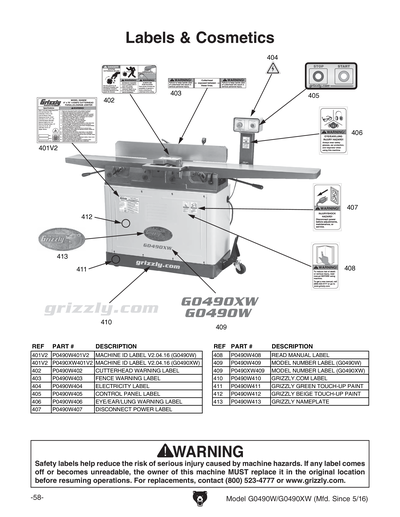

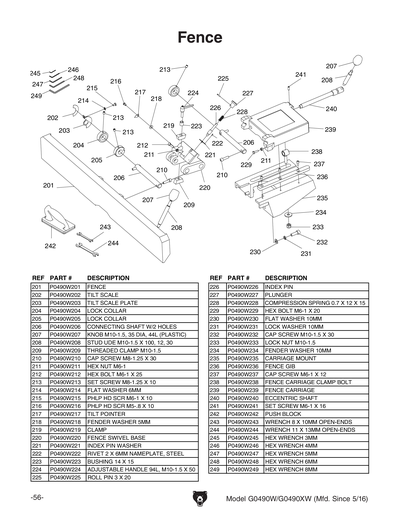

Part Diagram for G0490XW
Part Diagram for G0490XW
Part Diagram for G0490XW
Part Diagram for G0490XW
Part Diagram for G0490XW
Part Diagram for G0490XW
Part Diagram for G0490XW
Part Diagram for G0490XW
Part Diagram for G0490XW
Part Diagram for G0490XW
Part Diagram for G0490XW
Part Diagram for G0490XW

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
*DISCD*INFEED TABLE
Price
N/A
2
*DISCD*TABLE SHAFT 20 X 202MM
Price
N/A
3
*DISCD*RABBET TABLE
Price
N/A
4
LOCK WASHER 8MM
Price
N/A
5
CAP SCREW M8-1.25 X 20
Price
N/A
6
HEX NUT M12-1.5 THIN
Price
N/A
7
*DISCD*HANDLE M12-1.75, 32 X80 (PLASTIC)
Price
N/A
8
*DISCD*STUD-UDE M12-1.75 X 340, 24, 28
Price
N/A
9
CAP SCREW M8-1.25 X 40
Price
N/A
10
*DISCD*CLAMP PLATE
Price
N/A
11
*DISCD*ADJUSTING BLOCK
Price
N/A
12
*DISCD*PIVOT BRACKET
Price
N/A
13
*DISCD*BASE SHAFT 20 X 285MM
Price
N/A
14
*DISCD*DEPTH-OF-CUT POINTER
Price
N/A
15
PHLP HD SCR M4-.7 X 10
Price
N/A
16
*DISCD*ECCENTRIC BUSHING
Price
N/A
17
SET SCREW M8-1.25 X 10
Price
N/A
18
*DISCD*BASE SHAFT 20 X 285MM
Price
N/A
19
CAP SCREW M6-1 X 12
Price
N/A
20
FLAT WASHER 6MM
Price
N/A
21
*DISCD*CHIP BREAKER
Price
N/A
22
*DISCD*ADJUSTABLE HANDLE 94L, M10-1.5X32
Price
N/A
23
FENDER WASHER 10MM
Price
N/A
24
SET SCREW M6-1 X 8
Price
N/A
25
*DISC'D*ROLL PIN 6 X 5
Price
N/A
26
*DISCD*EXTENSION SPRING
Price
N/A
27
*DISCD*ADJUSTING SCREW M10-1.5 X 120
Price
N/A
28
*DISCD*OUTFEED TABLE
Price
N/A
29
HEX NUT M10-1.5
Price
N/A
30
CAP SCREW M6-1 X 25
Price
N/A
31
*DISCD*BUMPER
Price
N/A
32
CAP SCREW M10-1.5 X 30
Price
N/A
33
*DISCD*ADJUSTING SCREW M10-1.5 X 50
Price
N/A
34
*DISCD*TABLE BASE
Price
N/A
35
*DISCD*TABLE LIP
Price
N/A
36
LOCK WASHER 6MM
Price
N/A
37
CAP SCREW M6-1 X 16
Price
N/A
38
RIVET 2 X 6MM NAMEPLATE, STEEL
Price
N/A
39
*DISCD*DEPTH-OF-CUT SCALE
Price
N/A
40
*DISCD*ADJUSTING SCREW M10-1.5 X 90
Price
N/A
41
*DISCD*CHIP DEFLECTOR
Price
N/A
42
*DISCD*SWITCH CORD 20G 5W 74"
Price
N/A
43
FLANGE SCREW M6-1 X 12
Price
N/A
44
*DISCD*STOP BUTTON GLY37 22MM
Price
N/A
45
*DISCD*START BUTTON GLY37 22MM
Price
N/A
46
*DISCD*CONTROL PANEL FACEPLATE
Price
N/A
47
*DISCD*CONTROL PANEL BOX
Price
N/A
48
HEX NUT M5-.8
Price
N/A
49
FLAT WASHER 5MM
Price
N/A
50
PHLP HD SCR M5-.8 X 10
Price
N/A
51
INT TOOTH WASHER 5MM
Price
N/A
52
LOCK WASHER 5MM
Price
N/A
53
*DISCD*STRAIN RELIEF M20-1.5 TYPE-3
Price
N/A
54
PHLP HD SCR M4-.7 X 8
Price
N/A
55
CAP SCREW M10-1.5 X 20
Price
N/A
56
FLAT WASHER 10MM
Price
N/A
57
*DISCD*CONTROL PANEL PEDESTAL
Price
N/A
58
CAP SCREW M8-1.25 X 80
Price
N/A
59
*DISCD*GUARD PIVOT SHAFT
Price
N/A
60
*DISCD*CUTTERHEAD GUARD
Price
N/A
61
*DISCD*TORSION SPRING 2.5 X 26 X 30MM
Price
N/A
62
*DISCD*SPRING RETAINER
Price
N/A
63
ROLL PIN 3 X 16
Price
N/A
101
*DISCD*CUTTERHEAD 8" SPIRAL
Item is no longer available
Price
N/A
102
Indexable Carbide Inserts - 14 x 14 x 2mm, 10-Pk.
Price
N/A
103
FLAT HD TORX T20 M6-1 X 15
Price
N/A
104
*DISCD*L-HANDLE TORX DRIVE T-20
Price
N/A
105
T-HANDLE TORX DRIVE T-20
Price
N/A
106
CAP SCREW M8-1.25 X 70
Price
N/A
107
LOCK WASHER 8MM
Price
N/A
108
*DISCD*BEARING BLOCK (L)
Price
N/A
109
BALL BEARING 6203-2RS
Price
N/A
110
INT RETAINING RING 47MM
Price
N/A
111
BALL BEARING 6204-2RS
Price
N/A
112
HEX BOLT M8-1.25 X 20
Price
N/A
113
FENDER WASHER 8MM
Price
N/A
114
*DISCD*CUTTERHEAD PULLEY
Price
N/A
115
*DISCD*BEARING SLEEVE
Price
N/A
116
*DISCD*BEARING BLOCK (R)
Price
N/A
117
CAP SCREW M8-1.25 X 80
Price
N/A
118
KEY 6 X 6 X 25
Price
N/A
201
*DISCD*FENCE
Price
N/A
202
*DISCD*TILT SCALE W/PLATE
Price
N/A
203
*DISCD*TILT SCALE W/PLATE
Price
N/A
204
*DISCD*LOCK COLLAR
Price
N/A
205
*DISCD*LOCK COLLAR
Price
N/A
206
*DISCD*CONNECTING SHAFT W/2 HOLES
Price
N/A
207
*DISCD*KNOB M10-1.5, 35 DIA, 44L PLASTIC
Price
N/A
208
*DISCD*STUD UDE M10-1.5 X 100, 12, 30
Price
N/A
209
*DISCD*THREADED CLAMP M10-1.5
Price
N/A
210
CAP SCREW M8-1.25 X 30
Price
N/A
211
HEX NUT M6-1
Price
N/A
212
HEX BOLT M6-1 X 25
Price
N/A
213
SET SCREW M8-1.25 X 10
Price
N/A
214
FLAT WASHER 6MM
Price
N/A
215
PHLP HD SCR M6-1 X 10
Price
N/A
216
PHLP HD SCR M5-.8 X 10
Price
N/A
217
*DISCD*TILT POINTER
Price
N/A
218
FENDER WASHER 5MM
Price
N/A
219
*DISCD*CLAMP
Price
N/A
220
*DISCD*FENCE SWIVEL BASE
Price
N/A
221
*DISCD*INDEX PIN WASHER
Price
N/A
222
RIVET 2 X 6MM NAMEPLATE, STEEL
Price
N/A
223
*DISCD*BUSHING 14 X 15
Price
N/A
224
*DISCD*ADJUSTABLE HANDLE 94L, M10-1.5X50
Price
N/A
225
ROLL PIN 3 X 20
Price
N/A
226
*DISCD*INDEX PIN
Price
N/A
227
*DISCD*PLUNGER
Price
N/A
228
*DISCD*COMPRESSION SPRING 0.7 X 12 X 15
Price
N/A
229
HEX BOLT M6-1 X 20
Price
N/A
230
FLAT WASHER 10MM
Price
N/A
231
LOCK WASHER 10MM
Price
N/A
232
CAP SCREW M10-1.5 X 30
Price
N/A
233
LOCK NUT M10-1.5
Price
N/A
234
FENDER WASHER 10MM
Price
N/A
235
*DISCD*CARRIAGE MOUNT
Price
N/A
236
*DISCD*FENCE GIB
Price
N/A
237
CAP SCREW M6-1 X 12
Price
N/A
238
*DISCD*FENCE CARRIAGE CLAMP BOLT
Price
N/A
239
*DISCD*FENCE CARRIAGE
Price
N/A
240
*DISCD*ECCENTRIC SHAFT
Price
N/A
241
SET SCREW M6-1 X 16
Price
N/A
242
*DISCD*PUSH BLOCK
Price
N/A
243
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
244
WRENCH 11 X 13MM OPEN-ENDS
Price
N/A
245
HEX WRENCH 3MM
Price
N/A
246
HEX WRENCH 4MM
Price
N/A
247
HEX WRENCH 5MM
Price
N/A
248
HEX WRENCH 6MM
Price
N/A
249
HEX WRENCH 8MM
Price
N/A
301
*DISCD*STAND COVER
Price
N/A
302
PHLP HD SCR M5-.8 X 10
Price
N/A
303
FENDER WASHER 5MM
Price
N/A
304
*DISCD*DUST PORT 4"
Price
N/A
305
FLAT WASHER 8MM
Price
N/A
306
LOCK WASHER 8MM
Price
N/A
307
CAP SCREW M8-1.25 X 20
Price
N/A
308
*DISCD*STAND
Price
N/A
309
*DISCD*BELT GUARD
Price
N/A
310
FLANGE BOLT M6-1 X 12
Price
N/A
311
FLANGE NUT M8-1.25
Price
N/A
312
*DISCD*MOTOR 3HP 240V 1-PH V1
Price
N/A
312-1
*DISCD*MOTOR FAN COVER
Price
N/A
312-10
*DISCD*R CAPACITOR 40M 450V 2 X 3-3/4
Price
N/A
312-2
*DISCD*CAPACITOR COVER
Price
N/A
312-3
*DISCD*MOTOR JUNCTION BOX
Price
N/A
312-4
*DISCD*MOTOR FAN
Price
N/A
312-5
*DISCD*S CAPACITOR 300M 250V 2 X 3-3/4
Price
N/A
312-7
*DISCD*CONTACTOR
Price
N/A
312-8
*DISCD*CENTRIFUGAL SWITCH
Price
N/A
312-9
BALL BEARING 6205ZZ
Price
N/A
313
KEY 7 X 7 X 40
Price
N/A
314
*DISCD*RIBBED V-BELT 8PK-1180
Price
N/A
315
*DISCD*MOTOR PULLEY
Price
N/A
316
SET SCREW M6-1 X 8
Price
N/A
317
HEX BOLT M8-1.25 X 25
Price
N/A
318
FENDER WASHER 8MM
Price
N/A
319
*DISCD*MOTOR MOUNT PLATE
Price
N/A
320
HEX BOLT M8-1.25 X 30
Price
N/A
321
*DISCD*GROMMET 12 X 50MM (PLASTIC)
Price
N/A
324
*DISCD*MAG SWITCH TECO HUF-11K
Price
N/A
324-1
*DISCD*REAR MAG SWITCH COVER
Price
N/A
324-2
*DISCD*CONTACTOR TECO CU-11 220V
Price
N/A
324-3
*DISCD*OL RELAY TECO RHU-10 11.3-16A
Price
N/A
324-4
*DISCD*FRONT MAG SWITCH COVER
Price
N/A
324-5
*DISCD*PLASTIC SCREW M12 X 25
Price
N/A
324-6
PHLP HD SCR M4-.7 X 40
Price
N/A
325
*DISCD*MOTOR CORD 12G 3W 37"
Price
N/A
326
*DISCD*STRAIN RELIEF M22 TYPE-6 ST
Price
N/A
327
*DISCD*POWER CORD 12G 3W 98" 6-20P
Price
N/A
328
*DISCD*STAND BASE
Price
N/A
329
E-CLIP 9MM
Price
N/A
330
FLAT WASHER 12MM
Price
N/A
331
*DISCD*FOOT PEDAL ASSY
Price
N/A
332
*DISCD*FOOT PEDAL ASSY
Price
N/A
333
LOCK NUT M8-1.25
Price
N/A
334
CAP SCREW M8-1.25 X 50
Price
N/A
335
*DISCD*FOOT PEDAL ASSY
Price
N/A
336
LOCK NUT M10-1.5
Price
N/A
337
*DISCD*FOOT PEDAL ASSY
Price
N/A
338
INT RETAINING RING 35MM
Price
N/A
339
BALL BEARING 6202-2RS
Price
N/A
340
*DISCD*FOOT PEDAL ASSY
Price
N/A
341
CAP SCREW M10-1.5 X 70
Price
N/A
342
*DISCD*FOOT PEDAL ASSY
Price
N/A
343
CAP SCREW M8-1.25 X 100
Price
N/A
344
*DISCD*RUBBER FOOT M8-1.25 X 16
Price
N/A
345
HEX NUT M8-1.25
Price
N/A
346
FLANGE NUT M6-1
Price
N/A
347
HEX BOLT M8-1.25 X 50
Price
N/A
348
*DISCD*REAR WHEEL SLEEVE
Price
N/A
349
*DISCD*REAR WHEEL
Price
N/A
401
*DISCD*MACHINE ID LABEL V1
Item is no longer available
Price
N/A
401V2
*DISCD*MACHINE ID LABEL V2.04.16
Item is no longer available
Price
N/A
402
*DISCD*CUTTERHEAD WARNING LABEL
Price
N/A
403
*DISCD*FENCE WARNING LABEL
Price
N/A
404
ELECTRICITY 1.4W X 1.2H
Price
N/A
405
*DISCD*CONTROL PANEL LABEL
Price
N/A
406
EYE/EAR/LUNG 2W X 3.3H
Price
N/A
407
DISCONNECT 110V 2W X 3.3H
Price
N/A
408
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
409
MODEL NUMBER LABEL
Price
$16.40
410
Nameplate - Small
Price
N/A
411
N/S GRIZZLY GREEN G1023S
Price
N/A
412
BEIGE REF G0555
Price
N/A
413
Nameplate - Small
Price
N/A
MAN
MANUAL G0490W G0490XW MFD-10.15-08.16 V1
Price
