Parts for G0500 8" x 75" Jointer w/ 4 Blade Cutterhead

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*BASE
Price
N/A
2
INFEED TABLE
Item is no longer available
Price
N/A
3
OUTFEED TABLE
Item is no longer available
Price
N/A
4
LOCK HANDLE
Price
N/A
5
FENCE SUPPORT
Price
N/A
6
CAP SCREW 3/8-16 X 1-1/2
Price
N/A
7
Now: PW02
FLAT WASHER 3/8
Price
N/A
8
KEY 9.5 X 9.5 X 268
Price
N/A
9
ROLL PIN 4 X 14
Price
N/A
10
*DISCD*FEED SCREW BRACKET
Price
N/A
11
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
12
Now: PLW04
LOCK WASHER 3/8
Price
N/A
13
*DISCD*BRACKET
Price
N/A
15
Now: PLW07
LOCK WASHER 1/2
Price
N/A
16
*DISCD*HANDWHEEL SHAFT
Price
N/A
17
*DISCD*RING
Price
N/A
18
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
19
*DISCD*HANDWHEEL
Price
N/A
20
*DISCD*HANDLE
Price
N/A
21
Now: PS38
PHLP HD SCR 5/16-18 X 1/2
Price
N/A
22
Now: PW07
FLAT WASHER 5/16
Price
N/A
23
Now: PK21M
KEY 5 X 5 X 23
Price
N/A
24
GIB
Price
N/A
25
Now: PSS01
SET SCREW 5/16-18 X 1
Price
N/A
26
Now: PN02
HEX NUT 5/16-18
Price
N/A
27
BALL 6MM
Price
N/A
28
GUARD LOCK HANDLE
Price
N/A
29
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
30
SCALE
Price
N/A
31
Now: PS41
PHLP HD SCR 6-32 X 1/4
Price
N/A
32
POINTER
Price
N/A
33
STUD M14-18 X 78 10
Price
N/A
34
BELT GUARD
Price
N/A
35
*DISCD*KNOB
Price
N/A
37
PIVOT SHAFT
Price
N/A
38
CUTTERHEAD GUARD
Price
N/A
39
SPRING HELICAL 1.8 X 18.7
Price
N/A
40
Now: PR48M
EXT RETAINING RING 11MM
Price
N/A
41
ROLL PIN 5 X 28
Price
N/A
42
ROLL PIN 6 X 36
Price
N/A
44
CUTTERHEAD GUARD LABEL 4.1W X 2.2H
Price
N/A
50
METAL NAME PLATE
Item is no longer available
Price
N/A
51
USE PUSH BLOCKS LABEL
Price
N/A
54
RABBET LEDGE
Price
N/A
55
*DISCD*HANDWHEEL ASSY
Price
N/A
56
OUTFEED EXTENSION
57
INFEED EXTENSION
58
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
59
Now: PW07
FLAT WASHER 5/16
Price
N/A

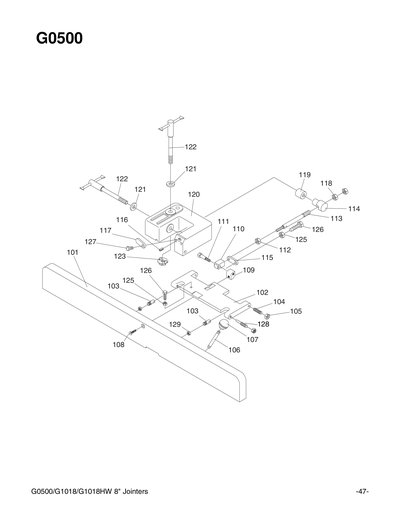

101
FENCE
Price
N/A
102
FENCE HINGE
Price
N/A
103
STANDOFF-HEX MF
Price
N/A
104
FENCE HINGE SCREW
Price
N/A
105
Now: PN08
HEX NUT 3/8-16
Price
N/A
106
TILT LEVER
Price
N/A
107
KNOB
Price
N/A
108
FENCE SCREW
Price
N/A
109
FENCE BRACKET
Price
N/A
110
FENCE STOP BRACKET
Price
N/A
111
FENCE BRACKET HEX HD BOLT 5/16-18
Price
N/A
112
Now: PN10
HEX NUT 7/16-20
Price
N/A
113
FENCE ADJ ROD
Price
N/A
114
FENCE TILT CLAMP
Price
N/A
115
STOP TAB 90DEG
Price
N/A
116
ROLL PIN 4 X 12
Price
N/A
117
STOP TAB
Price
N/A
118
Now: PN09
HEX NUT 5/8-18
Price
N/A
119
FENCE TILT SLEEVE
Price
N/A
120
FENCE BASE V2.03.03
Price
N/A
121
Now: PW01
FLAT WASHER 1/2
Price
N/A
122
*DISCD*LOCK SCREW 1/2-12
Price
N/A
123
FENCE BASE NUT 1/2-12
Price
N/A
125
Now: PN02
HEX NUT 5/16-18
Price
N/A
126
Now: PB22
HEX BOLT 5/16-18 X 1-3/4
Price
N/A
127
FENCE BASE BOLT 5/16-18
Price
N/A
128
FENCE HINGE SET SCREW
Price
N/A
129
Now: PN01
HEX NUT 1/2-20
Price
N/A

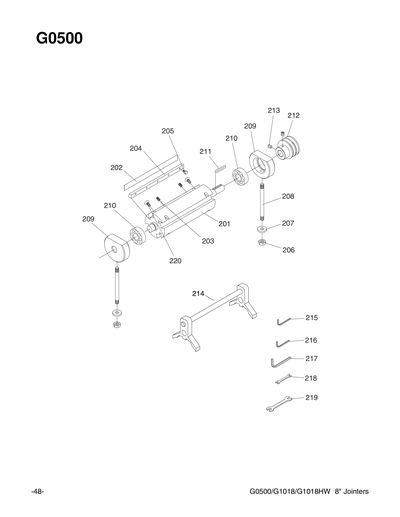

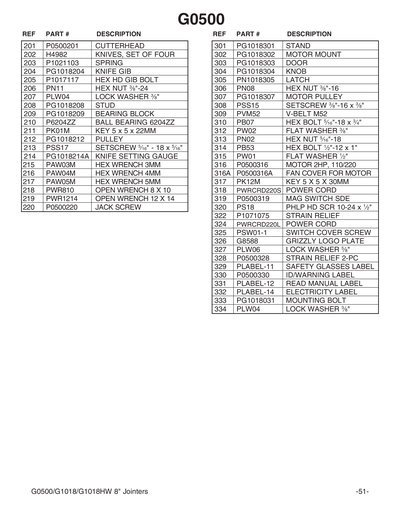

201
CUTTERHEAD
Item is no longer available
Price
N/A
202
Now: H4982
8" x 3/4" x 1/8" HSS Jointer Knives, Set of 4
Price
N/A
203
COMPRESSION SPRING 0.6 X 5.9 X 16
Price
N/A
204
KNIFE GIB 8"
Price
N/A
205
HEX HD GIB BOLT 1/4-28 X 7
Price
N/A
206
Now: PN11
HEX NUT 3/8-24
Price
N/A
207
Now: PLW04
LOCK WASHER 3/8
Price
N/A
208
STUD-DE 3/8-24 X 4-3/4 1/2RH
Price
N/A
209
BEARING BLOCK
Price
N/A
210
BALL BEARING 6204ZZ
Price
N/A
211
Now: PK01M
KEY 5 X 5 X 22
Price
N/A
212
PULLEY 3/4ID
Price
N/A
213
Now: PSS17
SET SCREW 5/16-18 X 5/16
Price
N/A
214
KNIFE GAUGE ASSY V2.01.03
Price
N/A
215
HEX WRENCH 3MM
Price
N/A
216
HEX WRENCH 4MM
Price
N/A
217
HEX WRENCH 5MM
Price
N/A
218
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
219
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
220
JACK SCREW M5-.8 X 12

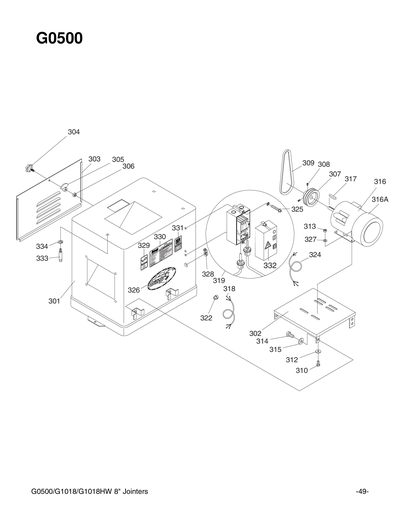

301
CABINET
Price
N/A
301A
CABINET STAND ASSY W/MOTOR 2HP 110V/220V
302
MOTOR MOUNT
Price
N/A
303
DOOR
Price
N/A
304
KNOB
Price
N/A
305
LATCH
Price
N/A
306
Now: PN08
HEX NUT 3/8-16
Price
N/A
307
MOTOR PULLEY
Price
N/A
308
Now: PSS15
SET SCREW 3/8-16 X 3/8
Price
N/A
309
Now: PVM52
V-BELT M52 3L520
Price
N/A
310
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
312
Now: PW02
FLAT WASHER 3/8
Price
N/A
313
Now: PN02
HEX NUT 5/16-18
Price
N/A
314
Now: PB53
HEX BOLT 1/2-12 X 1
Price
N/A
315
Now: PW01
FLAT WASHER 1/2
Price
N/A
316
*DISCD*MOTOR 2HP 110V/220V 1-PH
Item is no longer available
Price
N/A
316A
FAN COVER FOR MOTOR
Item is no longer available
Price
N/A
317
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
318
POWER CORD 12G X 3W 36"L
Price
N/A
319
Now: G4572
Magnetic Switch, Single-Phase, 220V Only, 2 HP
Price
N/A
320
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
322
STRAIN RELIEF M15 TYPE-2
Price
N/A
324
POWER CORD 12G X 3W 86"L
Price
N/A
325
WHITE SWITCH COVER SCREW V1.12.95
Price
N/A
326
Now: G8588
Nameplate - Small
Price
N/A
327
Now: PLW06
LOCK WASHER 5/8
Price
N/A
328
STRAIN RELIEF M14 TYPE-6 ST
Item is no longer available
Price
N/A
329
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
330
ID/WARNING LABEL
331
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
332
ELECTRICITY 1.4W X 1.2H
Price
N/A
333
BASE MOUNTING BOLT
Price
N/A
334
Now: PLW04
LOCK WASHER 3/8
Price
N/A
335
HARDWARE BAG #1
Item is no longer available
Price
N/A
336
HARDWARE BAG #2
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G0500 05/03
