Parts for G0503 - 12" 20 HP Horizontal Resaw Bandsaw

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty

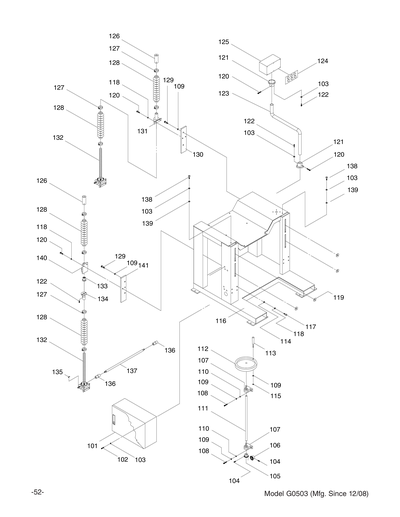

35 P0503035
Replaced By PS06
PHLP HD SCR 10-24 X 3/8
N/A View Replacement
1000 P05031000 TOOL BOX $24.75
101 P0503101 ELECTRIC BOX $1,400.75
102 P0503102
Replaced By PCAP11M
CAP SCREW M8-1.25 X 16
N/A View Replacement
103 P0503103
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
104 P0503104
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
105 P0503105 GEAR WHEEL 25T X M2.5 $47.25
106 P0503106 GEAR WHEEL 25T X M2.5 $47.25
107 P0503107
Replaced By PUCP205
PILLOW BLOCK BEARING UCP205
N/A View Replacement
108 P0503108
Replaced By PCAP36M
CAP SCREW M12-1.75 X 25
N/A View Replacement
109 P0503109
Replaced By PLW05M
LOCK WASHER 12MM
N/A View Replacement
110 P0503110
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
111 P0503111 CONNECT ROD $6.50
112 P0503112 HANDWHEEL $112.00
113 P0503113 HANDLE M12-1.75 X 20 $33.75
114 P0503114
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
115 P0503115
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
116 P0503116 FRAME $761.25
116-1 P0503116-1 BLADE ELEVATION GAUGE $5.25
117 P0503117
Replaced By PB01M
HEX BOLT M10-1.5 X 30
N/A View Replacement
118 P0503118
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
119 P0503119 FLAT WASHER 12MM PLASTIC $1.00
120 P0503120
Replaced By PCAP64M
CAP SCREW M10-1.5 X 25
N/A View Replacement
121 P0503121 CONTROL PANEL BRACKET $103.00
122 P0503122
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
123 P0503123 CONTROL PANEL SUPPORT $170.75
124 P0503124 CONTROL PANEL $33.75
125 P0503125 CONTROL BOX $269.75
125-1 P0503125-1 COVER & CABLES $160.00
126 P0503126 SLIP SLEEVE SET ROD $17.00
127 P0503127 CLAMP $1.00
128 P0503128 DUST GUARD BELLOW PL040340 $39.50
129 P0503129
Replaced By PCAP92M
CAP SCREW M12-1.75 X 40
N/A View Replacement
130 P0503130 PLATE $78.50
131 P0503131 SCREW BASE $105.00
132 P0503132 WORM GEAR $819.25
133 P0503133 ADJUSTING NUT M25 X 5 $55.25
134 P0503134 FIXED SCREW BASE $18.00
135 P0503135
Replaced By PK33M
KEY 5 X 5 X 45
N/A View Replacement
136 P0503136 SHAFT COUPLING $93.50
137 P0503137 CONNECTOR ROD $84.25
138 P0503138
Replaced By PB09M
HEX BOLT M8-1.25 X 20
N/A View Replacement
139 P0503139
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
140 P0503140 BRACKET $103.00
141 P0503141 PLATE $99.50
142 P0503142
Replaced By PUCP205
PILLOW BLOCK BEARING UCP205
N/A View Replacement
143 P0503143
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
144 P0503144
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
145 P0503145
Replaced By P0503111
CONNECT ROD
N/A View Replacement
146 P0503146
Replaced By P0503105
GEAR WHEEL 25T X M2.5
N/A View Replacement
147 P0503147
Replaced By P0503126
SLIP SLEEVE SET ROD
N/A View Replacement
148 P0503148
Replaced By P0503128
DUST GUARD BELLOW PL040340
N/A View Replacement
149 P0503149
Replaced By PCAP92M
CAP SCREW M12-1.75 X 40
N/A View Replacement
150 P0503150
Replaced By PLW05M
LOCK WASHER 12MM
N/A View Replacement
151 P0503151
Replaced By P0503141
PLATE
N/A View Replacement
152 P0503152
Replaced By P0503121
CONTROL PANEL BRACKET
N/A View Replacement
153 P0503153
Replaced By P0503130
PLATE
N/A View Replacement
154 P0503154
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
155 P0503155
Replaced By P0503121
CONTROL PANEL BRACKET
N/A View Replacement
156 P0503156
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
157 P0503157
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
158 P0503158
Replaced By PB01M
HEX BOLT M10-1.5 X 30
N/A View Replacement
159 P0503159
Replaced By P0503136
SHAFT COUPLING
N/A View Replacement
160 P0503160
Replaced By P0503137
CONNECTOR ROD
N/A View Replacement
161 P0503161
Replaced By P0503136
SHAFT COUPLING
N/A View Replacement
162 P0503162
Replaced By P0503132
WORM GEAR
N/A View Replacement
163 P0503163
Replaced By P0503132
WORM GEAR
N/A View Replacement
164 P0503164
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
165 P0503165
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
166 P0503166
Replaced By P0503137
CONNECTOR ROD
N/A View Replacement
167 P0503167
Replaced By PK33M
KEY 5 X 5 X 45
N/A View Replacement
168 P0503168
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
169 P0503169
Replaced By PCAP92M
CAP SCREW M12-1.75 X 40
N/A View Replacement

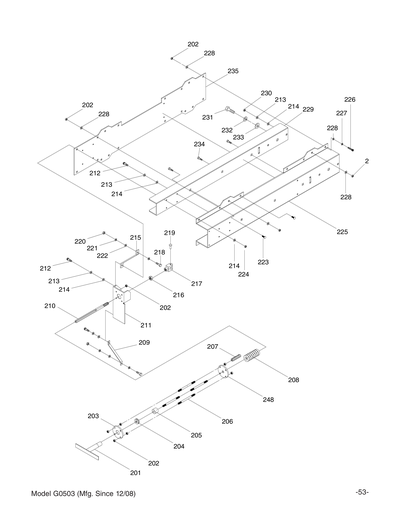

201 P0503201 TENSION HANDLE M10-1.5 $84.00
202 P0503202
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
203 P0503203 PLATE $30.00
204 P0503204
Replaced By P51204
THRUST BEARING 51204
N/A View Replacement
205 P0503205 LOCK COLLAR $11.25
206 P0503206 STUD-FT M10-1.5 X 200 $3.00
207 P0503207 PLASTIC SLEEVE SPACER 3/8" X 2-3/4" $17.75
208 P0503208 COMPRESSION SPR TB-60-090 $197.75
209 P0503209 FRAME SUPPORT SHAFT A $33.75
210 P0503210 SAW BLADE TENSION ROD $37.50
211 P0503211 PRESSURE BAR BRACKET $67.25
212 P0503212
Replaced By PCAP77M
CAP SCREW M12-1.75 X 30
N/A View Replacement
213 P0503213
Replaced By PLW05M
LOCK WASHER 12MM
N/A View Replacement
214 P0503214
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
215 P0503215 FRAME SUPPORT SHAFT B $33.75
216 P0503216 PRESSURE BAR NUT M18-1.5 $3.00
217 P0503217
Replaced By P0503217A
ROD END CLEVIS ASSEMBLY
N/A View Replacement
217A P0503217A ROD END CLEVIS ASSEMBLY $45.00
218 P0503218
Replaced By PB07M
HEX BOLT M8-1.25 X 25
N/A View Replacement
219 P0503219
Replaced By P0503217A
ROD END CLEVIS ASSEMBLY
N/A View Replacement
220 P0503220
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
221 P0503221
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
222 P0503222
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
223 P0503223
Replaced By PCB14M
CARRIAGE BOLT M10-1.5 X 30
N/A View Replacement
224 P0503224
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
225 P0503225 BEAM $293.25
226 P0503226
Replaced By PCAP72M
CAP SCREW M10-1.5 X 30
N/A View Replacement
227 P0503227
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
228 P0503228
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
229 P0503229 BEAM SUPPORT BAR $121.50
230 P0503230
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
231 P0503231
Replaced By PB63
HEX BOLT 3/4-10 X 3
N/A View Replacement
232 P0503232
Replaced By PLW10
LOCK WASHER 3/4
N/A View Replacement
233 P0503233
Replaced By PW13
FLAT WASHER 3/4
N/A View Replacement
234 P0503234
Replaced By PCB21M
CARRIAGE BOLT M12-1.75 X 40
N/A View Replacement
235 P0503235 BEAM PLATE $140.25
236 P0503236
Replaced By P0503308
HINGE UPPER
N/A View Replacement
237 P0503237
Replaced By PB08M
HEX BOLT M6-1 X 20
N/A View Replacement
238 P0503238
Replaced By P0503323
DOOR LOWER GUARD
N/A View Replacement
239 P0503239
Replaced By P0503304
HINGE LOWER
N/A View Replacement
240 P0503240
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
241 P0503241
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
242 P0503242
Replaced By P0503322
DOOR LEFT
N/A View Replacement
243 P0503243
Replaced By P0503304
HINGE LOWER
N/A View Replacement
244 P0503244
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
245 P0503245
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
246 P0503246
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
247 P0503247
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement

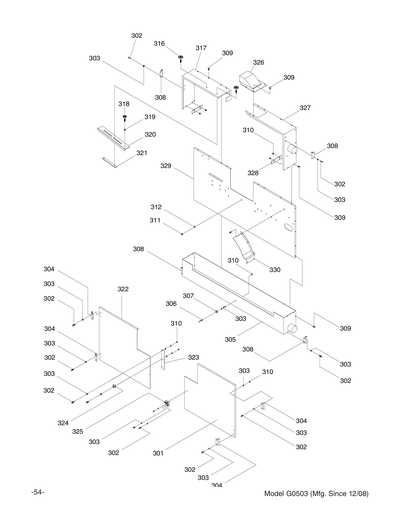

301 P0503301 DOOR RIGHT $121.50
302 P0503302
Replaced By PB08M
HEX BOLT M6-1 X 20
N/A View Replacement
303 P0503303
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
304 P0503304 HINGE LOWER $17.25
305 P0503305 BOTTOM COVER $170.75
306 P0503306
Replaced By PFH02M
FLAT HD SCR M6-1 X 12
N/A View Replacement
307 P0503307 MAGNET $14.00
308 P0503308 HINGE UPPER $4.25
309 P0503309
Replaced By PCB22M
CARRIAGE BOLT M6-1 X 16
N/A View Replacement
310 P0503310
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
311 P0503311
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
312 P0503312
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
313 P0503313 BOTTOM PLATE $242.75
314 P0503314 CONNECT PLATE $1.00
315 P0503315 COVER RIGHT UPPER $84.25
316 P0503316 STAR KNOB M10-1.5 X 25 $3.00
317 P0503317 COVER UPPER LEFT $74.75
318 P0503318 STAR KNOB M8-1.25 X 20 $19.50
319 P0503319
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
320 P0503320 SAFETY PLATE $56.00
321 P0503321 SAFETY PLATE SUPPORT $13.25
322 P0503322 DOOR LEFT $121.50
323 P0503323 DOOR LOWER GUARD $3.00
324 P0503324 LATCH SET $44.75
325 P0503325 LATCH $27.00
327 P0503327 COVER RIGHT UPPER $153.75
328 P0503328 CONNECTOR PLATE $5.25
329 P0503329 BOTTOM PLATE $256.75
330 P0503330 DUST GUIDE PLATE $110.75
332 P0503332
Replaced By PCB22M
CARRIAGE BOLT M6-1 X 16
N/A View Replacement
333 P0503333
*DISCD*FLAT WASHER M6
Item is no longer available
N/A

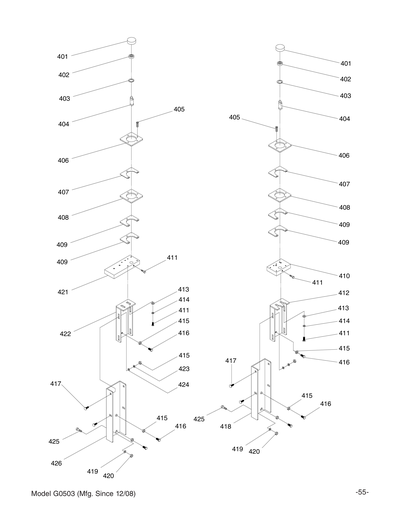

401 P0503401 SUPPORT ROLLER $60.00
401A P0503401A SUPPORT ROLLER W/ECCENTRIC SHAFT ASSY $97.50
402 P0503402
Replaced By P6200ZZ
BALL BEARING 6200ZZ
N/A View Replacement
403 P0503403
Replaced By PR35M
INT RETAINING RING 30MM
N/A View Replacement
404 P0503404 ECCENTRIC SHAFT $28.50
405 P0503405
Replaced By PFH12M
FLAT HD SCR M6-1 X 25
N/A View Replacement
406 P0503406 SAW GUARD 1 $66.00
407 P0503407 SPACER $14.00
408 P0503408 SAW GUARD C $54.00
409 P0503409 SPACER LOWER $15.00
410 P0503410 BLADE GUIDE RIGHT SUPPORT $84.25
411 P0503411
Replaced By PB07M
HEX BOLT M8-1.25 X 25
N/A View Replacement
412 P0503412 BLADE GUIDE RIGHT BRACKET $72.00
413 P0503413
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
414 P0503414
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
415 P0503415
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
416 P0503416
Replaced By PB32M
HEX BOLT M10-1.5 X 25
N/A View Replacement
417 P0503417
Replaced By PCB09M
CARRIAGE BOLT M10-1.5 X 25
N/A View Replacement
418 P0503418 BLADE GUIDE RIGHT ADJ $54.00
419 P0503419
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
420 P0503420
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
421 P0503421 BLADE GUARD LEFT SUPPORT $60.00
422 P0503422 BLADE GUIDE LEFT BRACKET $84.25
423 P0503423
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
424 P0503424
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
425 P0503425
Replaced By PCB21M
CARRIAGE BOLT M12-1.75 X 40
N/A View Replacement
426 P0503426 BLADE GUIDE LEFT ADJUSTER $54.00
427 P0503427
Replaced By PCAP92M
CAP SCREW M12-1.75 X 40
N/A View Replacement
428 P0503428
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
429 P0503429
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
430 P0503430
Replaced By PB82M
HEX BOLT M8-1.25 X 80
N/A View Replacement
431 P0503431
Replaced By P0503523
SCRAPER BRACKET A
N/A View Replacement
432 P0503432
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
433 P0503433
Replaced By P0503522
SCRAPE
N/A View Replacement
434 P0503434
Replaced By PW13
FLAT WASHER 3/4
N/A View Replacement
435 P0503435
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
436 P0503436
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
437 P0503437
Replaced By PW13
FLAT WASHER 3/4
N/A View Replacement
438 P0503438
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
439 P0503439
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
440 P0503440
Replaced By P0503526
FIX SCRAPE
N/A View Replacement
441 P0503441
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
442 P0503442
Replaced By P0503523
SCRAPER BRACKET A
N/A View Replacement
443 P0503443
Replaced By P0503522
SCRAPE
N/A View Replacement
444 P0503444
Replaced By PB82M
HEX BOLT M8-1.25 X 80
N/A View Replacement
445 P0503445
Replaced By P0503524
SCRAPER BRACKET B
N/A View Replacement
446 P0503446
Replaced By PCAP92M
CAP SCREW M12-1.75 X 40
N/A View Replacement
447 P0503447
Replaced By PLW05M
LOCK WASHER 12MM
N/A View Replacement
448 P0503448
Replaced By PB33M
HEX BOLT M12-1.75 X 50
N/A View Replacement
449 P0503449
Replaced By PW13
FLAT WASHER 3/4
N/A View Replacement
450 P0503450
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
451 P0503451
Replaced By PB33M
HEX BOLT M12-1.75 X 50
N/A View Replacement
452 P0503452
Replaced By P0503605
STUD M12-1.75 X 110
N/A View Replacement
453 P0503453
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
454 P0503454
Replaced By PW13
FLAT WASHER 3/4
N/A View Replacement
455 P0503455
Replaced By PW13
FLAT WASHER 3/4
N/A View Replacement
456 P0503456
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
457 P0503457
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
458 P0503458
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
459 P0503459
Replaced By PR98M
INT RETAINING RING 90MM
N/A View Replacement

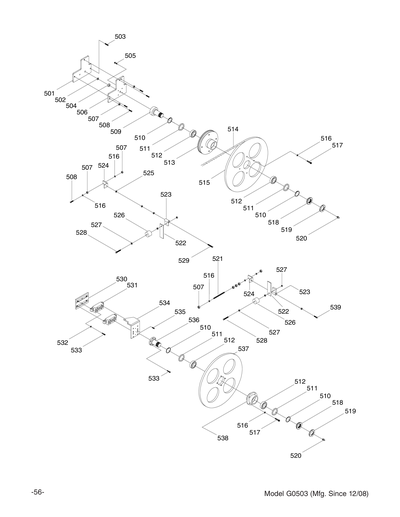

501 P0503501 WHEEL ADJUSTMENT LOWER PLATE $103.00
502 P0503502
Replaced By PW13M
FLAT WASHER 20MM
N/A View Replacement
503 P0503503
Replaced By PB27M
HEX BOLT M12-1.75 X 30
N/A View Replacement
504 P0503504 WHEEL ADJUSTMENT PIECE $39.50
505 P0503505
Replaced By PCAP72M
CAP SCREW M10-1.5 X 30
N/A View Replacement
506 P0503506 WHEEL ADJUSTMENT UPPER PLATE $103.00
507 P0503507
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
508 P0503508
Replaced By PB33M
HEX BOLT M12-1.75 X 50
N/A View Replacement
509 P0503509 WHEEL SHAFT RIGHT $242.75
510 P0503510
Replaced By PR98M
INT RETAINING RING 90MM
N/A View Replacement
511 P0503511 SEAL 70 X 90 X 8 $6.00
512 P0503512 TAPERED ROLLER BEARING 30211 $54.50
513 P0503513 DRIVE PULLEY $360.00
514 P0503514 SAW BLADE $125.00
515 P0503515 DRIVE WHEEL $1,147.25
516 P0503516
Replaced By PLW05M
LOCK WASHER 12MM
N/A View Replacement
517 P0503517
Replaced By PCAP92M
CAP SCREW M12-1.75 X 40
N/A View Replacement
518 P0503518 WHEEL SHAFT NUT 70 X 55 X 22 $20.75
519 P0503519 LOCK NUT M55-2 $12.00
520 P0503520 GREASE FITTING $1.00
521 P0503521 STUD-FT M12-1.75 X 200 $17.00
522 P0503522 SCRAPE $4.50
523 P0503523 SCRAPER BRACKET A $7.00
524 P0503524 SCRAPER BRACKET B $5.25
525 P0503525
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
526 P0503526 FIX SCRAPE $10.50
527 P0503527
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
528 P0503528
Replaced By PB82M
HEX BOLT M8-1.25 X 80
N/A View Replacement
529 P0503529
Replaced By PB13M
HEX BOLT M10-1.5 X 80
N/A View Replacement

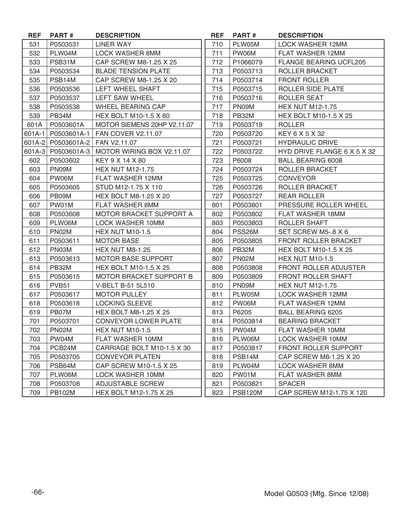

530 P0503530 LINER GUIDE $224.50
531 P0503531 LINER WAY $516.25
532 P0503532
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
533 P0503533
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
534 P0503534 BLADE TENSION PLATE $65.25
535 P0503535
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
536 P0503536 WHEEL SHAFT LEFT $215.50
537 P0503537 SAW WHEEL LEFT $1,147.25
538 P0503538 WHEEL BEARING CAP $159.00
539 P0503539
Replaced By PB34M
HEX BOLT M10-1.5 X 60
N/A View Replacement
540 P0503540
Replaced By PB32M
HEX BOLT M10-1.5 X 25
N/A View Replacement
541 P0503541
Replaced By PB34M
HEX BOLT M10-1.5 X 60
N/A View Replacement
542 P0503542
Replaced By PB27M
HEX BOLT M12-1.75 X 30
N/A View Replacement
543 P0503543
Replaced By P0503615
MOTOR BRACKET SUPPORT B
N/A View Replacement
544 P0503544
Replaced By P0503726
ROLLER BRACKET
N/A View Replacement
545 P0503545
Replaced By PCAP64M
CAP SCREW M10-1.5 X 25
N/A View Replacement
546 P0503546
Replaced By P0503726
ROLLER BRACKET
N/A View Replacement
547 P0503547
Replaced By P0503726
ROLLER BRACKET
N/A View Replacement
548 P0503548
Replaced By PUCP205
PILLOW BLOCK BEARING UCP205
N/A View Replacement
549 P0503549
Replaced By P0503827
LOCK COLLAR A
N/A View Replacement
550 P0503550
Replaced By P0503801
PRESSURE ROLLER WHEEL
N/A View Replacement
551 P0503551
Replaced By P0503825
ROLLER ARM SHAFT REAR
N/A View Replacement
552 P0503552
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
553 P0503553
Replaced By P0503829
LOCK COLLAR B
N/A View Replacement
554 P0503554
Replaced By P0503825
ROLLER ARM SHAFT REAR
N/A View Replacement
555 P0503555
Replaced By P0503725
CONVEYOR
N/A View Replacement
556 P0503556
Replaced By P0503726
ROLLER BRACKET
N/A View Replacement
557 P0503557
Replaced By PB32M
HEX BOLT M10-1.5 X 25
N/A View Replacement
558 P0503558
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
559 P0503559
Replaced By PUCP205
PILLOW BLOCK BEARING UCP205
N/A View Replacement
560 P0503560
Replaced By P0503724
ROLLER BRACKET
N/A View Replacement
561 P0503561
Replaced By PB25M
HEX BOLT M12-1.75 X 25
N/A View Replacement
562 P0503562
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
563 P0503563
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
564 P0503564
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
565 P0503565
Replaced By PCB21M
CARRIAGE BOLT M12-1.75 X 40
N/A View Replacement
566 P0503566
Replaced By P0503705
CONVEYOR PLATEN
N/A View Replacement
567 P0503567
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
568 P0503568
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
569 P0503569
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement

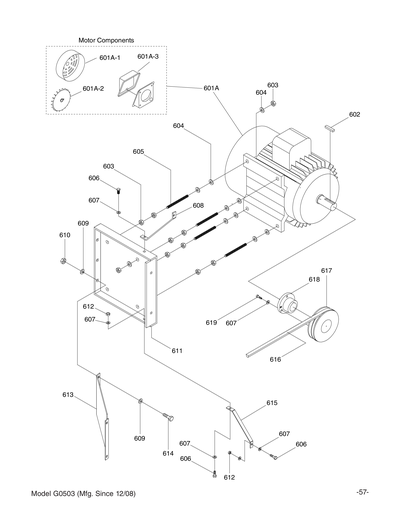

601 P0503601 MOTOR 20HP 220V/440V 3-PH V1 $1,700.00
601-1 P0503601-1
*DISCD*FAN COVER V1
Item is no longer available
N/A
601-2 P0503601-2
*DISCD*FAN V1
Item is no longer available
N/A
601-3 P0503601-3
*DISCD*MOTOR WIRING BOX V1
Item is no longer available
N/A
601A P0503601A MOTOR SIEMENS 20HP V2.11.07 $1,160.00
601A-1 P0503601A-1 FAN COVER V2.11.07 $66.25
601A-2 P0503601A-2 FAN V2.11.07 $77.75
601A-3 P0503601A-3 MOTOR WIRING BOX V2.11.07 $25.75
602 P0503602 KEY 9 X 14 X 80 $5.25
603 P0503603
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
604 P0503604
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
605 P0503605 STUD M12-1.75 X 110 $1.25
606 P0503606
Replaced By PB09M
HEX BOLT M8-1.25 X 20
N/A View Replacement
607 P0503607
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
608 P0503608 MOTOR BRACKET SUPPORT A $25.75
609 P0503609
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
610 P0503610
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
611 P0503611 MOTOR BASE $120.25
612 P0503612
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
613 P0503613 MOTOR BASE SUPPORT $36.00
614 P0503614
Replaced By PB32M
HEX BOLT M10-1.5 X 25
N/A View Replacement
615 P0503615 MOTOR BRACKET SUPPORT B $25.75
616 P0503616
Replaced By PVB51
V-BELT B51
N/A View Replacement
617 P0503617 MOTOR PULLEY $180.00
618 P0503618 LOCK SLEEVE $134.75
619 P0503619
Replaced By PB07M
HEX BOLT M8-1.25 X 25
N/A View Replacement

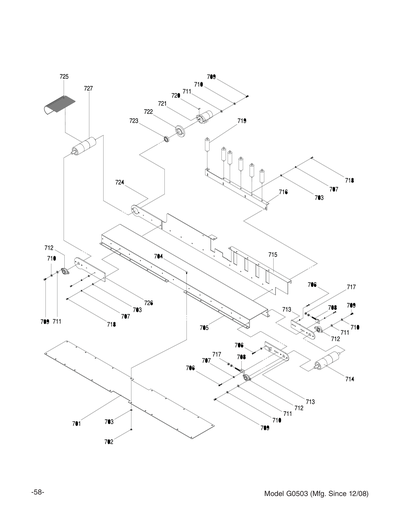

700A P0503700A COMPLETE CONVEYOR ASSY BOX 2 $3,450.00
701 P0503701 CONVEYOR LOWER PLATE $258.75
702 P0503702
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
703 P0503703
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
704 P0503704
Replaced By PCB14M
CARRIAGE BOLT M10-1.5 X 30
N/A View Replacement
705 P0503705 CONVEYOR PLATEN $414.00
706 P0503706
Replaced By PCAP64M
CAP SCREW M10-1.5 X 25
N/A View Replacement
707 P0503707
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
708 P0503708 ADJUST SCREW M12-1.75 X 90 $18.75
709 P0503709
Replaced By PB25M
HEX BOLT M12-1.75 X 25
N/A View Replacement
710 P0503710
Replaced By PLW05M
LOCK WASHER 12MM
N/A View Replacement
711 P0503711
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
712 P0503712
Replaced By PUCP205
PILLOW BLOCK BEARING UCP205
N/A View Replacement
713 P0503713 ROLLER BRACKET $61.75
714 P0503714 ROLLER FRONT $242.75
715 P0503715 ROLLER SIDE PLATE $269.75
716 P0503716 ROLLER SEAT $67.25
717 P0503717
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
718 P0503718
Replaced By PB32M
HEX BOLT M10-1.5 X 25
N/A View Replacement
719 P0503719 ROLLER $28.25
720 P0503720 KEY 6 X 5 X 32 $5.25
721 P0503721
Replaced By P0503B56
CONVEYOR HYDRAULIC MOTOR V1
N/A View Replacement
722 P0503722 HYDRAULIC DRIVE FLANGE 6 X 5 X 32 $84.25
723 P0503723
Replaced By P6008ZZ
BALL BEARING 6008ZZ
N/A View Replacement
724 P0503724 ROLLER BRACKET $79.75
725 P0503725 CONVEYOR $819.25
726 P0503726 ROLLER BRACKET $74.75
727 P0503727 REAR ROLLER $570.00

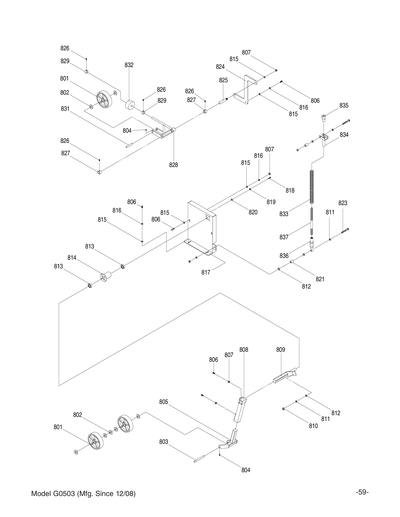

801 P0503801 PRESSURE ROLLER WHEEL $75.00
802 P0503802
Replaced By PW18M
FLAT WASHER 18MM
N/A View Replacement
803 P0503803 ROLLER SHAFT $19.50
804 P0503804
Replaced By PCAP68M
CAP SCREW M6-1 X 8
N/A View Replacement
805 P0503805 ROLLER FRONT BRACKET $140.25
806 P0503806
Replaced By PB32M
HEX BOLT M10-1.5 X 25
N/A View Replacement
807 P0503807
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
808 P0503808 ROLLER FRONT ADJUSTER $84.25
809 P0503809 ROLLER SHAFT FRONT $112.00
810 P0503810
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
811 P0503811
Replaced By PLW05M
LOCK WASHER 12MM
N/A View Replacement
812 P0503812
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
813 P0503813
Replaced By P6205ZZ
BALL BEARING 6205ZZ
N/A View Replacement
814 P0503814 BEARING BRACKET $179.75
815 P0503815
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
816 P0503816
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
817 P0503817 ROLLER SUPPORT FRONT $161.75
818 P0503818
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
819 P0503819
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
820 P0503820
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
821 P0503821 SPACER $15.00
822 P0503822 SHOCK ABSORBER $117.75
823 P0503823
Replaced By PCAP120M
CAP SCREW M12-1.75 X 120
N/A View Replacement
824 P0503824 ROLLER ARM BRACKET REAR $179.75
825 P0503825 ROLLER ARM SHAFT REAR $30.00
826 P0503826
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
827 P0503827 LOCK COLLAR A $15.00
828 P0503828 ROLLER BRACKET REAR $82.50
829 P0503829 LOCK COLLAR B $13.25
830 P0503830 FIX REAR PRESSURE ROLLER BRACKET $50.50
831 P0503831 ROLLER SHAFT REAR $5.75
832 P0503832 COUNTERWEIGHT $69.50
833 P0503833 COMPRESSION SPRING $11.50
834 P0503834 UPPER BRACKET $54.00
835 P0503835 NUT UPPER $23.75
836 P0503836 ADJUST NUT LOWER $32.75
837 P0503837 SHOCK SCREW $30.00

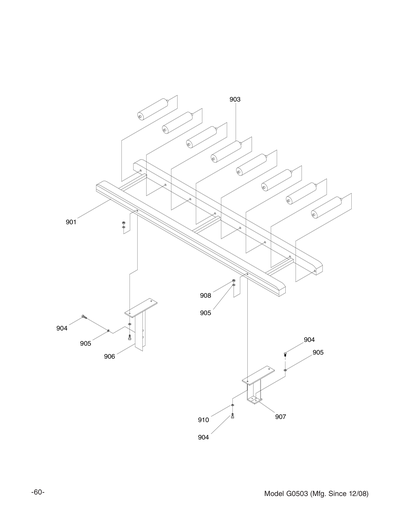

901 P0503901 RETURN CONVEYOR FRAME $1,081.50
902 P0503902 ROUND SHAFT $1.00
903 P0503903 ROLLER $61.00
904 P0503904
Replaced By PB27M
HEX BOLT M12-1.75 X 30
N/A View Replacement
905 P0503905
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
906 P0503906 CONVEYOR SUPPORT BRACKET $99.00
907 P0503907 CONVEYOR SUPPORT BRACKET $99.00
908 P0503908
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
909 P0503909
*DISCD*CONVERSION KIT 440V 23/32A V1.12.
Item is no longer available
N/A
909-1 P0503909-1
*DISCD*CONVERSION KIT 440V V2.02.07
Item is no longer available
N/A
909V3 P0503909V3 440V CONVERSION KIT FOR G0503 V3.08.14 $156.00
910 P0503910
Replaced By PLW05M
LOCK WASHER 12MM
N/A View Replacement

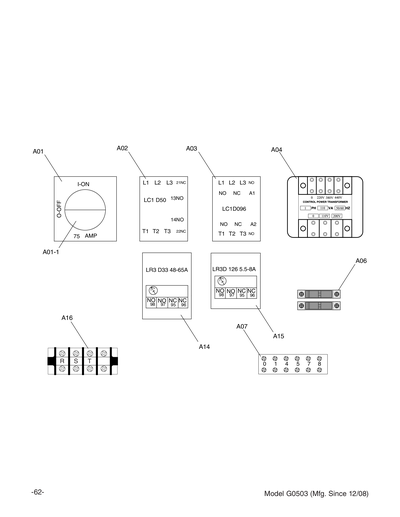

A01 P0503A01 NO FUSE SWITCH NFB 3P 75A $209.75
A01-1 P0503A01-1 POWER ON DIAL SWITCH 30184 $323.50
A01-2 P0503A01-2 POWER ON DIAL SWITCH EZC100F $266.00
A02 P0503A02 CONTACTOR TELE LC1D40A 220V V1 $186.75
A02A P0503A02A MOTOR MAGNETIC STARTER V2.05.04 $402.00
A02V3 P0503A02V3 CONTACTOR SCHN LC1D50A 220V V3.08.14 $435.00
A03 P0503A03 CONTACTOR TELE LC1-D096 220V V1 $121.50
A03V2 P0503A03V2 CONTACTOR SCHN LC1D09 220V V2.08.14 $75.00
A04 P0503A04 TRANSFORMER 200VA 220/440V-220V $130.75
A05 P0503A05 DOOR/MICRO SWITCH $37.50
A06 P0503A06 FUSE 5A $1.00
A07 P0503A07 BUSS BAR $14.00

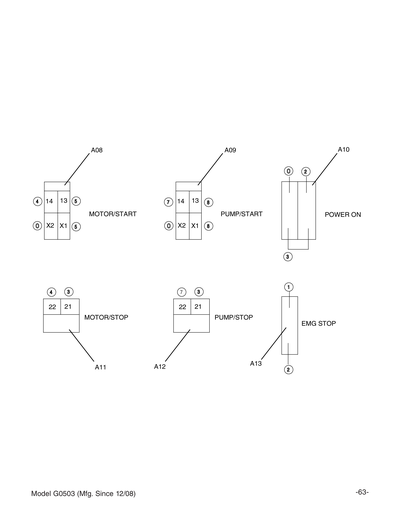

A08 P0503A08 MOTOR START BUTTON $17.25
A09 P0503A09 PUMP START BUTTON $28.25
A10 P0503A10 POWER ON BUTTON $12.00
A11 P0503A11 MOTOR STOP BUTTON $17.25
A12 P0503A12 PUMP STOP BUTTON $25.25
A13 P0503A13 E-STOP BUTTON SKB2-BE102 $67.25
A14 P0503A14 *DISCD*OVERRE RH 35/42 33-50AMP V1.01.04 $176.75
A14A P0503A14A RELAY 440V LR3D3355 V2.07.04 $76.00
A14AV2 P0503A14AV2 OL RELAY SCHN LR3D340 30-40A V2.08.14 $330.00
A14V2 P0503A14V2 *DISCD*OL RELAY SCHN LR3D365 48-65A $330.00
A15 P0503A15 OL RELAY TELE LR3D126 5.5-8A V1 $67.25
A15A P0503A15A OL RELAY TELE LR3D086 2.5-4A V1 $51.00
A15AV2 P0503A15AV2 OL RELAY SCHN LR3D08 2.5-4A V2.08.14 $75.00
A15V2 P0503A15V2 OL RELAY SCHN LR3D12 5.5-8A V2.08.14 $75.00
A16 P0503A16 TERMINAL BLOCK $258.75
A17 P0503A17
Replaced By P0503909
*DISCD*CONVERSION KIT 440V 23/32A V1.12.
N/A View Replacement
A17V2 P0503A17V2 440V CONVERSION KIT V2.08.14 $405.00
B01 P0503B01
*DISCD*HYDRAULIC BOX
Item is no longer available
N/A
B02 P0503B02 *DISCD*DRAIN POINT $75.00
B03 P0503B03
*DISCD*FILL SCREEN
Item is no longer available
N/A
B04 P0503B04
*DISCD*OIL LEVEL
Item is no longer available
N/A
B05 P0503B05
*DISCD*OIL FILLER POINT
Item is no longer available
N/A
B06 P0503B06
*DISCD*FAN
Item is no longer available
N/A
B07 P0503B07
*DISCD*RADIATOR
Item is no longer available
N/A
B08 P0503B08
*DISCD*HOSE COPPER
Item is no longer available
N/A
B09 P0503B09 *DISCD*MOTOR $180.00
B10 P0503B10
*DISCD*CONNECTOR
Item is no longer available
N/A
B11 P0503B11
*DISCD*PUMP
Item is no longer available
N/A
B12 P0503B12
*DISCD*VALVE
Item is no longer available
N/A
B13 P0503B13
*DISCD*PRESSURE GAUGE
Item is no longer available
N/A
B14 P0503B14
*DISCD*ADJUSTABLE VALVE
Item is no longer available
N/A
B15 P0503B15
*DISCD*VALVE
Item is no longer available
N/A
B16 P0503B16 *DISCD*HYDRAULIC MOTOR $460.00
B17 P0503B17
*DISCD*FILTER
Item is no longer available
N/A
B18 P0503B18
*DISCD*HYDRAULIC HOSE 3/8
Item is no longer available
N/A
B19 P0503B19 *DISCD*HYDRAULIC HOSE 3/8 $41.50
B20 P0503B20
*DISCD*MALE 3/8" X FEMALE 3/8"
Item is no longer available
N/A
B21 P0503B21
*DISCD*JOINTER BRACKET
Item is no longer available
N/A
B22 P0503B22
*DISCD*MALE ELBOW 3/8T X 3/8 H90
Item is no longer available
N/A
B23 P0503B23
*DISCD*MALE ELBOW 3/8T X 1/2 H90
Item is no longer available
N/A
B24 P0503B24
*DISCD*HYDRAULIC HOSE 3/8
Item is no longer available
N/A
B25 P0503B25
*DISCD*HYDRAULIC HOSE 3/8
Item is no longer available
N/A
B26 P0503B26
*DISCD*HYDRAULIC HOSE 3/8
Item is no longer available
N/A
B27 P0503B27
*DISCD*HYDRAULIC HOSE 1/2
Item is no longer available
N/A
B47 P0503B47 HYDRAULIC TANK V1 $666.50
B47V2 P0503B47V2 HYDRAULIC TANK V2.11.06 $240.00
B48 P0503B48 OIL DIVERTER V1 $87.00
B48V2 P0503B48V2 T-CONNECTOR 3/8 V2.11.06 $16.50
B49 P0503B49 HYDRAULIC PRESSURE GAUGE $151.00
B50 P0503B50 HYDRAULIC HOSE 3/8 X 67 V1 $54.50
B50V2 P0503B50V2 HYDRAULIC HOSE 3/8 X 102 V2.05.16 $60.00
B51 P0503B51 HYDRAULIC HOSE 3/8 X 91 V1 $72.25
B51V2 P0503B51V2 HYDRAULIC HOSE 3/8 X 91, 45DEG V2.05.16 $45.00
B52 P0503B52 MALE ELBOW 3/8 X 3/8 90DEG $4.50
B53 P0503B53 VARIABLE SPEED ADJUSTOR $90.00
B54 P0503B54 HYDRAULIC VALVE 3/8" V1 $105.00
B54V2 P0503B54V2 HYDRAULIC 3-WAY BALL VALVE 3/8" V2.08.13 $255.00
B55 P0503B55 MALE ELBOW 3/8 X 3/8 90DEG $6.25
B56 P0503B56 CONVEYOR HYDRAULIC MOTOR V1 $750.00
B56V2 P0503B56V2 CONVEYOR HYDRAULIC MOTOR VMP-125 V2 $760.00
B57 P0503B57 MALE ELBOW 1/2 X 3/8 45DEG V1 $7.25
B57V2 P0503B57V2 MALE ELBOW 1/2T X 3/8H X 90DEG V2.05.16 $9.00
B58 P0503B58
Replaced By P0503B57
MALE ELBOW 1/2 X 3/8 45DEG V1
N/A View Replacement
B58V2 P0503B58V2 MALE ELBOW 1/2T X 3/8H X 90DEG V2.05.16 $9.00
B59 P0503B59 HYDRAULIC HOSE 3/8 X 60 V1 $54.50
B59V2 P0503B59V2 HYDRAULIC HOSE 3/8 X 30 V2.11.06 $21.00
B60 P0503B60 STOP VALVE 3/8 $28.50
B61 P0503B61 HYDRAULIC HOSE 1/2 X 16 V1 $39.50
B61V2 P0503B61V2 HYDRAULIC HOSE 1/2 X 12 V2.11.06 $12.00
B62 P0503B62 HYDRAULIC PUMP V1 $540.00
B62V2 P0503B62V2 HYDRAULIC PUMP VP-12/70 V2.11.06 $495.00
B63 P0503B63
*DISCD*CONNECTOR
Item is no longer available
N/A
B64 P0503B64 HYDRAULIC HOSE 3/8 X 20 V1 $27.50
B64V2 P0503B64V2 HYDRAULIC HOSE 3/8 X 13 V2.11.06 $18.00
B65 P0503B65 MOTOR 2HP 220V/440V 3-PH V1 $716.00
B65V2 P0503B65V2 MOTOR 2HP 220V/440V 3-PH V2.11.06 $716.00
B66 P0503B66 HOSE 3/8 BRASS V1 $66.25
B66V2 P0503B66V2 HOSE 1/2 X 10 BRASS V2.11.06 $19.50
B67 P0503B67 OIL COOLER V1 $300.00
B67V2 P0503B67V2 OIL COOLER V2.11.06 $480.00
B68 P0503B68 OIL FILTER $135.00
B68-1 P0503B68-1 FILTER PRESSURE GAUGE $75.00
B68-2 P0503B68-2 FILTER BASE $13.50
B68-3 P0503B68-3 FILTER O-RING $6.50
B68-4 P0503B68-4 FILTER BASE GASKET $9.00
B68A P0503B68A OIL FILTER KIT $276.25
B69 P0503B69 OIL LEVEL GAUGE $15.00
B70 P0503B70 PLUG $2.50
B71 P0503B71 FILTER BREATHER CAP ASSEMBLY $19.50
B71-1 P0503B71-1 FILLER CAP GASKET $9.00
B71-2 P0503B71-2 FILLER CAP THREAD PIECE $4.50
B71-3 P0503B71-3 THREAD PIECE GASKET $4.50
B71-4 P0503B71-4 ***USE P0503B71*** $4.50
B72 P0503B72 HOSE BRASS $65.00
B73 P0503B73 TANK SCREEN $22.50
B74 P0503B74 FILTER & O-RING KIT $164.00
B75 P0503B75
*DISCD*OIL COOLER FAN V1
Item is no longer available
N/A
B75V2 P0503B75V2 OIL COOLER FAN V2.11.06 $1,350.00
B76 P0503B76 HYDRAULIC TANK ACCESS PLATE $17.50
B76-1 P0503B76-1 ACCESS PLATE GASKET $4.50
B77 P0503B77 BRACKET 3/8T X 3/8T $4.50
B78 P0503B78 BRACKET 3/8T X 3/8H X 90DEG $6.00
B79 P0503B79 MALE ELBOW 1/2T X 1/2H X 90DEG $9.00
B80 P0503B80 MALE ELBOW 1/2T X 3/8H X 90DEG $9.00
B81 P0503B81 CONNECTOR 3/8T X 3/8HF-A $4.50
B82 P0503B82 T-CONNECTOR 3/8H X 3/8HFA $19.50
B83 P0503B83 CONNECTOR 3/8T $4.50
B84 P0503B84 HYDRAULIC HOSE 3/8 X 91 $60.00
B85 P0503B85 CONNECTOR 1/2T X 3/4H $7.50
B86 P0503B86 CONNECTOR 3/4HF X 1/2TF X 90 DEG $27.00
MANUAL P0503MANUAL MANUAL FOR G0503 08/04 $17.25
