Parts for G0504 - 16" 30 HP 3-Phase Dual Conveyor Horizontal Resaw Bandsaw

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty
1 P0504001
*DISCD*FRAME
Item is no longer available
 N/A
2 P0504002
Replaced By PW06M
FLAT WASHER 12MM
 N/A View Replacement

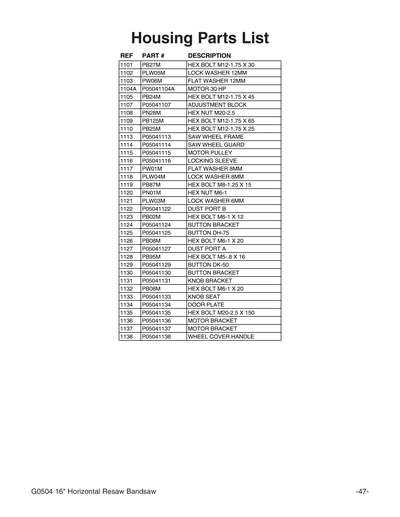

1006 P05041006
Replaced By P05041106
MOTOR MOUNTING PLATE
 N/A View Replacement
101 P0504101
*DISCD*FRAME
Item is no longer available
 N/A
102 P0504102
Replaced By PW06M
FLAT WASHER 12MM
 N/A View Replacement
103 P0504103
Replaced By PLW05M
LOCK WASHER 12MM
 N/A View Replacement
1036 P05041036
Replaced By P05041106
MOTOR MOUNTING PLATE
 N/A View Replacement
104 P0504104
Replaced By PN09M
HEX NUT M12-1.75
 N/A View Replacement
105 P0504105
*DISCD*CONVEYOR SUPPORT
Item is no longer available
 N/A
106 P0504106
*DISCD*ELECTRIC BOX
Item is no longer available
 N/A
107 P0504107
*DISCD*DOOR HINGE
Item is no longer available
 N/A
108 P0504108
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
109 P0504109
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
110 P0504110
Replaced By PB09
HEX BOLT 5/16-18 X 1/2
 N/A View Replacement

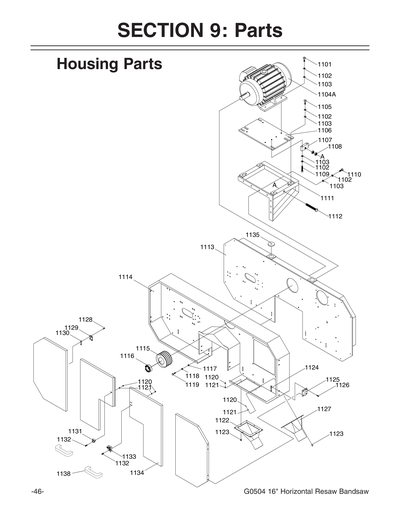

1101 P05041101
Replaced By PB27M
HEX BOLT M12-1.75 X 30
 N/A View Replacement
1102 P05041102
Replaced By PLW05M
LOCK WASHER 12MM
 N/A View Replacement
1103 P05041103
Replaced By PW06M
FLAT WASHER 12MM
 N/A View Replacement
1104 P05041104 MOTOR 25HP V1.08.02 $1,580.00
1104A P05041104A MOTOR 30HP 220V/440V 3-PH V2.11.07 $4,250.00
1104A-1 P05041104A-1 MOTOR FAN COVER $350.00
1104A-2 P05041104A-2 MOTOR FAN $170.00
1104V3 P05041104V3 MOTOR 30HP 220V/440V 3-PH V3.11.14 $3,500.00
1105 P05041105
Replaced By PB24M
HEX BOLT M12-1.75 X 45
 N/A View Replacement
1106 P05041106 MOTOR MOUNTING PLATE $293.25
1107 P05041107 ADJUSTMENT BLOCK $65.75
1108 P05041108
Replaced By PN28M
HEX NUT M20-2.5
 N/A View Replacement
1109 P05041109
Replaced By PB125M
HEX BOLT M12-1.75 X 65
 N/A View Replacement
111 P0504111
Replaced By PCAP77M
CAP SCREW M12-1.75 X 30
 N/A View Replacement
1110 P05041110
Replaced By PB25M
HEX BOLT M12-1.75 X 25
 N/A View Replacement
1111 P05041111 MOTOR MOUNTING BRACKET $348.50
1112 P05041112
Replaced By PB01M
HEX BOLT M10-1.5 X 30
 N/A View Replacement
1113 P05041113 SAW WHEEL FRAME $1,840.00
1114 P05041114 SAW WHEEL GUARD $456.75
1115 P05041115 MOTOR PULLEY $250.50
1116 P05041116 LOCK SLEEVE $87.50
1117 P05041117
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
1118 P05041118
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
1119 P05041119
Replaced By PB87M
HEX BOLT M8-1.25 X 15
 N/A View Replacement
112 P0504112
Replaced By PCAP77M
CAP SCREW M12-1.75 X 30
 N/A View Replacement
1120 P05041120
Replaced By PN01M
HEX NUT M6-1
 N/A View Replacement
1121 P05041121
Replaced By PLW03M
LOCK WASHER 6MM
 N/A View Replacement
1122 P05041122 DUST PORT B $210.00
1123 P05041123
Replaced By PB02M
HEX BOLT M6-1 X 12
 N/A View Replacement
1124 P05041124 BUTTON BRACKET $5.25
1125 P05041125 BUTTON DH-75 $19.50
1126 P05041126
Replaced By PB08M
HEX BOLT M6-1 X 20
 N/A View Replacement
1127 P05041127 DUST PORT A $180.00
1128 P05041128
Replaced By PB95M
HEX BOLT M5-.8 X 16
 N/A View Replacement
1129 P05041129 BUTTON DK-50 $11.25
113 P0504113
*DISCD*SAW WHEEL COVER
Item is no longer available
 N/A
1130 P05041130 BUTTON BRACKET $5.25
1131 P05041131 KNOB BRACKET $30.00
1132 P05041132
Replaced By PB08M
HEX BOLT M6-1 X 20
 N/A View Replacement
1133 P05041133 KNOB SEAT $29.50
1134 P05041134 DOOR PLATE $477.75
1135 P05041135
Replaced By P06004044
T-BOLT M20-2.5 X 175
 N/A View Replacement
1136 P05041136
Replaced By P05041106
MOTOR MOUNTING PLATE
 N/A View Replacement
1137 P05041137
Replaced By P05041111
MOTOR MOUNTING BRACKET
 N/A View Replacement
1138 P05041138 WHEEL COVER HANDLE $19.75
114 P0504114
*DISCD*HANDLE
Item is no longer available
 N/A
115 P0504115
Replaced By PB87M
HEX BOLT M8-1.25 X 15
 N/A View Replacement
116 P0504116
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
117 P0504117
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
118 P0504118
*DISCD*PLASTIC SPACER
Item is no longer available
 N/A
119 P0504119
Replaced By PB28M
HEX BOLT M8-1.25 X 60
 N/A View Replacement
120 P0504120
*DISCD*OPEN ARM RIGHT
Item is no longer available
 N/A

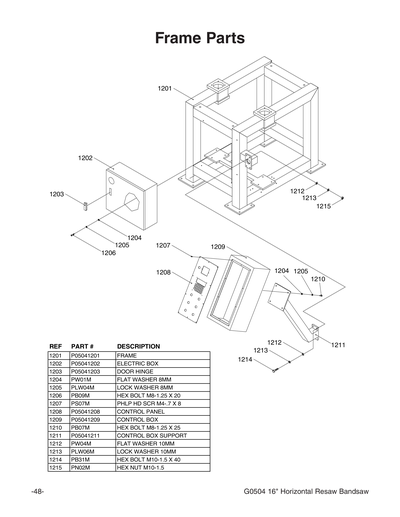

1201 P05041201 FRAME $2,136.50
1202 P05041202 ELECTRIC BOX $360.75
1203 P05041203 DOOR HINGE $36.00
1204 P05041204
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
1205 P05041205
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
1206 P05041206
Replaced By PB09M
HEX BOLT M8-1.25 X 20
 N/A View Replacement
1207 P05041207
Replaced By PS07M
PHLP HD SCR M4-.7 X 8
 N/A View Replacement
1208 P05041208 CONTROL PANEL $258.00
1209 P05041209 CONTROL BOX $265.00
121 P0504121
Replaced By PN03M
HEX NUT M8-1.25
 N/A View Replacement
1210 P05041210
Replaced By PB07M
HEX BOLT M8-1.25 X 25
 N/A View Replacement
1211 P05041211 CONTROL BOX SUPPORT $180.00
1212 P05041212
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
1213 P05041213
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
1214 P05041214
Replaced By PB31M
HEX BOLT M10-1.5 X 40
 N/A View Replacement
1215 P05041215
Replaced By PN02M
HEX NUT M10-1.5
 N/A View Replacement
122 P0504122
Replaced By PCAP61M
CAP SCREW M10-1.5 X 20
 N/A View Replacement
123 P0504123
Replaced By PCAP72M
CAP SCREW M10-1.5 X 30
 N/A View Replacement
124 P0504124
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
125 P0504125
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
126 P0504126
*DISCD*SAW WHEEL FRAME
Item is no longer available
 N/A
127 P0504127
Replaced By PB09M
HEX BOLT M8-1.25 X 20
 N/A View Replacement
128 P0504128
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
129 P0504129
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
130 P0504130
*DISCD*ROLLER BRACKET
Item is no longer available
 N/A

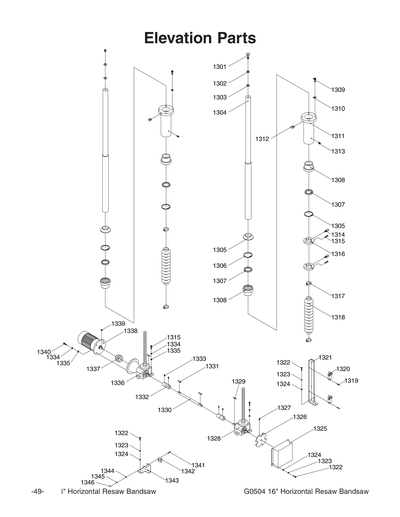

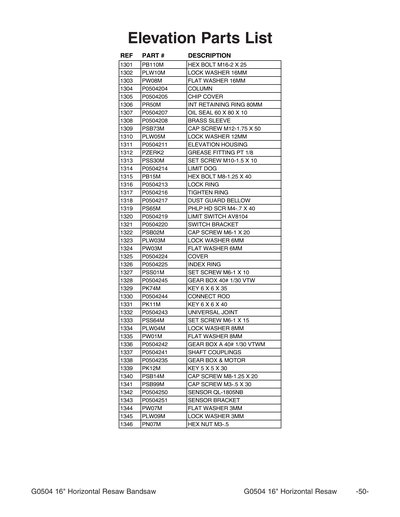

1301 P05041301
Replaced By PB110M
HEX BOLT M16-2 X 25
 N/A View Replacement
1302 P05041302
Replaced By PLW10M
LOCK WASHER 16MM
 N/A View Replacement
1303 P05041303
Replaced By PW08M
FLAT WASHER 16MM
 N/A View Replacement
1304 P05041304 COLUMN $1,086.75
1305 P05041305 CHIP COVER $128.75
1306 P05041306
Replaced By PR50M
INT RETAINING RING 80MM
 N/A View Replacement
1307 P05041307 OIL SEAL 60 X 80 X 10 V1.05.03 $6.00
1308 P05041308 BRASS SLEEVE $221.25
1309 P05041309
Replaced By PCAP73M
CAP SCREW M12-1.75 X 50
 N/A View Replacement
131 P0504131
Replaced By PN03M
HEX NUT M8-1.25
 N/A View Replacement
1310 P05041310
Replaced By PLW05M
LOCK WASHER 12MM
 N/A View Replacement
1311 P05041311 ELEVATION HOUSING $322.00
1312 P05041312
Replaced By PZERK002
GREASE FITTING M6-1 X 5
 N/A View Replacement
1313 P05041313
Replaced By PSS30M
SET SCREW M10-1.5 X 10
 N/A View Replacement
1314 P05041314 LIMIT DOG $23.50
1315 P05041315
Replaced By PB15M
HEX BOLT M8-1.25 X 40
 N/A View Replacement
1316 P05041316 LOCK RING $52.00
1317 P05041317 TICHTEN RING $2.00
1318 P05041318 DUST GUARD BELLOW $20.25
1319 P05041319
Replaced By PS65M
PHLP HD SCR M4-.7 X 40
 N/A View Replacement
132 P0504132
*DISCD*COVER ROLLER
Item is no longer available
 N/A
1320 P05041320 LIMIT SWITCH AV8104 $46.25
1321 P05041321 LIMIT BRACKET $15.25
1322 P05041322
Replaced By PCAP02M
CAP SCREW M6-1 X 20
 N/A View Replacement
1323 P05041323
Replaced By PLW03M
LOCK WASHER 6MM
 N/A View Replacement
1324 P05041324
Replaced By PW03M
FLAT WASHER 6MM
 N/A View Replacement
1325 P05041325 SENSOR COVER $49.00
1326 P05041326 INDEX RING $29.00
1327 P05041327
Replaced By PSS01M
SET SCREW M6-1 X 10
 N/A View Replacement
1328 P05041328 GEAR BOX B $382.25
1329 P05041329
Replaced By PK74M
KEY 6 X 6 X 35
 N/A View Replacement
133 P0504133
Replaced By PB28M
HEX BOLT M8-1.25 X 60
 N/A View Replacement
1330 P05041330 CONNECT ROD $48.25
1331 P05041331
Replaced By PK11M
KEY 6 X 6 X 40
 N/A View Replacement
1332 P05041332 SHAFT COUPLING $100.50
1333 P05041333
Replaced By PSS11M
SET SCREW M6-1 X 16
 N/A View Replacement
1334 P05041334
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
1335 P05041335
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
1336 P05041336 GEAR BOX A $300.00
1336-1 P05041336-1 CONE $103.50
1337 P05041337 SHAFT COUPLING $120.00
1338 P05041338
Replaced By P05041338V2
GEAR BOX & MOTOR V2.11.08
 N/A View Replacement
1338V2 P05041338V2 GEAR BOX & MOTOR V2.11.08 $370.00
1338V3 P05041338V3 GEAR BOX & MOTOR V3.11.14 $870.00
1339 P05041339
Replaced By PK12M
KEY 5 X 5 X 30
 N/A View Replacement
134 P0504134
*DISCD*SAW WHEEL GUARD
Item is no longer available
 N/A
1340 P05041340
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
 N/A View Replacement
1341 P05041341
Replaced By PCAP99M
CAP SCREW M3-.5 X 30
 N/A View Replacement
1342 P05041342 SENSOR QL-1805NB $54.00
1343 P05041343 SENSOR BRACKET $11.25
1344 P05041344
Replaced By PW07M
FLAT WASHER 3MM
 N/A View Replacement
1345 P05041345
Replaced By PLW09M
LOCK WASHER 3MM
 N/A View Replacement
1346 P05041346
Replaced By PN07M
HEX NUT M3-.5
 N/A View Replacement
135 P0504135
*DISCD*CONNECT ROD
Item is no longer available
 N/A
136 P0504136
Replaced By PN03M
HEX NUT M8-1.25
 N/A View Replacement
137 P0504137 *DISCD*OPEN ARM LEFT $103.00
138 P0504138
Replaced By PCAP61M
CAP SCREW M10-1.5 X 20
 N/A View Replacement
139 P0504139
Replaced By PB28M
HEX BOLT M8-1.25 X 60
 N/A View Replacement
140 P0504140 *DISCD*HANDLE $32.00

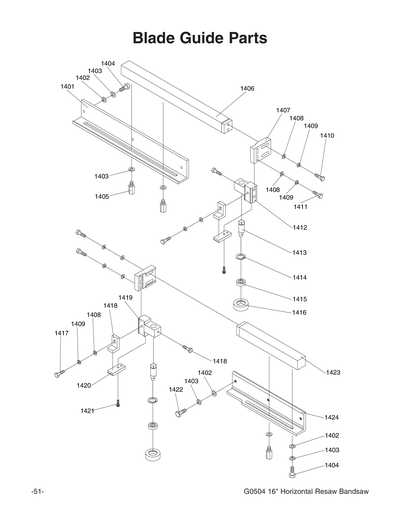

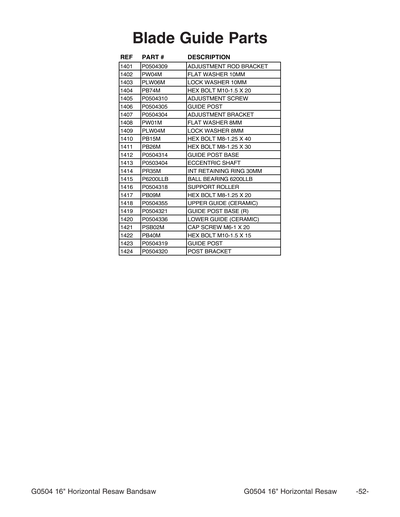

1401 P05041401 POST BRACKET $88.50
1402 P05041402
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
1403 P05041403
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
1404 P05041404
Replaced By PB74M
HEX BOLT M10-1.5 X 20
 N/A View Replacement
1405 P05041405 HEX LOCK BOLT $16.00
1406 P05041406 GUIDE POST $273.75
1407 P05041407 ADJUSTMENT BRACKET $99.00
1408 P05041408
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
1409 P05041409
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
141 P0504141
*DISCD*CASING BEARING UCPS205
Item is no longer available
 N/A
1410 P05041410
Replaced By PB15M
HEX BOLT M8-1.25 X 40
 N/A View Replacement
1411 P05041411
Replaced By PB26M
HEX BOLT M8-1.25 X 30
 N/A View Replacement
1412 P05041412 GUIDE POST BASE $120.00
1413 P05041413
Replaced By P0503404
ECCENTRIC SHAFT
 N/A View Replacement
1414 P05041414
Replaced By PR35M
INT RETAINING RING 30MM
 N/A View Replacement
1415 P05041415
Replaced By P6200-2RS
BALL BEARING 6200-2RS
 N/A View Replacement
1416 P05041416 SUPPORT ROLLER $60.00
1417 P05041417
Replaced By PB09M
HEX BOLT M8-1.25 X 20
 N/A View Replacement
1418 P05041418
Replaced By P0504322
GUIDE W/CERAMIC L-SHAPE UPPER
 N/A View Replacement
1419 P05041419 GUIDE POST BASE $120.00
142 P0504142
Replaced By PN03M
HEX NUT M8-1.25
 N/A View Replacement
1420 P05041420 GUIDE W/CERAMIC BOLTED LOWER $93.00
1421 P05041421
Replaced By PCAP02M
CAP SCREW M6-1 X 20
 N/A View Replacement
1422 P05041422
Replaced By PB70M
HEX BOLT M10-1.5 X 16
 N/A View Replacement
1423 P05041423 GUIDE POST $149.00
1424 P05041424 POST BRACKET $153.00
143 P0504143
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
144 P0504144
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
145 P0504145
Replaced By PB26M
HEX BOLT M8-1.25 X 30
 N/A View Replacement
146 P0504146
*DISCD*WARNING/ID LABEL
Item is no longer available
 N/A
147 P0504147
Replaced By PLABEL-14
ELECTRICITY 1.4W X 1.2H
 N/A View Replacement
148 P0504148
Replaced By PLABEL-20
DONT OPEN 2W X 3.3H
 N/A View Replacement
149 P0504149
Replaced By PLABEL-18
UNPLUG BANDSAW 2W X 3.3H
 N/A View Replacement

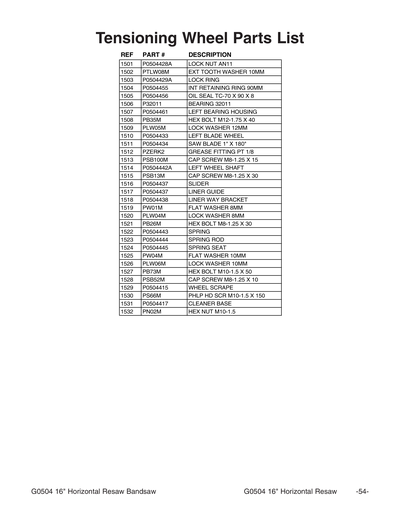

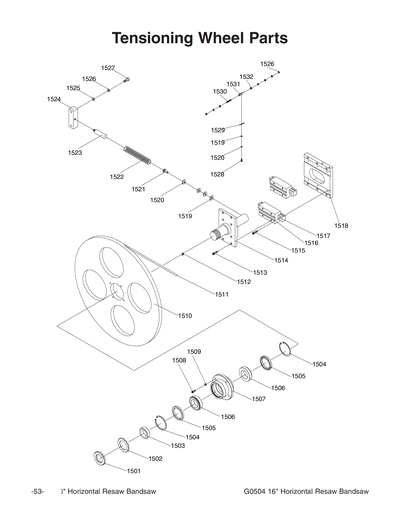

1501 P05041501 LOCK NUT AN11 $12.00
1502 P05041502 EXT TOOTH WASHER 54MM $4.00
1503 P05041503 LOCK RING $24.00
1504 P05041504 INT RETAINING RING 90MM $9.00
1505 P05041505 OIL SEAL 70 X 90 X 8MM $4.50
1506 P05041506
Replaced By P32011
TAPERED ROLLER BEARING 32011
 N/A View Replacement
1507 P05041507 BEARING HOUSING LEFT $159.00
1508 P05041508
Replaced By PB35M
HEX BOLT M12-1.75 X 40
 N/A View Replacement
1509 P05041509
Replaced By PLW05M
LOCK WASHER 12MM
 N/A View Replacement
1510 P05041510 SAW WHEEL LEFT $1,035.00
1511 P05041511 SAW BLADE 3/4 X 180 X .035 $141.00
1512 P05041512
Replaced By PZERK002
GREASE FITTING M6-1 X 5
 N/A View Replacement
1513 P05041513
Replaced By PCAP100M
CAP SCREW M8-1.25 X 15
 N/A View Replacement
1514 P05041514 WHEEL SHAFT LEFT $257.50
1515 P05041515
Replaced By PCAP13M
CAP SCREW M8-1.25 X 30
 N/A View Replacement
1516 P05041516 SLIDER $273.00
1517 P05041517 LINER GUIDE $382.25
1518 P05041518 LINER WAY BRACKET LGH35H $331.25
1519 P05041519
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
1520 P05041520
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
1521 P05041521
Replaced By PB26M
HEX BOLT M8-1.25 X 30
 N/A View Replacement
1522 P05041522 SPRING HELICAL 35 X 26 X 205 $22.50
1523 P05041523 SPRING ROD $19.50
1524 P05041524 SPRING SEAT $58.25
1525 P05041525
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
1526 P05041526
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
1527 P05041527
Replaced By PB73M
HEX BOLT M10-1.5 X 50
 N/A View Replacement
1528 P05041528
Replaced By PCAP52M
CAP SCREW M8-1.25 X 10
 N/A View Replacement
1529 P05041529 WHEEL SCRAPE $4.50
1530 P05041530 THREADED ROD M10-1.5 X 150 $1.75
1531 P05041531 CLEANER BASE $8.75
1532 P05041532
Replaced By PN02M
HEX NUT M10-1.5
 N/A View Replacement
1533 P05041533 COMPLETE TENSIONING WHEEL ASSY $1,404.75
1533-1 P05041533-1 TENSIONING WHEEL ASSY W/O WHEEL $404.25

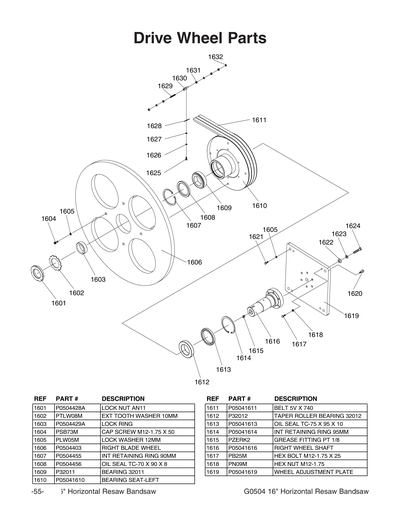

1601 P05041601
Replaced By P05041501
LOCK NUT AN11
 N/A View Replacement
1602 P05041602
Replaced By PTLW08M
EXT TOOTH WASHER 10MM
 N/A View Replacement
1603 P05041603
Replaced By P05041503
LOCK RING
 N/A View Replacement
1604 P05041604
Replaced By PCAP73M
CAP SCREW M12-1.75 X 50
 N/A View Replacement
1605 P05041605
Replaced By PLW05M
LOCK WASHER 12MM
 N/A View Replacement
1606 P05041606 DRIVER WHEEL $1,046.50
1607 P05041607
Replaced By P05041504
INT RETAINING RING 90MM
 N/A View Replacement
1608 P05041608
Replaced By P05041505
OIL SEAL 70 X 90 X 8MM
 N/A View Replacement
1609 P05041609
Replaced By P32011
TAPERED ROLLER BEARING 32011
 N/A View Replacement
1610 P05041610 BEARING SEAT LEFT $761.50
1611 P05041611 BELT 5V X 740 $63.25
1612 P05041612
Replaced By P32012
TAPER ROLLER BEARING 32012
 N/A View Replacement
1613 P05041613 OIL SEAL TC-75 X 95 X 10 $6.00
1614 P05041614
Replaced By PR87M
INT RETAINING RING 95MM
 N/A View Replacement
1615 P05041615
Replaced By PZERK002
GREASE FITTING M6-1 X 5
 N/A View Replacement
1616 P05041616 WHEEL SHAFT RIGHT $533.00
1617 P05041617
Replaced By PB25M
HEX BOLT M12-1.75 X 25
 N/A View Replacement
1618 P05041618
Replaced By PN09M
HEX NUT M12-1.75
 N/A View Replacement
1619 P05041619 WHEEL ADJUSTMENT PLATE $216.75
1620 P05041620
Replaced By PB48M
HEX BOLT M10-1.25 X 20
 N/A View Replacement
1621 P05041621
Replaced By PB35M
HEX BOLT M12-1.75 X 40
 N/A View Replacement
1622 P05041622 WHEEL ADJUSTMENT SUPPORT $7.00
1623 P05041623
Replaced By PLW10
LOCK WASHER 3/4
 N/A View Replacement
1624 P05041624 HEX BOLT 3/4-10 X 90 $6.25
1625 P05041625
Replaced By PCAP52M
CAP SCREW M8-1.25 X 10
 N/A View Replacement
1626 P05041626
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
1627 P05041627
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
1628 P05041628 CLEANER PAD $6.00
1629 P05041629
Replaced By P05041530
THREADED ROD M10-1.5 X 150
 N/A View Replacement
1630 P05041630
Replaced By P05041531
CLEANER BASE
 N/A View Replacement
1631 P05041631
Replaced By PN02M
HEX NUT M10-1.5
 N/A View Replacement
1632 P05041632
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement

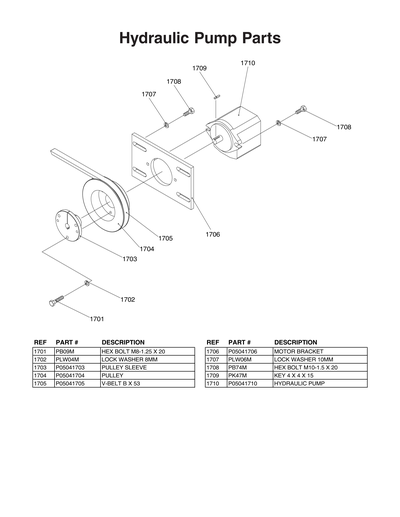

1701 P05041701
Replaced By PB09M
HEX BOLT M8-1.25 X 20
 N/A View Replacement
1702 P05041702
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
1703 P05041703 PULLEY SLEEVE $102.25
1704 P05041704 PULLEY $220.75
1705 P05041705 V-BELT B53 $42.00
1706 P05041706 MOTOR BRACKET $63.25
1707 P05041707
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
1708 P05041708
Replaced By PB74M
HEX BOLT M10-1.5 X 20
 N/A View Replacement
1709 P05041709
Replaced By PK47M
KEY 4 X 4 X 15
 N/A View Replacement
1710 P05041710 HYDRAULIC PUMP $765.00

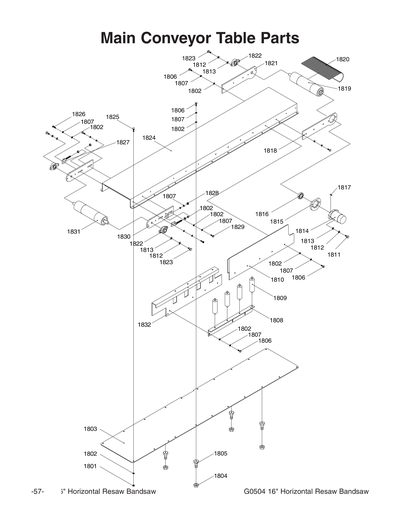

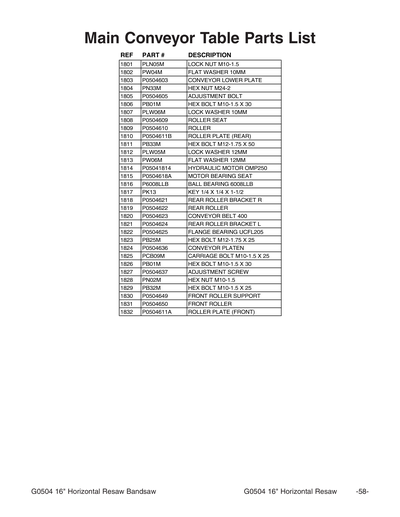

1801 P05041801
Replaced By PLN05M
LOCK NUT M10-1.5
 N/A View Replacement
1802 P05041802
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
1803 P05041803 CONVEYOR LOWER PLATE $469.00
1804 P05041804
Replaced By PN33M
HEX NUT M24-2
 N/A View Replacement
1805 P05041805 ADJ BOLT M24 X 1.22 X 90 $17.00
1806 P05041806
Replaced By PB01M
HEX BOLT M10-1.5 X 30
 N/A View Replacement
1807 P05041807
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
1808 P05041808 ROLLER SEAT $42.00
1809 P05041809 ROLLER $36.00
1810 P05041810 ROLLER PLATE REAR $126.75
1811 P05041811
Replaced By PB33M
HEX BOLT M12-1.75 X 50
 N/A View Replacement
1812 P05041812
Replaced By PLW05M
LOCK WASHER 12MM
 N/A View Replacement
1813 P05041813
Replaced By PW06M
FLAT WASHER 12MM
 N/A View Replacement
1814 P05041814 HYDRAULIC MOTOR OMP250 $728.50
1815 P05041815 MOTOR BEARING SEAT $90.00
1816 P05041816
Replaced By P6008LLB
BALL BEARING 6008LLB
 N/A View Replacement
1817 P05041817
Replaced By PK13
KEY 1/4 X 1/4 X 1-1/2
 N/A View Replacement
1818 P05041818 REAR ROLLER BRACKET R $96.25
1819 P05041819 REAR ROLLER $594.00
1820 P05041820
Replaced By P05041820V2
CONVEYOR BELT V2.08.14
 N/A View Replacement
1820V2 P05041820V2 CONVEYOR BELT V2.08.14 $660.00
1821 P05041821 REAR ROLLER BRACKET L $93.50
1822 P05041822 FLANGE BEARING UCFL205 $24.00
1823 P05041823
Replaced By PB25M
HEX BOLT M12-1.75 X 25
 N/A View Replacement
1824 P05041824 CONVEYOR PLATEN $764.75
1825 P05041825
Replaced By PCB09M
CARRIAGE BOLT M10-1.5 X 25
 N/A View Replacement
1826 P05041826
Replaced By PB01M
HEX BOLT M10-1.5 X 30
 N/A View Replacement
1827 P05041827 ADJ SCR M12-1.75 X 90 $11.25
1828 P05041828
Replaced By PN02M
HEX NUT M10-1.5
 N/A View Replacement
1829 P05041829
Replaced By PB32M
HEX BOLT M10-1.5 X 25
 N/A View Replacement
1830 P05041830 ROLLER BRACKET $77.25
1831 P05041831 FRONT ROLLER $345.00
1832 P05041832 ROLLER PLATE FRONT $156.00

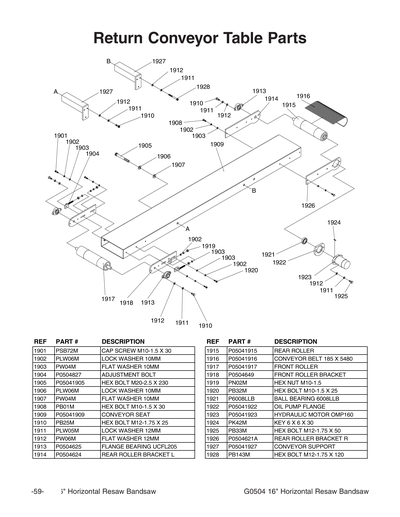

1901 P05041901
Replaced By PCAP72M
CAP SCREW M10-1.5 X 30
 N/A View Replacement
1902 P05041902
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
1903 P05041903
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
1904 P05041904 ADJ BOLT M12-1.75 X 90 $17.25
1905 P05041905 HEX BOLT M20-2.5 X 230 $14.00
1906 P05041906
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
1907 P05041907
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
1908 P05041908
Replaced By PB01M
HEX BOLT M10-1.5 X 30
 N/A View Replacement
1909 P05041909 CONVEYOR SEAT $683.00
1910 P05041910
Replaced By PB25M
HEX BOLT M12-1.75 X 25
 N/A View Replacement
1911 P05041911
Replaced By PLW05M
LOCK WASHER 12MM
 N/A View Replacement
1912 P05041912
Replaced By PW06M
FLAT WASHER 12MM
 N/A View Replacement
1913 P05041913
Replaced By P05041822
FLANGE BEARING UCFL205
 N/A View Replacement
1914 P05041914
Replaced By P05041821
REAR ROLLER BRACKET L
 N/A View Replacement
1915 P05041915 ROLLER REAR $390.00
1916 P05041916 CONVEYOR BELT 185 X 5480 $224.25
1917 P05041917 ROLLER FRONT $281.00
1918 P05041918
Replaced By P05041830
ROLLER BRACKET
 N/A View Replacement
1919 P05041919
Replaced By PN02M
HEX NUT M10-1.5
 N/A View Replacement
1920 P05041920
Replaced By PB32M
HEX BOLT M10-1.5 X 25
 N/A View Replacement
1921 P05041921
Replaced By P6008LLB
BALL BEARING 6008LLB
 N/A View Replacement
1922 P05041922 OIL PUMP FLANGE $90.00
1923 P05041923 HYDRAULIC MOTOR OMP160 $780.00
1924 P05041924
Replaced By PK42M
KEY 6 X 6 X 30
 N/A View Replacement
1925 P05041925
Replaced By PB33M
HEX BOLT M12-1.75 X 50
 N/A View Replacement
1926 P05041926 REAR ROLLER BRACKET R $82.75
1927 P05041927 CONVEYOR SUPPORT $83.00
1928 P05041928
Replaced By PB143M
HEX BOLT M12-1.75 X 120
 N/A View Replacement

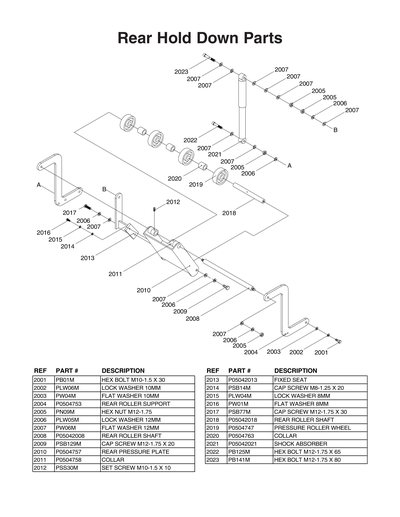

2001 P05042001
Replaced By PB01M
HEX BOLT M10-1.5 X 30
 N/A View Replacement
2002 P05042002
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
2003 P05042003
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
2004 P05042004 REAR ROLLER BRACKET $120.75
2005 P05042005
Replaced By PN09M
HEX NUT M12-1.75
 N/A View Replacement
2006 P05042006
Replaced By PLW05M
LOCK WASHER 12MM
 N/A View Replacement
2007 P05042007
Replaced By PW06M
FLAT WASHER 12MM
 N/A View Replacement
2008 P05042008 ROLLER SHAFT REAR $67.25
2009 P05042009
Replaced By PCAP129M
CAP SCREW M12-1.75 X 20
 N/A View Replacement
201 P0504201
Replaced By PB110M
HEX BOLT M16-2 X 25
 N/A View Replacement
2010 P05042010 REAR PRESSURE PLATE $120.75
2011 P05042011 COLLAR $14.50
2012 P05042012
Replaced By PSS30M
SET SCREW M10-1.5 X 10
 N/A View Replacement
2013 P05042013 FIXED SEAT $46.25
2014 P05042014
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
 N/A View Replacement
2015 P05042015
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
2016 P05042016
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
2017 P05042017
Replaced By PCAP77M
CAP SCREW M12-1.75 X 30
 N/A View Replacement
2018 P05042018 ROLLER SHAFT REAR $47.75
2019 P05042019 PRESSURE ROLLER WHEEL $21.00
202 P0504202
Replaced By PLW10M
LOCK WASHER 16MM
 N/A View Replacement
2020 P05042020 COLLAR $14.50
2021 P05042021 SHOCK ABSORBER $90.00
2022 P05042022
Replaced By PB125M
HEX BOLT M12-1.75 X 65
 N/A View Replacement
2023 P05042023
Replaced By PB141M
HEX BOLT M12-1.75 X 80
 N/A View Replacement
203 P0504203
Replaced By PW08M
FLAT WASHER 16MM
 N/A View Replacement
204 P0504204
Replaced By P05041304
COLUMN
 N/A View Replacement
205 P0504205
Replaced By P05041305
CHIP COVER
 N/A View Replacement
206 P0504206
Replaced By PR50M
INT RETAINING RING 80MM
 N/A View Replacement
207 P0504207
Replaced By P05041307
OIL SEAL 60 X 80 X 10 V1.05.03
 N/A View Replacement
208 P0504208
Replaced By P05041308
BRASS SLEEVE
 N/A View Replacement
209 P0504209
Replaced By PCAP73M
CAP SCREW M12-1.75 X 50
 N/A View Replacement
210 P0504210
Replaced By PLW05M
LOCK WASHER 12MM
 N/A View Replacement

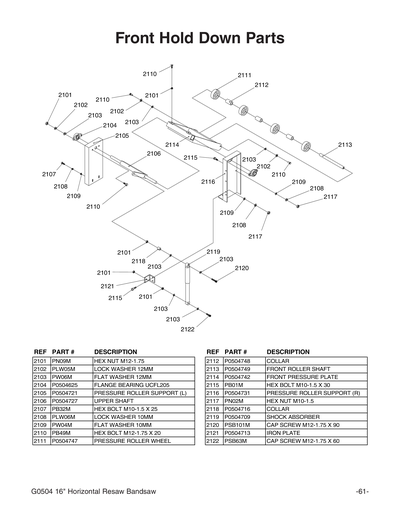

2101 P05042101
Replaced By PN09M
HEX NUT M12-1.75
 N/A View Replacement
2102 P05042102
Replaced By PLW05M
LOCK WASHER 12MM
 N/A View Replacement
2103 P05042103
Replaced By PW06M
FLAT WASHER 12MM
 N/A View Replacement
2104 P05042104
Replaced By P05041822
FLANGE BEARING UCFL205
 N/A View Replacement
2105 P05042105 PRESS ROLLER SUPPORT $95.50
2106 P05042106 SHAFT UPPER $22.25
2107 P05042107
Replaced By PB32M
HEX BOLT M10-1.5 X 25
 N/A View Replacement
2108 P05042108
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
2109 P05042109
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
211 P0504211
Replaced By P05041311
ELEVATION HOUSING
 N/A View Replacement
2110 P05042110
Replaced By PB49M
HEX BOLT M12-1.75 X 20
 N/A View Replacement
2111 P05042111
Replaced By P05042019
PRESSURE ROLLER WHEEL
 N/A View Replacement
2112 P05042112 COLLAR $25.50
2113 P05042113 FRONT ROLLER SHAFT $78.50
2114 P05042114 FRONT PRESSURE PLATE $420.00
2115 P05042115
Replaced By PB01M
HEX BOLT M10-1.5 X 30
 N/A View Replacement
2116 P05042116 PRESS ROLLER SUPPORT $118.75
2117 P05042117
Replaced By PN02M
HEX NUT M10-1.5
 N/A View Replacement
2118 P05042118 COLLAR $5.75
2119 P05042119 SHOCK ABSORBER $90.00
212 P0504212
Replaced By PSS30M
SET SCREW M10-1.5 X 10
 N/A View Replacement
2120 P05042120
Replaced By PCAP101M
CAP SCREW M12-1.75 X 90
 N/A View Replacement
2121 P05042121 CUSHION LOWER BRACKET $10.75
2122 P05042122
Replaced By PCAP63M
CAP SCREW M12-1.75 X 60
 N/A View Replacement
213 P0504213
Replaced By P05041316
LOCK RING
 N/A View Replacement
214 P0504214
Replaced By P05041314
LIMIT DOG
 N/A View Replacement
215 P0504215
Replaced By PCAP12M
CAP SCREW M8-1.25 X 40
 N/A View Replacement
216 P0504216
Replaced By P05041317
TICHTEN RING
 N/A View Replacement
217 P0504217
Replaced By P05041318
DUST GUARD BELLOW
 N/A View Replacement
218 P0504218
Replaced By PS65M
PHLP HD SCR M4-.7 X 40
 N/A View Replacement
219 P0504219
Replaced By P05041320
LIMIT SWITCH AV8104
 N/A View Replacement
220 P0504220
Replaced By P05041321
LIMIT BRACKET
 N/A View Replacement

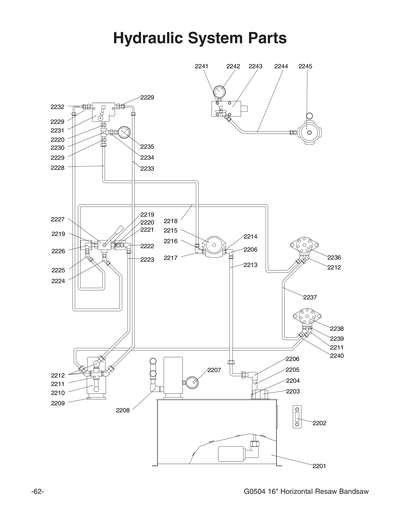

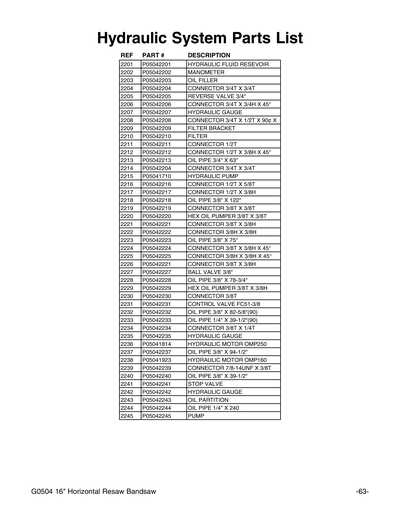

2201 P05042201 HYDRAULIC FLUID RESEVOIR $357.25
2202 P05042202 MANOMETER $19.50
2203 P05042203 FILTER BREATHER CAP W/FILTER $19.50
2204 P05042204 CONNECTOR 3/4 X 3/4 $6.00
2205 P05042205 REVERSE VALVE 3/4" $26.25
2206 P05042206 CONNECTOR 3/4 X 3/4 X 45DEG $12.00
2207 P05042207 HYDRAULIC GAUGE $75.00
2208 P05042208 CONNECTOR 3/4 X 1/2 X 90DEG $6.50
2209 P05042209 FILTER BRACKET $76.25
221 P0504221
Replaced By PCAP02M
CAP SCREW M6-1 X 20
 N/A View Replacement
2210 P05042210 OIL FILTER $135.00
2211 P05042211 CONNECTOR 1/2 $6.50
2212 P05042212 CONNECTOR 1/2 X 3/8 X 45DEG $5.25
2213 P05042213 OIL PIPE 3/4 X 63" $75.00
2214 P05042214
Replaced By P05042204
CONNECTOR 3/4 X 3/4
 N/A View Replacement
2215 P05042215
Replaced By P05041710
HYDRAULIC PUMP
 N/A View Replacement
2216 P05042216 CONNECTOR 1/2 X 5/8 $7.75
2217 P05042217 CONNECTOR 1/2 X 3/8 $4.50
2218 P05042218 OIL PIPE 3/8 X 122" $85.00
2219 P05042219 CONNECTOR 3/8 X 3/8 $1.25
222 P0504222
Replaced By PLW03M
LOCK WASHER 6MM
 N/A View Replacement
2220 P05042220 HEX OIL PUMPER 3/8 X 3/8 $9.00
2221 P05042221 CONNECTOR 3/8 X 3/8 $2.25
2222 P05042222 CONNECTOR 3/8 X 3/8 $2.25
2223 P05042223 OIL PIPE 3/8 X 75" $61.25
2224 P05042224 CONNECTOR 3/8 X 3/8 X 45DEG $4.50
2225 P05042225 CONNECTOR 3/8 X 3/8 X 45DEG $8.25
2226 P05042226
Replaced By P05042221
CONNECTOR 3/8 X 3/8
 N/A View Replacement
2227 P05042227
Replaced By P0475005
*DISCD*BALL VALVE 3/8
 N/A View Replacement
2228 P05042228 OIL PIPE 3/8 X 78-3/4" $61.25
2229 P05042229 HEX OIL PUMPER 3/8 X 3/8 $9.00
223 P0504223
Replaced By PW03M
FLAT WASHER 6MM
 N/A View Replacement
2230 P05042230 CONNECTOR 3/8 $26.25
2231 P05042231 CONTROL VALVE FC51-3/8 $247.00
2232 P05042232 OIL PIPE 3/8 X 82-5/8" 90DEG $64.50
2233 P05042233 OIL PIPE 1/4 X 39-1/2" 90DEG $39.50
2234 P05042234 CONNECTOR 3/8 X 1/4 $2.25
2235 P05042235 HYDRAULIC PRESSURE GAUGE $105.00
2236 P05042236
Replaced By P05041814
HYDRAULIC MOTOR OMP250
 N/A View Replacement
2237 P05042237 OIL PIPE 3/8 X 94-1/2" $65.75
2238 P05042238
Replaced By P05041923
HYDRAULIC MOTOR OMP160
 N/A View Replacement
2239 P05042239 CONNECTOR 7/8-14 X 3/8 $14.00
224 P0504224
Replaced By P05041325
SENSOR COVER
 N/A View Replacement
2240 P05042240 OIL PIPE 3/8 X 39-1/2" $34.75
2241 P05042241 STOP VALVE $45.00
2241-1 P05042241-1
Replaced By P05042241
STOP VALVE
 N/A View Replacement
2241-2 P05042241-2
Replaced By P05042241
STOP VALVE
 N/A View Replacement
2242 P05042242 HYDRAULIC PRESSURE GAUGE V1 $105.00
2242V2 P05042242V2 HYDRAULIC PRESSURE GAUGE V2.08.14 $105.00
2243 P05042243 OIL PARTITION $310.50
2244 P05042244 OIL PIPE 1/4 X 240" $40.25
2245 P05042245
PUMP V1
Item is no longer available
 N/A
2245V2 P05042245V2 PUMP V2.07.19 $660.00
225 P0504225
Replaced By P05041326
INDEX RING
 N/A View Replacement
226 P0504226
Replaced By PSS01M
SET SCREW M6-1 X 10
 N/A View Replacement
227 P0504227
Replaced By PK74M
KEY 6 X 6 X 35
 N/A View Replacement
228 P0504228
Replaced By PSS11M
SET SCREW M6-1 X 16
 N/A View Replacement
229 P0504229
Replaced By PK11M
KEY 6 X 6 X 40
 N/A View Replacement
230 P0504230
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
2301 P05042301
Replaced By P05042301A
DIM SET METER CHPC535/INCH V2.05.06
 N/A View Replacement

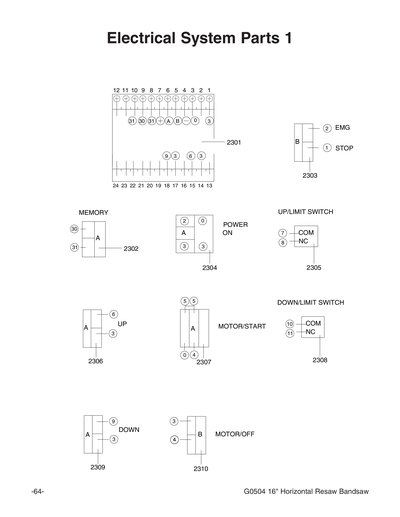

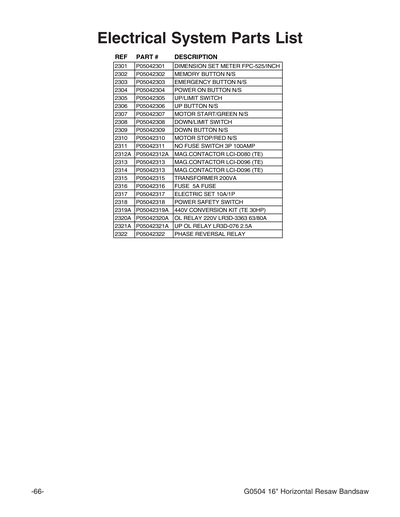

2301A P05042301A DIM SET METER CHPC535/INCH V2.05.06 $1,468.00
2302 P05042302 MEMORY BUTTON V2.04.07 $25.25
2303 P05042303 EMERGENCY BUTTON V2.04.07 $50.00
2304 P05042304 POWER ON BUTTON V2.04.07 $80.00
2305 P05042305 UP/LIMIT SWITCH $39.75
2306 P05042306 BUTTON UP V2.04.07 $25.25
2307 P05042307 MOTOR START/GREEN V2.04.07 $41.50
2308 P05042308 DOWN/LIMIT SWITCH $39.75
2309 P05042309 DOWN BUTTON V2.04.07 $25.25
231 P0504231
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
2310 P05042310 MOTOR STOP/RED V2.04.07 $19.50

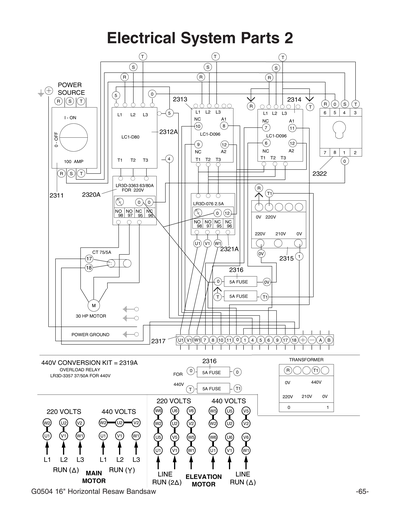

2311 P05042311 NO FUSE SWITCH 3P 100A $334.00
2312 P05042312 MAGNETIC CONTACTOR TE LCI-D065 V1.08.02 $200.00
2312A P05042312A MAGNETIC CONTACTOR TE LCI-D080 V2.11.07 $210.00
2313 P05042313 CONTACTOR TE LCI-D096 V1 $75.00
2313V2 P05042313V2 CONTACTOR TE LCI-D09 220V V2.11.14 $54.00
2314 P05042314
Replaced By P05042313
CONTACTOR TE LCI-D096 V1
 N/A View Replacement
2314V2 P05042314V2
Replaced By P05042313V2
CONTACTOR TE LCI-D09 220V V2.11.14
 N/A View Replacement
2315 P05042315 TRANSFORMER 200VA 220/440V-220V $161.75
2316 P05042316 FUSE 5A $6.00
2317 P05042317 ELECTRIC SET 10A/1P $13.75
2318 P05042318 POWER SAFETY SWITCH $181.25
2319 P05042319
*DISCD*CONVERSION KIT 440V TE V1.08.02
Item is no longer available
 N/A
2319A P05042319A
*DISCD*CONVERSION KIT 440V TE 30HP V2.11
Item is no longer available
 N/A
2319V1 P05042319V1
*DISCD*440V CONVERSION KIT FOR G0504 V4.01.18
Item is no longer available
 N/A
2319V3 P05042319V3 440V CONVERSION KIT FOR G0504 V3.11.14 $528.00
2319V4 P05042319V4 440V CONVERSION KIT FOR G0504 V4.01.18 $225.00
232 P0504232
Replaced By PCAP12M
CAP SCREW M8-1.25 X 40
 N/A View Replacement
2320 P05042320 OL RELAY TE LR3D-3359 220V 48/65A V1.08. $176.75
2320A P05042320A OL RELAY TE LR3D-3363 220V 63/80A V2.11. $143.75
2321 P05042321 OVERLOAD RELAY LR3D-066 1A V1.08.02 $59.75
2321A P05042321A OVERLOAD RELAY LR3D-076 2.5A V2.11.07 $53.25
2321V3 P05042321V3 OL RELAY TE LR3D-07 1.6-2.5A V3.11.14 $43.50
2322 P05042322 PHASE REVERSAL RELAY APR-3 $100.00
2322-1 P05042322-1 PHASE REVERSAL RELAY BASE $17.25
2323 P05042323 ANALOG LOAD METER GIKOKA HW-96 $70.00
233 P0504233
Replaced By PSS01M
SET SCREW M6-1 X 10
 N/A View Replacement
234 P0504234
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
 N/A View Replacement
235 P0504235 GEAR BOX & MOTOR SVA10 $441.25
236 P0504236
Replaced By PK12M
KEY 5 X 5 X 30
 N/A View Replacement
237 P0504237
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
 N/A View Replacement
238 P0504238
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
239 P0504239
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
240 P0504240
*DISCD*FLANGE
Item is no longer available
 N/A
241 P0504241
Replaced By P05041337
SHAFT COUPLING
 N/A View Replacement
242 P0504242
Replaced By P05041336
GEAR BOX A
 N/A View Replacement
243 P0504243
Replaced By P05041332
SHAFT COUPLING
 N/A View Replacement
244 P0504244
Replaced By P05041330
CONNECT ROD
 N/A View Replacement
245 P0504245
Replaced By P05041328
GEAR BOX B
 N/A View Replacement
246 P0504246
Replaced By PW03M
FLAT WASHER 6MM
 N/A View Replacement
247 P0504247
Replaced By PLW03M
LOCK WASHER 6MM
 N/A View Replacement
248 P0504248
Replaced By PCAP02M
CAP SCREW M6-1 X 20
 N/A View Replacement
249 P0504249
Replaced By PCAP99M
CAP SCREW M3-.5 X 30
 N/A View Replacement
250 P0504250
Replaced By P05041342
SENSOR QL-1805NB
 N/A View Replacement
251 P0504251
Replaced By P05041343
SENSOR BRACKET
 N/A View Replacement
252 P0504252
Replaced By PCAP02M
CAP SCREW M6-1 X 20
 N/A View Replacement
253 P0504253
Replaced By PLW03M
LOCK WASHER 6MM
 N/A View Replacement
254 P0504254
Replaced By PW03M
FLAT WASHER 6MM
 N/A View Replacement
255 P0504255
Replaced By PW07M
FLAT WASHER 3MM
 N/A View Replacement
256 P0504256
Replaced By PLW09M
LOCK WASHER 3MM
 N/A View Replacement
257 P0504257
Replaced By PN07M
HEX NUT M3-.5
 N/A View Replacement
300 P0504300 *DISCD*COMPLETE NON-DRIVE AXLE ASSY $362.25
301 P0504301
Replaced By PB15M
HEX BOLT M8-1.25 X 40
 N/A View Replacement
302 P0504302
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
303 P0504303
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
304 P0504304
Replaced By P05041407
ADJUSTMENT BRACKET
 N/A View Replacement
305 P0504305
Replaced By P05041406
GUIDE POST
 N/A View Replacement
306 P0504306
Replaced By PB74M
HEX BOLT M10-1.5 X 20
 N/A View Replacement
307 P0504307
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
308 P0504308
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
309 P0504309
Replaced By P05041401
POST BRACKET
 N/A View Replacement
310 P0504310
Replaced By P05041405
HEX LOCK BOLT
 N/A View Replacement
311 P0504311
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
312 P0504312
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
313 P0504313
Replaced By PB26M
HEX BOLT M8-1.25 X 30
 N/A View Replacement
314 P0504314
Replaced By P05041412
GUIDE POST BASE
 N/A View Replacement
315 P0504315
Replaced By P0503404
ECCENTRIC SHAFT
 N/A View Replacement
316 P0504316
Replaced By PR35M
INT RETAINING RING 30MM
 N/A View Replacement
317 P0504317
Replaced By P6200-2RS
BALL BEARING 6200-2RS
 N/A View Replacement
318 P0504318
Replaced By P0503401
SUPPORT ROLLER
 N/A View Replacement
319 P0504319
Replaced By P05041423
GUIDE POST
 N/A View Replacement
320 P0504320
Replaced By P05041424
POST BRACKET
 N/A View Replacement
321 P0504321
Replaced By P05041419
GUIDE POST BASE
 N/A View Replacement
322 P0504322 GUIDE W/CERAMIC L-SHAPE UPPER $120.00
323 P0504323
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
324 P0504324
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
325 P0504325
Replaced By PB09M
HEX BOLT M8-1.25 X 20
 N/A View Replacement
326 P0504326
Replaced By P05041420
GUIDE W/CERAMIC BOLTED LOWER
 N/A View Replacement
326A P0504326A
Replaced By P05041420
GUIDE W/CERAMIC BOLTED LOWER
 N/A View Replacement
327 P0504327
Replaced By PCAP02M
CAP SCREW M6-1 X 20
 N/A View Replacement
328 P0504328
Replaced By PB09M
HEX BOLT M8-1.25 X 20
 N/A View Replacement
329 P0504329
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
330 P0504330
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
331 P0504331
Replaced By PB70M
HEX BOLT M10-1.5 X 16
 N/A View Replacement
332 P0504332
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
333 P0504333
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
334 P0504334
Replaced By PB74M
HEX BOLT M10-1.5 X 20
 N/A View Replacement
336 P0504336
Replaced By P05041420
GUIDE W/CERAMIC BOLTED LOWER
 N/A View Replacement
355 P0504355
Replaced By P0504322
GUIDE W/CERAMIC L-SHAPE UPPER
 N/A View Replacement
400 P0504400 *DISCD*COMPLETE DRIVE AXLE ASSY $1,147.25
401 P0504401
Replaced By PCAP73M
CAP SCREW M12-1.75 X 50
 N/A View Replacement
402 P0504402
Replaced By PLW05M
LOCK WASHER 12MM
 N/A View Replacement
403 P0504403
Replaced By P05041606
DRIVER WHEEL
 N/A View Replacement
404 P0504404
*DISCD*DRIVER SHAFT
Item is no longer available
 N/A
405 P0504405
Replaced By PR50M
INT RETAINING RING 80MM
 N/A View Replacement
406 P0504406
*DISCD*OIL SEAL 70 X 90 X 8 V2.05.03
Item is no longer available
 N/A
407 P0504407
Replaced By P32010
TAPERED ROLLER BEARING 32010
 N/A View Replacement
407A P0504407A
Replaced By P32011
TAPERED ROLLER BEARING 32011
 N/A View Replacement
408 P0504408 *DISCD*BEARING HOUSING 55mmOD $326.00
409 P0504409
Replaced By PZERK002
GREASE FITTING M6-1 X 5
 N/A View Replacement
410 P0504410
Replaced By PN09M
HEX NUT M12-1.75
 N/A View Replacement
411 P0504411
Replaced By PB35M
HEX BOLT M12-1.75 X 40
 N/A View Replacement
4110 P05044110
Replaced By PB09M
HEX BOLT M8-1.25 X 20
 N/A View Replacement
412 P0504412
Replaced By PCAP52M
CAP SCREW M8-1.25 X 10
 N/A View Replacement
413 P0504413
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
414 P0504414
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
415 P0504415
Replaced By P05041628
CLEANER PAD
 N/A View Replacement
416 P0504416
Replaced By P05041530
THREADED ROD M10-1.5 X 150
 N/A View Replacement
417 P0504417
Replaced By P05041531
CLEANER BASE
 N/A View Replacement
418 P0504418
Replaced By PN02M
HEX NUT M10-1.5
 N/A View Replacement
419 P0504419
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
420 P0504420
Replaced By PK75M
KEY 12 X 10 X 50
 N/A View Replacement
421 P0504421
Replaced By PB35M
HEX BOLT M12-1.75 X 40
 N/A View Replacement
422 P0504422 *DISCD*SPACER $56.00
423 P0504423 *DISCD*SPANNER NUT 55MM-1.5 $6.50
424 P0504424
Replaced By PB01M
HEX BOLT M10-1.5 X 30
 N/A View Replacement
425 P0504425
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
426 P0504426
*DISCD*LOCKING SLEEVE
Item is no longer available
 N/A
427 P0504427 *DISCD*DRIVE PULLEY $403.75
428 P0504428 *DISCD*LOCK RING $50.50
428A P0504428A
Replaced By P05041501
LOCK NUT AN11
 N/A View Replacement
429 P0504429 *DISCD*LOCK RING $56.00
429A P0504429A
Replaced By P05041503
LOCK RING
 N/A View Replacement
430 P0504430 *DISCD*SEAL 70 X 90 X 10 $5.00
431 P0504431
Replaced By P32011
TAPERED ROLLER BEARING 32011
 N/A View Replacement
432 P0504432 *DISCD*BEARING HOUSING 55mmOD $242.75
433 P0504433
Replaced By P05041510
SAW WHEEL LEFT
 N/A View Replacement
434 P0504434
Replaced By P05041511
SAW BLADE 3/4 X 180 X .035
 N/A View Replacement
435 P0504435
Replaced By PCAP100M
CAP SCREW M8-1.25 X 15
 N/A View Replacement
436 P0504436
Replaced By PCAP13M
CAP SCREW M8-1.25 X 30
 N/A View Replacement
437 P0504437
Replaced By P05041517
LINER GUIDE
 N/A View Replacement
438 P0504438
Replaced By P05041518
LINER WAY BRACKET LGH35H
 N/A View Replacement
439 P0504439
Replaced By PCAP92M
CAP SCREW M12-1.75 X 40
 N/A View Replacement
440 P0504440
Replaced By PLW05M
LOCK WASHER 12MM
 N/A View Replacement
4407 P05044407
Replaced By P32010
TAPERED ROLLER BEARING 32010
 N/A View Replacement
441 P0504441
Replaced By PZERK002
GREASE FITTING M6-1 X 5
 N/A View Replacement
4410 P05044410
Replaced By PN09M
HEX NUT M12-1.75
 N/A View Replacement
442 P0504442
*DISCD*SAW WHEEL SHAFT LEFT
Item is no longer available
 N/A
442A P0504442A
Replaced By P05041514
WHEEL SHAFT LEFT
 N/A View Replacement
443 P0504443
Replaced By P05041522
SPRING HELICAL 35 X 26 X 205
 N/A View Replacement
444 P0504444
Replaced By P05041523
SPRING ROD
 N/A View Replacement
445 P0504445
Replaced By P05041524
SPRING SEAT
 N/A View Replacement
446 P0504446
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
447 P0504447
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
448 P0504448
Replaced By PB73M
HEX BOLT M10-1.5 X 50
 N/A View Replacement
449 P0504449
Replaced By PB13M
HEX BOLT M10-1.5 X 80
 N/A View Replacement
450 P0504450
*DISCD*BRACKET
Item is no longer available
 N/A
451 P0504451
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
452 P0504452
Replaced By PCAP100M
CAP SCREW M8-1.25 X 15
 N/A View Replacement
453 P0504453 *DISCD*TOOTH WASHER 55MM $2.50
455 P0504455
Replaced By P05041504
INT RETAINING RING 90MM
 N/A View Replacement
456 P0504456
Replaced By P05041505
OIL SEAL 70 X 90 X 8MM
 N/A View Replacement
461 P0504461
Replaced By P05041507
BEARING HOUSING LEFT
 N/A View Replacement
501 P0504501
Replaced By PCAP61M
CAP SCREW M10-1.5 X 20
 N/A View Replacement
502 P0504502
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
503 P0504503
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
504 P0504504
*DISCD*PUMP SEAT
Item is no longer available
 N/A
505 P0504505
Replaced By PCAP72M
CAP SCREW M10-1.5 X 30
 N/A View Replacement
506 P0504506
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
507 P0504507 *DISCD*OIL PUMP VHIF 40 $1,101.25
508 P0504508
*DISCD*PUMP BRACKET
Item is no longer available
 N/A
509 P0504509
*DISCD*CONNECTOR
Item is no longer available
 N/A
510 P0504510
*DISCD*PUMP PULLEY V1.05.03
Item is no longer available
 N/A
510A P0504510A *DISCD*PUMP PULLEY V2.09.04 $50.50
511 P0504511
Replaced By PVA33
V-BELT A33
 N/A View Replacement
511A P0504511A
Replaced By PVA36
V-BELT A36
 N/A View Replacement
512 P0504512
*DISCD*SHAFT
Item is no longer available
 N/A
513 P0504513
*DISCD*PULLEY BRACKET
Item is no longer available
 N/A
514 P0504514
Replaced By P6205LLB
BALL BEARING 6205LLB
 N/A View Replacement
515 P0504515
*DISCD*PULLEY COVER
Item is no longer available
 N/A
516 P0504516
Replaced By P6205LLB
BALL BEARING 6205LLB
 N/A View Replacement
517 P0504517
*DISCD*PULLEY COVER
Item is no longer available
 N/A
518 P0504518
Replaced By PN01M
HEX NUT M6-1
 N/A View Replacement
519 P0504519
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
520 P0504520
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
521 P0504521
Replaced By PB70M
HEX BOLT M10-1.5 X 16
 N/A View Replacement
522 P0504522
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
523 P0504523
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
524 P0504524
Replaced By PCAP64M
CAP SCREW M10-1.5 X 25
 N/A View Replacement
525 P0504525
Replaced By PK42M
KEY 6 X 6 X 30
 N/A View Replacement
526 P0504526
Replaced By PSS16M
SET SCREW M8-1.25 X 10
 N/A View Replacement
527 P0504527
Replaced By PSS16M
SET SCREW M8-1.25 X 10
 N/A View Replacement
528 P0504528
Replaced By PK76M
KEY 6 X 6 X 60
 N/A View Replacement
529 P0504529
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
530 P0504530
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
 N/A View Replacement
531 P0504531
Replaced By PW03M
FLAT WASHER 6MM
 N/A View Replacement
532 P0504532
Replaced By PLW03M
LOCK WASHER 6MM
 N/A View Replacement
533 P0504533
Replaced By PCAP28M
CAP SCREW M6-1 X 15
 N/A View Replacement
534 P0504534
Replaced By PW08M
FLAT WASHER 16MM
 N/A View Replacement
535 P0504535
Replaced By PLW10M
LOCK WASHER 16MM
 N/A View Replacement
536 P0504536
Replaced By PN13M
HEX NUT M16-2
 N/A View Replacement
537 P0504537
Replaced By PS67M
PHLP HD SCR M16-2 X 20
 N/A View Replacement
538 P0504538
*DISCD*MOTOR PLATE
Item is no longer available
 N/A
539 P0504539
*DISCD*MOTOR 25HP X4P
Item is no longer available
 N/A
540 P0504540
Replaced By PB08M
HEX BOLT M6-1 X 20
 N/A View Replacement
541 P0504541
Replaced By PLW03M
LOCK WASHER 6MM
 N/A View Replacement
542 P0504542
Replaced By PW03M
FLAT WASHER 6MM
 N/A View Replacement
543 P0504543
*DISCD*L BRACKET
Item is no longer available
 N/A
544 P0504544
Replaced By PW03M
FLAT WASHER 6MM
 N/A View Replacement
545 P0504545
Replaced By PLW03M
LOCK WASHER 6MM
 N/A View Replacement
546 P0504546
Replaced By PB08M
HEX BOLT M6-1 X 20
 N/A View Replacement
547 P0504547
*DISCD*PULLEY COVER
Item is no longer available
 N/A
548 P0504548
Replaced By PVB77
V-BELT B77
 N/A View Replacement
549 P0504549
*DISCD*MOTOR PULLEY
Item is no longer available
 N/A
550 P0504550
*DISCD*LOCKING SLEEVE
Item is no longer available
 N/A
551 P0504551
Replaced By PN03M
HEX NUT M8-1.25
 N/A View Replacement
552 P0504552
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
553 P0504553
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
554 P0504554
Replaced By PB87M
HEX BOLT M8-1.25 X 15
 N/A View Replacement
555 P0504555
*DISCD*PULLEY GUARD
Item is no longer available
 N/A
556 P0504556
Replaced By PW06M
FLAT WASHER 12MM
 N/A View Replacement
557 P0504557
Replaced By PLW05M
LOCK WASHER 12MM
 N/A View Replacement
558 P0504558
Replaced By PB27M
HEX BOLT M12-1.75 X 30
 N/A View Replacement
559 P0504559
*DISCD*RING BOLT D30 X D50
Item is no longer available
 N/A
560 P0504560
*DISCD*RUBBER PAD
Item is no longer available
 N/A
561 P0504561
*DISCD*RUBBER SEAT
Item is no longer available
 N/A
562 P0504562
Replaced By PWS004
WOOD SCREW #10 X 1"
 N/A View Replacement
563 P0504563
Replaced By PK77M
KEY 12 X 8 X 80
 N/A View Replacement
564 P0504564
Replaced By PB18M
HEX BOLT M6-1 X 15
 N/A View Replacement
565 P0504565
Replaced By PLW03M
LOCK WASHER 6MM
 N/A View Replacement
566 P0504566
Replaced By PW03M
FLAT WASHER 6MM
 N/A View Replacement
567 P0504567
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
568 P0504568
Replaced By PB01M
HEX BOLT M10-1.5 X 30
 N/A View Replacement
569 P0504569
Replaced By PB09M
HEX BOLT M8-1.25 X 20
 N/A View Replacement
570 P0504570
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
571 P0504571
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
572 P0504572
*DISCD*GUARD BRACKET
Item is no longer available
 N/A
601 P0504601
Replaced By PN02M
HEX NUT M10-1.5
 N/A View Replacement
602 P0504602
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
603 P0504603
Replaced By P05041803
CONVEYOR LOWER PLATE
 N/A View Replacement
604 P0504604
Replaced By PN33M
HEX NUT M24-2
 N/A View Replacement
605 P0504605
Replaced By P05041805
ADJ BOLT M24 X 1.22 X 90
 N/A View Replacement
606 P0504606
Replaced By PB01M
HEX BOLT M10-1.5 X 30
 N/A View Replacement
607 P0504607
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
608 P0504608
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
609 P0504609
Replaced By P05041808
ROLLER SEAT
 N/A View Replacement
610 P0504610
Replaced By P05041809
ROLLER
 N/A View Replacement
611 P0504611
*DISCD*ROLLER PLATE
Item is no longer available
 N/A
611A P0504611A
Replaced By P05041832
ROLLER PLATE FRONT
 N/A View Replacement
611B P0504611B
Replaced By P05041810
ROLLER PLATE REAR
 N/A View Replacement
612 P0504612
Replaced By PB01M
HEX BOLT M10-1.5 X 30
 N/A View Replacement
613 P0504613
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
614 P0504614
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
615 P0504615
Replaced By PB33M
HEX BOLT M12-1.75 X 50
 N/A View Replacement
616 P0504616
Replaced By PLW05M
LOCK WASHER 12MM
 N/A View Replacement
617 P0504617
Replaced By P0504617B
*DISCD*MAIN CON HYDRAULIC MTR V3.10.05
 N/A View Replacement
617A P0504617A
Replaced By P0504617B
*DISCD*MAIN CON HYDRAULIC MTR V3.10.05
 N/A View Replacement
617B P0504617B
*DISCD*MAIN CON HYDRAULIC MTR V3.10.05
Item is no longer available
 N/A
617C P0504617C
*DISCD*CONVEYOR HYDRAULIC MOTOR V4.12.06
Item is no longer available
 N/A
618 P0504618
*DISCD*OIL PUMP FLANGE
Item is no longer available
 N/A
618A P0504618A
Replaced By P05041815
MOTOR BEARING SEAT
 N/A View Replacement
619 P0504619
Replaced By P6008LLB
BALL BEARING 6008LLB
 N/A View Replacement
620 P0504620
Replaced By PK42M
KEY 6 X 6 X 30
 N/A View Replacement
621 P0504621
Replaced By P05041818
REAR ROLLER BRACKET R
 N/A View Replacement
621A P0504621A
Replaced By P05041926
REAR ROLLER BRACKET R
 N/A View Replacement
622 P0504622
Replaced By P05041819
REAR ROLLER
 N/A View Replacement
623 P0504623
Replaced By P05041820V2
CONVEYOR BELT V2.08.14
 N/A View Replacement
624 P0504624
Replaced By P05041821
REAR ROLLER BRACKET L
 N/A View Replacement
625 P0504625
Replaced By P05041822
FLANGE BEARING UCFL205
 N/A View Replacement
626 P0504626
Replaced By PW06M
FLAT WASHER 12MM
 N/A View Replacement
627 P0504627
Replaced By PLW05M
LOCK WASHER 12MM
 N/A View Replacement
628 P0504628
Replaced By PB25M
HEX BOLT M12-1.75 X 25
 N/A View Replacement
629 P0504629
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
630 P0504630
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
631 P0504631
Replaced By PB01M
HEX BOLT M10-1.5 X 30
 N/A View Replacement
632 P0504632
Replaced By PB01M
HEX BOLT M10-1.5 X 30
 N/A View Replacement
633 P0504633
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
634 P0504634
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
635 P0504635
Replaced By PCB09M
CARRIAGE BOLT M10-1.5 X 25
 N/A View Replacement
636 P0504636
Replaced By P05041824
CONVEYOR PLATEN
 N/A View Replacement
637 P0504637
Replaced By P05041827
ADJ SCR M12-1.75 X 90
 N/A View Replacement
638 P0504638
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
639 P0504639
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
640 P0504640
Replaced By PCAP72M
CAP SCREW M10-1.5 X 30
 N/A View Replacement
641 P0504641
Replaced By PN02M
HEX NUT M10-1.5
 N/A View Replacement
642 P0504642
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
643 P0504643
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
644 P0504644
Replaced By PB32M
HEX BOLT M10-1.5 X 25
 N/A View Replacement
645 P0504645
Replaced By PB25M
HEX BOLT M12-1.75 X 25
 N/A View Replacement
646 P0504646
Replaced By PLW05
LOCK WASHER 7/16
 N/A View Replacement
647 P0504647
Replaced By PW06M
FLAT WASHER 12MM
 N/A View Replacement
648 P0504648
Replaced By P05041822
FLANGE BEARING UCFL205
 N/A View Replacement
649 P0504649
Replaced By P05041830
ROLLER BRACKET
 N/A View Replacement
650 P0504650
Replaced By P05041831
FRONT ROLLER
 N/A View Replacement
651 P0504651
*DISCD*HIGH PRESSURE HYD LABEL
Item is no longer available
 N/A
701 P0504701 *DISCD*CONTROL BOX $178.00
702 P0504702
Replaced By PB09M
HEX BOLT M8-1.25 X 20
 N/A View Replacement
703 P0504703
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
704 P0504704
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
705 P0504705 *DISCD*CONTROL PANEL $39.50
706 P0504706
Replaced By PS38M
PHLP HD SCR M4-.7 X 10
 N/A View Replacement
707 P0504707
Replaced By PCAP63M
CAP SCREW M12-1.75 X 60
 N/A View Replacement
708 P0504708
Replaced By PW06M
FLAT WASHER 12MM
 N/A View Replacement
709 P0504709
Replaced By P05042119
SHOCK ABSORBER
 N/A View Replacement
710 P0504710
Replaced By PN09M
HEX NUT M12-1.75
 N/A View Replacement
711 P0504711
Replaced By PN02M
HEX NUT M10-1.5
 N/A View Replacement
712 P0504712
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
713 P0504713
Replaced By P05042121
CUSHION LOWER BRACKET
 N/A View Replacement
714 P0504714
Replaced By PCAP101M
CAP SCREW M12-1.75 X 90
 N/A View Replacement
715 P0504715
Replaced By PW06M
FLAT WASHER 12MM
 N/A View Replacement
716 P0504716
Replaced By P05042118
COLLAR
 N/A View Replacement
717 P0504717
Replaced By PN09M
HEX NUT M12-1.75
 N/A View Replacement
718 P0504718
Replaced By PN09M
HEX NUT M12-1.75
 N/A View Replacement
719 P0504719
Replaced By PLW05M
LOCK WASHER 12MM
 N/A View Replacement
720 P0504720
Replaced By PW06M
FLAT WASHER 12MM
 N/A View Replacement
721 P0504721
Replaced By P05042105
PRESS ROLLER SUPPORT
 N/A View Replacement
722 P0504722
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
723 P0504723
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
724 P0504724
Replaced By PB32M
HEX BOLT M10-1.5 X 25
 N/A View Replacement
725 P0504725
Replaced By PB35M
HEX BOLT M12-1.75 X 40
 N/A View Replacement
726 P0504726
Replaced By P05041822
FLANGE BEARING UCFL205
 N/A View Replacement
727 P0504727
Replaced By P05042106
SHAFT UPPER
 N/A View Replacement
728 P0504728
Replaced By PN03M
HEX NUT M8-1.25
 N/A View Replacement
729 P0504729
Replaced By PN02M
HEX NUT M10-1.5
 N/A View Replacement
730 P0504730
*DISCD*PANEL BRACKET
Item is no longer available
 N/A
731 P0504731
Replaced By P05042116
PRESS ROLLER SUPPORT
 N/A View Replacement
732 P0504732
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
733 P0504733
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
734 P0504734
Replaced By PB01M
HEX BOLT M10-1.5 X 30
 N/A View Replacement
735 P0504735
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
736 P0504736
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
737 P0504737
Replaced By PB74M
HEX BOLT M10-1.5 X 20
 N/A View Replacement
738 P0504738
Replaced By PB01M
HEX BOLT M10-1.5 X 30
 N/A View Replacement
739 P0504739
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
740 P0504740
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
741 P0504741
Replaced By PN02M
HEX NUT M10-1.5
 N/A View Replacement
742 P0504742
Replaced By P05042114
FRONT PRESSURE PLATE
 N/A View Replacement
743 P0504743
Replaced By PLW05M
LOCK WASHER 12MM
 N/A View Replacement
744 P0504744
Replaced By PB49M
HEX BOLT M12-1.75 X 20
 N/A View Replacement
745 P0504745
Replaced By PN02M
HEX NUT M10-1.5
 N/A View Replacement
746 P0504746
Replaced By PB31M
HEX BOLT M10-1.5 X 40
 N/A View Replacement
747 P0504747
Replaced By P05042019
PRESSURE ROLLER WHEEL
 N/A View Replacement
748 P0504748
Replaced By P05042112
COLLAR
 N/A View Replacement
749 P0504749
Replaced By P05042113
FRONT ROLLER SHAFT
 N/A View Replacement
750 P0504750
Replaced By PB01M
HEX BOLT M10-1.5 X 30
 N/A View Replacement
751 P0504751
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
752 P0504752
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
753 P0504753
Replaced By P05042004
REAR ROLLER BRACKET
 N/A View Replacement
754 P0504754
*DISCD*REAR UPPER SHAFT
Item is no longer available
 N/A
755 P0504755
Replaced By PB49M
HEX BOLT M12-1.75 X 20
 N/A View Replacement
756 P0504756
Replaced By PLW05M
LOCK WASHER 12MM
 N/A View Replacement
757 P0504757
Replaced By P05042010
REAR PRESSURE PLATE
 N/A View Replacement
758 P0504758
Replaced By P05042011
COLLAR
 N/A View Replacement
759 P0504759
Replaced By PW06M
FLAT WASHER 12MM
 N/A View Replacement
760 P0504760
Replaced By PLW05M
LOCK WASHER 12MM
 N/A View Replacement
761 P0504761
Replaced By PN09M
HEX NUT M12-1.75
 N/A View Replacement
762 P0504762
Replaced By PSS30M
SET SCREW M10-1.5 X 10
 N/A View Replacement
763 P0504763
Replaced By P05042020
COLLAR
 N/A View Replacement
764 P0504764
*DISCD*ROLLER SHAFT
Item is no longer available
 N/A
765 P0504765
Replaced By PLABEL-27
MM CONVERSION CHART 3.6W X 5.5H
 N/A View Replacement
766 P0504766
Replaced By PLABEL-11
SAFETY GLASSES 2W X 3.3H V1
 N/A View Replacement
767 P0504767
Replaced By PLABEL-31
CONVEYOR/CLOTHING 2W X 3.3H
 N/A View Replacement
768 P0504768
Replaced By PLABEL-32A
DUST MASK 2W X 3.3H V2.05.06
 N/A View Replacement
769 P0504769
Replaced By PLABEL-12
***USE PLABEL-12A***
 N/A View Replacement
770 P0504770
*DISCD*DANGER LABEL
Item is no longer available
 N/A
771 P0504771
*DISCD*HAND NEAR ROLLERS LABEL
Item is no longer available
 N/A
801 P0504801
Replaced By PN02M
HEX NUT M10-1.5
 N/A View Replacement
802 P0504802
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
803 P0504803
*DISCD*CONVEYOR LOWER PLATE
Item is no longer available
 N/A
804 P0504804
*DISCD*BUSHING
Item is no longer available
 N/A
805 P0504805
Replaced By PB33M
HEX BOLT M12-1.75 X 50
 N/A View Replacement
806 P0504806
Replaced By PLW05M
LOCK WASHER 12MM
 N/A View Replacement
807 P0504807
Replaced By P0504807B
*DISCD*RETURN CON HYDRAULIC MTR V5.01.07
 N/A View Replacement
807B P0504807B *DISCD*RETURN CON HYDRAULIC MTR V5.01.07 $592.00
808 P0504808
Replaced By P0504618
*DISCD*OIL PUMP FLANGE
 N/A View Replacement
809 P0504809
Replaced By P6008LLB
BALL BEARING 6008LLB
 N/A View Replacement
810 P0504810
Replaced By PK42M
KEY 6 X 6 X 30
 N/A View Replacement
811 P0504811
Replaced By P05041818
REAR ROLLER BRACKET R
 N/A View Replacement
812 P0504812
*DISCD*REAR ROLLER
Item is no longer available
 N/A
813 P0504813
*DISCD*CONVEYOR BELT
Item is no longer available
 N/A
814 P0504814
Replaced By P05041821
REAR ROLLER BRACKET L
 N/A View Replacement
815 P0504815
Replaced By P05041822
FLANGE BEARING UCFL205
 N/A View Replacement
816 P0504816
Replaced By PW06M
FLAT WASHER 12MM
 N/A View Replacement
817 P0504817
Replaced By PLW05M
LOCK WASHER 12MM
 N/A View Replacement
818 P0504818
Replaced By PB25M
HEX BOLT M12-1.75 X 25
 N/A View Replacement
819 P0504819
Replaced By PB01M
HEX BOLT M10-1.5 X 30
 N/A View Replacement
820 P0504820
Replaced By PLW06
LOCK WASHER 5/8
 N/A View Replacement
821 P0504821
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
822 P0504822
Replaced By PB01M
HEX BOLT M10-1.5 X 30
 N/A View Replacement
823 P0504823
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
824 P0504824
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
825 P0504825
Replaced By PCB09M
CARRIAGE BOLT M10-1.5 X 25
 N/A View Replacement
826 P0504826
*DISCD*CONVEYOR TABLE
Item is no longer available
 N/A
827 P0504827
Replaced By P05041904
ADJ BOLT M12-1.75 X 90
 N/A View Replacement
828 P0504828
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
829 P0504829
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
830 P0504830
Replaced By PCAP72M
CAP SCREW M10-1.5 X 30
 N/A View Replacement
831 P0504831
Replaced By PN02M
HEX NUT M10-1.5
 N/A View Replacement
832 P0504832
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
833 P0504833
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
834 P0504834
Replaced By PB32M
HEX BOLT M10-1.5 X 25
 N/A View Replacement
835 P0504835
Replaced By PB25M
HEX BOLT M12-1.75 X 25
 N/A View Replacement
836 P0504836
Replaced By PLW05M
LOCK WASHER 12MM
 N/A View Replacement
837 P0504837
Replaced By PW06M
FLAT WASHER 12MM
 N/A View Replacement
838 P0504838
Replaced By P05041822
FLANGE BEARING UCFL205
 N/A View Replacement
839 P0504839
Replaced By P05041830
ROLLER BRACKET
 N/A View Replacement
840 P0504840
*DISCD*FRONT ROLLER
Item is no longer available
 N/A
891 P0504891
*DISCD*THREAD PIECE GASKET
Item is no longer available
 N/A
901 P0504901 *DISCD*DIGITAL DISPLAY FPC-525/IN $1,229.00
901-1 P0504901-1
*DISCD*LINE CORD CPU
Item is no longer available
 N/A
901A P0504901A
Replaced By P05042301A
DIM SET METER CHPC535/INCH V2.05.06
 N/A View Replacement
902 P0504902
*DISCD*MEMORY BUTTON
Item is no longer available
 N/A
903 P0504903
*DISCD*EMERGENCY BUTTON 30DIA 1B
Item is no longer available
 N/A
904 P0504904
*DISCD*BUTTON ON 30DIA 1A
Item is no longer available
 N/A
905 P0504905
*DISCD*LIMIT SWITCH UP 30DIA
Item is no longer available
 N/A
906 P0504906
*DISCD*BUTTON UP 30DIA
Item is no longer available
 N/A
907 P0504907
*DISCD*MOTOR START GREEN 30DIA
Item is no longer available
 N/A
908 P0504908
*DISCD*DOWN/LIMIT SWITCH 30DIA
Item is no longer available
 N/A
909 P0504909
*DISCD*DOWN BUTTON 30DIA
Item is no longer available
 N/A
910 P0504910
*DISCD*MOTOR STOP REF 30DIA
Item is no longer available
 N/A
911 P0504911 *DISCD*SWITCH NFB 3PH 75A $253.00
912 P0504912
*DISCD*MOTOR MAGNETIC STARTER 10HP/30A
Item is no longer available
 N/A
912-1 P0504912-1 *DISCD*CONTACTOR CN-50 200/220V V1.08.02 $258.25
912-1A P0504912-1A
*DISCD*CONTACTOR LC1-D65M V2.06.04
Item is no longer available
 N/A
912A P0504912A *DISCD*MOTOR MAGNETIC STARTER LC1-D6SM $94.75
913 P0504913
*DISCD*CONTACTOR CN-11
Item is no longer available
 N/A
915 P0504915
*DISCD*TRANFORMER 200VA
Item is no longer available
 N/A
916 P0504916
*DISCD*FUSE TERMINAL
Item is no longer available
 N/A
917 P0504917
*DISCD*ELECTRIC SET 10A/1P
Item is no longer available
 N/A
918 P0504918
*DISCD*DOOR MICRO SWITCH
Item is no longer available
 N/A
919 P0504919 *DISCD*CONV KIT RH-35/30 440V V1.04.03 $112.00
919A P0504919A
*DISCD*CONV KIT TE BRAND 440V V2.06.06
Item is no longer available
 N/A
920 P0504920
*DISCD*OVR-RELAY RH-65/55A 220V V1.04.03
Item is no longer available
 N/A
920A P0504920A
*DISCD*OVR-RELAY LR303359 48/65A 220V V2
Item is no longer available
 N/A
921 P0504921
*DISCD*OVERLOAD SWITCH RH-10/1A
Item is no longer available
 N/A
922 P0504922
*DISCD*PHASE REV RELAY APR3L250CAC 10A
Item is no longer available
 N/A
950 P0504950 *DISCD*TENSION LOCK VALVE ASSY $43.75
951 P0504951
Replaced By P0504951-2
*DISCD*HYDRAULIC JACK
 N/A View Replacement
951-1 P0504951-1 *DISCD*HYDRAULIC AIR CYL W/HOSE & JACK $409.00
951-2 P0504951-2 *DISCD*HYDRAULIC JACK $224.50
952 P0504952
*DISCD*PRESSURE GAUGE
Item is no longer available
 N/A
953 P0504953
Replaced By P0504951-1
*DISCD*HYDRAULIC AIR CYL W/HOSE & JACK
 N/A View Replacement
954 P0504954
Replaced By P0504617B
*DISCD*MAIN CON HYDRAULIC MTR V3.10.05
 N/A View Replacement
955 P0504955
*DISCD*HYDRAULIC HOSE 3/8
Item is no longer available
 N/A
956 P0504956 *DISCD*SPEED CONTROL VALVE 3/8 $50.50
957 P0504957
*DISCD*HYDRAULIC HOSE 3/8
Item is no longer available
 N/A
958 P0504958 *DISCD*STOP HYDRAULIC OIL VALVE $33.75
959 P0504959
*DISCD*HYDRAULIC HOSE
Item is no longer available
 N/A
960 P0504960
*DISCD*HYDRAULIC HOSE 3/8
Item is no longer available
 N/A
961 P0504961
*DISCD*HYDRAULIC HOSE 3/8
Item is no longer available
 N/A
962 P0504962
*DISCD*HYDRAULIC HOSE 3/8
Item is no longer available
 N/A
963 P0504963
*DISCD*HYDRAULIC HOSE 3/8
Item is no longer available
 N/A
964 P0504964
*DISCD*HYDRAULIC HOSE 3/8
Item is no longer available
 N/A
965 P0504965 *DISCD*HYDRAULIC PUMP V1.05.03 $1,101.25
965A P0504965A *DISCD*HYDRAULIC PUMP V2.06.06 $561.25
965A-1 P0504965A-1
*DISCD*PUMP SEAL
Item is no longer available
 N/A
966 P0504966
*DISCD*HYDRAULIC HOSE
Item is no longer available
 N/A
967 P0504967
*DISCD*HYDRAULIC HOSE 1/2
Item is no longer available
 N/A
968 P0504968
*DISCD*HYDRAULIC HOSE 3/8
Item is no longer available
 N/A
969 P0504969
*DISCD*HYDRAULIC HOSE 3/8
Item is no longer available
 N/A
970 P0504970
*DISCD*FILTER KIT FILTER+ORINGS
Item is no longer available
 N/A
971 P0504971
*DISCD*PRESSURE GAUGE
Item is no longer available
 N/A
972 P0504972
*DISCD*VALVE
Item is no longer available
 N/A
973 P0504973
*DISCD*LID
Item is no longer available
 N/A
9731 P05049731
*DISCD*LID GASKET
Item is no longer available
 N/A
974 P0504974
*DISCD*OIL LEVEL
Item is no longer available
 N/A
975 P0504975
*DISCD*OIL BOX 80L
Item is no longer available
 N/A
976 P0504976 *DISCD*HYDRAULIC JACK $310.50
977 P0504977
*DISCD*MALE ELBOW 3/8TX3/8H 90
Item is no longer available
 N/A
978 P0504978
*DISCD*MALE ELBOW 3/8TX3/8H 45
Item is no longer available
 N/A
979 P0504979
*DISCD*MALE ELBOW 3/8TX3/8H
Item is no longer available
 N/A
980 P0504980
*DISCD*MALE ELBOW 3/4TX1/2H 90
Item is no longer available
 N/A
981 P0504981
*DISCD*MALE ELBOW 1/2TX3/8H 90
Item is no longer available
 N/A
982 P0504982
*DISCD*FEMALE 4WAY 1/2T X 4
Item is no longer available
 N/A
983 P0504983
*DISCD*MALE 3-WAY 3/8TX3/8HX 3/8H
Item is no longer available
 N/A
984 P0504984
*DISCD*MALE ELBOW 3/4TX1/2H
Item is no longer available
 N/A
985 P0504985
*DISCD*MALE ELBOW 1/2TX3/8H
Item is no longer available
 N/A
986 P0504986 *DISCD*FILTER CANNISTER $122.25
987 P0504987
*DISCD*CAP
Item is no longer available
 N/A
988 P0504988
Replaced By PFB06M
FLANGE BOLT M6-1 X 20
 N/A View Replacement
989 P0504989
*DISCD*FILTER CAP THREAD PIECE
Item is no longer available
 N/A
9891 P05049891
*DISCD*THREAD PIECE GASKET
Item is no longer available
 N/A
990 P0504990
*DISCD*SQUARE PLATE
Item is no longer available
 N/A
9901 P05049901
*DISCD*SQUARE PLATE GASKET
Item is no longer available
 N/A
991 P0504991
*DISCD*PLASTIC FILL SCREEN
Item is no longer available
 N/A
992 P0504992
*DISCD*TANK PICK-UP SCREEN
Item is no longer available
 N/A
993 P0504993
*DISCD*TANK SCREEN NIPPLE
Item is no longer available
 N/A
994 P0504994
*DISCD*ELBOW 1-1/4 X 3/4
Item is no longer available
 N/A
MANUAL P0504MANUAL MANUAL FOR G0504 03/07 $12.50
