Parts for G0504 - 16" 30 HP 3-Phase Dual Conveyor Horizontal Resaw Bandsaw

Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504
Part Diagram for G0504

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
2
FLAT WASHER 12MM
Price
N/A
1006
MOTOR MOUNTING PLATE
Price
N/A
101
*DISCD*FRAME
Item is no longer available
Price
N/A
102
FLAT WASHER 12MM
Price
N/A
103
LOCK WASHER 12MM
Price
N/A
1036
MOTOR MOUNTING PLATE
Price
N/A
104
HEX NUT M12-1.75
Price
N/A
105
*DISCD*CONVEYOR SUPPORT
Item is no longer available
Price
N/A
106
*DISCD*ELECTRIC BOX
Item is no longer available
Price
N/A
107
*DISCD*DOOR HINGE
Item is no longer available
Price
N/A
108
FLAT WASHER 8MM
Price
N/A
109
LOCK WASHER 8MM
Price
N/A
110
P0504110
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A

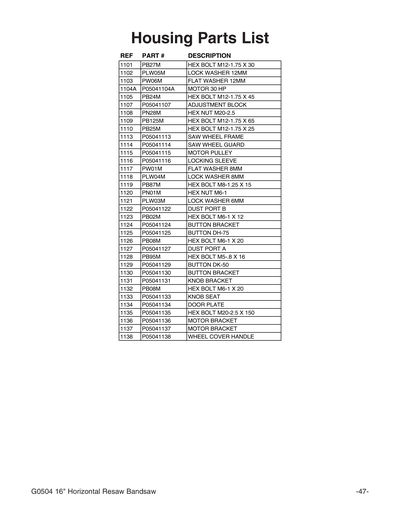

1101
HEX BOLT M12-1.75 X 30
Price
N/A
1102
LOCK WASHER 12MM
Price
N/A
1103
FLAT WASHER 12MM
Price
N/A
1104
MOTOR 25HP V1.08.02
Price
$1,907.85
1104A
MOTOR 30HP 220V/440V 3-PH V2.11.07
Price
$5,131.90
1104A-1
MOTOR FAN COVER
Price
$422.65
1104A-2
MOTOR FAN
Price
$205.30
1104V3
MOTOR 30HP 220V/440V 3-PH V3.11.14
Price
$4,226.25
1105
HEX BOLT M12-1.75 X 45
Price
N/A
1106
MOTOR MOUNTING PLATE
Price
$354.15
1107
ADJUSTMENT BLOCK
Price
$79.45
1108
HEX NUT M20-2.5
Price
N/A
1109
HEX BOLT M12-1.75 X 65
Price
N/A
111
CAP SCREW M12-1.75 X 30
Price
N/A
1110
HEX BOLT M12-1.75 X 25
Price
N/A
1111
MOTOR MOUNTING BRACKET
Price
$420.85
1112
HEX BOLT M10-1.5 X 30
Price
N/A
1113
SAW WHEEL FRAME
Price
$2,221.80
1114
SAW WHEEL GUARD
Price
$551.60
1115
MOTOR PULLEY
Price
$302.55
1116
LOCK SLEEVE
Price
$105.70
1117
FLAT WASHER 8MM
Price
N/A
1118
LOCK WASHER 8MM
Price
N/A
1119
HEX BOLT M8-1.25 X 15
Price
N/A
112
CAP SCREW M12-1.75 X 30
Price
N/A
1120
HEX NUT M6-1
Price
N/A
1121
LOCK WASHER 6MM
Price
N/A
1122
DUST PORT B
Price
$253.60
1123
HEX BOLT M6-1 X 12
Price
N/A
1124
BUTTON BRACKET
Price
$6.40
1125
BUTTON DH-75
Price
$23.60
1126
HEX BOLT M6-1 X 20
Price
N/A
1127
DUST PORT A
Price
$217.35
1128
HEX BOLT M5-.8 X 16
Price
N/A
1129
BUTTON DK-50
Price
$29.00
113
*DISCD*SAW WHEEL COVER
Item is no longer available
Price
N/A
1130
BUTTON BRACKET
Price
$7.25
1131
KNOB BRACKET
Price
$36.25
1132
HEX BOLT M6-1 X 20
Price
N/A
1133
KNOB SEAT
Price
$35.65
1134
DOOR PLATE
Price
$576.95
1135
T-BOLT M20-2.5 X 175
Price
N/A
1136
MOTOR MOUNTING PLATE
Price
N/A
1137
MOTOR MOUNTING BRACKET
Price
N/A
1138
WHEEL COVER HANDLE
Price
$23.90
114
*DISCD*HANDLE
Item is no longer available
Price
N/A
115
HEX BOLT M8-1.25 X 15
Price
N/A
116
LOCK WASHER 8MM
Price
N/A
117
FLAT WASHER 8MM
Price
N/A
118
*DISCD*PLASTIC SPACER
Item is no longer available
Price
N/A
119
HEX BOLT M8-1.25 X 60
Price
N/A
120
*DISCD*OPEN ARM RIGHT
Item is no longer available
Price
N/A

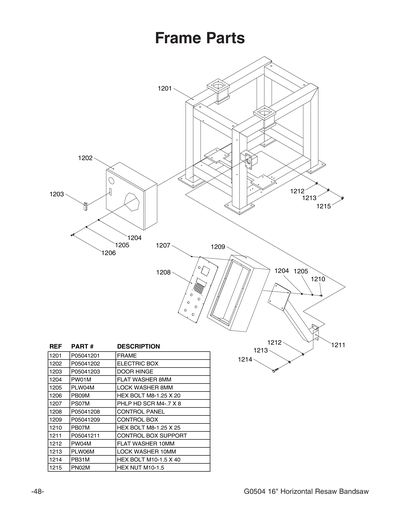

1201
FRAME
Price
$2,579.85
1202
ELECTRIC BOX
Price
$435.65
1203
DOOR HINGE
Price
$43.50
1204
FLAT WASHER 8MM
Price
N/A
1205
LOCK WASHER 8MM
Price
N/A
1206
HEX BOLT M8-1.25 X 20
Price
N/A
1207
PHLP HD SCR M4-.7 X 8
Price
N/A
1208
CONTROL PANEL
Price
$311.55
1209
CONTROL BOX
Price
$320.00
121
HEX NUT M8-1.25
Price
N/A
1210
HEX BOLT M8-1.25 X 25
Price
N/A
1211
CONTROL BOX SUPPORT
Price
$217.35
1212
FLAT WASHER 10MM
Price
N/A
1213
LOCK WASHER 10MM
Price
N/A
1214
HEX BOLT M10-1.5 X 40
Price
N/A
1215
HEX NUT M10-1.5
Price
N/A
122
CAP SCREW M10-1.5 X 20
Price
N/A
123
CAP SCREW M10-1.5 X 30
Price
N/A
124
LOCK WASHER 10MM
Price
N/A
125
FLAT WASHER 10MM
Price
N/A
126
*DISCD*SAW WHEEL FRAME
Item is no longer available
Price
N/A
127
HEX BOLT M8-1.25 X 20
Price
N/A
128
LOCK WASHER 8MM
Price
N/A
129
FLAT WASHER 8MM
Price
N/A
130
*DISCD*ROLLER BRACKET
Item is no longer available
Price
N/A

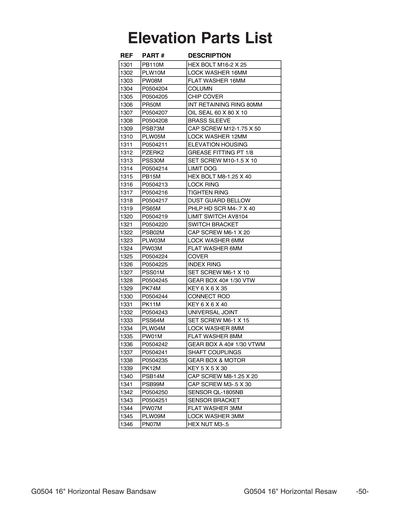

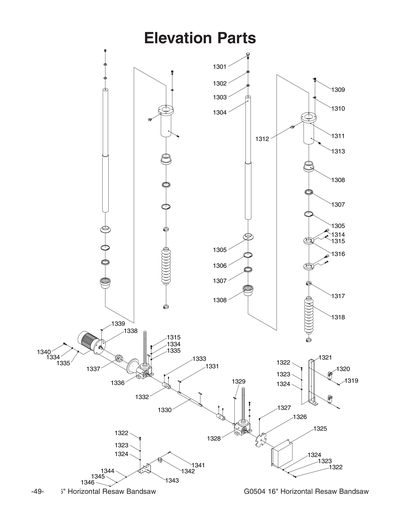

1301
HEX BOLT M16-2 X 25
Price
N/A
1302
LOCK WASHER 16MM
Price
N/A
1303
FLAT WASHER 16MM
Price
N/A
1304
COLUMN
Price
$1,312.30
1305
CHIP COVER
Price
$155.55
1306
INT RETAINING RING 80MM
Price
N/A
1307
OIL SEAL 60 X 80 X 10 V1.05.03
Price
$7.25
1308
BRASS SLEEVE
Price
$267.20
1309
CAP SCREW M12-1.75 X 50
Price
N/A
131
HEX NUT M8-1.25
Price
N/A
1310
LOCK WASHER 12MM
Price
N/A
1311
ELEVATION HOUSING
Price
$388.85
1312
GREASE FITTING M6-1 X 5
Price
N/A
1313
SET SCREW M10-1.5 X 10
Price
N/A
1314
LIMIT DOG
Price
$28.45
1315
HEX BOLT M8-1.25 X 40
Price
N/A
1316
LOCK RING
Price
$62.80
1317
TICHTEN RING
Price
$2.45
1318
DUST GUARD BELLOW
Price
$24.50
1319
PHLP HD SCR M4-.7 X 40
Price
N/A
132
*DISCD*COVER ROLLER
Item is no longer available
Price
N/A
1320
LIMIT SWITCH AV8104
Price
$55.90
1321
LIMIT BRACKET
Price
$18.45
1322
CAP SCREW M6-1 X 20
Price
N/A
1323
LOCK WASHER 6MM
Price
N/A
1324
FLAT WASHER 6MM
Price
N/A
1325
SENSOR COVER
Price
$59.20
1326
INDEX RING
Price
$35.05
1327
SET SCREW M6-1 X 10
Price
N/A
1328
GEAR BOX B
Price
$461.60
1329
KEY 6 X 6 X 35
Price
N/A
133
HEX BOLT M8-1.25 X 60
Price
N/A
1330
CONNECT ROD
Price
$58.30
1331
KEY 6 X 6 X 40
Price
N/A
1332
SHAFT COUPLING
Price
$121.40
1333
SET SCREW M6-1 X 16
Price
N/A
1334
LOCK WASHER 8MM
Price
N/A
1335
FLAT WASHER 8MM
Price
N/A
1336
GEAR BOX A
Price
$362.25
1336-1
CONE
Price
$148.55
1337
SHAFT COUPLING
Price
$144.90
1338
GEAR BOX & MOTOR V2.11.08
Price
N/A
1338V2
GEAR BOX & MOTOR V2.11.08
Price
$446.80
1338V3
GEAR BOX & MOTOR V3.11.14
Price
$1,231.65
1339
KEY 5 X 5 X 30
Price
N/A
134
*DISCD*SAW WHEEL GUARD
Item is no longer available
Price
N/A
1340
CAP SCREW M8-1.25 X 20
Price
N/A
1341
CAP SCREW M3-.5 X 30
Price
N/A
1342
SENSOR QL-1805NB
Price
$65.25
1343
SENSOR BRACKET
Price
$13.60
1344
FLAT WASHER 3MM
Price
N/A
1345
LOCK WASHER 3MM
Price
N/A
1346
HEX NUT M3-.5
Price
N/A
135
*DISCD*CONNECT ROD
Item is no longer available
Price
N/A
136
HEX NUT M8-1.25
Price
N/A
137
*DISCD*OPEN ARM LEFT
Price
$118.45
138
CAP SCREW M10-1.5 X 20
Price
N/A
139
HEX BOLT M8-1.25 X 60
Price
N/A
140
*DISCD*HANDLE
Price
$36.80

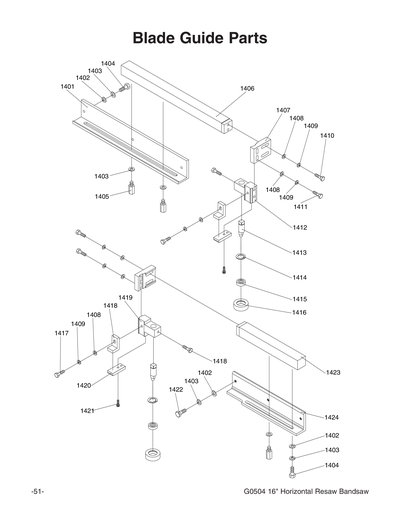

1401
POST BRACKET
Price
$106.90
1402
FLAT WASHER 10MM
Price
N/A
1403
LOCK WASHER 10MM
Price
N/A
1404
HEX BOLT M10-1.5 X 20
Price
N/A
1405
HEX LOCK BOLT
Price
$19.35
1406
GUIDE POST
Price
$330.60
1407
ADJUSTMENT BRACKET
Price
$126.80
1408
FLAT WASHER 8MM
Price
N/A
1409
LOCK WASHER 8MM
Price
N/A
141
*DISCD*CASING BEARING UCPS205
Item is no longer available
Price
N/A
1410
HEX BOLT M8-1.25 X 40
Price
N/A
1411
HEX BOLT M8-1.25 X 30
Price
N/A
1412
GUIDE POST BASE
Price
$144.90
1413
ECCENTRIC SHAFT
Price
N/A
1414
INT RETAINING RING 30MM
Price
N/A
1415
BALL BEARING 6200-2RS
Price
N/A
1416
SUPPORT ROLLER
Price
$72.45
1417
HEX BOLT M8-1.25 X 20
Price
N/A
1418
GUIDE W/CERAMIC L-SHAPE UPPER
Price
N/A
1419
GUIDE POST BASE
Price
$144.90
142
HEX NUT M8-1.25
Price
N/A
1420
GUIDE W/CERAMIC BOLTED LOWER
Price
$126.80
1421
CAP SCREW M6-1 X 20
Price
N/A
1422
HEX BOLT M10-1.5 X 16
Price
N/A
1423
GUIDE POST
Price
$179.95
1424
POST BRACKET
Price
$184.75
143
FLAT WASHER 8MM
Price
N/A
144
LOCK WASHER 8MM
Price
N/A
145
HEX BOLT M8-1.25 X 30
Price
N/A
146
*DISCD*WARNING/ID LABEL
Item is no longer available
Price
N/A
147
ELECTRICITY 1.4W X 1.2H
Price
N/A
148
DONT OPEN 2W X 3.3H
Price
N/A
149
UNPLUG BANDSAW 2W X 3.3H
Price
N/A

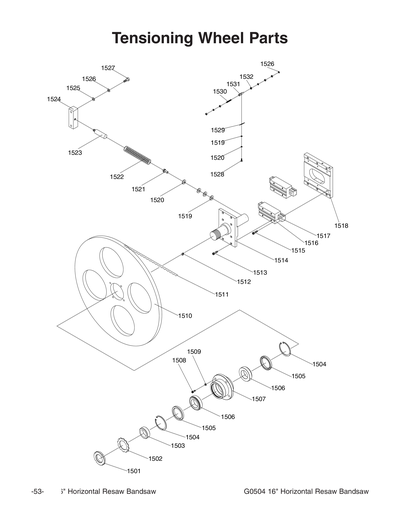

1501
LOCK NUT AN11
Price
$18.15
1502
EXT TOOTH WASHER 54MM
Price
$4.85
1503
LOCK RING
Price
$29.00
1504
INT RETAINING RING 90MM
Price
$10.90
1505
OIL SEAL 70 X 90 X 8MM
Price
$5.50
1506
TAPERED ROLLER BEARING 32011
Price
N/A
1507
BEARING HOUSING LEFT
Price
$192.00
1508
HEX BOLT M12-1.75 X 40
Price
N/A
1509
LOCK WASHER 12MM
Price
N/A
1510
SAW WHEEL LEFT
Price
$1,249.80
1511
SAW BLADE 3/4 X 180 X .035
Price
$670.20
1512
GREASE FITTING M6-1 X 5
Price
N/A
1513
CAP SCREW M8-1.25 X 15
Price
N/A
1514
WHEEL SHAFT LEFT
Price
$311.00
1515
CAP SCREW M8-1.25 X 30
Price
N/A
1516
SLIDER
Price
$329.65
1517
LINER GUIDE
Price
$461.60
1518
LINER WAY BRACKET LGH35H
Price
$400.00
1519
FLAT WASHER 8MM
Price
N/A
1520
LOCK WASHER 8MM
Price
N/A
1521
HEX BOLT M8-1.25 X 30
Price
N/A
1522
SPRING HELICAL 35 X 26 X 205
Price
$27.20
1523
SPRING ROD
Price
$23.60
1524
SPRING SEAT
Price
$70.35
1525
FLAT WASHER 10MM
Price
N/A
1526
LOCK WASHER 10MM
Price
N/A
1527
HEX BOLT M10-1.5 X 50
Price
N/A
1528
CAP SCREW M8-1.25 X 10
Price
N/A
1529
WHEEL SCRAPE
Price
$10.90
1530
THREADED ROD M10-1.5 X 150
Price
$2.20
1531
CLEANER BASE
Price
$12.75
1532
HEX NUT M10-1.5
Price
N/A
1533
COMPLETE TENSIONING WHEEL ASSY
Price
$1,696.30
1533-1
TENSIONING WHEEL ASSY W/O WHEEL
Price
$488.15

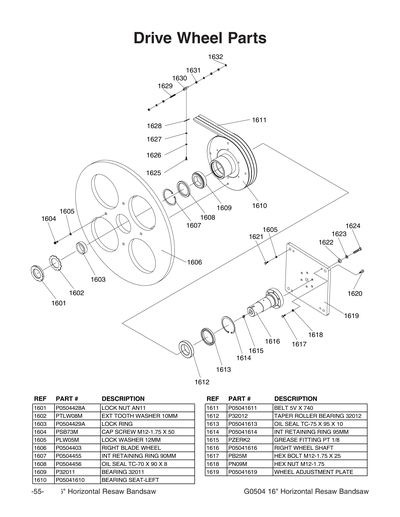

1601
LOCK NUT AN11
Price
N/A
1602
EXT TOOTH WASHER 10MM
Price
N/A
1603
LOCK RING
Price
N/A
1604
CAP SCREW M12-1.75 X 50
Price
N/A
1605
LOCK WASHER 12MM
Price
N/A
1606
DRIVER WHEEL
Price
$1,263.70
1607
INT RETAINING RING 90MM
Price
N/A
1608
OIL SEAL 70 X 90 X 8MM
Price
N/A
1609
TAPERED ROLLER BEARING 32011
Price
N/A
1610
BEARING SEAT LEFT
Price
$919.55
1611
BELT 5V X 740
Price
$144.60
1612
TAPER ROLLER BEARING 32012
Price
N/A
1613
OIL SEAL TC-75 X 95 X 10
Price
$7.25
1614
INT RETAINING RING 95MM
Price
N/A
1615
GREASE FITTING M6-1 X 5
Price
N/A
1616
WHEEL SHAFT RIGHT
Price
$643.60
1617
HEX BOLT M12-1.75 X 25
Price
N/A
1618
HEX NUT M12-1.75
Price
N/A
1619
WHEEL ADJUSTMENT PLATE
Price
$261.80
1620
HEX BOLT M10-1.25 X 20
Price
N/A
1621
HEX BOLT M12-1.75 X 40
Price
N/A
1622
WHEEL ADJUSTMENT SUPPORT
Price
$8.50
1623
LOCK WASHER 3/4
Price
N/A
1624
HEX BOLT 3/4-10 X 90
Price
$7.60
1625
CAP SCREW M8-1.25 X 10
Price
N/A
1626
LOCK WASHER 8MM
Price
N/A
1627
FLAT WASHER 8MM
Price
N/A
1628
CLEANER PAD
Price
$7.25
1629
THREADED ROD M10-1.5 X 150
Price
N/A
1630
CLEANER BASE
Price
N/A
1631
HEX NUT M10-1.5
Price
N/A
1632
LOCK WASHER 10MM
Price
N/A

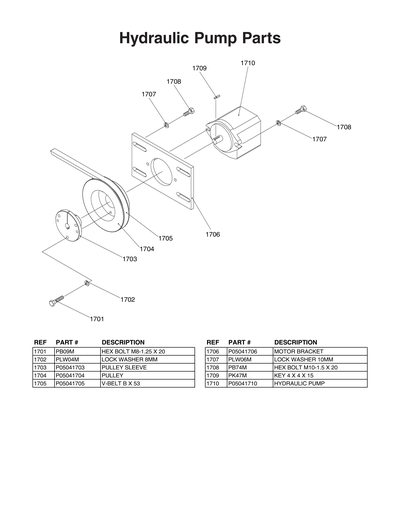

1701
HEX BOLT M8-1.25 X 20
Price
N/A
1702
LOCK WASHER 8MM
Price
N/A
1703
PULLEY SLEEVE
Price
$144.90
1704
PULLEY
Price
$199.25
1705
V-BELT B53
Price
$108.70
1705V2
V-BELT B54 V2.05.23
Price
$108.70
1706
MOTOR BRACKET
Price
$76.40
1707
LOCK WASHER 10MM
Price
N/A
1708
HEX BOLT M10-1.5 X 20
Price
N/A
1709
KEY 4 X 4 X 15
Price
N/A
1710
HYDRAULIC PUMP
Price
$923.75

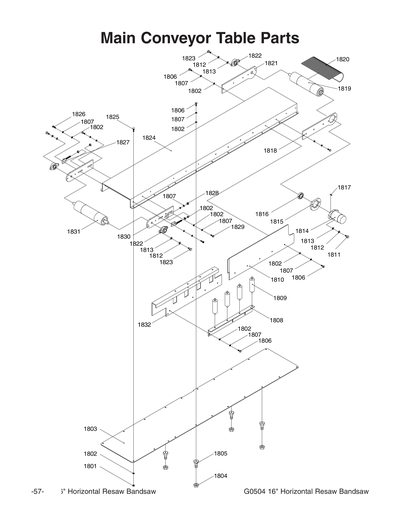

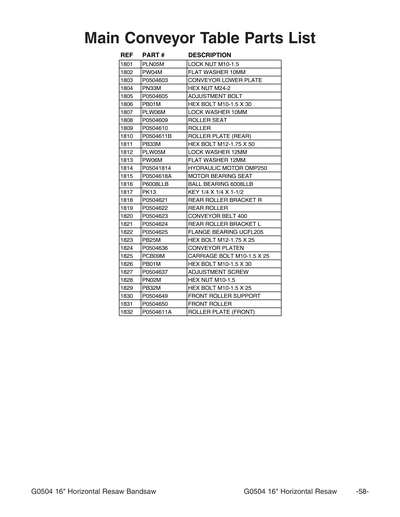

1801
LOCK NUT M10-1.5
Price
N/A
1802
FLAT WASHER 10MM
Price
N/A
1803
CONVEYOR LOWER PLATE
Price
$566.35
1804
HEX NUT M24-2
Price
N/A
1805
ADJ BOLT M24 X 1.22 X 90
Price
$20.55
1806
HEX BOLT M10-1.5 X 30
Price
N/A
1807
LOCK WASHER 10MM
Price
N/A
1808
ROLLER SEAT
Price
$50.75
1809
ROLLER
Price
$43.50
1810
ROLLER PLATE REAR
Price
$153.10
1811
HEX BOLT M12-1.75 X 50
Price
N/A
1812
LOCK WASHER 12MM
Price
N/A
1813
FLAT WASHER 12MM
Price
N/A
1814
HYDRAULIC MOTOR OMP250
Price
$879.70
1815
MOTOR BEARING SEAT
Price
$108.70
1816
BALL BEARING 6008LLB
Price
N/A
1817
KEY 1/4 X 1/4 X 1-1/2
Price
N/A
1818
REAR ROLLER BRACKET R
Price
$116.25
1819
REAR ROLLER
Price
$717.30
1820
CONVEYOR BELT V2.08.14
Price
N/A
1820V2
CONVEYOR BELT V2.08.14
Price
$862.50
1821
REAR ROLLER BRACKET L
Price
$112.95
1822
FLANGE BEARING UCFL205
Price
$29.00
1823
HEX BOLT M12-1.75 X 25
Price
N/A
1824
CONVEYOR PLATEN
Price
$923.50
1825
CARRIAGE BOLT M10-1.5 X 25
Price
N/A
1826
HEX BOLT M10-1.5 X 30
Price
N/A
1827
ADJ SCR M12-1.75 X 90
Price
$13.60
1828
HEX NUT M10-1.5
Price
N/A
1829
HEX BOLT M10-1.5 X 25
Price
N/A
1830
ROLLER BRACKET
Price
$83.35
1831
FRONT ROLLER
Price
$416.60
1832
ROLLER PLATE FRONT
Price
$188.40

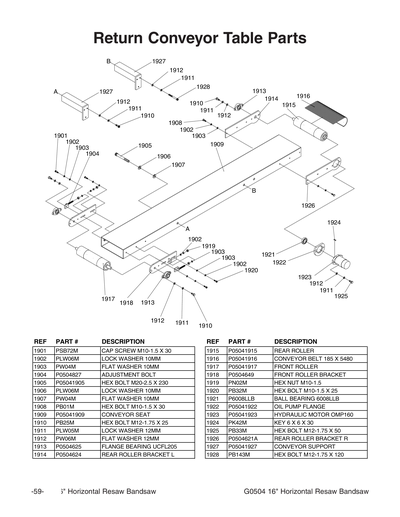

1901
CAP SCREW M10-1.5 X 30
Price
N/A
1902
LOCK WASHER 10MM
Price
N/A
1903
FLAT WASHER 10MM
Price
N/A
1904
ADJ BOLT M12-1.75 X 90
Price
$20.85
1905
HEX BOLT M20-2.5 X 230
Price
$16.95
1906
LOCK WASHER 10MM
Price
N/A
1907
FLAT WASHER 10MM
Price
N/A
1908
HEX BOLT M10-1.5 X 30
Price
N/A
1909
CONVEYOR SEAT
Price
$824.75
1910
HEX BOLT M12-1.75 X 25
Price
N/A
1911
LOCK WASHER 12MM
Price
N/A
1912
FLAT WASHER 12MM
Price
N/A
1913
FLANGE BEARING UCFL205
Price
N/A
1914
REAR ROLLER BRACKET L
Price
N/A
1915
ROLLER REAR
Price
$470.95
1916
CONVEYOR BELT 185 X 5480
Price
$270.80
1917
ROLLER FRONT
Price
$339.35
1918
ROLLER BRACKET
Price
N/A
1919
HEX NUT M10-1.5
Price
N/A
1920
HEX BOLT M10-1.5 X 25
Price
N/A
1921
BALL BEARING 6008LLB
Price
N/A
1922
OIL PUMP FLANGE
Price
$108.70
1923
HYDRAULIC MOTOR OMP160
Price
$941.85
1924
KEY 6 X 6 X 30
Price
N/A
1925
HEX BOLT M12-1.75 X 50
Price
N/A
1926
REAR ROLLER BRACKET R
Price
$100.00
1927
CONVEYOR SUPPORT
Price
$100.25
1928
HEX BOLT M12-1.75 X 120
Price
N/A

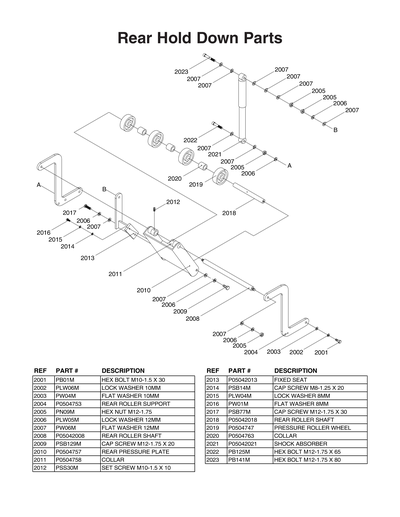

2001
HEX BOLT M10-1.5 X 30
Price
N/A
2002
LOCK WASHER 10MM
Price
N/A
2003
FLAT WASHER 10MM
Price
N/A
2004
REAR ROLLER BRACKET
Price
$145.85
2005
HEX NUT M12-1.75
Price
N/A
2006
LOCK WASHER 12MM
Price
N/A
2007
FLAT WASHER 12MM
Price
N/A
2008
ROLLER SHAFT REAR
Price
$81.25
2009
CAP SCREW M12-1.75 X 20
Price
N/A
201
HEX BOLT M16-2 X 25
Price
N/A
2010
REAR PRESSURE PLATE
Price
$145.85
2011
COLLAR
Price
$17.55
2012
SET SCREW M10-1.5 X 10
Price
N/A
2013
FIXED SEAT
Price
$55.90
2014
CAP SCREW M8-1.25 X 20
Price
N/A
2015
LOCK WASHER 8MM
Price
N/A
2016
FLAT WASHER 8MM
Price
N/A
2017
CAP SCREW M12-1.75 X 30
Price
N/A
2018
ROLLER SHAFT REAR
Price
$57.70
2019
PRESSURE ROLLER WHEEL
Price
$108.70
202
LOCK WASHER 16MM
Price
N/A
2020
COLLAR
Price
$29.00
2021
SHOCK ABSORBER
Price
$126.80
2022
HEX BOLT M12-1.75 X 65
Price
N/A
2023
HEX BOLT M12-1.75 X 80
Price
N/A
203
FLAT WASHER 16MM
Price
N/A
204
COLUMN
Price
N/A
205
CHIP COVER
Price
N/A
206
INT RETAINING RING 80MM
Price
N/A
207
OIL SEAL 60 X 80 X 10 V1.05.03
Price
N/A
208
BRASS SLEEVE
Price
N/A
209
CAP SCREW M12-1.75 X 50
Price
N/A
210
LOCK WASHER 12MM
Price
N/A

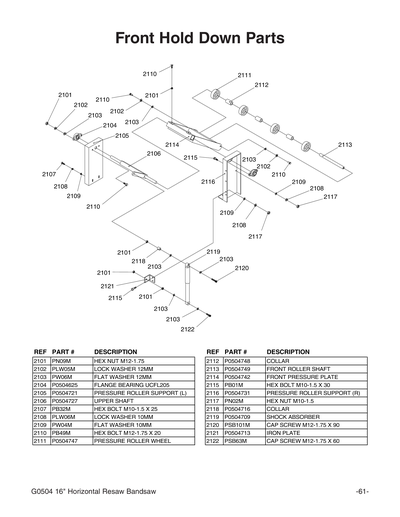

2101
HEX NUT M12-1.75
Price
N/A
2102
LOCK WASHER 12MM
Price
N/A
2103
FLAT WASHER 12MM
Price
N/A
2104
FLANGE BEARING UCFL205
Price
N/A
2105
PRESS ROLLER SUPPORT
Price
$115.35
2106
SHAFT UPPER
Price
$26.90
2107
HEX BOLT M10-1.5 X 25
Price
N/A
2108
LOCK WASHER 10MM
Price
N/A
2109
FLAT WASHER 10MM
Price
N/A
211
ELEVATION HOUSING
Price
N/A
2110
HEX BOLT M12-1.75 X 20
Price
N/A
2111
PRESSURE ROLLER WHEEL
Price
N/A
2112
COLLAR
Price
$30.85
2113
FRONT ROLLER SHAFT
Price
$94.85
2114
FRONT PRESSURE PLATE
Price
$507.15
2115
HEX BOLT M10-1.5 X 30
Price
N/A
2116
PRESS ROLLER SUPPORT
Price
$143.45
2117
HEX NUT M10-1.5
Price
N/A
2118
COLLAR
Price
$7.00
2119
SHOCK ABSORBER
Price
$126.80
212
SET SCREW M10-1.5 X 10
Price
N/A
2120
CAP SCREW M12-1.75 X 90
Price
N/A
2121
CUSHION LOWER BRACKET
Price
$13.05
2122
CAP SCREW M12-1.75 X 60
Price
N/A
213
LOCK RING
Price
N/A
214
LIMIT DOG
Price
N/A
215
CAP SCREW M8-1.25 X 40
Price
N/A
216
TICHTEN RING
Price
N/A
217
DUST GUARD BELLOW
Price
N/A
218
PHLP HD SCR M4-.7 X 40
Price
N/A
219
LIMIT SWITCH AV8104
Price
N/A
220
LIMIT BRACKET
Price
N/A

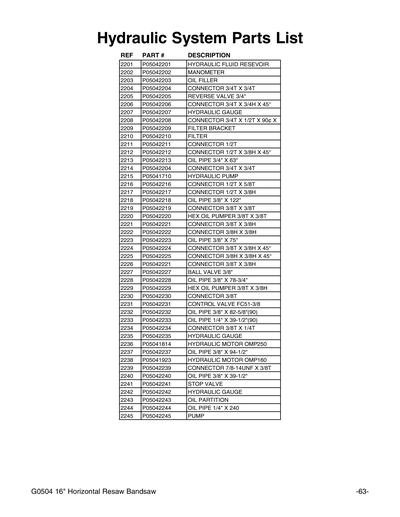

2201
HYDRAULIC FLUID RESEVOIR
Price
$431.40
2202
MANOMETER
Price
$23.60
2203
FILTER BREATHER CAP W/FILTER
Price
$23.60
2204
CONNECTOR 3/4 X 3/4
Price
$7.25
2205
REVERSE VALVE 3/4"
Price
$31.75
2206
CONNECTOR 3/4 X 3/4 X 45DEG
Price
$14.50
2207
HYDRAULIC GAUGE
Price
$90.60
2208
CONNECTOR 3/4 X 1/2 X 90DEG
Price
$7.90
2209
FILTER BRACKET
Price
$92.10
221
CAP SCREW M6-1 X 20
Price
N/A
2210
OIL FILTER
Price
$163.05
2211
CONNECTOR 1/2
Price
$7.90
2212
CONNECTOR 1/2 X 3/8 X 45DEG
Price
$6.40
2213
OIL PIPE 3/4 X 63"
Price
$90.60
2214
CONNECTOR 3/4 X 3/4
Price
N/A
2215
HYDRAULIC PUMP
Price
N/A
2216
CONNECTOR 1/2 X 5/8
Price
$12.30
2217
CONNECTOR 1/2 X 3/8
Price
$5.50
2218
OIL PIPE 3/8 X 122"
Price
$102.65
2219
CONNECTOR 3/8 X 3/8
Price
$1.60
222
LOCK WASHER 6MM
Price
N/A
2220
HEX OIL PUMPER 3/8 X 3/8
Price
$10.90
2221
CONNECTOR 3/8 X 3/8
Price
$2.75
2222
CONNECTOR 3/8 X 3/8
Price
$2.75
2223
OIL PIPE 3/8 X 75"
Price
$74.00
2224
CONNECTOR 3/8 X 3/8 X 45DEG
Price
$5.50
2225
CONNECTOR 3/8 X 3/8 X 45DEG
Price
$10.00
2226
CONNECTOR 3/8 X 3/8
Price
N/A
2227
BALL VALVE 3/8
Price
$175.90
2228
OIL PIPE 3/8 X 78-3/4"
Price
$74.00
2229
HEX OIL PUMPER 3/8 X 3/8
Price
$10.90
223
FLAT WASHER 6MM
Price
N/A
2230
CONNECTOR 3/8
Price
$31.75
2231
CONTROL VALVE FC51-3/8
Price
$298.30
2232
OIL PIPE 3/8 X 82-5/8" 90DEG
Price
$77.95
2233
OIL PIPE 1/4 X 39-1/2" 90DEG
Price
$47.75
2234
CONNECTOR 3/8 X 1/4
Price
$2.75
2235
HYDRAULIC PRESSURE GAUGE
Price
$65.25
2236
HYDRAULIC MOTOR OMP250
Price
N/A
2237
OIL PIPE 3/8 X 94-1/2"
Price
$79.45
2238
HYDRAULIC MOTOR OMP160
Price
N/A
2239
CONNECTOR 7/8-14 X 3/8
Price
$16.95
224
SENSOR COVER
Price
N/A
2240
OIL PIPE 3/8 X 39-1/2"
Price
$42.00
2241
STOP VALVE
Price
$54.35
2241-1
STOP VALVE
Price
N/A
2241-2
STOP VALVE
Price
N/A
2242
HYDRAULIC PRESSURE GAUGE V1
Price
$72.45
2242V2
HYDRAULIC PRESSURE GAUGE V2.08.14
Price
$72.45
2243
OIL PARTITION
Price
$375.00
2243-1
PRECHARGE UNIT
Price
$778.85
2244
OIL PIPE 1/4 X 240"
Price
$48.65
2245
PUMP V2.07.19
Price
N/A
2245V2
PUMP V2.07.19
Price
$796.95
225
INDEX RING
Price
N/A
226
SET SCREW M6-1 X 10
Price
N/A
227
KEY 6 X 6 X 35
Price
N/A
228
SET SCREW M6-1 X 16
Price
N/A
229
KEY 6 X 6 X 40
Price
N/A
230
FLAT WASHER 8MM
Price
N/A

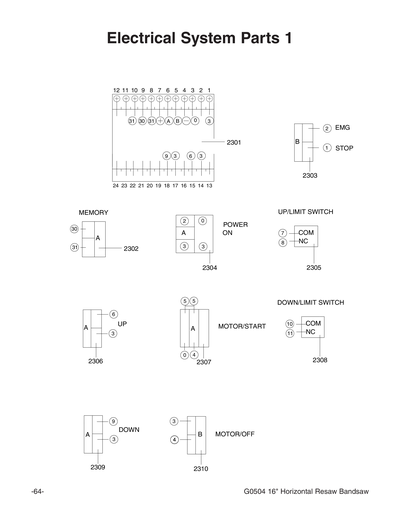

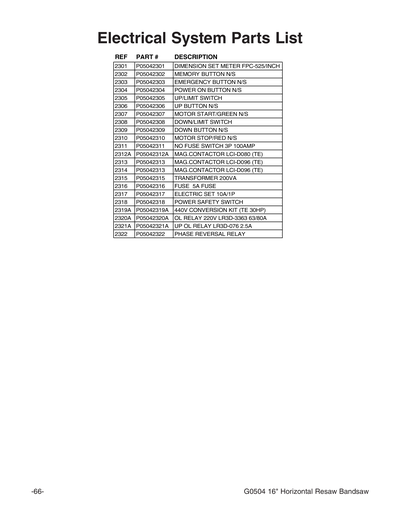

2301
DIM SET METER CHPC535/INCH V2.05.06
Price
N/A
2301A
DIM SET METER CHPC535/INCH V2.05.06
Price
$1,772.65
2302
MEMORY BUTTON V2.04.07
Price
$30.55
2303
EMERGENCY BUTTON V2.04.07
Price
$60.40
2304
POWER ON BUTTON V2.04.07
Price
$96.60
2305
UP/LIMIT SWITCH
Price
$108.70
2306
BUTTON UP V2.04.07
Price
$30.55
2307
MOTOR START/GREEN V2.04.07
Price
$50.15
2308
DOWN/LIMIT SWITCH
Price
$108.70
2309
DOWN BUTTON V2.04.07
Price
$30.55
231
LOCK WASHER 8MM
Price
N/A
2310
MOTOR STOP/RED V2.04.07
Price
$23.60

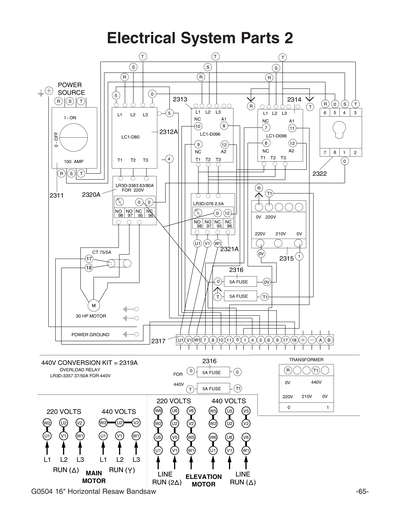

2311
NO FUSE SWITCH 3P 100A
Price
$403.35
2312
MAGNETIC CONTACTOR TE LCI-D065 V1.08.02
Price
$380.40
2312A
MAGNETIC CONTACTOR TE LCI-D080 V2.11.07
Price
$253.60
2313
CONTACTOR TE LCI-D096 V1
Price
$108.70
2313V2
CONTACTOR TE LCI-D09 220V V2.11.14
Price
$65.25
2314
CONTACTOR TE LCI-D096 V1
Price
N/A
2314V2
CONTACTOR TE LCI-D09 220V V2.11.14
Price
N/A
2315
TRANSFORMER 200VA 220/440V-220V
Price
$195.40
2316
FUSE 5A
Price
$7.25
2317
ELECTRIC SET 10A/1P
Price
$16.65
2318
POWER SAFETY SWITCH
Price
$218.90
2319
*DISCD*CONVERSION KIT 440V TE V1.08.02
Item is no longer available
Price
N/A
2319A
*DISCD*CONVERSION KIT 440V TE 30HP V2.11
Item is no longer available
Price
N/A
2319V3
440V CONVERSION KIT FOR G0504 V3.11.14
Price
$637.60
2319V4
440V CONVERSION KIT FOR G0504 V4.01.18
Price
$271.70
232
CAP SCREW M8-1.25 X 40
Price
N/A
2320
OL RELAY TE LR3D-3359 220V 48/65A V1.08.
Price
$213.50
2320A
OL RELAY TE LR3D-3363 220V 63/80A V2.11.
Price
$173.65
2321
OVERLOAD RELAY LR3D-066 1A V1.08.02
Price
$72.20
2321A
OVERLOAD RELAY LR3D-076 2.5A V2.11.07
Price
$64.35
2321V3
OL RELAY TE LR3D-07 1.6-2.5A V3.11.14
Price
$52.60
2322
PHASE REVERSAL RELAY APR-3
Price
$120.75
2322-1
PHASE REVERSAL RELAY BASE
Price
$20.85
2323
ANALOG LOAD METER GIKOKA HW-96
Price
$84.55
233
SET SCREW M6-1 X 10
Price
N/A
234
CAP SCREW M8-1.25 X 20
Price
N/A
235
GEAR BOX & MOTOR SVA10
Price
$532.85
236
KEY 5 X 5 X 30
Price
N/A
237
CAP SCREW M8-1.25 X 20
Price
N/A
238
LOCK WASHER 8MM
Price
N/A
239
FLAT WASHER 8MM
Price
N/A
240
*DISCD*FLANGE
Item is no longer available
Price
N/A
241
SHAFT COUPLING
Price
N/A
242
GEAR BOX A
Price
N/A
243
SHAFT COUPLING
Price
N/A
244
CONNECT ROD
Price
N/A
245
GEAR BOX B
Price
N/A
246
FLAT WASHER 6MM
Price
N/A
247
LOCK WASHER 6MM
Price
N/A
248
CAP SCREW M6-1 X 20
Price
N/A
249
CAP SCREW M3-.5 X 30
Price
N/A
250
SENSOR QL-1805NB
Price
N/A
251
SENSOR BRACKET
Price
N/A
252
CAP SCREW M6-1 X 20
Price
N/A
253
LOCK WASHER 6MM
Price
N/A
254
FLAT WASHER 6MM
Price
N/A
255
FLAT WASHER 3MM
Price
N/A
256
LOCK WASHER 3MM
Price
N/A
257
HEX NUT M3-.5
Price
N/A
300
*DISCD*COMPLETE NON-DRIVE AXLE ASSY
Price
$416.60
301
HEX BOLT M8-1.25 X 40
Price
N/A
302
LOCK WASHER 8MM
Price
N/A
303
FLAT WASHER 8MM
Price
N/A
304
ADJUSTMENT BRACKET
Price
N/A
305
GUIDE POST
Price
N/A
306
HEX BOLT M10-1.5 X 20
Price
N/A
307
LOCK WASHER 10MM
Price
N/A
308
FLAT WASHER 10MM
Price
N/A
309
POST BRACKET
Price
N/A
310
HEX LOCK BOLT
Price
N/A
311
FLAT WASHER 8MM
Price
N/A
312
LOCK WASHER 8MM
Price
N/A
313
HEX BOLT M8-1.25 X 30
Price
N/A
314
GUIDE POST BASE
Price
N/A
315
ECCENTRIC SHAFT
Price
N/A
316
INT RETAINING RING 30MM
Price
N/A
317
BALL BEARING 6200-2RS
Price
N/A
318
SUPPORT ROLLER
Price
N/A
319
GUIDE POST
Price
N/A
320
POST BRACKET
Price
N/A
321
GUIDE POST BASE
Price
N/A
322
GUIDE W/CERAMIC L-SHAPE UPPER
Price
$144.90
323
FLAT WASHER 8MM
Price
N/A
324
LOCK WASHER 8MM
Price
N/A
325
HEX BOLT M8-1.25 X 20
Price
N/A
326
GUIDE W/CERAMIC BOLTED LOWER
Price
N/A
326A
GUIDE W/CERAMIC BOLTED LOWER
Price
N/A
327
CAP SCREW M6-1 X 20
Price
N/A
328
HEX BOLT M8-1.25 X 20
Price
N/A
329
FLAT WASHER 10MM
Price
N/A
330
LOCK WASHER 10MM
Price
N/A
331
HEX BOLT M10-1.5 X 16
Price
N/A
332
FLAT WASHER 10MM
Price
N/A
333
LOCK WASHER 10MM
Price
N/A
334
HEX BOLT M10-1.5 X 20
Price
N/A
336
GUIDE W/CERAMIC BOLTED LOWER
Price
N/A
355
GUIDE W/CERAMIC L-SHAPE UPPER
Price
N/A
400
*DISCD*COMPLETE DRIVE AXLE ASSY
Price
$1,319.35
401
CAP SCREW M12-1.75 X 50
Price
N/A
402
LOCK WASHER 12MM
Price
N/A
403
DRIVER WHEEL
Price
N/A
404
*DISCD*DRIVER SHAFT
Item is no longer available
Price
N/A
405
INT RETAINING RING 80MM
Price
N/A
406
*DISCD*OIL SEAL 70 X 90 X 8 V2.05.03
Item is no longer available
Price
N/A
407
TAPERED ROLLER BEARING 32010
Price
N/A
407A
TAPERED ROLLER BEARING 32011
Price
N/A
408
*DISCD*BEARING HOUSING 55mmOD
Price
$374.90
409
GREASE FITTING M6-1 X 5
Price
N/A
410
HEX NUT M12-1.75
Price
N/A
411
HEX BOLT M12-1.75 X 40
Price
N/A
4110
HEX BOLT M8-1.25 X 20
Price
N/A
412
CAP SCREW M8-1.25 X 10
Price
N/A
413
LOCK WASHER 8MM
Price
N/A
414
FLAT WASHER 8MM
Price
N/A
415
CLEANER PAD
Price
N/A
416
THREADED ROD M10-1.5 X 150
Price
N/A
417
CLEANER BASE
Price
N/A
418
HEX NUT M10-1.5
Price
N/A
419
LOCK WASHER 10MM
Price
N/A
420
KEY 12 X 10 X 50
Price
N/A
421
HEX BOLT M12-1.75 X 40
Price
N/A
422
*DISCD*SPACER
Price
$64.40
423
*DISCD*SPANNER NUT 55MM-1.5
Price
$7.50
424
HEX BOLT M10-1.5 X 30
Price
N/A
425
LOCK WASHER 10MM
Price
N/A
426
*DISCD*LOCKING SLEEVE
Item is no longer available
Price
N/A
427
*DISCD*DRIVE PULLEY
Price
$464.35
428
*DISCD*LOCK RING
Price
$58.10
428A
LOCK NUT AN11
Price
N/A
429
*DISCD*LOCK RING
Price
$64.40
429A
LOCK RING
Price
N/A
430
*DISCD*SEAL 70 X 90 X 10
Price
$5.75
431
TAPERED ROLLER BEARING 32011
Price
N/A
432
*DISCD*BEARING HOUSING 55mmOD
Price
$279.20
433
SAW WHEEL LEFT
Price
N/A
434
SAW BLADE 3/4 X 180 X .035
Price
N/A
435
CAP SCREW M8-1.25 X 15
Price
N/A
436
CAP SCREW M8-1.25 X 30
Price
N/A
437
LINER GUIDE
Price
N/A
438
LINER WAY BRACKET LGH35H
Price
N/A
439
CAP SCREW M12-1.75 X 40
Price
N/A
440
LOCK WASHER 12MM
Price
N/A
4407
TAPERED ROLLER BEARING 32010
Price
N/A
441
GREASE FITTING M6-1 X 5
Price
N/A
4410
HEX NUT M12-1.75
Price
N/A
442
*DISCD*SAW WHEEL SHAFT LEFT
Item is no longer available
Price
N/A
442A
WHEEL SHAFT LEFT
Price
N/A
443
SPRING HELICAL 35 X 26 X 205
Price
N/A
444
SPRING ROD
Price
N/A
445
SPRING SEAT
Price
N/A
446
FLAT WASHER 10MM
Price
N/A
447
LOCK WASHER 10MM
Price
N/A
448
HEX BOLT M10-1.5 X 50
Price
N/A
449
HEX BOLT M10-1.5 X 80
Price
N/A
450
*DISCD*BRACKET
Item is no longer available
Price
N/A
451
LOCK WASHER 8MM
Price
N/A
452
CAP SCREW M8-1.25 X 15
Price
N/A
453
*DISCD*TOOTH WASHER 55MM
Price
$2.90
455
INT RETAINING RING 90MM
Price
N/A
456
OIL SEAL 70 X 90 X 8MM
Price
N/A
461
BEARING HOUSING LEFT
Price
N/A
501
CAP SCREW M10-1.5 X 20
Price
N/A
502
LOCK WASHER 10MM
Price
N/A
503
FLAT WASHER 10MM
Price
N/A
504
*DISCD*PUMP SEAT
Item is no longer available
Price
N/A
505
CAP SCREW M10-1.5 X 30
Price
N/A
506
LOCK WASHER 10MM
Price
N/A
507
*DISCD*OIL PUMP VHIF 40
Price
$1,266.45
508
*DISCD*PUMP BRACKET
Item is no longer available
Price
N/A
509
*DISCD*CONNECTOR
Item is no longer available
Price
N/A
510
*DISCD*PUMP PULLEY V1.05.03
Item is no longer available
Price
N/A
510A
*DISCD*PUMP PULLEY V2.09.04
Price
$58.10
511
V-BELT A33
Price
N/A
511A
V-BELT A36
Price
N/A
512
*DISCD*SHAFT
Item is no longer available
Price
N/A
513
*DISCD*PULLEY BRACKET
Item is no longer available
Price
N/A
514
BALL BEARING 6205LLB
Price
N/A
515
*DISCD*PULLEY COVER
Item is no longer available
Price
N/A
516
BALL BEARING 6205LLB
Price
N/A
517
*DISCD*PULLEY COVER
Item is no longer available
Price
N/A
518
HEX NUT M6-1
Price
N/A
519
FLAT WASHER 10MM
Price
N/A
520
LOCK WASHER 10MM
Price
N/A
521
HEX BOLT M10-1.5 X 16
Price
N/A
522
FLAT WASHER 10MM
Price
N/A
523
LOCK WASHER 10MM
Price
N/A
524
CAP SCREW M10-1.5 X 25
Price
N/A
525
KEY 6 X 6 X 30
Price
N/A
526
SET SCREW M8-1.25 X 10
Price
N/A
527
SET SCREW M8-1.25 X 10
Price
N/A
528
KEY 6 X 6 X 60
Price
N/A
529
LOCK WASHER 8MM
Price
N/A
530
CAP SCREW M8-1.25 X 20
Price
N/A
531
FLAT WASHER 6MM
Price
N/A
532
LOCK WASHER 6MM
Price
N/A
533
CAP SCREW M6-1 X 15
Price
N/A
534
FLAT WASHER 16MM
Price
N/A
535
LOCK WASHER 16MM
Price
N/A
536
HEX NUT M16-2
Price
N/A
537
PHLP HD SCR M16-2 X 20
Price
N/A
538
*DISCD*MOTOR PLATE
Item is no longer available
Price
N/A
539
*DISCD*MOTOR 25HP X4P
Item is no longer available
Price
N/A
540
HEX BOLT M6-1 X 20
Price
N/A
541
LOCK WASHER 6MM
Price
N/A
542
FLAT WASHER 6MM
Price
N/A
543
*DISCD*L BRACKET
Item is no longer available
Price
N/A
544
FLAT WASHER 6MM
Price
N/A
545
LOCK WASHER 6MM
Price
N/A
546
HEX BOLT M6-1 X 20
Price
N/A
547
*DISCD*PULLEY COVER
Item is no longer available
Price
N/A
548
V-BELT B77
Price
N/A
549
*DISCD*MOTOR PULLEY
Item is no longer available
Price
N/A
550
*DISCD*LOCKING SLEEVE
Item is no longer available
Price
N/A
551
HEX NUT M8-1.25
Price
N/A
552
FLAT WASHER 8MM
Price
N/A
553
LOCK WASHER 8MM
Price
N/A
554
HEX BOLT M8-1.25 X 15
Price
N/A
555
*DISCD*PULLEY GUARD
Item is no longer available
Price
N/A
556
FLAT WASHER 12MM
Price
N/A
557
LOCK WASHER 12MM
Price
N/A
558
HEX BOLT M12-1.75 X 30
Price
N/A
559
*DISCD*RING BOLT D30 X D50
Item is no longer available
Price
N/A
560
*DISCD*RUBBER PAD
Item is no longer available
Price
N/A
561
*DISCD*RUBBER SEAT
Item is no longer available
Price
N/A
562
WOOD SCREW #10 X 1"
Price
N/A
563
KEY 12 X 8 X 80
Price
N/A
564
HEX BOLT M6-1 X 15
Price
N/A
565
LOCK WASHER 6MM
Price
N/A
566
FLAT WASHER 6MM
Price
N/A
567
LOCK WASHER 10MM
Price
N/A
568
HEX BOLT M10-1.5 X 30
Price
N/A
569
HEX BOLT M8-1.25 X 20
Price
N/A
570
LOCK WASHER 8MM
Price
N/A
571
FLAT WASHER 8MM
Price
N/A
572
*DISCD*GUARD BRACKET
Item is no longer available
Price
N/A
601
HEX NUT M10-1.5
Price
N/A
602
FLAT WASHER 10MM
Price
N/A
603
CONVEYOR LOWER PLATE
Price
N/A
604
HEX NUT M24-2
Price
N/A
605
ADJ BOLT M24 X 1.22 X 90
Price
N/A
606
HEX BOLT M10-1.5 X 30
Price
N/A
607
LOCK WASHER 10MM
Price
N/A
608
FLAT WASHER 10MM
Price
N/A
609
ROLLER SEAT
Price
N/A
610
ROLLER
Price
N/A
611
*DISCD*ROLLER PLATE
Item is no longer available
Price
N/A
611A
ROLLER PLATE FRONT
Price
N/A
611B
ROLLER PLATE REAR
Price
N/A
612
HEX BOLT M10-1.5 X 30
Price
N/A
613
LOCK WASHER 10MM
Price
N/A
614
FLAT WASHER 10MM
Price
N/A
615
HEX BOLT M12-1.75 X 50
Price
N/A
616
LOCK WASHER 12MM
Price
N/A
617
*DISCD*MAIN CON HYDRAULIC MTR V3.10.05
Price
N/A
617A
*DISCD*MAIN CON HYDRAULIC MTR V3.10.05
Price
N/A
617B
*DISCD*MAIN CON HYDRAULIC MTR V3.10.05
Item is no longer available
Price
N/A
618
*DISCD*OIL PUMP FLANGE
Item is no longer available
Price
N/A
618A
MOTOR BEARING SEAT
Price
N/A
619
BALL BEARING 6008LLB
Price
N/A
620
KEY 6 X 6 X 30
Price
N/A
621
REAR ROLLER BRACKET R
Price
N/A
621A
REAR ROLLER BRACKET R
Price
N/A
622
REAR ROLLER
Price
N/A
623
CONVEYOR BELT V2.08.14
Price
N/A
624
REAR ROLLER BRACKET L
Price
N/A
625
FLANGE BEARING UCFL205
Price
N/A
626
FLAT WASHER 12MM
Price
N/A
627
LOCK WASHER 12MM
Price
N/A
628
HEX BOLT M12-1.75 X 25
Price
N/A
629
FLAT WASHER 10MM
Price
N/A
630
LOCK WASHER 10MM
Price
N/A
631
HEX BOLT M10-1.5 X 30
Price
N/A
632
HEX BOLT M10-1.5 X 30
Price
N/A
633
LOCK WASHER 10MM
Price
N/A
634
FLAT WASHER 10MM
Price
N/A
635
CARRIAGE BOLT M10-1.5 X 25
Price
N/A
636
CONVEYOR PLATEN
Price
N/A
637
ADJ SCR M12-1.75 X 90
Price
N/A
638
FLAT WASHER 10MM
Price
N/A
639
LOCK WASHER 10MM
Price
N/A
640
CAP SCREW M10-1.5 X 30
Price
N/A
641
HEX NUT M10-1.5
Price
N/A
642
FLAT WASHER 10MM
Price
N/A
643
LOCK WASHER 10MM
Price
N/A
644
HEX BOLT M10-1.5 X 25
Price
N/A
645
HEX BOLT M12-1.75 X 25
Price
N/A
646
LOCK WASHER 7/16
Price
N/A
647
FLAT WASHER 12MM
Price
N/A
648
FLANGE BEARING UCFL205
Price
N/A
649
ROLLER BRACKET
Price
N/A
650
FRONT ROLLER
Price
N/A
651
*DISCD*HIGH PRESSURE HYD LABEL
Item is no longer available
Price
N/A
701
*DISCD*CONTROL BOX
Price
$204.70
702
HEX BOLT M8-1.25 X 20
Price
N/A
703
LOCK WASHER 8MM
Price
N/A
704
FLAT WASHER 8MM
Price
N/A
705
*DISCD*CONTROL PANEL
Price
$45.45
706
PHLP HD SCR M4-.7 X 10
Price
N/A
707
CAP SCREW M12-1.75 X 60
Price
N/A
708
FLAT WASHER 12MM
Price
N/A
709
SHOCK ABSORBER
Price
N/A
710
HEX NUT M12-1.75
Price
N/A
711
HEX NUT M10-1.5
Price
N/A
712
LOCK WASHER 10MM
Price
N/A
713
CUSHION LOWER BRACKET
Price
N/A
714
CAP SCREW M12-1.75 X 90
Price
N/A
715
FLAT WASHER 12MM
Price
N/A
716
COLLAR
Price
N/A
717
HEX NUT M12-1.75
Price
N/A
718
HEX NUT M12-1.75
Price
N/A
719
LOCK WASHER 12MM
Price
N/A
720
FLAT WASHER 12MM
Price
N/A
721
PRESS ROLLER SUPPORT
Price
N/A
722
FLAT WASHER 10MM
Price
N/A
723
LOCK WASHER 10MM
Price
N/A
724
HEX BOLT M10-1.5 X 25
Price
N/A
725
HEX BOLT M12-1.75 X 40
Price
N/A
726
FLANGE BEARING UCFL205
Price
N/A
727
SHAFT UPPER
Price
N/A
728
HEX NUT M8-1.25
Price
N/A
729
HEX NUT M10-1.5
Price
N/A
730
*DISCD*PANEL BRACKET
Item is no longer available
Price
N/A
731
PRESS ROLLER SUPPORT
Price
N/A
732
FLAT WASHER 10MM
Price
N/A
733
LOCK WASHER 10MM
Price
N/A
734
HEX BOLT M10-1.5 X 30
Price
N/A
735
FLAT WASHER 10MM
Price
N/A
736
LOCK WASHER 10MM
Price
N/A
737
HEX BOLT M10-1.5 X 20
Price
N/A
738
HEX BOLT M10-1.5 X 30
Price
N/A
739
LOCK WASHER 10MM
Price
N/A
740
FLAT WASHER 10MM
Price
N/A
741
HEX NUT M10-1.5
Price
N/A
742
FRONT PRESSURE PLATE
Price
N/A
743
LOCK WASHER 12MM
Price
N/A
744
HEX BOLT M12-1.75 X 20
Price
N/A
745
HEX NUT M10-1.5
Price
N/A
746
HEX BOLT M10-1.5 X 40
Price
N/A
747
PRESSURE ROLLER WHEEL
Price
N/A
748
COLLAR
Price
N/A
749
FRONT ROLLER SHAFT
Price
N/A
750
HEX BOLT M10-1.5 X 30
Price
N/A
751
LOCK WASHER 10MM
Price
N/A
752
FLAT WASHER 10MM
Price
N/A
753
REAR ROLLER BRACKET
Price
N/A
754
*DISCD*REAR UPPER SHAFT
Item is no longer available
Price
N/A
755
HEX BOLT M12-1.75 X 20
Price
N/A
756
LOCK WASHER 12MM
Price
N/A
757
REAR PRESSURE PLATE
Price
N/A
758
COLLAR
Price
N/A
759
FLAT WASHER 12MM
Price
N/A
760
LOCK WASHER 12MM
Price
N/A
761
HEX NUT M12-1.75
Price
N/A
762
SET SCREW M10-1.5 X 10
Price
N/A
763
COLLAR
Price
N/A
764
*DISCD*ROLLER SHAFT
Item is no longer available
Price
N/A
765
MM CONVERSION CHART 3.6W X 5.5H
Price
N/A
766
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
767
CONVEYOR/CLOTHING 2W X 3.3H
Price
N/A
768
DUST MASK 2W X 3.3H V2.05.06
Price
N/A
769
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
770
*DISCD*DANGER LABEL
Item is no longer available
Price
N/A
771
*DISCD*HAND NEAR ROLLERS LABEL
Item is no longer available
Price
N/A
801
HEX NUT M10-1.5
Price
N/A
802
FLAT WASHER 10MM
Price
N/A
803
*DISCD*CONVEYOR LOWER PLATE
Item is no longer available
Price
N/A
804
*DISCD*BUSHING
Item is no longer available
Price
N/A
805
HEX BOLT M12-1.75 X 50
Price
N/A
806
LOCK WASHER 12MM
Price
N/A
807
*DISCD*RETURN CON HYDRAULIC MTR V5.01.07
Price
N/A
807B
*DISCD*RETURN CON HYDRAULIC MTR V5.01.07
Price
$680.80
808
*DISCD*OIL PUMP FLANGE
Price
N/A
809
BALL BEARING 6008LLB
Price
N/A
810
KEY 6 X 6 X 30
Price
N/A
811
REAR ROLLER BRACKET R
Price
N/A
812
*DISCD*REAR ROLLER
Item is no longer available
Price
N/A
813
*DISCD*CONVEYOR BELT
Item is no longer available
Price
N/A
814
REAR ROLLER BRACKET L
Price
N/A
815
FLANGE BEARING UCFL205
Price
N/A
816
FLAT WASHER 12MM
Price
N/A
817
LOCK WASHER 12MM
Price
N/A
818
HEX BOLT M12-1.75 X 25
Price
N/A
819
HEX BOLT M10-1.5 X 30
Price
N/A
820
LOCK WASHER 5/8
Price
N/A
821
FLAT WASHER 10MM
Price
N/A
822
HEX BOLT M10-1.5 X 30
Price
N/A
823
LOCK WASHER 10MM
Price
N/A
824
FLAT WASHER 10MM
Price
N/A
825
CARRIAGE BOLT M10-1.5 X 25
Price
N/A
826
*DISCD*CONVEYOR TABLE
Item is no longer available
Price
N/A
827
ADJ BOLT M12-1.75 X 90
Price
N/A
828
FLAT WASHER 10MM
Price
N/A
829
LOCK WASHER 10MM
Price
N/A
830
CAP SCREW M10-1.5 X 30
Price
N/A
831
HEX NUT M10-1.5
Price
N/A
832
FLAT WASHER 10MM
Price
N/A
833
LOCK WASHER 10MM
Price
N/A
834
HEX BOLT M10-1.5 X 25
Price
N/A
835
HEX BOLT M12-1.75 X 25
Price
N/A
836
LOCK WASHER 12MM
Price
N/A
837
FLAT WASHER 12MM
Price
N/A
838
FLANGE BEARING UCFL205
Price
N/A
839
ROLLER BRACKET
Price
N/A
840
*DISCD*FRONT ROLLER
Item is no longer available
Price
N/A
901
*DISCD*DIGITAL DISPLAY FPC-525/IN
Item is no longer available
Price
N/A
901-1
*DISCD*LINE CORD CPU
Item is no longer available
Price
N/A
901A
DIM SET METER CHPC535/INCH V2.05.06
Price
N/A
902
*DISCD*MEMORY BUTTON
Item is no longer available
Price
N/A
903
*DISCD*EMERGENCY BUTTON 30DIA 1B
Item is no longer available
Price
N/A
904
*DISCD*BUTTON ON 30DIA 1A
Item is no longer available
Price
N/A
905
*DISCD*LIMIT SWITCH UP 30DIA
Item is no longer available
Price
N/A
906
*DISCD*BUTTON UP 30DIA
Item is no longer available
Price
N/A
907
*DISCD*MOTOR START GREEN 30DIA
Item is no longer available
Price
N/A
908
*DISCD*DOWN/LIMIT SWITCH 30DIA
Item is no longer available
Price
N/A
909
*DISCD*DOWN BUTTON 30DIA
Item is no longer available
Price
N/A
910
*DISCD*MOTOR STOP REF 30DIA
Item is no longer available
Price
N/A
911
*DISCD*SWITCH NFB 3PH 75A
Price
$290.95
912
*DISCD*MOTOR MAGNETIC STARTER 10HP/30A
Item is no longer available
Price
N/A
912-1
*DISCD*CONTACTOR CN-50 200/220V V1.08.02
Price
$297.00
912-1A
*DISCD*CONTACTOR LC1-D65M V2.06.04
Item is no longer available
Price
N/A
912A
*DISCD*MOTOR MAGNETIC STARTER LC1-D6SM
Price
$109.00
913
*DISCD*CONTACTOR CN-11
Item is no longer available
Price
N/A
915
*DISCD*TRANFORMER 200VA
Item is no longer available
Price
N/A
916
*DISCD*FUSE TERMINAL
Item is no longer available
Price
N/A
917
*DISCD*ELECTRIC SET 10A/1P
Item is no longer available
Price
N/A
918
*DISCD*DOOR MICRO SWITCH
Item is no longer available
Price
N/A
919
*DISCD*CONV KIT RH-35/30 440V V1.04.03
Price
$128.80
919A
*DISCD*CONV KIT TE BRAND 440V V2.06.06
Item is no longer available
Price
N/A
920
*DISCD*OVR-RELAY RH-65/55A 220V V1.04.03
Item is no longer available
Price
N/A
920A
*DISCD*OVR-RELAY LR303359 48/65A 220V V2
Item is no longer available
Price
N/A
921
*DISCD*OVERLOAD SWITCH RH-10/1A
Item is no longer available
Price
N/A
922
*DISCD*PHASE REV RELAY APR3L250CAC 10A
Item is no longer available
Price
N/A
950
*DISCD*TENSION LOCK VALVE ASSY
Price
$50.35
951
*DISCD*HYDRAULIC JACK
Price
N/A
951-1
*DISCD*HYDRAULIC AIR CYL W/HOSE & JACK
Price
$470.35
951-2
*DISCD*HYDRAULIC JACK
Item is no longer available
Price
N/A
952
*DISCD*PRESSURE GAUGE
Item is no longer available
Price
N/A
953
*DISCD*HYDRAULIC AIR CYL W/HOSE & JACK
Price
N/A
954
*DISCD*MAIN CON HYDRAULIC MTR V3.10.05
Price
N/A
955
*DISCD*HYDRAULIC HOSE 3/8
Item is no longer available
Price
N/A
956
*DISCD*SPEED CONTROL VALVE 3/8
Price
$58.10
957
*DISCD*HYDRAULIC HOSE 3/8
Item is no longer available
Price
N/A
958
*DISCD*STOP HYDRAULIC OIL VALVE
Price
$38.85
959
*DISCD*HYDRAULIC HOSE
Item is no longer available
Price
N/A
960
*DISCD*HYDRAULIC HOSE 3/8
Item is no longer available
Price
N/A
961
*DISCD*HYDRAULIC HOSE 3/8
Item is no longer available
Price
N/A
962
*DISCD*HYDRAULIC HOSE 3/8
Item is no longer available
Price
N/A
963
*DISCD*HYDRAULIC HOSE 3/8
Item is no longer available
Price
N/A
964
*DISCD*HYDRAULIC HOSE 3/8
Item is no longer available
Price
N/A
965
*DISCD*HYDRAULIC PUMP V1.05.03
Price
$1,266.45
965A
*DISCD*HYDRAULIC PUMP V2.06.06
Price
$645.45
966
*DISCD*HYDRAULIC HOSE
Item is no longer available
Price
N/A
967
*DISCD*HYDRAULIC HOSE 1/2
Item is no longer available
Price
N/A
968
*DISCD*HYDRAULIC HOSE 3/8
Item is no longer available
Price
N/A
969
*DISCD*HYDRAULIC HOSE 3/8
Item is no longer available
Price
N/A
970
*DISCD*FILTER KIT FILTER+ORINGS
Item is no longer available
Price
N/A
971
*DISCD*PRESSURE GAUGE
Item is no longer available
Price
N/A
972
*DISCD*VALVE
Item is no longer available
Price
N/A
973
*DISCD*LID
Item is no longer available
Price
N/A
9731
*DISCD*LID GASKET
Item is no longer available
Price
N/A
974
*DISCD*OIL LEVEL
Item is no longer available
Price
N/A
975
*DISCD*OIL BOX 80L
Item is no longer available
Price
N/A
976
*DISCD*HYDRAULIC JACK
Price
$357.10
977
*DISCD*MALE ELBOW 3/8TX3/8H 90
Item is no longer available
Price
N/A
978
*DISCD*MALE ELBOW 3/8TX3/8H 45
Item is no longer available
Price
N/A
979
*DISCD*MALE ELBOW 3/8TX3/8H
Item is no longer available
Price
N/A
980
*DISCD*MALE ELBOW 3/4TX1/2H 90
Item is no longer available
Price
N/A
981
*DISCD*MALE ELBOW 1/2TX3/8H 90
Item is no longer available
Price
N/A
982
*DISCD*FEMALE 4WAY 1/2T X 4
Item is no longer available
Price
N/A
983
*DISCD*MALE 3-WAY 3/8TX3/8HX 3/8H
Item is no longer available
Price
N/A
984
*DISCD*MALE ELBOW 3/4TX1/2H
Item is no longer available
Price
N/A
985
*DISCD*MALE ELBOW 1/2TX3/8H
Item is no longer available
Price
N/A
986
*DISCD*FILTER CANNISTER
Item is no longer available
Price
N/A
987
*DISCD*CAP
Item is no longer available
Price
N/A
988
FLANGE BOLT M6-1 X 20
Price
N/A
989
*DISCD*FILTER CAP THREAD PIECE
Item is no longer available
Price
N/A
9891
*DISCD*THREAD PIECE GASKET
Item is no longer available
Price
N/A
990
*DISCD*SQUARE PLATE
Item is no longer available
Price
N/A
9901
*DISCD*SQUARE PLATE GASKET
Item is no longer available
Price
N/A
991
*DISCD*PLASTIC FILL SCREEN
Item is no longer available
Price
N/A
992
*DISCD*TANK PICK-UP SCREEN
Item is no longer available
Price
N/A
993
*DISCD*TANK SCREEN NIPPLE
Item is no longer available
Price
N/A
994
*DISCD*ELBOW 1-1/4 X 3/4
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G0504 03/07
Price
$12.50
