Parts for G0506 - 18" Heavy-Duty Bandsaw - 2 HP

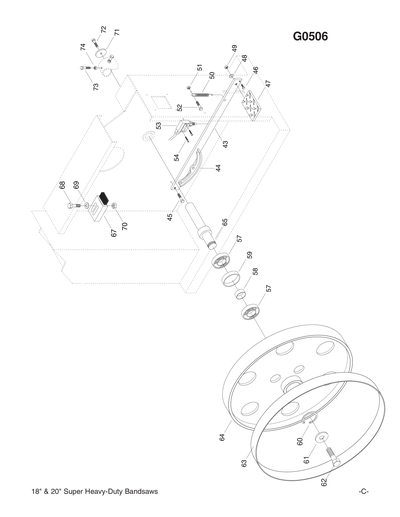

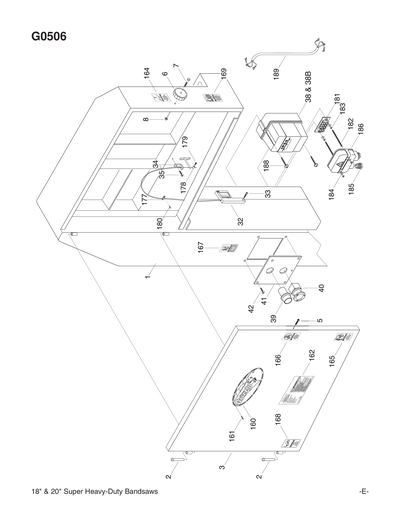

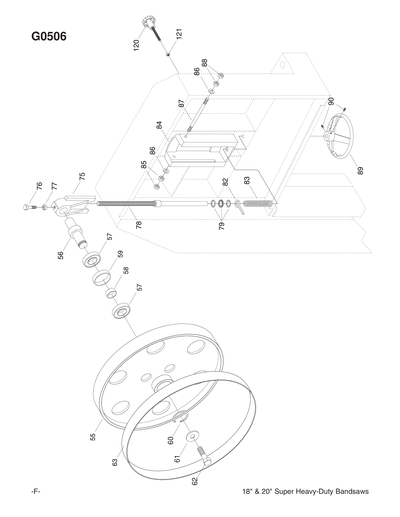

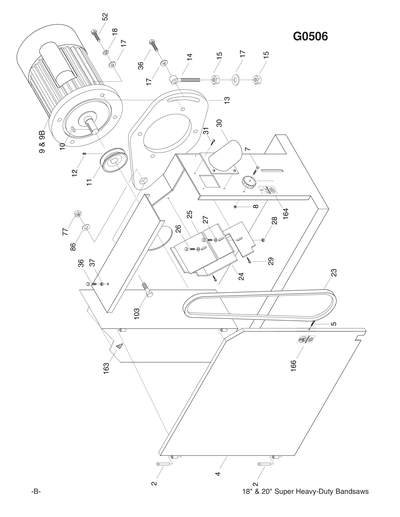

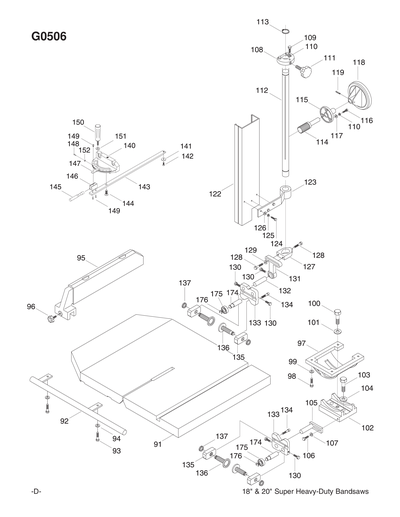

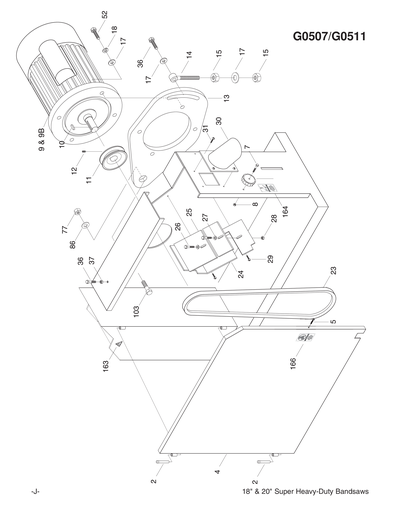

Part Diagram for G0506

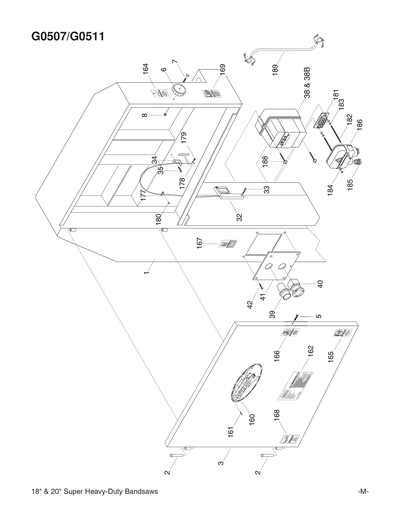

Part Diagram for G0506

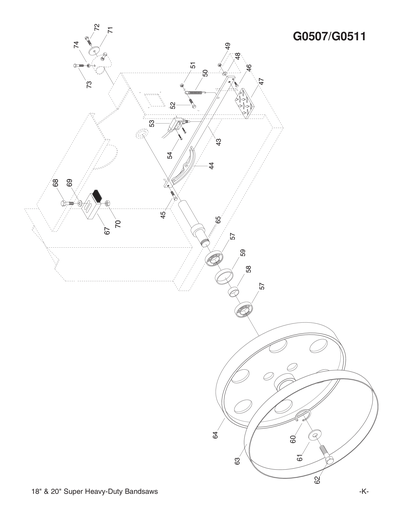

Part Diagram for G0506

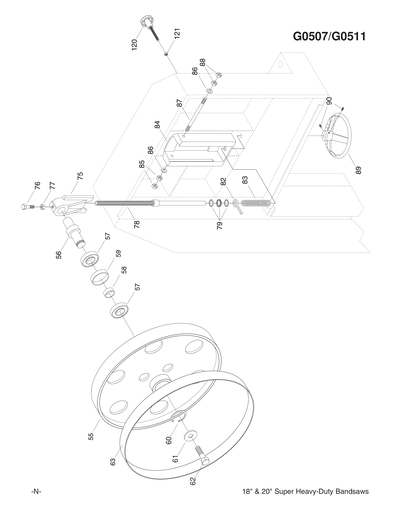

Part Diagram for G0506

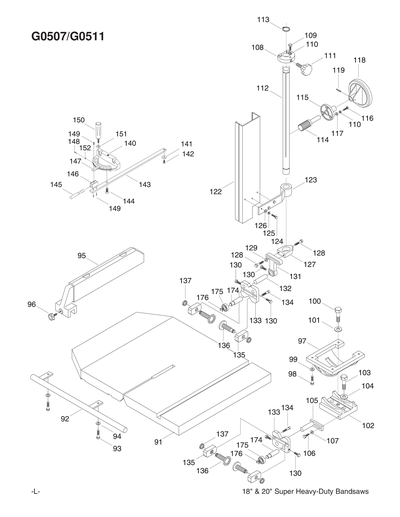

Part Diagram for G0506
Part Diagram for G0506
Part Diagram for G0506
Part Diagram for G0506
Part Diagram for G0506
Part Diagram for G0506
Part Diagram for G0506
Part Diagram for G0506
Part Diagram for G0506
Part Diagram for G0506
Part Diagram for G0506
Part Diagram for G0506
Part Diagram for G0506
Part Diagram for G0506
Part Diagram for G0506
Part Diagram for G0506
Part Diagram for G0506
Part Diagram for G0506
Part Diagram for G0506
Part Diagram for G0506
Part Diagram for G0506
Part Diagram for G0506
Part Diagram for G0506
Part Diagram for G0506
Part Diagram for G0506
Part Diagram for G0506
Part Diagram for G0506
Part Diagram for G0506

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

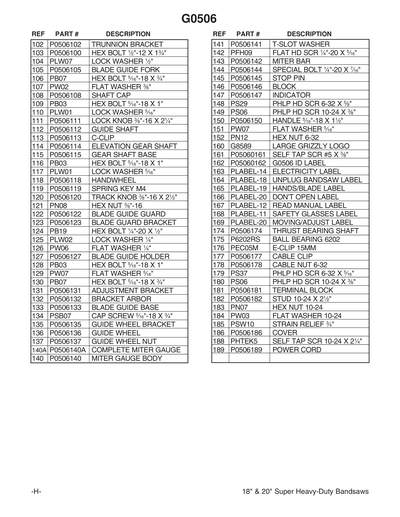

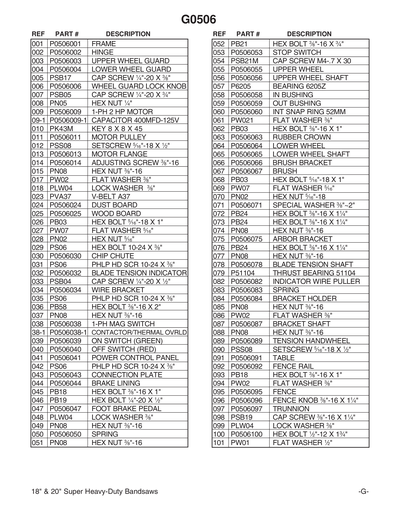

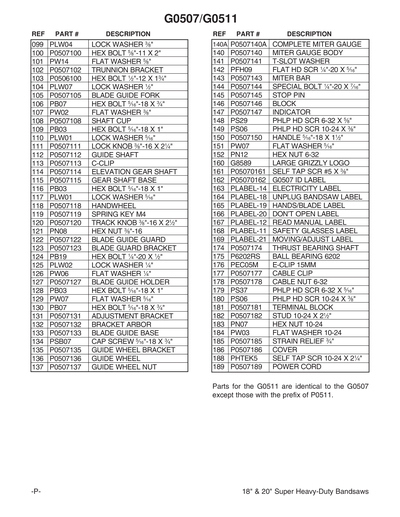

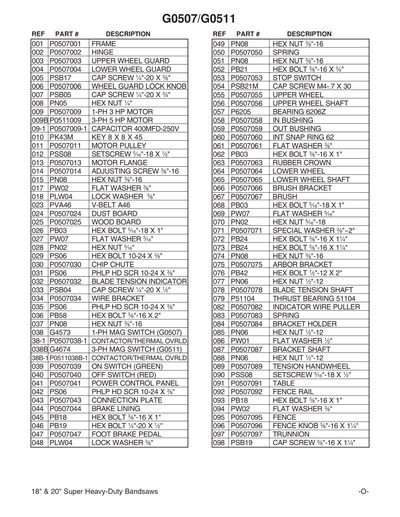

Ref #
Part #
Description
1
FRAME
Item is no longer available
Price
N/A
2
HINGE
Item is no longer available
Price
N/A
3
WHEEL GUARD UPPER
Price
$58.65
4
WHEEL GUARD LOWER
Price
$58.65
5
CAP SCREW 1/4-20 X 3/8
Price
N/A
6
WHEEL GUARD LOCK KNOB
Price
$8.65
7
CAP SCREW 1/4-20 X 3/4
Price
N/A
8
P0506008
Now: PN05
HEX NUT 1/4-20
Price
N/A
9
*DISCD*MOTOR 2HP 220V 1-PH
Price
$506.00
9-1
*DISCD*S CAPACITOR 400M 250V 2 X 3-1/2
Price
$34.50
9-2
FAN COVER
Price
$21.60
9-3
*DISCD*MOTOR FAN
Price
$12.65
10
KEY 8 X 8 X 45
Price
N/A
11
MOTOR PULLEY
Price
$19.35
12
SET SCREW 5/16-18 X 1/2
Price
N/A
13
MOTOR FLANGE
Item is no longer available
Price
N/A
14
P0506014
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
15
P0506015
Now: PN08
HEX NUT 3/8-16
Price
N/A
16
P0506016
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
17
P0506017
Now: PW02
FLAT WASHER 3/8
Price
N/A
18
LOCK WASHER 3/8
Price
N/A
19
P0506019
Now: PN08
HEX NUT 3/8-16
Price
N/A
20
P0506020
Now: PB60
HEX BOLT 3/8-16 X 3
Price
N/A
21
P0506021
Now: PN08
HEX NUT 3/8-16
Price
N/A
23
V-BELT A37
Price
N/A
24
DUST BOARD
Item is no longer available
Price
N/A
25
WOOD BOARD
Item is no longer available
Price
N/A
26
P0506026
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
27
P0506027
Now: PW07
FLAT WASHER 5/16
Price
N/A
28
P0506028
Now: PN02
HEX NUT 5/16-18
Price
N/A
29
P0506029
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
30
CHIP CHUTE
Item is no longer available
Price
N/A
31
P0506031
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
32
BLADE TENSION INDICATOR W/CABLE & SCREW
Item is no longer available
Price
N/A
32-1
INDICATOR CABLE
Price
$12.65
33
CAP SCREW 1/4-20 X 1/2
Price
N/A
34
WIRE BRACKET
Price
$3.45
35
P0506035
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
36
P0506036
Now: PB58
HEX BOLT 3/8-16 X 2
Price
N/A
37
P0506037
Now: PN08
HEX NUT 3/8-16
Price
N/A
38
1-PH MAG SWITCH
Item is no longer available
Price
N/A
38-1
*DISCD*CONTACTOR/THERMAL OVRLD 220V NHD
Price
$60.40
39
*DISCD*ON SWITCH GREEN
Price
$13.80
40
*DISCD*OFF SWITCH RED
Price
$24.15
41
POWER CONTROL PANEL
Item is no longer available
Price
N/A
42
P0506042
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
43
CONNECTION PLATE
Item is no longer available
Price
N/A
44
BRAKE LINING
Price
$41.70
45
P0506045
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
46
P0506046
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
47
FOOT BRAKE PEDAL
Item is no longer available
Price
N/A
48
LOCK WASHER 3/8
Price
N/A
49
P0506049
Now: PN08
HEX NUT 3/8-16
Price
N/A
50
SPRING HELICAL 110MM
Item is no longer available
Price
N/A
51
P0506051
Now: PN08
HEX NUT 3/8-16
Price
N/A
52
P0506052
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
53
*DISCD*STOP SWITCH
Price
$48.30
54
CAP SCREW M4-.7 X 30
Price
N/A
55
WHEEL UPPER
Item is no longer available
Price
N/A
56
WHEEL SHAFT UPPER
Price
$17.25
57
BALL BEARING 6205ZZ
Price
N/A
58
*DISCD*IN BUSHING
Item is no longer available
Price
N/A
59
*DISCD*OUT BUSHING
Item is no longer available
Price
N/A
60
INT RETAINING RING 52MM
Price
N/A
61
LOWER WHEEL FLAT WASHER 10MM
Price
$12.10
62
P0506062
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
63
*DISCD*RUBBER CROWN
Price
$65.55
64
*DISCD*WHEEL LOWER
Price
$263.65
65
WHEEL SHAFT LOWER
Price
$21.75
66
BRUSH BRACKET
Item is no longer available
Price
N/A
67
BRUSH
Item is no longer available
Price
N/A
68
P0506068
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
69
P0506069
Now: PW07
FLAT WASHER 5/16
Price
N/A
70
P0506070
Now: PN02
HEX NUT 5/16-18
Price
N/A
71
LOWER WHEEL SHAFT WASHER 3/8-2"
Price
$1.49
72
P0506072
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
73
P0506073
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
74
P0506074
Now: PN08
HEX NUT 3/8-16
Price
N/A
75
ARBOR BRACKET
Price
$64.70
76
P0506076
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
77
P0506077
Now: PN08
HEX NUT 3/8-16
Price
N/A
78
BLADE TENSION SHAFT
Price
$8.65
79
THRUST BEARING 51104
Price
N/A
82
INDICATOR WIRE PULLER
Price
$12.95
83
SPRING HELICAL 50MM
Price
$23.85
84
BRACKET HOLDER
Price
$32.80
85
P0506085
Now: PN08
HEX NUT 3/8-16
Price
N/A
86
P0506086
Now: PW02
FLAT WASHER 3/8
Price
N/A
87
BRACKET SHAFT
Price
$2.05
88
P0506088
Now: PN08
HEX NUT 3/8-16
Price
N/A
89
TENSION HANDWHEEL
Price
$17.85
90
SET SCREW 5/16-18 X 1/2
Price
N/A
91
*DISCD*TABLE
Item is no longer available
Price
N/A
92
*DISCD*FENCE RAIL
Item is no longer available
Price
N/A
93
P0506093
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
94
P0506094
Now: PW02
FLAT WASHER 3/8
Price
N/A
95
*DISCD*FENCE
Price
$327.75
96
*DISCD*FENCE KNOB 3/8"-16 X 1-1/4"
Price
$13.80
97
*DISCD*TRUNNION W/BRACKET
Price
$148.95
98
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
99
LOCK WASHER 3/8
Price
N/A
100
HEX BOLT 1/2-12 X 1-3/4
Price
$1.49
101
P0506101
Now: PW01
FLAT WASHER 1/2
Price
N/A
102
TRUNNION BRACKET
Item is no longer available
Price
N/A
103
HEX BOLT 1/2-12 X 1-3/4
Price
N/A
104
LOCK WASHER 1/2
Price
N/A
105
BLADE GUIDE FORK
Item is no longer available
Price
N/A
106
P0506106
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
107
P0506107
Now: PW02
FLAT WASHER 3/8
Price
N/A
108
*DISCD*SHAFT CUP
Item is no longer available
Price
N/A
109
P0506109
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
110
LOCK WASHER 5/16
Price
N/A
111
*DISCD*LOCK KNOB 3/8-16 X 2-1/4"
Price
$4.85
112
GUIDE SHAFT
Price
$70.05
113
C-CLIP
Price
$1.49
114
ELEVATION GEAR SHAFT
Price
$19.35
115
*DISCD*GEAR SHAFT BASE
Price
$4.85
116
P0506116
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
117
LOCK WASHER 5/16
Price
N/A
118
*DISCD*HANDWHEEL
Price
$10.90
119
*DISCD*SPRING KEY M4 X 40
Price
$1.49
120
*DISCD*TRACK KNOB 1/2 - 12 X 2-1/2
Price
$7.50
121
P0506121
Now: PN08
HEX NUT 3/8-16
Price
N/A
122
BLADE GUIDE GUARD
Price
$53.85
123
BLADE GUARD BRACKET
Price
$32.40
124
P0506124
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
125
LOCK WASHER 1/4
Price
N/A
126
P0506126
Now: PW06
FLAT WASHER 1/4
Price
N/A
127
*DISCD*BLADE GUIDE HOLDER
Item is no longer available
Price
N/A
128
P0506128
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
129
P0506129
Now: PW07
FLAT WASHER 5/16
Price
N/A
130
P0506130
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
131
*DISCD*ADJUSTMENT BRACKET
Price
$16.10
132
*DISCD*BRACKET ARBOR
Price
$10.35
133
*DISCD*BLADE GUIDE BASE
Item is no longer available
Price
N/A
134
CAP SCREW 5/16-18 X 3/4
Price
N/A
135
*DISCD*GUIDE WHEEL BRACKET
Item is no longer available
Price
N/A
136
*DISCD*GUIDE WHEEL
Price
N/A
137
*DISCD*GUIDE WHEEL NUT 7/8-14
Price
N/A
138
BALL BEARING 6202ZZ
Price
N/A
140
MITER GAUGE BODY
Item is no longer available
Price
N/A
140A
*DISCD*COMPLETE MITER GAUGE
Price
$86.25
141
T-SLOT WASHER 13MM
Item is no longer available
Price
N/A
142
FLAT HD SCR 1/4-20 X 5/16
Price
N/A
143
MITER BAR
Item is no longer available
Price
N/A
144
MITER GAUGE BOLT 1/4-20 X 7/16
Item is no longer available
Price
N/A
145
STOP PIN
Item is no longer available
Price
N/A
146
BLOCK
Item is no longer available
Price
N/A
147
*DISCD*INDICATOR
Price
$1.49
148
P0506148
Now: PS29
PHLP HD SCR 6-32 X 5/8
Price
N/A
149
P0506149
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
150
HANDLE 5/16-18 X 1-1/2
Item is no longer available
Price
N/A
151
P0506151
Now: PW07
FLAT WASHER 5/16
Price
N/A
152
P0506152
Now: PN12
HEX NUT 6-32
Price
N/A
160
Nameplate - Large
Price
N/A
161
TAP SCREW M4 X 11
Price
N/A
162
MACHINE ID LABEL
Item is no longer available
Price
N/A
163
ELECTRICITY 1.4W X 1.2H
Price
N/A
164
UNPLUG BANDSAW 2W X 3.3H
Price
N/A
165
BANDSAW BLADE 2W X 3.3H V1.07.02
Price
N/A
166
DONT OPEN 2W X 3.3H
Price
N/A
167
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
168
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
169
BS MOVING/ADJUST 2W X 3.3H
Price
N/A
174
*DISCD*THRUST BEARING SHAFT
Price
$22.45
175
BALL BEARING 6202RS
Price
N/A
176
E-CLIP 15MM
Price
N/A
177
CABLE CLIP
Price
$1.49
178
CABLE NUT 6-32
Price
$1.49
179
P0506179
Now: PS37
PHLP HD SCR 6-32 X 5/16
Price
N/A
180
P0506180
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
181
TERMINAL BLOCK
Price
$13.80
181A
JUNCTION BOX ASSEMBLY
Item is no longer available
Price
N/A
182
TERMINAL BLOCK
Price
N/A
183
TERMINAL BLOCK
Price
N/A
184
TERMINAL BLOCK
Price
N/A
185
TERMINAL BLOCK
Price
N/A
186
TERMINAL BLOCK
Price
N/A
188
TAP SCREW 10-24 X 1/2
Price
N/A
189
MOTOR POWER CORD
Price
$20.70
189A
CONTROL PANEL POWER CORD
Item is no longer available
Price
N/A
190
HARDWARE BAG
Item is no longer available
Price
N/A
3X038A-3
THERMAL OVERLOAD RELAY SHIHL 220V 1PH 60
Price
N/A
MANUAL
MANUAL FOR G0506 12/03
Price
$14.65
