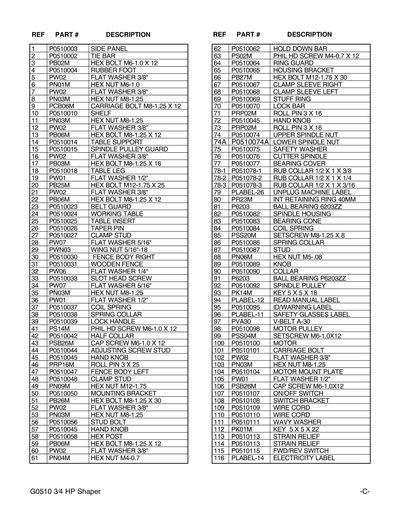

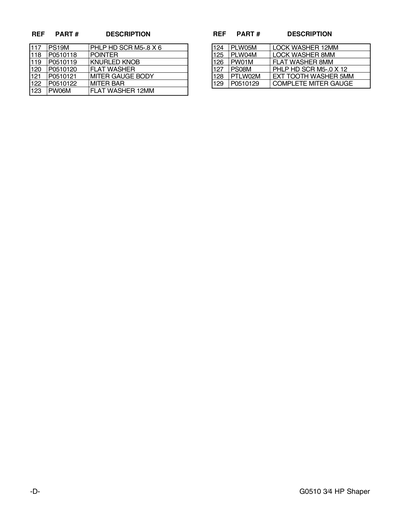

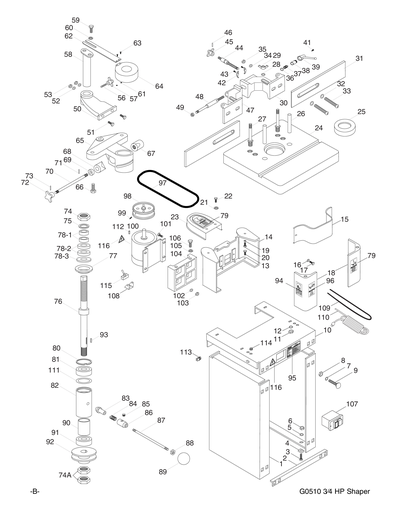

Parts for G0510 Small Shaper W/cabinet Stand

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*SIDE PANEL
2
*DISCD*TIE BAR
3
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
4
*DISCD*RUBBER FOOT
Item is no longer available
Price
N/A
5
Now: PW02
FLAT WASHER 3/8
Price
N/A
6
Now: PN01M
HEX NUT M6-1
Price
N/A
7
Now: PW02
FLAT WASHER 3/8
Price
N/A
8
Now: PN03M
HEX NUT M8-1.25
Price
N/A
9
CARRIAGE BOLT M8-1.25 X 16
Price
N/A
10
*DISCD*SHELF
11
Now: PN03M
HEX NUT M8-1.25
Price
N/A
12
Now: PW02
FLAT WASHER 3/8
Price
N/A
13
Now: PB06M
HEX BOLT M8-1.25 X 12
Price
N/A
14
*DISCD*TABLE SUPPORT
Item is no longer available
Price
N/A
15
*DISCD*SPINDLE PULLEY GUARD
Item is no longer available
Price
N/A
16
Now: PW02
FLAT WASHER 3/8
Price
N/A
17
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
18
*DISCD*TABLE LEG
Item is no longer available
Price
N/A
19
Now: PW01
FLAT WASHER 1/2
Price
N/A
20
Now: PB25M
HEX BOLT M12-1.75 X 25
Price
N/A
21
Now: PW02
FLAT WASHER 3/8
Price
N/A
22
Now: PB06M
HEX BOLT M8-1.25 X 12
Price
N/A
23
*DISCD*BELT GUARD
Item is no longer available
Price
N/A
24
*DISCD*WORKING TABLE
Item is no longer available
Price
N/A
25
*DISCD*TABLE INSERT 1-3/4"
Item is no longer available
Price
N/A
26
*DISCD*TAPER PIN 8 X 75
Item is no longer available
Price
N/A
27
*DISCD*CLAMP STUD
Item is no longer available
Price
N/A
28
Now: PW07
FLAT WASHER 5/16
Price
N/A
29
Now: PWN03
WING NUT 5/16-18
Price
N/A
30
*DISCD*FENCE BODY RIGHT
Item is no longer available
Price
N/A
31
*DISCD*WOODEN FENCE
Item is no longer available
Price
N/A
32
Now: PW06
FLAT WASHER 1/4
Price
N/A
33
*DISCD*SLOTTED HEAD SCREW M8-1.25 X 20
Item is no longer available
Price
N/A
34
Now: PW07
FLAT WASHER 5/16
Price
N/A
35
Now: PN03M
HEX NUT M8-1.25
Price
N/A
36
Now: PW01
FLAT WASHER 1/2
Price
N/A
36-6
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
37
*DISCD*COIL SPRING
Item is no longer available
Price
N/A
38
*DISCD*SPRING COLLAR
Item is no longer available
Price
N/A
39
*DISCD*LOCK HANDLE
Item is no longer available
Price
N/A
40
Now: PW06
FLAT WASHER 1/4
Price
N/A
41
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
42
*DISCD*HALF COLLAR
Item is no longer available
Price
N/A
43
CAP SCREW M6-1 X 12
Price
N/A
44
*DISCD*ADJ SCR STUD
Item is no longer available
Price
N/A
45
*DISCD*HAND KNOB 8MM PINNED
Item is no longer available
Price
N/A
46
ROLL PIN 3 X 25
Price
N/A
47
*DISCD*FENCE BODY LEFT
Item is no longer available
Price
N/A
48
*DISCD*CLAMP STUD
Item is no longer available
Price
N/A
49
Now: PN09M
HEX NUT M12-1.75
Price
N/A
50
*DISCD*MOUNTING BRACKET
Item is no longer available
Price
N/A
51
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
52
Now: PW02
FLAT WASHER 3/8
Price
N/A
53
Now: PN03M
HEX NUT M8-1.25
Price
N/A
56
*DISCD*STUD BOLT M8-1.25 X 30
Item is no longer available
Price
N/A
57
*DISCD*HAND KNOB
Item is no longer available
Price
N/A
58
*DISCD*GUARD MOUNTING POST
59
Now: PB06M
HEX BOLT M8-1.25 X 12
Price
N/A
60
Now: PW02
FLAT WASHER 3/8
Price
N/A
61
Now: PN04M
HEX NUT M4-.7
Price
N/A
62
*DISCD*HOLD DOWN BAR
63
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
64
*DISCD*RING GUARD
Item is no longer available
Price
N/A
65
*DISCD*HOUSING BRACKET
Item is no longer available
Price
N/A
66
Now: PB27M
HEX BOLT M12-1.75 X 30
Price
N/A
67
CLAMP SLEEVE RIGHT
Price
N/A
68
CLAMP SLEEVE RIGHT
Price
N/A
69
STUFF RING
Price
N/A
70
*DISCD*LOCK BAR
Item is no longer available
Price
N/A
71
ROLL PIN 3 X 16
Price
N/A
72
*DISCD*HAND KNOB
Item is no longer available
Price
N/A
73
ROLL PIN 3 X 16
Price
N/A
74
*DISCD*SPINDLE NUT UPPER M12.7-1.5
Item is no longer available
Price
N/A
74A
*DISCD*LOWER SPINDLE NUT M16-1
Item is no longer available
Price
N/A
75
*DISCD*SAFETY WASHER 12.8
Item is no longer available
Price
N/A
76
*DISCD*CUTTER SPINDLE
Item is no longer available
Price
N/A
77
*DISCD*BEARING COVER
Item is no longer available
Price
N/A
78-1
Now: W1160
Spacer - 1/2" ID x 1" OD x 3/8" H
Price
N/A
78-2
Now: W1159
Spacer - 1/2" ID x 1" OD x 1/4" H
Price
N/A
78-3
*DISCD*RUB COLLAR 1/2 X 1 X 3/16
Item is no longer available
Price
N/A
79
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
80
Now: PR23M
INT RETAINING RING 40MM
Price
N/A
81
BALL BEARING 6203ZZ
Price
N/A
82
*DISCD*SPINDLE HOUSING
83
*DISCD*BEARING CONE
Item is no longer available
Price
N/A
84
*DISCD*COIL SPRING 19 X 21 X 1.5
Item is no longer available
Price
N/A
85
SET SCREW M8-1.25 X 8
Price
N/A
86
*DISCD*SPRING COLLAR
87
*DISCD*STUD
88
Now: PN06M
HEX NUT M5-.8
Price
N/A
89
*DISCD*SLIP ON HANDLE 12MM
90
*DISCD*COLLAR
Item is no longer available
Price
N/A
91
BALL BEARING 6203ZZ
Price
N/A
92
*DISCD*SPINDLE PULLEY
Item is no longer available
Price
N/A
93
Now: PK14M
KEY 5 X 5 X 18
Price
N/A
94
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
95
*DISCD*ID/WARNING LABEL
Item is no longer available
Price
N/A
96
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
97
Now: PVA30
V-BELT A30
Price
N/A
98
*DISCD*MOTOR PULLEY
Item is no longer available
Price
N/A
99
SET SCREW M6-1 X 12
Price
N/A
100
*DISCD*MOTOR
Item is no longer available
Price
N/A
100-1
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
100-2
*DISCD*FAN
Item is no longer available
Price
N/A
102
Now: PW02
FLAT WASHER 3/8
Price
N/A
103
Now: PN03M
HEX NUT M8-1.25
Price
N/A
104
*DISCD*MOTOR MOUNT PLATE
Item is no longer available
Price
N/A
105
Now: PW01
FLAT WASHER 1/2
Price
N/A
106
CAP SCREW M6-1 X 12
Price
N/A
107
*DISCD*PUSH BUTTON SWITCH
Item is no longer available
Price
N/A
108
*DISCD*FWD/REV SWITCH BRACKET
Item is no longer available
Price
N/A
109
*DISCD*MOTOR CORD
110
*DISCD*POWER CORD
Item is no longer available
Price
N/A
111
*DISCD*WAVY WASHER
Item is no longer available
Price
N/A
112
Now: PK01M
KEY 5 X 5 X 22
Price
N/A
113
*DISCD*STRAIN RELIEF
114
*DISCD*STRAIN RELIEF
Item is no longer available
Price
N/A
115
*DISCD*FWD/REV SWITCH
Item is no longer available
Price
N/A
116
ELECTRICITY 1.4W X 1.2H
Price
N/A
117
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
118
*DISCD*POINTER
Item is no longer available
Price
N/A
119
*DISCD*KNURLED KNOB
Item is no longer available
Price
N/A
120
Now: PW13M
FLAT WASHER 20MM
Price
N/A
121
*DISCD*MITER GAUGE BODY
Item is no longer available
Price
N/A
122
*DISCD*MITER BAR
Item is no longer available
Price
N/A
123
Now: PW06M
FLAT WASHER 12MM
Price
N/A
124
LOCK WASHER 12MM
Price
N/A
125
LOCK WASHER 8MM
Price
N/A
126
Now: PW01M
FLAT WASHER 8MM
Price
N/A
127
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
128
EXT TOOTH WASHER 5MM
Price
N/A
129
*DISCD*COMPLETE MITER GAUGE
Item is no longer available
Price
N/A
MANUAL

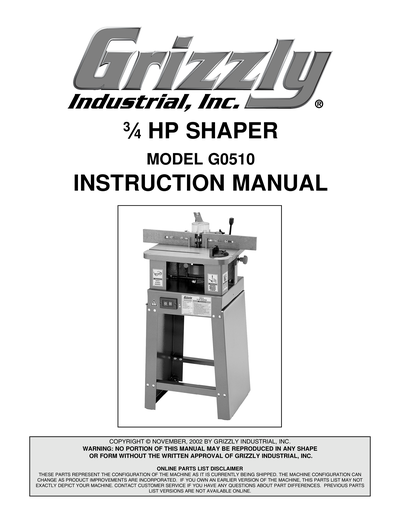

*DISCD*MANUAL FOR THE G0510 11/02
Item is no longer available
Price
N/A
