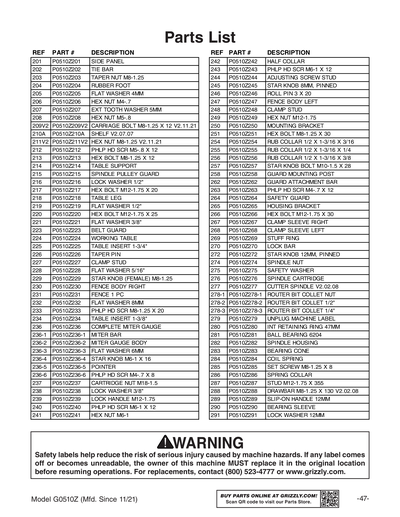

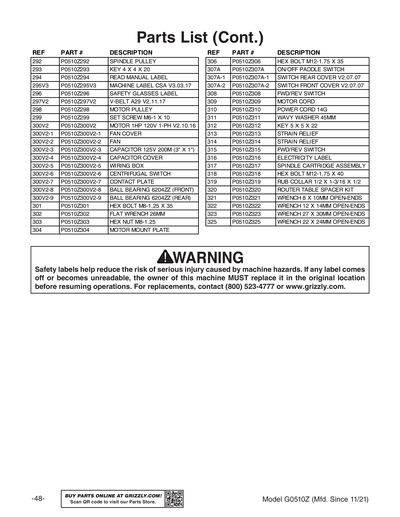

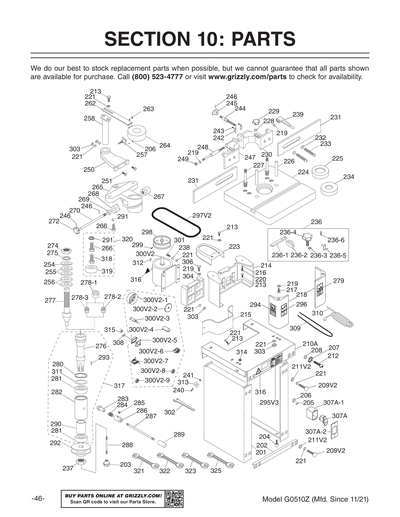

Parts for G0510Z - 1 HP Shaper

Part Diagram for G0510Z
Part Diagram for G0510Z
Part Diagram for G0510Z
Part Diagram for G0510Z
Part Diagram for G0510Z
Part Diagram for G0510Z

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
*DISCD*SIDE PANEL
Price
N/A
2
*DISCD*TIE BAR
Price
N/A
3
*DISCD*TAPER NUT M8-1.0 V1.03.06
Price
N/A
4
*DISCD*RUBBER FOOT
Price
N/A
5
FLAT WASHER 4MM
Price
N/A
6
HEX NUT M4-.7
Price
N/A
7
EXT TOOTH WASHER 5MM
Price
N/A
8
HEX NUT M5-.8
Price
N/A
9
CARRIAGE BOLT M8-1.25 X 20
Price
N/A
10
*DISCD*SHELF
Price
N/A
11
HEX NUT M8-1.25
Price
N/A
12
PHLP HD SCR M5-.8 X 12
Price
N/A
13
HEX BOLT M8-1.25 X 12
Price
N/A
14
*DISCD*TABLE SUPPORT
Price
N/A
15
*DISCD*SPINDLE PULLEY GUARD
Price
N/A
16
LOCK WASHER 1/2
Price
N/A
17
HEX BOLT M8-1.25 X 16
Price
N/A
18
*DISCD*TABLE LEG
Price
N/A
19
FLAT WASHER 1/2
Price
N/A
20
HEX BOLT M12-1.75 X 25
Price
N/A
21
FLAT WASHER 3/8
Price
N/A
23
*DISCD*BELT GUARD
Price
N/A
24
*DISCD*WORKING TABLE
Price
N/A
25
*DISCD*TABLE INSERT 1-3/4"
Price
N/A
26
*DISCD*TAPER PIN 8 X 75
Price
N/A
27
*DISCD*CLAMP STUD
Price
N/A
28
FLAT WASHER 5/16
Price
N/A
29
STAR KNOB M8-1.25 FEMALE
Price
N/A
30
*DISCD*FENCE BODY RIGHT
Price
N/A
31
*DISCD*WOODEN FENCE
Price
N/A
32
FLAT WASHER 1/4
Price
N/A
33
PHLP HD SCR M8-1.25 X 20
Price
N/A
34
*DISCD*TABLE INSERT 1-3/8
Price
$1.49
35
PHLP HD SCR M4-.7 X 25
Price
N/A
36
COMPLETE MITER GAUGE
Price
N/A
36-1
MITER BAR
Price
N/A
36-2
MITER GAUGE BODY
Price
N/A
36-3
FLAT WASHER 6MM
Price
N/A
36-4
STAR KNOB M6-1 X 16
Price
N/A
36-5
POINTER
Price
N/A
36-6
PHLP HD SCR M4-.7 X 8
Price
N/A
37
CARTRIDGE NUT M16-1.0
Price
N/A
38
LOCK WASHER 3/8
Price
N/A
39
*DISCD*LOCK HANDLE
Price
N/A
40
PHLP HD SCR M6-1 X 12
Price
N/A
41
HEX NUT M6-1
Price
N/A
42
*DISCD*HALF COLLAR
Price
N/A
43
CAP SCREW M6-1 X 12
Price
N/A
44
*DISCD*ADJ SCR STUD
Price
N/A
45
*DISCD*HAND KNOB 8MM PINNED
Price
N/A
46
ROLL PIN 3 X 20
Price
N/A
47
*DISCD*FENCE BODY LEFT
Price
N/A
48
*DISCD*CLAMP STUD
Price
N/A
49
HEX NUT M12-1.75
Price
N/A
50
*DISCD*MOUNTING BRACKET
Price
N/A
51
HEX BOLT M8-1.25 X 30
Price
N/A
54
RUB COLLAR 1/2 X 1-3/16 X 3/16
Price
N/A
55
RUB COLLAR 1/2 X 1-3/16 X 1/4
Price
N/A
56
RUB COLLAR 1/2 X 1-3/16 X 3/8
Price
N/A
57
STAR KNOB BOLT M10-1.5 X 28
Price
N/A
58
*DISCD*GUARD MOUNTING POST
Price
N/A
62
*DISCD*HOLD DOWN BAR
Price
N/A
63
PHLP HD SCR M4-.7 X 12
Price
N/A
64
*DISCD*RING GUARD
Price
N/A
65
*DISCD*HOUSING BRACKET
Price
N/A
66
HEX BOLT M12-1.75 X 30
Price
N/A
67
CLAMP SLEEVE RIGHT
Price
N/A
68
CLAMP SLEEVE LEFT
Price
N/A
69
STUFF RING
Price
N/A
70
*DISCD*LOCK BAR
Price
N/A
72
*DISCD*HAND KNOB
Price
N/A
74
*DISCD*SPINDLE NUT UPPER M12.7-1.5
Price
N/A
75
*DISCD*SAFETY WASHER 12.8
Price
N/A
76
SPINDLE CARTRIDGE
Price
N/A
77
CUTTER SPINDLE V2.02.08
Price
N/A
78
*DISCD*ROUTER BIT ADAPTER
Item is no longer available
Price
N/A
78-1
*DISCD*COLLET NUT M25-1.5
Price
$19.85
78-2
ROUTER BIT COLLET 1/2"
Price
N/A
78-3
ROUTER BIT COLLET 1/4"
Price
N/A
79
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
80
INT RETAINING RING 47MM
Price
N/A
81
BALL BEARING 6204ZZ
Price
N/A
82
SPINDLE HOUSING
Price
N/A
82A
SPINDLE CARTRIDGE ASSY
Price
N/A
83
*DISCD*BEARING CONE
Price
N/A
84
*DISCD*COIL SPRING 19 X 21 X 1.5
Price
N/A
85
SET SCREW M8-1.25 X 8
Price
N/A
86
*DISCD*SPRING COLLAR
Price
N/A
87
STUD-UDE M10/12-1.5/1.75 X 142 12/18
Price
N/A
88
DRAWBAR M8-1.25 X 130 V2.02.08
Price
N/A
89
SLIP ON HANDLE 12MM
Price
N/A
90
BEARING SLEEVE
Price
N/A
91
LOCK WASHER 12MM
Price
N/A
92
SPINDLE PULLEY
Price
N/A
93
KEY 4 X 4 X 20
Price
N/A
94
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
95
ID/WARNING LABEL
Price
N/A
96
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
97
***SEE EXTENDED DESCRIPTION***
Item is no longer available
Price
N/A
98
*DISCD*MOTOR PULLEY
Price
N/A
99
SET SCREW 5/16-18 X 1
Price
N/A
100
MOTOR 3/4HP 110V 1-PH
Price
N/A
100-1
*DISCD*MOTOR FAN COVER
Price
N/A
100-2
FAN
Price
N/A
100-3
S CAPACITOR 200M 125V 3 X 1"
Price
N/A
100-4
CAPACITOR COVER
Price
N/A
100-5
WIRING BOX
Price
N/A
100-6
CENTRIFUGAL SWITCH
Price
N/A
100-7
CONTACT PLATE
Price
N/A
101
HEX BOLT M8-1.25 X 35
Price
N/A
102
FLAT WRENCH 26MM
Price
N/A
103
HEX NUT M8-1.25
Price
N/A
104
MOTOR MOUNTING PLATE
Price
N/A
106
HEX BOLT M12-1.75 X 30
Price
N/A
107
*DISCD*PUSH BUTTON SWITCH
Price
N/A
107-1
SWITCH COVER
Price
N/A
108
*DISCD*FWD/REV SWITCH BRACKET
Price
N/A
109
*DISCD*MOTOR CORD
Price
N/A
110
*DISCD*POWER CORD
Price
N/A
111
WAVY WASHER 45MM
Price
N/A
112
KEY 5 X 5 X 22
Price
N/A
113
*DISCD*STRAIN RELIEF
Price
N/A
114
*DISCD*STRAIN RELIEF
Price
N/A
115
*DISCD*FWD/REV SWITCH
Price
N/A
116
ELECTRICITY 1.4W X 1.2H
Price
N/A
200
CARTON FOR G0510Z
Price
$16.60
201
SIDE PANEL
Price
$40.65
202
TIE BAR
Price
$4.25
203
*DISCD*TAPER NUT M8-1.0 V1.03.06
Item is no longer available
Price
N/A
203V2
TAPER NUT M8-1.25 V2.07.08
Price
$1.90
204
RUBBER FOOT
Price
$2.20
205
FLAT WASHER 4MM
Price
N/A
206
HEX NUT M4-.7
Price
N/A
207
EXT TOOTH WASHER 5MM
Price
N/A
208
HEX NUT M5-.8
Price
N/A
209
CARRIAGE BOLT 5/16-18 X 1/2
Price
N/A
209V2
CARRIAGE BOLT M8-1.25 X 12
Price
N/A
210
SHELF V1
Price
$40.65
210A
SHELF V2.07.07
Price
$40.65
211
HEX NUT 5/16-18
Price
N/A
211V2
HEX NUT M8-1.25
Price
N/A
212
PHLP HD SCR M5-.8 X 12
Price
N/A
213
HEX BOLT M8-1.25 X 12
Price
N/A
214
TABLE SUPPORT
Price
$62.60
215
SPINDLE PULLEY GUARD
Price
$1.90
216
LOCK WASHER 1/2
Price
N/A
217
HEX BOLT M12-1.75 X 20
Price
N/A
218
TABLE LEG
Price
$7.95
219
FLAT WASHER 1/2
Price
N/A
220
HEX BOLT M12-1.75 X 25
Price
N/A
221
FLAT WASHER 3/8
Price
N/A
223
BELT GUARD
Price
$5.45
224
WORKING TABLE
Price
$145.20
225
TABLE INSERT 1-3/4"
Price
$1.90
226
TAPER PIN
Price
$1.90
227
SHOULDER STUD
Price
$1.90
228
FLAT WASHER 5/16
Price
N/A
229
STAR KNOB M8-1.25 FEMALE
Price
$2.20
230
FENCE BODY RIGHT
Price
$19.85
231
FENCE 1PC
Price
$14.40
232
FLAT WASHER 8MM
Price
N/A
233
PHLP HD SCR M8-1.25 X 20
Price
N/A
234
TABLE INSERT 1-3/8"
Price
$1.90
235
PHLP HD SCR M4-.7 X 25
Price
N/A
236
COMPLETE MITER GAUGE
Price
$7.95
236-1
MITER BAR
Price
$4.70
236-2
MITER GAUGE BODY
Price
$2.20
236-3
FLAT WASHER 6MM
Price
N/A
236-4
STAR KNOB M6-1 X 16
Price
$1.90
236-5
POINTER
Price
$1.90
236-6
PHLP HD SCR M4-.7 X 8
Price
N/A
237
CARTRIDGE NUT M16-1.0
Price
$1.90
238
LOCK WASHER 3/8
Price
N/A
239
LOCK HANDLE M12-1.75
Price
$9.40
240
PHLP HD SCR M6-1 X 12
Price
N/A
241
HEX NUT M6-1
Price
N/A
242
HALF COLLAR
Price
$1.90
243
PHLP HD SCR M6-1 X 12
Price
N/A
244
***USE P0510Z245A***
Price
$1.00
245
STAR KNOB 10MM PINNED ASSEMBLY
Price
N/A
245A
STAR KNOB 10MM PINNED ASSEMBLY
Price
$2.20
246
ROLL PIN 3 X 20
Price
N/A
247
FENCE BODY LEFT
Price
$19.85
248
SHOULDER STUD
Price
$2.90
249
HEX NUT M12-1.75
Price
N/A
250
MOUNTING BRACKET
Price
$8.65
251
HEX BOLT M8-1.25 X 30
Price
N/A
254
RUB COLLAR 1/2 X 1-3/16 X 3/16
Price
$1.90
255
RUB COLLAR 1/2 X 1-3/16 X 1/4
Price
$1.90
256
RUB COLLAR 1/2 X 1-3/16 X 3/8
Price
$2.60
257
STAR KNOB BOLT M10-1.5 X 28
Price
$3.65
258
GUARD MOUNTING POST
Price
$8.65
262
GUARD ATTACHMENT BAR
Price
$5.75
263
PHLP HD SCR M4-.7 X 12
Price
N/A
264
SAFETY GUARD
Price
$12.25
265
HOUSING BRACKET
Price
$16.20
266
HEX BOLT M12-1.75 X 30
Price
N/A
267
CLAMP SLEEVE RIGHT
Price
$2.60
268
CLAMP SLEEVE LEFT
Price
$2.60
269
STUFF RING
Price
$1.90
270
*DISCD*LOCK BAR PINNED & THREADED V1.06.
Item is no longer available
Price
N/A
270A
LOCK BAR THREADED BOTH ENDS V2.01.07
Price
$2.60
272
*DISCD*STAR KNOB 12MM PINNED V1.06.04
Item is no longer available
Price
N/A
272A
STAR KNOB M10-1.5 THREADED V2.01.07
Price
$5.45
274
SPINDLE NUT
Price
$2.90
275
SAFETY WASHER
Price
$1.90
276
SPINDLE CARTRIDGE
Price
$44.95
277
CUTTER SPINDLE V2.02.08
Price
$36.35
277A
*DISCD*CUTTER SPINDLE V1.03.06
Price
$27.90
278-1
ROUTER BIT COLLET NUT
Price
$21.95
278-2
ROUTER BIT COLLET 1/2"
Price
$33.10
278-3
ROUTER BIT COLLET 1/4"
Price
$33.10
279
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
280
INT RETAINING RING 47MM
Price
N/A
281
BALL BEARING 6204ZZ
Price
N/A
282
SPINDLE HOUSING
Price
$19.85
283
BEARING CONE
Price
$1.90
284
COIL SPRING
Price
$1.90
285
SET SCREW M8-1.25 X 8
Price
N/A
286
SPRING COLLAR
Price
$1.90
287
STUD-UDE M10/12-1.5/1.75 X 142 12/18
Price
$1.90
288
DRAWBAR M8-1.25 X 130 V2.02.08
Price
$1.90
289
SLIP ON HANDLE 12MM
Price
$1.90
290
BEARING SLEEVE
Price
$4.00
291
LOCK WASHER 12MM
Price
N/A
292
SPINDLE PULLEY
Price
$5.45
293
KEY 4 X 4 X 20
Price
N/A
294
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
295
ID/WARNING LABEL
Price
$1.25
296
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
297
FLAT BELT 690 X 10MM V1
Price
$3.25
297V2
FLAT BELT 690 X 10MM V1
Price
N/A
298
MOTOR PULLEY
Price
$20.90
299
SET SCREW M6-1 X 10
Price
N/A
300
MOTOR 3/4HP 110V 1-PH
Price
$197.70
300-1
FAN COVER
Price
$6.15
300-2
FAN
Price
$1.90
300-3
S CAPACITOR 200M 125V 3 X 1"
Price
$8.35
300-4
CAPACITOR COVER
Price
$1.90
300-5
WIRING BOX
Price
$1.90
300-6
CENTRIFUGAL SWITCH
Price
$6.90
300-7
CONTACT PLATE
Price
$2.20
300V2
MOTOR 1HP 120V V2.10.16
Price
$373.45
301
HEX BOLT M8-1.25 X 35
Price
N/A
302
FLAT WRENCH 26MM
Price
$7.20
302-1
WRENCH 27 X 30MM OPEN-ENDS
Price
N/A
302-2
WRENCH 22 X 24MM OPEN-ENDS
Price
N/A
303
HEX NUT M8-1.25
Price
N/A
304
MOTOR MOUNTING PLATE
Price
$78.40
306
HEX BOLT M12-1.75 X 35
Price
N/A
307
*DISCD*SWITCH ON/OFF V1.03.06
Item is no longer available
Price
N/A
307-1
SWITCH COVER
Price
$2.20
307A
Safety Paddle Switch
Price
N/A
307A-1
SWITCH REAR COVER V2.07.07
Price
$2.90
307A-2
SWITCH FRONT COVER V2.07.07
Price
$1.90
308
FWD/REV SWITCH V1
Price
N/A
309
MOTOR CORD
Price
$15.65
310
POWER CORD
Price
$11.50
311
WAVY WASHER 45MM
Price
$1.90
312
KEY 5 X 5 X 22
Price
N/A
313
STRAIN RELIEF
Price
$1.90
314
STRAIN RELIEF
Price
$1.90
315
FWD/REV SWITCH V1
Price
$23.75
315V2
FWD/REV SWITCH V1
Price
N/A
316
ELECTRICITY 1.4W X 1.2H
Price
N/A
317
SPINDLE CARTRIDGE ASSY
Price
$121.15
318
HEX BOLT M12-1.75 X 40
Price
N/A
319
RUB COLLAR 1/2 X 1-3/16 X 1/2
Price
$1.90
320
ROUTER TABLE SPACER KIT
Price
$9.20
321
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
322
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
323
WRENCH 27 X 30MM OPEN-ENDS
Price
N/A
324
*DISCD*FLAT WRENCH 27MM
Item is no longer available
Price
N/A
325
WRENCH 22 X 24MM OPEN-ENDS
Price
N/A
MANUAL
MANUAL G0510Z MFD-06.04-02.06 V1.06.04
Price
$12.00
MANV2
MANUAL G0510Z MFD-10.16-02.17 V2.12.16
Price
$18.00
MANV3
MANUAL G0510Z MFD-03.17-10.17 V3.10.17
Price
$18.00
MANV4
MANUAL G0510Z MFD-11.17-10.21 V4.03.18
Price
$18.00
MANV5
MANUAL G0510Z MFD-11.21+ V5.01.22
Price
$19.00
