Parts for G0510ZW - 1 HP Shaper

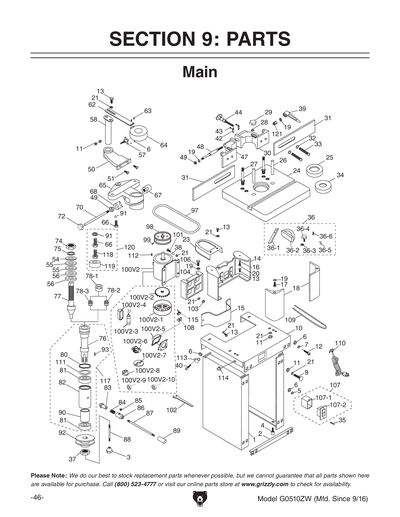

Part Diagram for G0510ZW
Part Diagram for G0510ZW
Part Diagram for G0510ZW
Part Diagram for G0510ZW
Part Diagram for G0510ZW
Part Diagram for G0510ZW
Part Diagram for G0510ZW
Part Diagram for G0510ZW

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

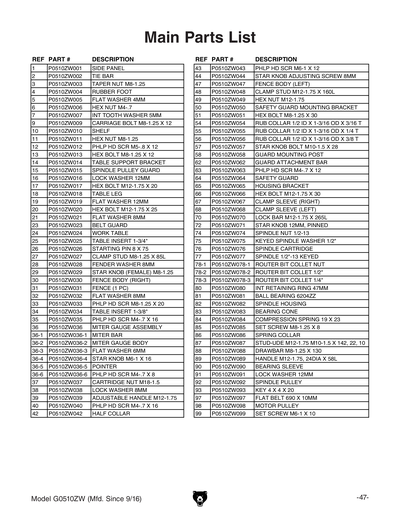

Ref #
Part #
Description
1
*DISCD*SIDE PANEL
Item is no longer available
Price
N/A
2
*DISCD*TIE BAR
Item is no longer available
Price
N/A
3
*DISCD*TAPER NUT M8-1.25
Price
$1.75
4
*DISCD*RUBBER FOOT
Price
$1.49
5
FLAT WASHER 4MM
Price
N/A
6
HEX NUT M4-.7
Price
N/A
7
INT TOOTH WASHER 5MM
Price
N/A
9
CARRIAGE BOLT M8-1.25 X 12
Price
N/A
10
*DISCD*SHELF
Item is no longer available
Price
N/A
11
HEX NUT M8-1.25
Price
N/A
12
PHLP HD SCR M5-.8 X 12
Price
N/A
13
HEX BOLT M8-1.25 X 12
Price
N/A
14
*DISCD*TABLE SUPPORT BRACKET
Item is no longer available
Price
N/A
15
*DISCD*SPINDLE PULLEY GUARD
Item is no longer available
Price
N/A
16
LOCK WASHER 12MM
Price
N/A
17
HEX BOLT M12-1.75 X 20
Price
N/A
18
*DISCD*TABLE LEG
Item is no longer available
Price
N/A
19
FLAT WASHER 12MM
Price
N/A
20
HEX BOLT M12-1.75 X 25
Price
N/A
21
FLAT WASHER 8MM
Price
N/A
23
*DISCD*BELT GUARD
Item is no longer available
Price
N/A
24
*DISCD*WORK TABLE
Price
$228.30
25
*DISCD*TABLE INSERT 1-3/4"
Price
$1.75
26
*DISCD*STARTING PIN 8 X 75
Price
$1.49
27
*DISCD*CLAMP STUD M8-1.25 X 85L
Price
$1.75
28
FENDER WASHER 8MM
Price
N/A
29
*DISCD*STAR KNOB (FEMALE) M8-1.25
Item is no longer available
Price
N/A
30
*DISCD*FENCE BODY (RIGHT)
Item is no longer available
Price
N/A
31
*DISCD*FENCE (1 PC)
Item is no longer available
Price
N/A
32
FLAT WASHER 8MM
Price
N/A
33
PHLP HD SCR M8-1.25 X 20
Price
N/A
34
*DISCD*TABLE INSERT 1-3/8"
Item is no longer available
Price
N/A
35
PHLP HD SCR M4-.7 X 16
Price
N/A
36
*DISCD*MITER GAUGE ASSEMBLY
Item is no longer available
Price
N/A
36-1
*DISCD*MITER BAR
Item is no longer available
Price
N/A
36-2
*DISCD*MITER GAUGE BODY
Item is no longer available
Price
N/A
36-3
FLAT WASHER 6MM
Price
N/A
36-4
*DISCD*STAR KNOB M6-1 X 16
Item is no longer available
Price
N/A
36-5
*DISCD*POINTER
Item is no longer available
Price
N/A
36-6
PHLP HD SCR M4-.7 X 8
Price
N/A
37
*DISCD*CARTRIDGE NUT M18-1.5
Price
$1.49
38
LOCK WASHER 8MM
Price
N/A
39
*DISCD*ADJUSTABLE HANDLE M12-1.75
Price
$4.90
40
PHLP HD SCR M4-.7 X 16
Price
N/A
42
*DISCD*HALF COLLAR
Item is no longer available
Price
N/A
43
PHLP HD SCR M6-1 X 12
Price
N/A
44
*DISCD*STAR KNOB ADJUSTING SCREW 8MM
Item is no longer available
Price
N/A
47
*DISCD*FENCE BODY (LEFT)
Item is no longer available
Price
N/A
48
*DISCD*CLAMP STUD M12-1.75 X 160L
Item is no longer available
Price
N/A
49
HEX NUT M12-1.75
Price
N/A
50
*DISCD*SAFETY GUARD MOUNTING BRACKET
Item is no longer available
Price
N/A
51
HEX BOLT M8-1.25 X 30
Price
N/A
54
*DISCD*RUB COLLAR SET OF 3 (1/2")
Price
N/A
54A
*DISCD*RUB COLLAR SET OF 3 (1/2")
Price
$7.50
55
*DISCD*RUB COLLAR SET OF 3 (1/2")
Price
N/A
56
*DISCD*RUB COLLAR SET OF 3 (1/2")
Price
N/A
57
*DISCD*STAR KNOB BOLT M10-1.5 X 28
Price
$1.49
58
*DISCD*GUARD MOUNTING POST
Item is no longer available
Price
N/A
62
*DISCD*GUARD ATTACHMENT BAR
Item is no longer available
Price
N/A
63
PHLP HD SCR M4-.7 X 12
Price
N/A
64
*DISCD*SAFETY GUARD
Item is no longer available
Price
N/A
65
*DISCD*HOUSING BRACKET
Price
$13.80
66
HEX BOLT M12-1.75 X 30
Price
N/A
67
*DISCD*CLAMP SLEEVE (RIGHT)
Item is no longer available
Price
N/A
68
*DISCD*CLAMP SLEEVE (LEFT)
Price
$2.60
70
*DISCD*LOCK BAR M12-1.75 X 265L
Item is no longer available
Price
N/A
71
*DISCD*STAR KNOB 12MM, PINNED
Item is no longer available
Price
N/A
74
*DISCD*SPINDLE NUT 1/2-13
Item is no longer available
Price
N/A
75
*DISCD*KEYED SPINDLE WASHER 1/2"
Price
$1.49
76
*DISCD*SPINDLE CARTRIDGE
Price
$22.45
77
*DISCD*SPINDLE 1/2"-13 KEYED
Price
$22.45
78-1
*DISCD*ROUTER BIT COLLET NUT
Price
$12.95
78-2
*DISCD*ROUTER BIT COLLET 1/2"
Item is no longer available
Price
N/A
78-3
*DISCD*ROUTER BIT COLLET 1/4"
Price
$16.10
80
INT RETAINING RING 47MM
Price
N/A
81
BALL BEARING 6204ZZ
Price
N/A
82
*DISCD*SPINDLE HOUSING
Item is no longer available
Price
N/A
83
*DISCD*BEARING CONE
Item is no longer available
Price
N/A
84
*DISCD*COMPRESSION SPRING 19 X 23
Item is no longer available
Price
N/A
85
SET SCREW M8-1.25 X 8
Price
N/A
86
*DISCD*SPRING COLLAR
Item is no longer available
Price
N/A
87
*DISCD*STUD-UDE M12-1.75 M10-1.5 X 142,
Item is no longer available
Price
N/A
88
*DISCD*DRAWBAR M8-1.25 X 130
Price
$1.49
89
*DISCD*HANDLE M12-1.75, 24DIA X 58L
Item is no longer available
Price
N/A
90
*DISCD*BEARING SLEEVE
Item is no longer available
Price
N/A
91
LOCK WASHER 12MM
Price
N/A
92
*DISCD*SPINDLE PULLEY
Price
$4.90
93
KEY 4 X 4 X 20
Price
N/A
97
*DISCD*FLAT BELT 690 X 10MM
Item is no longer available
Price
N/A
98
*DISCD*MOTOR PULLEY
Price
$16.10
99
SET SCREW M6-1 X 10
Price
N/A
100
*DISCD*MOTOR 3/4HP 110V 1-PH V1
Price
$210.75
100-1
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
100-10
BALL BEARING 6204ZZ
Price
N/A
100-2
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
100-3
*DISCD*S CAP 250MFD 125V 1-5/16 X3-1/8
Price
$8.35
100-4
*DISCD*CAPACITOR COVER
Item is no longer available
Price
N/A
100-5
*DISCD*MOTOR JUNCTON BOX
Item is no longer available
Price
N/A
100-6
*DISCD*CENTRIFUGAL SWITCH
Price
$4.60
100-7
*DISCD*CONTACT PLATE
Item is no longer available
Price
N/A
100-8
*DISCD*STRAIN RELIEF PG11 TYPE-2
Item is no longer available
Price
N/A
100-9
BALL BEARING 6204ZZ
Price
N/A

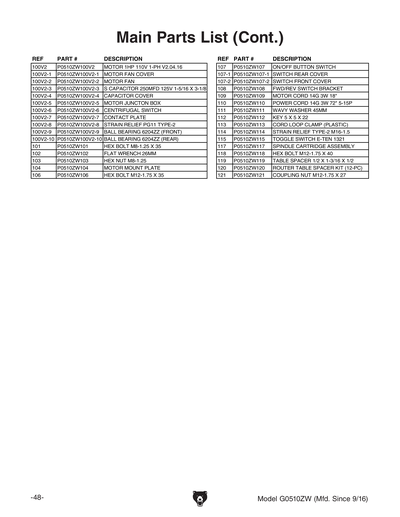

100V2
*DISCD*MOTOR 1HP 110V 1-PH V2.04.16
Item is no longer available
Price
N/A
100V2-1
*DISCD*MOTOR FAN COVER
Price
$9.20
100V2-10
BALL BEARING 6204ZZ
Price
N/A
100V2-2
*DISCD*MOTOR FAN
Price
$1.49
100V2-3
*DISCD*S CAPACITOR 300M 125V 1-5/16 X 3-
Item is no longer available
Price
N/A
100V2-4
*DISCD*CAPACITOR COVER
Item is no longer available
Price
N/A
100V2-5
*DISCD*MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
100V2-6
*DISCD*CENTRIFUGAL SWITCH
Item is no longer available
Price
N/A
100V2-7
*DISCD*CONTACT PLATE
Item is no longer available
Price
N/A
100V2-8
*DISCD*STRAIN RELIEF PG11 TYPE-2
Item is no longer available
Price
N/A
100V2-9
BALL BEARING 6204ZZ
Price
N/A
101
HEX BOLT M8-1.25 X 35
Price
N/A
102
*DISCD*FLAT WRENCH 26MM
Item is no longer available
Price
N/A
103
HEX NUT M8-1.25
Price
N/A
104
*DISCD*MOTOR MOUNT PLATE
Item is no longer available
Price
N/A
106
HEX BOLT M12-1.75 X 35
Price
N/A
107
*DISCD*ON/OFF BUTTON SWITCH
Price
$9.50
107-1
*DISCD*SWITCH REAR COVER
Item is no longer available
Price
N/A
107-2
*DISCD*SWITCH FRONT COVER
Item is no longer available
Price
N/A
108
*DISCD*FWD/REV SWITCH BRACKET
Item is no longer available
Price
N/A
109
*DISCD*MOTOR CORD 14G 3W 18"
Item is no longer available
Price
N/A
110
*DISCD*POWER CORD 14G 3W 72" 5-15P
Item is no longer available
Price
N/A
111
*DISCD*WAVY WASHER 45MM
Item is no longer available
Price
N/A
112
KEY 5 X 5 X 22
Price
N/A
113
*DISCD*CORD LOOP CLAMP (PLASTIC)
Item is no longer available
Price
N/A
114
*DISCD*STRAIN RELIEF TYPE-2 M16-1.5
Item is no longer available
Price
N/A
115
*DISCD*TOGGLE SWITCH E-TEN 1321
Item is no longer available
Price
N/A
117
*DISCD*SPINDLE CARTRIDGE ASSEMBLY
Price
$111.55
118
HEX BOLT M12-1.75 X 40
Price
N/A
119
*DISCD*TABLE SPACER 1/2 X 1-3/16 X 1/2
Item is no longer available
Price
N/A
120
*DISCD*ROUTER TABLE SPACER KIT (12-PC)
Item is no longer available
Price
N/A
121
*DISCD*ADJUSTABLE HANDLE M12-1.75
Price
N/A

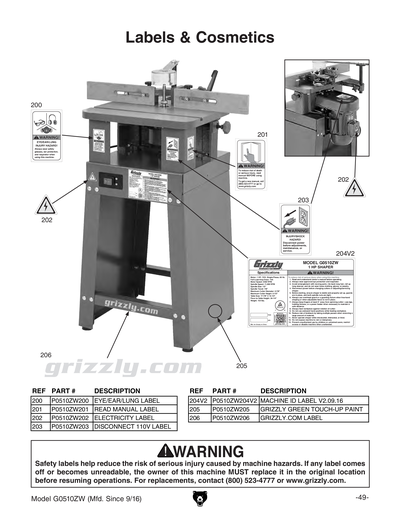

200
EYE/EAR/LUNG 2W X 3.3H
Price
N/A
201
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
202
ELECTRICITY 1.4W X 1.2H
Price
N/A
203
DISCONNECT 110V 2W X 3.3H
Price
N/A
204
*DISCD*MACHINE ID LABEL V1
Item is no longer available
Price
N/A
205
N/S GRIZZLY GREEN G1023S
Price
N/A
206
*DISCD*GRIZZLY.COM LABEL
Item is no longer available
Price
N/A
MAN
MANUAL G0510ZW MFD-11.15-08.16 V1.01.16
Item is no longer available
Price
N/A
MANV2
MANUAL G0510ZW MFD-09.16 V2.09.16
Price
$18.50
