Parts for G0511 20" Heavy-Duty Bandsaw - 5 HP

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

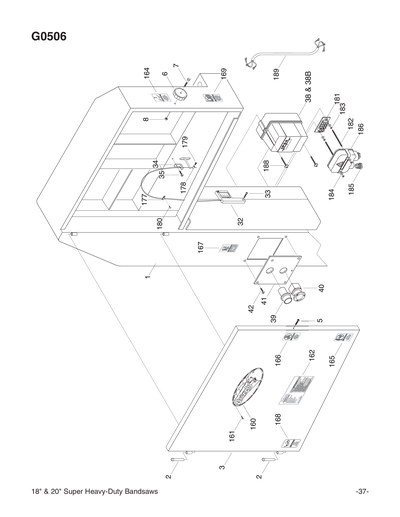

1
FRAME
Price
N/A
2
HINGE
Price
N/A
3
WHEEL GUARD UPPER
Price
N/A
4
WHEEL GUARD LOWER
Price
N/A
5
CAP SCREW 1/4-20 X 3/8
Price
N/A
6
*DISCD*WHEEL GUARD LOCK KNOB
Price
N/A
7
CAP SCREW 1/4-20 X 3/4
Price
N/A
8
Now: PN05
HEX NUT 1/4-20
Price
N/A

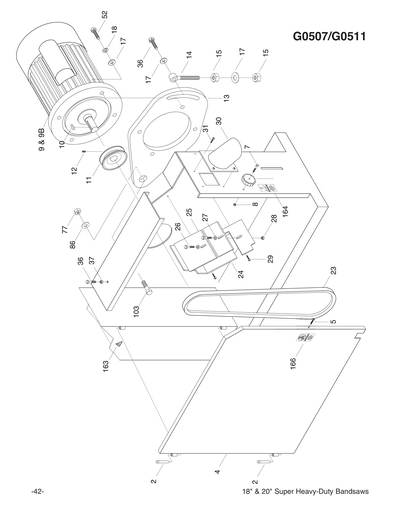

9
MOTOR 5HP 220V/440V 3-PH
Price
N/A
9-1
*DISCD*S CAPACITOR 400M 250V 2 X 3-1/2
Price
N/A
9B
MOTOR 5HP 220V/440V 3-PH
10
Now: PK43M
KEY 8 X 8 X 45
Price
N/A
11
MOTOR PULLEY
Price
N/A
12
Now: PSS08
SET SCREW 5/16-18 X 1/2
Price
N/A
13
MOTOR BASE
Price
N/A
14
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
15
Now: PN08
HEX NUT 3/8-16
Price
N/A
16
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
17
Now: PW02
FLAT WASHER 3/8
Price
N/A
18
Now: PLW04
LOCK WASHER 3/8
Price
N/A
19
Now: PN08
HEX NUT 3/8-16
Price
N/A
20
Now: PB60
HEX BOLT 3/8-16 X 3
Price
N/A
21
Now: PN08
HEX NUT 3/8-16
Price
N/A
22
*DISCD*MOTOR BASE SHAFT
Price
N/A
23
Now: PVA46
V-BELT A46
Price
N/A
24
DUST BOARD
Price
N/A
25
WOOD BOARD
Price
N/A
26
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
27
Now: PW07
FLAT WASHER 5/16
Price
N/A
28
Now: PN02
HEX NUT 5/16-18
Price
N/A
29
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
30
CHIP CHUTE
Price
N/A
31
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
32
BLADE TENSION INDICATOR W/CABLE & SCREW
Price
N/A
32-1
INDICATOR CABLE
Price
N/A
33
CAP SCREW 1/4-20 X 1/2
Price
N/A
34
WIRE BRACKET
Price
N/A
35
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
36
Now: PB58
HEX BOLT 3/8-16 X 2
Price
N/A
37
Now: PN08
HEX NUT 3/8-16
Price
N/A
38
Now: G4573
Magnetic Switch, Single-Phase, 220V Only, 3 HP
Price
N/A
38-1
*DISCD*CONTACT/THERMAL OVERLOAD 220V NHD
Price
N/A
38B
Now: G4674
Magnetic Switch, 3-Phase, 220V Only, 5 HP
Price
N/A
38B-1
*DISCD*CONTACT/THERMAL OVERLOAD 220V NHD
39
*DISCD*ON SWITCH GREEN
Price
N/A
40
*DISCD*OFF SWITCH RED
Price
N/A
41
POWER CONTROL PANEL
Price
N/A
42
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A

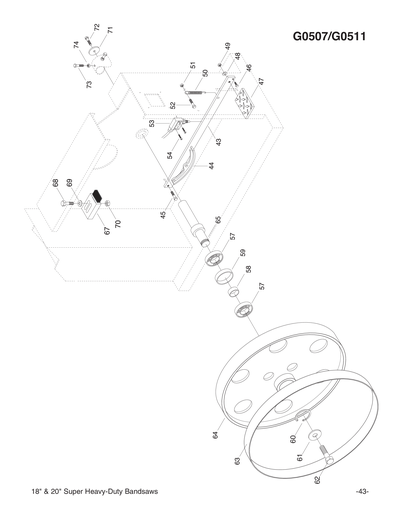

43
BRAKE LINING
Price
N/A
44
BRAKE LINING
Price
N/A
45
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
46
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
47
FOOT BRAKE PEDAL
Price
N/A
48
Now: PLW04
LOCK WASHER 3/8
Price
N/A
49
Now: PN08
HEX NUT 3/8-16
Price
N/A
50
SPRING HELICAL 110MM
Price
N/A
51
Now: PN08
HEX NUT 3/8-16
Price
N/A
52
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
53
*DISCD*LIMIT SWITCH
Price
N/A
54
CAP SCREW M4-.7 X 30
Price
N/A
55
*DISCD*WHEEL UPPER
Price
N/A
56
WHEEL SHAFT UPPER
Price
N/A
57
BALL BEARING 6206ZZ
Price
N/A
58
*DISCD*IN BUSHING
Price
N/A
59
*DISCD*OUT BUSHING
Price
N/A
60
C-CLIP
Price
N/A
61
BEARING COVER
Price
N/A
62
CAP SCREW 3/8-16 X 1
Price
N/A
63
*DISCD*RUBBER CROWN
Price
N/A
64
*DISCD*WHEEL LOWER
Price
N/A
65
WHEEL SHAFT LOWER
Price
N/A
66
BRUSH BRACKET
Price
N/A
67
*DISCD*BRUSH
Price
N/A
68
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
69
Now: PW07
FLAT WASHER 5/16
Price
N/A
70
Now: PN02
HEX NUT 5/16-18
Price
N/A
71
LOWER WHEEL WASHER 3/8-2
Price
N/A
72
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
73
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
74
Now: PN08
HEX NUT 3/8-16
Price
N/A
75
ARBOR BRACKET
Price
N/A
76
Now: PB42
HEX BOLT 1/2-12 X 2
Price
N/A
77
Now: PN06
HEX NUT 1/2-12
Price
N/A
78

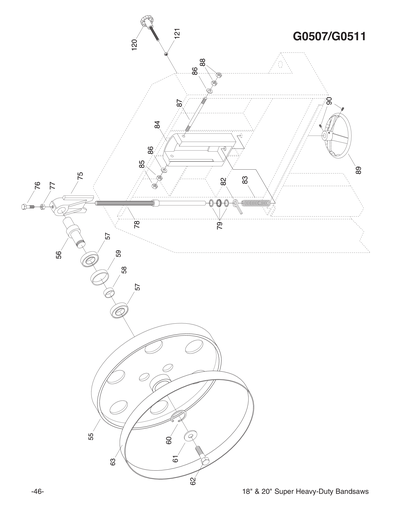

BLADE TENSION SHAFT
Price
N/A
79
THRUST BEARING 51104
Price
N/A
82
INDICATOR WIRE PULLER
Price
N/A
83
SPRING HELICAL 50MM
Price
N/A
84
BRACKET HOLDER
Price
N/A
85
Now: PN06
HEX NUT 1/2-12
Price
N/A
86
Now: PW01
FLAT WASHER 1/2
Price
N/A
87
BRACKET SHAFT
Price
N/A
88
Now: PN06
HEX NUT 1/2-12
Price
N/A
89
TENSION HANDWHEEL
Price
N/A
90
Now: PSS08
SET SCREW 5/16-18 X 1/2
Price
N/A
91
TABLE
Price
N/A
92
FENCE RAIL
Price
N/A
93
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
94
Now: PW02
FLAT WASHER 3/8
Price
N/A
95
*DISCD*FENCE
Price
N/A
96
*DISCD*FENCE KNOB 3/8"-16 X 1-1/4"
Price
N/A
97
*DISCD*TRUNNION
Price
N/A
98
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
99
Now: PLW04
LOCK WASHER 3/8
Price
N/A
100
HEX BOLT 5/8-11 X 2
Price
N/A
101
Now: PW14
FLAT WASHER 5/8
Price
N/A
102
*DISCD*TRUNNION BRACKET
Price
N/A
103
HEX BOLT 1/2-12 X 1-3/4
Price
N/A
104
Now: PLW07
LOCK WASHER 1/2
Price
N/A
105
BLADE GUIDE FORK
Price
N/A
106
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
107
Now: PW02
FLAT WASHER 3/8
Price
N/A
108
SHAFT CUP
Price
N/A
109
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
110
Now: PLW01
LOCK WASHER 5/16
Price
N/A
111
LOCK KNOB 3/8-16 X 2-1/4"
Price
N/A
112
GUIDE SHAFT
Price
N/A
113
C-CLIP
Price
N/A
114
ELEVATION GEAR SHAFT
Price
N/A
115
GEAR SHAFT BASE
Price
N/A
116
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
117
Now: PLW01
LOCK WASHER 5/16
Price
N/A
118
*DISCD*HANDWHEEL
Price
N/A
119
SPRING KEY M4 X 40
Price
N/A
120
TRACK KNOB 3/8 - 16 X 2-1/2"
Price
N/A
121
Now: PN08
HEX NUT 3/8-16
Price
N/A
122
BLADE GUIDE GUARD
Price
N/A
123
BLADE GUARD BRACKET
Price
N/A
124
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
125
Now: PLW02
LOCK WASHER 1/4
Price
N/A
126
Now: PW06
FLAT WASHER 1/4
Price
N/A
127
*DISCD*BLADE GUIDE HOLDER
Price
N/A
128
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
129
Now: PW07
FLAT WASHER 5/16
Price
N/A
130
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
131
*DISCD*ADJUSTMENT BRACKET
Price
N/A
132
*DISCD*BRACKET ARBOR
Price
N/A
133
*DISCD*BLADE GUIDE BASE
Price
N/A
134
CAP SCREW 5/16-18 X 3/4
Price
N/A
135
*DISCD*GUIDE WHEEL BRACKET
Price
N/A
136
*DISCD*GUIDE WHEEL
Price
N/A
137
*DISCD*GUIDE WHEEL NUT 7/8-14
Price
N/A
138
BALL BEARING 6202ZZ
Price
N/A
139
*DISCD*SLIDING BASE
Price
N/A
140
MITER GAUGE BODY
Price
N/A
140A
COMPLETE MITER GAUGE
Price
N/A
141
T-SLOT WASHER 13MM
Price
N/A
142
Now: PFH09
FLAT HD SCR 1/4-20 X 5/16
Price
N/A
143
MITER BAR
Price
N/A
144
MITER GAUGE BOLT 1/4-20 X 7/16"
Price
N/A
145
STOP PIN
Price
N/A
146
BLOCK
Price
N/A
147
INDICATOR
Price
N/A
148
Now: PS29
PHLP HD SCR 6-32 X 5/8
Price
N/A
149
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
150
HANDLE 5/16-18 X 1-1/2"
Price
N/A
151
Now: PW07
FLAT WASHER 5/16
Price
N/A
152
Now: PN12
HEX NUT 6-32
Price
N/A
160
Now: G8589
Nameplate - Large
Price
N/A
161
TAP SCREW #8 X 5/8
Price
N/A
162
MACHINE ID LABEL
Price
N/A
163
ELECTRICITY 1.4W X 1.2H
Price
N/A
164
UNPLUG BANDSAW 2W X 3.3H
Price
N/A
165
***USE PLABEL-19A***
Price
N/A
166
DONT OPEN 2W X 3.3H
Price
N/A
167
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
168
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
169
BS MOVING/ADJUST 2W X 3.3H
Price
N/A
174
*DISCD*THRUST BEARING SHAFT
Price
N/A
175
BALL BEARING 6202RS
Price
N/A
176
E-CLIP 15MM
Price
N/A
177
CABLE CLIP
Price
N/A
178
*DISCD*CABLE NUT 6-32
Price
N/A
179
Now: PS37
PHLP HD SCR 6-32 X 5/16
Price
N/A
180
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
181
*DISCD*TERMINAL BLOCK
Price
N/A
182
*DISCD*TERMINAL BLOCK
Price
N/A
183
Now: PN07
HEX NUT 10-24
Price
N/A
184
Now: PW03
FLAT WASHER #10
Price
N/A
185
*DISCD*TERMINAL BLOCK
Price
N/A
186
*DISCD*TERMINAL BLOCK
Price
N/A
188
TAP SCREW 10-24 X 1/2
Price
N/A
189
MOTOR POWER CORD
Price
N/A
190
*DISCD*CONVERSION KIT 440V NHD
Item is no longer available
Price
N/A
191
HARDWARE BAG
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G0506 12/03
Price
N/A
