Parts for G0513 - 17" 2 HP Bandsaw

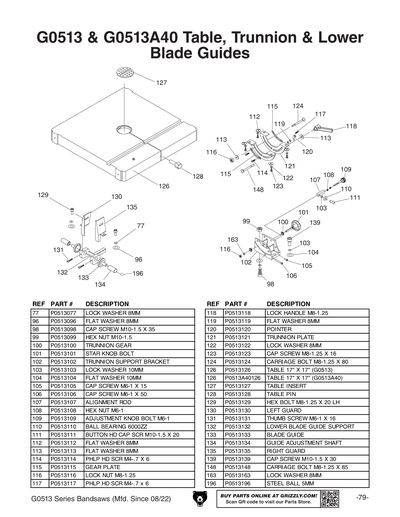

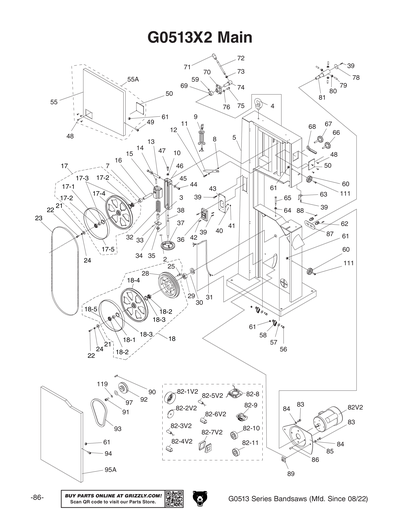

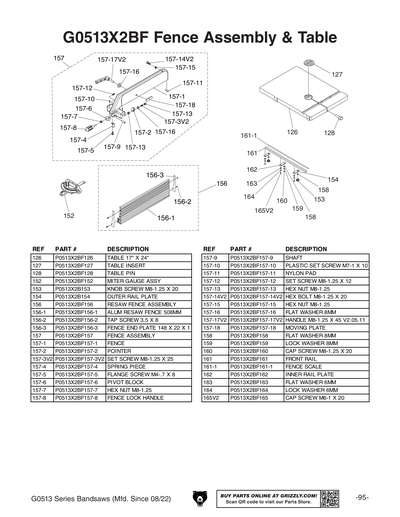

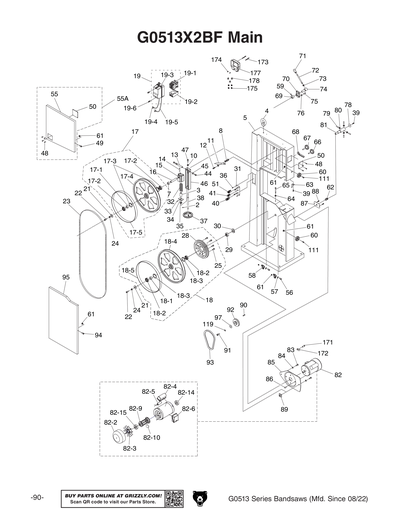

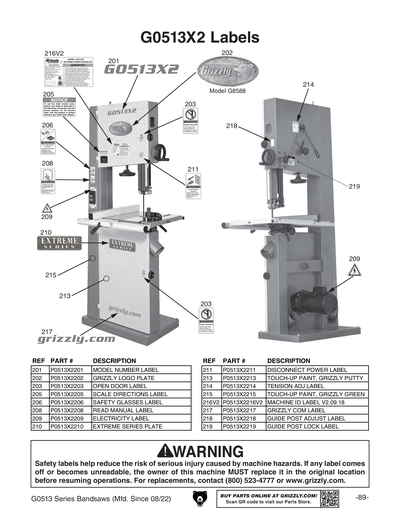

Part Diagram for G0513

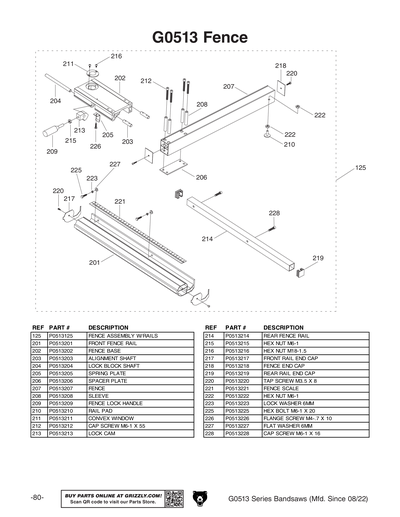

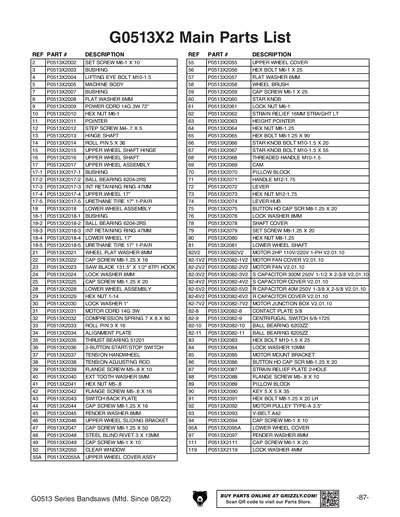

Part Diagram for G0513

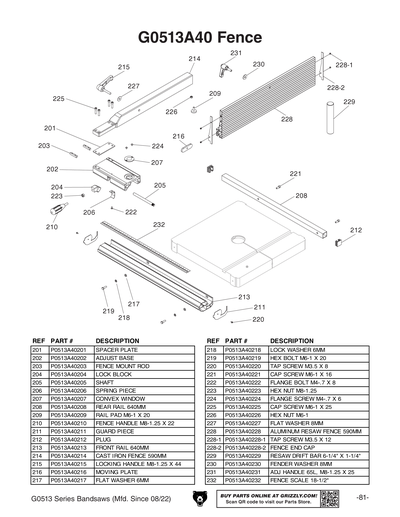

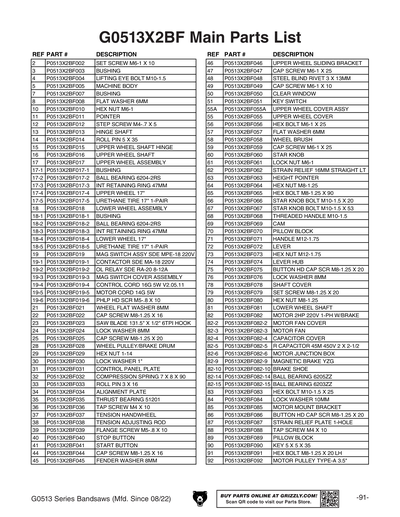

Part Diagram for G0513

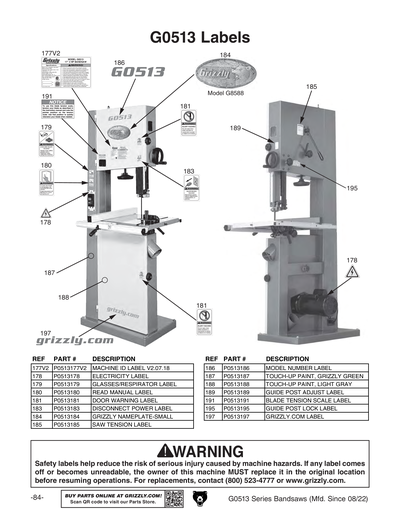

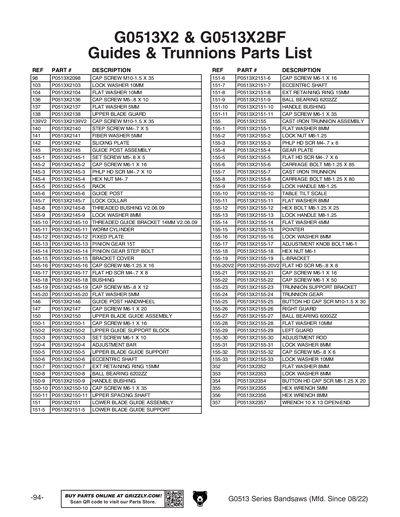

Part Diagram for G0513

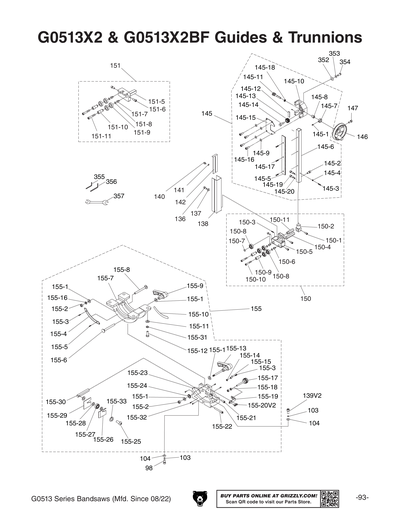

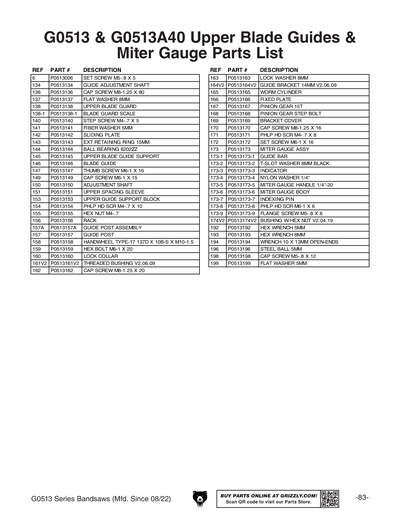

Part Diagram for G0513

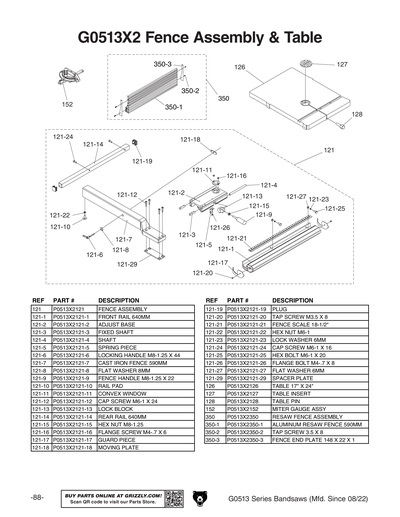

Part Diagram for G0513

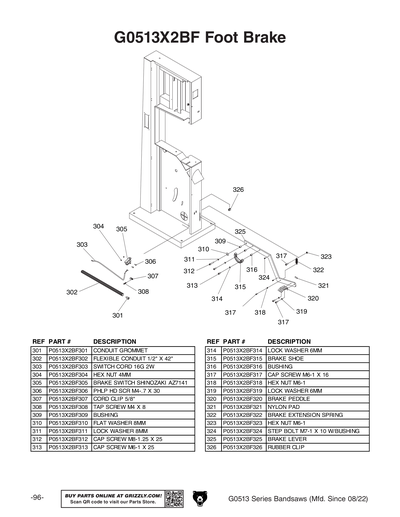

Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513
Part Diagram for G0513

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

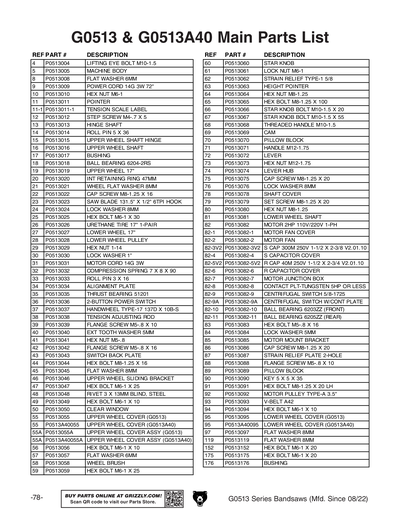

Ref #
Part #
Description
4
LIFTING EYE BOLT M10-1.5
Price
$13.60
5
*DISCD*MACHINE BODY
Item is no longer available
Price
N/A
6
SET SCREW M5-.8 X 5
Price
N/A
8
FLAT WASHER 6MM
Price
N/A
9
POWER CORD 14G 3W 72"
Price
$49.25
10
HEX NUT M6-1
Price
N/A
11
POINTER
Price
$3.15
11-1
BLADE TENSION SCALE LABEL
Price
N/A
12
STEP SCREW M4-.7 X 5
Price
$1.60
13
HINGE SHAFT
Price
$10.30
14
ROLL PIN 5 X 36
Price
N/A
15
UPPER WHEEL SHAFT HINGE
Price
$35.35
16
UPPER WHEEL SHAFT
Price
$12.75
17
BUSHING
Price
$2.50
18
BALL BEARING 6204-2RS
Price
N/A
19
UPPER WHEEL 17"
Price
$155.15
20
INT RETAINING RING 47MM
Price
N/A
21
WHEEL FLAT WASHER 8MM
Price
N/A
22
CAP SCREW M8-1.25 X 16
Price
N/A
23
SAW BLADE 131.5" X 1/2" 6TPI HOOK
Price
$31.00
24
LOCK WASHER 8MM
Price
N/A
25
HEX BOLT M6-1 X 30
Price
N/A
26
Urethane Tire for 17" Bandsaws (Pair)
Price
N/A
27
LOWER WHEEL 17"
Price
$208.40
28
LOWER WHEEL PULLEY
Price
$70.70
29
P0513029
Now: PN32
HEX NUT 1-14
Price
N/A
30
LOCK WASHER 1"
Price
N/A
31
MOTOR CORD 14G 3W
Price
$36.25
32
COMPRESSION SPRING 7 X 8 X 90
Price
$12.75
33
ROLL PIN 3 X 16
Price
N/A
34
ALIGNMENT PLATE
Price
$3.35
35
THRUST BEARING 51201
Price
N/A
36
2-BUTTON POWER SWITCH
Price
$23.50
37
HANDWHEEL TYPE-17 137D X 10B-S
Price
$21.45
38
TENSION ADJUSTING BOLT
Price
N/A
39
FLANGE SCREW M5-.8 X 10
Price
N/A
40
EXT TOOTH WASHER 5MM
Price
N/A
41
HEX NUT M5-.8
Price
N/A
42
FLANGE SCREW M5-.8 X 16
Price
N/A
43
SWITCH BACK PLATE
Price
$8.50
44
HEX BOLT M8-1.25 X 16
Price
N/A
45
FLAT WASHER 8MM
Price
N/A
46
UPPER WHEEL SLIDING BRACKET
Price
$44.45
47
HEX BOLT M6-1 X 25
Price
N/A
48
RIVET 3 X 13MM BLIND, STEEL
Price
N/A
49
HEX BOLT M6-1 X 10
Price
N/A
50
CLEAR WINDOW
Price
$3.95
55
UPPER WHEEL COVER
Price
$85.20
55A
UPPER WHEEL COVER W/ LABELS & WINDOW
Price
$96.10
56
HEX BOLT M6-1 X 10
Price
N/A
57
FLAT WASHER 6MM
Price
N/A
58
BRUSH
Price
N/A
59
HEX BOLT M6-1 X 25
Price
N/A
60
STAR KNOB
Price
$2.20
61
LOCK NUT M6-1
Price
N/A
62
STRAIN RELIEF TYPE-1 5/8
Price
$1.60
63
HEIGHT POINTER
Price
$3.40
64
HEX NUT M8-1.25
Price
N/A
65
HEX BOLT M8-1.25 X 100
Price
N/A
66
STAR KNOB BOLT M10-1.5 X 20
Price
$3.95
67
STAR KNOB BOLT M10-1.5 X 55
Price
$4.05
68
LOCK LEVER M10-1.5
Price
N/A
69
CAM
Price
$3.95
70
PILLOW BLOCK
Price
$24.50
71
HANDLE M12-1.75
Price
$3.65
72
LEVER
Price
$8.65
73
HEX NUT M12-1.75
Price
N/A
74
LEVER HUB
Price
$27.80
75
CAP SCREW M8-1.25 X 20
Price
N/A
76
LOCK WASHER 8MM
Price
N/A
77
LOCK WASHER 8MM
Price
N/A
78
SHAFT COVER
Price
$1.60
79
SET SCREW M8-1.25 X 20
Price
N/A
80
HEX NUT M8-1.25
Price
N/A
81
LOWER WHEEL SHAFT
Price
$26.90
82
MOTOR 2HP 110/220V 1-PH V1
Price
$448.25
82-1
MOTOR FAN COVER V1
Price
$24.85
82-10
BALL BEARING 6203ZZ
Price
N/A
82-11
BALL BEARING 6205ZZ
Price
N/A
82-1V2
MOTOR FAN COVER V1
Price
N/A
82-2
MOTOR FAN V1
Price
$7.25
82-2V2
MOTOR FAN V1
Price
N/A
82-3
*DISCD*S CAPACITOR 200M 250V 1-1/2 X 2-3
Item is no longer available
Price
N/A
82-3V2
S CAPACITOR 300M 250V 1-1/2 X 2-3/8
Price
N/A
82-4
S CAPACITOR COVER V1.07.02
Price
$15.60
82-4V2
*DISCD*S CAPACITOR COVER V2.01.10
Item is no longer available
Price
N/A
82-5V2
R CAPACITOR 40M 250V 1-1/2 X 2-3/4
Price
N/A
82-6
R CAPACITOR COVER V1
Price
$15.60
82-6V2
*DISCD*R CAPACITOR COVER V2.01.10
Item is no longer available
Price
N/A
82-7
MOTOR JUNCTION BOX V1
Price
$14.50
82-7V2
*DISCD*MOTOR JUNCTION BOX V2.01.10
Item is no longer available
Price
N/A
82-8
CONTACT PLT-TUNGSTEN 5HP OR LESS
Price
N/A
82-9
CENT SWITCH 5/8-1725
Price
N/A
82-9A
CENTRIFUGAL SWITCH W/CONT PLATE
Price
$21.75
82V2
*DISCD*MOTOR 2HP 110V/220V 1-PH V2.01.10
Item is no longer available
Price
N/A
83
HEX BOLT M5-.8 X 16
Price
N/A
84
LOCK WASHER 5MM
Price
N/A
85
MOTOR MOUNT BRACKET
Price
$35.35
86
CAP SCREW M8-1.25 X 20
Price
N/A
87
STRAIN RELIEF PLATE 2-HOLE
Price
$42.00
88
FLANGE SCREW M5-.8 X 10
Price
N/A
89
PILLOW BLOCK
Price
$4.30
90
KEY 5 X 5 X 35
Price
N/A
91
HEX BOLT M8-1.25 X 20 LH
Price
N/A
92
MOTOR PULLEY TYPE-A 3.5"
Price
$46.55
93
V-BELT A42
Price
N/A
94
HEX BOLT M6-1 X 10
Price
N/A
95
LOWER WHEEL COVER W/ LABELS
Price
$110.90
96
FLAT WASHER 8MM
Price
N/A
97
FLAT WASHER 8MM
Price
N/A
98
CAP SCREW M10-1.5 X 35
Price
N/A
99
HEX NUT M10-1.5
Price
N/A
100
TRUNNION GEAR
Price
$1.60
101
STAR KNOB BOLT
Price
$19.95
102
TRUNNION SUPPORT BRACKET
Price
$25.15
103
LOCK WASHER 10MM
Price
N/A
104
FLAT WASHER 10MM
Price
N/A
105
CAP SCREW M6-1 X 15
Price
N/A
106
CAP SCREW M6-1 X 50
Price
N/A
107
ALIGNMENT ROD
Price
$8.20
108
HEX NUT M6-1
Price
N/A
109
ADJUSTMENT KNOB BOLT M6-1
Price
$2.70
110
BALL BEARING 6000ZZ
Price
N/A
111
BUTTON HD CAP SCR M10-1.5 X 20
Price
N/A
112
FLAT WASHER 8MM
Price
N/A
113
FLAT WASHER 8MM
Price
N/A
114
PHLP HD SCR M4-.7 X 6
Price
N/A
115
GEAR PLATE
Price
$4.75
116
LOCK NUT M8-1.25
Price
N/A
117
PHLP HD SCR M4-.7 X 6
Price
N/A
118
ADJ HANDLE M8-1.25, 100L
Price
N/A
119
FLAT WASHER 8MM
Price
N/A
120
POINTER
Price
$2.45
121
TRUNNION PLATE
Price
N/A
122
LOCK WASHER 8MM
Price
N/A
123
CAP SCREW M8-1.25 X 16
Price
N/A
124
CARRIAGE BOLT M8-1.25 X 80
Price
N/A
125
FENCE ASSEMBLY W/RAILS
Price
$214.70
125-10
*DISCD*HANDLE
Price
$1.49
125-11
*DISCD*GUARD PIECE
Price
$1.49
125-12
*DISCD*GUARD PIECE
Price
$1.49
125-15
FENCE
Price
N/A
125-16
*DISCD*SQUARE TUBE L=640
Price
$1.49
125-17
*DISCD*SCALE
Price
$1.49
125-19
HEX BOLT M6-1 X 20
Price
N/A
125-20
HEX BOLT M6-1 X 15
Price
N/A
125-21
HEX NUT M6-1
Price
N/A
125-24
HEX NUT M8-1.25
Price
N/A
125-25
HEX BOLT M16-2 X 55
Price
N/A
125-26
LOCK WASHER 6MM
Price
N/A
126
TABLE 17" X 17"
Price
$279.80
127
Table Insert for G0555X, G0457, G0513 Series, G0514 Series and G0640X
Price
N/A
128
TABLE PIN
Price
N/A
129
HEX BOLT M8-1.25 X 20 LH
Price
N/A
130
LEFT GUARD
Price
$8.40
131
THUMB SCREW M6-1 X 16
Price
N/A
132
LOWER BLADE GUIDE SUPPORT
Price
$14.20
133
BLADE GUIDE
Price
$7.45
134
GUIDE ADJUSTMENT SHAFT
Price
$10.50
135
RIGHT GUARD
Price
$3.35
136
CAP SCREW M8-1.25 X 80
Price
N/A
137
FLAT WASHER 8MM
Price
N/A
138
UPPER BLADE GUARD
Price
$42.00
138-1
BLADE GUARD SCALE
Price
$3.15
139
CAP SCREW M10-1.5 X 30
Price
N/A
140
STEP SCREW M4-.7 X 5
Price
N/A
141
FIBER WASHER 5MM
Price
$1.60
142
SLIDING PLATE
Price
$6.45
143
EXT RETAINING RING 15MM
Price
N/A
144
BALL BEARING 6202ZZ
Price
N/A
145
UPPER BLADE GUIDE SUPPORT
Price
$15.00
146
BLADE GUIDE
Price
N/A
147
THUMB SCREW M6-1 X 16
Price
N/A
148
CARRIAGE BOLT M8-1.25 X 85
Price
N/A
149
CAP SCREW M6-1 X 15
Price
N/A
150
ADJUSTMENT SHAFT
Price
$5.50
151
UPPER SPACING SLEEVE
Price
$8.95
152
HEX BOLT M6-1 X 20
Price
N/A
153
UPPER GUIDE SUPPORT BLOCK
Price
$16.05
154
PHLP HD SCR M4-.7 X 10
Price
N/A
155
HEX NUT M4-.7
Price
N/A
156
RACK
Price
$13.30
157
GUIDE POST
Price
$44.10
157A
GUIDE POST ASSEMBLY
Price
$97.05
158
HANDWHEEL TYPE-17 137D X 10B-S X M10-1.5
Price
$32.95
159
HEX BOLT M6-1 X 20
Price
N/A
160
HANDWHEEL BUSHING
Price
N/A
161
BUSHING
Price
N/A
161V2
THREADED BUSHING V2.06.09
Price
$17.25
162
CAP SCREW M8-1.25 X 20
Price
N/A
163
LOCK WASHER 8MM
Price
N/A
164
GUIDE BRACKET 16MM V2.06.09
Price
N/A
164V2
GUIDE BRACKET 16MM V2.06.09
Price
$39.25
165
WORM CYLINDER
Item is no longer available
Price
N/A
166
FIXED PLATE
Price
$1.60
167
PINION GEAR 15T
Price
$4.30
168
PINION GEAR BOLT
Price
N/A
169
BRACKET COVER
Price
$4.05
170
CAP SCREW M8-1.25 X 16
Price
N/A
171
PHLP HD SCR M4-.7 X 8
Price
N/A
172
SET SCREW M6-1 X 16
Price
N/A
173
MITER GAUGE ASSY
Price
N/A
173-1
GUIDE BAR
Price
$34.25
173-2
*DISCD*T-SLOT WASHER 8MM BLACK
Price
N/A
173-3
*DISCD*INDICATOR
Price
N/A
173-4
***USE P0513X152***
Price
N/A
173-5
MITER GAUGE HANDLE 1/4"-20
Price
$9.20
173-6
MITER GAUGE BODY
Price
$47.15
173-7
***USE P0513X152***
Price
N/A
173-8
PHLP HD SCR M6-1 X 6
Price
N/A
173-9
FLANGE SCREW M5-.8 X 8
Price
N/A
174
BUSHING W/ HEX NUT V2.04.19
Price
N/A
174V2
BUSHING W/ HEX NUT V2.04.19
Price
$12.00
175
HEX BOLT M6-1 X 20
Price
N/A
176
BUSHING
Price
$6.90
177
MACHINE ID LABEL V1
Price
$16.40
177V2
MACHINE ID LABEL V2.07.18
Price
$16.40
178
ELECTRICITY 1.4W X 1.2H
Price
N/A
179
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
180
READ MANUAL 1.5W X 2.5H
Price
N/A
181
DOOR CLOSED BLADE 1.5W X 2.5H
Price
N/A
182
DONT OPEN 2W X 3.3H
Price
N/A
183
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
184
Nameplate - Small
Price
N/A
185
SAW TENSION LABEL
Price
$1.35
186
MODEL NUMBER LABEL
Price
$16.40
187
N/S GRIZZLY GREEN G1023S
Price
N/A
188
LIGHT GREY REF G9733
Price
N/A
189
GUARD ADJ LABEL
Price
N/A
190
BS BLADE ENCLOSURE LABEL
Price
$4.25
191
BLADE TENSION SCALE LABEL
Price
$1.25
192
HEX WRENCH 5MM
Price
N/A
193
HEX WRENCH 8MM
Price
N/A
194
WRENCH 10 X 13MM OPEN-ENDS
Price
N/A
195
GUIDE POST LOCK LABEL
Price
$2.30
196
STEEL BALL 5MM
Price
N/A
197
GRIZZLY.COM LABEL
Price
$5.80
198
CAP SCREW M5-.8 X 12
Price
N/A
199
FLAT WASHER 5MM
Price
N/A
201
FRONT FENCE RAIL
Price
$56.65
202
FENCE BASE
Price
$59.80
203
ALIGNMENT SHAFT
Price
$7.65
204
LOCK SHAFT
Price
N/A
205
SPRING PLATE
Price
N/A
206
SPACER PLATE
Price
N/A
207
FENCE
Price
$36.25
208
SLEEVE
Price
$1.85
209
FENCE LOCK HANDLE M8-1.25 X 22, 30 X 77
Price
N/A
210
RAIL PAD
Price
$1.49
211
CONVEX WINDOW
Price
$2.35
212
CAP SCREW M6-1 X 55
Price
N/A
213
PIVOT BLOCK
Price
N/A
214
REAR FENCE RAIL
Price
$21.20
215
HEX NUT M6-1
Price
N/A
216
FLANGE SCREW M4-.7 X 6
Price
N/A
217
GUARD PIECE
Price
N/A
218
FENCE END CAP
Price
$1.85
219
REAR RAIL END CAP
Price
N/A
220
TAP SCREW M3.5 X 8
Price
N/A
221
FENCE SCALE
Price
$5.40
222
HEX NUT M6-1
Price
N/A
223
LOCK WASHER 6MM
Price
N/A
224
CAP SCREW M6-1 X 16
Price
N/A
225
HEX BOLT M6-1 X 20
Price
N/A
226
FLANGE SCREW M4-.7 X 10
Price
N/A
227
FLAT WASHER 6MM
Price
N/A
228
CAP SCREW M6-1 X 16
Price
N/A
400
*DISCD*COMPLETE TENSION ASSY
Item is no longer available
Price
N/A
401
HARDWARE BAG
Price
$25.75
MANUAL
MANUAL G0513 MFD-08.02-10.12 V1.08.02
Price
$17.25
MANV2
MANUAL G0513 SERIES MFD-11.12-06.18 V2.1
Price
$17.50
MANV3
MANUAL G0513 SERIES MFD-07.18-07.22 V3.1
Price
$23.00
MANV4
MANUAL G0513 SERIES MFD-08.22+ V4.08.22
Price
$14.65
P055
UPPER WHEEL COVER
Price
$85.20
