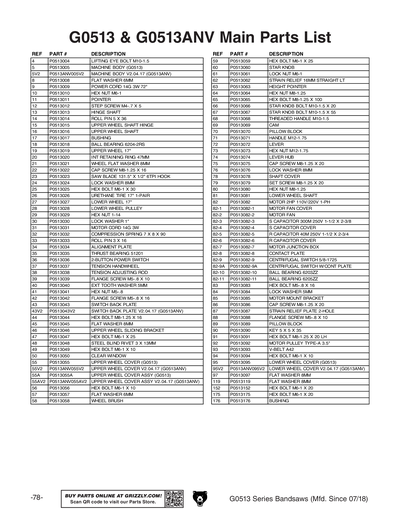

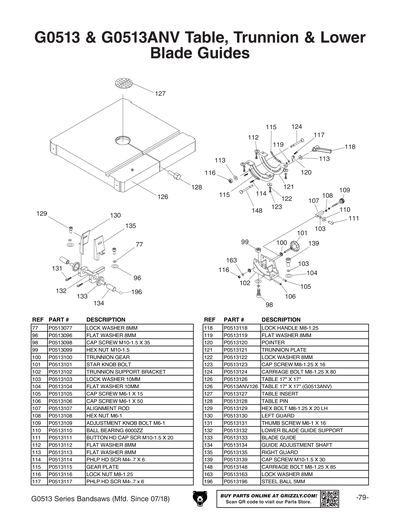

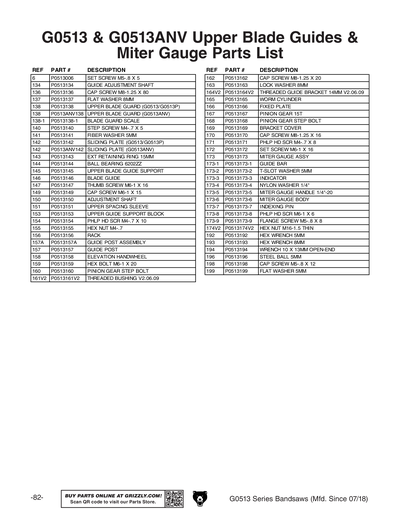

Parts for G0513ANV - 17" 2 HP Bandsaw - 35th Anniversary Edition

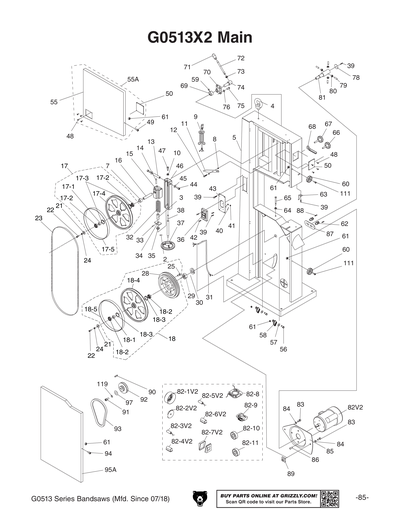

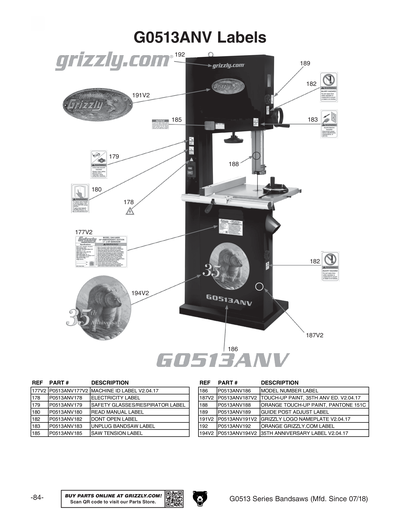

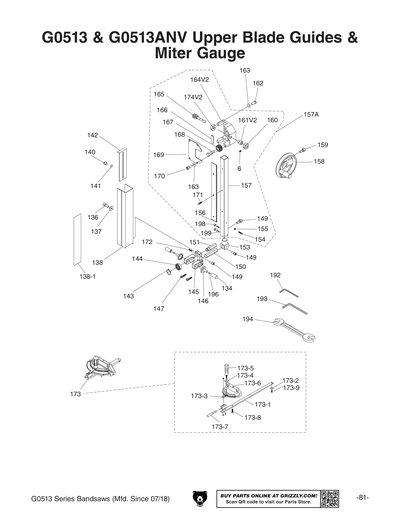

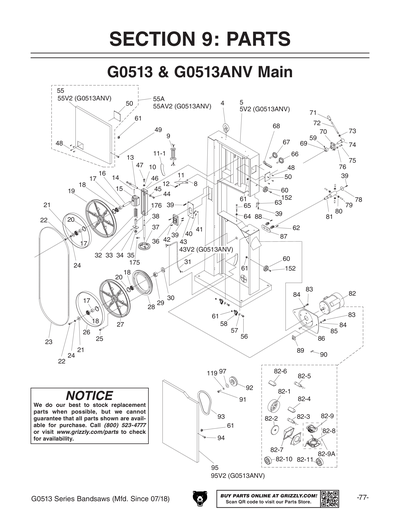

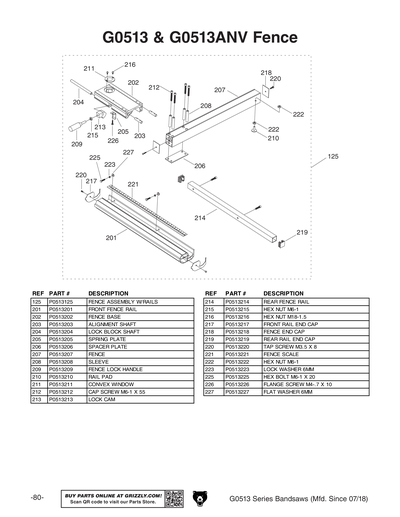

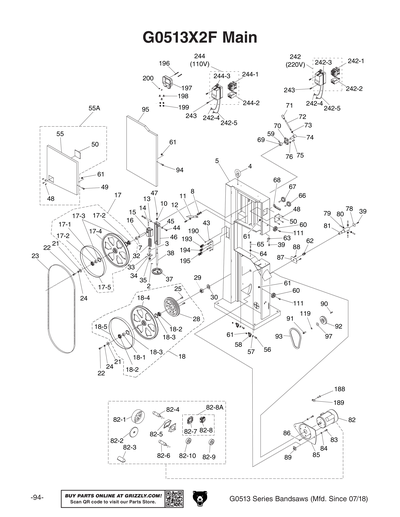

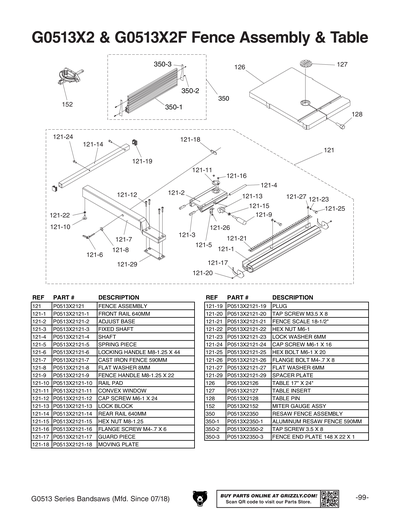

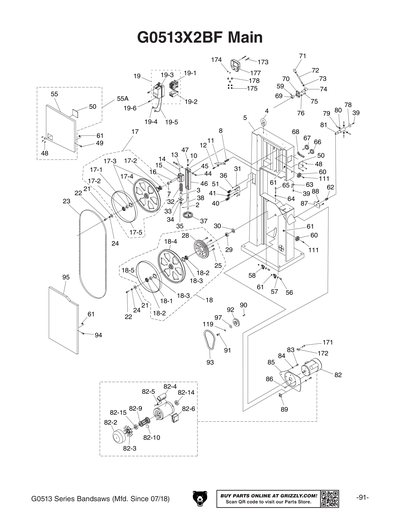

Part Diagram for G0513ANV

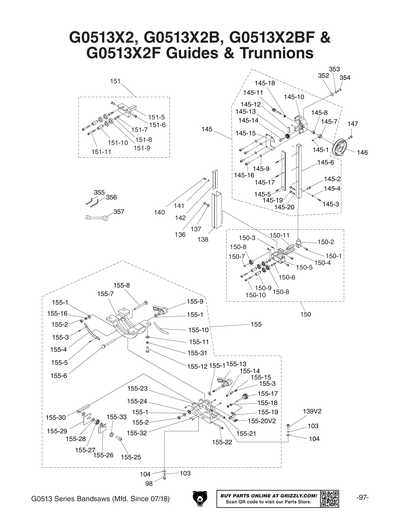

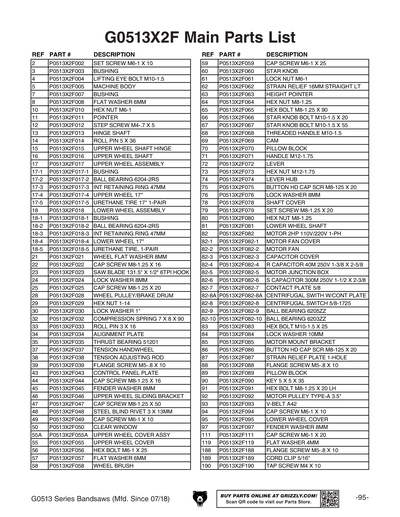

Part Diagram for G0513ANV

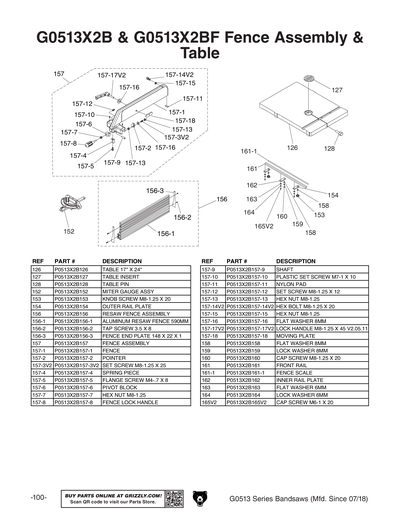

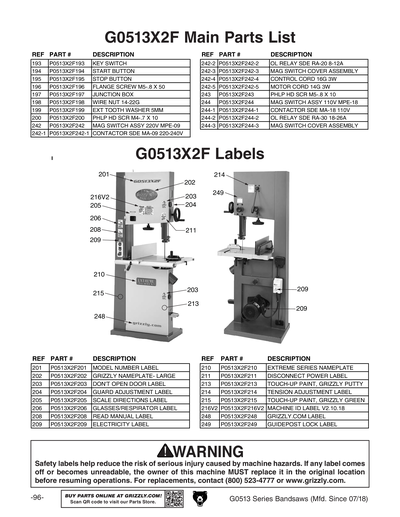

Part Diagram for G0513ANV

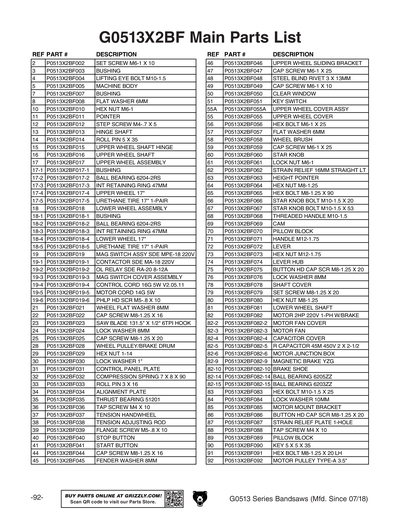

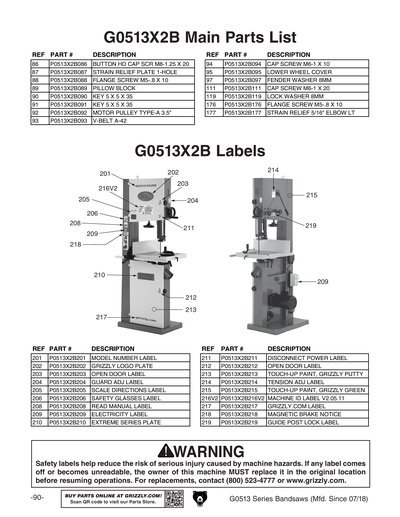

Part Diagram for G0513ANV

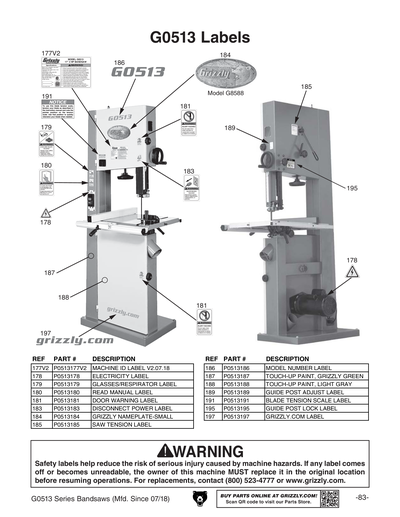

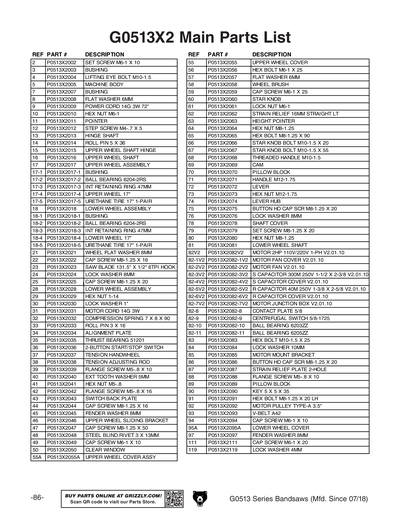

Part Diagram for G0513ANV

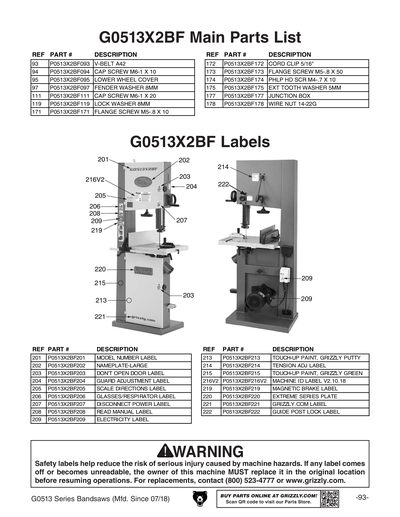

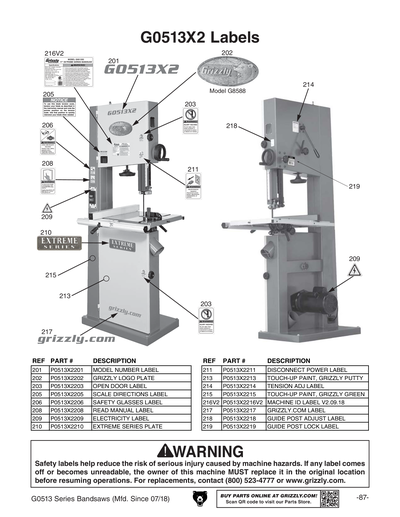

Part Diagram for G0513ANV

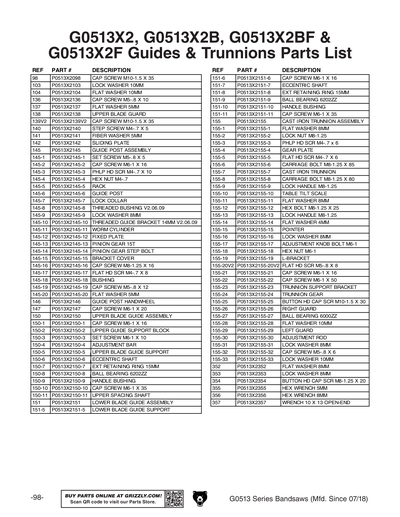

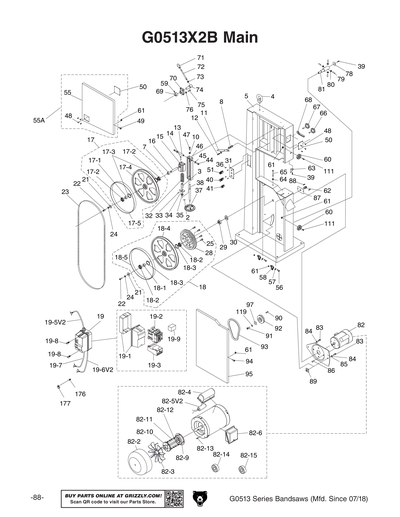

Part Diagram for G0513ANV

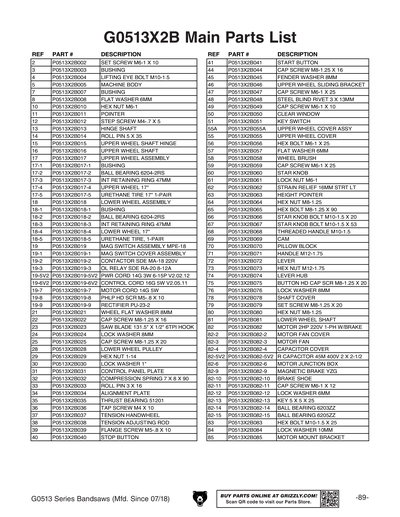

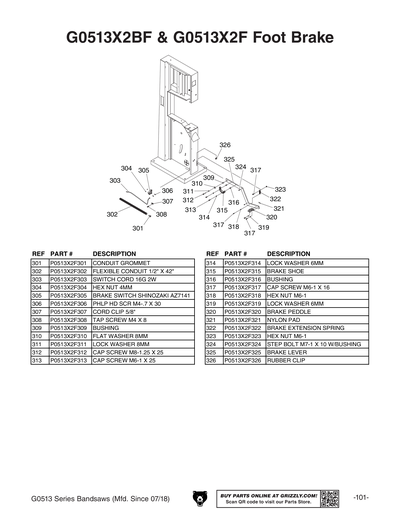

Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV
Part Diagram for G0513ANV

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
4
LIFTING EYE BOLT M10-1.5
Price
N/A
5
MACHINE BODY V1
Item is no longer available
Price
N/A
6
SET SCREW M5-.8 X 5
Price
N/A
8
FLAT WASHER 6MM
Price
N/A
9
POWER CORD 14G 3W 72"
Price
N/A
10
HEX NUT M6-1
Price
N/A
11
POINTER
Price
N/A
11-1
BLADE TENSION SCALE LABEL
Price
N/A
12
STEP SCREW M4-.7 X 5
Price
N/A
13
HINGE SHAFT
Price
N/A
14
ROLL PIN 5 X 36
Price
N/A
15
UPPER WHEEL SHAFT HINGE
Price
N/A
16
UPPER WHEEL SHAFT
Price
N/A
17
BUSHING
Price
N/A
18
BALL BEARING 6204-2RS
Price
N/A
19
UPPER WHEEL 17"
Price
N/A
20
INT RETAINING RING 47MM
Price
N/A
21
WHEEL FLAT WASHER 8MM
Price
N/A
22
HEX BOLT M8-1.25 X 30
Price
N/A
23
SAW BLADE 131.5" X 1/2" 6TPI HOOK
Price
N/A
24
LOCK WASHER 8MM
Price
N/A
25
HEX BOLT M6-1 X 30
Price
N/A
26
Urethane Tire for 17" Bandsaws (Pair)
Price
N/A
27
LOWER WHEEL 17"
Price
N/A
28
LOWER WHEEL PULLEY
Price
N/A
29
HEX NUT 1-14
Price
N/A
30
LOCK WASHER 1"
Price
N/A
31
MOTOR CORD 14G 3W
Price
N/A
32
COMPRESSION SPRING 7 X 8 X 90
Price
N/A
33
ROLL PIN 3 X 16
Price
N/A
34
ALIGNMENT PLATE
Price
N/A
35
THRUST BEARING 51201
Price
N/A
36
2-BUTTON POWER SWITCH
Price
N/A
37
HANDWHEEL TYPE-17 137D X 10B-S
Price
N/A
38
***USE P0640X038***
Price
N/A
39
FLANGE SCREW M5-.8 X 10
Price
N/A
40
EXT TOOTH WASHER 5MM
Price
N/A
41
HEX NUT M5-.8
Price
N/A
42
FLANGE SCREW M5-.8 X 16
Price
N/A
43
SWITCH BACK PLATE V2.04.17 (G0513ANV)
Price
N/A
43V2
SWITCH BACK PLATE V2.04.17
Price
$12.75
44
HEX BOLT M8-1.25 X 16
Price
N/A
45
FLAT WASHER 8MM
Price
N/A
46
UPPER WHEEL SLIDING BRACKET
Price
N/A
47
HEX BOLT M6-1 X 25
Price
N/A
48
RIVET 3 X 13MM BLIND, STEEL
Price
N/A
49
HEX BOLT M6-1 X 10
Price
N/A
50
CLEAR WINDOW
Price
N/A
55
UPPER WHEEL COVER V1
Price
$70.15
55A
UPPER WHEEL COVER ASSY W/LABELS V1(30th)
Price
$100.30
55AV2
UPPER WHEEL COVER ASSY V2.04.17 (35th)
Price
$92.10
55V2
UPPER WHEEL COVER V2
Price
$100.05
56
HEX BOLT M6-1 X 10
Price
N/A
57
FLAT WASHER 6MM
Price
N/A
58
***USE P0566B032***
Price
N/A
59
HEX BOLT M6-1 X 25
Price
N/A
60
STAR KNOB
Price
N/A
61
LOCK NUT M6-1
Price
N/A
62
STRAIN RELIEF TYPE-1 5/8
Price
N/A
63
HEIGHT POINTER
Price
N/A
64
HEX NUT M8-1.25
Price
N/A
65
HEX BOLT M8-1.25 X 100
Price
N/A
66
STAR KNOB BOLT M10-1.5 X 20
Price
N/A
67
STAR KNOB BOLT M10-1.5 X 55
Price
N/A
68
THREADED HANDLE M10-1.5
Price
N/A
69
CAM
Price
N/A
70
PILLOW BLOCK
Price
N/A
71
HANDLE M12-1.75
Price
N/A
72
LEVER
Price
N/A
73
HEX NUT M12-1.75
Price
N/A
74
LEVER HUB
Price
N/A
75
CAP SCREW M8-1.25 X 20
Price
N/A
76
LOCK WASHER 8MM
Price
N/A
77
LOCK WASHER 8MM
Price
N/A
78
SHAFT COVER
Price
N/A
79
SET SCREW M8-1.25 X 20
Price
N/A
80
HEX NUT M8-1.25
Price
N/A
81
LOWER WHEEL SHAFT
Price
N/A
82
MOTOR 2HP 110/220V 1-PH V1
Price
N/A
82-1
MOTOR FAN COVER V1
Price
N/A
82-10
BALL BEARING 6203ZZ
Price
N/A
82-11
BALL BEARING 6205ZZ
Price
N/A
82-2
MOTOR FAN V1
Price
N/A
82-3V2
S CAPACITOR 300M 250V 1-1/2 X 2-3/8
Price
N/A
82-4
S CAPACITOR COVER V1.07.02
Price
N/A
82-5V2
R CAPACITOR 40M 250V 1-1/2 X 2-3/4
Price
N/A
82-6
R CAPACITOR COVER V1
Price
N/A
82-7
MOTOR JUNCTION BOX V1
Price
N/A
82-8
CONTACT PLT-TUNGSTEN 5HP OR LESS
Price
N/A
82-9
CENT SWITCH 5/8-1725
Price
N/A
82-9A
CENTRIFUGAL SWITCH W/CONT PLATE
Price
N/A
83
HEX BOLT M5-.8 X 16
Price
N/A
84
LOCK WASHER 5MM
Price
N/A
85
MOTOR MOUNT BRACKET
Price
N/A
86
CAP SCREW M8-1.25 X 20
Price
N/A
87
STRAIN RELIEF PLATE 2-HOLE
Price
N/A
88
FLANGE SCREW M5-.8 X 10
Price
N/A
89
PILLOW BLOCK
Price
N/A
90
KEY 5 X 5 X 35
Price
N/A
91
HEX BOLT M8-1.25 X 20 LH
Price
N/A
92
MOTOR PULLEY TYPE-A 3.5"
Price
N/A
93
V-BELT A42
Price
N/A
94
HEX BOLT M6-1 X 10
Price
N/A
95
LOWER WHEEL COVER V1
Price
$102.10
95A
LOWER WHEEL COVER W/LABELS V1
Price
$166.50
95AV2
LOWER WHEEL COVER W/LABELS V2.04.17
Price
$181.95
95V2
LOWER WHEEL COVER V2.04.17
Item is no longer available
Price
N/A
96
FLAT WASHER 8MM
Price
N/A
97
FLAT WASHER 8MM
Price
N/A
98
CAP SCREW M10-1.5 X 35
Price
N/A
99
HEX NUT M10-1.5
Price
N/A
100
TRUNNION GEAR
Price
N/A
101
STAR KNOB BOLT
Price
N/A
102
TRUNNION SUPPORT BRACKET
Price
N/A
103
LOCK WASHER 10MM
Price
N/A
104
FLAT WASHER 10MM
Price
N/A
105
CAP SCREW M6-1 X 15
Price
N/A
106
CAP SCREW M6-1 X 50
Price
N/A
107
ALIGNMENT ROD
Price
N/A
108
HEX NUT M6-1
Price
N/A
109
ADJUSTMENT KNOB BOLT M6-1
Price
N/A
110
BALL BEARING 6000ZZ
Price
N/A
111
BUTTON HD CAP SCR M10-1.5 X 20
Price
N/A
112
FLAT WASHER 8MM
Price
N/A
113
FLAT WASHER 8MM
Price
N/A
114
PHLP HD SCR M4-.7 X 6
Price
N/A
115
GEAR PLATE
Price
N/A
116
LOCK NUT M8-1.25
Price
N/A
117
PHLP HD SCR M4-.7 X 6
Price
N/A
118
LOCK HANDLE M8-1.25
Price
N/A
119
FLAT WASHER 8MM
Price
N/A
120
POINTER
Price
N/A
121
***USE P0513X051***
Price
N/A
122
LOCK WASHER 8MM
Price
N/A
123
CAP SCREW M8-1.25 X 16
Price
N/A
124
CARRIAGE BOLT M8-1.25 X 80
Price
N/A
125
FENCE ASSEMBLY W/RAILS
Price
N/A
126
TABLE 17" X 17"
Price
$271.35
127
Table Insert for G0555X, G0457, G0513 Series, G0514 Series and G0640X
Price
N/A
128
TABLE PIN
Price
N/A
129
HEX BOLT M8-1.25 X 20 LH
Price
N/A
130
LEFT GUARD
Price
N/A
131
THUMB SCREW M6-1 X 16
Price
N/A
132
LOWER BLADE GUIDE SUPPORT
Price
N/A
133
BLADE GUIDE
Price
N/A
134
GUIDE ADJUSTMENT SHAFT
Price
N/A
135
RIGHT GUARD
Price
N/A
136
CAP SCREW M8-1.25 X 80
Price
N/A
137
FLAT WASHER 8MM
Price
N/A
138
UPPER BLADE GUARD
Price
$42.00
138-1
BLADE GUARD SCALE
Price
N/A
139
CAP SCREW M10-1.5 X 30
Price
N/A
140
STEP SCREW M4-.7 X 5
Price
N/A
141
FIBER WASHER 5MM
Price
N/A
142
SLIDING PLATE
Item is no longer available
Price
N/A
143
EXT RETAINING RING 15MM
Price
N/A
144
BALL BEARING 6202ZZ
Price
N/A
145
UPPER BLADE GUIDE SUPPORT
Price
N/A
146
BLADE GUIDE
Price
N/A
147
THUMB SCREW M6-1 X 16
Price
N/A
148
CARRIAGE BOLT M8-1.25 X 85
Price
N/A
149
CAP SCREW M6-1 X 15
Price
N/A
150
ADJUSTMENT SHAFT
Price
N/A
151
UPPER SPACING SLEEVE
Price
N/A
152
HEX BOLT M6-1 X 20
Price
N/A
153
UPPER GUIDE SUPPORT BLOCK
Price
N/A
154
PHLP HD SCR M4-.7 X 10
Price
N/A
155
HEX NUT M4-.7
Price
N/A
156
RACK
Price
N/A
157
GUIDE POST
Price
N/A
157A
GUIDE POST ASSEMBLY
Price
N/A
158
HANDWHEEL TYPE-17 137D X 10B-S X M10-1.5
Price
N/A
159
HEX BOLT M6-1 X 20
Price
N/A
160
***USE P0640X129***
Price
N/A
161V2
THREADED BUSHING V2.06.09
Price
N/A
162
CAP SCREW M8-1.25 X 20
Price
N/A
163
LOCK WASHER 8MM
Price
N/A
164V2
GUIDE BRACKET 16MM V2.06.09
Price
N/A
165
WORM CYLINDER
Price
N/A
166
FIXED PLATE
Price
N/A
167
PINION GEAR 15T
Price
N/A
168
***USE P0568239***
Price
N/A
169
BRACKET COVER
Price
N/A
170
CAP SCREW M8-1.25 X 16
Price
N/A
171
PHLP HD SCR M4-.7 X 8
Price
N/A
172
SET SCREW M6-1 X 16
Price
N/A
173
***USE P0513X152***
Price
N/A
173-1
GUIDE BAR
Price
N/A
173-2
*DISCD*T-SLOT WASHER 8MM BLACK
Price
N/A
173-3
*DISCD*INDICATOR
Price
N/A
173-4
***USE P0513X152***
Price
N/A
173-5
MITER GAUGE HANDLE 1/4"-20
Price
N/A
173-6
MITER GAUGE BODY
Price
N/A
173-7
***USE P0513X152***
Price
N/A
173-8
PHLP HD SCR M6-1 X 6
Price
N/A
173-9
FLANGE SCREW M5-.8 X 8
Price
N/A
174
BUSHING W/ HEX NUT V2.04.19
Price
N/A
174V2
BUSHING W/ HEX NUT V2.04.19
Price
N/A
175
HEX BOLT M6-1 X 20
Price
N/A
176
BUSHING
Price
N/A
177
MACHINE ID LABEL V1
Item is no longer available
Price
N/A
177V2
MACHINE ID LABEL V2.04.17
Price
$16.40
178
ELECTRICITY 1.4W X 1.2H
Price
N/A
179
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
180
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
181
BANDSAW BLADE 2W X 3.3H V1.07.02
Price
N/A
182
DONT OPEN 2W X 3.3H
Price
N/A
183
UNPLUG BANDSAW 2W X 3.3H
Price
N/A
185
SAW TENSION LABEL
Price
N/A
186
MODEL NUMBER LABEL
Price
$5.25
187
ANNIV EDITION BLACK REF G0555LANV
Price
N/A
187V2
TOUCH-UP PAINT, 35TH ANNIVERSARY EDITION
Price
N/A
188
PANTONE ORANGE REF G0513ANV
Price
N/A
189
GUARD ADJ LABEL
Price
N/A
190
BS BLADE ENCLOSURE LABEL
Price
N/A
191
GRIZZLY BEAR LABEL V1
Price
$20.25
191V2
Nameplate - Small
Price
N/A
192
ORANGE GRIZZLY.COM LABEL
Price
$5.00
193
GRIZZLY LOGO LABEL
Price
$6.85
194
30TH ANNIVERSARY LABEL V1
Price
$12.90
194V2
35TH ANNIVERSARY LABEL V2.04.17
Price
$18.40
198
CAP SCREW M5-.8 X 12
Price
N/A
199
FLAT WASHER 5MM
Price
N/A
201
FRONT FENCE RAIL
Price
N/A
202
FENCE BASE
Price
N/A
203
ALIGNMENT SHAFT
Price
N/A
204
***USE P0555304***
Price
N/A
205
SPRING PLATE
Price
N/A
206
SPACER PLATE
Price
N/A
207
FENCE
Price
N/A
208
SLEEVE
Price
N/A
209
***USE P0817121-9***
Price
N/A
210
RAIL PAD
Price
N/A
211
CONVEX WINDOW
Price
N/A
212
CAP SCREW M6-1 X 55
Price
N/A
213
LOCK CAM
Price
N/A
214
REAR FENCE RAIL
Price
N/A
215
HEX NUT M6-1
Price
N/A
216
FLANGE SCREW M4-.7 X 6
Price
N/A
217
***USE P0555XH217***
Price
N/A
218
FENCE END CAP
Price
N/A
219
REAR RAIL END CAP
Price
N/A
220
TAP SCREW M3.5 X 8
Price
N/A
221
FENCE SCALE
Price
N/A
222
HEX NUT M6-1
Price
N/A
223
LOCK WASHER 6MM
Price
N/A
225
HEX BOLT M6-1 X 20
Price
N/A
226
FLANGE SCREW M4-.7 X 10
Price
N/A
227
FLAT WASHER 6MM
Price
N/A
MAN
MANUAL G0513 SERIES MFD-11.12-06.18 V2.1
Price
N/A
P
SWITCH BACK PLATE V2.04.17 (G0513ANV)
Price
$12.10
P
TOUCH-UP PAINT, 35TH ANNIVERSARY EDITION
Price
$7.50
