Parts for G0513X - 17" 2 HP Extreme Series Bandsaw

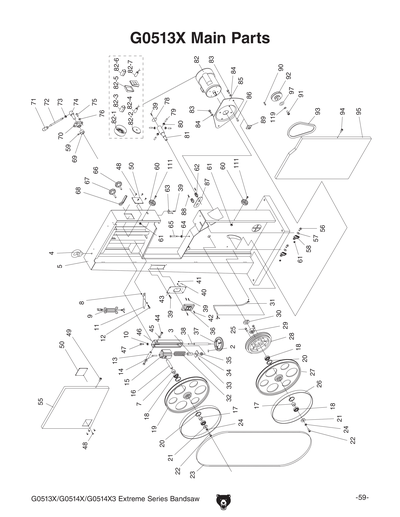

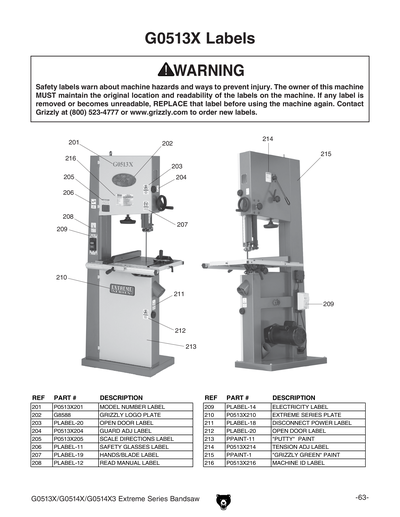

Part Diagram for G0513X
Part Diagram for G0513X
Part Diagram for G0513X
Part Diagram for G0513X

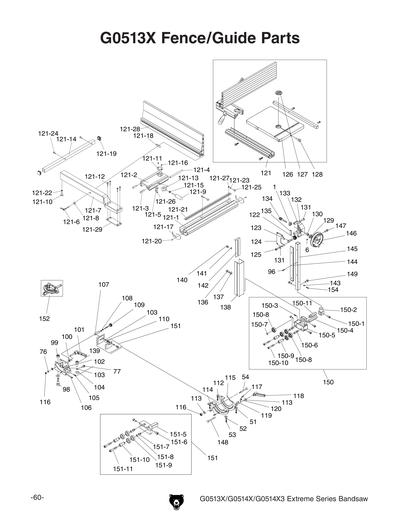

Part Diagram for G0513X
Part Diagram for G0513X
Part Diagram for G0513X
Part Diagram for G0513X
Part Diagram for G0513X
Part Diagram for G0513X

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

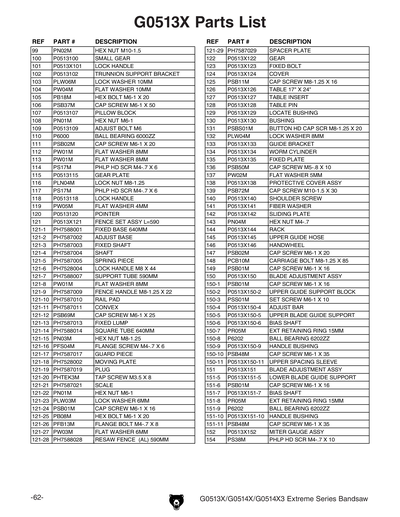

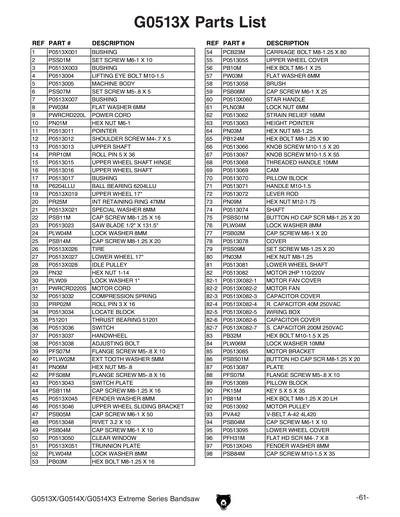

Ref #
Part #
Description
1
BUSHING W/ HEX NUT V2.04.19
Price
N/A
1V2
BUSHING W/ HEX NUT V2.04.19
Price
N/A
2
SET SCREW M6-1 X 10
Price
N/A
3
BUSHING
Price
$8.20
4
LIFTING EYE BOLT M10-1.5
Price
N/A
5
*DISCD*MACHINE BODY
Price
N/A
6
SET SCREW M5-.8 X 5
Price
N/A
7
BUSHING
Price
$2.20
8
FLAT WASHER 6MM
Price
N/A
9
POWER CORD 12G X 3W 86"L
Price
N/A
10
HEX NUT M6-1
Price
N/A
11
POINTER
Price
N/A
11-1
BLADE TENSION SCALE LABEL
Price
N/A
12
STEP SCREW M4-.7 X 5
Price
N/A
13
HINGE SHAFT
Price
N/A
14
ROLL PIN 5 X 36
Price
N/A
15
UPPER WHEEL SHAFT HINGE
Price
N/A
16
UPPER WHEEL SHAFT
Price
N/A
17
BUSHING
Item is no longer available
Price
N/A
18
BALL BEARING 6204-2RS
Price
N/A
19
UPPER WHEEL ASSEMBLY
Price
N/A
20
INT RETAINING RING 47MM
Price
N/A
21
WHEEL FLAT WASHER 8MM
Price
$1.60
22
CAP SCREW M8-1.25 X 16
Price
N/A
23
SAW BLADE 131.5" X 1/2" 6TPI HOOK
Price
N/A
24
LOCK WASHER 8MM
Price
N/A
25
CAP SCREW M8-1.25 X 30
Price
N/A
26
Urethane Tire for 17" Bandsaws (Pair)
Price
N/A
27
LOWER WHEEL ASSEMBLY
Price
N/A
28
IDLE PULLEY
Price
$100.65
29
HEX NUT 1-14
Price
N/A
30
LOCK WASHER 1"
Price
N/A
31
POWER CORD 12G X 3W 36"L
Price
N/A
32
COMPRESSION SPRING 7 X 8 X 90
Price
N/A
33
ROLL PIN 3 X 16
Price
N/A
34
ALIGNMENT PLATE
Price
N/A
35
THRUST BEARING 51201
Price
N/A
36
2-BUTTON POWER SWITCH
Price
N/A
37
HANDWHEEL TYPE-17 137D X 10B-S
Price
N/A
38
***USE P0640X038***
Price
N/A
39
FLANGE SCREW M5-.8 X 10
Price
N/A
40
EXT TOOTH WASHER 5MM
Price
N/A
41
HEX NUT M5-.8
Price
N/A
42
FLANGE SCREW M5-.8 X 16
Price
N/A
43
SWITCH BACK PLATE
Price
N/A
44
CAP SCREW M8-1.25 X 16
Price
N/A
45
FENDER WASHER 8MM
Price
N/A
46
UPPER WHEEL SLIDING BRACKET
Price
N/A
47
CAP SCREW M8-1.25 X 50
Price
N/A
48
RIVET 3 X 13MM BLIND, STEEL
Price
N/A
49
CAP SCREW M6-1 X 10
Price
N/A
50
CLEAR WINDOW
Price
N/A
51
TRUNNION PLATE
Price
$10.90
52
LOCK WASHER 8MM
Price
N/A
53
HEX BOLT M8-1.25 X 16
Price
N/A
54
CARRIAGE BOLT M8-1.25 X 80
Price
N/A
55
WHEEL COVER UPPER ASSY
Price
$104.95
56
HEX BOLT M6-1 X 25
Price
N/A
57
FLAT WASHER 6MM
Price
N/A
58
***USE P0566B032***
Price
N/A
59
CAP SCREW M6-1 X 25
Price
N/A
60
STAR KNOB
Price
N/A
61
LOCK NUT M6-1
Price
N/A
62
STRAIN RELIEF TYPE-1 5/8
Price
N/A
63
HEIGHT POINTER
Price
N/A
64
HEX NUT M8-1.25
Price
N/A
65
HEX BOLT M8-1.25 X 90
Price
N/A
66
STAR KNOB BOLT M10-1.5 X 20
Price
N/A
67
STAR KNOB BOLT M10-1.5 X 55
Price
N/A
68
THREADED HANDLE M10-1.5
Price
N/A
69
CAM
Price
N/A
70
PILLOW BLOCK
Price
N/A
71
HANDLE M12-1.75
Price
N/A
72
LEVER
Price
N/A
73
HEX NUT M12-1.75
Price
N/A
74
LEVER HUB
Price
N/A
75
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
76
LOCK WASHER 8MM
Price
N/A
77
CAP SCREW M6-1 X 20
Price
N/A
78
SHAFT COVER
Price
N/A
79
SET SCREW M8-1.25 X 20
Price
N/A
80
HEX NUT M8-1.25
Price
N/A
81
LOWER WHEEL SHAFT
Price
N/A
82
MOTOR 2HP 110/220V 1-PH V1
Price
N/A
82-1
MOTOR FAN COVER V1
Price
N/A
82-1V2
MOTOR FAN COVER V1
Price
N/A
82-2
MOTOR FAN V1
Price
N/A
82-2V2
MOTOR FAN V1
Price
N/A
82-3
R CAPACITOR COVER V1
Price
N/A
82-3V2
*DISCD*R CAPACITOR COVER V2.01.10
Price
N/A
82-4
R CAPACITOR 40M 250V 1-1/2 X 2-1/2
Price
$37.95
82-4V2
R CAPACITOR 40M 250V 1-1/2 X 2-3/4
Price
N/A
82-5
MOTOR JUNCTION BOX V1
Price
N/A
82-5V2
*DISCD*MOTOR JUNCTION BOX V2.01.10
Price
N/A
82-6
S CAPACITOR COVER V1.07.02
Price
N/A
82-6V2
*DISCD*S CAPACITOR COVER V2.01.10
Price
N/A
82-7
*DISCD*S CAPACITOR 200M 250V 1-1/2 X 2-3
Price
N/A
82-7V2
S CAPACITOR 300M 250V 1-1/2 X 2-3/8
Price
N/A
82V2
*DISCD*MOTOR 2HP 110V/220V 1-PH V2.01.10
Price
N/A
83
HEX BOLT M10-1.5 X 25
Price
N/A
84
LOCK WASHER 10MM
Price
N/A
85
MOTOR MOUNT BRACKET
Price
N/A
86
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
87
STRAIN RELIEF PLATE 2-HOLE
Price
N/A
88
FLANGE SCREW M5-.8 X 10
Price
N/A
89
PILLOW BLOCK
Price
N/A
90
KEY 5 X 5 X 35
Price
N/A
91
HEX BOLT M8-1.25 X 20 LH
Price
N/A
92
MOTOR PULLEY TYPE-A 3.5"
Price
N/A
93
V-BELT A42
Price
N/A
94
CAP SCREW M6-1 X 10
Price
N/A
95
LOWER WHEEL COVER W/NAME PLATE
Price
$191.50
96
FLAT HD SCR M4-.7 X 8
Price
N/A
97
FENDER WASHER 8MM
Price
N/A
98
CAP SCREW M6-1 X 10
Price
N/A
99
HEX NUT M10-1.5
Price
N/A
100
TRUNNION GEAR
Price
N/A
101
TABLE TILT HANDLE
Price
N/A
102
TRUNNION SUPPORT BRACKET
Price
N/A
103
LOCK WASHER 10MM
Price
N/A
104
FLAT WASHER 10MM
Price
N/A
105
HEX BOLT M6-1 X 15
Price
N/A
106
CAP SCREW M6-1 X 50
Price
N/A
107
ALIGNMENT ROD
Price
N/A
108
HEX NUT M6-1
Price
N/A
109
ADJUSTMENT KNOB BOLT M6-1
Price
N/A
110
BALL BEARING 6000ZZ
Price
N/A
111
CAP SCREW M6-1 X 20
Price
N/A
112
FLAT WASHER 8MM
Price
N/A
113
FLAT WASHER 8MM
Price
N/A
114
PHLP HD SCR M4-.7 X 6
Price
N/A
115
GEAR PLATE
Price
N/A
116
LOCK NUT M8-1.25
Price
N/A
117
PHLP HD SCR M4-.7 X 6
Price
N/A
118
LOCK HANDLE M8-1.25
Price
N/A
119
FLAT WASHER 4MM
Price
N/A
120
POINTER
Price
N/A
121
FENCE ASSEMBLY 590MM
Price
N/A
121-1
FRONT RAIL 640MM
Price
N/A
121-10
RAIL PAD ADJUSTMENT SCREW
Price
N/A
121-11
CONVEX WINDOW
Price
N/A
121-12
CAP SCREW M6-1 X 24
Price
N/A
121-13
LOCK BLOCK
Price
N/A
121-14
REAR RAIL 640MM
Price
N/A
121-15
HEX NUT M8-1.25
Price
N/A
121-16
FLANGE SCREW M4-.7 X 6
Price
N/A
121-17
GUARD PIECE
Price
N/A
121-18
MOVING PLATE
Price
N/A
121-19
***USE P0555319***
Price
N/A
121-2
ADJUST BASE
Price
N/A
121-20
TAP SCREW M3.5 X 8
Price
N/A
121-21
*DISCD*SCALE 21-1/2"/54CM LONG
Item is no longer available
Price
N/A
121-22
HEX NUT M6-1
Price
N/A
121-23
LOCK WASHER 6MM
Price
N/A
121-24
CAP SCREW M6-1 X 16
Price
N/A
121-25
HEX BOLT M6-1 X 20
Price
N/A
121-26
FLANGE BOLT M4-.7 X 8
Price
N/A
121-27
FLAT WASHER 6MM
Price
N/A
121-28
ALUMINUM RESAW FENCE 590MM
Price
N/A
121-29
SPACER PLATE
Price
N/A
121-3
ALIGNMENT SHAFT
Price
N/A
121-4
SHAFT
Price
N/A
121-5
***USE P0555305***
Price
N/A
121-6
***USE P0636X129***
Price
N/A
121-7
CAST IRON FENCE 590MM
Price
N/A
121-8
FLAT WASHER 8MM
Price
N/A
121-9
FENCE LOCK HANDLE M8-1.25 X 22, 30 X 77
Price
N/A
122
PINION GEAR 15T
Price
N/A
123
STEP BOLT
Price
$6.90
124
BRACKET COVER
Item is no longer available
Price
N/A
125
CAP SCREW M8-1.25 X 16
Price
N/A
126
TABLE 17" X 24"
Price
$502.65
127
Table Insert for G0555X, G0457, G0513 Series, G0514 Series and G0640X
Price
N/A
128
TABLE PIN
Price
$6.05
129
ALIGNMENT BUSHING
Price
$4.60
130
BUSHING
Price
N/A
130V2
THREADED BUSHING V2.06.09
Price
N/A
131
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
132
LOCK WASHER 8MM
Price
N/A
133
GUIDE BRACKET 16MM V2.06.09
Price
N/A
133V2
GUIDE BRACKET 16MM V2.06.09
Price
N/A
134
WORM SHAFT
Price
$25.50
135
FIXED PLATE
Price
$1.49
136
CAP SCREW M5-.8 X 10
Price
N/A
137
FLAT WASHER 5MM
Price
N/A
138
PROTECTIVE COVER ASSY
Price
$37.95
139
CAP SCREW M10-1.5 X 30
Price
N/A
140
SHOULDER SCREW
Price
$1.49
141
WASHER 5MM (PLASTIC)
Price
$1.49
142
SLIDING PLATE
Price
$6.65
143
HEX NUT M4-.7
Price
N/A
144
RACK
Price
N/A
145
GUIDE POST
Price
$41.80
146
HANDWHEEL
Price
$34.80
147
CAP SCREW M6-1 X 20
Price
N/A
148
CARRIAGE BOLT M8-1.25 X 85
Price
N/A
149
CAP SCREW M6-1 X 16
Price
N/A
150
UPPER BLADE GUIDE ASSY
Price
$101.10
150-1
CAP SCREW M6-1 X 16
Price
N/A
150-10
CAP SCREW M6-1 X 35
Price
N/A
150-11
UPPER SPACING SHAFT
Price
$8.95
150-2
UPPER GUIDE SUPPORT BLOCK
Price
$17.55
150-3
SET SCREW M6-1 X 10
Price
N/A
150-4
ADJUSTMENT BAR
Price
$5.80
150-5
UPPER BLADE GUIDE MOUNTING BLOCK
Price
N/A
150-6
ECCENTRIC SHAFT
Price
$5.45
150-7
EXT RETAINING RING 15MM
Price
N/A
150-8
BALL BEARING 6202ZZ
Price
N/A
150-9
BEARING BUSHING
Price
N/A
151
LOWER BLADE GUIDE ASSY
Price
$79.25
151-10
HANDLE BUSHING
Price
$6.15
151-11
CAP SCREW M6-1 X 35
Price
N/A
151-5
LOWER BLADE GUIDE SUPPORT
Price
$18.15
151-6
CAP SCREW M6-1 X 16
Price
N/A
151-7
ECCENTRIC SHAFT
Price
$5.65
151-8
EXT RETAINING RING 15MM
Price
N/A
151-9
BALL BEARING 6202ZZ
Price
N/A
152
MITER GAUGE ASSY
Price
$68.35
154
PHLP HD SCR M4-.7 X 10
Price
N/A
210
*DISCD*EXTREME SERIES PLATE
Price
$13.75
MANUAL
MANUAL FOR G0513X/14X/14X3 02/07
Price
$14.65
