Parts for G0513X2F - 17" 2 HP Extreme-Series Bandsaw w/ Cast-Iron Trunnion & Foot Brake

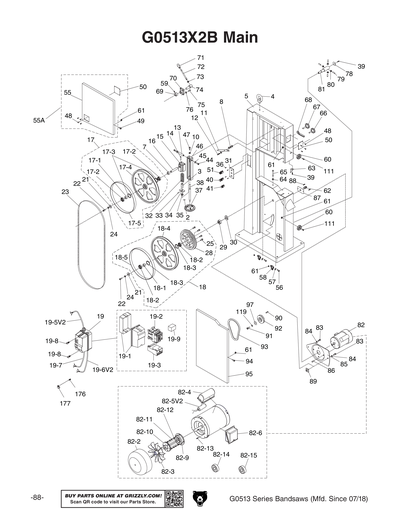

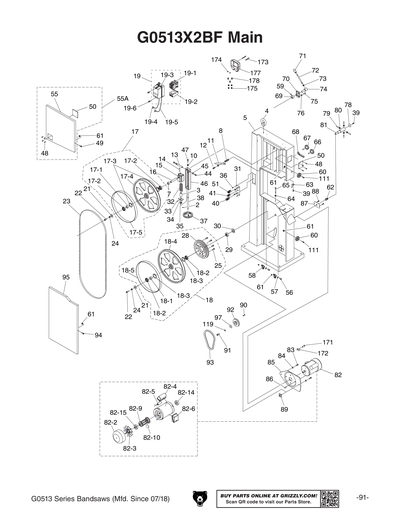

Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F
Part Diagram for G0513X2F

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

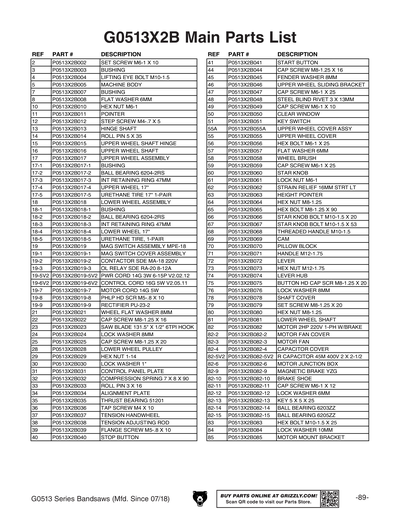

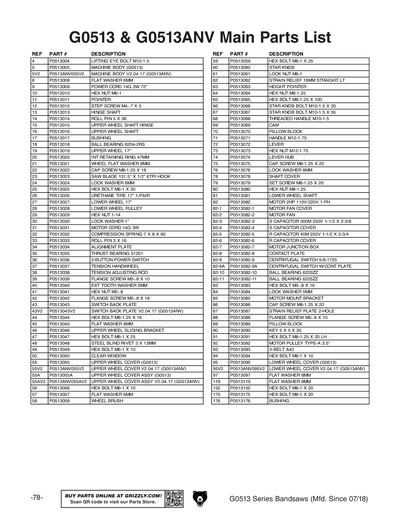

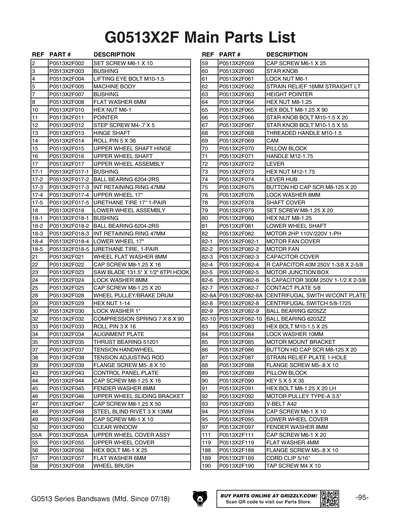

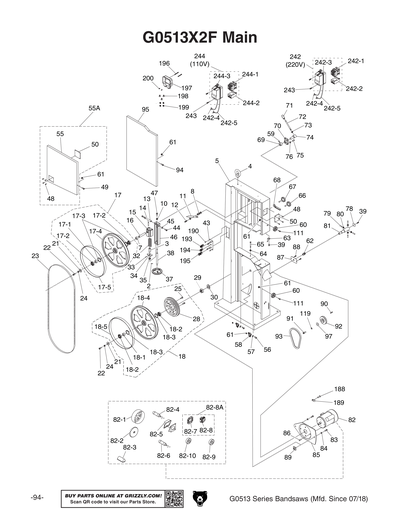

Ref #
Part #
Description

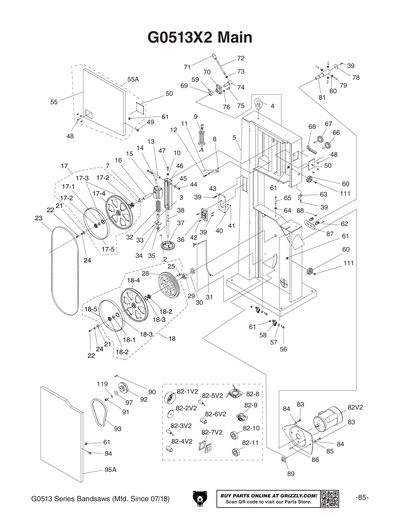

2
SET SCREW M6-1 X 10
Price
N/A
3
BUSHING
Price
N/A
4
LIFTING EYE BOLT M10-1.5
Price
N/A
5
*DISCD*MACHINE BODY
Item is no longer available
Price
N/A
7
BUSHING
Price
N/A
8
FLAT WASHER 6MM
Price
N/A
10
HEX NUT M6-1
Price
N/A
11
POINTER
Price
N/A
12
STEP SCREW M4-.7 X 5
Price
N/A
13
HINGE SHAFT
Price
N/A
14
ROLL PIN 5 X 36
Price
N/A
15
UPPER WHEEL SHAFT HINGE
Price
N/A
16
UPPER WHEEL SHAFT
Price
N/A
17
UPPER WHEEL ASSEMBLY
Price
N/A
17-1
BUSHING
Price
N/A
17-2
BALL BEARING 6204-2RS
Price
N/A
17-3
INT RETAINING RING 47MM
Price
N/A
17-4
***USE P0513X2B017***
Price
N/A
17-5
Urethane Tire for 17" Bandsaws (Pair)
Price
N/A
18
LOWER WHEEL ASSEMBLY
Price
N/A
18-1
BUSHING
Price
N/A
18-2
BALL BEARING 6204-2RS
Price
N/A
18-3
INT RETAINING RING 47MM
Price
N/A
18-4
***USE P0513X2B018***
Price
N/A
18-5
Urethane Tire for 17" Bandsaws (Pair)
Price
N/A
19
***USE P0513X2B017***
Price
N/A
20
INT RETAINING RING 47MM
Price
N/A
21
WHEEL FLAT WASHER 8MM
Price
N/A
22
CAP SCREW M8-1.25 X 16
Price
N/A
23
SAW BLADE 131.5" X 1/2" 6TPI HOOK
Price
N/A
24
LOCK WASHER 8MM
Price
N/A
25
CAP SCREW M8-1.25 X 20
Price
N/A
26
Urethane Tire for 17" Bandsaws (Pair)
Price
N/A
27
***USE P0513X2B018***
Price
N/A
28
WHEEL PULLEY/BRAKE DRUM
Price
$93.05
29
HEX NUT 1-14
Price
N/A
30
LOCK WASHER 1"
Price
N/A
32
COMPRESSION SPRING 7 X 8 X 90
Price
N/A
33
ROLL PIN 3 X 16
Price
N/A
34
ALIGNMENT PLATE
Price
N/A
35
THRUST BEARING 51201
Price
N/A
37
HANDWHEEL TYPE-17 137D X 10B-S
Price
N/A
38
***USE P0640X038***
Price
N/A
39
FLANGE SCREW M5-.8 X 10
Price
N/A
43
CONTROL PANEL PLATE
Price
N/A
44
CAP SCREW M8-1.25 X 16
Price
N/A
45
FENDER WASHER 8MM
Price
N/A
46
UPPER WHEEL SLIDING BRACKET
Price
N/A
47
CAP SCREW M8-1.25 X 50
Price
N/A
48
RIVET 3 X 13MM BLIND, STEEL
Price
N/A
49
CAP SCREW M6-1 X 10
Price
N/A
50
CLEAR WINDOW
Price
N/A
55
UPPER WHEEL COVER W/ LABELS & WINDOW
Price
N/A
55A
UPPER WHEEL COVER W/ LABELS & WINDOW
Price
$95.85
56
HEX BOLT M6-1 X 25
Price
N/A
57
FLAT WASHER 6MM
Price
N/A
58
***USE P0566B032***
Price
N/A
59
CAP SCREW M6-1 X 25
Price
N/A
60
STAR KNOB
Price
N/A
61
LOCK NUT M6-1
Price
N/A
62
STRAIN RELIEF TYPE-1 5/8
Price
N/A
63
HEIGHT POINTER
Price
N/A
64
HEX NUT M8-1.25
Price
N/A
65
HEX BOLT M8-1.25 X 90
Price
N/A
66
STAR KNOB BOLT M10-1.5 X 20
Price
N/A
67
STAR KNOB BOLT M10-1.5 X 55
Price
N/A
68
THREADED HANDLE M10-1.5
Price
N/A
69
CAM
Price
N/A
70
PILLOW BLOCK
Price
N/A
71
HANDLE M12-1.75
Price
N/A
72
LEVER
Price
N/A
73
HEX NUT M12-1.75
Price
N/A
74
LEVER HUB
Price
N/A
75
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
76
LOCK WASHER 8MM
Price
N/A
78
SHAFT COVER
Price
N/A
79
SET SCREW M8-1.25 X 20
Price
N/A
80
HEX NUT M8-1.25
Price
N/A
81
LOWER WHEEL SHAFT
Price
$24.50
82
*DISCD*MOTOR 2HP 110V/220V 1-PH V2.01.10
Price
N/A
82-1
MOTOR FAN COVER V1
Price
N/A
82-10
BALL BEARING 6203ZZ
Price
N/A
82-2
MOTOR FAN V1
Price
N/A
82-3
*DISCD*S CAPACITOR COVER V2.01.10
Price
N/A
82-4
R CAPACITOR 40M 250V 1-3/8 X 2-5/8
Price
N/A
82-5
*DISCD*MOTOR JUNCTION BOX V2.01.10
Price
N/A
82-6
S CAPACITOR 300M 250V 1-1/2 X 2-3/8
Price
N/A
82-7
CONTACT PLT-TUNGSTEN 5HP OR LESS
Price
N/A
82-8
CENT SWITCH 5/8-1725
Price
N/A
82-8A
CENTRIFUGAL SWITCH W/CONT PLATE
Price
N/A
82-9
BALL BEARING 6205ZZ
Price
N/A
83
HEX BOLT M10-1.5 X 25
Price
N/A
84
LOCK WASHER 10MM
Price
N/A
85
MOTOR MOUNT BRACKET
Price
N/A

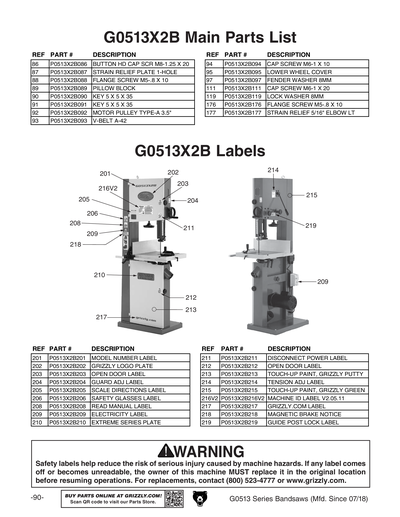

86
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
87
STRAIN RELIEF PLATE 1-HOLE
Price
N/A
88
FLANGE SCREW M5-.8 X 10
Price
N/A
89
PILLOW BLOCK
Price
N/A
90
KEY 5 X 5 X 35
Price
N/A
91
HEX BOLT M8-1.25 X 20 LH
Price
N/A
92
MOTOR PULLEY TYPE-A 3.5"
Price
N/A
93
V-BELT A42
Price
N/A
94
CAP SCREW M6-1 X 10
Price
N/A
95
LOWER WHEEL COVER W/NAME PLATE
Price
N/A
97
FENDER WASHER 8MM
Price
N/A
98
CAP SCREW M10-1.5 X 35
Price
N/A
103
LOCK WASHER 10MM
Price
N/A
104
FLAT WASHER 10MM
Price
N/A
111
CAP SCREW M6-1 X 20
Price
N/A
119
FLAT WASHER 4MM
Price
N/A

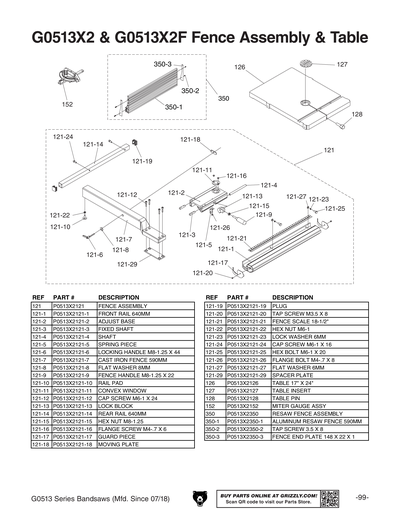

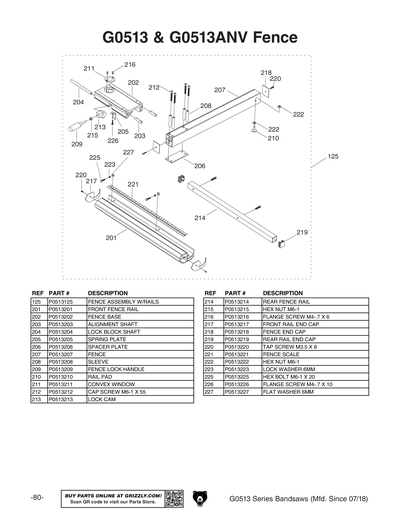

121
Resaw Fence Complete For G0513
Price
N/A
121-1
FRONT RAIL 640MM
Price
N/A
121-10
RAIL PAD ADJUSTMENT SCREW
Price
N/A
121-11
CONVEX WINDOW
Price
N/A
121-12
CAP SCREW M6-1 X 24
Price
N/A
121-13
LOCK BLOCK
Price
N/A
121-14
REAR RAIL 640MM
Price
N/A
121-15
HEX NUT M8-1.25
Price
N/A
121-16
FLANGE SCREW M4-.7 X 6
Price
N/A
121-17
GUARD PIECE
Price
N/A
121-18
MOVING PLATE
Price
N/A
121-19
***USE P0555319***
Price
N/A
121-2
ADJUST BASE
Price
N/A
121-20
TAP SCREW M3.5 X 8
Price
N/A
121-21
FENCE SCALE 18-1/2"
Price
N/A
121-22
HEX NUT M6-1
Price
N/A
121-23
LOCK WASHER 6MM
Price
N/A
121-24
CAP SCREW M6-1 X 16
Price
N/A
121-25
HEX BOLT M6-1 X 20
Price
N/A
121-26
FLANGE BOLT M4-.7 X 8
Price
N/A
121-27
FLAT WASHER 6MM
Price
N/A
121-29
SPACER PLATE
Price
N/A
121-3
ALIGNMENT SHAFT
Price
N/A
121-4
SHAFT
Price
N/A
121-5
***USE P0555305***
Price
N/A
121-6
***USE P0636X129***
Price
N/A
121-7
CAST IRON FENCE 590MM
Price
N/A
121-8
FLAT WASHER 8MM
Price
N/A
121-9
FENCE LOCK HANDLE M8-1.25 X 22, 30 X 77
Price
N/A

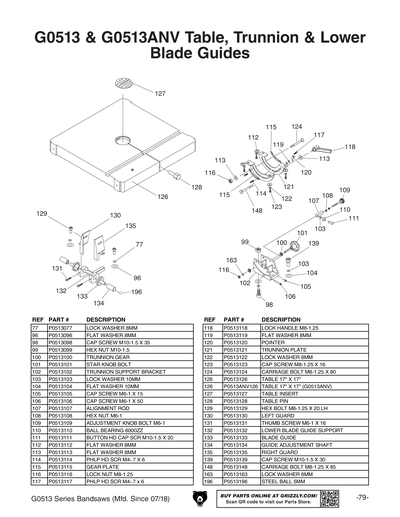

126
TABLE 17" X 24"
Price
N/A
127
Table Insert for G0555X, G0457, G0513 Series, G0514 Series and G0640X
Price
N/A
128
TABLE PIN
Price
N/A
131
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
132
LOCK WASHER 8MM
Price
N/A

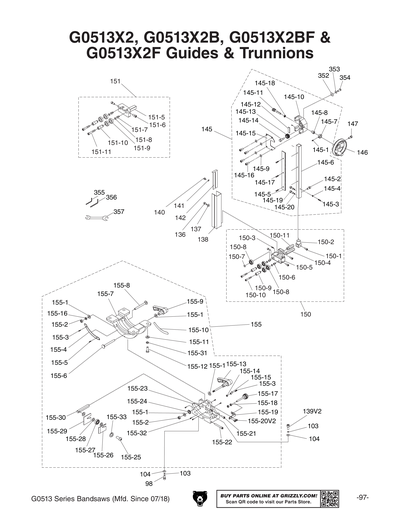

136
CAP SCREW M5-.8 X 10
Price
N/A
137
FLAT WASHER 5MM
Price
N/A
138
UPPER BLADE GUARD
Price
N/A
139V2
CAP SCREW M10-1.5 X 35
Price
N/A
140
STEP SCREW M4-.7 X 5
Price
N/A
141
FIBER WASHER 5MM
Price
N/A
142
SLIDING PLATE
Price
N/A

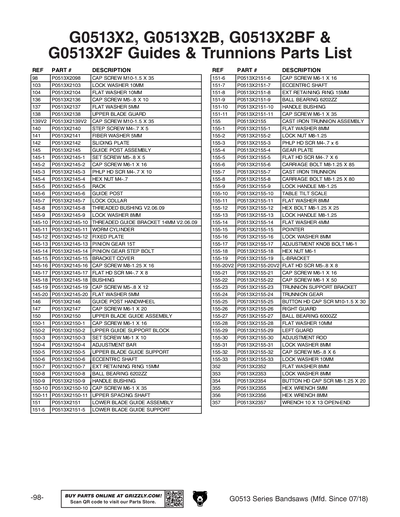

145
GUIDE POST ASSEMBLY
Price
N/A
145-1
SET SCREW M5-.8 X 5
Price
N/A
145-10
GUIDE BRACKET 16MM V2.06.09
Price
N/A
145-11
WORM CYLINDER
Price
N/A
145-12
FIXED PLATE
Price
N/A
145-13
PINION GEAR 15T
Price
N/A
145-14
***USE P0568239***
Price
N/A
145-15
BRACKET COVER
Price
N/A
145-16
CAP SCREW M8-1.25 X 16
Price
N/A
145-17
FLAT HD SCR M4-.7 X 8
Price
N/A
145-18
BUSHING W/ HEX NUT V2.04.19
Price
N/A
145-18V
BUSHING W/ HEX NUT V2.04.19
Price
N/A
145-19
CAP SCREW M5-.8 X 12
Price
N/A
145-2
CAP SCREW M6-1 X 16
Price
N/A
145-20
FLAT WASHER 5MM
Price
N/A
145-3
PHLP HD SCR M4-.7 X 10
Price
N/A
145-32
PHLP HD SCR M4-.7 X 10
Price
N/A
145-4
HEX NUT M4-.7
Price
N/A
145-5
RACK
Price
N/A
145-6
GUIDE POST
Price
N/A
145-7
***USE P0640X129***
Price
N/A
145-8
THREADED BUSHING V2.06.09
Price
N/A
145-9
LOCK WASHER 8MM
Price
N/A
146
HANDWHEEL TYPE-17 137D X 10B-S X M10-1.5
Price
N/A
147
CAP SCREW M6-1 X 20
Price
N/A

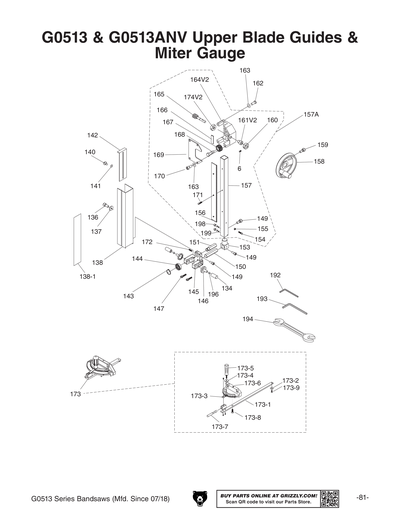

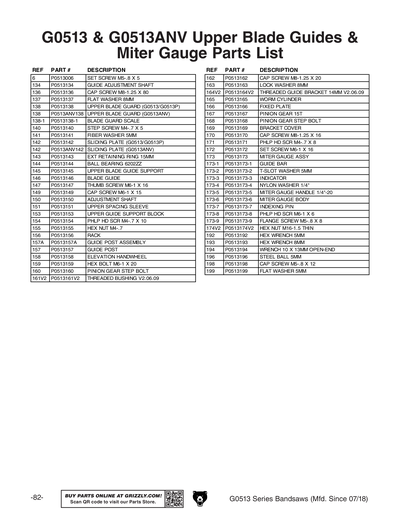

150
UPPER BLADE GUIDE ASSY
Price
N/A
151
LOWER BLADE GUIDE ASSY
Price
N/A
151-10
HANDLE BUSHING
Price
N/A
151-11
CAP SCREW M6-1 X 35
Price
N/A
151-5
LOWER BLADE GUIDE SUPPORT
Price
N/A
151-6
CAP SCREW M6-1 X 16
Price
N/A
151-7
ECCENTRIC SHAFT
Price
N/A
151-8
EXT RETAINING RING 15MM
Price
N/A
151-9
BALL BEARING 6202ZZ
Price
N/A
152
***USE P0513X152***
Price
N/A
155
Optional Heavy-Duty Cast-Iron Trunnion for G0513, G0513X & G0514X
Price
N/A
155-1
FLAT WASHER 8MM
Price
N/A
155-10
ANGLE LABEL
Price
N/A
155-11
FLAT WASHER 8MM
Price
N/A
155-12
HEX BOLT M8-1.25 X 25
Price
N/A
155-13
LOCK HANDLE M8-1.25
Price
N/A
155-14
FLAT WASHER 4MM
Price
N/A
155-15
POINTER
Price
N/A
155-16
LOCK WASHER 8MM
Price
N/A
155-17
ADJUSTMENT KNOB BOLT M6-1
Price
N/A
155-18
HEX NUT M6-1
Price
N/A
155-19
ADJUSTMENT PLATE
Price
N/A
155-2
LOCK NUT M8-1.25
Price
N/A
155-20V
FLAT HD SCR M5-.8 X 8
Price
N/A
155-21
CAP SCREW M6-1 X 16
Price
N/A
155-22
CAP SCREW M6-1 X 50
Price
N/A
155-23
TRUNNION SUPPORT BRACKET
Price
N/A
155-24
TRUNNION GEAR
Price
N/A
155-25
BUTTON HD CAP SCR M10-1.5 X 30
Price
N/A
155-26
RIGHT GUARD
Price
N/A
155-27
BALL BEARING 6000ZZ
Price
N/A
155-28
FLAT WASHER 10MM
Price
N/A
155-29
LEFT GUARD
Price
N/A
155-3
PHLP HD SCR M4-.7 X 6
Price
N/A
155-30
ALIGNMENT ROD
Price
N/A
155-31
LOCK WASHER 8MM
Price
N/A
155-32
CAP SCREW M5-.8 X 6
Price
N/A
155-33
LOCK WASHER 10MM
Price
N/A
155-4
GEAR PLATE
Price
N/A
155-5
FLAT HD SCR M4-.7 X 6
Price
N/A
155-6
CARRIAGE BOLT M8-1.25 X 85
Price
N/A
155-7
***USE P0640X173-4***
Price
N/A
155-8
CARRIAGE BOLT M8-1.25 X 80
Price
N/A
155-9
LOCK HANDLE M8-1.25
Price
N/A
188
FLANGE SCREW M5-.8 X 10
Price
N/A
189
CORD CLIP 5/16"
Price
$1.60
190
TAP SCREW M4 X 10
Price
N/A
191
SWITCH CORD
Price
$3.05
192
CONNECTING CORD
Price
$3.65

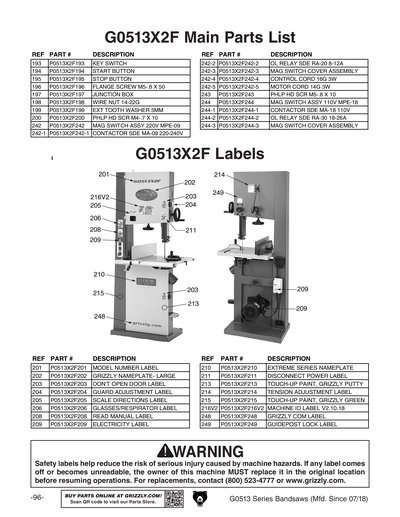

193
KEY SWITCH
Price
$33.85
194
START BUTTON
Price
N/A
195
***USE P0566074***
Price
N/A
196
FLANGE SCREW M5-.8 X 50
Price
N/A
197
JUNCTION BOX
Price
$13.30
198
WIRE NUT 14-22 AWG
Price
N/A
199
EXT TOOTH WASHER 5MM
Price
N/A
200
PHLP HD SCR M4-.7 X 10
Price
N/A

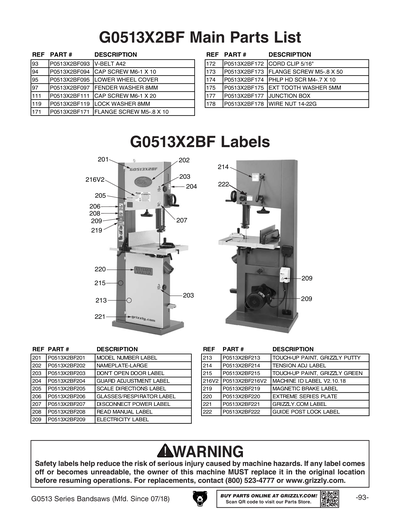

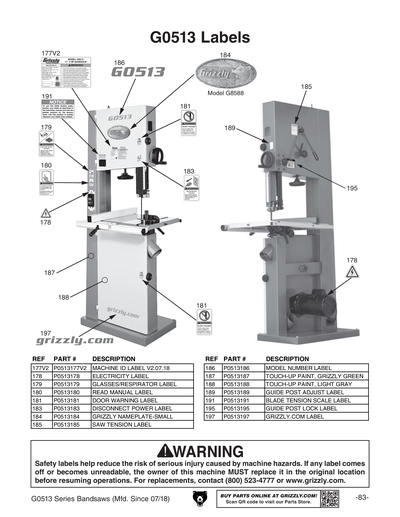

201
MODEL NUMBER LABEL
Price
$5.25
202
Nameplate - Large
Price
N/A
203
DONT OPEN 2W X 3.3H
Price
N/A
204
GUARD ADJ LABEL
Price
N/A
205
SCALE DIRECTIONS LABEL
Price
N/A
206
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
207
BANDSAW BLADE 2W X 3.3H V1.07.02
Price
N/A
208
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
209
ELECTRICITY 1.4W X 1.2H
Price
N/A
210
Extreme Series Nameplate
Price
N/A
211
UNPLUG BANDSAW 2W X 3.3H
Price
N/A
213
GREY PUTTY REF G0504
Price
N/A
214
TENSION ADJ LABEL
Price
N/A
215
N/S GRIZZLY GREEN G1023S
Price
N/A
216
MACHINE ID LABEL V1
Price
$16.40
216V2
MACHINE ID LABEL V2.10.18
Price
$16.40
217
FLAT WASHER 8MM
Price
N/A
218
LIMIT SWITCH CANLIE KL7141
Price
N/A
219
HEX NUT 5-40
Price
N/A
220
SWITCH CORD
Price
$8.50
221
FLEXIBLE CORD CONDUIT 1/2" X 42"
Price
$11.80
222
GROMMET 11 X 10MM PLASTIC
Price
$1.49
223
TAP SCREW M4 X 8
Price
N/A
224
CORD CLIP 5/8"
Price
$1.60
225
PHLP HD SCR M4-.7 X 30
Price
N/A
226
RUBBER CLIP
Price
$1.60
227
FOOT BRAKE LEVER
Price
$101.20
228
STEP BOLT M7-1 X 10 W/BUSHING
Price
$1.60
229
CAP SCREW M6-1 X 16
Price
N/A
230
BRAKE EXTENSION SPRING
Price
$3.20
231
HEX NUT M6-1
Price
N/A
232
NYLON PAD
Price
$1.49
233
FOOT PAD
Price
$26.90
234
LOCK WASHER 6MM
Price
N/A
235
BUSHING
Price
$3.95
236
BRAKE SHOE
Price
$65.55
237
CAP SCREW M6-1 X 25
Price
N/A
238
CAP SCREW M8-1.25 X 25
Price
N/A
239
LOCK WASHER 8MM
Price
N/A
240
FLAT WASHER 8MM
Price
N/A
241
BUSHING
Price
$3.40
242
MAG SWITCH ASSY 220V MPE-09
Price
$255.10
242-1
CONTACTOR SDE MA-09 220-240V
Price
$83.10
242-2
OL RELAY SDE RA-20 8-12A
Price
$79.45
242-3
MAG SWITCH COVER ASSEMBLY
Price
$44.10
242-4
CONTROL CORD 16G 3W
Price
$17.85
242-5
MOTOR CORD 14G 3W
Price
N/A
243
PHLP HD SCR M5-.8 X 10
Price
N/A
244
MAG SWITCH ASSY 110V MPE-18
Price
$161.55
244-1
CONTACTOR SDE MA-18 110V
Price
$79.45
244-2
OL RELAY SDE RA-30 18-26A
Price
$43.95
244-3
MAG SWITCH COVER ASSEMBLY
Price
$31.75
245
GUIDE POST ASSEMBLY
Price
N/A
246
HEX BOLT M6-1 X 20
Price
N/A
247
HEX BOLT M10-1.5 X 35
Price
N/A
248
GRIZZLY.COM LABEL
Price
N/A
249
GUIDE POST LOCK LABEL
Price
N/A
301
GROMMET 11 X 10MM PLASTIC
Price
N/A
302
FLEXIBLE CORD CONDUIT 1/2" X 42"
Price
N/A
303
SWITCH CORD
Price
N/A
304
HEX NUT 5-40
Price
N/A
305

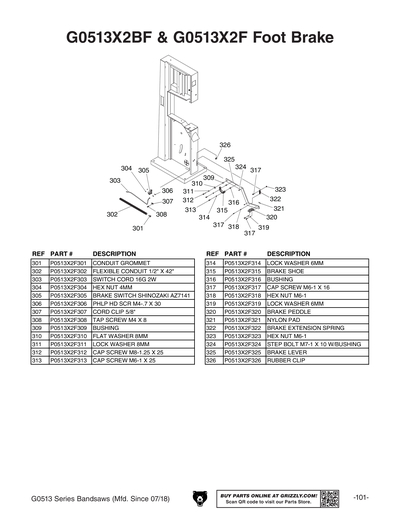

FOOT BRAKE SWITCH
Price
N/A
306
PHLP HD SCR M4-.7 X 30
Price
N/A
307
CORD CLIP 5/8"
Price
N/A
308
TAP SCREW M4 X 8
Price
N/A
309
BUSHING
Price
N/A
310
FLAT WASHER 8MM
Price
N/A
311
LOCK WASHER 8MM
Price
N/A
312
CAP SCREW M8-1.25 X 25
Price
N/A
313
CAP SCREW M6-1 X 25
Price
N/A
314
LOCK WASHER 6MM
Price
N/A
315
BRAKE SHOE
Price
N/A
316
BUSHING
Price
N/A
317
CAP SCREW M6-1 X 16
Price
N/A
318
HEX NUT M6-1
Price
N/A
319
LOCK WASHER 6MM
Price
N/A
320
FOOT PAD
Price
N/A
321
NYLON PAD
Price
N/A
322
BRAKE EXTENSION SPRING
Price
N/A
323
HEX NUT M6-1
Price
N/A
324
STEP BOLT M7-1 X 10 W/BUSHING
Price
N/A
325
FOOT BRAKE LEVER
Price
N/A
326
RUBBER CLIP
Price
N/A

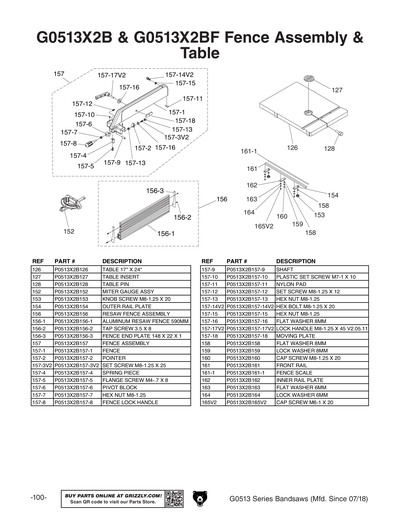

350
RESAW FENCE ASSEMBLY
Price
$118.45
350-1
ALUMINUM RESAW FENCE 590MM
Price
$79.95
350-2
TAP SCREW 3.5 X 8
Price
N/A
350-3
FENCE END PLATE 148 X 22 X 1
Price
N/A
351
FLAT WASHER 8MM
Price
N/A
352
FLAT WASHER 8MM
Price
N/A
353
LOCK WASHER 8MM
Price
N/A
354
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
355
HEX WRENCH 5MM
Price
N/A
356
HEX WRENCH 8MM
Price
N/A
357
WRENCH 10 X 13MM OPEN-ENDS
Price
N/A
MAN
MANUAL G0513X2F MFD-05.11-10.12 V1.05.11
Price
$21.95
MANV2
MANUAL G0513 SERIES MFD-11.12-06.18 V2.1
Price
N/A
MANV3
MANUAL G0513 SERIES MFD-07.18-07.22 V3.1
Price
N/A
