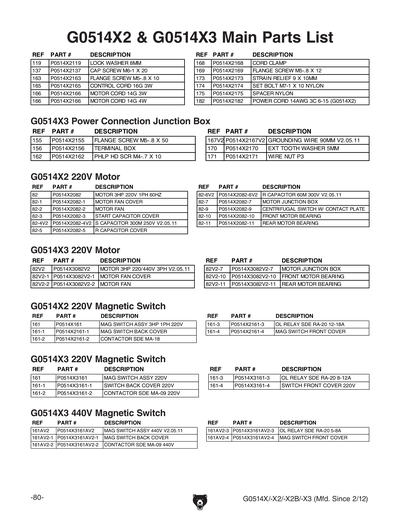

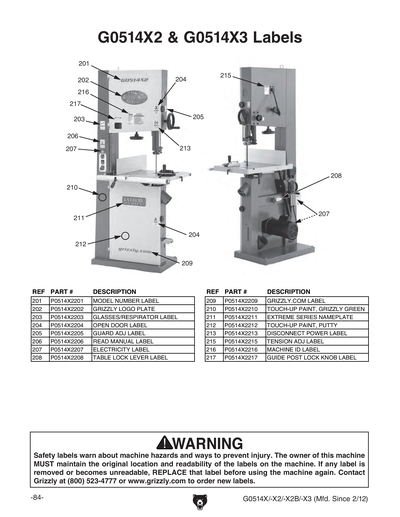

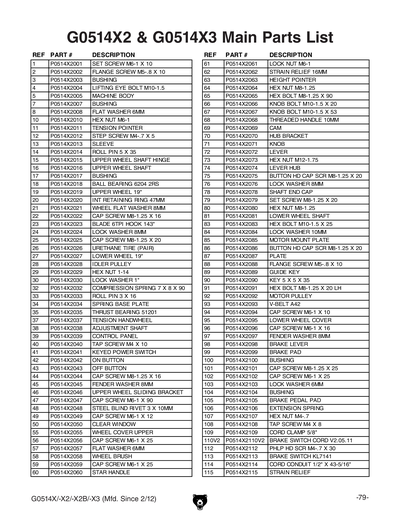

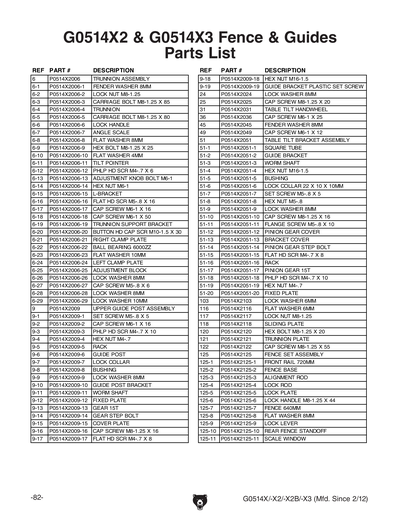

Parts for G0514X2 - 19" 3 HP Extreme Bandsaw

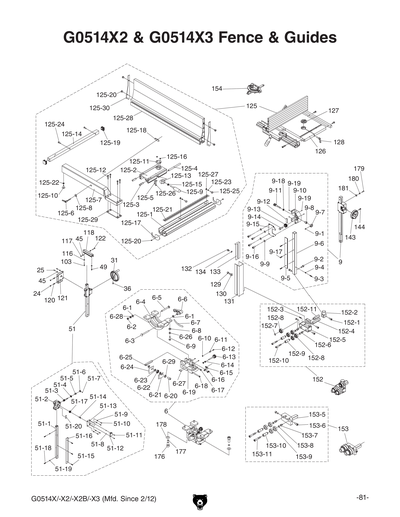

Part Diagram for G0514X2
Part Diagram for G0514X2
Part Diagram for G0514X2
Part Diagram for G0514X2
Part Diagram for G0514X2
Part Diagram for G0514X2
Part Diagram for G0514X2
Part Diagram for G0514X2
Part Diagram for G0514X2
Part Diagram for G0514X2
Part Diagram for G0514X2
Part Diagram for G0514X2
Part Diagram for G0514X2
Part Diagram for G0514X2

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
SET SCREW M6-1 X 10
Price
N/A
2
FLANGE SCREW M5-.8 X 10
Price
N/A
3
BUSHING
Price
N/A
4
LIFTING EYE BOLT M10-1.5
Price
N/A
5
*DISCD*MACHINE BODY
Item is no longer available
Price
N/A
6
TRUNNION ASSEMBLY
Item is no longer available
Price
N/A
6-1
FLAT WASHER 8MM
Price
N/A
6-10
FLAT WASHER 4MM
Price
N/A
6-11
POINTER
Price
N/A
6-12
PHLP HD SCR M4-.7 X 6
Price
N/A
6-13
ADJUSTMENT KNOB BOLT M6-1
Price
N/A
6-14
HEX NUT M6-1
Price
N/A
6-15
ADJUSTMENT PLATE
Price
N/A
6-16
FLAT HD SCR M5-.8 X 8
Price
N/A
6-17
CAP SCREW M6-1 X 16
Price
N/A
6-18
CAP SCREW M6-1 X 50
Price
N/A
6-19
TRUNNION SUPPORT BRACKET
Price
N/A
6-2
LOCK NUT M8-1.25
Price
N/A
6-20
BUTTON HD CAP SCR M10-1.5 X 30
Price
N/A
6-21
RIGHT GUARD
Price
N/A
6-22
BALL BEARING 6000ZZ
Price
N/A
6-23
FLAT WASHER 10MM
Price
N/A
6-24
LEFT GUARD
Price
N/A
6-25
THRUST BEARING ADJ. SHAFT - ROUND
Price
$16.40
6-26
LOCK WASHER 8MM
Price
N/A
6-27
CAP SCREW M5-.8 X 6
Price
N/A
6-28
LOCK WASHER 8MM
Price
N/A
6-29
PHLP HD SCR M4-.7 X 6
Price
N/A
6-3
CARRIAGE BOLT M8-1.25 X 85
Price
N/A
6-30
LOCK HANDLE ASSEMBLY
Item is no longer available
Price
N/A
6-31
TRUNNION GEAR
Item is no longer available
Price
N/A
6-32
LOCK WASHER 8MM
Price
N/A
6-33
LOCK WASHER 10MM
Price
N/A
6-4
***USE P0640X173-4***
Price
N/A
6-5
CARRIAGE BOLT M8-1.25 X 80
Price
N/A
6-6
LOCK HANDLE M8-1.25
Price
N/A
6-7
ANGLE LABEL
Price
N/A
6-8
FLAT WASHER 8MM
Price
N/A
6-9
HEX BOLT M8-1.25 X 25
Price
N/A
7
BUSHING
Price
N/A
8
FLAT WASHER 6MM
Price
N/A
9
GUIDE POST ASSEMBLY
Price
N/A
9-1
SET SCREW M5-.8 X 5
Price
N/A
9-10
GUIDE BRACKET 16MM V2.06.09
Price
N/A
9-11
WORM SHAFT
Price
N/A
9-12
FIXED PLATE
Price
N/A
9-13
***USE P0513167***
Price
N/A
9-14
PINION GEAR BOLT
Price
N/A
9-15
COVER
Price
N/A
9-16
CAP SCREW M8-1.25 X 16
Price
N/A
9-17
FLAT HD SCR M4-.7 X 8
Price
N/A
9-18
HEX NUT M16-1.5
Price
N/A
9-19
GUIDE BRACKET PLASTIC SET SCREW
Price
$1.49
9-2
CAP SCREW M6-1 X 16
Price
N/A
9-3
PHLP HD SCR M4-.7 X 10
Price
N/A
9-4
HEX NUT M4-.7
Price
N/A
9-5
RACK
Price
$14.10
9-6
HANDWHEEL
Price
N/A
9-7
LOCK COLLAR
Price
N/A
9-8
THREADED BUSHING V2.06.09
Price
N/A
9-9
LOCK WASHER 8MM
Price
N/A
10
HEX NUT M6-1
Price
N/A
11
POINTER
Price
N/A
12
STEP SCREW M4-.7 X 5
Price
N/A
13
HINGE SHAFT
Price
N/A
14
ROLL PIN 5 X 35
Price
N/A
15
UPPER WHEEL SHAFT HINGE
Price
N/A
16
UPPER WHEEL SHAFT
Price
N/A
17
BUSHING
Price
N/A
18
BALL BEARING 6204-2RS
Price
N/A
19
UPPER WHEEL 19"
Price
N/A
20
INT RETAINING RING 47MM
Price
N/A
21
WHEEL FLAT WASHER 8MM
Price
N/A
22
CAP SCREW M8-1.25 X 16
Price
N/A
23
SAW BLADE 143" X 3/4" X 5MM
Price
N/A
24
LOCK WASHER 8MM
Price
N/A
25
CAP SCREW M8-1.25 X 20
Price
N/A
26
Bandsaw Tire for 19" Bandsaws (Pair)
Price
N/A
27
LOWER WHEEL 19"
Price
N/A
28
WHEEL PULLEY/BRAKE DRUM
Price
N/A
29
HEX NUT 1-14
Price
N/A
30
LOCK WASHER 1"
Price
N/A
31
TABLE TILT HANDWHEEL
Price
$22.45
32
COMPRESSION SPRING 7 X 8 X 90
Price
N/A
33
ROLL PIN 3 X 16
Price
N/A
34
ALIGNMENT PLATE
Price
N/A
35
THRUST BEARING 51201
Price
N/A
36
CAP SCREW M6-1 X 25
Price
N/A
37
HANDWHEEL TYPE-17 137D X 10B-S
Price
N/A
38
***USE P0640X038***
Price
N/A
39
CONTROL PANEL PLATE
Price
N/A
40
TAP SCREW M4 X 10
Price
N/A
41
KEYED POWER SWITCH
Price
N/A
42
ON BUTTON
Price
N/A
43
E-STOP BUTTON 250V 10A
Price
N/A
44
CAP SCREW M8-1.25 X 16
Price
N/A
45
FENDER WASHER 8MM
Price
N/A
46
UPPER WHEEL SLIDING BRACKET
Price
N/A
47
CAP SCREW M6-1 X 90
Price
N/A
48
RIVET 3 X 10MM BLIND, STEEL
Price
N/A
49
CAP SCREW M6-1 X 12
Price
N/A
50
CLEAR WINDOW
Price
N/A
51
TABLE TILT ASSEMBLY
Price
N/A
51-1
SQUARE TUBE
Price
N/A
51-10
CAP SCREW M8-1.25 X 16
Price
N/A
51-11
FLANGE SCREW M5-.8 X 10
Price
N/A
51-12
COVER
Price
N/A
51-13
COVER
Price
N/A
51-14
PINION GEAR BOLT
Price
N/A
51-15
FLAT HD SCR M4-.7 X 8
Price
N/A
51-16
***USE P0566207***
Price
N/A
51-17
PINION GEAR 15T
Price
N/A
51-18
PHLP HD SCR M4-.7 X 10
Price
N/A
51-19
HEX NUT M4-.7
Price
N/A
51-2
***USE P0513164V2***
Price
N/A
51-20
FIXED PLATE
Price
$1.49
51-3
WORM SHAFT
Price
N/A
51-4
HEX NUT M16-1.5
Price
N/A
51-5
BUSHING
Price
N/A
51-6
***USE P0640X129***
Price
N/A
51-7
SET SCREW M5-.8 X 5
Price
N/A
51-8
HEX NUT M5-.8
Price
N/A
51-9
LOCK WASHER 8MM
Price
N/A
55
UPPER WHEEL COVER W/LABELS & WINDOW
Price
N/A
55A
UPPER WHEEL COVER W/LABELS & WINDOW
Price
$99.75
56
CAP SCREW M6-1 X 25
Price
N/A
57
FLAT WASHER 6MM
Price
N/A
58
***USE P0566B032***
Price
N/A
59
CAP SCREW M6-1 X 25
Price
N/A
60
STAR KNOB
Price
N/A
61
LOCK NUT M6-1
Price
N/A
62
STRAIN RELIEF TYPE-1 5/8
Price
N/A
63
HEIGHT POINTER
Price
N/A
64
HEX NUT M8-1.25
Price
N/A
65
HEX BOLT M8-1.25 X 90
Price
N/A
66
STAR KNOB BOLT M10-1.5 X 20
Price
N/A
67
STAR KNOB BOLT M10-1.5 X 55
Price
N/A
68
THREADED HANDLE M10-1.5
Price
N/A
69
CAM
Price
N/A
70
PILLOW BLOCK
Price
N/A
71
HANDLE M12-1.75
Price
N/A
72
LEVER
Price
N/A
73
HEX NUT M12-1.75
Price
N/A
74
LEVER HUB
Price
N/A
75
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
76
LOCK WASHER 8MM
Price
N/A
78
SHAFT COVER
Price
N/A
79
SET SCREW M8-1.25 X 20
Price
N/A
80
HEX NUT M8-1.25
Price
N/A
81
LOWER WHEEL SHAFT
Price
$24.50
82
MOTOR 3HP 220V 1PH 60HZ
Price
$757.80
82-1
MOTOR FAN COVER
Price
$50.30
82-10
FRONT MOTOR BEARING
Item is no longer available
Price
N/A
82-11
REAR MOTOR BEARING
Item is no longer available
Price
N/A
82-2
MOTOR FAN
Price
N/A
82-3
START CAPACITOR COVER
Item is no longer available
Price
N/A
82-4
S CAPACITOR 300M 250V 1-3/4 X 3-3/4 SECC
Price
N/A
82-4V2
S CAPACITOR 300M 250V 2 X 3-1/2 V2.05.11
Price
N/A
82-5
R CAPACITOR COVER
Price
$17.55
82-6
R CAPACITOR 60M 250V 1-1/2 X 2-1/2
Price
N/A
82-6V2
R CAPACITOR 60M 300V 2 X 3-1/2
Price
N/A
82-7
MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
82-8
CENTRIFUGAL SWITCH W/CONTACT PLATE
Price
N/A
82-9
CENTRIFUGAL SWITCH W/CONTACT PLATE
Price
$22.25
83
HEX BOLT M10-1.5 X 25
Price
N/A
84
LOCK WASHER 10MM
Price
N/A
85
MOTOR MOUNT BRACKET
Price
N/A
86
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
87
STRAIN RELIEF PLATE 2-HOLE
Price
N/A
88
FLANGE SCREW M5-.8 X 10
Price
N/A
89
PILLOW BLOCK
Price
N/A
90
KEY 5 X 5 X 35
Price
N/A
91
HEX BOLT M8-1.25 X 20 LH
Price
N/A
92
MOTOR PULLEY
Price
N/A
93
V-BELT A42
Price
N/A
94
CAP SCREW M6-1 X 10
Price
N/A
95
LOWER WHEEL COVER W/LABELS
Price
N/A
96
CAP SCREW M6-1 X 16
Price
N/A
97
FENDER WASHER 8MM
Price
N/A
98
BRAKE LEVER
Item is no longer available
Price
N/A
99
BRAKE SHOE
Price
N/A
100
BUSHING
Item is no longer available
Price
N/A
101
CAP SCREW M8-1.25 X 25
Price
N/A
102
CAP SCREW M6-1 X 25
Price
N/A
103
LOCK WASHER 6MM
Price
N/A
104
BUSHING
Item is no longer available
Price
N/A
105
BRAKE PEDAL
Price
N/A
106
EXTENSION SPRING
Item is no longer available
Price
N/A
107
HEX NUT M4-.7
Price
N/A
108
TAP SCREW M4 X 8
Price
N/A
109
CORD CLAMP 5/8"
Item is no longer available
Price
N/A
110
BRAKE SWITCH CORD V1
Item is no longer available
Price
N/A
110V2
BRAKE SWITCH CORD V2.05.11
Item is no longer available
Price
N/A
112
PHLP HD SCR M4-.7 X 30
Price
N/A
113
LIMIT SWITCH CANLIE KL7141
Price
N/A
114
CORD CONDUIT 1/2" X 43-5/16"
Item is no longer available
Price
N/A
115
GROMMET M13 TYPE-1 PUSH-IN
Item is no longer available
Price
N/A
116
FLAT WASHER 6MM
Price
N/A
117
LOCK NUT M8-1.25
Price
N/A
118
SLIDING PLATE
Price
$27.80
119
LOCK WASHER 8MM
Price
N/A
120
HEX BOLT M8-1.25 X 20
Price
N/A
121
TRUNNION PLATE
Price
$48.05
122
CAP SCREW M8-1.25 X 55
Price
N/A
125
FENCE ASSEMBLY
Price
N/A
125-1
FIXED BASE 710MM
Price
N/A
125-10
RAIL PAD ADJUSTMENT SCREW
Price
N/A
125-11
CONVEX WINDOW
Price
N/A
125-12
CAP SCREW M6-1 X 25
Price
N/A
125-13
LOCK BLOCK
Price
N/A
125-14
SQUARE TUBE 710MM
Price
N/A
125-15
HEX NUT M8-1.25
Price
N/A
125-16
FLANGE SCREW M4-.7 X 6
Price
N/A
125-17
GUARD PIECE
Price
N/A
125-18
MOVING PLATE
Price
N/A
125-19
***USE P0555319***
Price
N/A
125-2
ADJUST BASE
Price
N/A
125-20
TAP SCREW M3.5 X 8
Price
N/A
125-21
SCALE 21-1/2"
Price
N/A
125-22
HEX NUT M6-1
Price
N/A
125-23
LOCK WASHER 6MM
Price
N/A
125-24
CAP SCREW M6-1 X 16
Price
N/A
125-25
HEX BOLT M6-1 X 20
Price
N/A
125-26
FLANGE BOLT M4-.7 X 8
Price
N/A
125-27
FLAT WASHER 6MM
Price
N/A
125-28
RESAW FENCE AL 640MM
Price
N/A
125-29
SPACER PLATE
Price
N/A
125-3
ALIGNMENT SHAFT
Price
N/A
125-30
RESAW FENCE END PLATE
Price
N/A
125-4
SHAFT
Price
N/A
125-5
***USE P0555305***
Price
N/A
125-6
***USE P0636X129***
Price
N/A
125-7
SUPPORT TUBE 640MM
Price
N/A
125-8
FLAT WASHER 8MM
Price
N/A
125-9
FENCE LOCK HANDLE M8-1.25 X 22, 30 X 77
Price
N/A
126
TABLE 27 X 19"
Price
$480.35
127
Table Insert for G0555X, G0457, G0513 Series, G0514 Series and G0640X
Price
N/A
128
TABLE LOCK PIN
Price
N/A
129
CAP SCREW M5-.8 X 10
Price
N/A
130
FLAT WASHER 5MM
Price
N/A
131
GUIDE POST COVER
Price
N/A
132
STEP SCREW
Price
$1.49
133
SLIDING PLATE
Price
N/A
134
WASHER 5MM (PLASTIC)
Price
N/A
137
CAP SCREW M6-1 X 20
Price
N/A
143
HANDWHEEL
Price
N/A
144
CAP SCREW M6-1 X 20
Price
N/A
152
UPPER BLADE GUIDE ASSEMBLY
Price
N/A
152-1
CAP SCREW M6-1 X 16
Price
N/A
152-10
CAP SCREW M6-1 X 35
Price
N/A
152-11
UPPER SPACING SHAFT
Price
N/A
152-2
UPPER GUIDE SUPPORT BLOCK
Price
N/A
152-3
SET SCREW M6-1 X 10
Price
N/A
152-4
ADJUSTMENT BAR
Price
N/A
152-5
***USE P0817143-4***
Price
N/A
152-6
ECCENTRIC SHAFT
Price
N/A
152-7
EXT RETAINING RING 15MM
Price
N/A
152-8
BALL BEARING 6202ZZ
Price
N/A
152-9
HANDLE BUSHING
Price
N/A
153-10
HANDLE BUSHING
Price
N/A
153-11
CAP SCREW M6-1 X 35
Price
N/A
153-5
LOWER BLADE GUIDE SUPPORT
Price
N/A
153-6
CAP SCREW M6-1 X 16
Price
N/A
153-7
ECCENTRIC SHAFT
Price
N/A
153-8
EXT RETAINING RING 15MM
Price
N/A
153-9
BALL BEARING 6202ZZ
Price
N/A
154
MITER GAUGE ASSY
Price
N/A
155
FLANGE SCREW M5-.8 X 50
Price
N/A
156
TERMINAL BOX
Price
N/A
157
*DISCD*TERMINAL HOUSE
Price
N/A
159
PHLP HD SCR M5-.8 X 12
Price
N/A
160
*DISCD*STRAIN RELIEF M16 TYPE-6 ST
Price
N/A
161
MAG SWITCH ASSY 3HP 220V V2.05.11
Price
N/A
161-1
MAG SWITCH BACK COVER V1
Item is no longer available
Price
N/A
161-2
CONTACTOR SDE MA-18 V1
Price
$104.95
161-3
OL RELAY SDE RA-20 12-18A V1
Price
$83.55
161-4
MAG SWITCH FRONT COVER V1
Item is no longer available
Price
N/A
161V2
MAG SWITCH ASSY 3HP 220V V2.05.11
Price
N/A
161V2-1
MAG SWITCH BACK COVER V1
Price
N/A
161V2-2
CONTACTOR SDE MA-18 V1
Price
N/A
161V2-3
OL RELAY SDE RA-20 12-18A V1
Price
N/A
161V2-4
MAG SWITCH FRONT COVER V1
Price
N/A
162
PHLP HD SCR M4-.7 X 10
Price
N/A
163
FLANGE SCREW M5-.8 X 10
Price
N/A
165
CONTROL CORD 16G 3W
Price
N/A
166
MOTOR CORD 14G 3W
Price
N/A
167
CORD V1
Price
N/A
167V2
GROUND WIRE 90MM V2.05.11
Price
N/A
168
CORD CLAMP
Price
N/A
169
FLANGE SCREW M5-.8 X 12
Price
N/A
170
EXT TOOTH WASHER 5MM
Price
N/A
171
WIRE NUT P3
Price
N/A
172
*DISCD*CORD CONNECTOR
Item is no longer available
Price
N/A
173
RUBBER BUMPER
Item is no longer available
Price
N/A
174
SET BOLT M7-1 X 10 NYLON
Item is no longer available
Price
N/A
175
SPACER NYLON
Item is no longer available
Price
N/A
176
CAP SCREW M10-1.5 X 35
Price
N/A
177
LOCK WASHER 10MM
Price
N/A
178
FLAT WASHER 10MM
Price
N/A
179
BUTTON HD CAP SCR M8-1.25 X 30
Price
N/A
180
LOCK WASHER 8MM
Price
N/A
181
FLAT WASHER 8MM
Price
N/A
182
POWER CORD 14G 3W 6-15
Price
N/A
201
MODEL NUMBER LABEL
Price
$10.80
202
Nameplate - Large
Price
N/A
203
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
204
DONT OPEN 2W X 3.3H
Price
N/A
205
SCALE DIRECTIONS LABEL
Price
N/A
206
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
207
ELECTRICITY 1.4W X 1.2H
Price
N/A
208
BANDSAW BLADE 2W X 3.3H V1.07.02
Price
N/A
209
BS MOVING/ADJUST 2W X 3.3H
Price
N/A
210
N/S GRIZZLY GREEN G1023S
Price
N/A
211
Extreme Series Nameplate
Price
N/A
212
GREY PUTTY REF G0504
Price
N/A
213
UNPLUG BANDSAW 2W X 3.3H
Price
N/A
214
DONT OPEN 2W X 3.3H
Price
N/A
215
TENSION ADJ LABEL
Price
N/A
216
MACHINE ID LABEL
Price
$16.40
65
PLASTIC SET SCREW
Price
N/A
MAN
MANUAL G0514X-X3 MFG 01/06-04/09 V1
Price
N/A
MANV2
MANUAL G0514X-X3 MFG 05/09-1/11 V2.04.09
Price
N/A
MANV3
MANUAL G0514X-X3 MFG 02/11-1/12 V3.09.11
Price
N/A
MANV4
MANUAL G0514X-X3 MFG 02/12 V4.02.12
Price
N/A
