Parts for G0516 - Combo Lathe w/ Milling Attachment

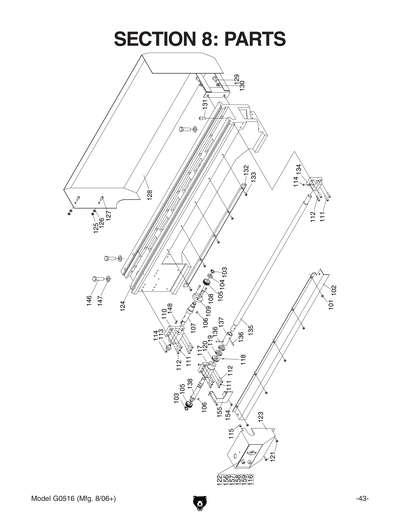

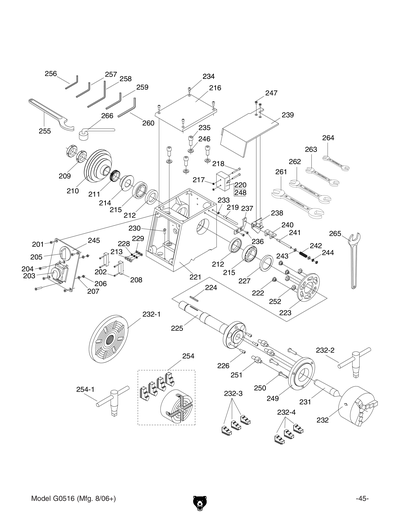

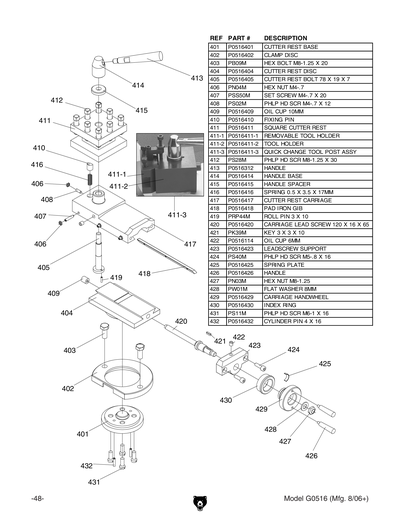

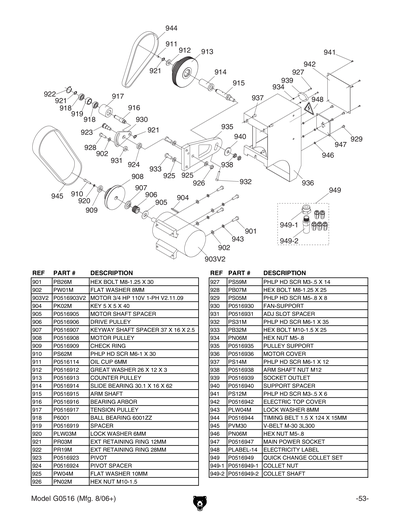

Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516
Part Diagram for G0516

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

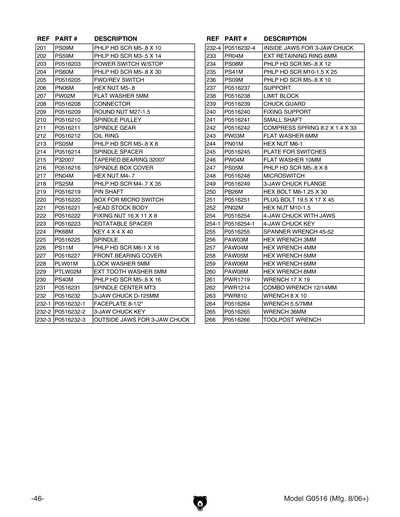

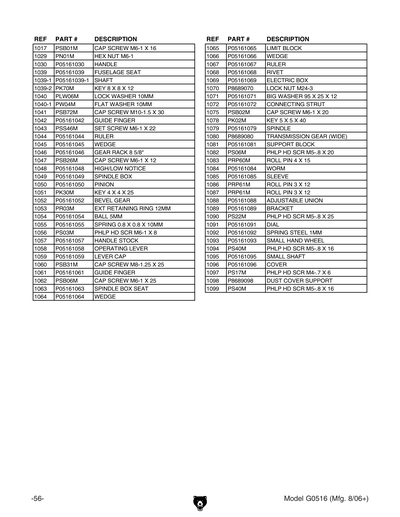

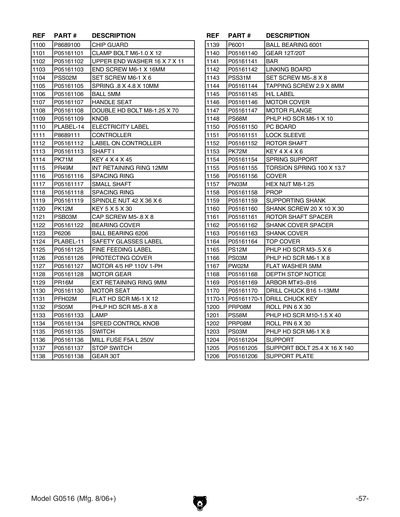

Ref #
Part #
Description
17
PHLP HD SCR M5-.8 X 10
Price
N/A
101
PHLP HD SCR M5-.8 X 8
Price
N/A
1017
CAP SCREW M6-1 X 16
Price
N/A
102
LEADSCREW COVER
Item is no longer available
Price
N/A
1029
HEX NUT M6-1
Price
N/A
103
EXT RETAINING RING 14MM
Price
N/A
1030
HANDLE
Price
$4.65
1039
FUSELAGE SEAT
Price
$10.45
1039-1
SHAFT
Price
$4.35
1039-2
KEY 8 X 8 X 12
Price
N/A
104
CHANGE GEAR SPACER
Price
$2.70
1040
LOCK WASHER 10MM
Price
N/A
1040-1
FLAT WASHER 10MM
Price
N/A
1041
CAP SCREW M10-1.5 X 30
Price
N/A
1042
GUIDE FINGER
Item is no longer available
Price
N/A
1043
SET SCREW M6-1 X 22
Price
N/A
1044
*DISCD*RULER
Item is no longer available
Price
N/A
1045
WEDGE
Price
$1.90
1046
GEAR RACK 8-5/8"
Price
$5.10
1047
CAP SCREW M6-1 X 12
Price
N/A
1048
HIGH/LOW NOTICE
Price
$1.49
1049
SPINDLE BOX
Item is no longer available
Price
N/A
105
GEAR SMALL
Price
$5.15
1050
PINION
Price
$4.00
1051
KEY 4 X 4 X 25
Price
N/A
1052
BEVEL GEAR
Price
$5.10
1053
EXT RETAINING RING 12MM
Price
N/A
1054
BALL 5MM
Item is no longer available
Price
N/A
1055
SPRING 0.8 X 0.8 X 10MM
Item is no longer available
Price
N/A
1056
PHLP HD SCR M6-1 X 8
Price
N/A
1057
HANDLE STOCK
Item is no longer available
Price
N/A
1058
OPERATING LEVER
Price
$1.90
1059
LEVER CAP
Price
$1.90
106
KEY 4 X 4 X 8
Price
N/A
1060
CAP SCREW M8-1.25 X 25
Price
N/A
1061
GUIDE FINGER
Item is no longer available
Price
N/A
1062
CAP SCREW M6-1 X 25
Price
N/A
1063
*DISCD*SPINDLE BOX SEAT
Item is no longer available
Price
N/A
1064
WEDGE
Price
$1.90
1065
LIMIT BLOCK
Price
$3.75
1066
WEDGE
Price
$1.90
1067
RULER
Price
$1.75
1068
SPINDLE BOX COLUMN
Item is no longer available
Price
N/A
1069
ELECTRIC BOX
Price
$5.20
1069-1
SCREEN FOR ELECTRICAL BOX
Price
$1.90
107
CHANGE GEAR SHAFT
Item is no longer available
Price
N/A
1070
LOCK NUT M24-3
Price
N/A
1071
BELLEVILLE WASHER 24MM BLACK
Price
$2.35
1072
CONNECTING STRUT
Price
$7.80
1075
CAP SCREW M6-1 X 20
Price
N/A
1078
KEY 5 X 5 X 40
Price
N/A
1079
SPINDLE
Price
$21.60
108
PHLP HD SCR M4-.7 X 16
Price
N/A
1080
TRANSMISSION GEAR WIDE
Price
N/A
1081
SUPPORT BLOCK
Item is no longer available
Price
N/A
1082
PHLP HD SCR M5-.8 X 20
Price
N/A
1083
ROLL PIN 4 X 15
Price
N/A
1084
WORM
Price
$3.65
1085
SLEEVE
Item is no longer available
Price
N/A
1086
ROLL PIN 3 X 12
Price
N/A
1087
ROLL PIN 3 X 12
Price
N/A
1088
ADJUSTABLE UNION
Price
N/A
1089
BRACKET
Price
$1.49
109
ADJUSTING DISC
Price
$2.05
1090
PHLP HD SCR M5-.8 X 25
Price
N/A
1091
DIAL
Item is no longer available
Price
N/A
1092
SPRING STEEL 1MM
Item is no longer available
Price
N/A
1093
HANDWHEEL SMALL
Item is no longer available
Price
N/A
1094
PHLP HD SCR M5-.8 X 16
Price
N/A
1095
SHAFT SMALL
Item is no longer available
Price
N/A
1096
COVER
Item is no longer available
Price
N/A
1097
PHLP HD SCR M4-.7 X 6
Price
N/A
1098
DUST COVER SUPPORT
Price
N/A
1099
PHLP HD SCR M5-.8 X 16
Price
N/A
110
SHAFT SUPPORT
Item is no longer available
Price
N/A
1100
CHIP GUARD
Price
N/A
1101
KNURLED SCREW M6-1 X 12
Price
N/A
1102
DOCK WASHER 6MM PLASTIC
Item is no longer available
Price
N/A
1103
END SCREW M6-1 X 16MM
Item is no longer available
Price
N/A
1104
SET SCREW M6-1 X 6
Price
N/A
1105
SPRING .8 X 4.8 X 10MM
Item is no longer available
Price
N/A
1106
BALL 5MM
Price
N/A
1107
HANDLE SEAT
Price
$2.05
1108
DOUBLE HD BOLT M8-1.25 X 70
Item is no longer available
Price
N/A
1109
KNOB
Item is no longer available
Price
N/A
111
TAPER PIN 6 X 26
Price
$1.90
1110
ELECTRICITY 1.4W X 1.2H
Price
N/A
1111
CONTROLLER BOX W/ELECTRICAL
Price
N/A
1112
LABEL ON CONTROLLER
Item is no longer available
Price
N/A
1113
SHAFT I
Price
$2.20
1114
KEY 4 X 4 X 45
Price
N/A
1115
INT RETAINING RING 12MM
Price
N/A
1116
SPACER RING
Price
$1.90
1117
SHAFT SMALL
Price
$1.49
1118
SPACER RING
Price
$2.90
1119
SPINDLE NUT
Price
N/A
112
PHLP HD SCR M5-.8 X 20
Price
N/A
1120
KEY 5 X 5 X 30
Price
N/A
1121
CAP SCREW M5-.8 X 8
Price
N/A
1122
BEARING COVER
Price
$1.49
1123
BALL BEARING 6206ZZ
Price
N/A
1124
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
1125
FINE FEEDING LABEL
Price
$1.00
1126
PROTECTING COVER
Price
$1.90
1127
MOTOR 350W 110V 1-PH
Price
$176.50
1128
MOTOR GEAR
Price
$3.25
1129
EXT RETAINING RING 9MM
Price
N/A
113
SHOULDER BOLT 21 X 8 X 25
Price
$2.20
1130
MOTOR SEAT
Item is no longer available
Price
N/A
1131
FLAT HD SCR M6-1 X 12
Price
N/A
1132
PHLP HD SCR M5-.8 X 8
Price
N/A
1133
LAMP
Price
$1.49
1134
SPEED KNOB W/ POTENTIOMETER F4K7 WH24-2
Price
$14.25
1135
LIGHT GREEN
Item is no longer available
Price
N/A
1136
MILL FUSE F5AL250V
Price
$1.90
1136-1
LATHE FUSE HOLDER
Price
$1.49
1136A
MILL FUSE F5AL250V
Price
N/A
1136A-1
MILL FUSE HOLDER
Price
$4.00
1137
E-STOP BUTTON KEDU 02A1131
Price
$3.25
1138
GEAR 30T
Price
$1.90
1139
BALL BEARING 6001ZZ
Price
N/A
114
OIL CUP 6MM
Price
$1.90
1140
GEAR 12T/20T
Price
$3.75
1141
BAR
Price
$1.90
1142
LINKING BOARD
Item is no longer available
Price
N/A
1143
SET SCREW M5-.8 X 8
Price
N/A
1144
TAPPING SCREW 2.9 X 8MM
Item is no longer available
Price
N/A
1145
LABEL H/L
Price
$1.00
1146
MOTOR COVER
Price
$1.90
1147
MOTOR FLANGE
Price
$3.25
1148
PHLP HD SCR M6-1 X 10
Price
N/A
1149
WARNING LABEL
Price
$1.00
115
BLOCK FOR SWITCH
Price
$1.49
1150
PC BOARD
Price
N/A
1151
LOCK SLEEVE
Item is no longer available
Price
N/A
1152
ROTOR SHAFT
Item is no longer available
Price
N/A
1153
KEY 4 X 4 X 6
Price
N/A
1154
SPRING SUPPORT
Item is no longer available
Price
N/A
1155
TORSION SPRING 100 X 13.7
Item is no longer available
Price
N/A
1156
COVER
Item is no longer available
Price
N/A
1157
HEX NUT M8-1.25
Price
N/A
1158
PROP
Item is no longer available
Price
N/A
1159
SUPPORTING SHANK
Item is no longer available
Price
N/A
116
PHLP HD SCR M4-.7 X 8
Price
N/A
1160
SHANK SCREW 20 X 10 X 30
Price
$1.90
1161
ROTOR SHAFT SPACER
Item is no longer available
Price
N/A
1162
SHANK COVER SPACER
Item is no longer available
Price
N/A
1163
SHANK COVER
Item is no longer available
Price
N/A
1164
COVER TOP
Price
$3.75
1165
PHLP HD SCR M3-.5 X 6
Price
N/A
1166
PHLP HD SCR M6-1 X 8
Price
N/A
1167
FLAT WASHER 5MM
Price
N/A
1168
DEPTH STOP NOTICE
Price
$1.49
1169
DRILL CHUCK ARBOR MT3 X JT33, 110MM L
Price
N/A
117
LEADSCREW SUPPORT L
Price
$8.35
1170
DRILL CHUCK B16 1-13MM
Item is no longer available
Price
N/A
1170-1
DRL CHK KEY 7.92MM TH 11T SD-16.2MM
Price
N/A
118
PHLP HD SCR M4-.7 X 8
Price
N/A
119
ROUND NUT M16 X 1.5
Item is no longer available
Price
N/A
11A
SQUARE CUTTER REST
Price
N/A
120
STEEL WASHER 30 X 16 X 4
Price
$1.90
1200
ROLL PIN 6 X 30
Price
N/A
1201
PHLP HD SCR M10-1.5 X 40
Price
N/A
1202
ROLL PIN 6 X 30
Price
N/A
1203
PHLP HD SCR M6-1 X 8
Price
N/A
1204
SUPPORT
Price
$23.40
1205
SUPPORT BOLT 25.4 X 16 X 140
Price
$3.65
1206
SUPPORT PLATE
Price
$4.00
1207
MILL POWER CORD
Item is no longer available
Price
N/A
121
PHLP HD SCR M5-.8 X 14
Price
N/A
122
SWITCH LABEL
Item is no longer available
Price
N/A
123
SHAFT COVER
Price
$4.35
124
BED
Price
$213.90
125
HEX NUT M6-1
Price
N/A
126
FLAT WASHER 6MM
Price
N/A
127
HEX BOLT M6-1 X 10
Price
N/A
128
*DISCD*SPLASH GUARD
Item is no longer available
Price
N/A
129
PHLP HD SCR M8-1.25 X 16
Price
N/A
130
FLAT WASHER 8MM
Price
N/A
1301
MACHINE ID LABEL
Price
N/A
1302
GEAR CHANGE LABEL V2.03.08
Price
N/A
1303
FEED SPEED LABEL
Price
$1.25
1304
THREADING 13TPI LABEL
Price
$1.25
1305
FWD/REV LABEL
Item is no longer available
Price
N/A
1306
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
1307
MILL CONTROLS LABEL
Item is no longer available
Price
N/A
1308
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
1309
GRIZZLY LABEL OVAL PLASTIC 3.6W X 1H
Price
N/A
131
PHLP HD SCR M8-1.25 X 20
Price
N/A
1310
DEPTH STOP NOTICE
Price
N/A
1311
MM CONVERSION CHART 3.6W X 5.5H
Price
N/A
1312
CARRIAGE FEED NOTICE
Price
N/A
1313
HIGH/LOW NOTICE
Price
N/A
1314
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
1315
LATHE/MILL LABEL
Price
$1.25
1316
ELECTRICITY 1.4W X 1.2H
Price
N/A
1317
LATHE CONTROLS LABEL
Item is no longer available
Price
N/A
132
RACK
Price
$19.20
133
PHLP HD SCR M5-.8 X 12
Price
N/A
134
LEADSCREW SUPPORT R
Price
$5.75
135
LEADSCREW LONG14 X 16 X 79.2
Price
$22.70
136
ROLL PIN 4 X 25
Price
N/A
137
SLEEVE JOINT
Price
$2.20
138
JOINT SHAFT
Price
$4.70
139
ROLL PIN 6 X 30
Price
N/A
140
ROLL PIN 6 X 45
Price
N/A
141
ROLL PIN 6 X 30
Price
N/A
142
PHLP HD SCR M6-1 X 8
Price
N/A
143
SUPPORT
Price
N/A
144
SUPPORT BOLT 25.4 X 16 X 140
Price
N/A
145
SUPPORT PLATE
Price
N/A
146
HEX BOLT M12-1.75 X 40
Price
N/A
147
FLAT WASHER 12MM
Price
N/A
148
KEY 4 X 4 X 16
Price
N/A
154
PHLP HD SCR M4-.7 X 16
Price
N/A
155
GEAR PROTECTOR SMALL
Price
$1.49
156
*DISCD*LAMP GREEN
Item is no longer available
Price
N/A
157
FUSE BOX
Price
$1.90
158
*DISCD*LATHE FUSE F25A 250V V1
Item is no longer available
Price
N/A
158V2
LATHE FUSE 250V 20A SLOW-BLOW
Price
$1.85
159
*DISCD*ROTARY SWITCH (3-POS) V1
Item is no longer available
Price
N/A
159V2
ROTARY SWITCH (3-POS) V2.01.03
Price
$19.90
201
PHLP HD SCR M5-.8 X 10
Price
N/A
202
PHLP HD SCR M3-.5 X 14
Price
N/A
203
*DISCD*E-STOP BUTTON W/ON-OFF KEDU JD3
Item is no longer available
Price
N/A
204
PHLP HD SCR M5-.8 X 30
Price
N/A
205
FWD/REV SWITCH
Price
$23.10
206
HEX NUT M5-.8
Price
N/A
207
FLAT WASHER 5MM
Price
N/A
208
CONNECTOR
Price
$1.90
209
ROUND NUT M27 X 1.5
Price
$3.10
210
*DISCD*SPINDLE PULLEY
Item is no longer available
Price
N/A
211
SPINDLE GEAR
Price
$7.50
212
O-RING
Price
$3.45
213
PHLP HD SCR M5-.8 X 8
Price
N/A
214
SPINDLE SPACER
Price
$3.65
215
TAPER ROLLER BEARING 32007
Price
N/A
216
SPINDLE BOX COVER
Price
$9.75
217
HEX NUT M4-.7
Price
N/A
218
PHLP HD SCR M4-.7 X 35
Price
N/A
219
PIN SHAFT
Price
$1.49
220
BOX FOR MICRO SWITCH
Price
$1.49
221
*DISCD*HEADSTOCK BODY W/LIP FOR PLATE V1
Item is no longer available
Price
N/A
221V2
HEADSTCK BODY W/O LIP FOR PLATE V2.09.10
Item is no longer available
Price
N/A
222
FIXING NUT 16 X 11 X 8
Price
$1.90
223
ROTATABLE SPACER
Price
$9.85
224
KEY 4 X 4 X 40
Price
N/A
225
SPINDLE
Item is no longer available
Price
N/A
226
PHLP HD SCR M6-1 X 16
Price
N/A
227
BEARING COVER FRONT
Price
$1.90
228
LOCK WASHER 5MM
Price
N/A
229
EXT TOOTH WASHER 5MM
Price
N/A
230
PHLP HD SCR M5-.8 X 16
Price
N/A
231
SPINDLE CENTER MT3
Price
$11.40
232
CHUCK 3-JAW D-125MM
Item is no longer available
Price
N/A
232-1
FACEPLATE 8-1/2"
Price
$60.10
232-2
CHUCK 3-JAW KEY
Price
$14.35
232-3
CHUCK 3-JAW OUTSIDE JAWS
Price
$59.70
232-4
*DISCD*CHUCK 3-JAW INSIDE JAWS
Item is no longer available
Price
N/A
233
EXT RETAINING RING 6MM
Price
N/A
234
PHLP HD SCR M5-.8 X 12
Price
N/A
235
PHLP HD SCR M10-1.5 X 25
Price
N/A
236
PHLP HD SCR M5-.8 X 10
Price
N/A
237
SUPPORT
Price
$1.90
238
LIMIT BLOCK
Price
$3.00
239
CHUCK GUARD
Price
$14.25
240
FIXING SUPPORT
Price
$4.60
241
SHAFT SMALL
Price
$1.90
242
COMPRESS SPRING 8.2 X 1.4 X 33
Price
$1.90
243
FLAT WASHER 6MM
Price
N/A
244
HEX NUT M6-1
Price
N/A
245
*DISCD*PLATE FOR SWITCHES W/O LIP V1
Item is no longer available
Price
N/A
245V2
PLATE FOR SWITCHES W/LIP V2.09.10
Item is no longer available
Price
N/A
246
FLAT WASHER 10MM
Price
N/A
247
PHLP HD SCR M5-.8 X 8
Price
N/A
248
MICRO SWITCH
Price
$4.90
249
CHUCK 3-JAW FLANGE
Price
$24.15
250
HEX BOLT M8-1.25 X 30
Price
N/A
251
PLUG BOLT 19.5 X 17 X 45
Price
$8.35
252
ROTATABLE SPACER HEX NUT M10-1.5
Price
$1.90
253
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
254
CHUCK 4-JAW W/JAWS
Price
$230.75
254-1
CHUCK 4-JAW KEY
Price
$10.25
255
SPANNER WRENCH 45-52
Item is no longer available
Price
N/A
256
HEX WRENCH 3MM
Price
N/A
257
HEX WRENCH 4MM
Price
N/A
258
HEX WRENCH 5MM
Price
N/A
259
HEX WRENCH 6MM
Price
N/A
260
HEX WRENCH 8MM
Price
N/A
261
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
262
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
263
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
264
WRENCH 5.5/7MM
Price
$3.25
265
WRENCH 36MM
Item is no longer available
Price
N/A
266
TOOL POST WRENCH
Price
$4.35

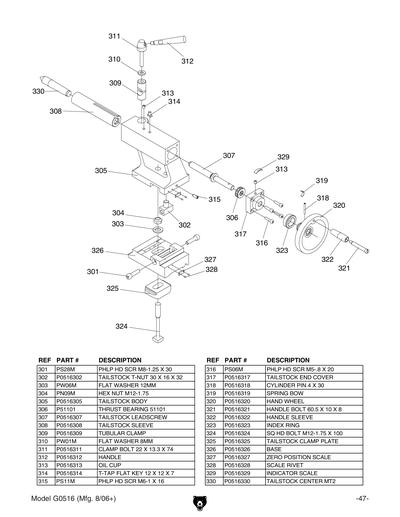

301
CAP SCREW M8-1.25 X 30
Price
N/A
302
TAILSTOCK T-NUT 30 X 16 X 32
Price
$4.00
303
FLAT WASHER 12MM
Price
N/A
304
HEX NUT M12-1.75
Price
N/A
305
TAILSTOCK BODY
Price
$43.50
306
THRUST BEARING 51101
Price
N/A
307
TAILSTOCK LEADSCREW
Price
$6.15
308
TAILSTOCK SLEEVE
Price
$21.60
309
TUBULAR CLAMP
Price
$4.35
310
FLAT WASHER 8MM
Price
N/A
311
CLAMP BOLT 22 X 13.3 X 74
Price
$1.90
312
HANDLE
Price
$6.90
313
OIL CUP
Price
$1.90
314
T-TAP FLAT KEY 12 X 12 X 7
Price
$2.20
315
PHLP HD SCR M6-1 X 16
Price
N/A
316
PHLP HD SCR M5-.8 X 20
Price
N/A
317
TAILSTOCK END COVER
Price
$13.60
318
CYLINDER PIN 4 X 30
Price
$1.90
319
SPRING BOW
Price
$2.65
320
HAND WHEEL
Price
$5.10
321
HANDLE BOLT 60.5 X 10 X 8
Price
N/A
322
HANDLE SLEEVE
Price
$1.90
323
INDEX RING
Price
$4.00
324
SQ HD BOLT M12-1.75 X 100
Price
$1.90
325
TAILSTOCK CLAMP PLATE
Price
$3.20
326
BASE
Price
$17.65
327
ZERO POSITION SCALE
Price
$1.90
328
RIVET 2 X 4MM NAMEPLATE, STEEL
Price
N/A
329
INDICATOR SCALE
Price
$1.90
330
TAILSTOCK CENTER MT2
Item is no longer available
Price
N/A
401
CUTTER REST BASE
Price
$9.40
402
CLAMP DISC
Price
$9.40
403
HEX BOLT M8-1.25 X 20
Price
N/A
403A
T-NUT M8 X 20
Item is no longer available
Price
N/A
404
CUTTER REST DISC
Price
$33.00
405
CUTTER REST BOLT 78 X 19 X 7
Price
$4.35
406
HEX NUT M4-.7
Price
N/A
407
*DISCD*SET SCREW M4-.7 X 20
Item is no longer available
Price
N/A
408
PHLP HD SCR M4-.7 X 12
Price
N/A
409
OIL CUP 10MM
Price
$1.90
410
FIXING PIN
Price
$1.90
411
SQUARE CUTTER REST
Price
$48.60
411-1
*DISCD*REMOVABLE TOOL HOLDER
Item is no longer available
Price
N/A
411-2
TOOL HOLDER
Price
$46.40
411-3
*DISCD*QUICK CHANGE TOOL POST ASSY
Item is no longer available
Price
N/A
412
PHLP HD SCR M8-1.25 X 30
Price
N/A
413
HANDLE
Price
N/A
414
HANDLE BASE
Price
$6.00
415
HANDLE SPACER
Price
$1.90
416
SPRING 0.5 X 3.5 X 17MM
Price
$1.90
417
CUTTER REST CARRIAGE
Price
$35.90
418
PAD IRON GIB
Price
$2.65
419
ROLL PIN 3 X 10
Price
N/A
420
CARRIAGE LEAD SCREW 120 X 16 X 65
Price
$5.45
421
KEY 3 X 3 X 10
Price
N/A
422
OIL CUP 6MM
Price
N/A
423
LEADSCREW SUPPORT
Price
$11.40
424
PHLP HD SCR M5-.8 X 16
Price
N/A
425
SPRING PLATE
Price
$1.90
426
HANDLE
Price
$3.45
427
HEX NUT M8-1.25
Price
N/A
428
FLAT WASHER 8MM
Price
N/A
429
CARRIAGE HANDWHEEL
Price
$9.15
430
INDEX RING
Price
$3.25
431
*DISCD*SPECIAL BOLT
Price
$1.49
432
CYLINDER PIN 4 X 16
Price
$1.90

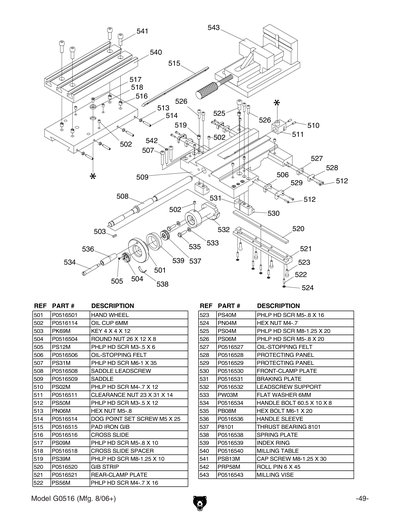

501
HAND WHEEL
Price
$5.45
502
OIL CUP 6MM
Price
N/A
503
KEY 4 X 4 X 12
Price
N/A
504
*DISCD*ROUND NUT 26 X 12 X 8
Item is no longer available
Price
N/A
505
PHLP HD SCR M3-.5 X 6
Price
N/A
506
OIL STOPPING FELT
Price
$1.90
507
PHLP HD SCR M6-1 X 35
Price
N/A
508
SADDLE LEADSCREW
Price
$6.90
509
*DISCD*SADDLE
Item is no longer available
Price
N/A
510
PHLP HD SCR M4-.7 X 12
Price
N/A
511
CLEARANCE NUT 23 X 31 X 14
Price
$3.25
512
PHLP HD SCR M3-.5 X 12
Price
N/A
513
HEX NUT M5-.8
Price
N/A
514
MILLING TABLE SET SCREW M5-.8
Price
$1.90
515
PAD IRON GIB
Price
$2.20
516
CROSS SLIDE
Price
$58.45
517
PHLP HD SCR M5-.8 X 10
Price
N/A
518
CROSS SLIDE SPACER
Price
$1.90
519
PHLP HD SCR M8-1.25 X 10
Price
N/A
520
GIB STRIP
Price
$1.90
521
CLAMP PLATE REAR
Price
$19.15
522
PHLP HD SCR M4-.7 X 16
Price
N/A
523
PHLP HD SCR M5-.8 X 16
Price
N/A
524
HEX NUT M4-.7
Price
N/A
525
PHLP HD SCR M8-1.25 X 20
Price
N/A
526
PHLP HD SCR M5-.8 X 20
Price
N/A
527
OIL STOPPING FELT
Price
$1.90
528
PROTECTING PANEL
Price
$1.90
529
PROTECTING PANEL
Item is no longer available
Price
N/A
530
CLAMP PLATE FRONT
Price
$1.90
531
BRAKE PLATE
Price
$1.90
532
LEADSCREW SUPPORT
Price
$8.65
533
FLAT WASHER 6MM
Price
N/A
534
HANDLE BOLT 60.5 X 10 X 8
Price
$1.90
535
HEX BOLT M6-1 X 20
Price
N/A
536
HANDLE SLEEVE
Price
$1.90
537
THRUST BEARING 8101
Price
N/A
538
SPRING PLATE
Price
$1.90
539
INDEX RING
Price
$8.10
540
MILLING TABLE
Price
$79.85
541
CAP SCREW M8-1.25 X 30
Price
N/A
542
ROLL PIN 6 X 45
Price
N/A
543
MILLING VISE
Price
$120.60

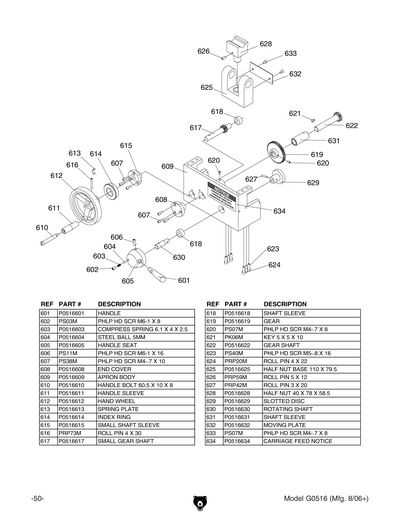

601
HANDLE
Price
$1.90
602
PHLP HD SCR M6-1 X 8
Price
N/A
603
COMPRESS SPRING 6.1 X 4 X 2.5
Price
$1.90
604
STEEL BALL 5MM
Price
N/A
605
HANDLE SEAT
Price
$5.45
606
PHLP HD SCR M6-1 X 16
Price
N/A
607
PHLP HD SCR M4-.7 X 10
Price
N/A
608
END COVER
Price
$4.35
609
APRON BODY
Price
$25.20
610
HANDLE BOLT 60.5 X 10 X 8
Price
N/A
611
HANDLE SLEEVE
Price
$1.90
612
HAND WHEEL
Price
$5.10
613
SPRING PLATE
Price
$1.90
614
INDEX RING
Price
$3.25
615
SHAFT SLEEVE SMALL
Price
$3.25
616
SPRING PIN 4 X 30
Price
$1.90
617
GEAR SHAFT SMALL
Price
$3.65
618
SHAFT SLEEVE
Price
$1.90
619
GEAR
Price
$4.70
620
PHLP HD SCR M4-.7 X 8
Price
N/A
621
KEY 5 X 5 X 10
Price
N/A
622
GEAR SHAFT
Price
$5.10
623
PHLP HD SCR M5-.8 X 16
Price
N/A
624
ROLL PIN 4 X 22
Price
N/A
625
HALF NUT BASE 110 X 79.5
Price
$13.70
626
ROLL PIN 5 X 12
Price
N/A
627
ROLL PIN 3 X 20
Price
N/A
628
HALF NUT 40 X 78 X 58.5
Price
$25.20
629
SLOTTED DISC
Price
$4.35
630
ROTATING SHAFT
Price
$1.90
631
SHAFT SLEEVE
Price
$2.20
632
MOVING PLATE
Price
$1.90
633
PHLP HD SCR M4-.7 X 8
Price
N/A
634
CARRIAGE FEED NOTICE
Price
$1.90
801
GEAR Z72T
Price
$9.15
802
GEAR Z70T
Price
$8.90
803
GEAR Z68T
Price
$8.10
804
GEAR Z66T
Price
$7.90
805
GEAR Z60T
Price
$7.15
806
GEAR Z50T
Price
$6.75
807
GEAR Z48T
Price
$6.60
808
GEAR Z45T
Price
$6.00
809
GEAR Z90T
Price
$22.60
810
PIVOT SHAFT SPACER
Price
$2.15
811
KNURLING BOLT 20 X 5 X 23
Price
$1.49
812
*DISCD*DRIVE/GEARBOX COVER V1
Item is no longer available
Price
N/A
812V2
DRIVE/GEARBOX COVER V2.08.16
Item is no longer available
Price
N/A
813
GEAR Z30T
Price
$3.75
815
ADJUSTABLE SHAFT
Price
$1.90
816
HEX NUT M12-1.75
Price
N/A
817
OIL CUP 6MM
Price
N/A
818
GEAR Z80T
Price
$19.20
819
GEAR Z35T
Price
$8.60
820
LOCK WASHER 3MM
Price
$1.90
821
BALL BEARING 6001ZZ
Price
N/A
822
GEAR 40T (STEEL) V1
Price
$2.90
822V2
GEAR 40T (POM) V2.04.17
Price
$5.50
823
EXT RETAINING RING 12MM
Price
N/A
824
SHAFT SPACER FRONT
Price
$1.90
825
FIXED SHAFT BOLT 30 X 10 X 41
Price
$3.20
826
SHAFT SPACER REAR
Price
$1.90
827
HINGE SUPPORT PLATE V1
Price
$13.80
827V2
HINGE SUPPORT PLATE V2.08.16
Item is no longer available
Price
N/A
828
KEYED GEAR 40T
Price
$3.65
829
FLAT WASHER 8MM
Price
N/A
830
HEX BOLT M8-1.25 X 16
Price
N/A
831
SLIDING BEARING 16 X 9 X 20
Price
$3.35
832
ADJUST SHAFT SPACER
Price
$3.10
833
GEAR REST
Price
$7.60
834
ADJUST SHAFT NUT 15 X 8 X 16
Price
$1.90
835
PHLP HD SCR M6-1 X 35
Price
N/A
836
KEY 4 X 4 X 16
Price
N/A
843
MACHINE ID LABEL
Price
$16.40
844
*DISCD*GEAR/SPEED CHANGE LABEL V1
Item is no longer available
Price
N/A
844A
GEAR CHANGE LABEL V2.03.08
Price
$1.25
845
GEAR Z75T
Price
$9.40
846
GEAR Z100
Price
$24.45
847
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
848
MM CONVERSION CHART 3.6W X 5.5H
Price
N/A
849
HEX NUT M4-.7
Price
N/A
850
PHLP HD SCR M6-1 X 4
Price
N/A
851
HINGE
Price
$1.49
852
GEAR Z65T
Price
$11.90
864
LATCH
Price
$16.95
875
CAP SCREW M6-1 X 12
Price
N/A
876
ADJUSTMENT PLATE
Item is no longer available
Price
N/A
877
HEX NUT M8-1.25
Price
N/A
878
LATCH PLATE
Item is no longer available
Price
N/A
879
STANDOFF ROD
Item is no longer available
Price
N/A
880
FLAT HD SCR M6-1 X 12
Price
N/A
881
COVER PLATE
Item is no longer available
Price
N/A
901
HEX BOLT M8-1.25 X 30
Price
N/A
902
FLAT WASHER 8MM
Price
N/A
903
MOTOR 4/5HP 110V 1-PH V2.11.09
Price
N/A
903V2
MOTOR 4/5HP 110V 1-PH V2.11.09
Price
$248.70
904
KEY 5 X 5 X 40
Price
N/A
905
MOTOR SHAFT SPACER
Price
$1.90
906
DRIVE PULLEY
Item is no longer available
Price
N/A
907
KEYWAY SHAFT SPACER 37 X 16 X 2.5
Price
$1.90
908
MOTOR PULLEY
Price
$14.75
909
CHECK RING
Price
$1.90
910
PHLP HD SCR M6-1 X 30
Price
N/A
911
OIL CUP 6MM
Price
N/A
912
GREAT WASHER 26 X 12 X 3
Price
$1.90
913
*DISCD*COUNTER PULLEY V1
Price
$21.00
913V2
COUNTER PULLEY 16MM DIA V2.09.10
Price
$21.15
914
COUNTER PULLEY 16MM DIA V2.09.10
Price
N/A
915
ARM SHAFT
Price
$3.95
916
BEARING ARBOR
Price
$1.90
917
*DISCD*TENSION PULLEY
Item is no longer available
Price
N/A
918
BALL BEARING 6001ZZ
Price
N/A
919
SPACER
Price
$1.90
920
LOCK WASHER 6MM
Price
N/A
921
EXT RETAINING RING 12MM
Price
N/A
922
EXT RETAINING RING 28MM
Price
N/A
923
PIVOT
Price
$2.20
924
PIVOT SPACER
Price
$1.90
925
FLAT WASHER 10MM
Price
N/A
926
HEX NUT M10-1.5
Price
N/A
927
PHLP HD SCR M3-.5 X 14
Price
N/A
928
HEX BOLT M8-1.25 X 25
Price
N/A
929
PHLP HD SCR M5-.8 X 8
Price
N/A
930
FAN SUPPORT
Price
$3.25
931
ADJUST SLOT SPACER
Item is no longer available
Price
N/A
932
PHLP HD SCR M6-1 X 35
Price
N/A
933
HEX BOLT M10-1.5 X 25
Price
N/A
934
HEX NUT M5-.8
Price
N/A
935
PULLEY SUPPORT
Price
$10.45
936
MOTOR COVER
Price
$9.50
937
PHLP HD SCR M6-1 X 12
Price
N/A
938
ARM SHAFT NUT M12
Item is no longer available
Price
N/A
939
SOCKET OUTLET
Price
$1.90
940
SUPPORT SPACER
Item is no longer available
Price
N/A
941
PHLP HD SCR M3-.5 X 6
Price
N/A
942
ELECTRIC TOP COVER
Price
$1.49
943
LOCK WASHER 8MM
Price
N/A
944
TIMING BELT 1.5 X 124 X 15MM
Price
$11.35
945
V-BELT M31 3L310
Price
N/A
946
HEX NUT M5-.8
Price
N/A
947
***SEE EXT DESCRIPTION***
Item is no longer available
Price
N/A
947V2
POWER CORD MOUNT PLATE V2.08.16
Item is no longer available
Price
N/A
948
ELECTRICITY 1.4W X 1.2H
Price
N/A
949
*DISCD*QUICK CHANGE COLLET SET
Item is no longer available
Price
N/A
949-1
*DISCD*COLLET NUT
Item is no longer available
Price
N/A
949-2
COLLET SHAFT
Item is no longer available
Price
N/A
950
LATHE POWER CORD
Price
$6.70
979
POWER CORD 16G 3W 100" 5-15P
Price
$13.70
980
STRAIN RELIEF M16-1.5 TYPE-3
Item is no longer available
Price
N/A
981
CONNECTING PLATE
Price
$7.20
982
TERMINAL BAR 3P
Item is no longer available
Price
N/A
983
GROMMET SB13 14.2 X 10.5
Item is no longer available
Price
N/A
984
LOCK WASHER 5MM
Price
N/A
985
FLAT WASHER 5MM
Price
N/A
986
RING TERMINAL CONNECTOR 5MM
Item is no longer available
Price
N/A
987
EXT TOOTH WASHER 5MM
Price
N/A
BOX2
COMPLETE MILL/DRILL ATTACH BOX 2
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G0516 3/08
Price
$14.65
PS63M
PHLP HD SCR M6-1 X 4
Item is no longer available
Price
N/A
