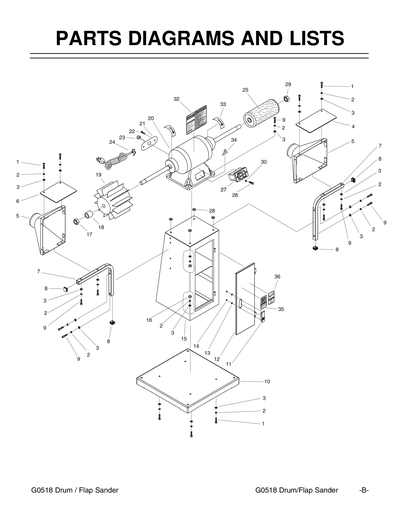

Parts for G0518 1 HP Drum / Flap Sander

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

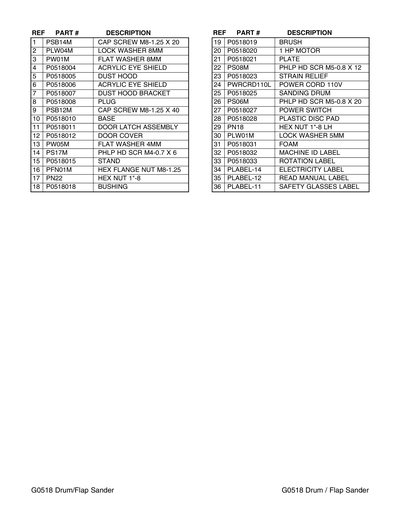

1
CAP SCREW M8-1.25 X 20
Price
N/A
2
LOCK WASHER 8MM
Price
N/A
3
Now: PW01M
FLAT WASHER 8MM
Price
N/A
4
*DISCD*ACRYLIC EYE SHIELD
5
*DISCD*DUST HOOD
6
*DISCD*ACRYLIC EYE SHIELD
Item is no longer available
Price
N/A
7
*DISCD*DUST HOOD MOUNTING BRACKET
8
*DISCD*PLUG
9
CAP SCREW M8-1.25 X 40
Price
N/A
10
*DISCD*BASE
11
*DISCD*DOOR LATCH ASSY
12
*DISCD*DOOR COVER
13
Now: PW05M
FLAT WASHER 4MM
Price
N/A
14
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
15
*DISCD*STAND/CABINET
16
FLANGE NUT M8-1.25
Price
N/A
17
Now: PN22
HEX NUT 1-8
Price
N/A
18
*DISCD*BUSHING
19
Now: H2491
Wood Brush Set for G8749
Price
N/A
19-1
*DISCD*COMPLETE FLAP SANDER ASSY
Item is no longer available
Price
N/A
19-2
*DISCD*SANDPAPER #120 12PC
19-3
*DISCD*INDIVIDUAL BRUSHES
19-4
*DISCD*INNER RETAINING RING SMALL HOLE
19-5
*DISCD*OUTER RETAINING RING LARGE HOLE
Item is no longer available
Price
N/A
19-6
*DISCD*BRUSH SPACER PLASTIC
Item is no longer available
Price
N/A
20
*DISCD*MOTOR 1HP
Item is no longer available
Price
N/A
21
*DISCD*STRAIN PLATE
22
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
23
STRAIN RELIEF M13.5 TYPE-1 SNAP-IN
Price
N/A
24
POWER CORD 16G X 3W 73"L
Price
N/A
25
*DISCD*SANDING DRUM
Item is no longer available
Price
N/A
25-1
*DISCD*SANDING DRUM COVER W/BLADDER
Item is no longer available
Price
N/A
25-2
*DISCD*SANDING DRUM COVER W/BLADDER
Price
N/A
26
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
27
*DISCD*POWER SWITCH
Item is no longer available
Price
N/A
28
*DISCD*DISC PAD PLASTIC
Item is no longer available
Price
N/A
29
Now: PN18
HEX NUT 1-8 LH
Price
N/A
30
LOCK WASHER 5MM
Price
N/A
31
*DISCD*FOAM
Item is no longer available
Price
N/A
32
*DISCD*MACHINE ID/WARNING LABEL
Item is no longer available
Price
N/A
33
*DISCD*ROTATION LABEL
34
ELECTRICITY 1.4W X 1.2H
Price
N/A
35
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
36
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A

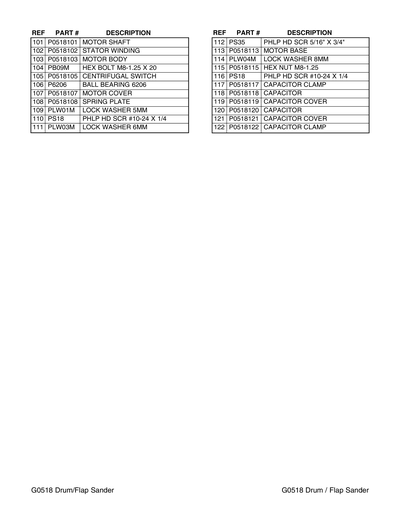

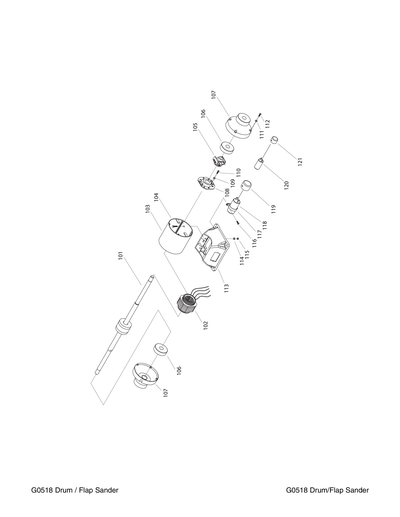

101
*DISCD*MOTOR SHAFT
Item is no longer available
Price
N/A
102
*DISCD*STATOR WINDING
Item is no longer available
Price
N/A
103
*DISCD*MOTOR BODY
Item is no longer available
Price
N/A
104
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
105
*DISCD*CENTRIFUGAL SWITCH
106
BALL BEARING 6206ZZ
Price
N/A
107
*DISCD*MOTOR COVER
108
*DISCD*SPRING PLATE
Item is no longer available
Price
N/A
109
LOCK WASHER 5MM
Price
N/A
110
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
111
LOCK WASHER 6MM
Price
N/A
112
Now: PS35
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
113
*DISCD*MOTOR BASE
Item is no longer available
Price
N/A
114
LOCK WASHER 8MM
Price
N/A
115
Now: PN03M
HEX NUT M8-1.25
Price
N/A
116
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
117
*DISCD*CAPACITOR CLAMP
Item is no longer available
Price
N/A
118
R CAPACITOR 40M 350V 1-3/4 X 3-1/2
Price
N/A
119
*DISCD*CAPACITOR COVER
Item is no longer available
Price
N/A
120
S CAPACITOR 400M 125V 2 X 3-1/2
Price
N/A
121
*DISCD*CAPACITOR COVER
Item is no longer available
Price
N/A
122
*DISCD*CAPACITOR CLAMP
Item is no longer available
Price
N/A
123
*DISCD*ARBOR WRENCH SET
Item is no longer available
Price
N/A
MANUAL
*DISCD*MANUAL FOR G0518 01/03
